FST1349 Whitworth Slider-Crank Quick-Return Mechanism Free 3D model

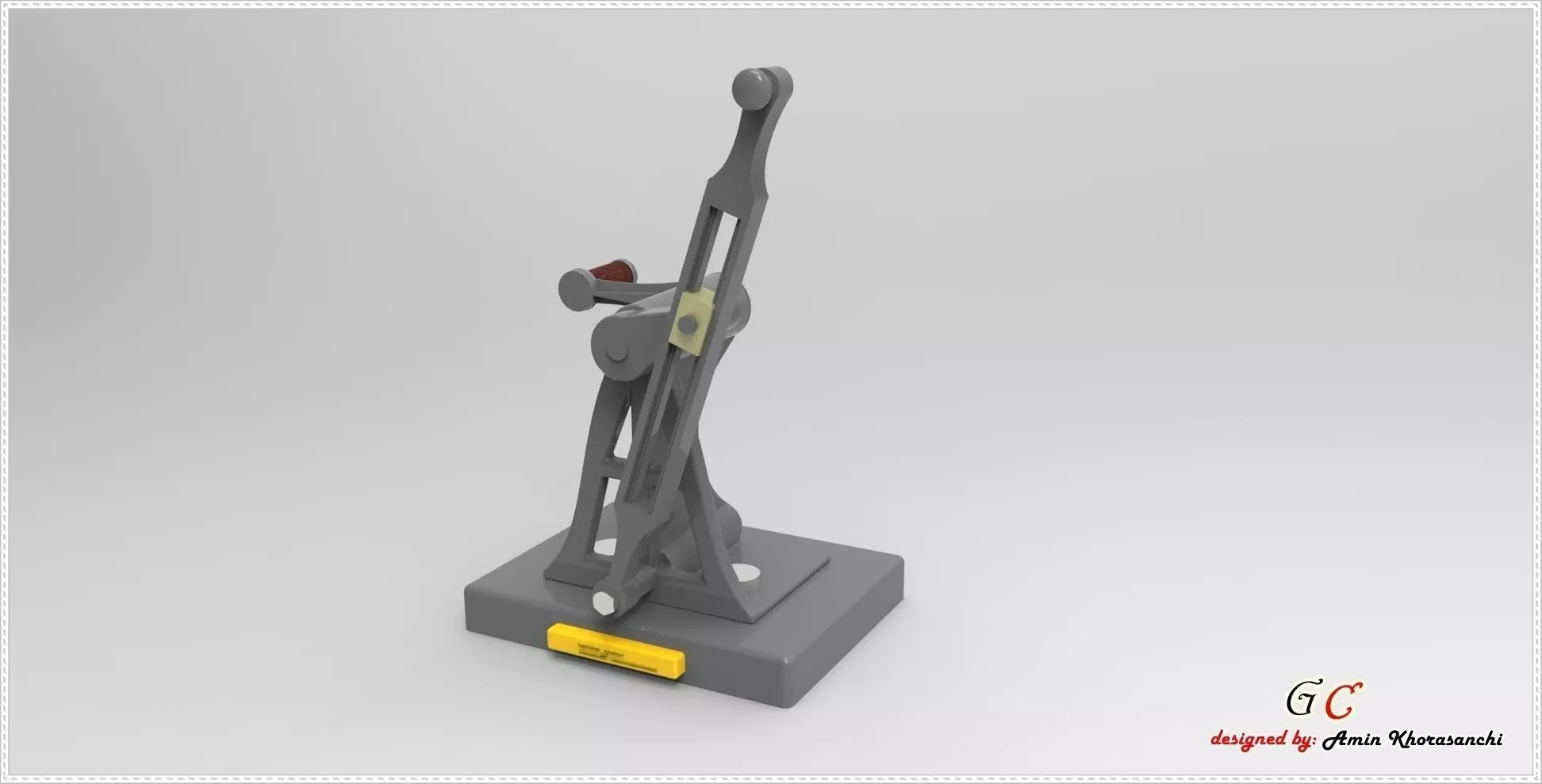

Taxonomy: SchröderGroup: LinkagesID: FST1349Title (English): Whitworth Slider-Crank, Quick-Return MechanismTitle (German): Manovellismo di Whitworth a ritorno rapidoCreator: J. SchröderDate Created: 1890-00-00Manufacturer: Polytechnischnes Arbeitsinstitut DarmstadtSize:Medium:cast iron and brass on wood pedestalRights: For educational use only. All rights reserved by the contributor(s) and publisher(s).Audience: General publicKeywords: slider-crank, quick return, WhitworthDescription: In this inversion of the slider-crank the slider guide link is made to rotate. This is called a quick-return mechanism. This linkage also converts rotary motion of the crank into oscillatory angular motion of the slider guide link. This mechanism is sometimes used in shaper machine tools for cutting metals. Joseph Whitworth was a 19th century British engineer and inventor.Descr Author: Francis MoonDescr Date: 2007-03-05
