Cyclone Preheater Cement Plant Free 3D model

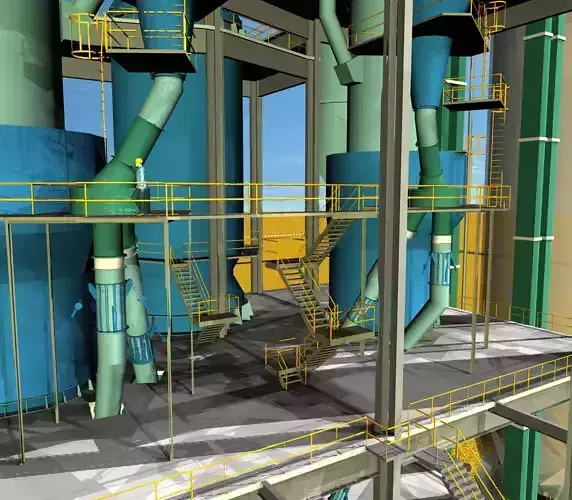

Here the Raw Meal gets preheated. It consists of 6 stages of cyclones. It is finally directed to the kiln via the dividing gate. There is also a swan neck arrangement for the gases such that the calciner can direct the hot gases to the 2 Nos. Perheater strings. The corresponding Smoke Chamber then directs the pre heated material to the kiln. The extra hot gases from the kiln are again directed to the Calciner via the Hot Air Duct.
