DESCRIPTION

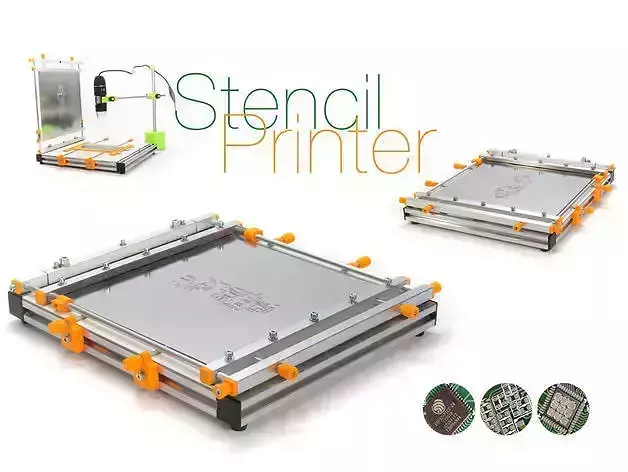

All details of the manufacture and use - see the video. Unfortunately the video did not work short :)

Materials used:

  • Aluminum Extrusion Profile 20x20 mm - http://ali.pub/34cu8s
  • Aluminum corner 20x20 mm - http://ali.pub/34cujo
  • Profile end cap 2020 mm - http://ali.pub/34cupb
  • T-Fastener Sliding Nut M3/M5 - http://ali.pub/34cute
  • Aluminium Tube Pipe 10x10x1 mm - http://ali.pub/34cuy2
  • Aluminium solid round bar rod 5mm - http://ali.pub/34cv1r
  • Lubricating Bearing Bushing 4x6x10 mm - http://ali.pub/34cv68
  • Cylindrical position pins 4x30 mm - http://ali.pub/34cvba

Galvanized iron sheet 0.8 mm - ???

  • Springs - http://ali.pub/34cvee
  • Screws/washers М3/M5 - http://ali.pub/34cvlz
  • Set screws - http://ali.pub/34dg8r
  • Insert Nuts M3 - http://ali.pub/34cvop
  • Thread Bar M3 - http://ali.pub/34cvu5
  • Thread Bar Brass M3 - http://ali.pub/34cykq
  • Strong Round Magnets 10X3 mm http://ali.pub/34cw2p
  • Rubber feet 13x10x7 mm - http://ali.pub/34cw8q
  • Glue B-7000 - http://ali.pub/34cwlr
  • Double-sided Transparent Clear Adhesive Tape 50M 5MM - http://ali.pub/34cwsy

Tools that helped to complete the project:

  • NOGA deburring tool and Blades - http://ali.pub/2z2ah5
  • Digital Microscope - http://ali.pub/329tle
  • Reamers Small - http://ali.pub/34cwvv
  • Reamers - http://ali.pub/34cx0c
  • Threading Tools - http://ali.pub/34cx3n
  • Automatic Center Pin Punch - http://ali.pub/34cx6d
  • Digital Vernier Caliper - http://ali.pub/34cx9v
  • Drill Bit HSS - http://ali.pub/34cxd6
  • Circular Saw Blades - http://ali.pub/34cxi8
  • Drill Press Stand - http://ali.pub/34cxky
  • Coordinate Table - http://ali.pub/34cxno
  • Coordinate Table with bearings - http://ali.pub/34cxqs
  • HILDA 400W - http://ali.pub/34cxuh
  • Scraper - http://ali.pub/34cxxe
  • High precision vise - http://ali.pub/34cy1o
  • Reflow Solder Oven - http://ali.pub/34cy4l
  • Press Pump Bottle - http://ali.pub/34cybe
  • Solder Paste - http://ali.pub/34cy83

You can make a printer for any stencil format. I use 190x200 mm. A little later I'll post the source
