Custom Motherboards form factor idea

Custom Motherboards form factor idea Free 3D model

Description

3D : http://goo.gl/ucENv1

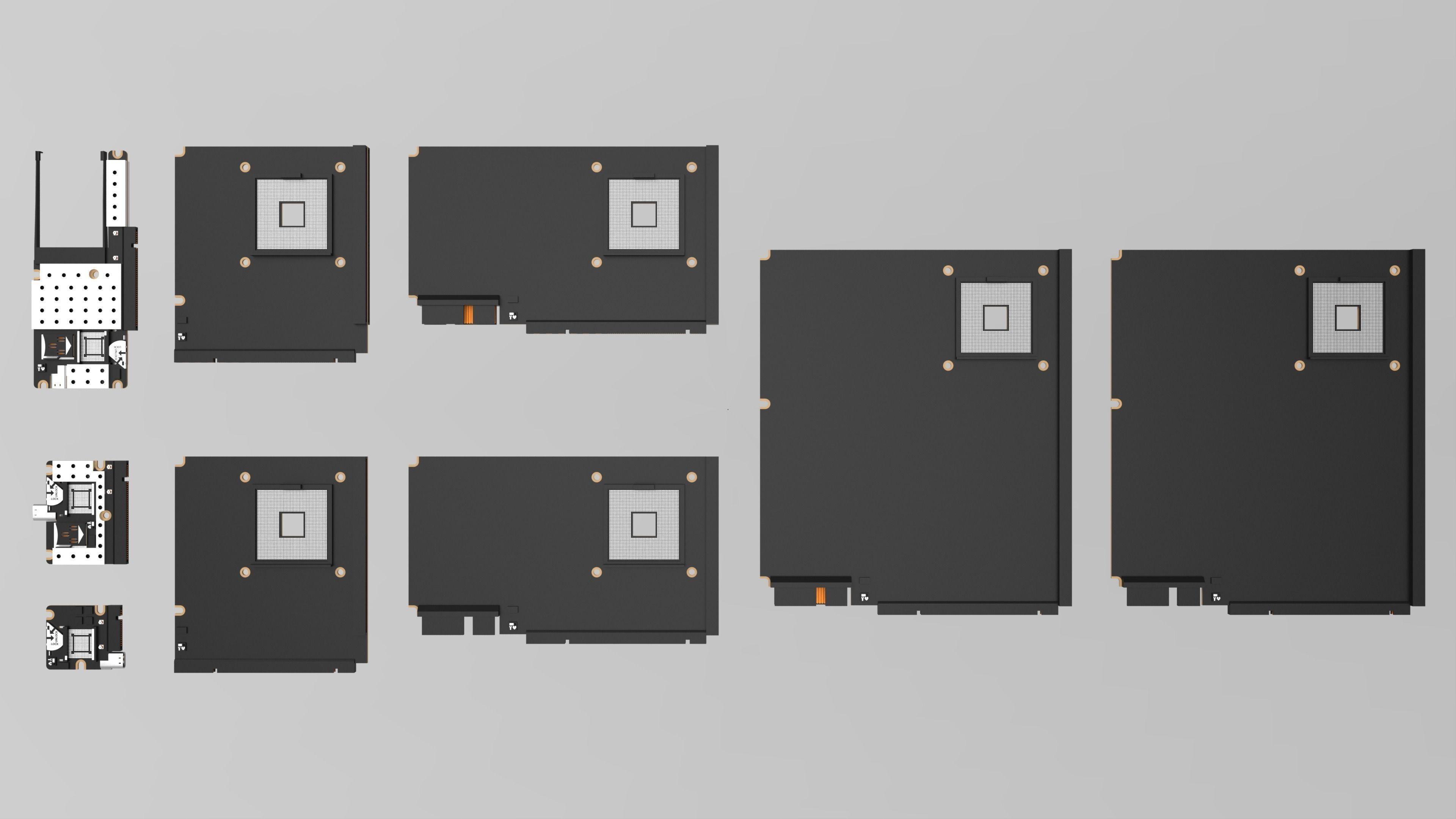

those are only form factor patterns like ATXbut here, it is for mobile, or at least smaller devices

WCM = Wearable Custom Motherboardfor smartwatches, glasses and smart objects30x31mm 4mm thick

PCM = Phone Custom Motherboardfor smartphones, cameras and HDMI dongles33x50mm 5mm thick

TCM = Tablet Custom Motherboardfor tablets, phablets, ARM laptops and multimedia boxes45x115mm 5mm thick

LCM = Laptop Custom Motherboardfor 11" or more laptop/AiO and small HTPCs90x150-285mm 6,5mm thick (9,5mm thick if DS > Dual Sided)

LLCM = Large Laptop Custom Motherboardfor 15" or more laptop/AiO and HTPCs172x150-285mm 6,5mm thick (9,5mm thick if DS > Dual Sided)

Dual sided have 2x more SO-DIMM, mPCIE, Sata and MXMbut most cases won't cool "bottom" MXM cards so "only" 2 GPUs(but some will, so up to 4 GPUs)

WCM, PCM and TCM motherboards must integrate :over > pressure, accelerometer/gyroscope, humidity, temperature sensors + GPS/compass ; RESD* card slot (not WCM) ; BIOS chip and switch+ an electromagnetic shield all over itself except things that need to be accesible (plugs, RESD* slot, boot switch, CPU) + antena main and aux plugsunder > flash memory chip and power scaling components (can be over too)bundled with power supply that have HDMI wire and plug and can have USB plugs

LCM and LLCM motherboards must integrate (over only for one sided) :BIOS chip and switch + power scaling componentsbundled with power supply

WCM, PCM and TCM cases must integrate :a wireless modem, an antena and audio amplifier + if there is a battery, a battery controller on an interface board

LCM and LLCM cases must integrate :an audio amplifier + if there is an antena, a wireless modem + if there is a battery, a battery controller on an interface board

this is using the new serie of CPU i'm doing Transiscore CPUs and sockets

here are some products ideas using this http://goo.gl/MOFzze

WCM/PCM/TCM mobos :ZTE WCM PCM and TCM motherboard for smartphones/tablets or other small devicesTronsmart TCM motherboard for smartphones/tablets or other small devicesLenovo PCM and TCM motherboard for smartphones/tablets or other small devicesXFX PCM and TCM motherboard for smartphones/tablets or other small devicesTexas Instrument WCM motherboard for smartphones/tablets or other small devicesDFI TCM motherboard for smartphones/tablets or other small devices

LCM/LLCM mobos :Gigabyte LCM and LLCM motherboard for laptops, HTPCs and AiOsECS LCM and LLCM motherboard for laptops, HTPCs and AiOsHP TLCM, LCM and LLCM motherboard for laptops, HTPCs and AiOsSapphire LCM and TLCM motherboard for laptops, HTPCs and AiOsAewin TLCM motherboard for laptops, HTPCs and AiOsSupermicro LLCM motherboard for laptops, HTPCs and AiOs

WCM cases :

PCM cases :Nokia Lumia 730½ PCM smartphone caseZazL Z-Blade PCM tablet case

TCM cases :Xiaomi Mi7 TCM phablet caseSony Xperia Tablet dualZ

LCM cases :Razer Owl LCM "gamebook" caseOnak Agera

LLCM cases :Wacom Quanva LLCM drawing tablet caseSwiftech Liopleurodon modulable PC case/desk

other/accesories :Seasonic LCM/LLCM PSUs for laptops, HTPCs and AiOs

* RESD card and slot
