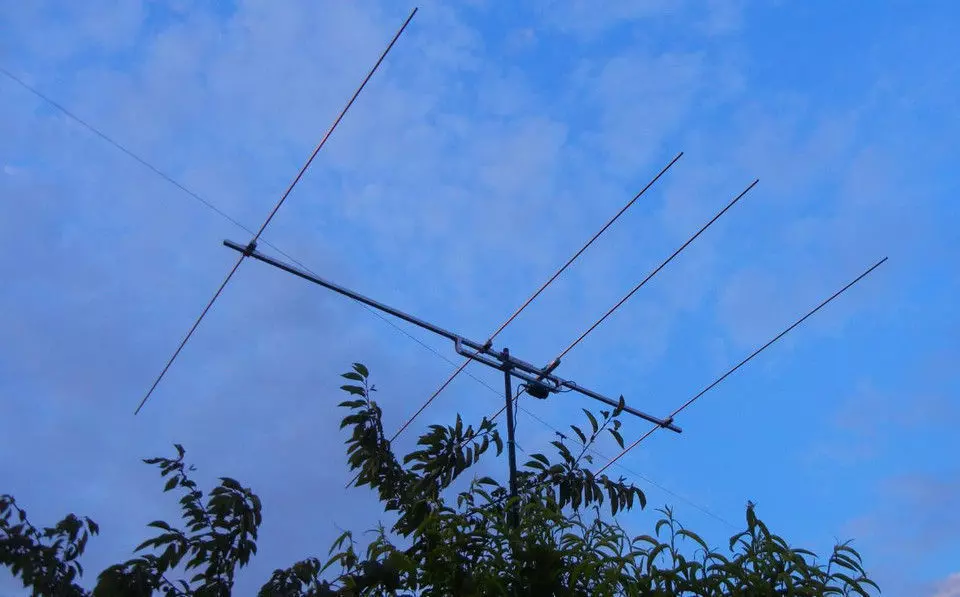

4 element yagi for 6m by S54MTB Free 3D model
Description
This design is based on based on Ljubisa Popa – POP YU7EF design EF0604S. The details are CNC machined and some 3D printed. The antenna works great. Just few days after erecting, there was ES on 6m and I could work 1600km (1000 miles) with QRP rig on 5W as it is FM next door.
4 element yagi for 6m by S54MTB
4 element yagi for 6m by S54MTB
3D Model formats
Format limitations
- SolidWorks (.sldprt, .sldasm, .slddrw) (33 files)12.2 MB
- Stereolithography (.stl) (4 files)3.87 MB
- Other 9.99 MB
3D Model details
- Publish date2016-04-15
- Model ID#313153
- Animated
- Rigged
- VR / AR / Low-poly
- PBR
- Geometry Polygon mesh
- Polygons 0
- Vertices 0
- Textures -
- Materials -
- UV Mapping -
- Unwrapped UVs Unknown
- Plugins used -
- Ready for 3D Printing
