Hubless Wheel MK-I Concept

Hubless Wheel MK-I Concept Free 3D model

Description

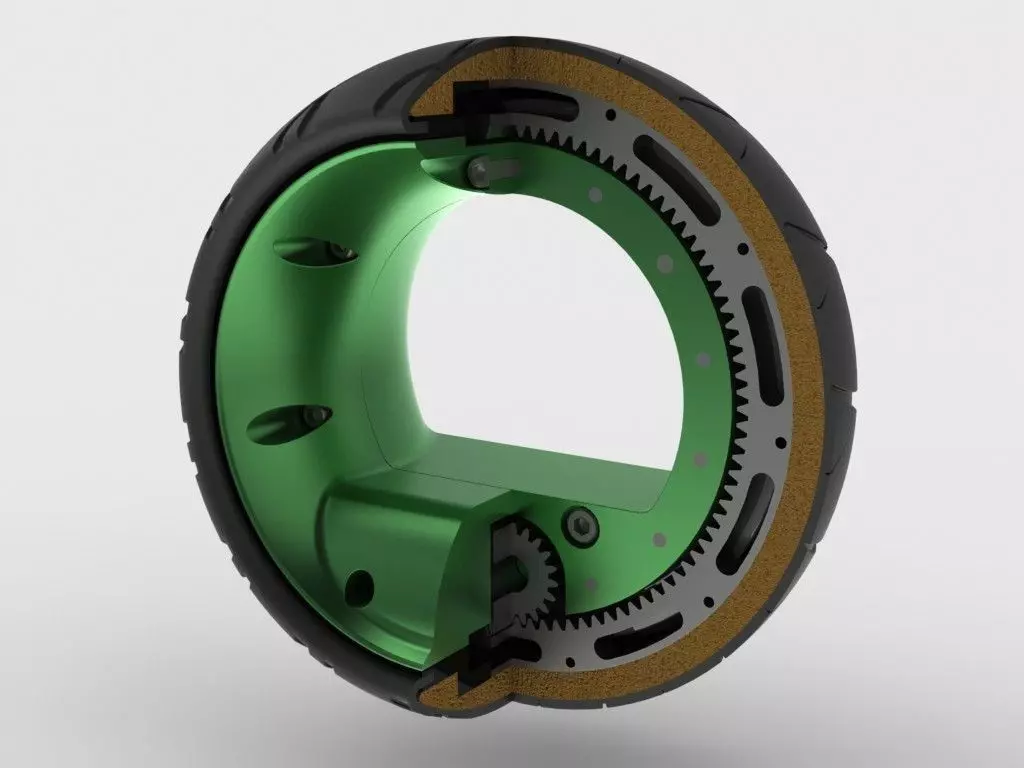

I was inspired by hubless ATV and decided to quickly draw up a concept. This is just a quick concept but I thought I would share my progress so far. I am designing it so It can be mounted to an R/C car using a special adapter. Render in PhotoView 360

Update 8/29/2011: Fixed the internal gears, reduced rotating mass of outer wheel/gear, other small changes.

K
karlu 2018-12-30 22:29:03 UTC
Nice job
Item rating
0 0
Hubless Wheel MK-I Concept
Free

Editorial No Ai License
Hubless Wheel MK-I Concept
Free

Editorial No Ai License
Response 0% in 48.0h

3D Model formats

Format limitations
  • Other 28.1 MB
  • Stereolithography (.stl)9.22 MB

3D Model details

  • Publish date2014-12-09
  • Model ID#95746
  • Animated
  • Rigged
  • VR / AR / Low-poly
  • PBR
  • Geometry Polygon mesh
  • Polygons 0
  • Vertices 0
  • Textures -
  • Materials -
  • UV Mapping -
  • Unwrapped UVs Unknown
  • Plugins used -
  • Ready for 3D Printing
