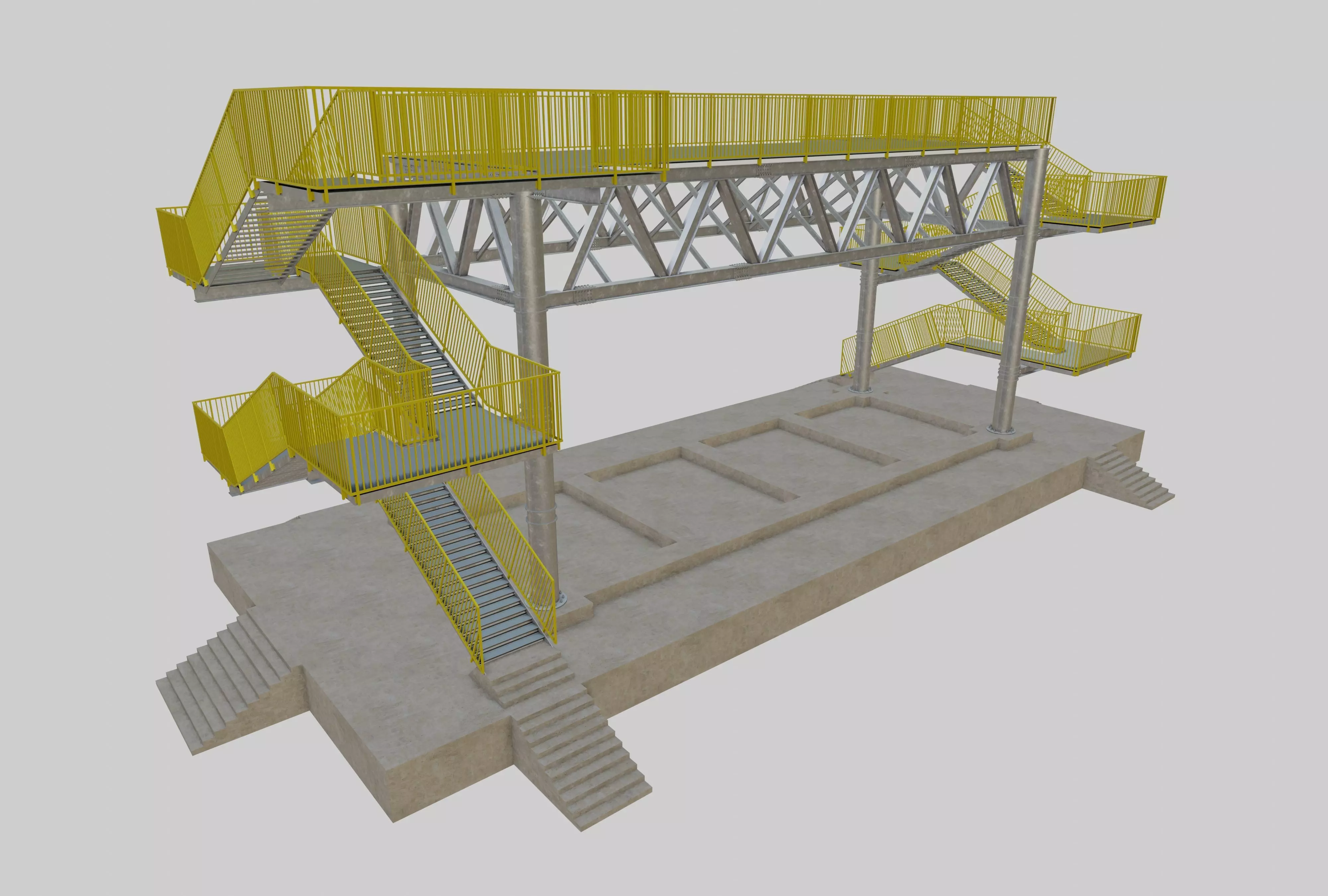

Steel Structure-Tsunami Evacuation Tower-Type-3 Free 3D model

Steel Structure-Tsunami And Flood Evacuation Tower

Box Type Column

H Type Beam

Named Objects

1. Floor height : 3,0 mt.

2. Floor height : 3,0 mt.

3. Floor height : 3,0 mt.

4. Floor height : 3,0 mt.

Total Height : 12,0 mt.

Evacuation Upper Platform : width 8,0 mt. * lenght 24,0 mt.

Raft Concrete : width 15,0 mt * length 37,0 mt. * height 1,5 mt.

Railings Box Profile

Column And Beam With Bolted Connection

Prepared With BLENDER Version 2.93.5

Polygons : 103304

Vertices : 180888

Objects : 5272
