Turners cube Free 3D model

Here is the requested model by Chris Campbell, for his CAM work.

There is two version of Turner's cube. 1.) sharp edge without fillet. 2.) Finished edge (Filleted)

Dimension= 100X100 mm. If you need this model in any dimension than feel free to ask me>>!! The previous model with C++ program for G-code generation of this type of model is available here" CNC Machine Cubes Model Manufacturing " //Thanks//

Project Update:- New cube of dimension 50 X 50 mm added.

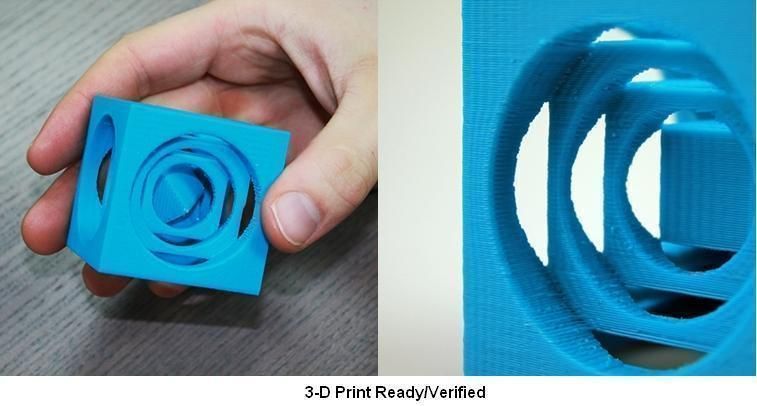

Project Update:- 01/01/14, 3-D Print Ready/Verified.

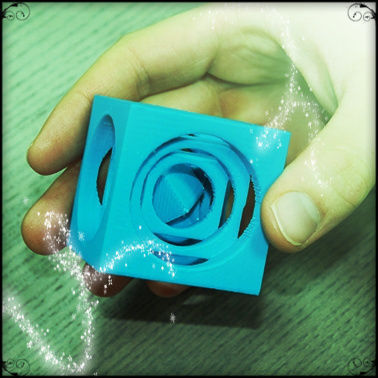

Yesterday I made a test 3D print of this model, and also the mini-factory person were verified this model through 3D printing.

*******************************************Printing Details****************************************************** #############################################################################

Prints as single piece, clip off the support material to allow the central cube to move freely.

HOW TO: Model were printed at 50% scale to create a Turners Cube measuring 5cm x 5cm x 5cm.

0.30mm layer height 50% infill Total print time - 2hours 09 minutes.

COMPLEXITY:10% TIME TO DO: 115 - 120 mins DIMENSIONS H/W/D: 50 mm X 50mm X 50mm FILAMENT QUANTITY: 42.6g

*************************Project Update:- 03/02/2014*****************************************

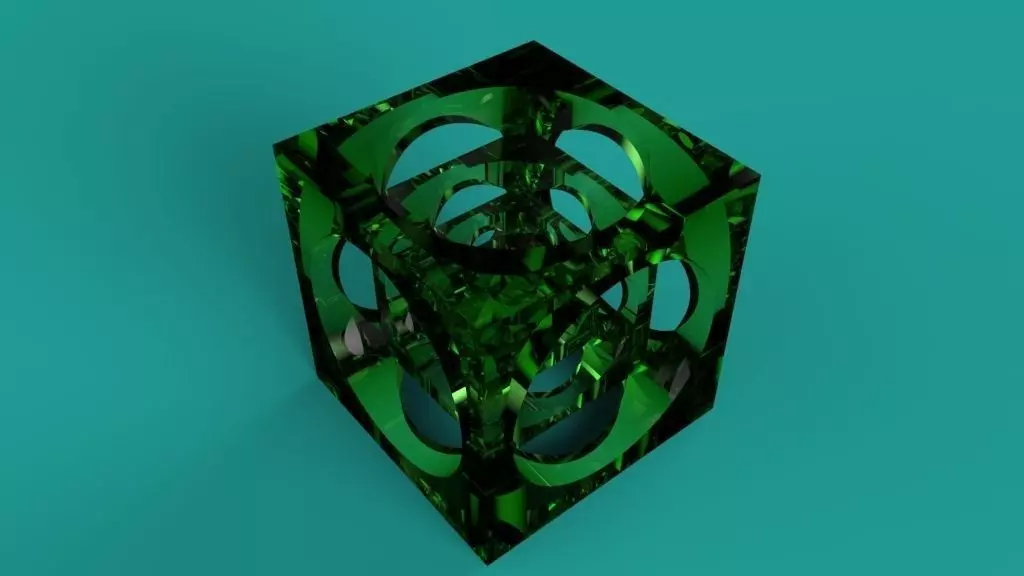

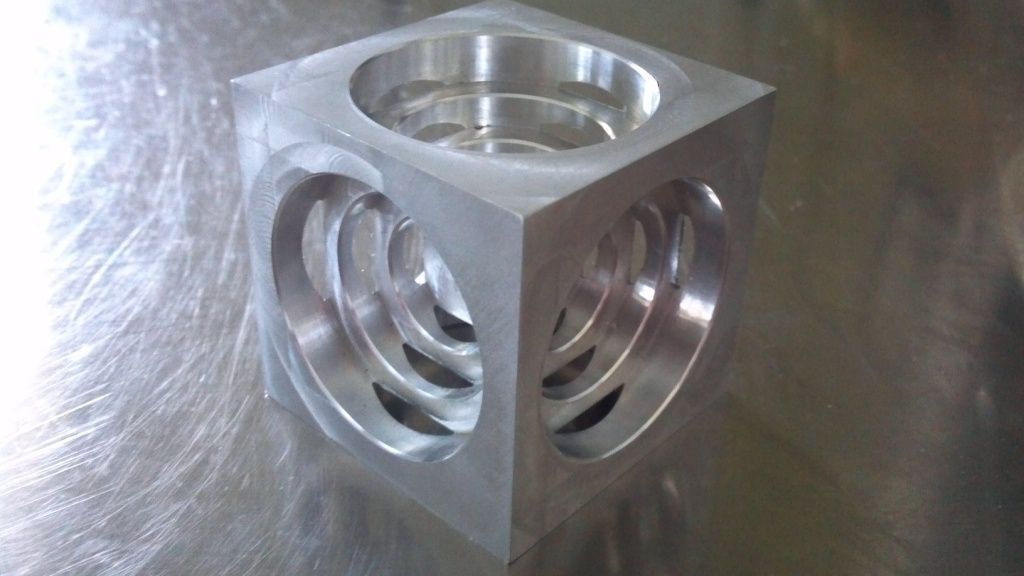

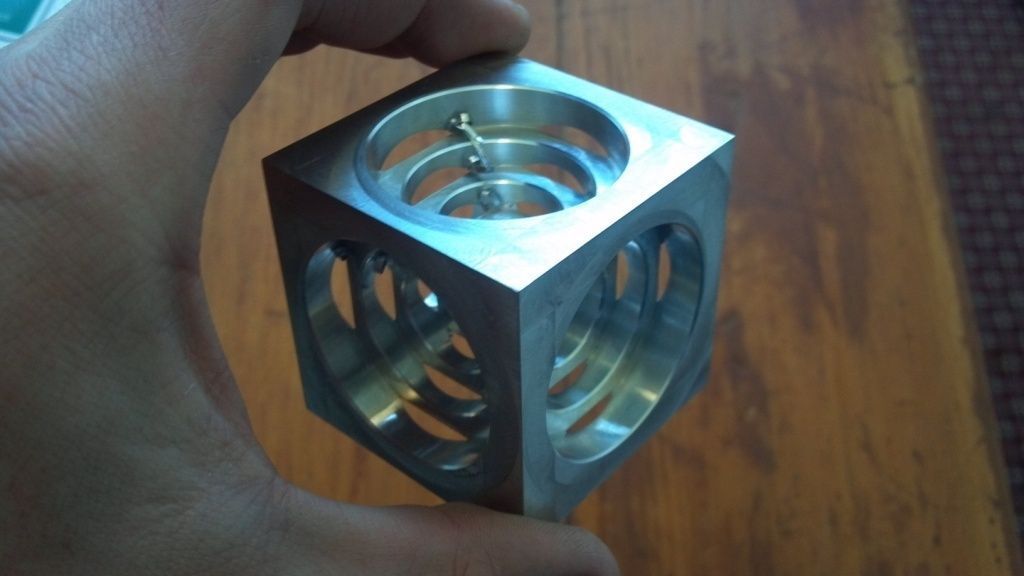

The model were successfully machined Using Haas CNC machine by Chris Campbell, I uploaded the renderings and the model Program will be soon on download for 4 Axis machining.

//Thanks//
