Solidedge Skills Showcase Malabar 15 Ton Axle Jack Free 3D model
Description

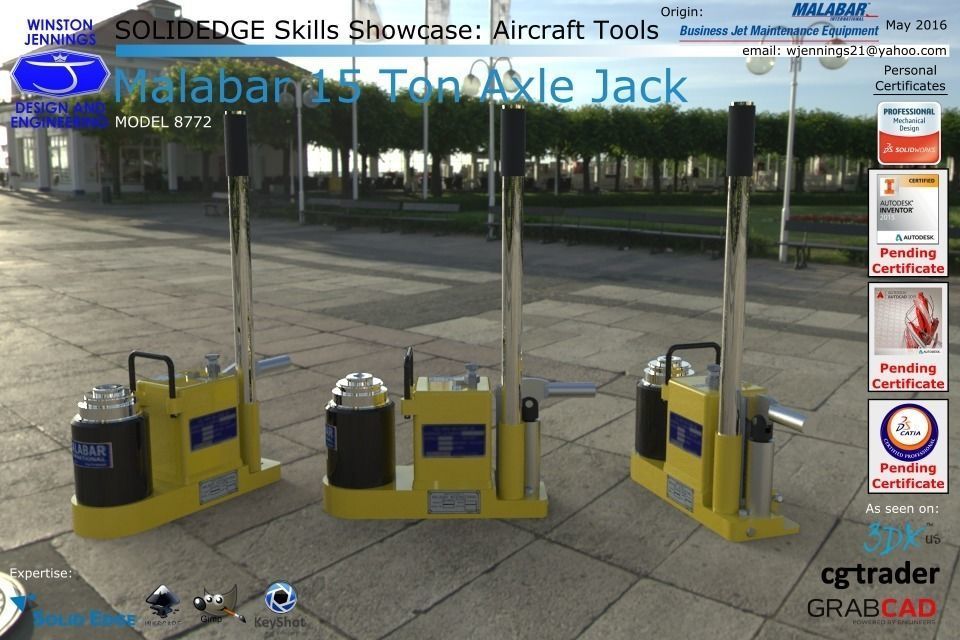

The Malabar 15 Ton Axle Jack was modeled using the Part and Assembly environment in Solidedge
SPECIFICATIONS
Rated Capacity: 15 tons (13.6 m. tons) Side Load: 15% of vertical load
Low Height: 5.25 inches (133 mm) Hydraulic Lift: 5 inches (127 mm) Extension Screw: 2.25 inches (57 mm) Total Extended Height: 12.5 inches (318 mm)
Oil Pressure at Rated Capacity: 4315 psig (303 kg/sq cm) Safety Pop-off Valve set at: 16.5 tons (15.0 m. tons) Proof Load: 22.5 tons (20.4 m. tons) Reservoir Capacity: 0.4 gallons (1.5 liters) Hydraulic Fluid: MIL-H-5606 or equivalent Approximate Jack Net Weight: 40 lbs (18 kg)
Reference material, http://www.malabar.com/pdf/product/axle/sd8772.pdf
Modeled in Solidedge ST6Rendered in Keyshot 5.0
