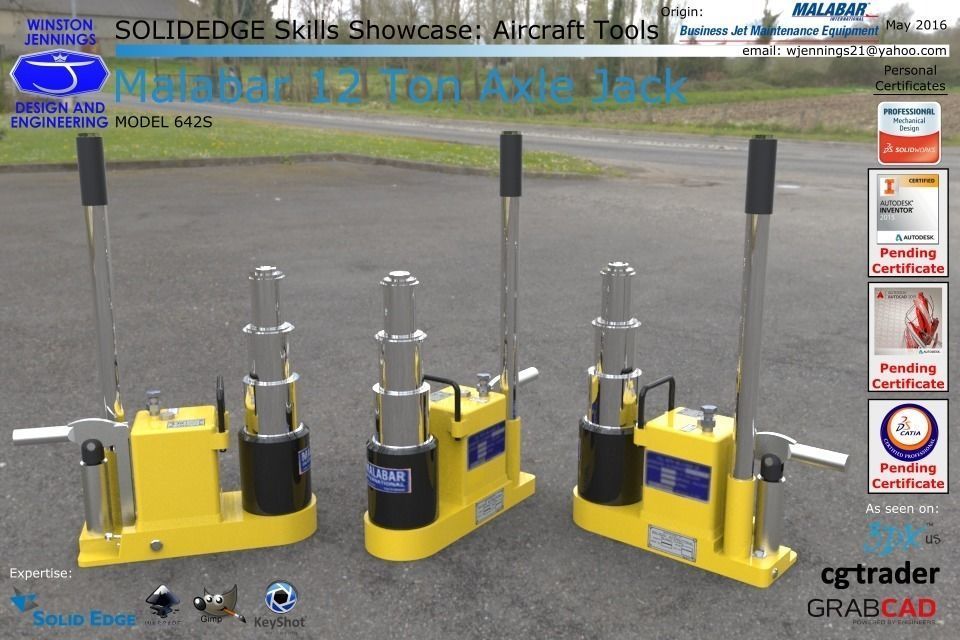

Solidedge Skills Showcase Malabar 12 Ton Axle Jack Free 3D model
The Malabar 12 Ton Axle Jack was modeled using the Part and Assembly environment in Solidedge
SPECIFICATIONS
Rated Capacity: 12 tons (10.9 m. tons) Side Load: 15% of vertical load
Low Height: 6 inches (152 mm) Hydraulic Lift: 8.25 inches (210 mm) Extension Screw: 2.75 inches (70 mm) Total Extended Height: 17 inches (432 mm)
Oil Pressure at Rated Capacity: 6162 psig (433 kg/sq cm) Safety Pop-off Valve set at: 12.6 tons (11.4 m. tons) Proof Load: 18 tons (16.3 m. tons) Reservoir Capacity: 0.4 gallons (1.5 liters) Hydraulic Fluid: MIL-H-5606 or equivalent Approximate Jack Net Weight: 40 lbs (18 kg)
Reference material, http://www.malabar.com/pdf/product/axle/sd642S.pdf
Modeled in Solidedge ST6Rendered in Keyshot 5.0
Don't forget to hit "like" button before you leave :)
