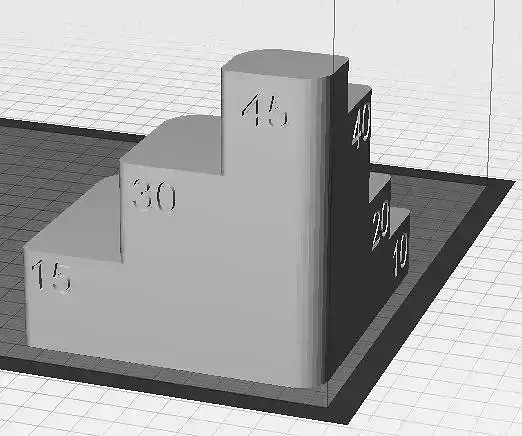

Sine Plate Setup 3D print model

File: Sine Plate Setup.stlName: Sine Plate SetupPLA Material: 115.12 grams ( 0.254 lbs) Infill = 10%Size: 101.6 mm (4) x 98.61 mm (3.882) x 98.61 mm (3.882)Resolution: 0.20mmLayers: 499 layers Rafts: Yes Supports: NoPrint Time: 6 hr 55 minFunction: If you print this 1:1 then you will have a setup tool for a standard 5 center to center sine plate that replaces six different guage block setups. Other possible scales are shown below: If you download the sine plate or sine plate assembly then it should be printed at the same scale.
Scale C to C hole hex Screws Pivot Length Width Height in in in in in in in1 5 0.285 0.45 1/4-20 0.5 6.7 6 40.787 3.937 0.2244 0.3543 M5 0.3937 5.2755 4.7244 3.14960.75 3.75 0.21375 0.3375 #10-32 0.375 5.025 4.5 30.5 2.5 0.1425 0.16875 #4-40 0.25 3.35 3 20.4 2 0.114 0.0675 #0000-80 0.2 2.68 2.4 1.6
