Spare part latch for Trolley Stanley STST1-80151

Spare part latch for Trolley Stanley STST1-80151 3D print model

Description

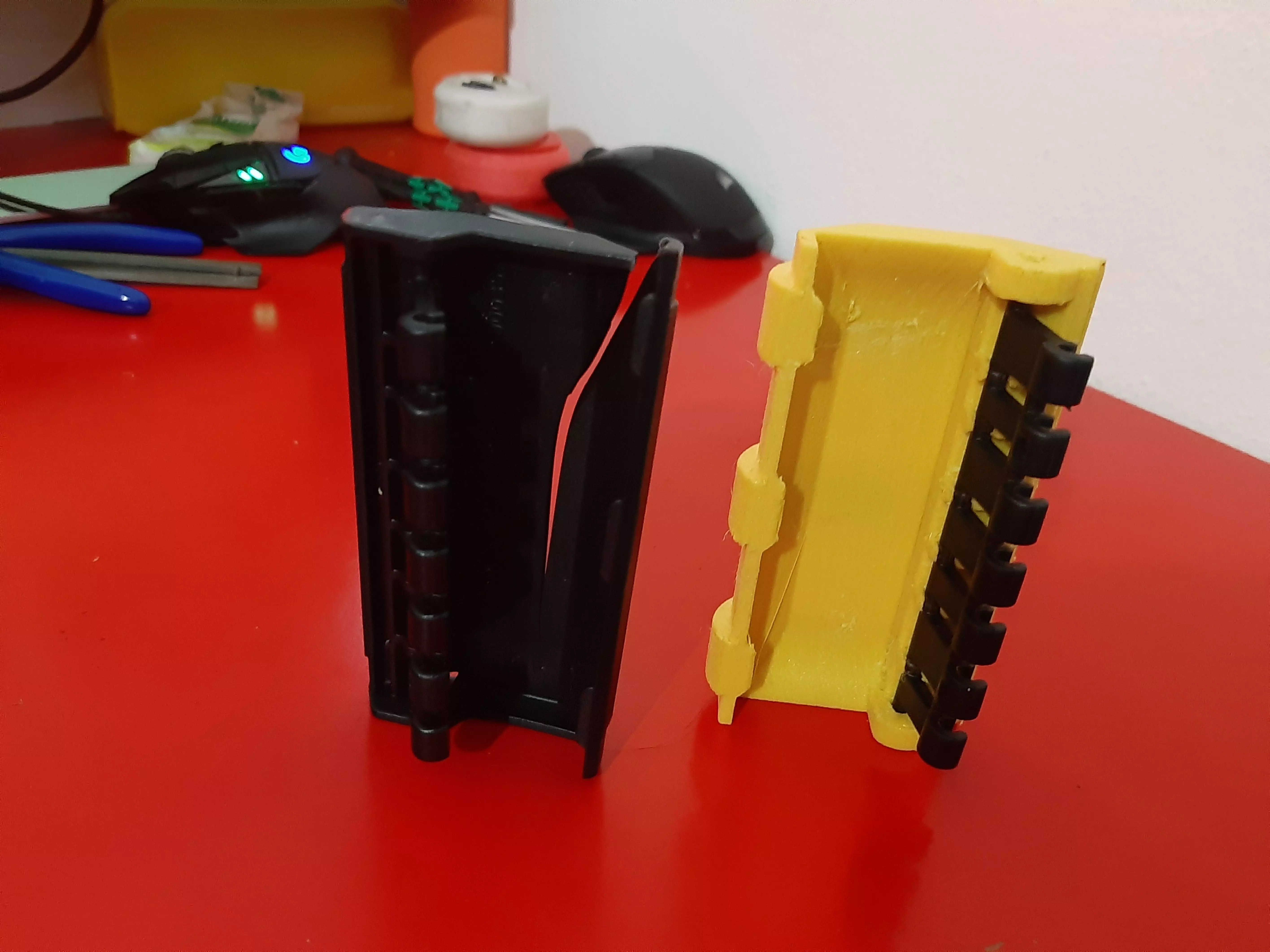

After purchasing a Stanley tool trolley ‎STST1-80151, I found myself needing to replace the side latch due to frequent breakages. So, I took it upon myself to redesign and 3D print it using PETG. I had to conduct several tests for both the fit and compatibility with the original setup.Original latch consists of two parts: a rigid one, which is the component prone to breaking, and a flexible one that I didn't need to design. Simply retrieve the original flexible part, or print it with infill 100%, and assemble it with the printed one I provide. Recommendation: Print in PETG with a Quarter Cubic infill at 35% for the big part.Speed: 50mm/sLayer: 0.2Temperature: 250Combing: ALLSupport: YesPrinting orientation: on one sideNumber of perimeter lines: 6Time: 5HoursWeight: 54gLong: 18m

Item rating
0 0
Spare part latch for Trolley Stanley STST1-80151
$5.00

Editorial No Ai License
Spare part latch for Trolley Stanley STST1-80151
$5.00

Editorial No Ai License
Response - % in - h
3D Modeling
3D Print Modeling

3D Model formats

Format limitations
  • amf (.amf) (2 files)2.66 MB
  • 3D Manufacturing File (.3mf) (2 files)237 KB
  • Stereolithography (.stl) (2 files)848 KB

3D Model details

  • Ready for 3D Printing
  • Publish date2023-10-09
  • Model ID#4822620
