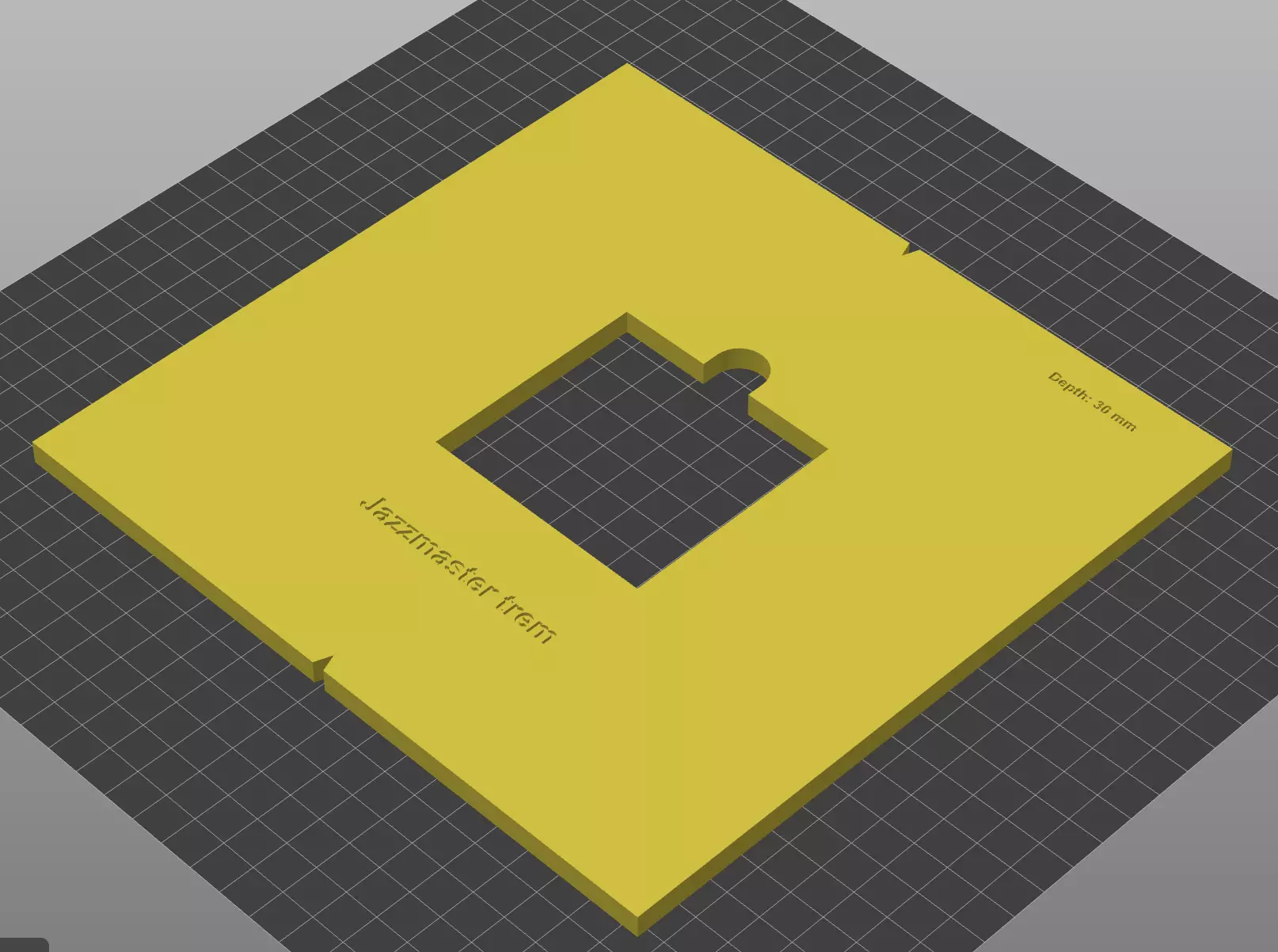

Jazzmaster Tremolo Routing Template 3D print model

Routing template for routing out the cavity for a jazzmaster style tremolo.

Measurements taken directly from a guitar with said system.

The template has been printed and thoroughly tested to make sure everything aligns and fits as needed. The depth indicator is refering to the depth of the spring, but can be routed out throughout the cavity with no issue.

Feel free to message me with any issues.
