Vacuum Starfish hook

Vacuum Starfish hook 3D print model

Description

https://www.youtube.com/shorts/nLhQa2pUIHI?feature=share

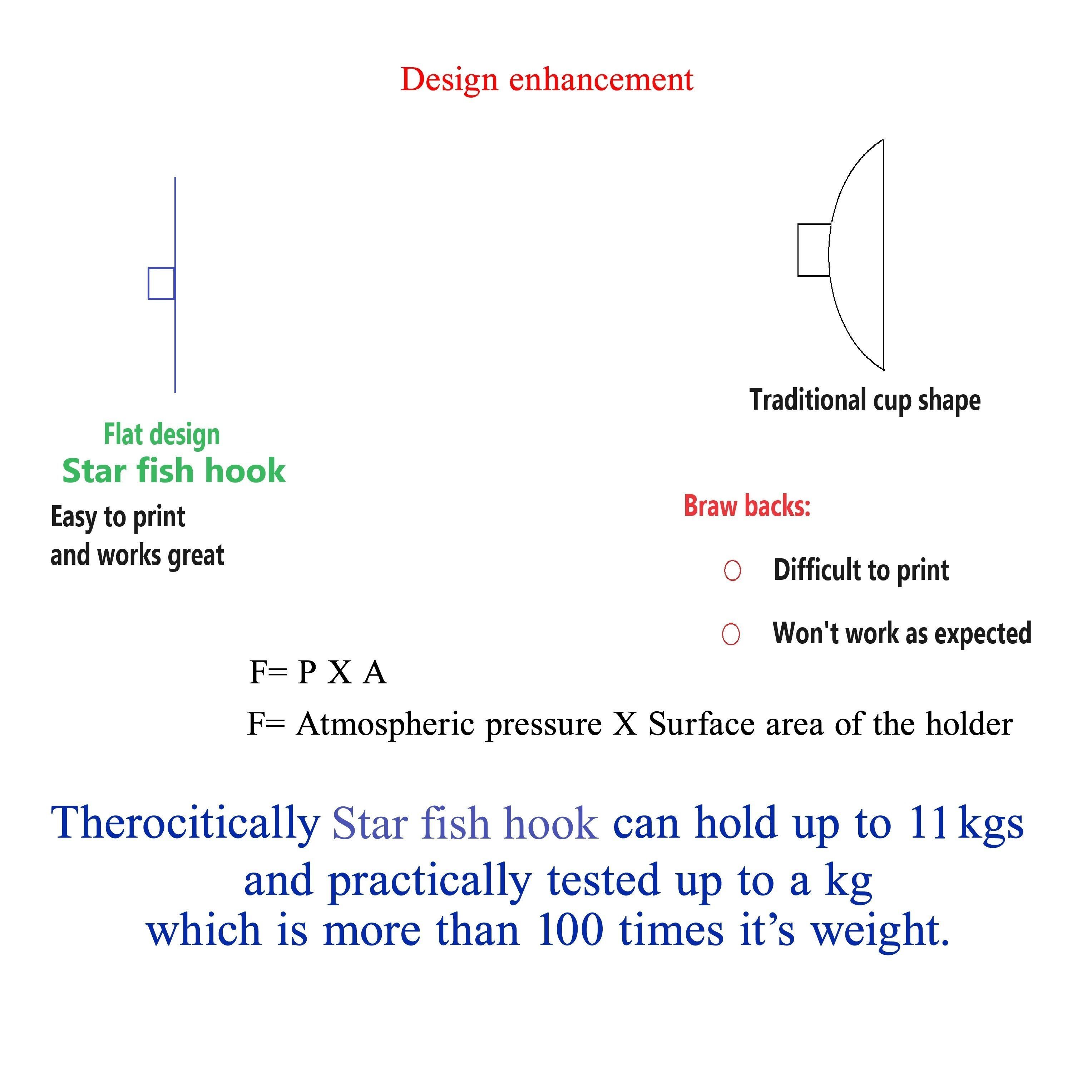

Concept:The flat surface of this starfish with water as medium creates a strong vacuum grip when pressed against a non-porous smooth surface. Theoretically the model can hold up to 11kgs and practically tested up to 1kg which is more than 100times it’s weight.

Commercial license: You can print and sell this model.

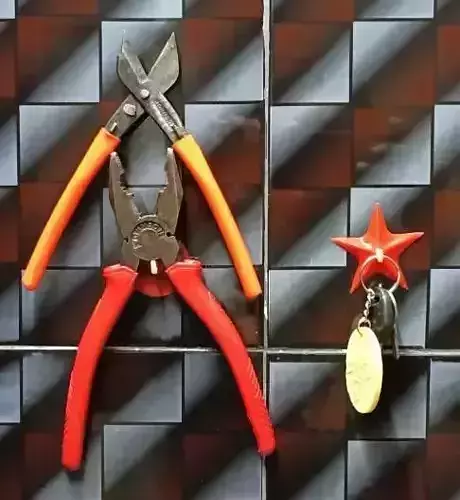

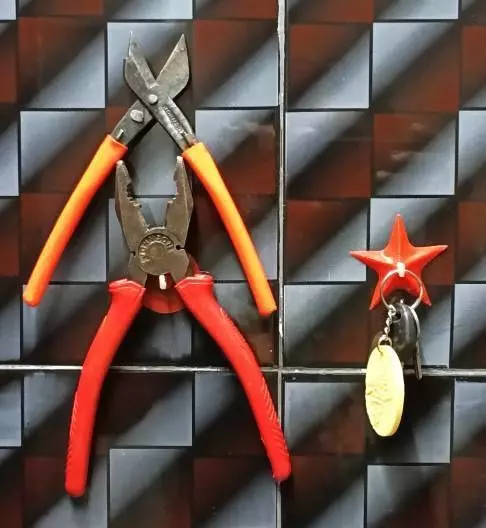

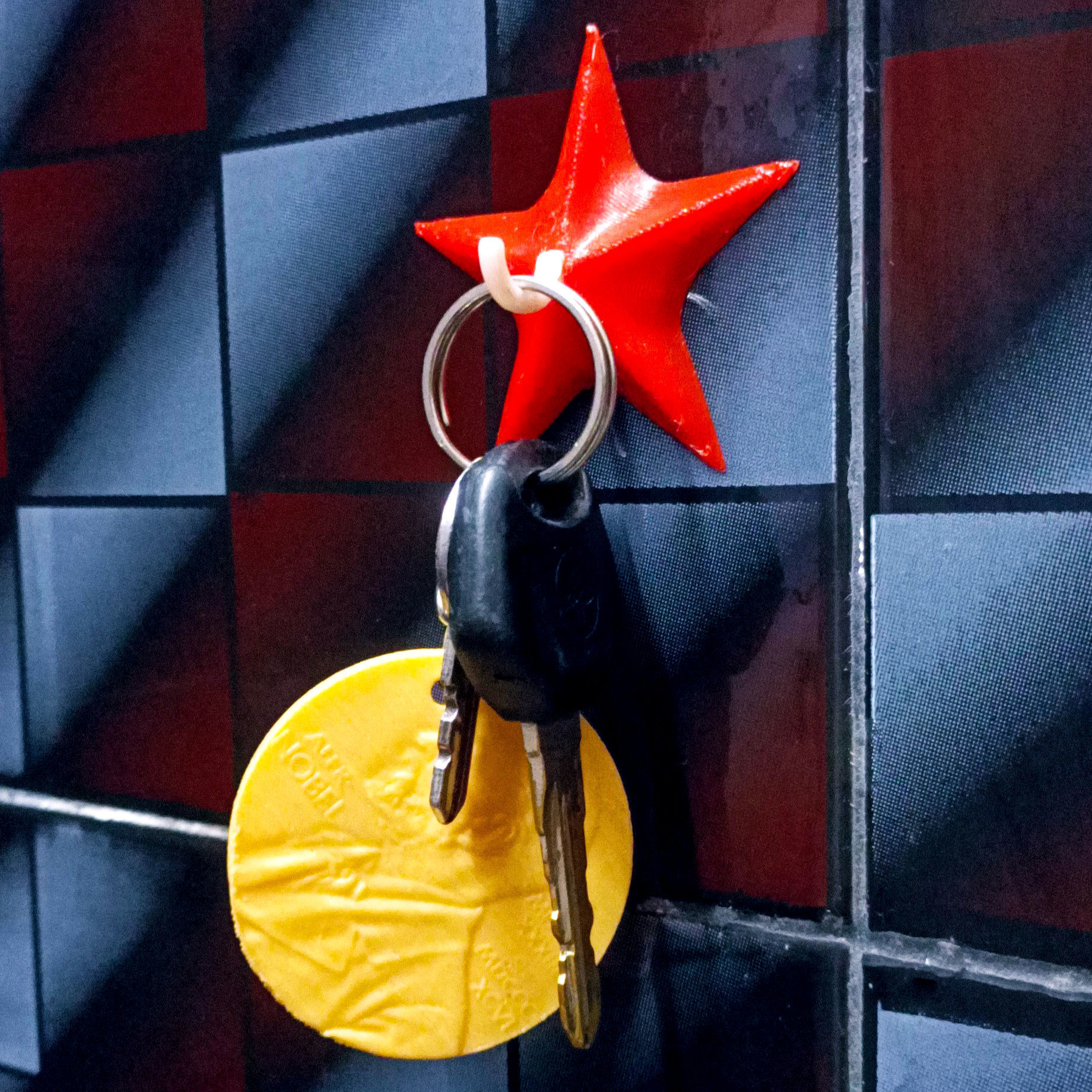

Benefits: Safe and secure, Using fluorescent (Glow in the dark) material for hook will give an advantage of finding keys in the dark, No need to drill hole / use adhesive.

Note: The print must be on smooth surface using glass bed is preferred but not compulsory, use high bed temperature to avoid glue stick/adhesive. Make sure that there are no air bubbles after pressing against wall.

Materials:Star fish: Any flexible resin/Filament – TPU, Nylon, E.T.CHook: strong resin / Filament - PLA, PETG, ABS, E.T.C,

3D printing settings:

Printer: FDM / RESIN,

Retraction: 5mm speed 60,Nozzle Temp: minimum 190 to 210 C for PLA / minimum 200 to 230 C for TPUBed Temperature: 90 C (no glue stick/adhesive needed)Infill: Minimum 8%,Print in place,Print speed: 25Support: No supports needed, Layer height: 0.2, (use high diameter nozzle for fast printing)Build plate adhesion: brim at least 1mm,Print time:Star fish: around 30minutes,Hook: 2 minutes.

The hook is a snap fit no adhesive required for assembling.

Thank you,Have a wonderful day.Regards,Sigma Designers.

Item rating
0 0
Vacuum Starfish hook
$7.00

Royalty Free License
Vacuum Starfish hook
$7.00

Royalty Free License
Response 100% in 0.6h
3D Modeling
3D Print Modeling
Low-poly Modeling
Lighting
Rendering
Rigging
UV mapping
Texturing
Particles
Post Production
3D Scanning
Animating

3D Model formats

Format limitations
  • PDF (.pdf)424 KB
  • Stereolithography (.stl) (3 files)1.61 MB

3D Model details

  • Ready for 3D Printing
  • Publish date2023-09-22
  • Model ID#4792233
