Turbine blade

Turbine blade 3D print model

Description

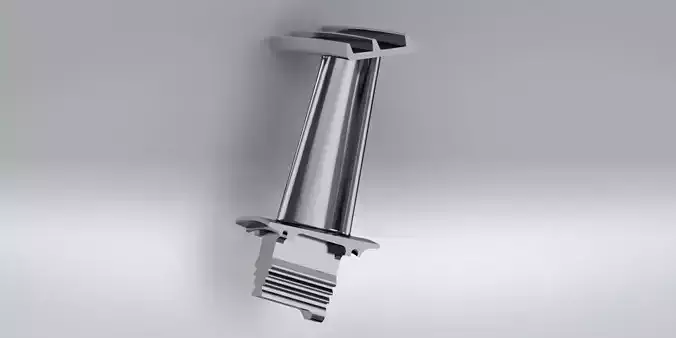

Generic jet engine turbine blade 3d model .

Perfect for CFD and FEA simulations.

A turbine blade is the individual component which makes up the turbine section of a gas turbine or steam turbine. The blades are responsible for extracting energy from the high temperature, high pressure gas produced by the combustor. The turbine blades are often the limiting component of gas turbines. To survive in this difficult environment, turbine blades often use exotic materials like superalloys and many different methods of cooling ( the inner holes in the models )

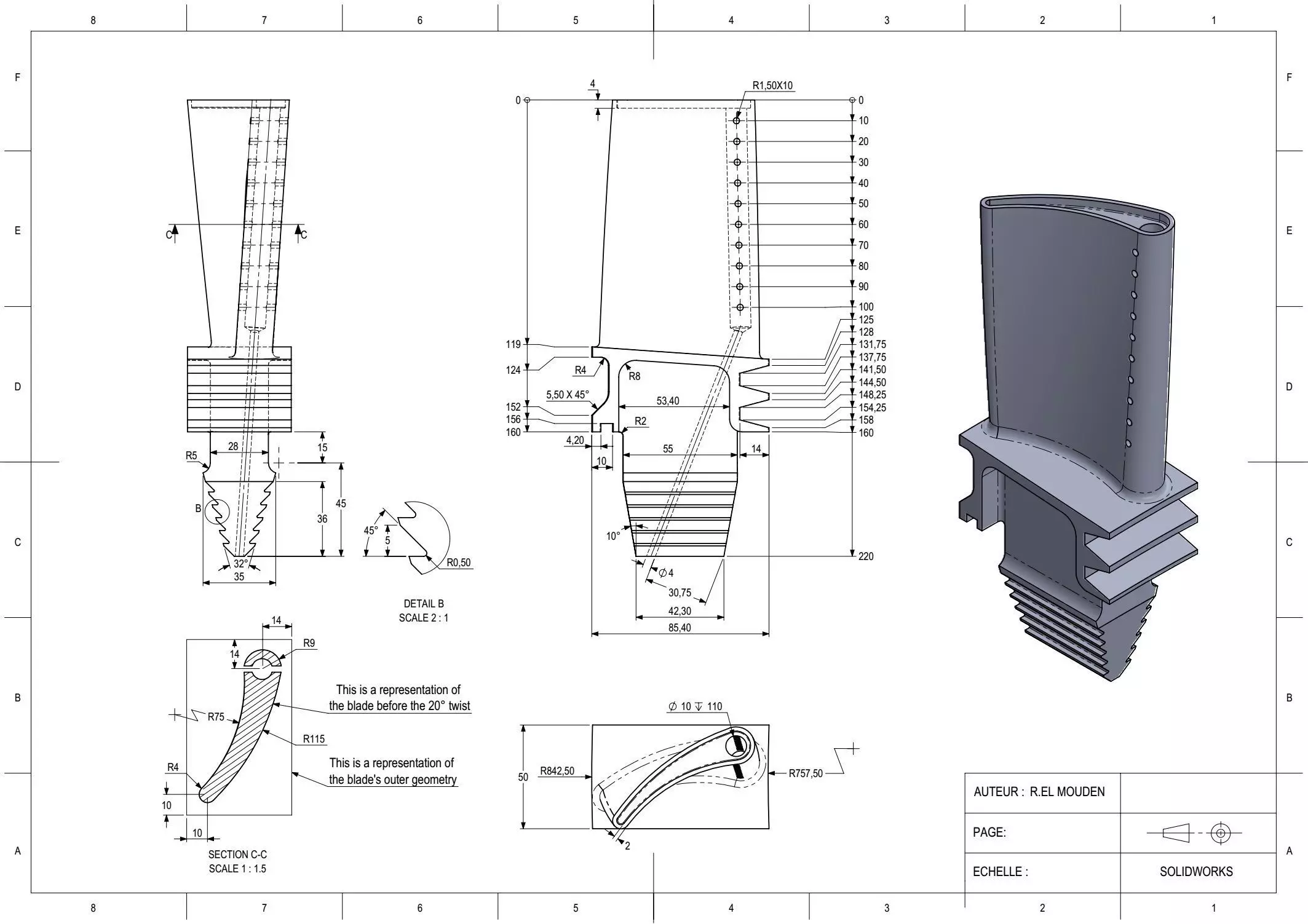

The model is provided in the formats : STL, STEP, IGES, OBJ and solidworks part plus a PDF drawing with all the dimensions.

To be used for educational purposes, 3d printing and 3d applications.

Please contact us for any inquiries and modifications. Check my previous models for similar designs.

G
guoyf980122 2022-12-20 11:41:04 UTC
Sir, can you provide the literature source or parameter source of the following model?
rachidsw
rachidsw 2022-12-20 11:44:25 UTC
The model was created from reference pictures and general dimensions found over the internet
