Top Pivot Hinge 3D print model

Description

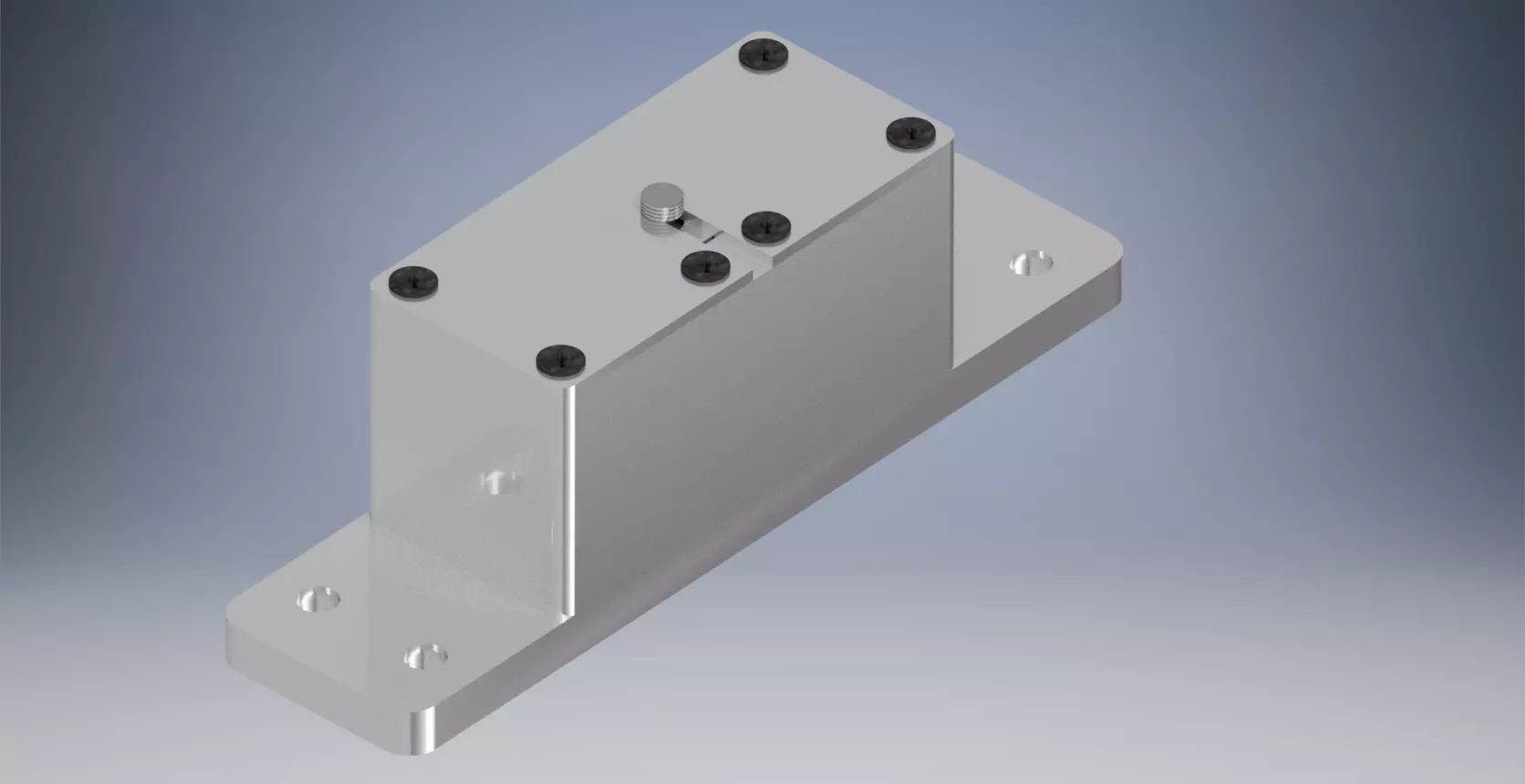

This is a 3d printable top pivot hinge. it acts as a simple pivot point without holding positions or self-closing features. Can be applied in both single and double-acting pivot doors. Available in ipt and stl versions.Videos of its assembly and disassembly are attached besides videos showing its drive mechanism.

Write comment
Item rating
0 0
Top Pivot Hinge
$20.00

Royalty Free License
Top Pivot Hinge
$20.00

Royalty Free License
M
m-y-senidac
(0 reviews)
Response - % in - h

3D Model formats

Format limitations
Native
  • Autodesk Inventor 2018 (.iam, .ipt)5.68 MB
Exchange
  • Stereolithography (.stl)2.07 MB
  • PDF (.pdf)5.68 MB

3D Model details

  • Publish date2024-03-19
  • Model ID#5170377
  • Ready for 3D Printing
