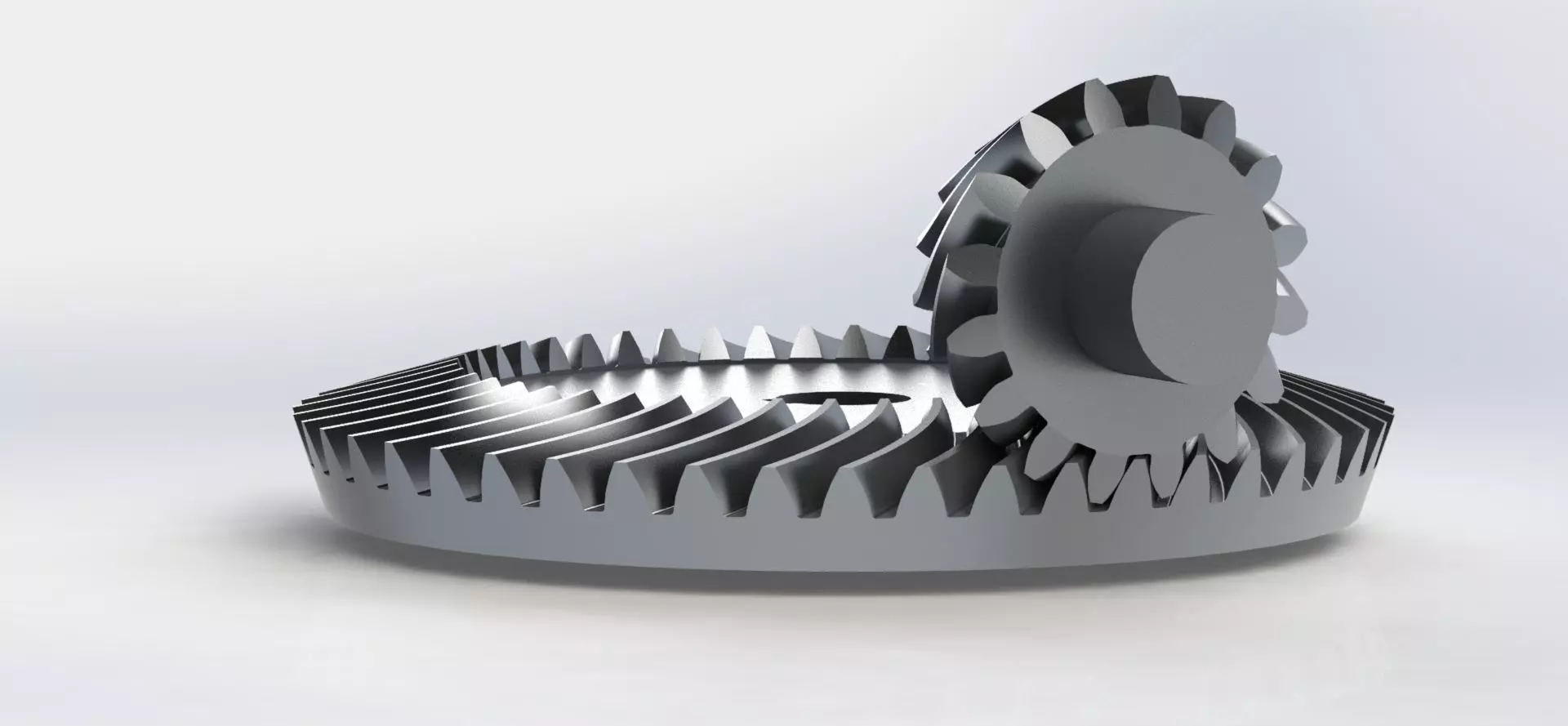

Spiral Bevel Gear - RATIO 3 - TEETH 16 48 3D print model

Description

Spiral bevel gear

Gear Tooth Profile: involute Curve function: involute Gear Ratio: 3 Gear teeth:48 Pinion teeth:16 Module: 2mm (current scale module) True involute curves, Ready to print, Ready to any manufacturing process, Thanks to spiral profile; *Reliable transmission ideal for high-speed, high-torque applications, *Prevents the gears from slipping, *Minimizes backlash. Contact me for revision or similar designs request.

Write comment
Item rating
0 0
Spiral Bevel Gear - RATIO 3 - TEETH 16 48
$4.00

Royalty Free License
Spiral Bevel Gear - RATIO 3 - TEETH 16 48
$4.00

Royalty Free License
Mmechanism
mechanism
(1 reviews)
Response - % in - h
3D Modeling
3D Print Modeling
Hire meView all Designers Models

3D Model formats

Format limitations
  • Stereolithography (.stl) (2 files)20.6 MB
  • STEP (.stp) (3 files)9.17 MB

3D Model details

  • Publish date2020-06-28
  • Model ID#2484304
  • Ready for 3D Printing
