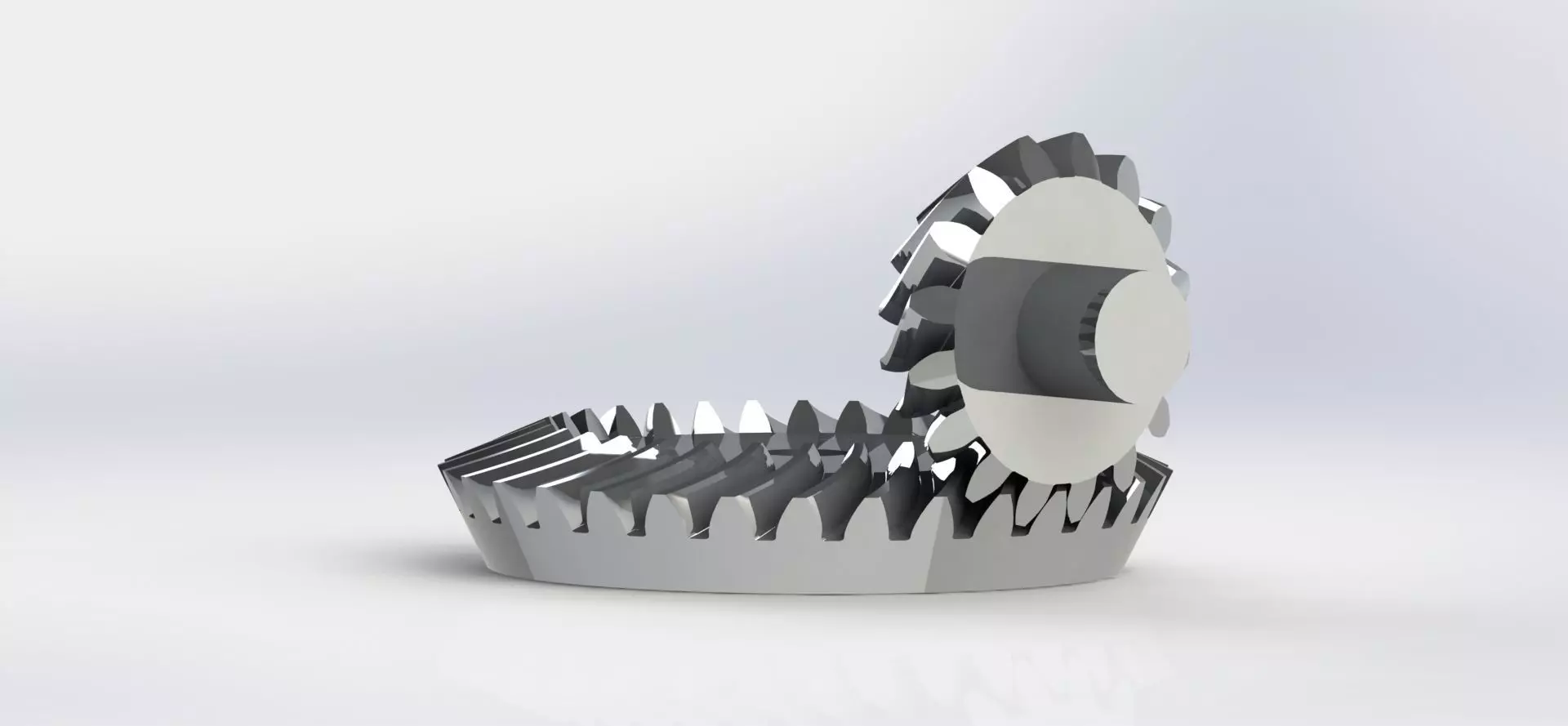

Spiral Bevel Gear - RATIO 2 TEETH 16 32 3D print model

Description

Spiral bevel gear

Gear Tooth Profile: involute Curve function: involute Gear Ratio:2 Gear teeth:32 Pinion teeth:16 Module: 2mm True involute curves Ready to print Ready to any manufacturing process Thanks to spiral profile; *Reliable transmission ideal for high-speed, high-torque applications *Prevents the gears from slipping *Minimizes backlash. Contact me for revision or similar designs request.

Write comment
Item rating
0 0
Spiral Bevel Gear - RATIO 2 TEETH 16 32
$4.00

Royalty Free License
Spiral Bevel Gear - RATIO 2 TEETH 16 32
$4.00

Royalty Free License
Mmechanism
mechanism
(1 reviews)
Response - % in - h
3D Modeling
3D Print Modeling
Hire meView all Designers Models

3D Model formats

Format limitations
  • Stereolithography (.stl) (2 files)17 MB
  • STEP (.stp) (3 files)8.49 MB

3D Model details

  • Publish date2020-08-10
  • Model ID#2552222
  • Ready for 3D Printing
