Jet Engine CFM56 International - 3d layout 3D print model
Description

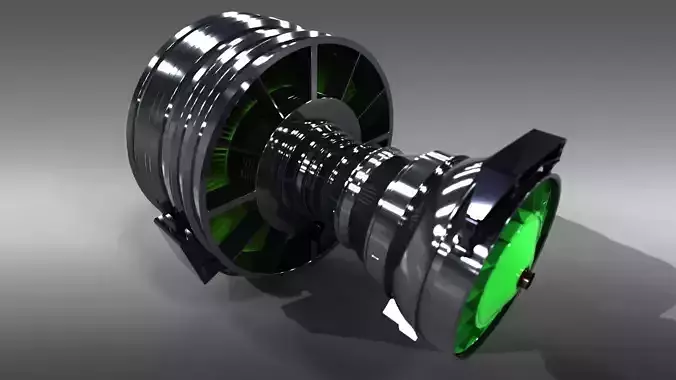

Simplified 3d model of CFM56 International JEt Engine (1:10 and 1:15). 3D print model.CFM56 is a high-bypass turbofan engine (most of the air accelerated by the fan bypasses the core of the engine and is exhausted out of the fan case) with several variants having bypass ratios ranging from 5:1 to 6:1, generating 18,500 to 34,000 lbf (80 kN to 150 kN) of thrust.Developed in Solidworks 2017. Converted to STL and STP (STEP)Ready for 3D print. M3 screws and glue are used for assembly Available formats: sldasm/sldprt, STL, STEP
Jet Engine CFM56 International - 3d layout
Royalty Free License
Jet Engine CFM56 International - 3d layout
Royalty Free License
3D Modeling
3D Print Modeling
Low-poly Modeling
Rendering
Post Production
3D Model formats
Format limitations
Native
- SolidWorks (.sldprt, .sldasm, .slddrw) (2 files)33.3 MBVersion: 2017Version: 2017
Exchange
- SolidWorks (.sldprt, .sldasm, .slddrw) (2 files)33.3 MBVersion: 2017Version: 2017
- Stereolithography (.stl) (2 files)18.2 MB
- STEP (.stp)21.5 MB
- IGES (.ige, .igs, .iges)49 MB
- amf (.amf)35.9 MB
- 3D Manufacturing File (.3mf)3.85 MB
- Solid Edge (.asm, .par, .psm, .dft)9.57 MB
- Autodesk FBX (.fbx)9.57 MB
- CATIA (.CATProduct, .CATMaterial, .CATAnalysis)3.4 MB
3D Model details
- Publish date2021-02-03
- Model ID#2852153
- Ready for 3D Printing
