Rice Transplanter Machine 3D print model

Rice Transplanter (Prototype) [ Design Calculation was Attached above model(Power Transmission)]

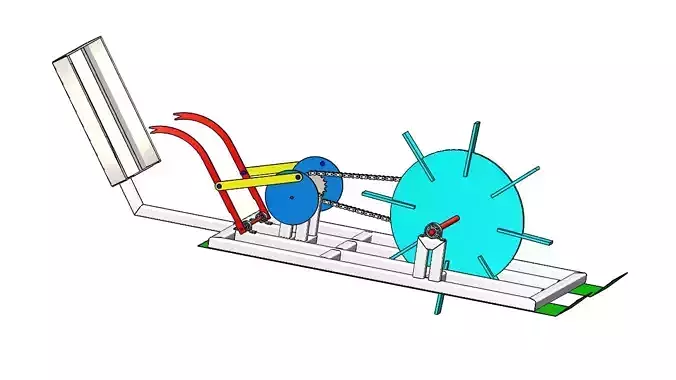

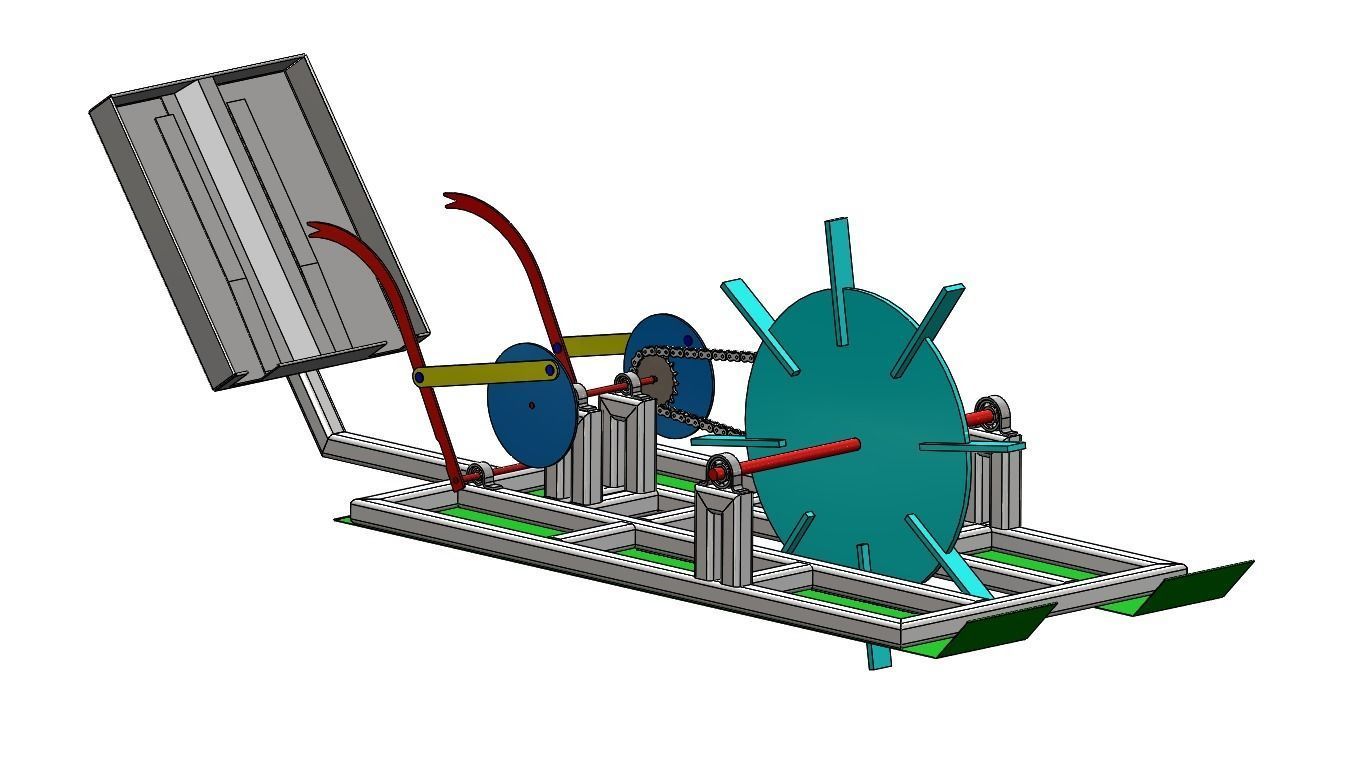

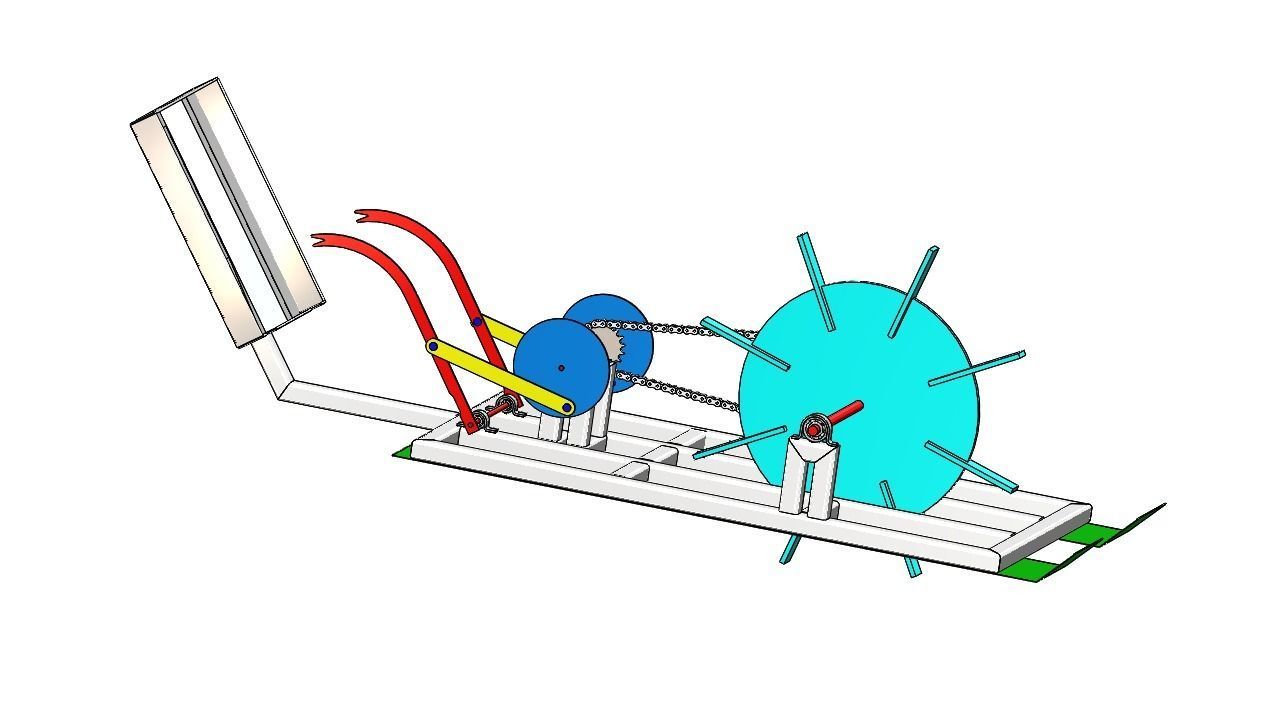

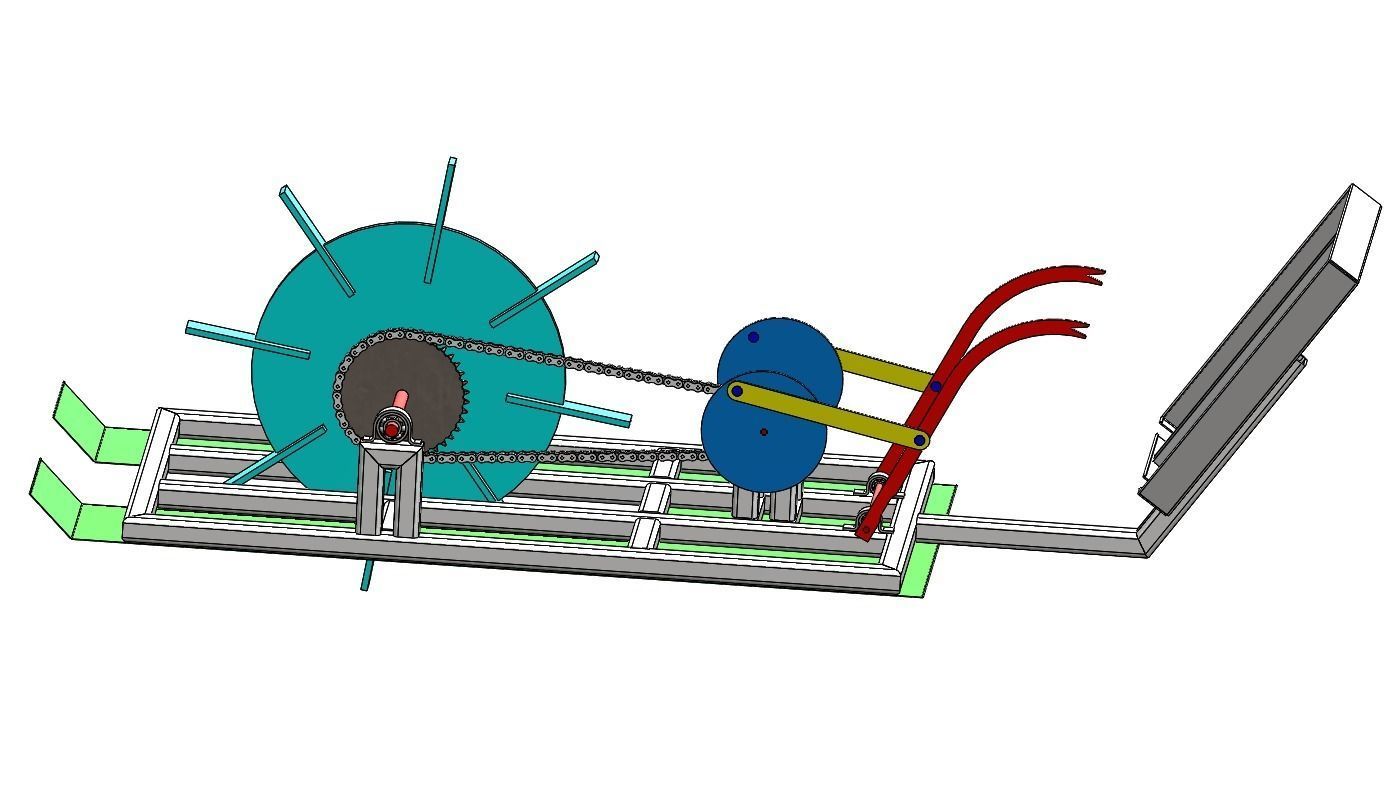

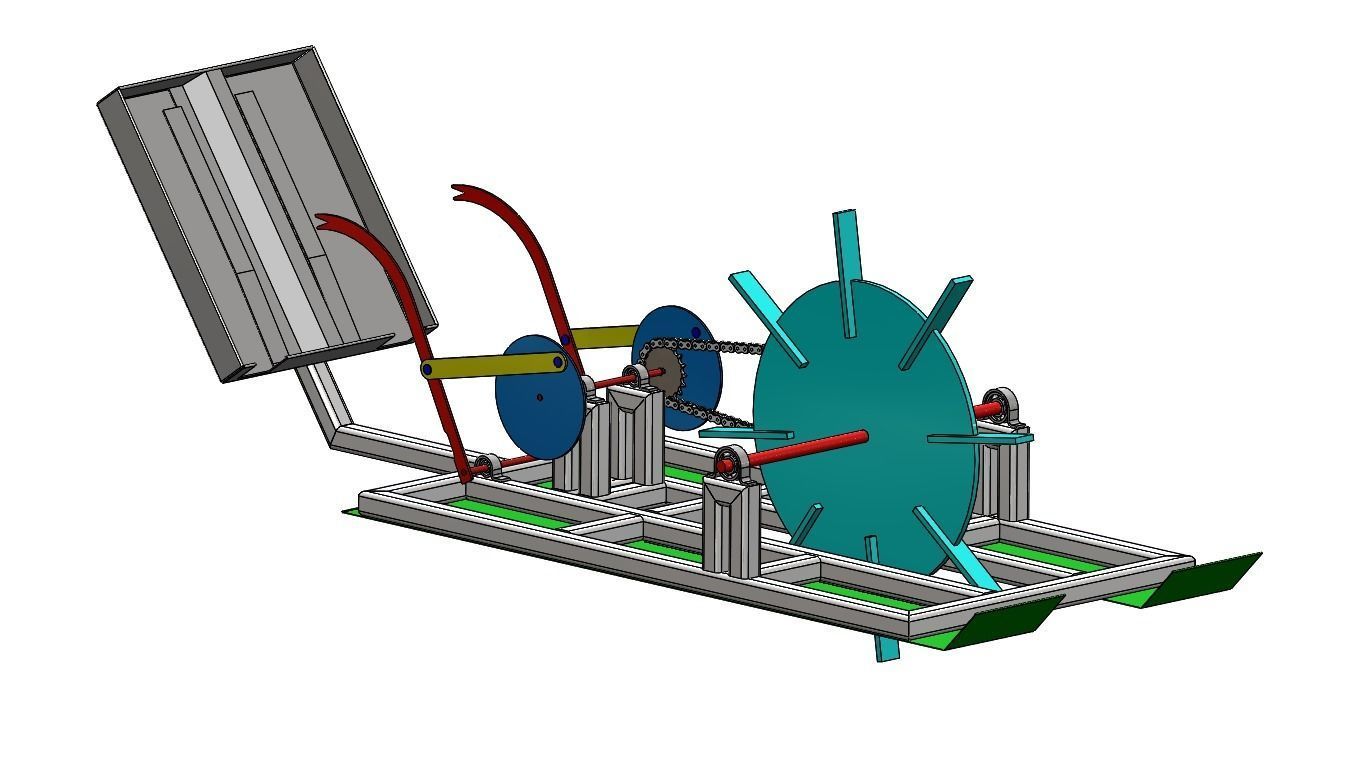

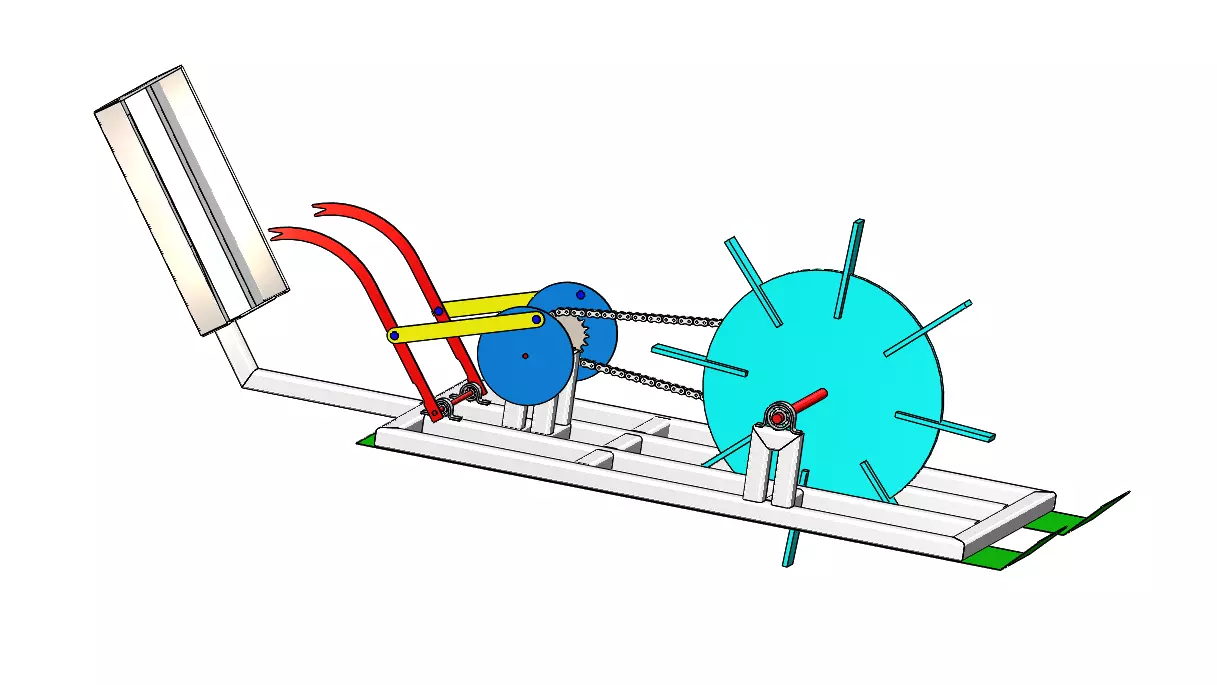

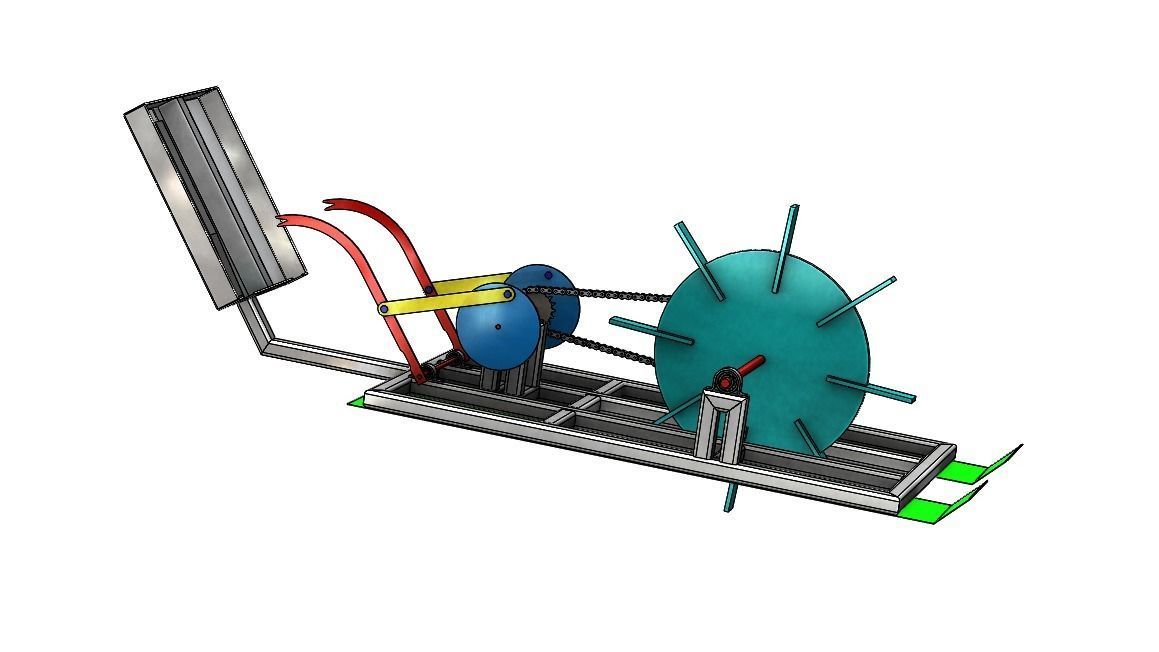

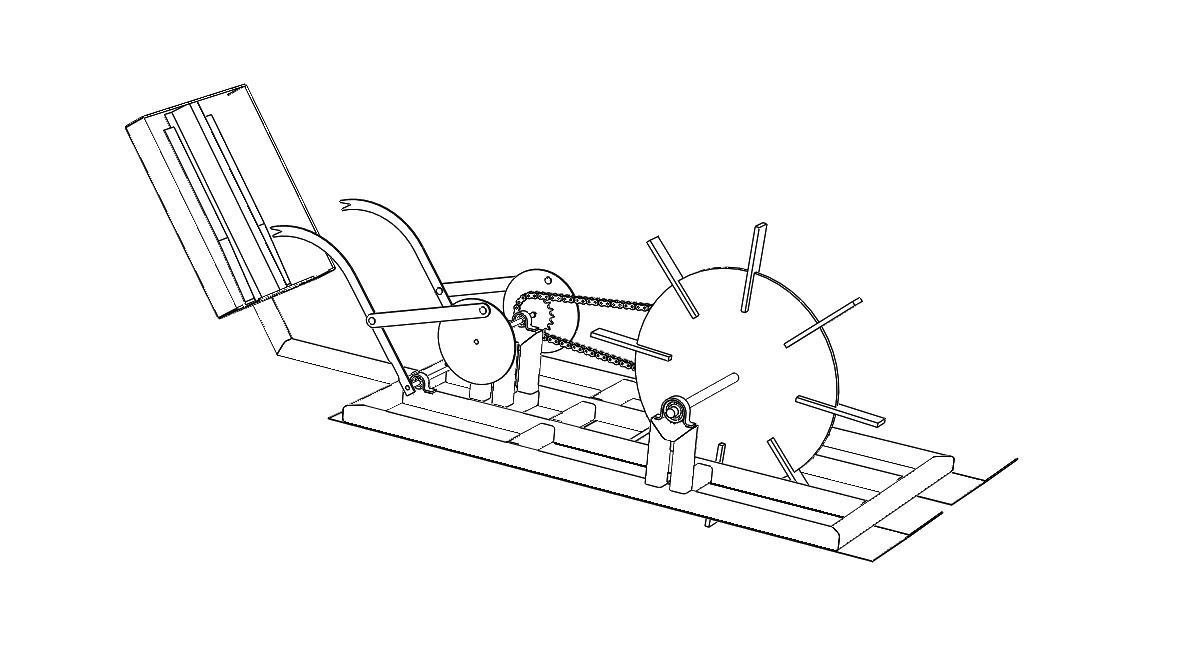

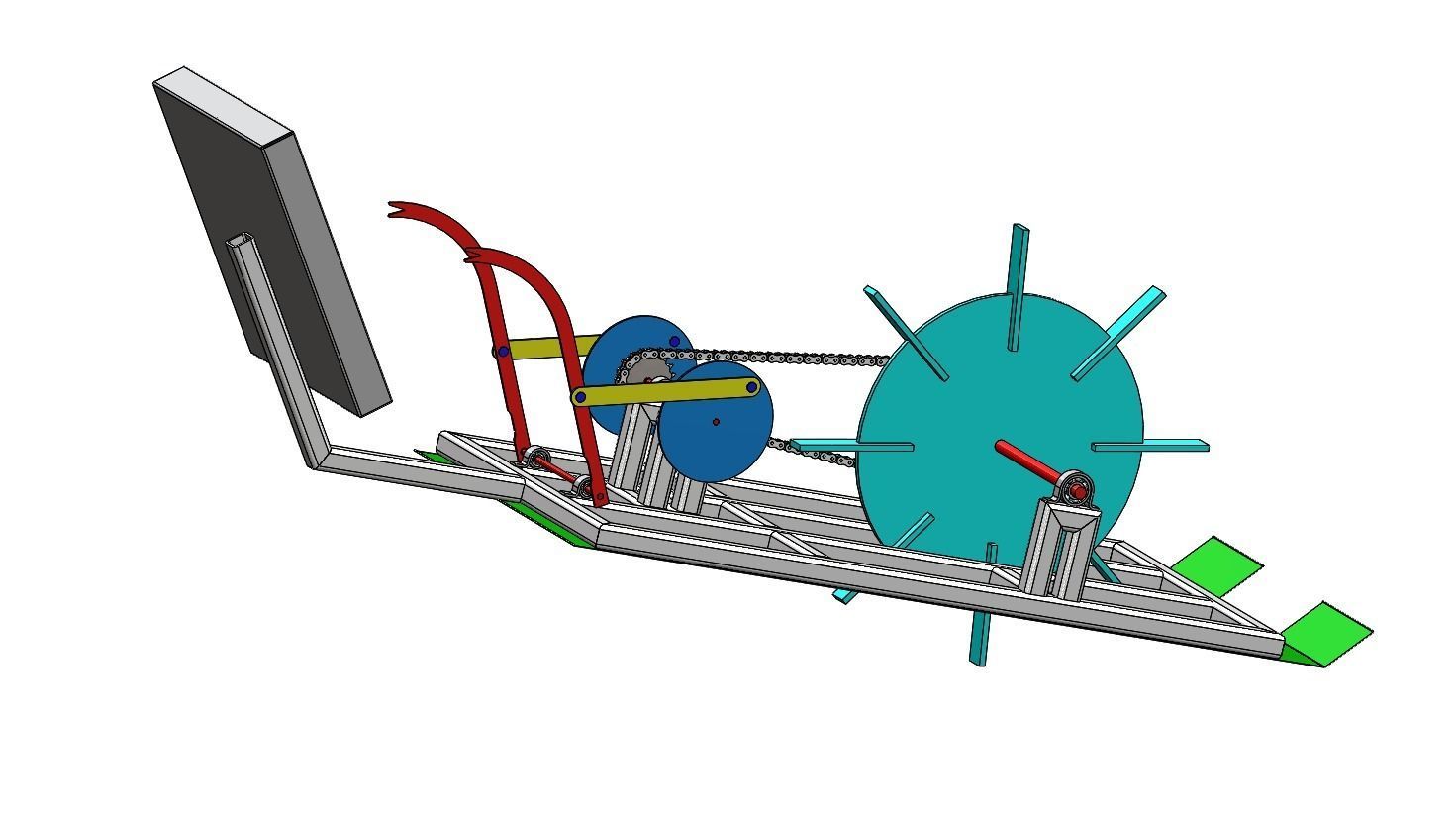

A rice transplanter is a specialized transplanter fitted to transplant rice seedlings onto paddy field. Mainly two types of rice transplanter i.e., riding type and walking type.It is walking type machine. The above model is a solidworks model. Also available step, iges format.

Some Information

1. A transplanter is an agricultural machine used for transplanting seedlings to the field.
2. It reduces the time taken to transplant seedlings comparing to conventional method.
3. It’s work simple mechanism.
4. Electrical Energy is not Required.

Principle of Operation • Paddy seedlings are kept in the tray and allowed to flow down under gravity. • The picking arm pick from the tray and keeps it in horizontal position on the skid. • The arm planting the seedling from tray to ground. • The motion for the arm is given by Wheel rotation using chain and sprocket arrangement. • Picking mechanism is used to plant paddy seedlings into the land
