Planetary Gear 3D print model

Description

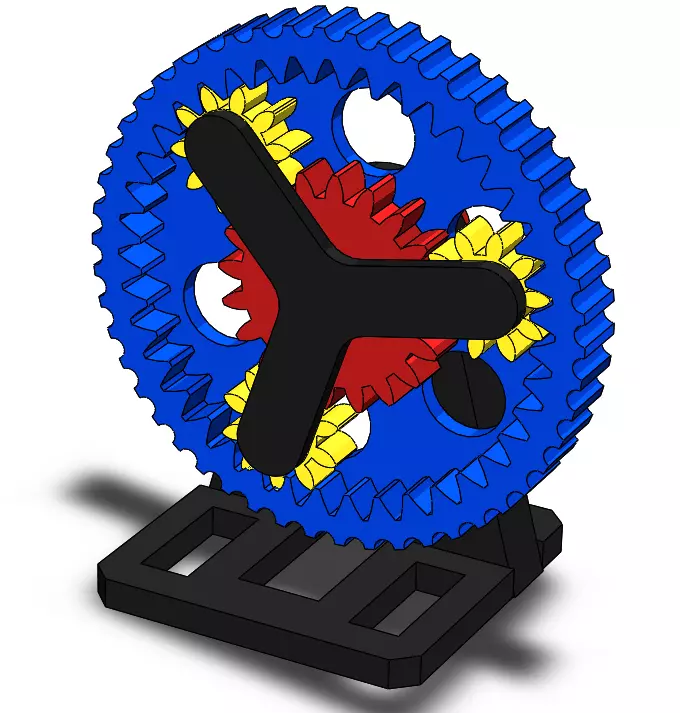

planetary gear 3d Printing model. The model contains three file formats: sld, step, stl.

dimesnions on drawing sheet are in mm.

Gear ratio: Sun = 20T. Planets = 10T. Ring = 40T.

The model include all condituions, (the ring not fixed). So it is possible to rotate the ring and the sun with different rotation velocity.

The model include ISO standard gears: 1xInternal spur gear, 3xPlanet spur gear and 1xSun spur gear.

For more information about planetary system:

https://www.thedrive.com/cars-101/40394/planetary-gear
