P-51D Mustang Strut Assembly - Hydraulic Tail Wheel Operating 3D print model
P-51D Mustang: Strut Assembly - Hydraulic Tail Wheel Operating Full Size 1:1

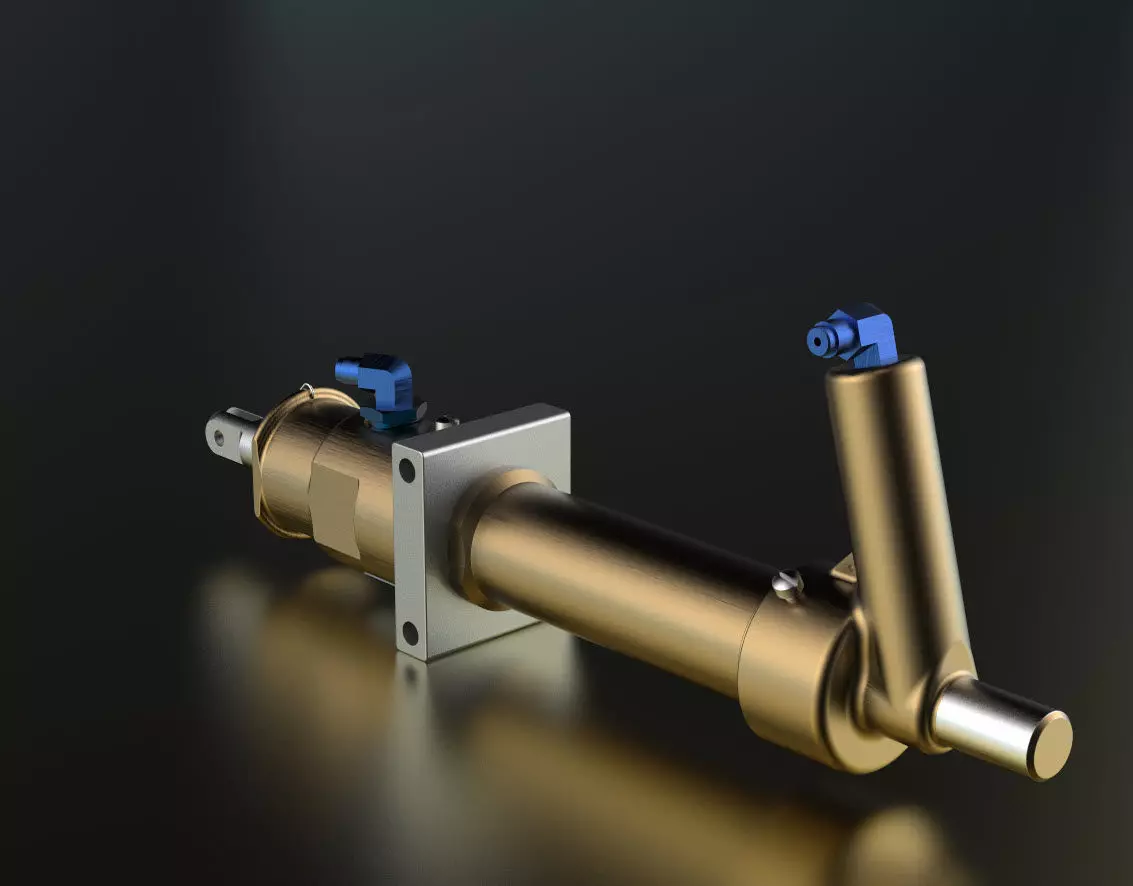

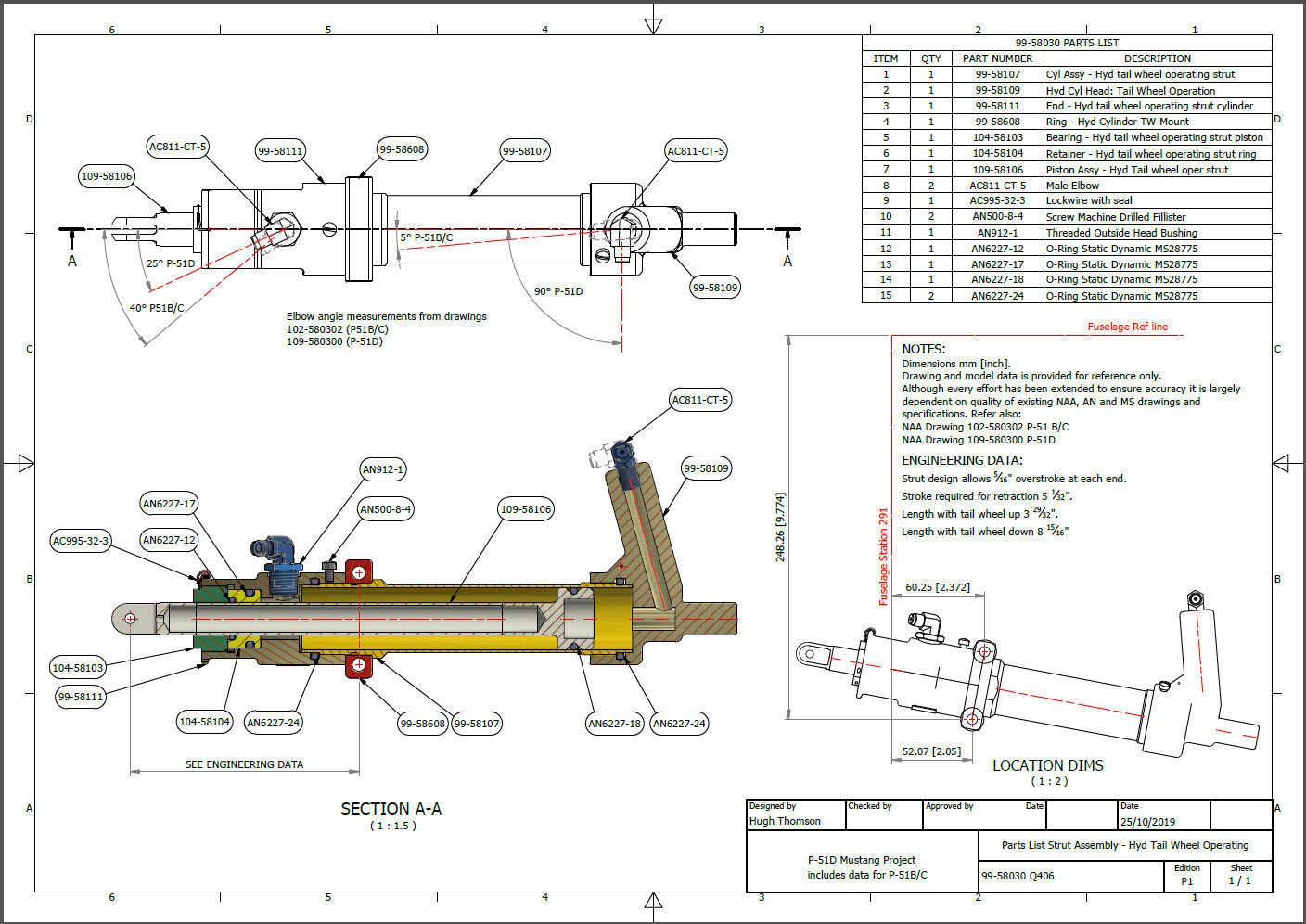

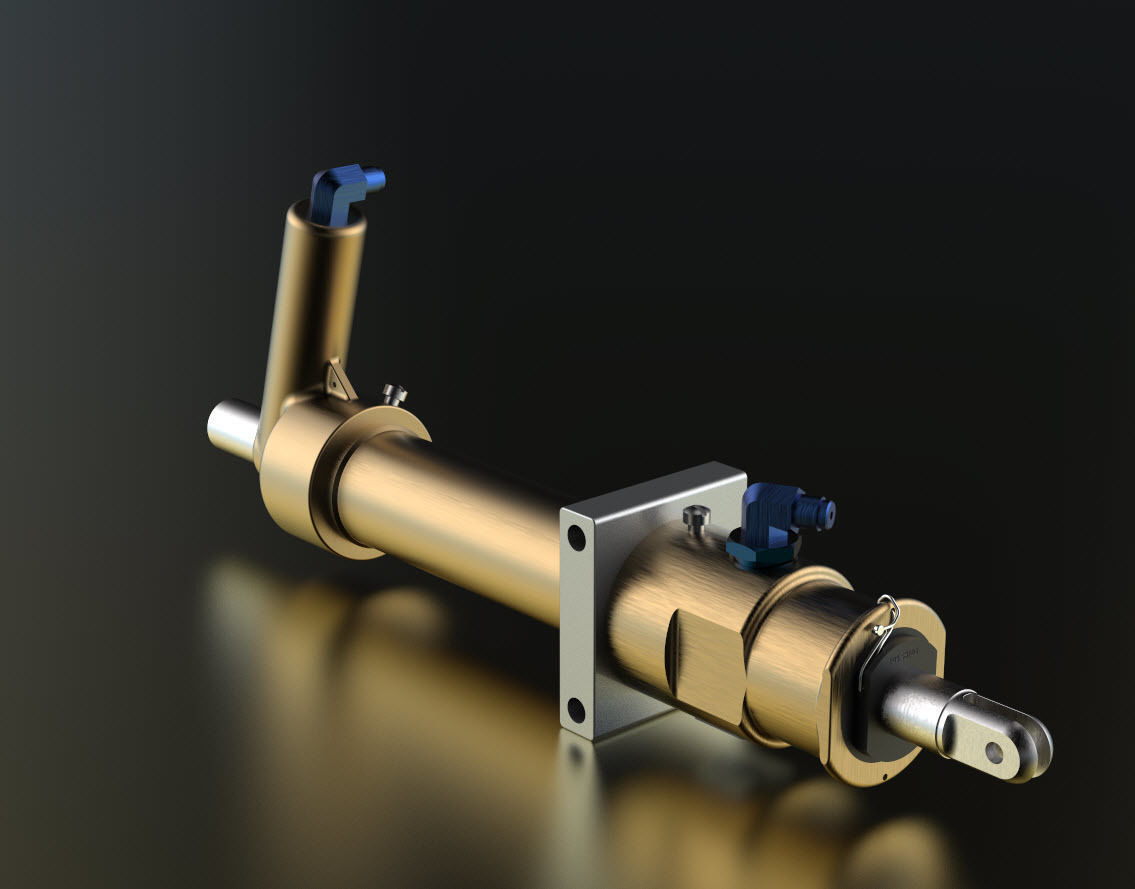

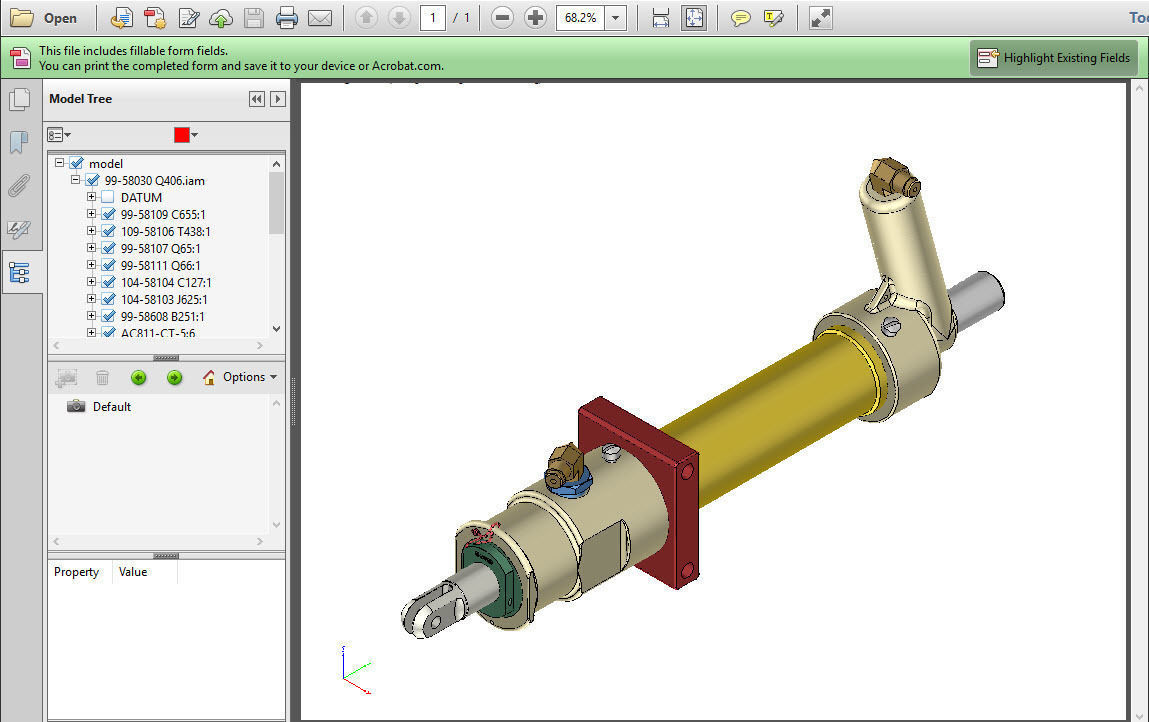

All parts; including nuts, bolts, washers etc; accurately modeled to original North American Aviation drawings and AN, MS, NASM specifications. The package includes the CAD model in DWG (2018), STL, STP and Parasolid X-B formats; 3D PDF of the model and 2D PDF of the parts list as generated. Model assembly reference NAA drawing 99-58030 (102-580302,109-580300). Assembly for P-51 B & C is similar. Fully detailed internal components.
The model can be used as a reference for maintenance, restoration purposes, research, and teaching.
The P-51 Mustang Project:Our primary purpose is the review of methods applicable to the design and construction of historical aircraft. The P-51 Mustang has been one of our primary subjects for research in criteria of conic design. Inherent to this research we have developed a number of mechanical assemblies in CAD to ascertain positional relationships and study the construction methods.

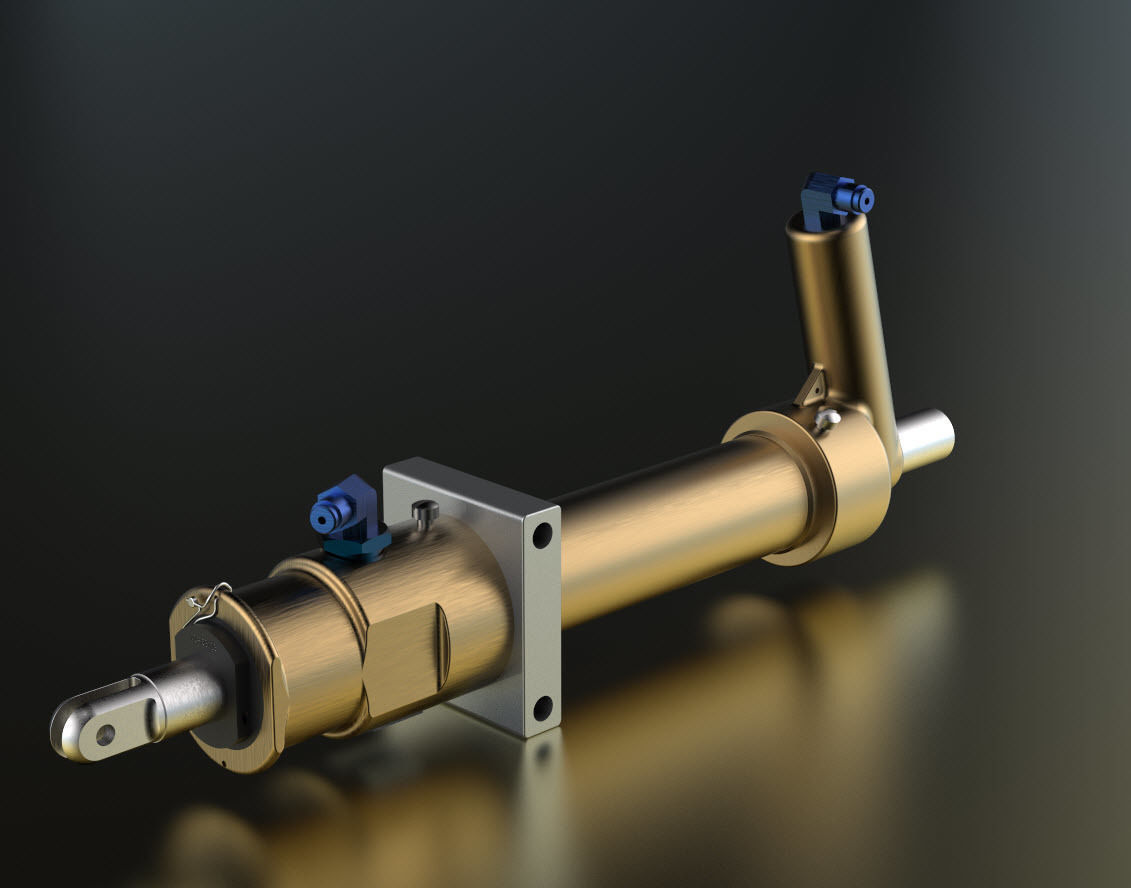

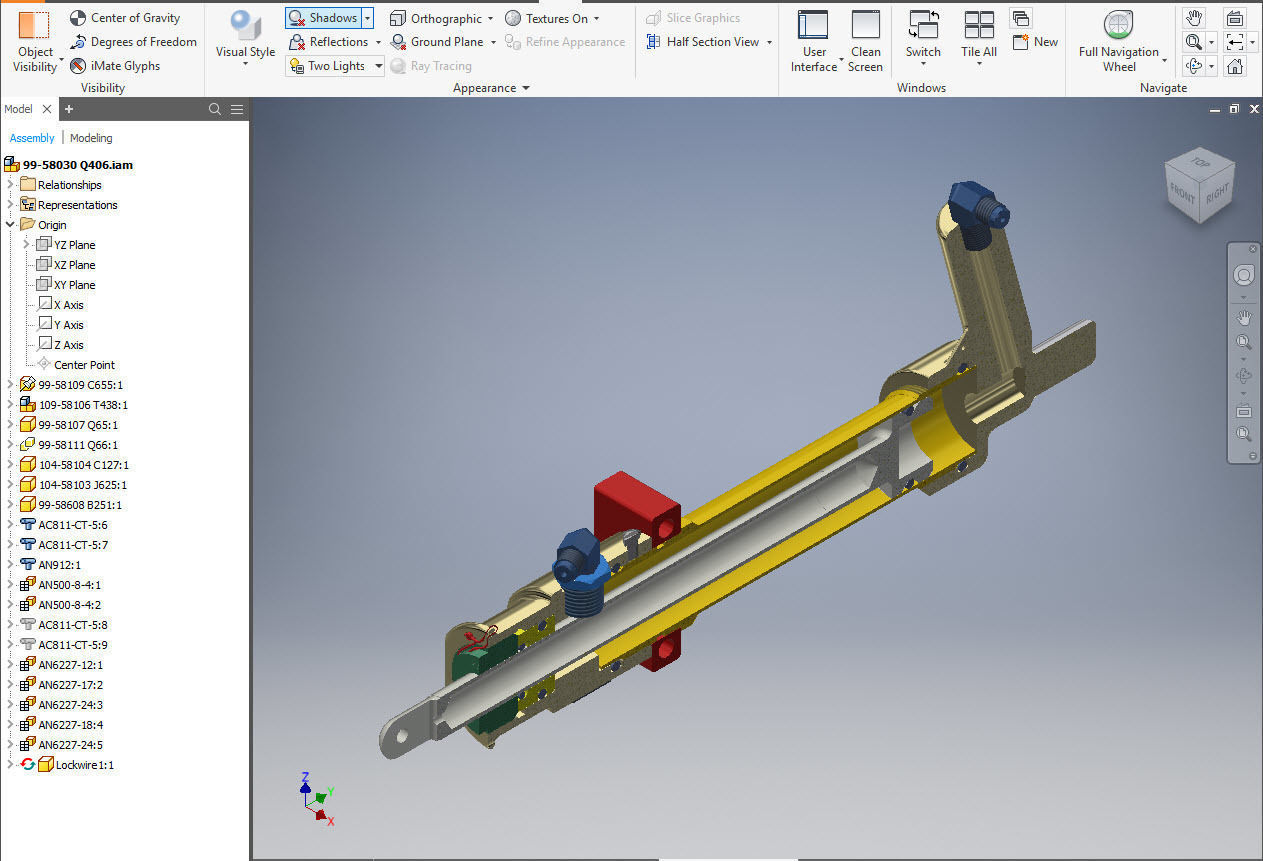

The original ipt and iam Autodesk Inventor cad files can be made available on special request.
