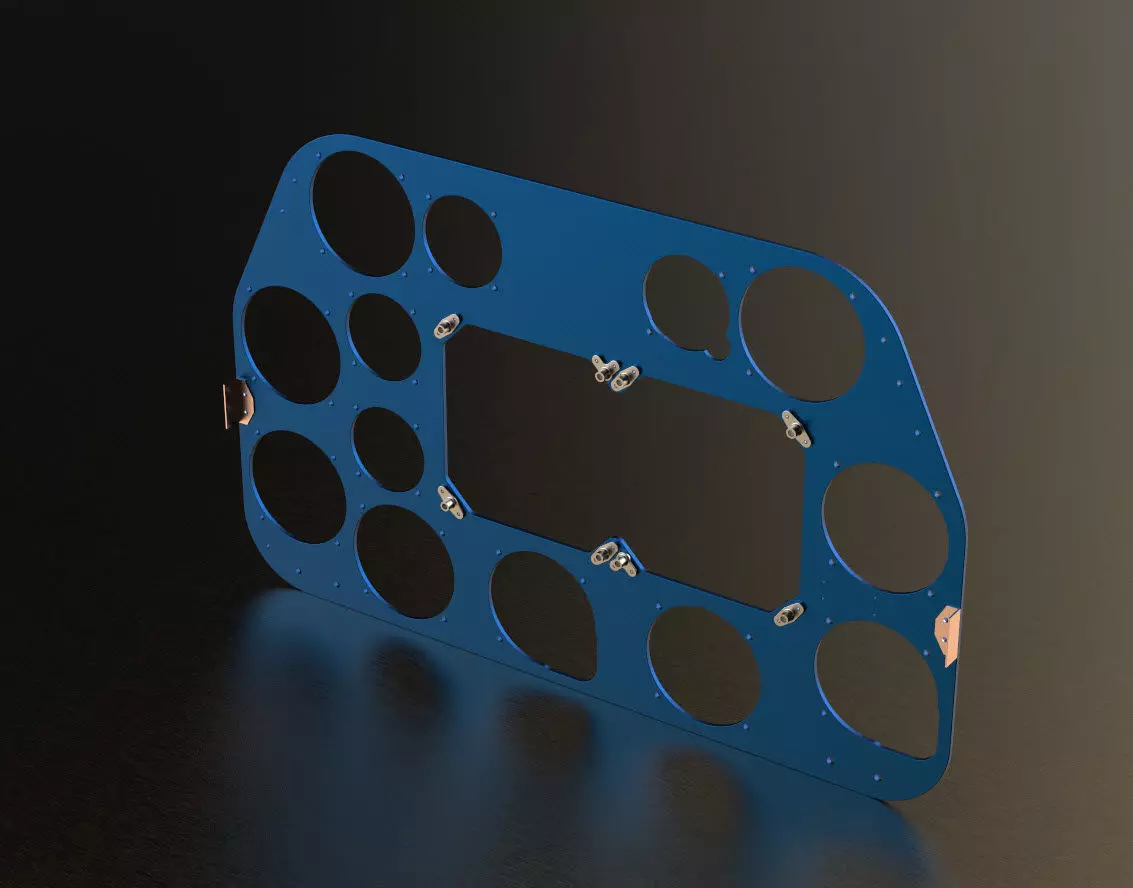

P-51D Mustang Instrument Panels Late and Early Versions Updated 3D print model

P-51D Mustang Instrument Panels Late and Early Versions Updated 19th July 2022.

All parts; including nuts, bolts, washers, etc; are accurately modeled to original North American Aviation drawings, AN, MS, and NASM specifications. The package includes the CAD models in DWG (2018), STL, STP, and Parasolid X-B formats and 2D PDF and Autocad DWG for reference.

Models were developed from NAA drawings 106-51002 (early), 109-516002 (late) and 97-51002Early Version: 106-51002,Later Versions: 109-516002, 109-517002,For P-51B Mustang: 97-51002.

The models can be used as a reference for maintenance, restoration purposes, research, and teaching.

The P-51 Mustang Project:Our primary purpose is the review of methods applicable to the design and construction of historical aircraft. The P-51 Mustang has been one of our primary subjects for research in criteria of conic design. Inherent to this research we have developed a number of mechanical assemblies in CAD to ascertain positional relationships and study the construction methods.

The 3D CAD models are professionally developed; some of which are now being made available publicly for the first time. The Parts list drawings include important dimensional information to accurately locate components.

The original ipt and iam Autodesk Inventor cad files can be made available on special request.
