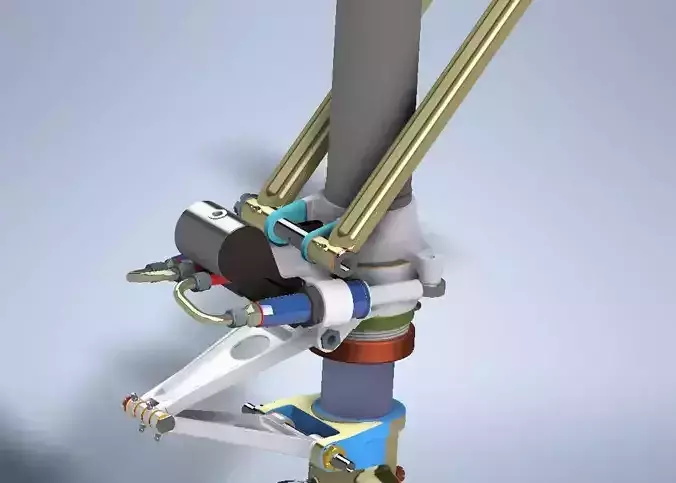

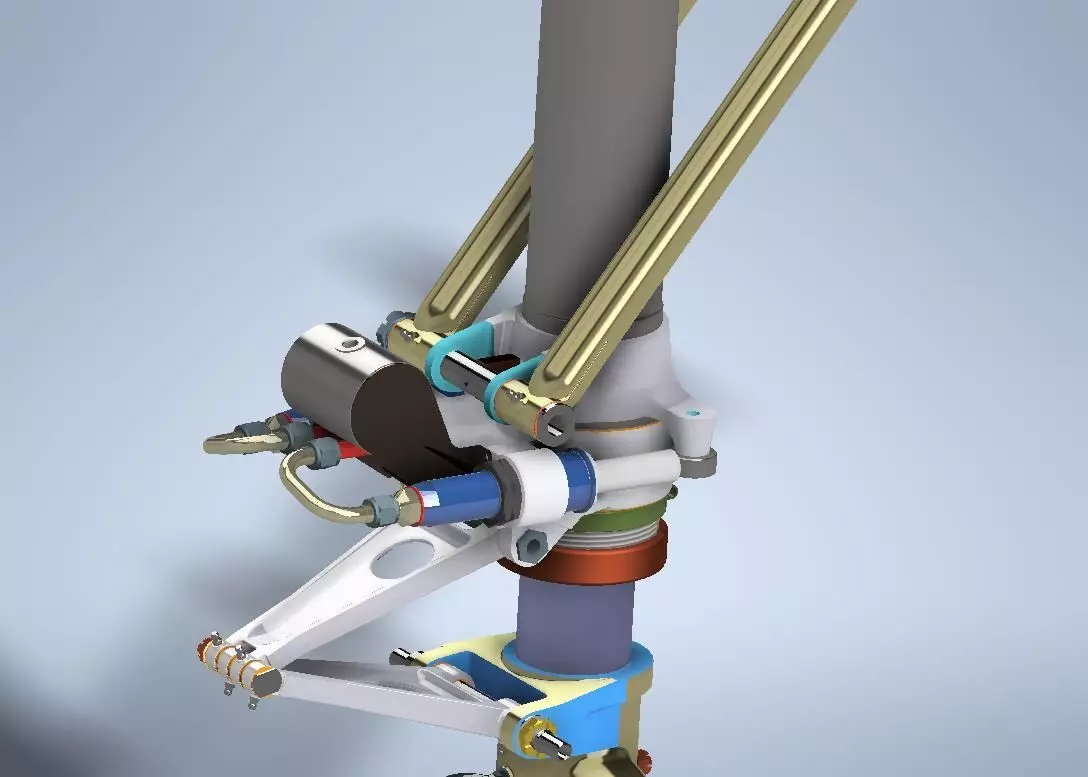

P-38 Lightning Landing Gear 3D print model
DescriptionP-38 Lightning Landing Gear: Full Size 1:1 For P-38 F,G,H,J
All parts; including nuts, bolts, washers, etc; were accurately modeled to original Lockheed drawings and AN, MS, and NASM specifications. The package includes the 3D CAD model in DWG (2018), STL, STP, and Parasolid X-B (editable) formats; and a 2D PDF.
The model can be used as a reference for maintenance, restoration purposes, research, and teaching.
The P-38 Lightning Project: Our primary purpose is the review of methods applicable to the design and construction of historical aircraft. The P-38 Lightning has been one of our main subjects for research for which we have developed a number of mechanical assemblies in CAD to ascertain positional relationships and study the construction methods.
The 3D CAD models are professionally developed; some of which are now being made available publicly for the first time.
The original ipt and iam Autodesk Inventor cad files can be made available on special request.
3D Model formats
Format limitations
- AutoCAD (.dwg) (2 files)29.9 MB
- Stereolithography (.stl) (2 files)117 MB
- Parasolid (.x_t, .x_b) (2 files)10.9 MB
- STEP (.stp) (2 files)22.7 MB
- PDF (.pdf)1.09 MB
3D Model details
- Publish date2023-12-30
- Model ID#4995878
- Ready for 3D Printing
