Metric screw threads ISO 724 3D print model

Description

Catia V5 R24 surface model of all metric screw threads according to ISO 724.

• With parameters.

• With thread run-out.

Configurable inputs in 'Design table mode' (DTM):

• d=D = Thread size

• L1 = Gross length

• Clearence

Configurable inputs in 'Manual mode' (MM):

• d=D = Nominal size

• P = Pitch

• L1 = Gross length

• Clearence

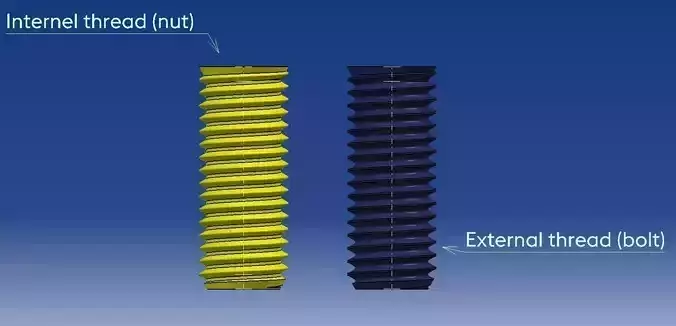

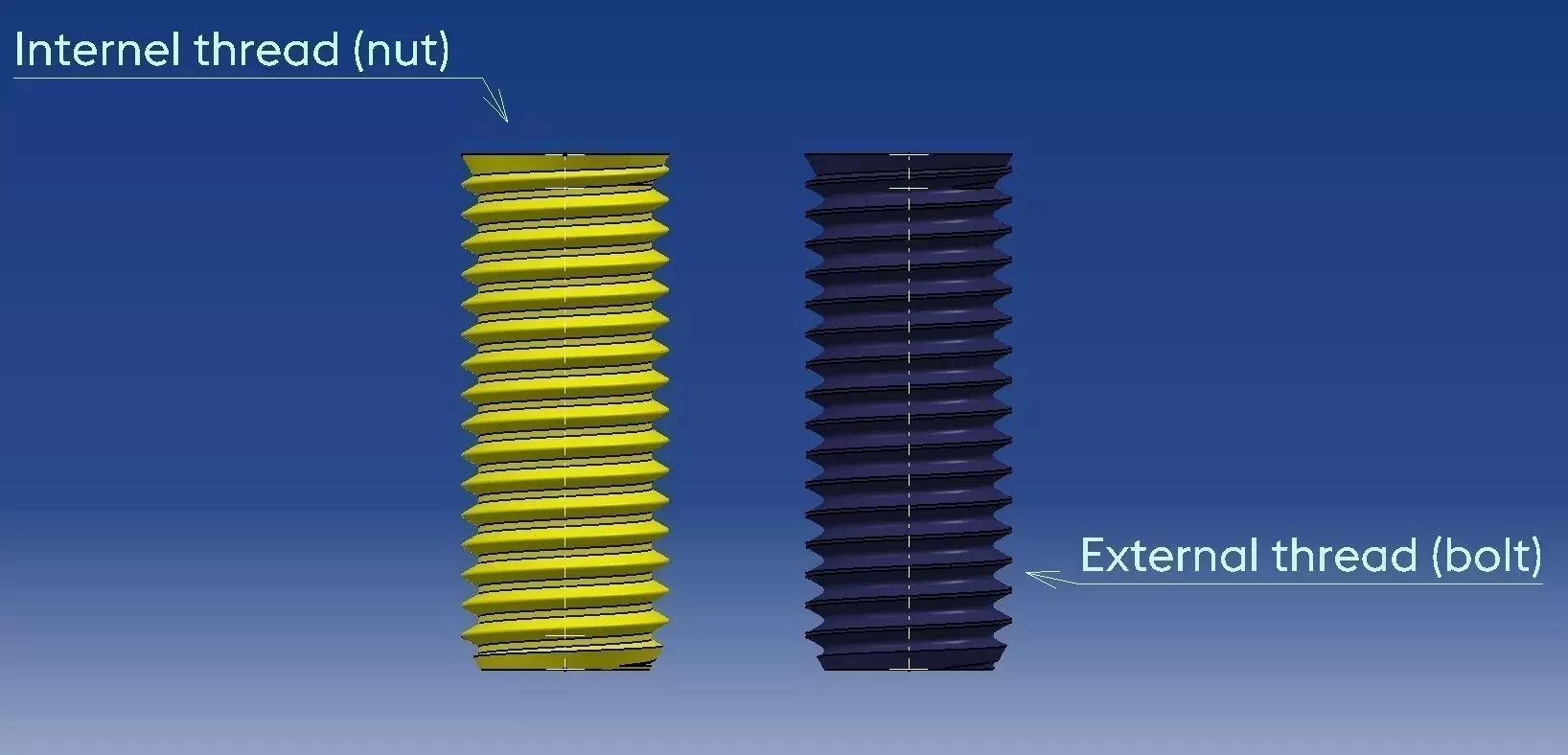

Outputs:

• Internel thread (nut)

• External thread (bolt)

• Nett length (Gross - Run-out)

A request for the desired .stl file is also possible.

Also available BSPP ISO 228 & BSPT ISO 7-1 (G/R/Rp/Rc).

Write comment
Item rating
0 1
E
e2k30
e2k30 2020-04-20 16:11:44 UTC
Not Recommended
Ich habe diese Modelle gekauft, weil ich die CATIA V5 Files gebraucht habe. Leider sind diese Files mit einer neueren Version erstellt und abgespeichert worden. So kann ich nichts damit anfangen. Es wäre gut, wenn die Anbieter die Version des CAD- Programms dazuschreiben würden. Dann kann man das vor dem Kauf sehen.
Metric screw threads ISO 724
$19.00

Custom License
Metric screw threads ISO 724
$19.00

Custom License
TTwillert1979
Twillert1979
(2 reviews)
Response - % in - h
3D Modeling
3D Print Modeling
Texturing
Hire meView all Designers Models

3D Model formats

Format limitations
  • CATIA (.CATProduct, .CATMaterial, .CATAnalysis) (2 files)1.45 MB
  • Stereolithography (.stl)2.82 MB
  • PDF (.pdf)310 KB

3D Model details

  • Publish date2017-10-14
  • Model ID#792132
  • Ready for 3D Printing
