Concave Heatshield Spacecapsule Concept

Concave Heatshield Spacecapsule Concept 3D print model

Description

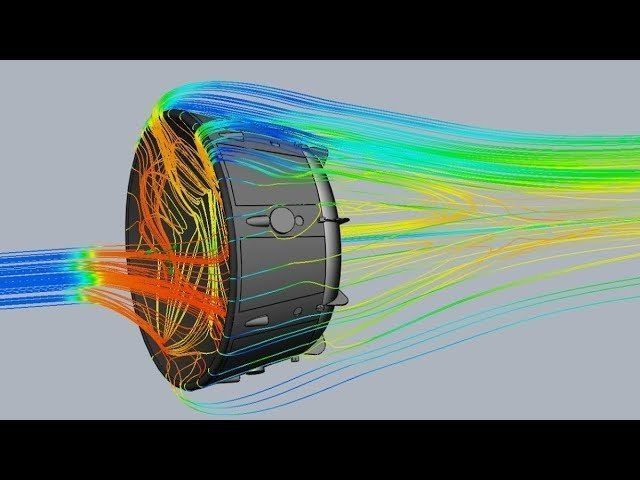

A concept model of a space capsule with a concave heatshield rather then convex - minor stability issues and reduced internal volume but according to computer simulations it can reenter using about half as much ablative shielding as a regular capsule - might be a useful concept for sample return missions from the outer solar systemthe capsule in the theoretical concept used to test the idea has a diameter of about 4 meters and in the simulation was weighted at about 4 tons for comparability and simplicity, though it might be more useful to build it lighter for it's ssize with a lower surface load

Item rating
0 0
Concave Heatshield Spacecapsule Concept
$10.91

Royalty Free No Ai License
Concave Heatshield Spacecapsule Concept
$10.91

Royalty Free No Ai License
Response 86% in 0.4h
3D Modeling
3D Print Modeling
Hire meView all Designer's Models

3D Model formats

Format limitations
Native
  • SolidWorks (.sldprt, .sldasm, .slddrw) (2 files)3.24 MB
Exchange
  • Stereolithography (.stl) (2 files)31.3 MB
  • 3D Studio (.3ds)643 KB
  • OBJ (.obj, .mtl)2.3 MB
  • SolidWorks (.sldprt, .sldasm, .slddrw) (2 files)3.24 MB

3D Model details

  • Publish date2018-09-07
  • Model ID#991001
  • Ready for 3D Printing
