90 Degree Machinist Angle Plate 3D print model

Description

sheet metal welded 90 degree machinist angle plate 3d model for fixturing and machining operations the model has slots and holes to be used for clamping down the plate to the machining device

Perfect for FEA simulations and to be added to your CAM library for machining simulations

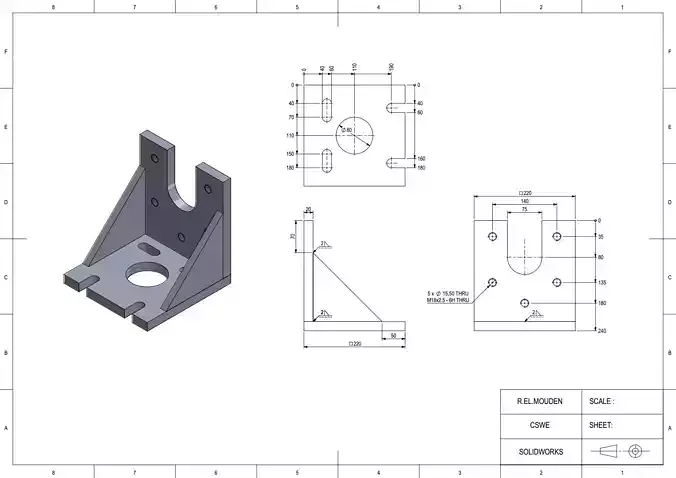

Made in solidworks 2020. The model is provided in the formats : STL, STEP, IGES, and a OBJ plus a PDF drawing with all the dimensions.

Please contact us for any inquiries and modifications. Check my previous models for similar designs.
