4 inches NPS BW 90 Degrees LR Elbows ASME-ANSI 3D print model

Description

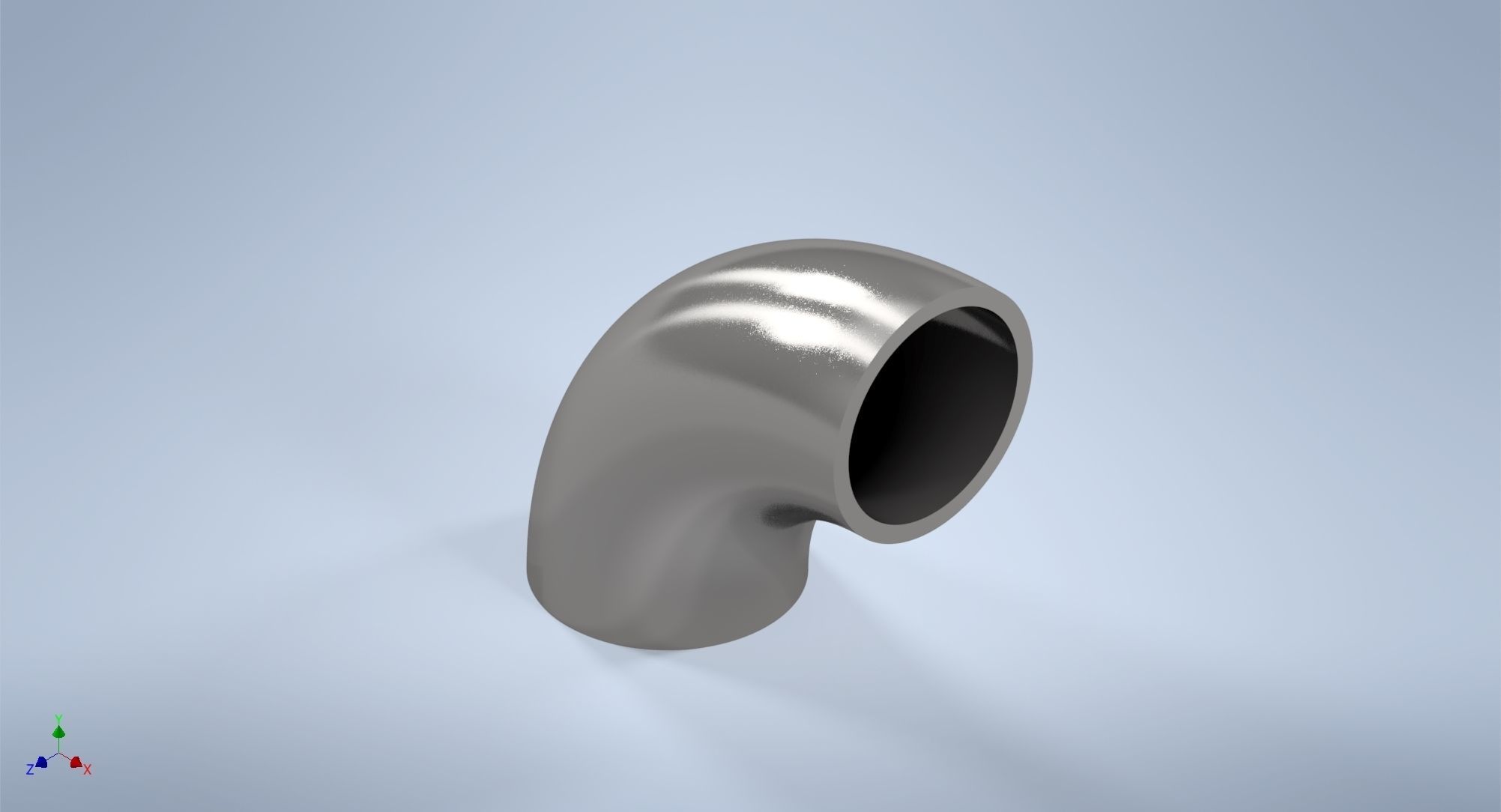

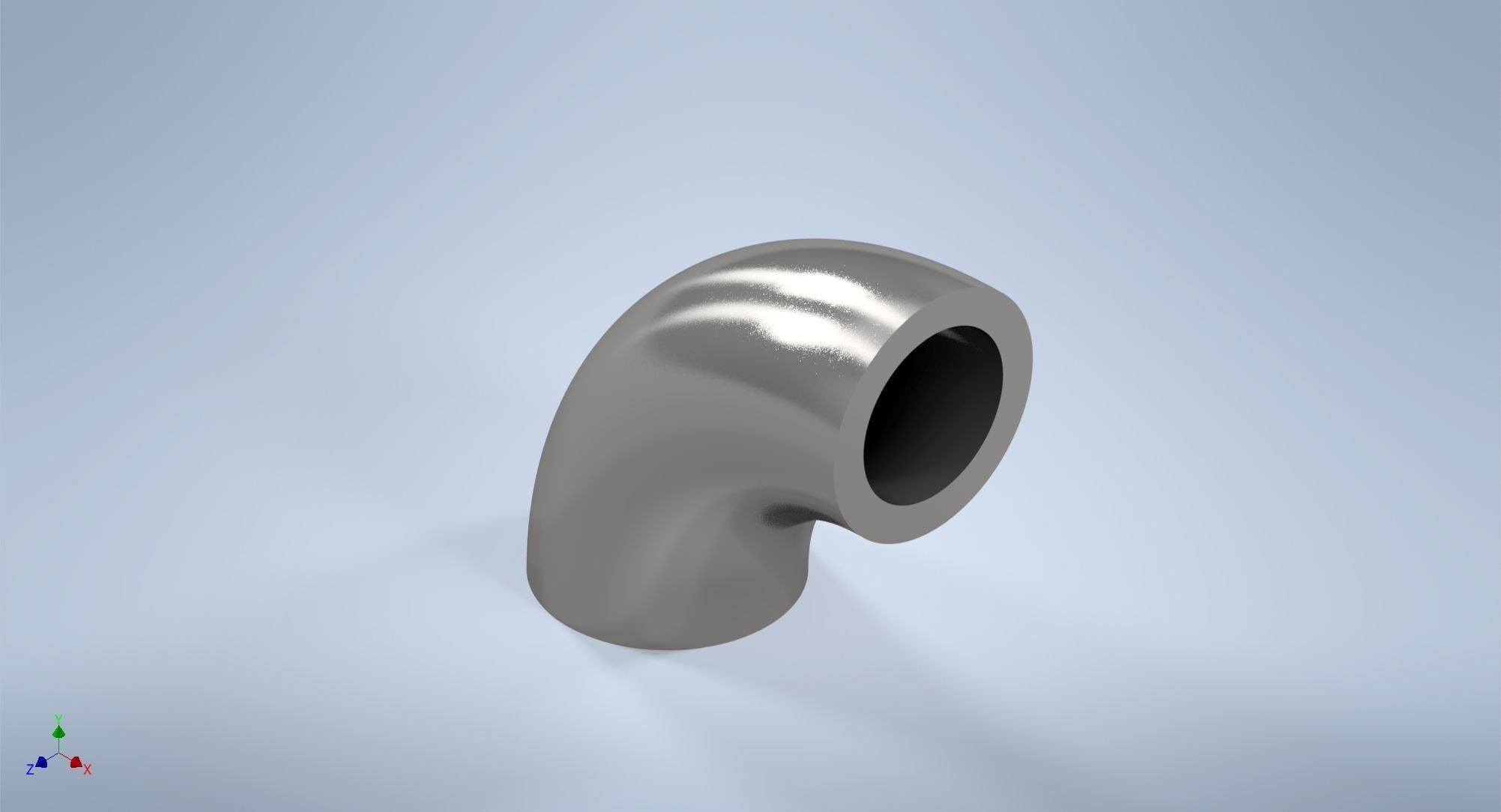

This pack contains the next 4" NPS BW 90º LR Elbows ruled by ASME/ANSI B16.9:

-4" NPS BW 90º LR Elbow Sch.5S

-4" NPS BW 90º LR Elbow Sch.10S

-4" NPS BW 90º LR Elbow Sch.40

-4" NPS BW 90º LR Elbow Sch.80

-4" NPS BW 90º LR Elbow Sch.160

-4" NPS BW 90º LR Elbow Sch.XXS

Write comment
3DTGRL
3DTGRL
3DTGRL2023-02-16 07:18:16 UTC
good job
EngineeringAccessories
EngineeringAccessories
EngineeringAccessories2023-02-16 20:06:32 UTC
Thanks for your support
Item rating
0 0
4 inches NPS BW 90 Degrees LR Elbows ASME-ANSI
$3.99

Royalty Free License
4 inches NPS BW 90 Degrees LR Elbows ASME-ANSI
$3.99

Royalty Free License
EEngineeringAccessories
EngineeringAccessories
(1 reviews)
Response 63% in 7.6h
3D Modeling
3D Print Modeling

3D Model formats

Format limitations
  • Autodesk Inventor 2021 (.iam, .ipt)4.3 MB
  • OBJ 2021 (.obj, .mtl)4.3 MB
  • Stereolithography 2021 (.stl)4.3 MB
  • JPG 2021 (.jpg)4.3 MB
  • PNG 2021 (.png)4.3 MB

3D Model details

  • Ready for 3D Printing
  • Publish date2023-02-14
  • Model ID#4297103
