3D Lattice Structures

3D Lattice Structures 3D print model

Description

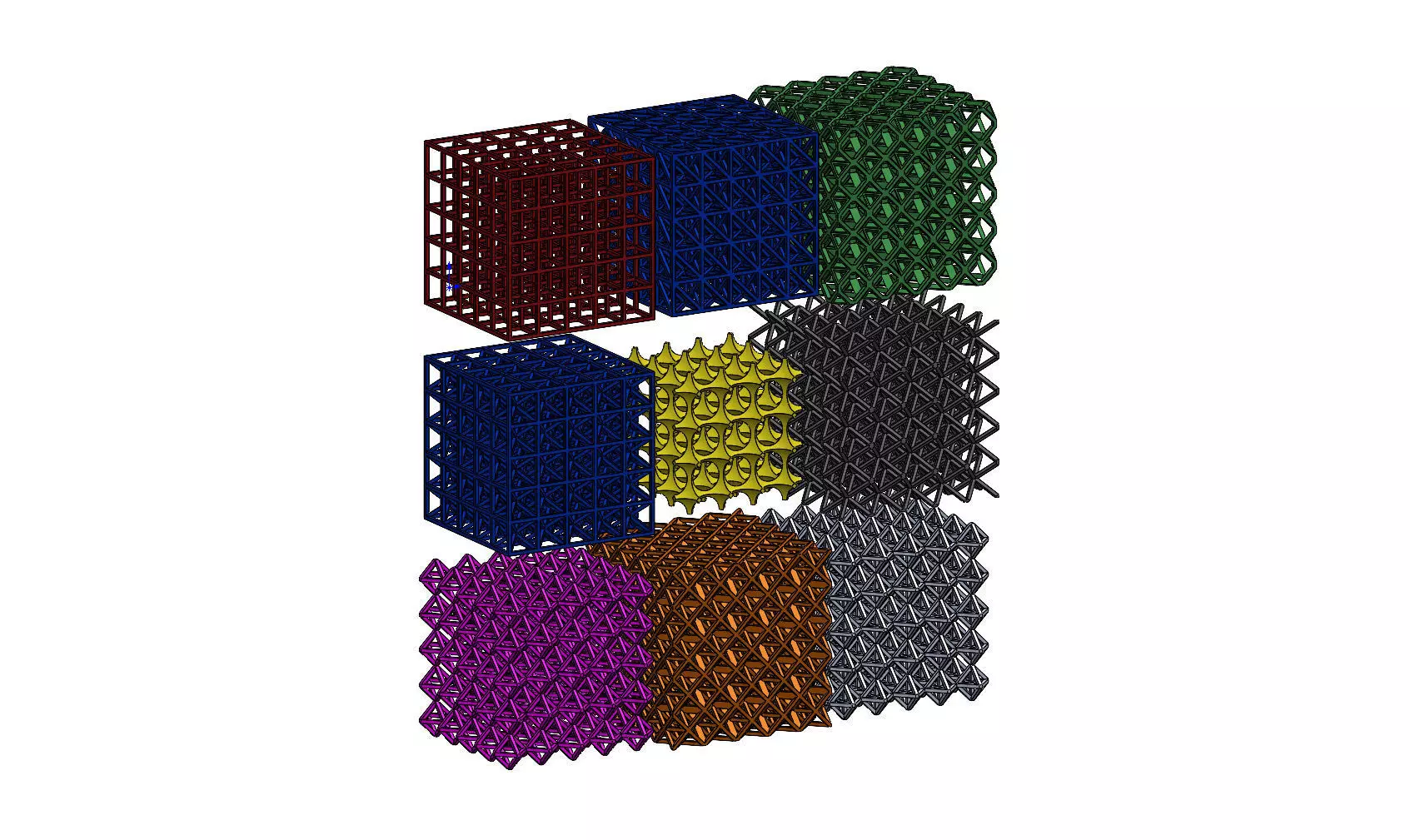

9 variations of 3D Lattice Structures for 3d printing and FEA analysis.

The model provides a 3d geometry to be used in finite element analysis of basic mechanical properties and medical scaffolding simulation. Each type of lattice strcturs has 2 files, the first is a single motif and the second one is 5motifx5motifx5motif cube. the size of the patterned motif is 10mmx10mmx10mm cube with the general thickness of 1mm for all the designs. To be used for educational purposes and 3d printing applications. Ideal for use in medical teaching environments.

The model is provided in three formats : STL, STEP, IGES and OBJ. If you require a bespoke design, please contact us to discuss your requirements

Please contact us for any inquiries and modifications.

Item rating
1 0
3D Lattice Structures
$8.00

Royalty Free No Ai License
3D Lattice Structures
$8.00

Royalty Free No Ai License
Response 98% in 0.1h
3D Modeling
3D Print Modeling
Hire meView all Designers Models

3D Model formats

Format limitations
  • IGES (.ige, .igs, .iges) (19 files)249 MB
  • STEP (.stp) (19 files)120 MB
  • 3D Manufacturing File (.3mf) (19 files)3.59 MB
  • Stereolithography (.stl) (19 files)12.5 MB

3D Model details

  • Publish date2020-05-18
  • Model ID#2427956
  • Ready for 3D Printing
