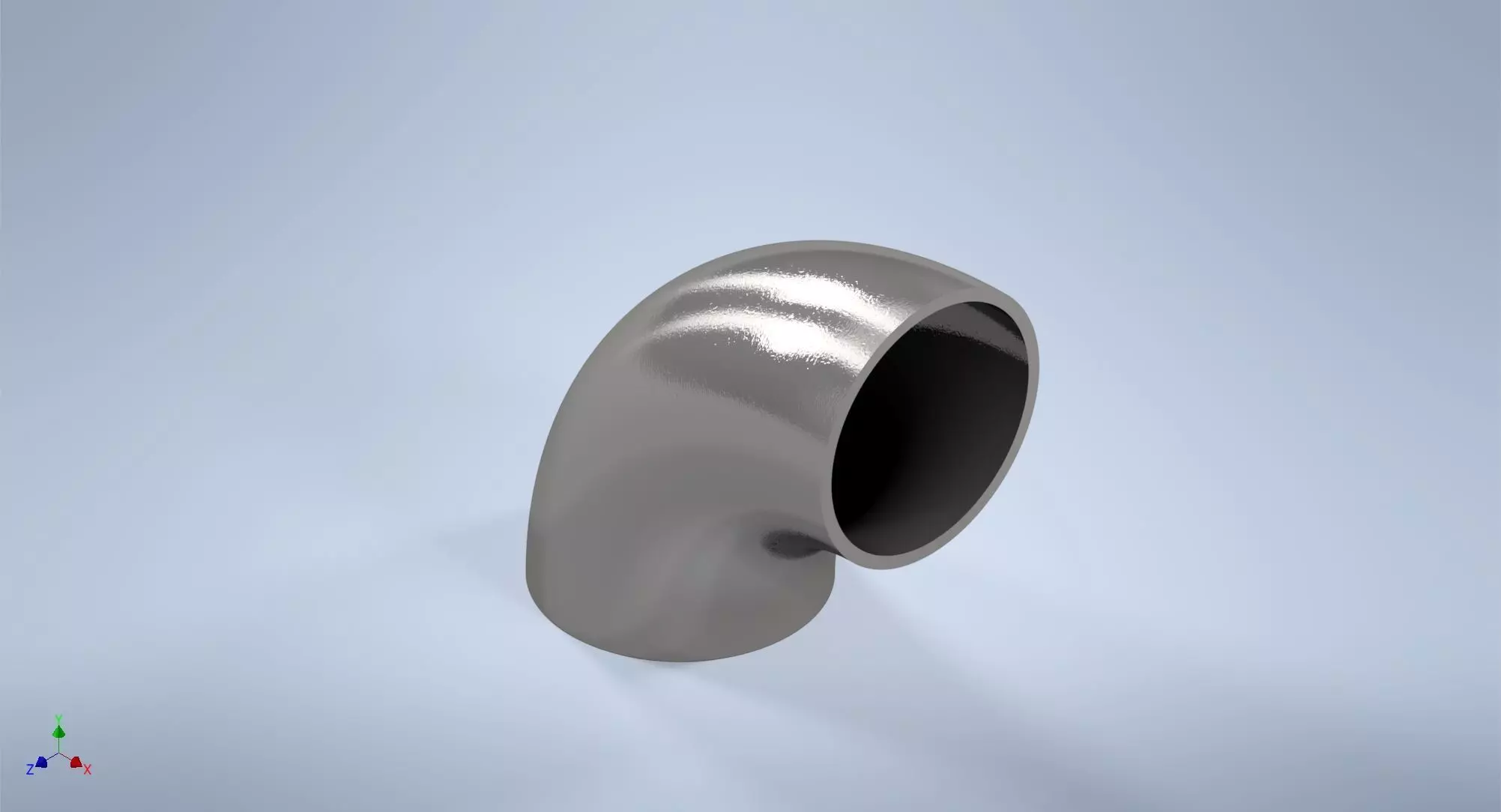

  • 1 inch NPS BW 90 Degrees LR Elbows ASME-ANSI 3D print model_0
  • 1 inch NPS BW 90 Degrees LR Elbows ASME-ANSI 3D print model_1
  • 1 inch NPS BW 90 Degrees LR Elbows ASME-ANSI 3D print model_2

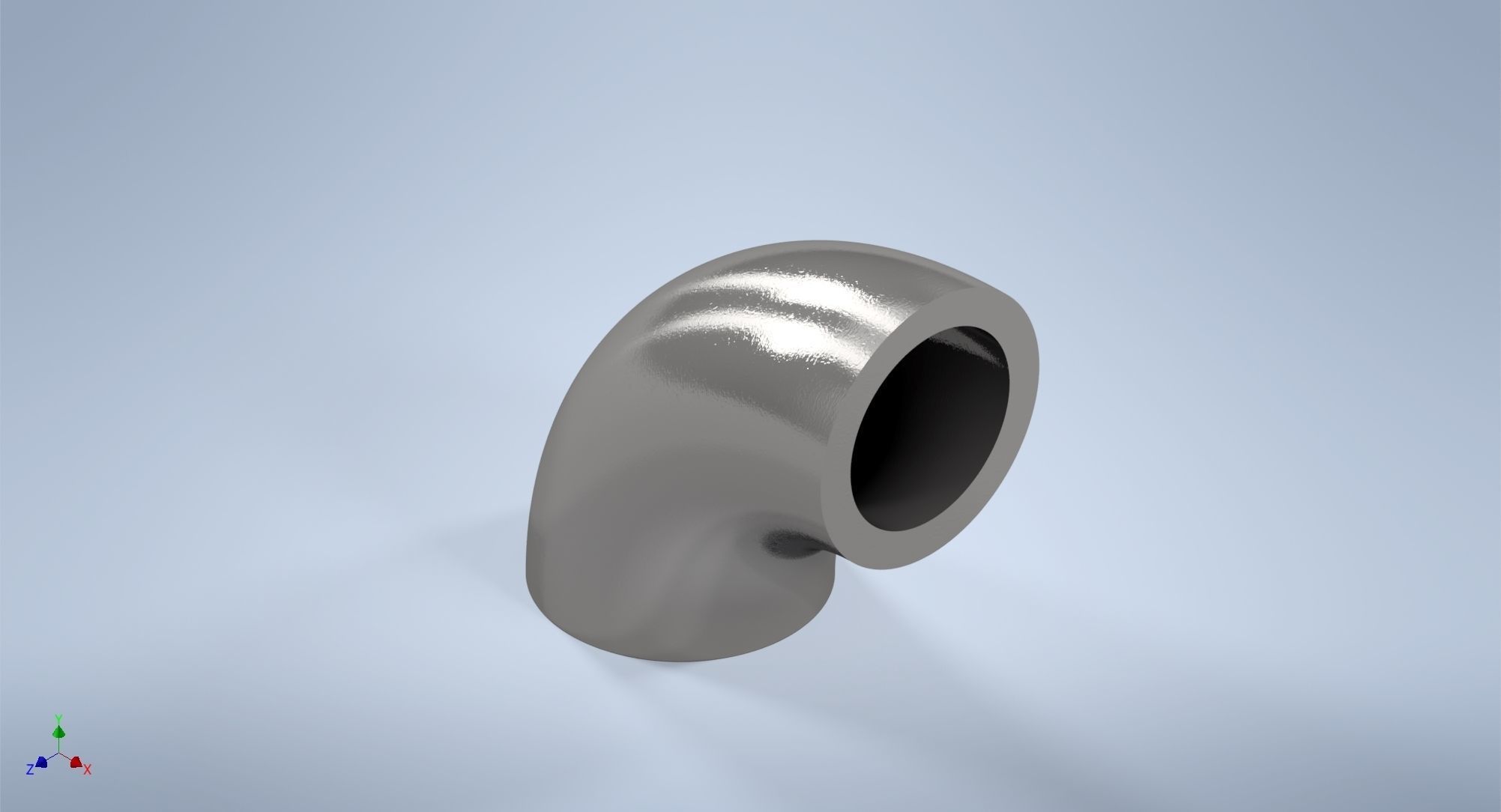

  • 1 inch NPS BW 90 Degrees LR Elbows ASME-ANSI 3D print model_3

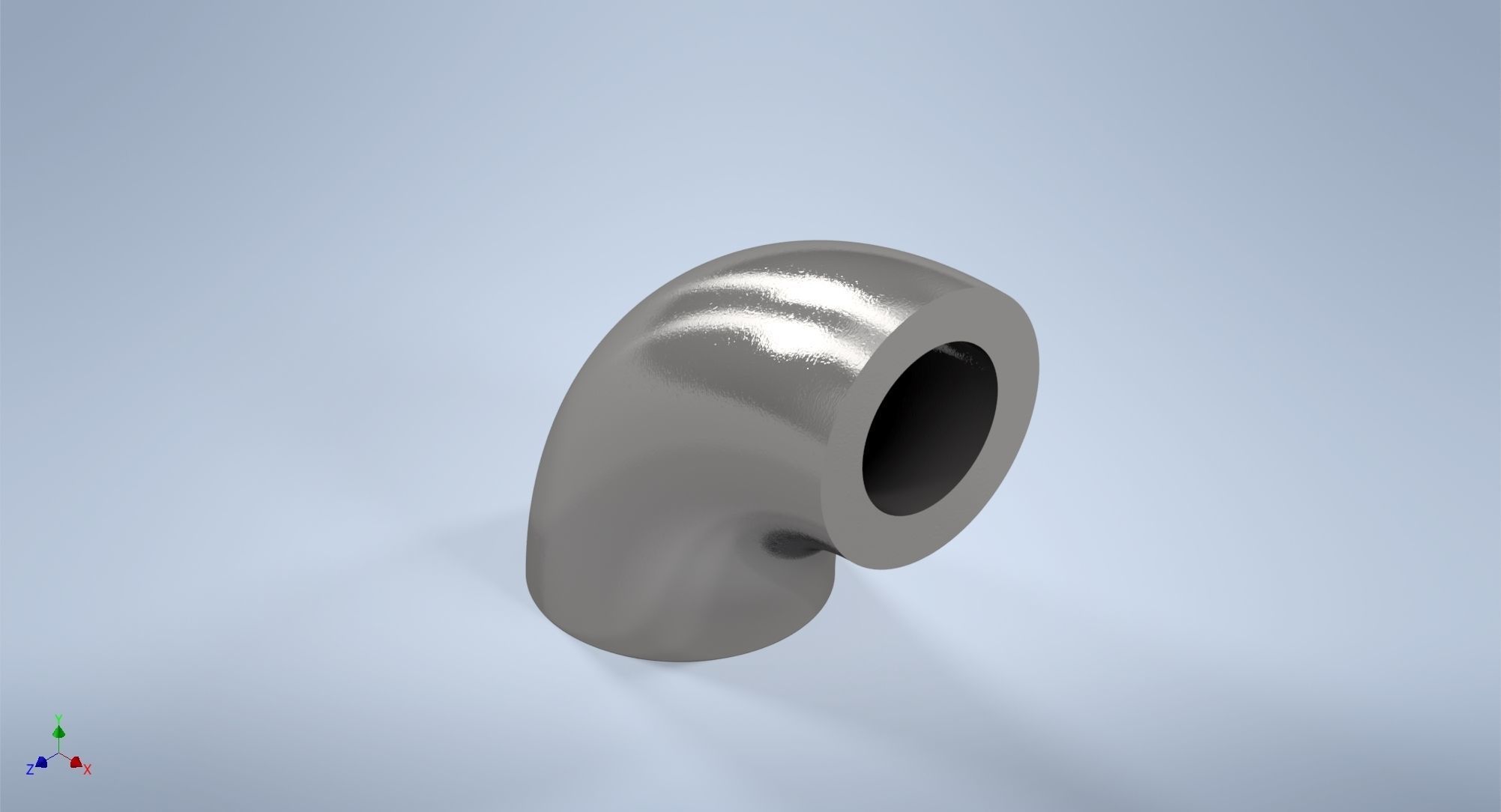

  • 1 inch NPS BW 90 Degrees LR Elbows ASME-ANSI 3D print model_4

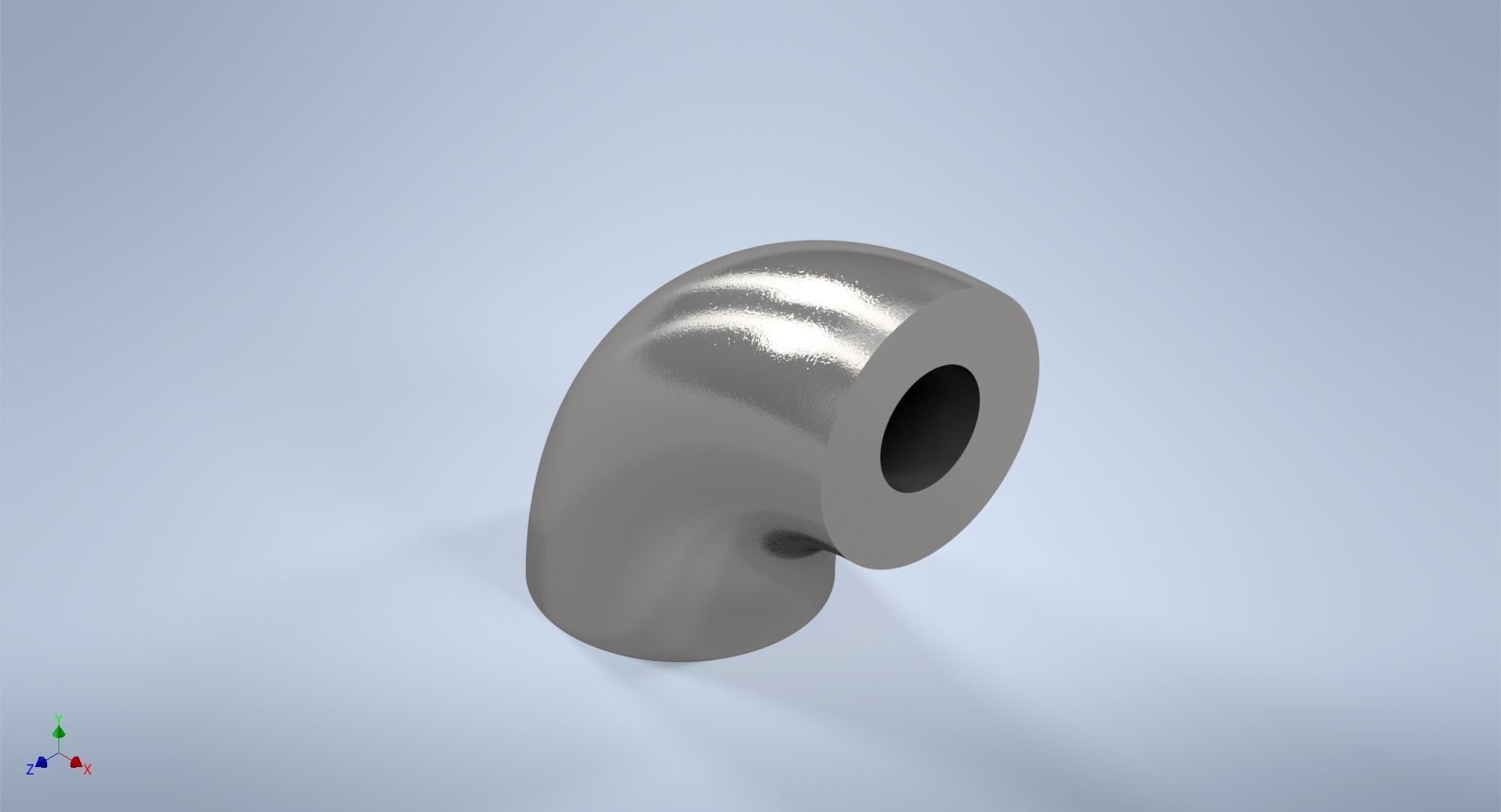

  • 1 inch NPS BW 90 Degrees LR Elbows ASME-ANSI 3D print model_5
1 / 6
Useto navigate. Pressescto quit

1 inch NPS BW 90 Degrees LR Elbows ASME-ANSI 3D print model

Description

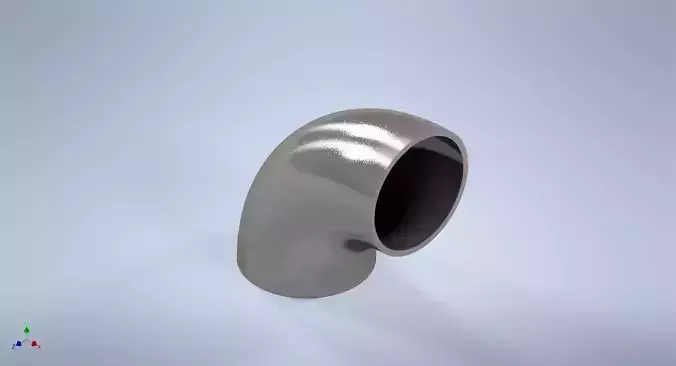

This pack contains the next 1" NPS BW 90º LR Elbows ruled by ASME/ANSI B16.9:

-1" NPS BW 90º LR Elbow Sch.5S

-1" NPS BW 90º LR Elbow Sch.10S

-1" NPS BW 90º LR Elbow Sch.40

-1" NPS BW 90º LR Elbow Sch.80

-1" NPS BW 90º LR Elbow Sch.160

-1" NPS BW 90º LR Elbow Sch.XXS

Write comment
Item rating
0 0
1 inch NPS BW 90 Degrees LR Elbows ASME-ANSI
$3.99

Royalty Free License
1 inch NPS BW 90 Degrees LR Elbows ASME-ANSI
$3.99

Royalty Free License
EEngineeringAccessories
EngineeringAccessories
(1 reviews)
Response 71% in 7.6h
3D Modeling
3D Print Modeling

3D Model formats

Format limitations
  • Autodesk Inventor 2021 (.iam, .ipt)4.31 MBVersion: 2021Renderer: Octane
  • OBJ 2021 (.obj, .mtl)4.31 MB
  • Stereolithography 2021 (.stl)4.31 MB

3D Model details

  • Publish date2022-12-17
  • Model ID#4173414
  • Ready for 3D Printing
