1-2 inch NPS BW 90 Degrees LR Elbows ASME-ANSI 3D print model

Description

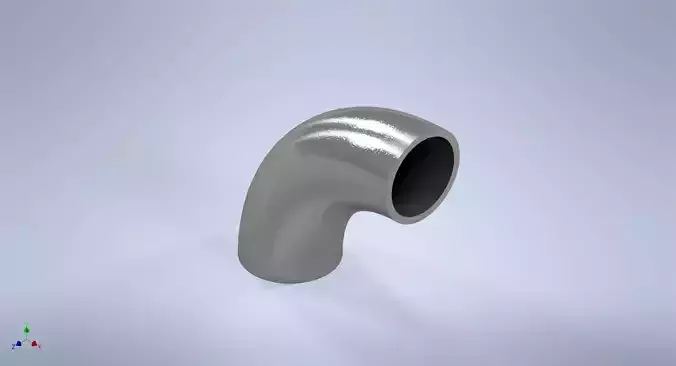

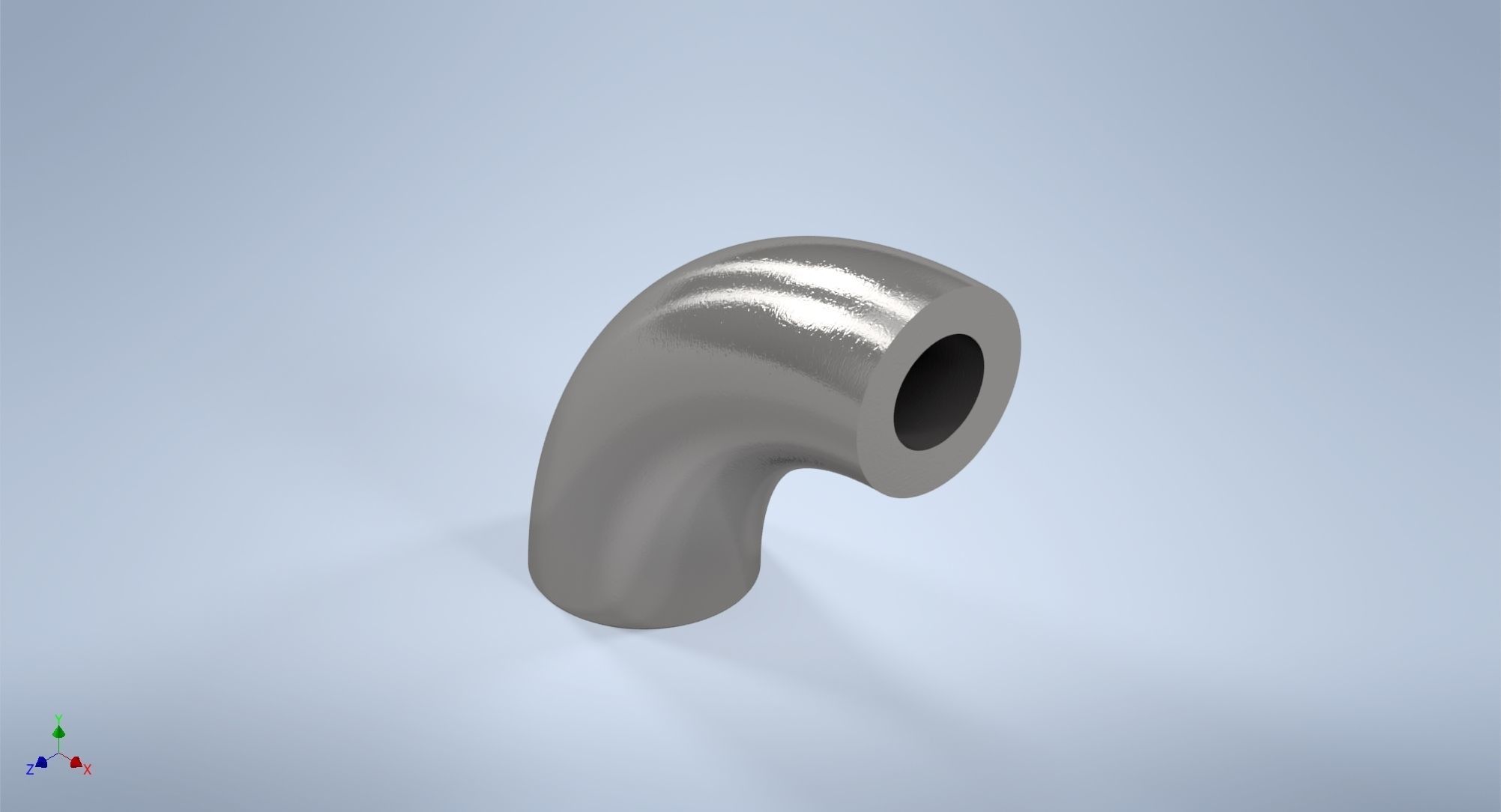

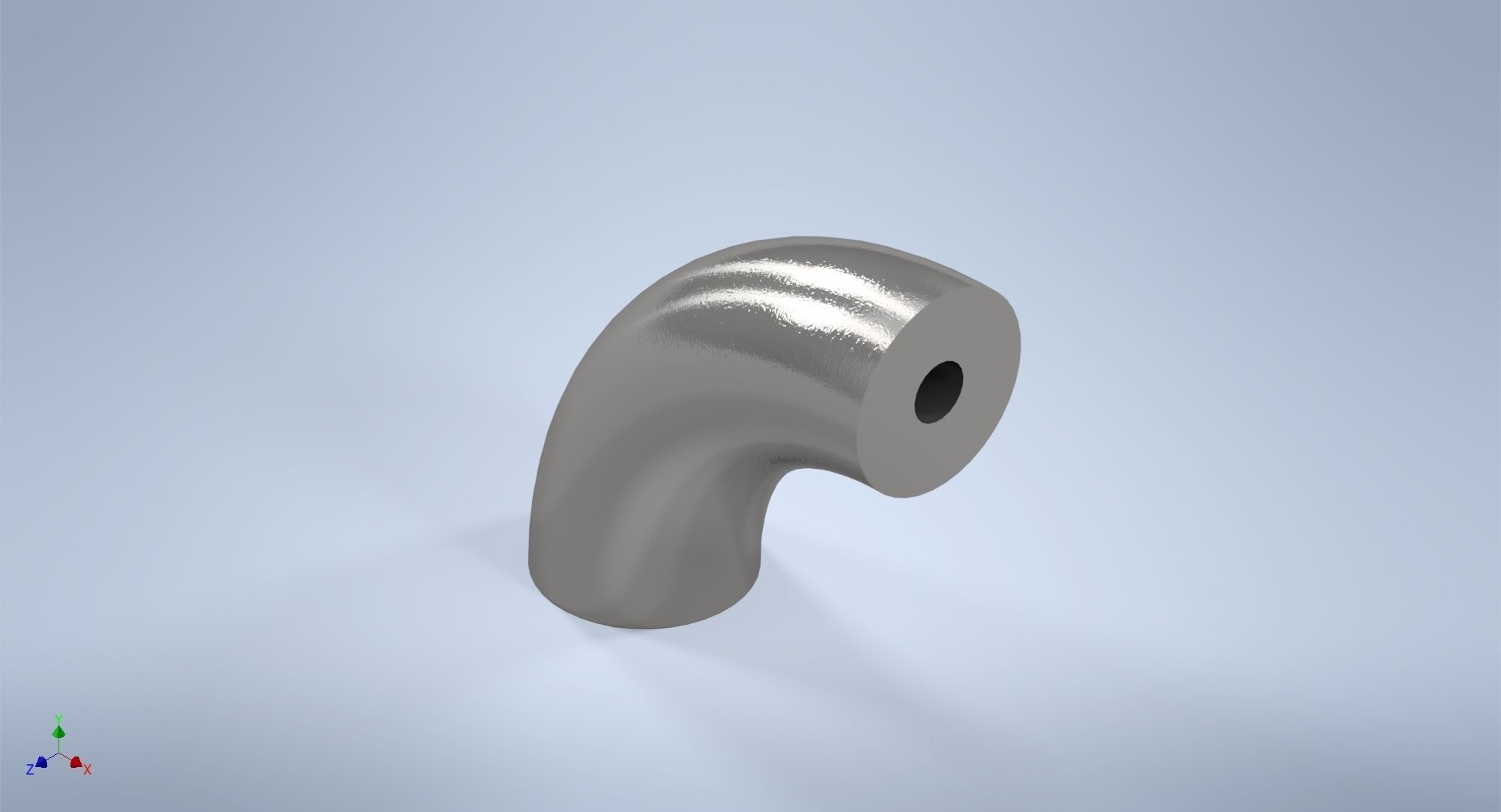

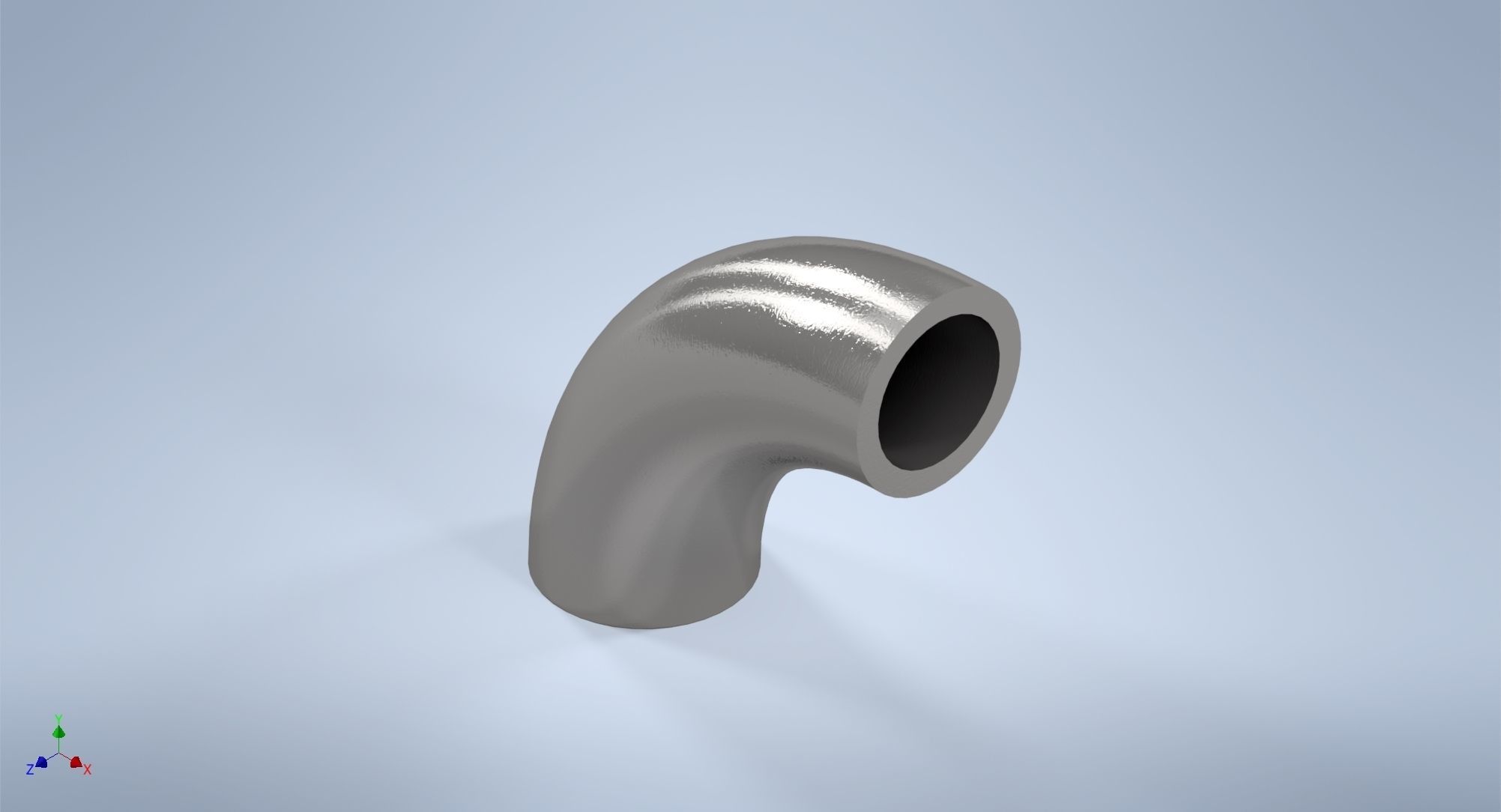

This pack contains the next 1/2" NPS BW 90º LR Elbows ruled by ASME/ANSI B16.9:

-1/2" NPS BW 90º LR Elbow Sch.5S

-1/2" NPS BW 90º LR Elbow Sch.10S

-1/2" NPS BW 90º LR Elbow Sch.40

-1/2" NPS BW 90º LR Elbow Sch.80

-1/2" NPS BW 90º LR Elbow Sch.160

-1/2" NPS BW 90º LR Elbow Sch.XXS

Write comment
Item rating
0 0
1-2 inch NPS BW 90 Degrees LR Elbows ASME-ANSI
$3.99

Royalty Free License
1-2 inch NPS BW 90 Degrees LR Elbows ASME-ANSI
$3.99

Royalty Free License
EEngineeringAccessories
EngineeringAccessories
(1 reviews)
Response 71% in 7.6h
3D Modeling
3D Print Modeling
Hire meView all Designers Models

3D Model formats

Format limitations
  • Autodesk Inventor 2021 (.iam, .ipt)3.66 MBVersion: 2021Renderer: Octane
  • OBJ 2021 (.obj, .mtl)3.66 MB
  • Stereolithography 2021 (.stl)3.66 MB

3D Model details

  • Publish date2022-12-12
  • Model ID#4163650
  • Ready for 3D Printing
