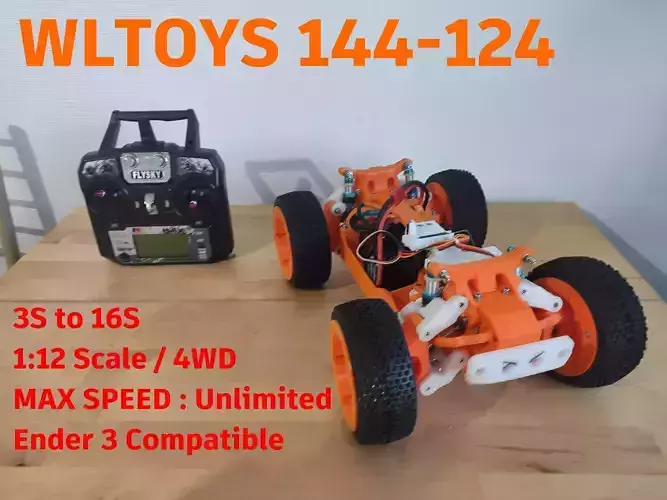

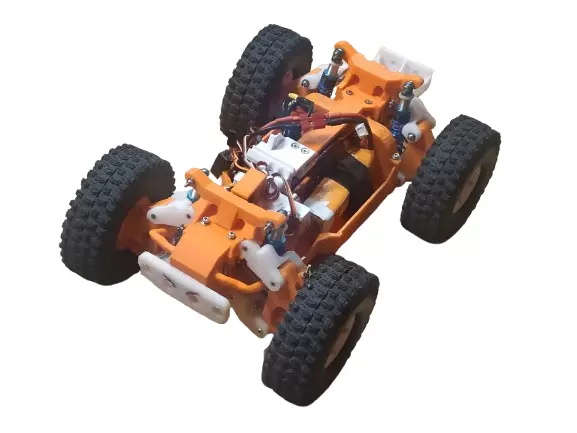

V3 RC CAR WLTOYS 144 AND 124 DIY EDITION PREMIUM 3D print model

[¯`·..·[ V3 RC CAR 1:14 1:12 WLTOYS 144 & 124 DIY EDITION PREMIUM ]·..·´¯]

BUILD GUIDE :

https://docs.google.com/presentation/d/1xQednf_rth1foSpnl_zI8gsLzxE91GRotefnCwp8eBw/edit?usp=sharing

BUILD VIDEO :

https://www.youtube.com/watch?v=ltlX8YH-RXE

NEEDS :

• TPU ( 500g )ArmsBumpers

• PLA Plus ( 1Kg )All the Rest

• TOOLSHallen H2.5mm(for M3 Screws) / H1.5(for Pinion)Long Nose PliersThreadLockerGreaseClamp Gaskets

• HARDWARE STORERolling MR84ZZ ( X 8)Washers M3 ( X 100)Lock Nuts M3 ( X 100)ScrewsM3 x 5mm Hexa ( X 8) (MotorMount)M3 x 10mm Hexa ( X 8) (MotorMount)M3 x 12mm Hexa ( X 4) (Direction)M3 x 16mm Hexa ( X 1) (Direction)M3 x 20mm Hexa ( X 60) (ALL THE REST)M3 x 35mm Hexa ( X 2) (Direction)M3 x 40mm Hexa ( X 24) (ARMS)

TAGS :

• WLTOYS 144001 - 124001 and update
• Ender 3 compatible
• PreOriented STL PARTS
• 3D Printed RC Car
• Ackermann Steering Compact System
• Full Metal transmission
• Brushless Motor 2200KV MAX 3650 up to 4268 (3650 recommended) (soon 4985 and 5687 $$$)
• 3S -4S - 6S
• DUAL3S => 6S / DUAL4S => 8S / DUAL6S => 12S (soon DUAL8S => 16S $$$)
• ESP Front Gyroscope
• Pinion and Gearing 1mm Module M1 (1mm Diametral Pitch) - No cogging issues
• Metal Differential mechanism Central axis Central drive shaft Motor-Gear
• Printed Beadlock Rims 2.2p or 3.2p -No Balooning issues for 3.2p
• Strong modulable design easy replace
• Standarts pieces
• 4 Arms = 1 Arm (Lowers and Uppers)
• 4WD -2WD -4x4 -2x4
• With or Without Anti roll Bar
• 1:8 Hardware
• No Glue Only M3 Screws Washers and LockNuts
• LED Light System Front and Rear
• Drift
• GoPro Mount
• Original dogbones and Wheel Nuts

TAGS:RC car, WLTOYS, 1:14, 4WD, Ender3, WLTOYS 144 124
