V4 RC CAR WLTOYS 124 DIY EDITION DIRECT DRIVE STEERING PREMIUM 3D print model

DESCRIPTION WLTOYS 144-124 TAGS

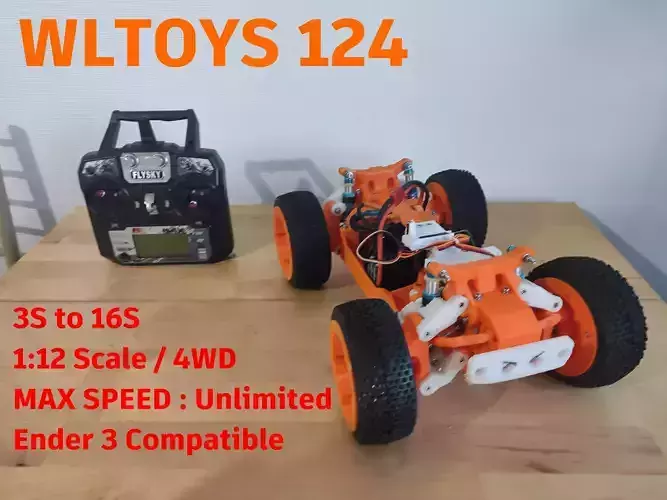

[¯`·..·[ V4 RC CAR 1:12 WLTOYS 124 DIY EDITION DIRECT DRIVE STEERING ]·..·´¯]

New :

Compatible CVD Diam 5mm M4

• 124023 124027 124028Compatible CVD Diam 4mm M3 as usual.
• 14401 14402 144010
• 124007 124016 124017 124018 124019probably : 124008 (+124010) not tested but why not

FRANÇAIS :

Voiture RC Ultra performante Imprimable en 3D, utilisant les pièces standard WLTOYS.Le design est amélioré, et bien plus résistant que l'original.

Dans ce kit il y a deux types de direction,Direction Ackermann system ou Direct Drive system.Si vous choisissez l'une ou l'autre n’imprimer que les pièces avec le nom correspondant.Les pièces sont rangées dans des dossiers avec des noms logiques mais il est préférable de lire le build guide.

Démontez simplement les anciennes pièces du système de direction Ackermann et du renfort de châssis, remplacez-les par la direction Direct Drive et vous obtenez un système de direction direct drive robuste et précis.

Nouveau moyeu de coupelle de direction (steering cup Hub) robuste, porte-moyeu avant et tringleries de direction inclus.

Vous pouvez également simplement prendre le nouveau moyeu de coupelle de direction lourde et le porte-moyeu avant lourd si vous préférez l'ancien système Ackerman.

Pas besoin de tout réimprimer

ENGLISH :

Ultra-high performance 3D printable RC car, using standard WLTOYS parts.The design is improved, and much more durable than the original.

In this kit there are two types of steering,Steering Ackermann system or Direct Drive system.If you choose one or the other only print the parts with the corresponding name.The parts are stored in folders with logical names but it is best to read the build guide.

Simply Unmount The old parts of the Ackermann Steering System and the Chassis brace, replace by the direct drive steering and you got a Heavy and precise Direct Drive Steering System.

New Heavy Steering Cup Hub and Front Hub Carrier and steering linkages included.

You can also just take the New Heavy Steering Cup Hub and Heavy Front Hub Carrier if you prefer the old ackerman system.

No need to reprint all

BUILD GUIDE :

https://docs.google.com/presentation/d/1xQednf_rth1foSpnl_zI8gsLzxE91GRotefnCwp8eBw/edit?usp=sharing

BUILDING VIDEO :

https://www.youtube.com/watch?v=ltlX8YH-RXE

PREMIUM VERSION GOT :

• New DIRECT DRIVE STEERING SYSTEM
• New Slim / Wide Chassis
• All Type Motors Mounts D36 D42 D49 D56
• All RIMS Sizes and offsets STL kit
• DUAL Motors Capability PLA or Metal
• DUAL Motors Transmission Cover PLA or Metal
• Big ESC Hobby wing Max8(6S) or Max6(8S) Dual Place Capability
• FPV Protection
• Protection Plate
• More adjustment holes
• Fresh Update and Upgrade
• Thanks from the Creator

PREMIUM LINKS :

Official websitehttps://www.myshopkit.fr

DEMO VERSION GOT :

• Slim Version of the Chassis
• PLA Motor Mount D36 D42
• Metal Motor Mount Capability
• Mono Motor Transmission Cover For PLA and Metal (but dual motors D36 D42 capability :)
• RIMS 1.9p 2.2p 3.2p Hexa 12mm
• Standard ESC Place Capability
• ALL PARTS TO RUN A GOOD DEMO VERSION ;)
• New DIRECT DRIVE STEERING SYSTEM

Upgrade by more Need :

• New DIRECT DRIVE STEERING SYSTEM (10 parts to switch easy named)
• New Front Hub carrier and steering cup hub (HEAVY redesign)
• Absorber shock(holes for direct Drive protection not obligatory)Same V2.5
• Lower and Upper arms(place for washers)
• All the old Steering Ackerman system parts(more efficient/stronger)
• Servo Mount and Cover(5mm side offset)
• Link piece(if servo mount change)
• New protection plate
• Anti Roll bar (better design) and Rear mounts(only)
• Transmission cover(maximized)
• Motor mount (more stronger)

No changes or Minor changes :

• New Chassis center section (wider)
• Chassis brace(4 holes)
• Arms mount rear and front
• Chassis differential housing and cover
• Bumpers(led reinforced and place for screws lower arms mount)
• Rims 3.2p 2.2p 1.9p(more stronger)
• Receiver mount(slimer)
• Anti Roll front mounts (no changes)

LIST OF COMPATIBILITY (and retro compatibility)

Transmission gear always from :

• Wltoys 144 or 124
• Official
• Mod 1mm
• Update Sleeper gear

Dogbone M3 diam 4mm and transmission gear and diff from :

• 14401 14402 144010
• 124007 124016 124017 124018 124019probably : 124008 (+124010) not tested but why notBearing : MR84ZZ OR 684ZZ

Dogbone M4 diam 5mm(best choice)

• 12428 12427 12423Bearing : 688ZZ AND MR115ZZ

There are two types of CVD, M3 4mm or M4 5mm.

if you choose CVD M3 4mm official or enhanced from WLtoys 144 or 124 then you will need to choose 4mm bearings, and so you have the choice between two types of bearings, either the small official 4x8x3 MR84ZZ ABEC7 OR the recommended 4x9x4 684ZZ ABEC7 for more performance.

if you choose CVD M4 5mm from WL toys 12428 12427 12423 then you will need 8x16x5 688ZZ ABEC7 AND 5x11x4 MR115ZZ ABEC7 bearings

Tips : CVD M4 5mm from WL toys 12428 12427 12423 is the best choice, with no change from direction, arms, transmission and diffs and diffs cups only change the CVDs and hub cup carriers front/rear and the bearings and that's all. You have the strongest CVD now.

NEEDS :

• TPU ( 500g )ArmsBumpers

• PLA Plus ( 1Kg )All the Rest

• TOOLSHallen H2.5mm(for M3 Screws) / H1.5(for Pinion)Long Nose PliersThreadLockerGreaseClamp Gaskets

• HARDWARE STOREBEARINGS For CVD M3 4mm :4x8x3 MR84ZZ ABEC7 ( X 8)OR4x9x4 684ZZ ABEC7 ( X 8)

  BEARINGS For CVD M4 5mm :8x16x5 688ZZ ABEC7 AND 5x11x4 MR115ZZ ABEC7

  Washers M3 ( X 100)Lock Nuts M3 ( X 100)ScrewsM3 x 5mm Hexa ( X 8) (Motor Mount)M3 x 8mm Hexa (X 10 (Direct drive Steering)M3 x 10mm Hexa ( X 8) (Motor Mount)M3 x 12mm Hexa ( X 4) (Ackermann Steering)M3 x 16mm Hexa ( X 1) (Ackermann Steering)M3 x 20mm Hexa ( X 60) (ALL THE REST)M3 x 40mm Hexa ( X 26) (ARMS)

TAGS :

• WLTOYS 144-124
• Ender 3 compatible
• PreOriented STL PARTS
• 3D Printed RC Car
• Ackermann Steering Compact System
• Full Metal transmission
• Brushless Motor 2200KV MAX 3650 up to 4268 (3650 recommended) (soon 4985 and 5687 $$$)
• 3S -4S - 6S
• DUAL3S => 6S / DUAL4S => 8S / DUAL6S => 12S (soon DUAL8S => 16S $$$)
• ESP Front Gyroscope
• Pinion and Gearing 1mm Module M1 (1mm Diametral Pitch) - No cogging issues
• Metal Differential mechanism Central axis Central drive shaft Motor-Gear
• Printed Beadlock Rims 2.2p or 3.2p -No Balooning issues for 3.2p
• Strong modulable design easy replace
• Standarts pieces
• 4 Arms = 1 Arm (Lowers and Uppers)
• 4WD -2WD -4x4 -2x4
• With or Without Anti roll Bar
• 1:12 Hardware
• No Glue Only M3 Screws Washers and LockNuts
• LED Light System Front and Rear
• Drift
• GoPro Mount
• Original dogbones and Wheel Nuts and upgrades

If you like it please buy it ;)

ENJOY

TAGS :RC car, WLTOYS, 1:14, 4WD, Ender3, WLTOYS 144 124

RC car,WLTOYS,1:12,4WD,Ender3,WLTOYS 144 124
