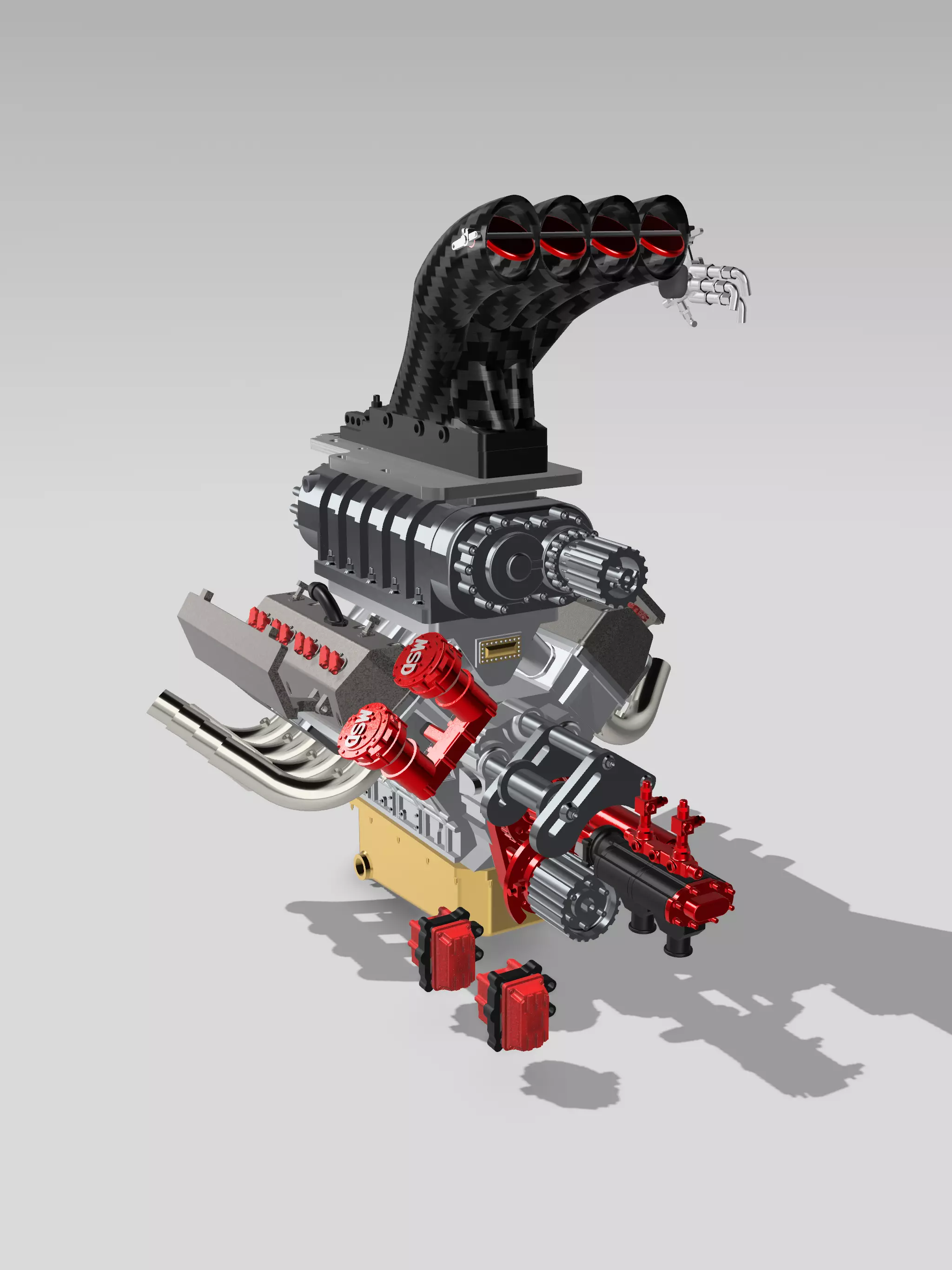

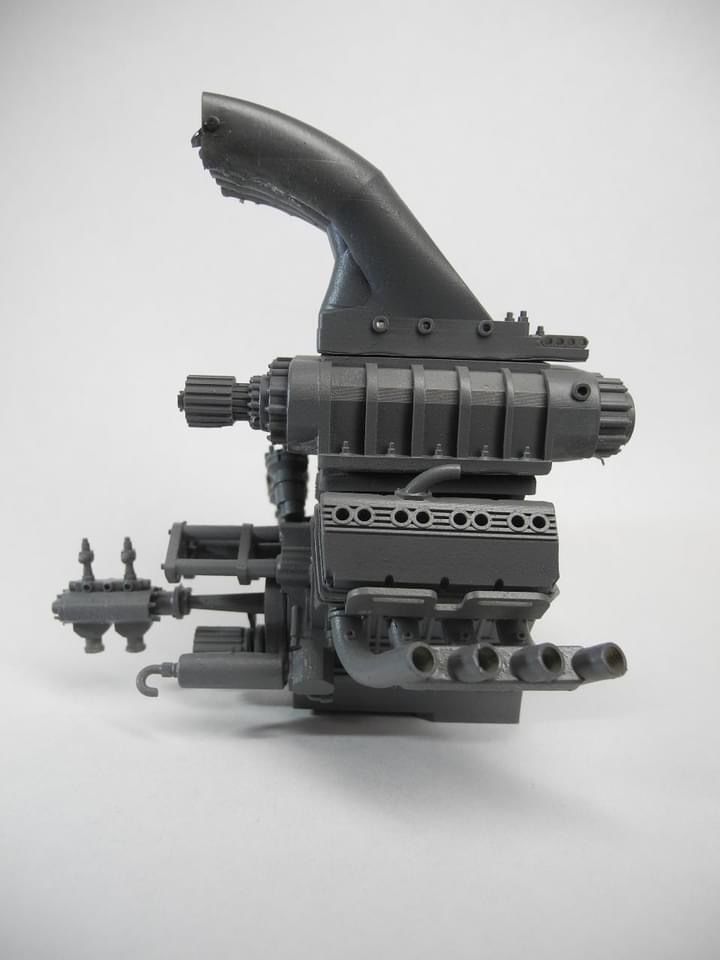

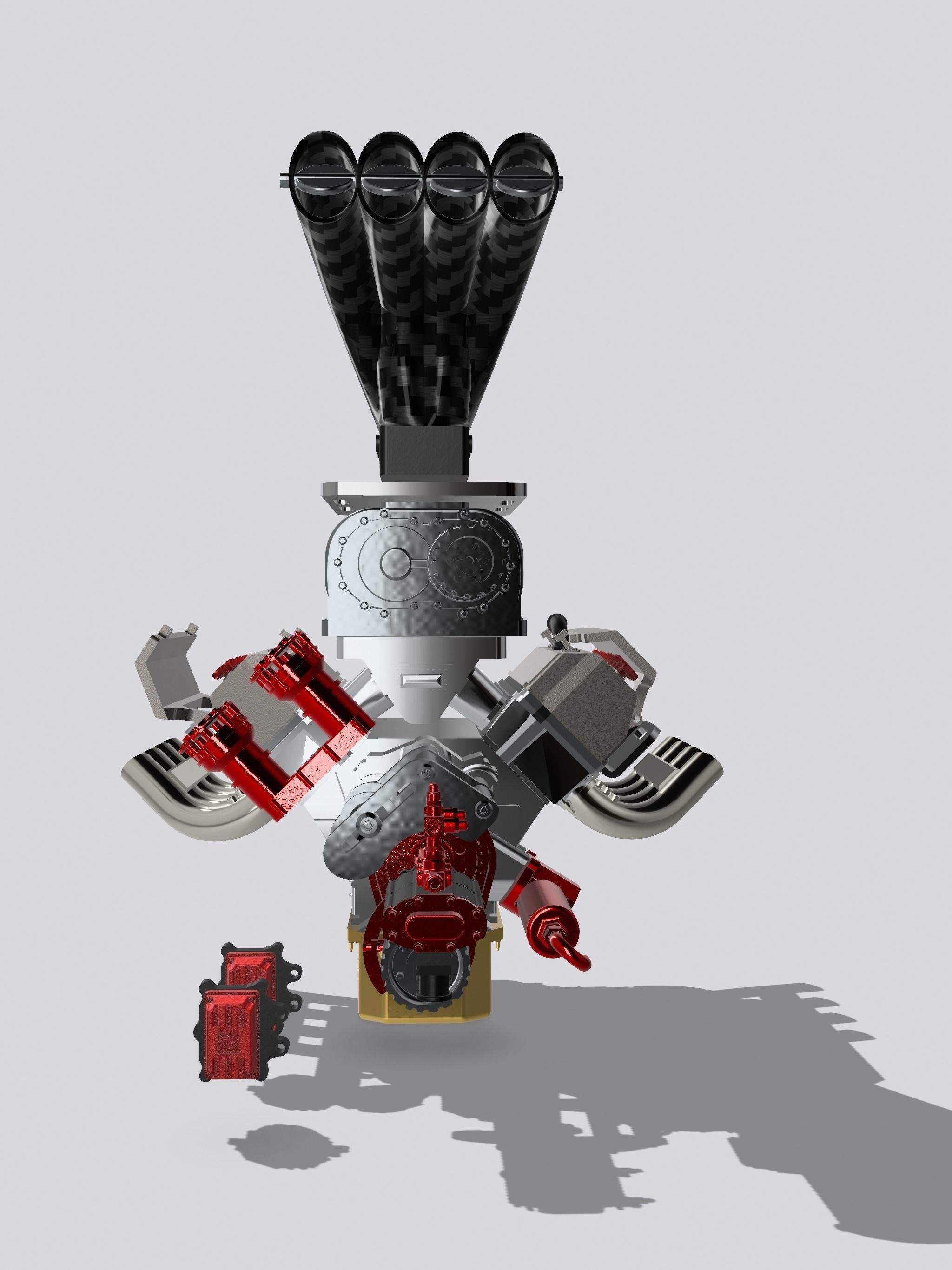

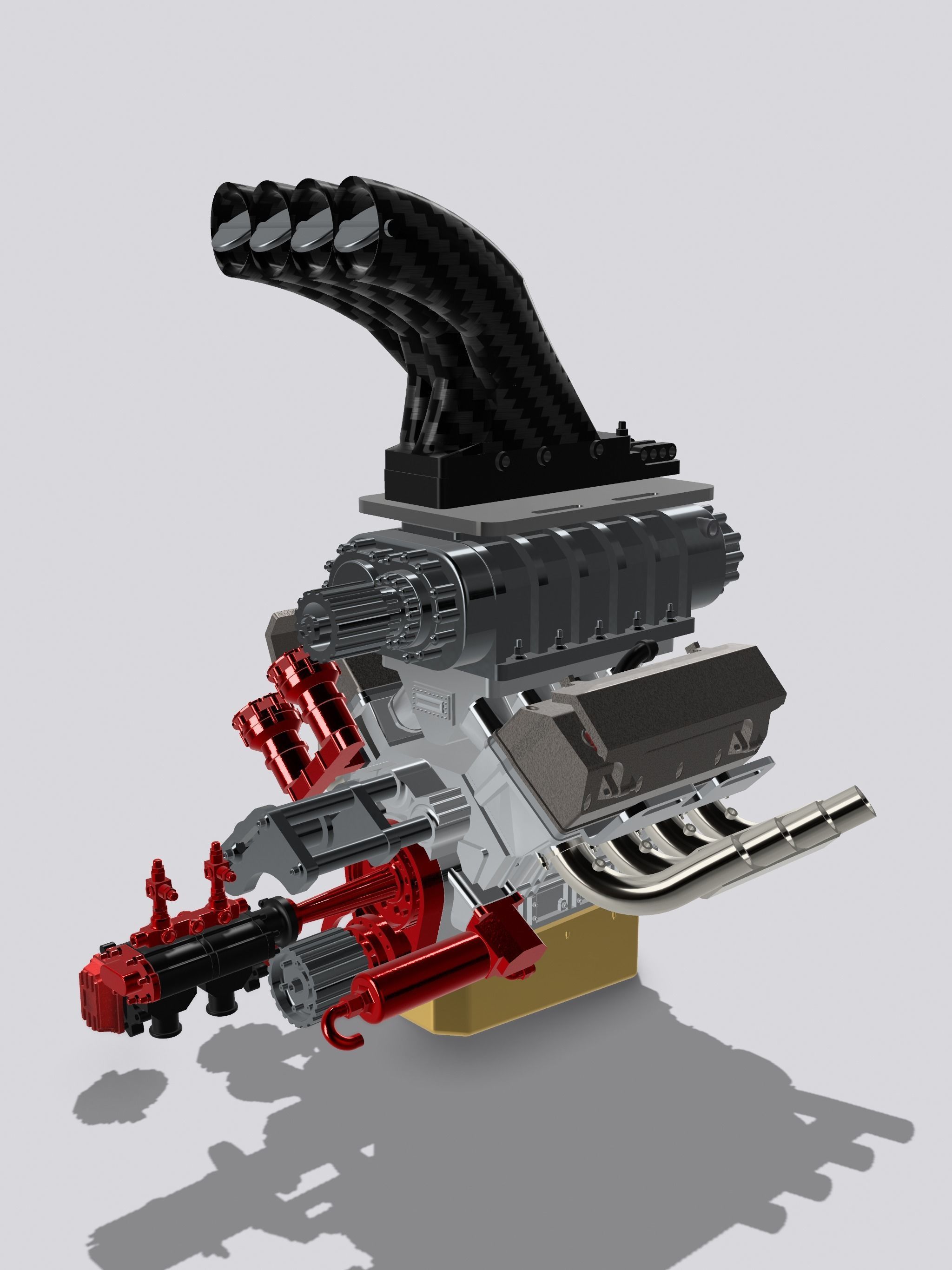

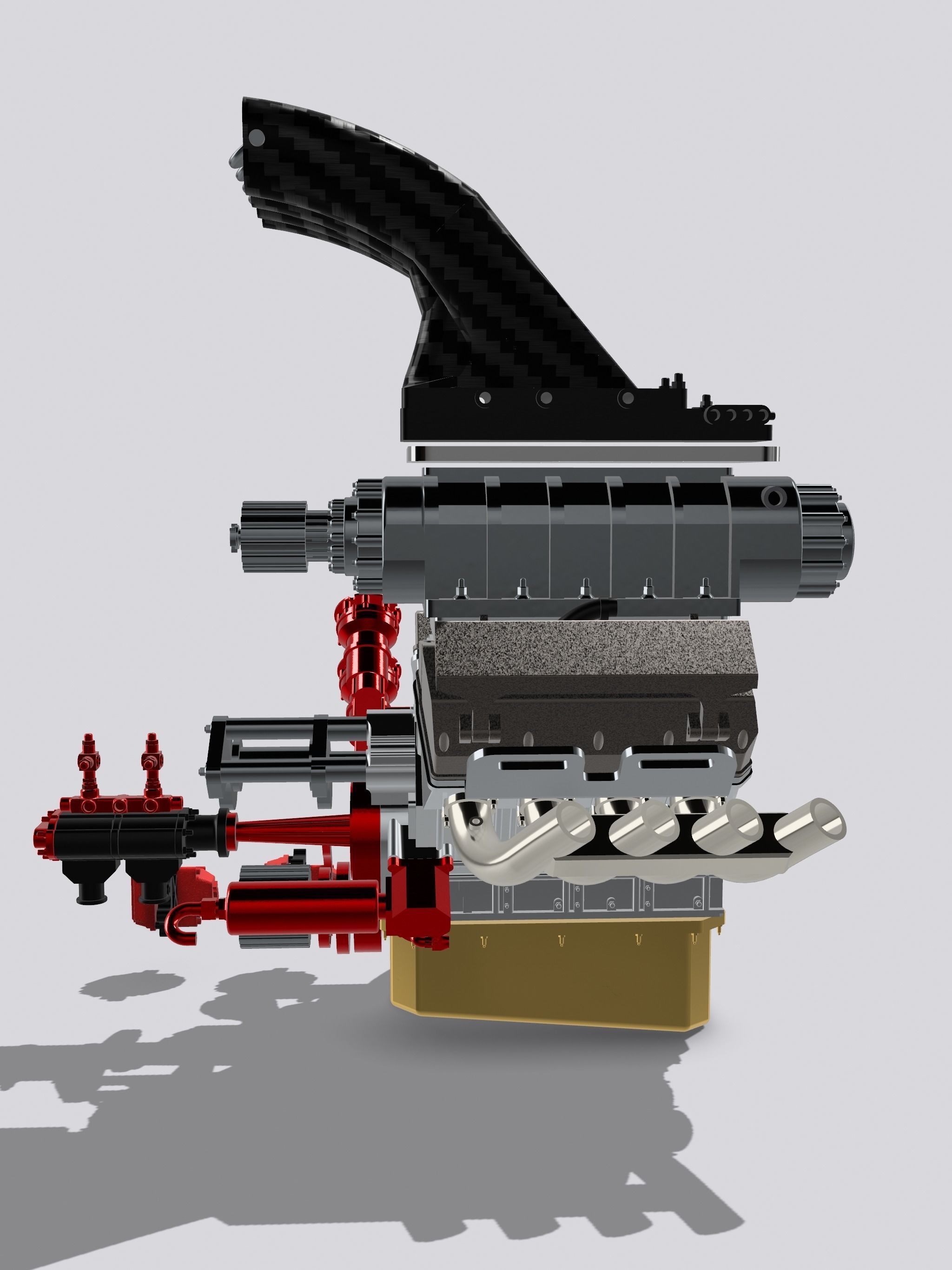

TOP FUEL Engine Hemi Supercharged Complete with Options 3D print model

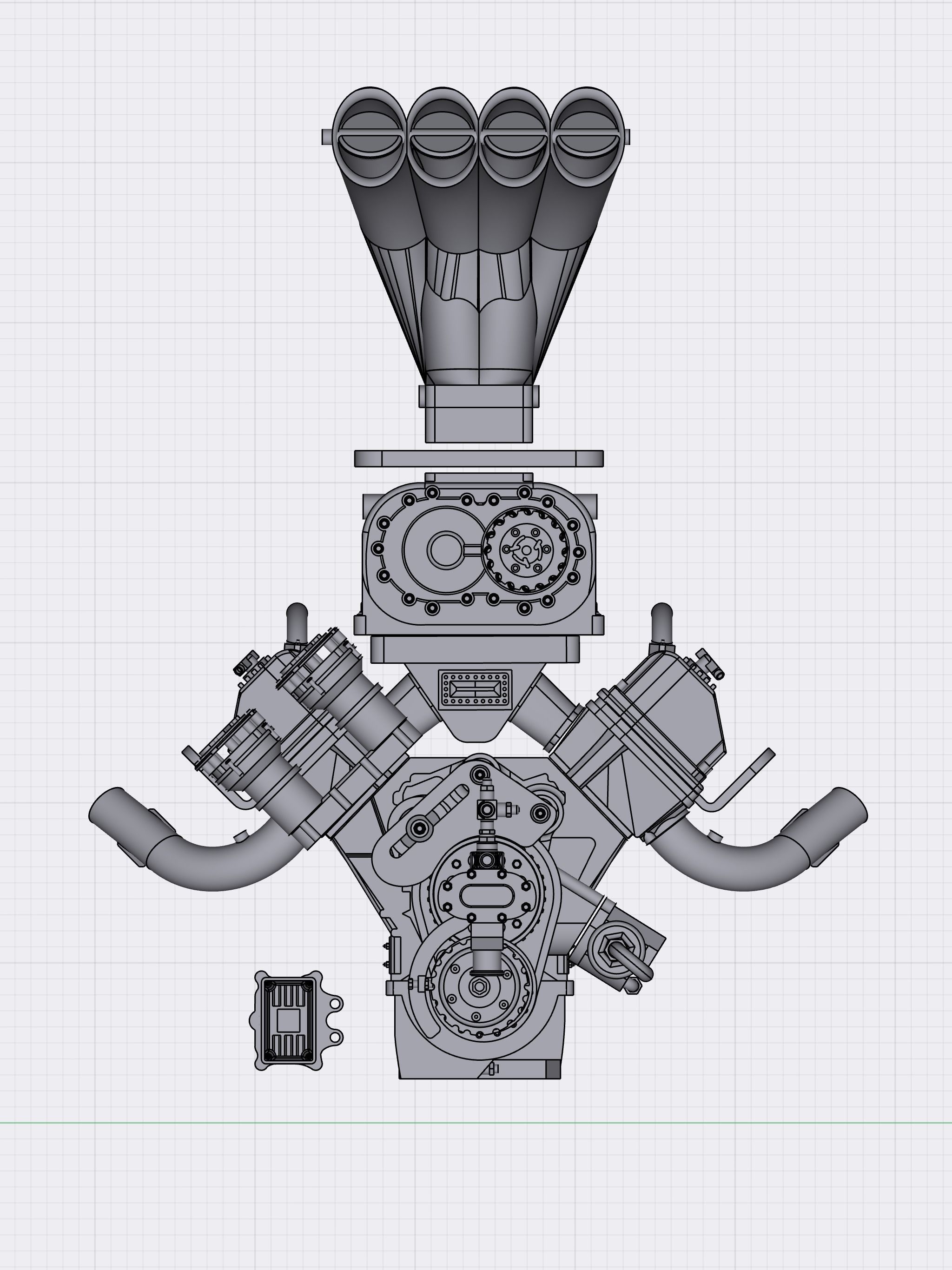

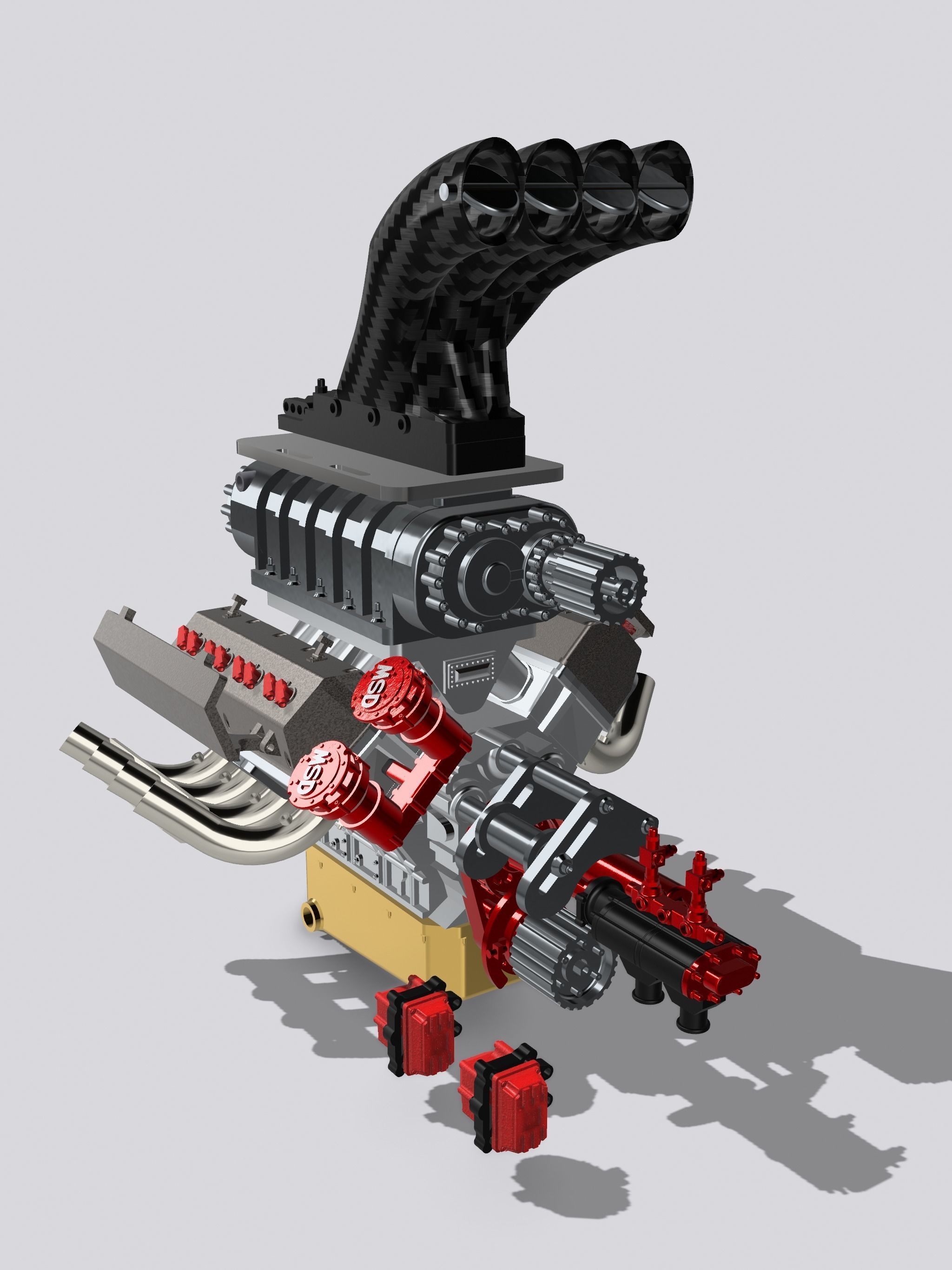

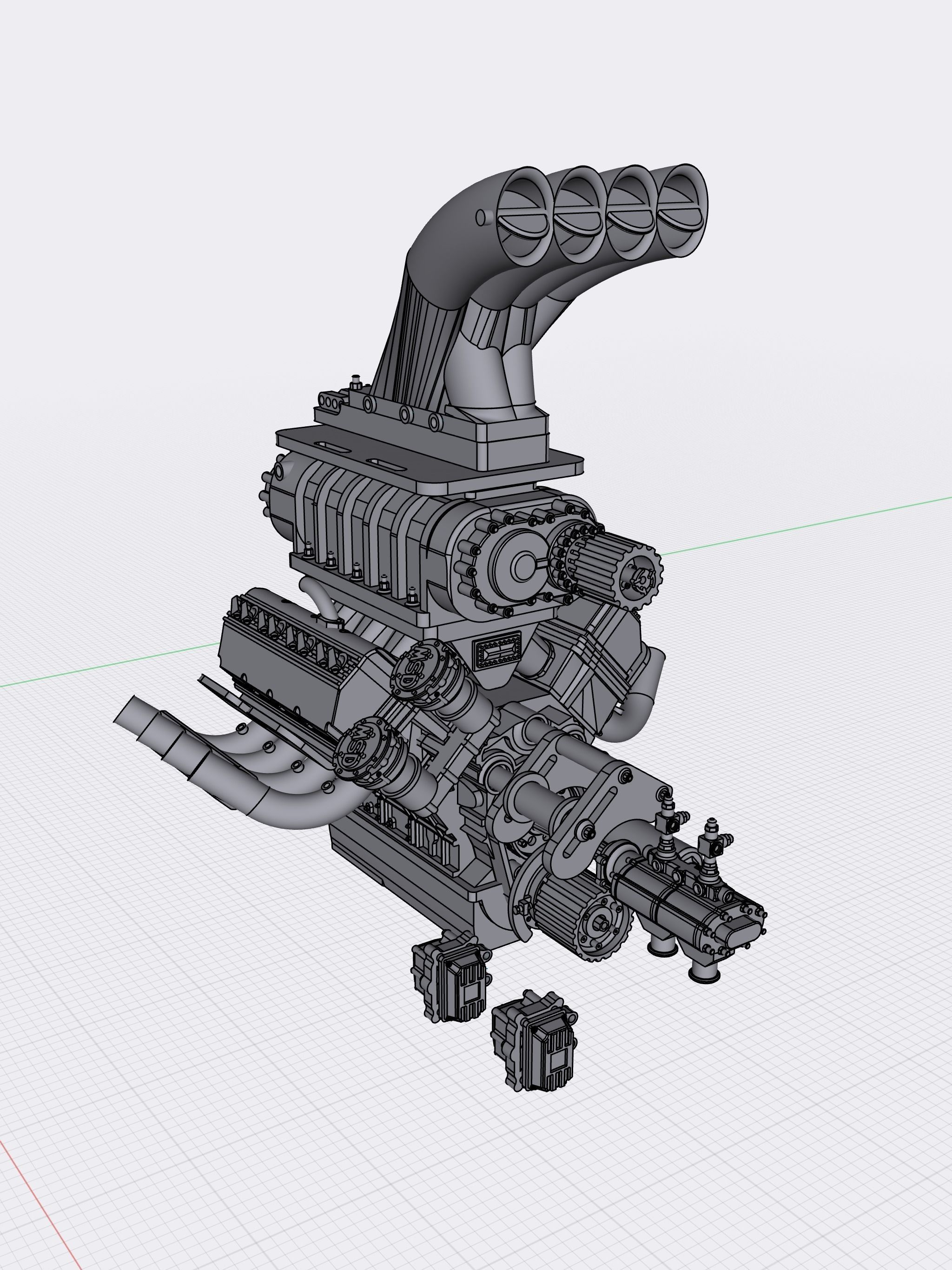

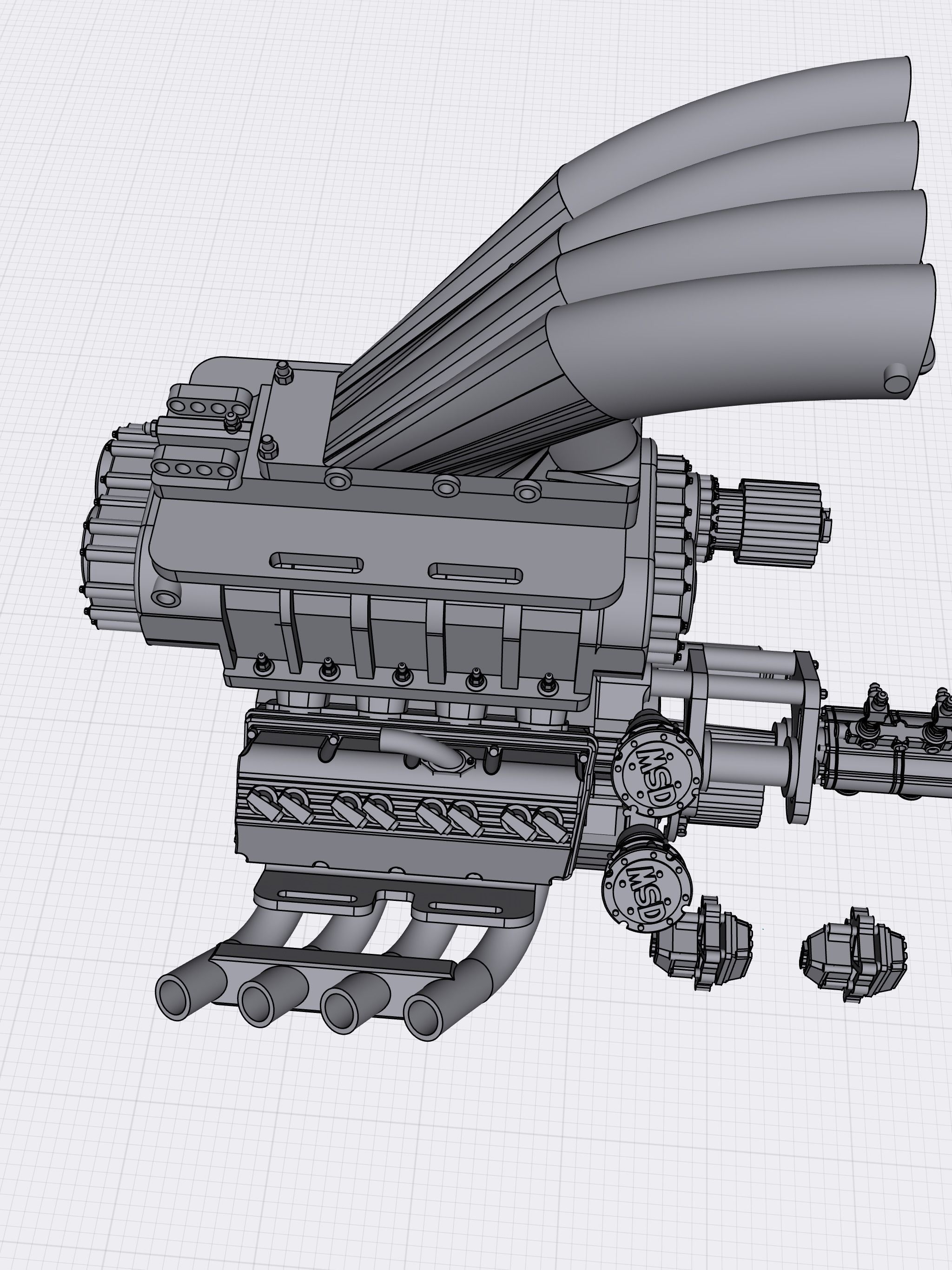

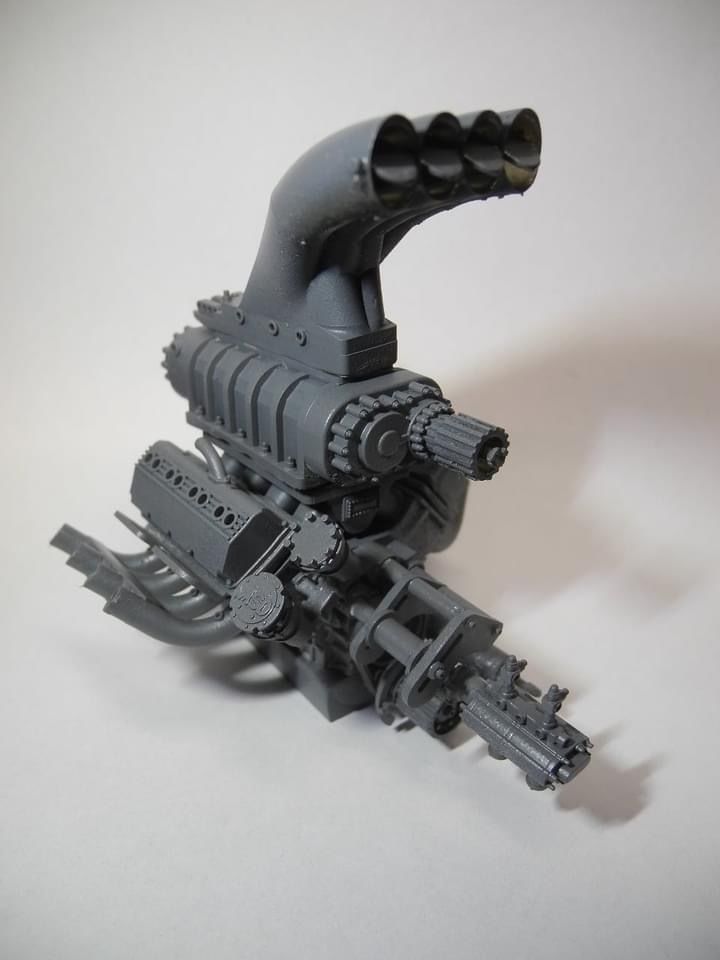

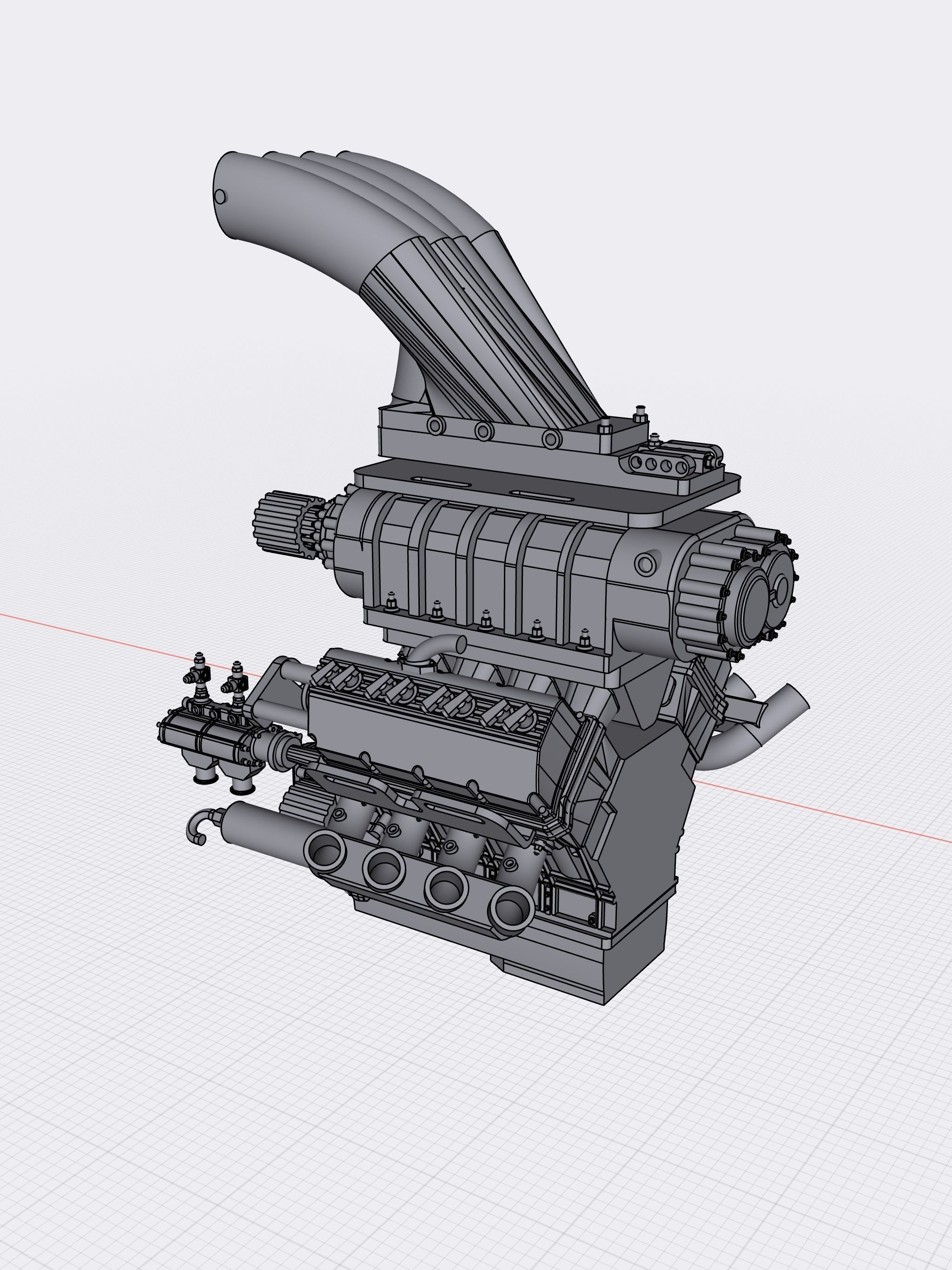

Designed from scratch a full detail Top Fuel billet Hemi with 14/71 Supercharger & all accesories, high in detail, ideal for scale modeling (currently in 1/24 and 1/25 scale).

Perfect for those show winning Top Fuel and drag racing builds!

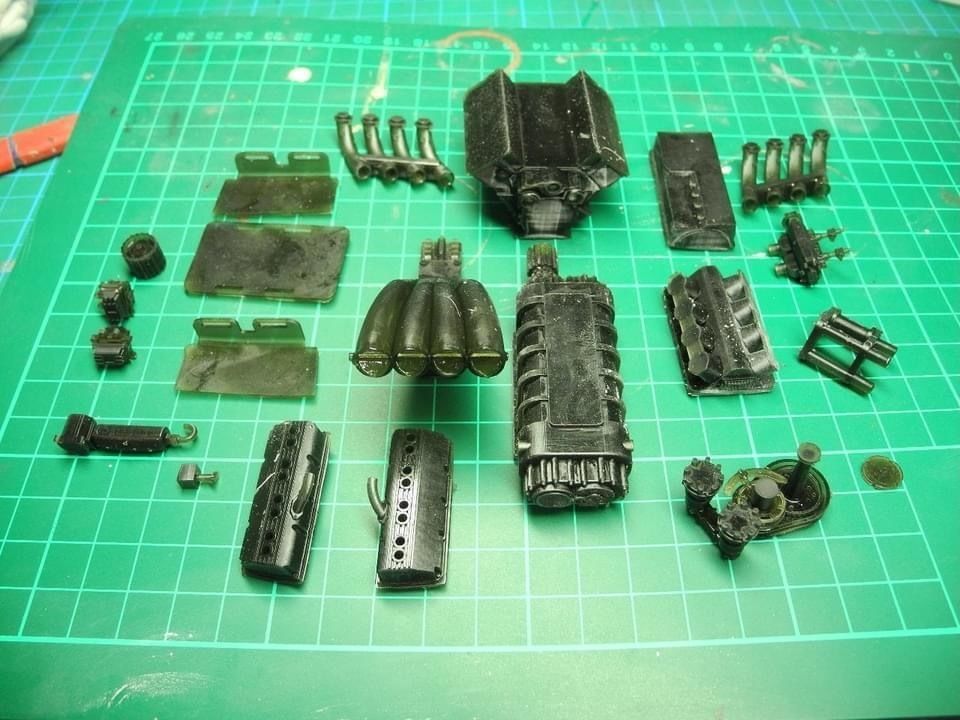

Multi-piece design for better detailing, holes for oil hoses, fuel hoses, ignition wires etc. Where i have uploaded only 1 side (like headers or valve cover, use the mirror option in your slicer to replicate the other side as they are identical. Includes;

• Highly detailed billet block & heads

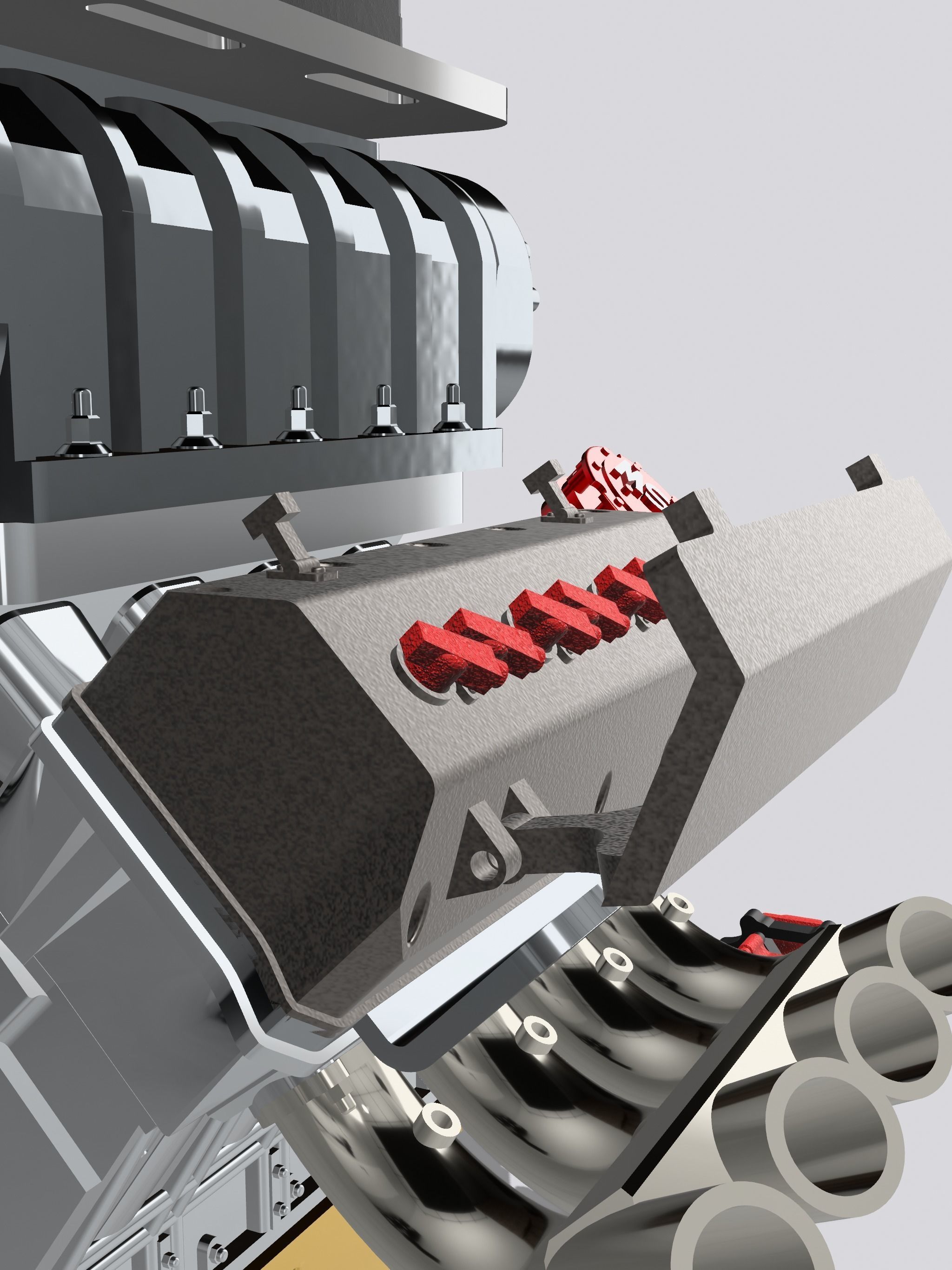

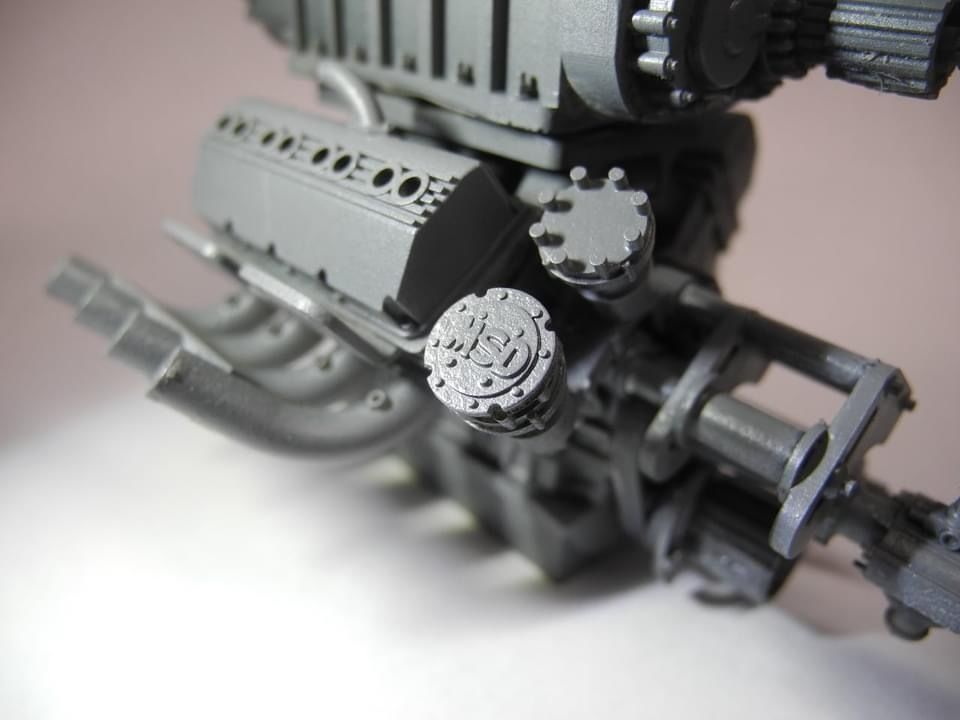

• Twin spark valve covers with ribbed design
• Ignition plug boot (comes x1 just copy as many as you want)

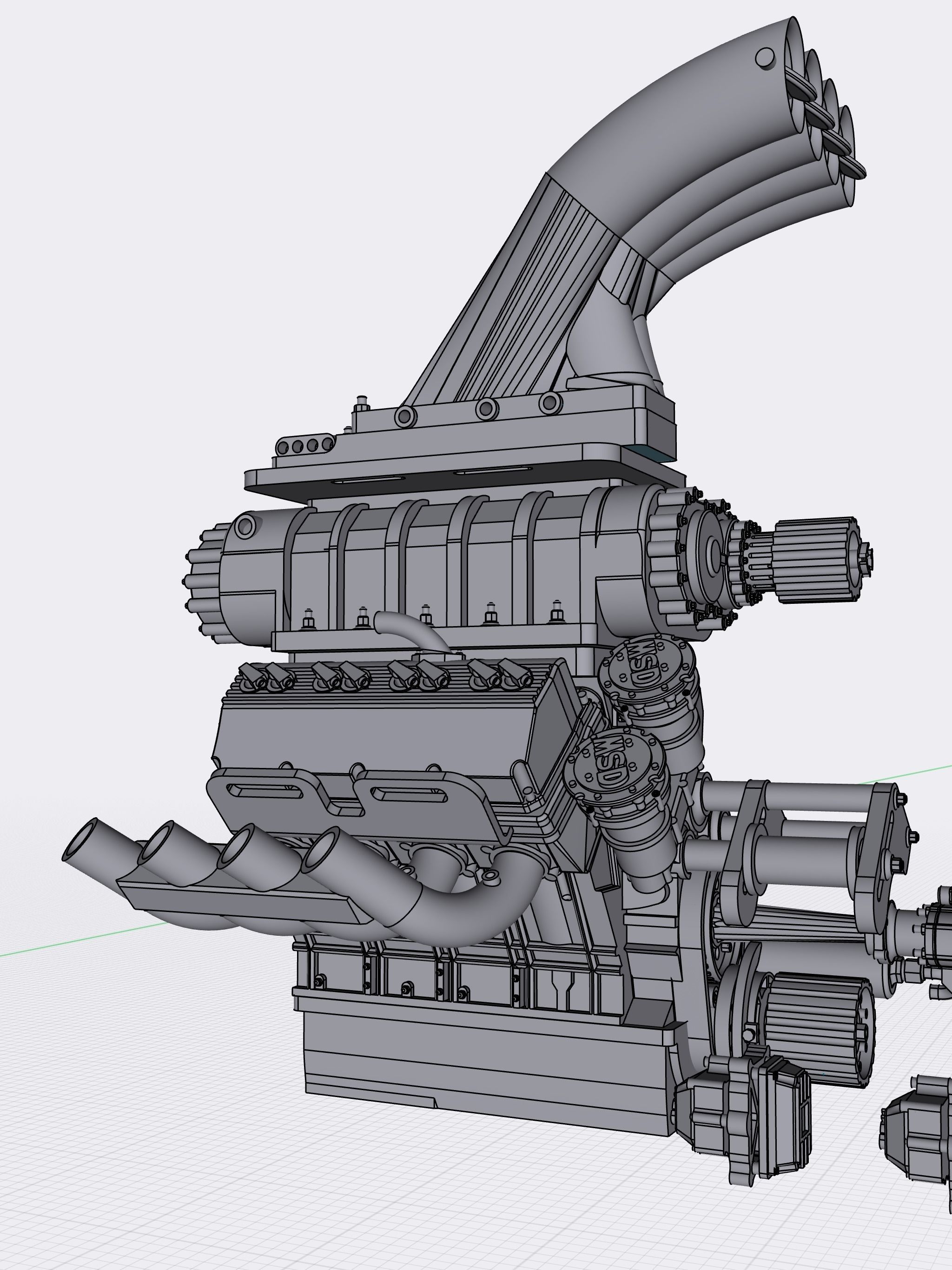

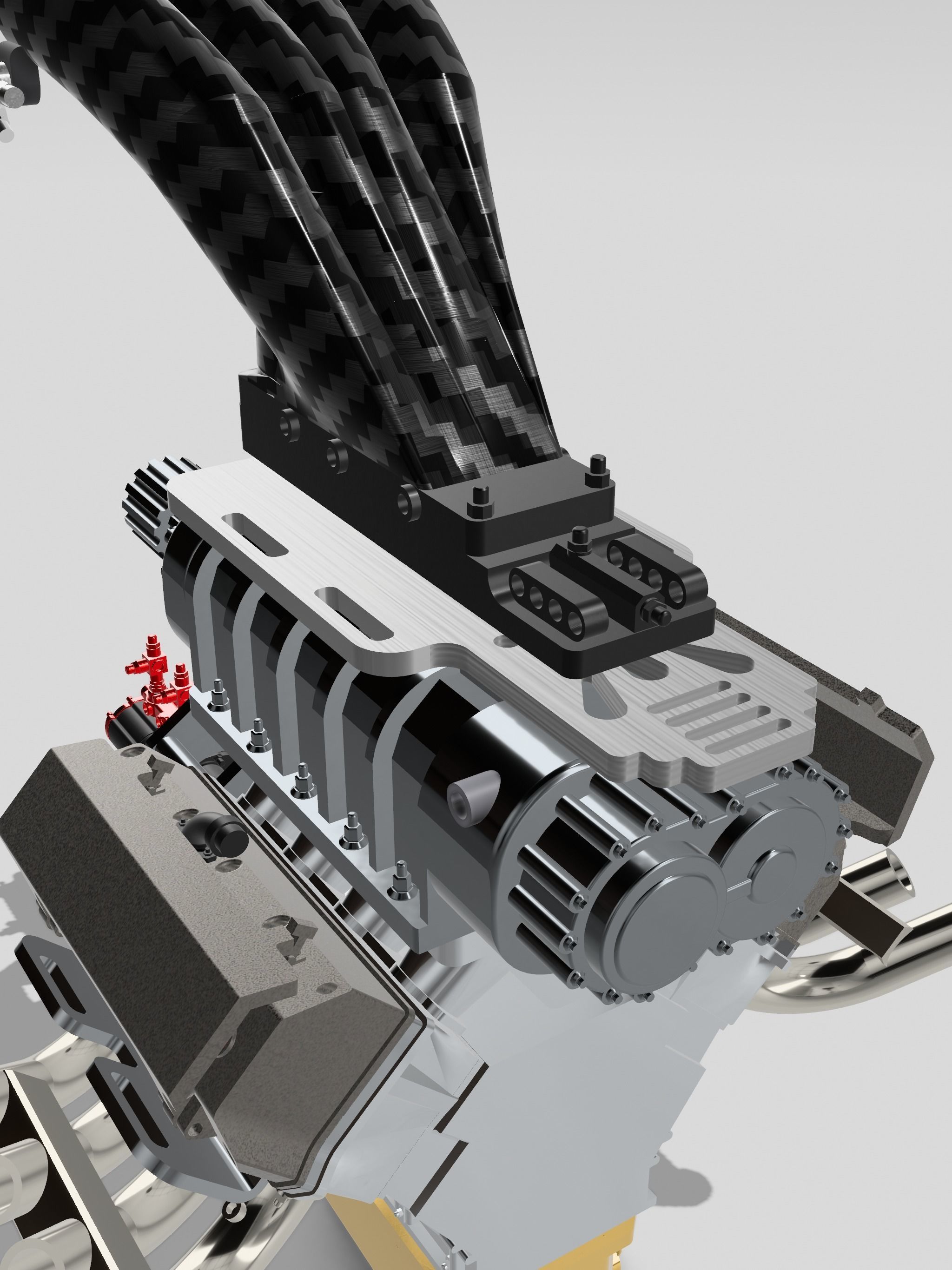

• 14/71 Supercharger
• Blower strap brackets - 1 above blower and 2 between heads & valve covers
• High rise intake with burst plate
• Zoomie short style headers with stabilizer and o2 sensor bungs

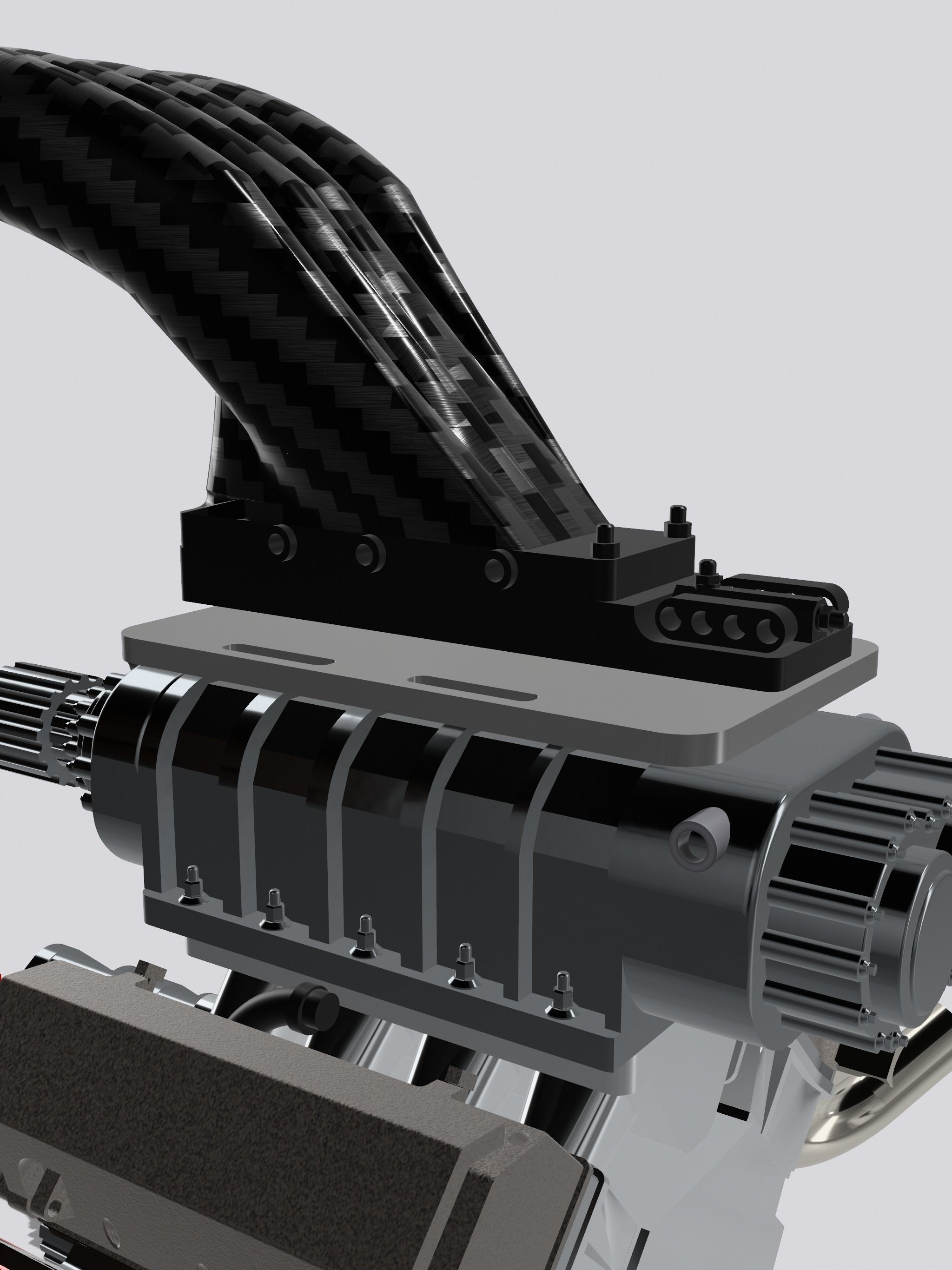

• Big injector hat with part-opened butterflies, rear located fuel block, holes for fuel lines (6 in base plate and 2 in rear of supercharger)

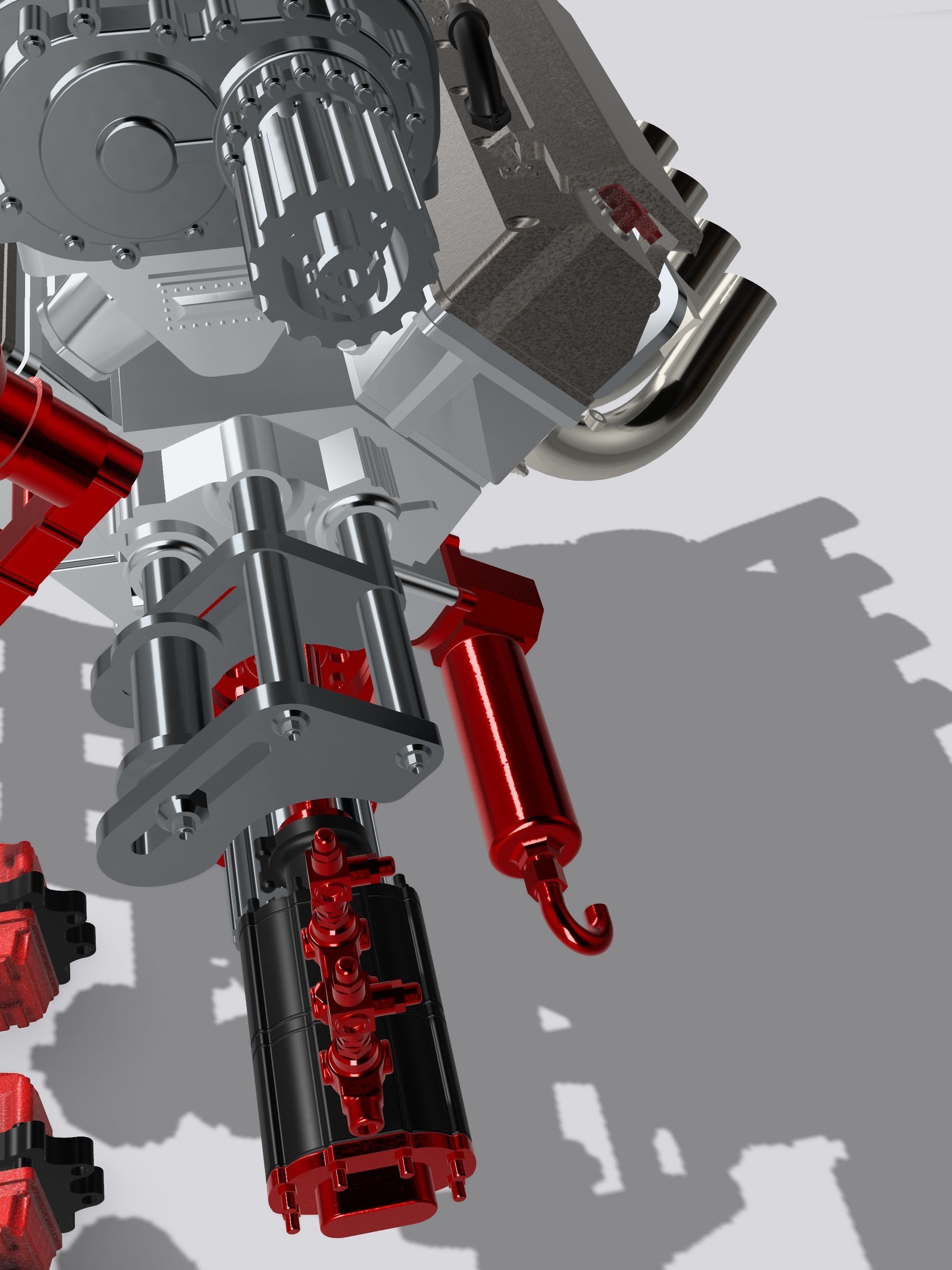

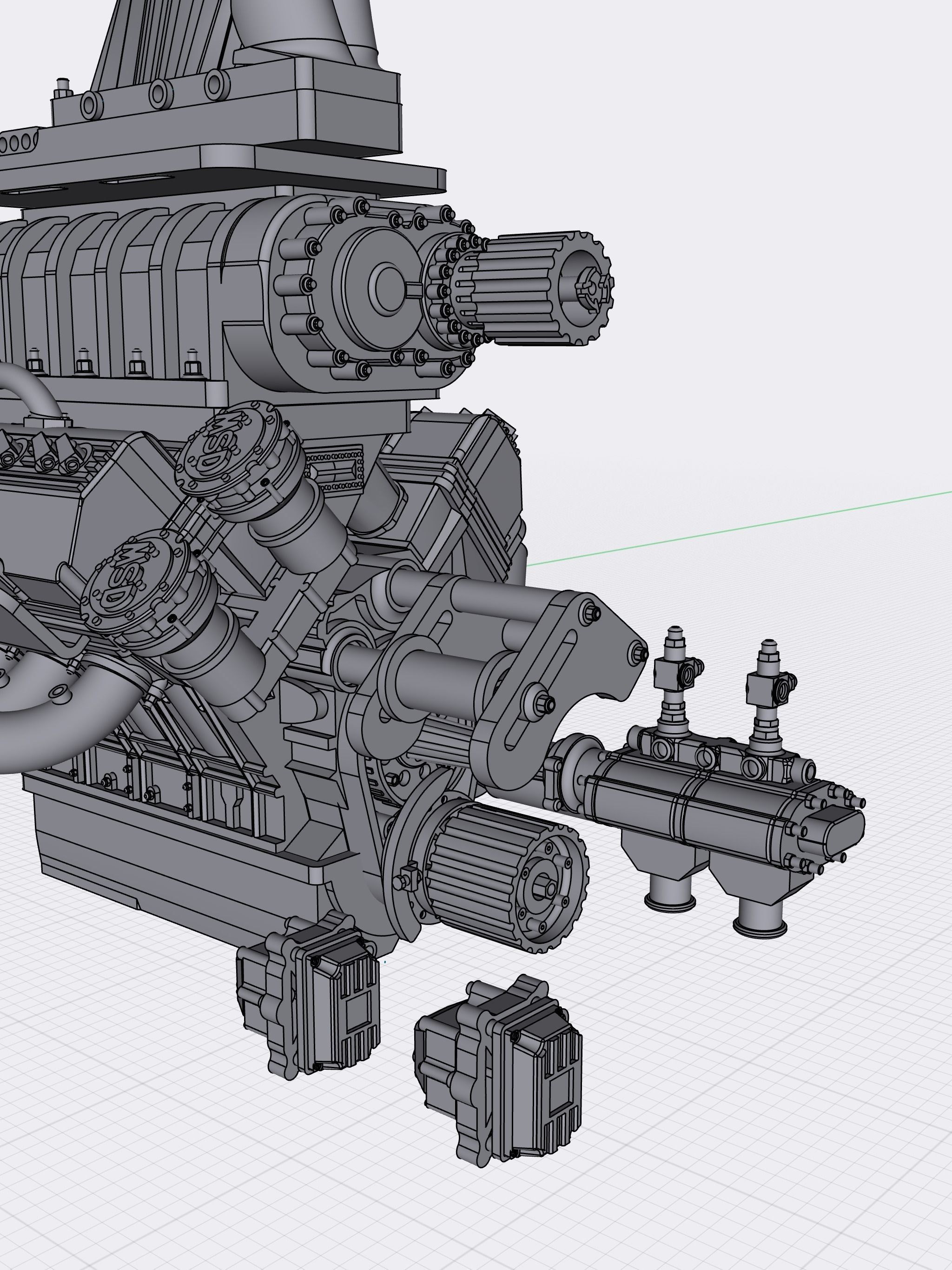

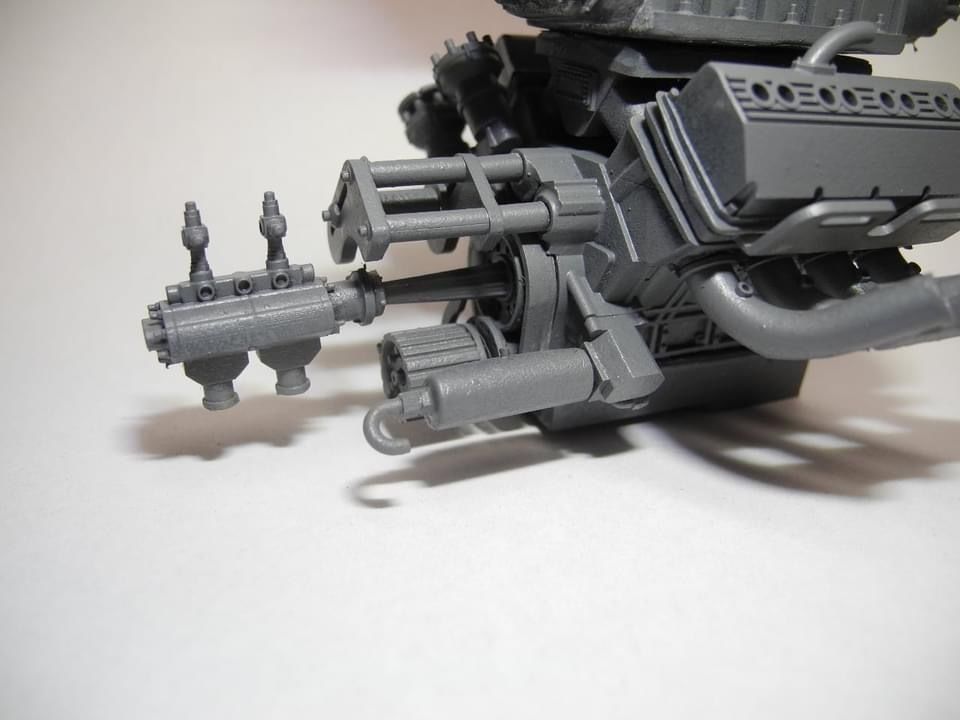

• Big Bertha style gear driven fuel pump with fuel blocks and fittings

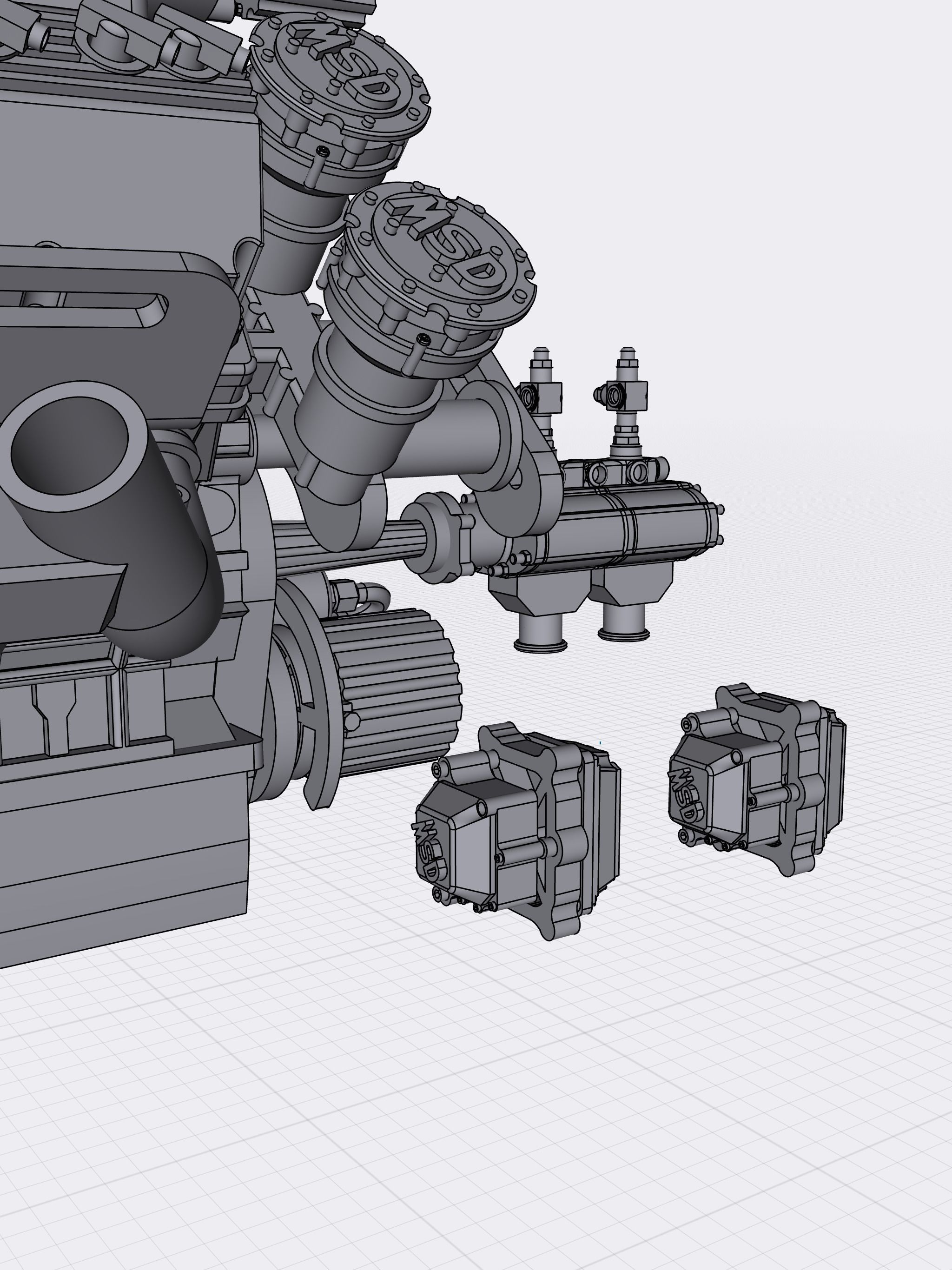

• Twin Magnetos (quick wire format) and ignition boxs and frame mount
• Crank pulley (separate to allow better detailing to gear drive assembly)
• Blower belt tensioner (3 locating holes in block to position correctly
• Front gear drive assembly with crank angle trigger and fuel pump drive shaft extension
• Oil pump

Upgrades Added;

• Titanium hinged 2 piece valve covers option
• Olson Billet sump option
• Detailed blower strap plate option

Be sure to tag @mattys_custom_scale on Instagram with your finished prints & projects!

Intended for personal use, not to be redistributed without consent
