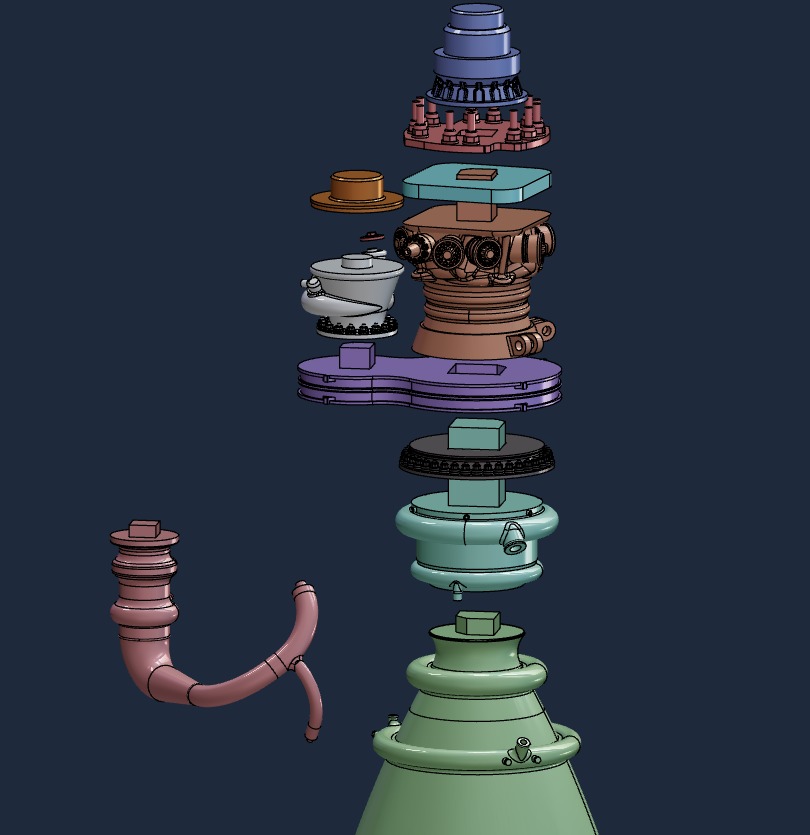

Solid files, prints perfectly. One note, the 'exploded' view shows the ring the bolt/nuts in the wrong position (ruined my first assembly). Be sure to use the completed view for reference when assembling.
Useto navigate. Pressescto quit

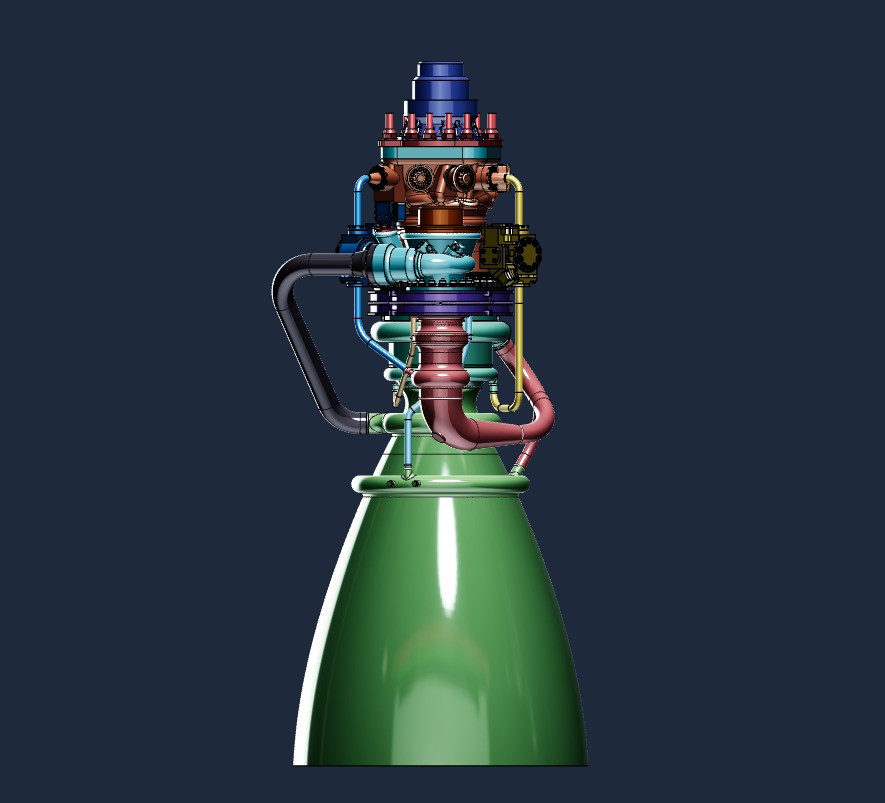

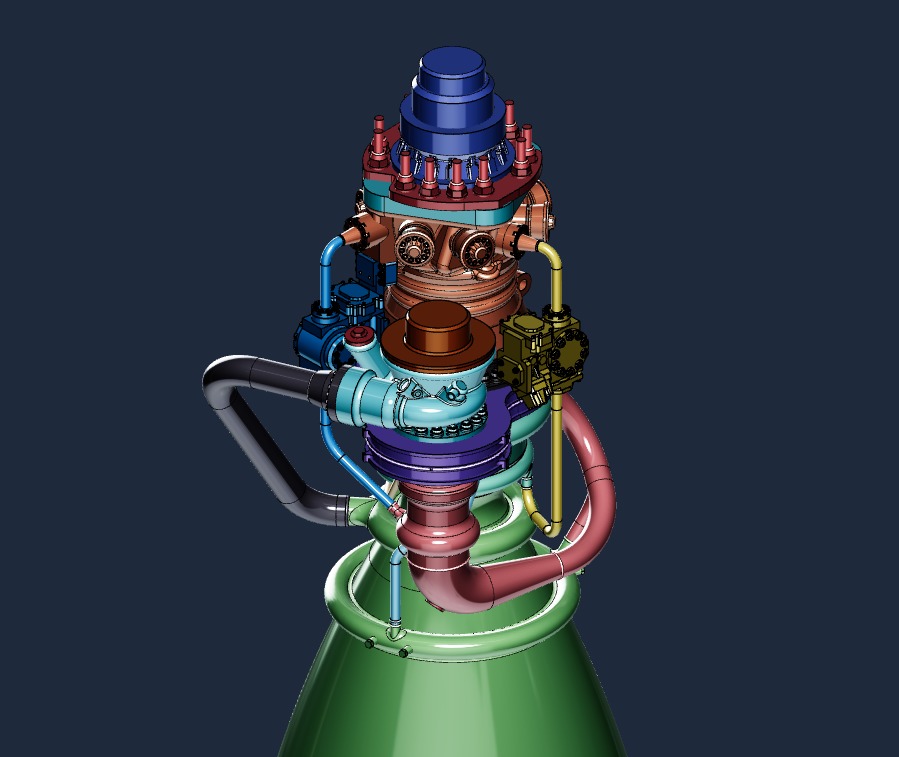

SpaceX Raptor 3 engine 3D 3D print model
Description

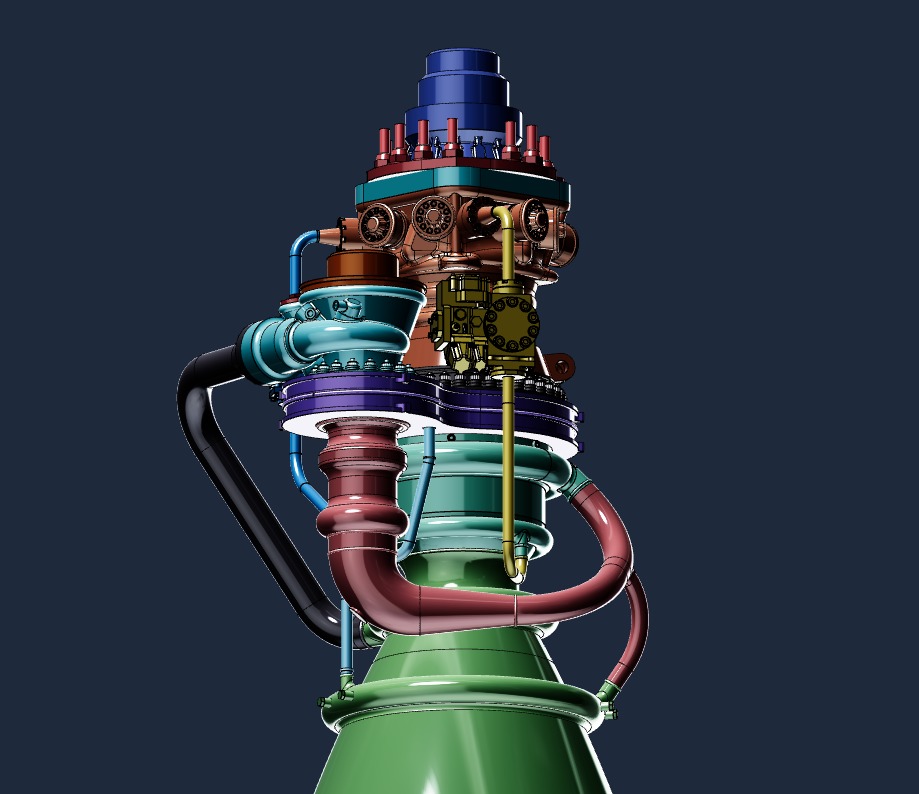

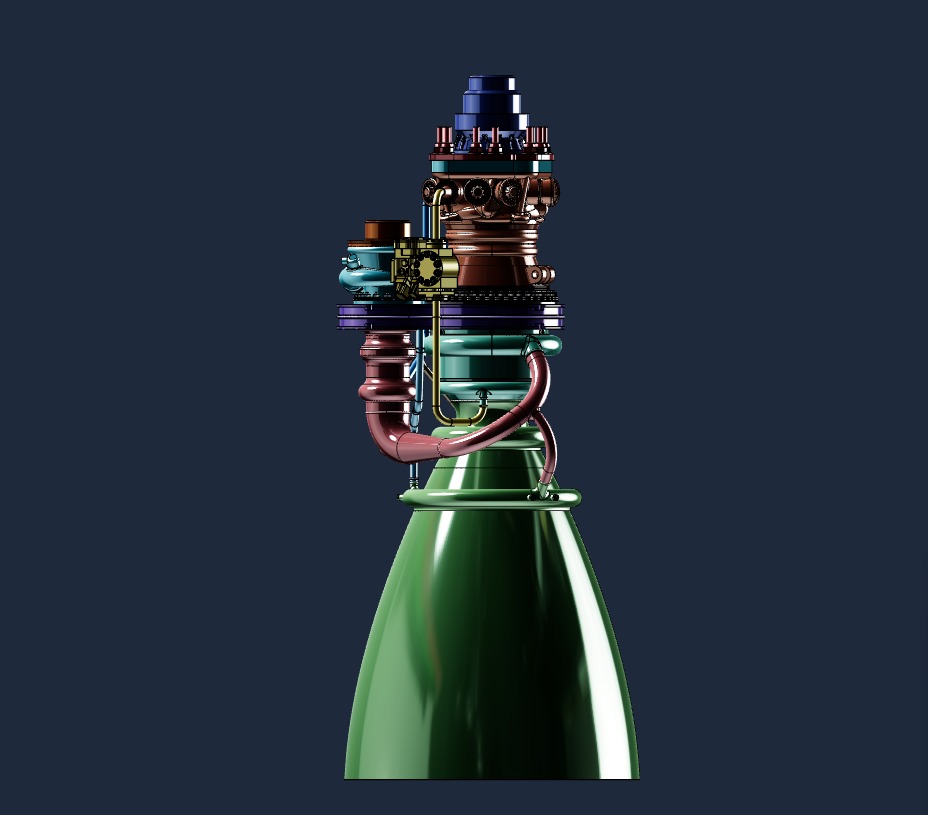

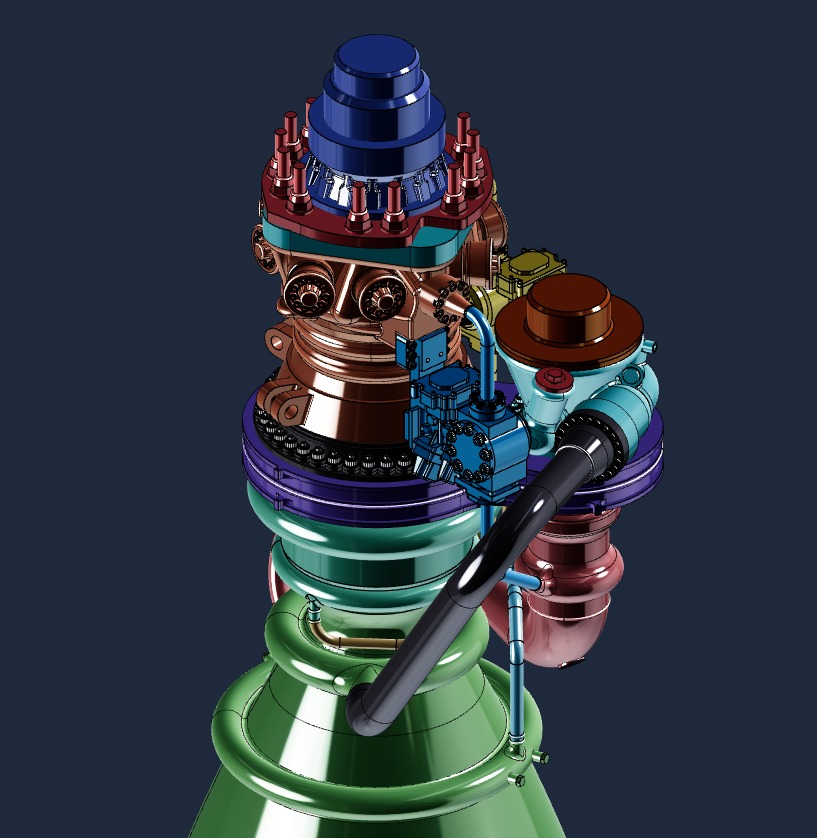

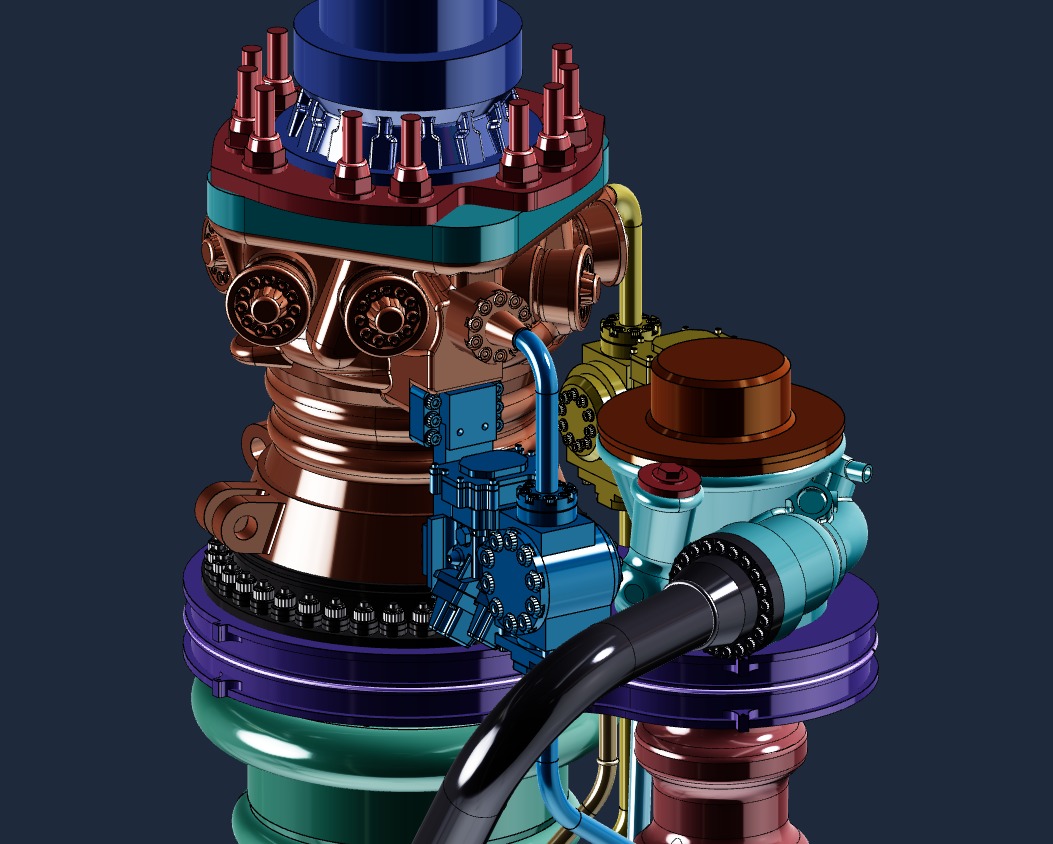

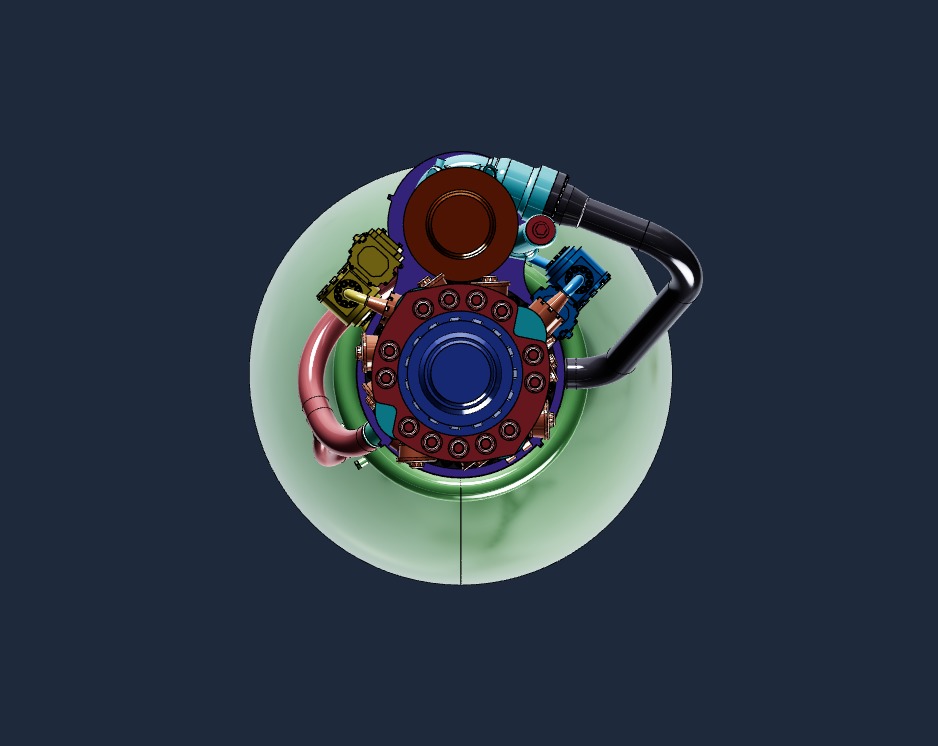

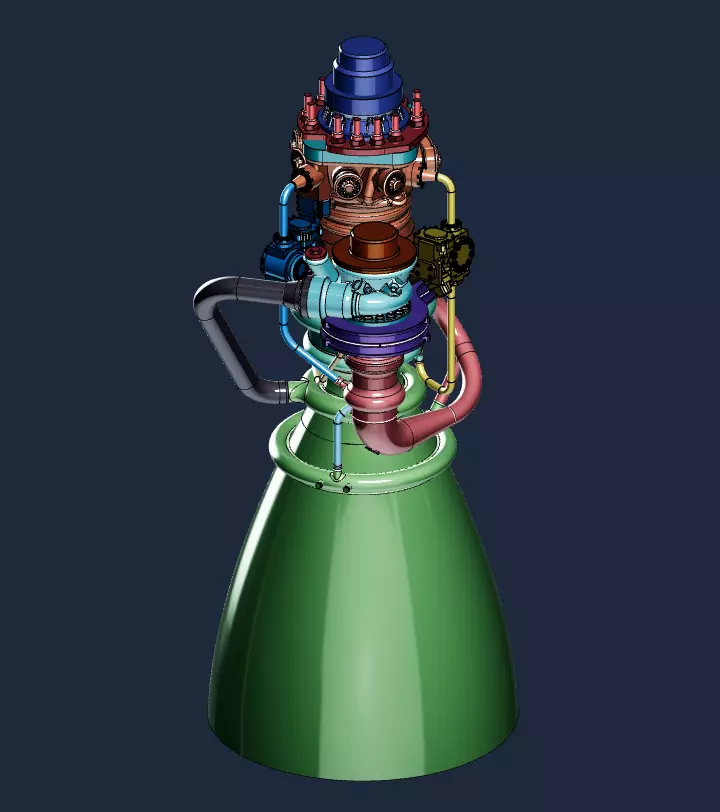

SpaceX Raptor 3.0 engine 3D printed model
Raptor 3Raptor 3 is aimed to ultimately achieve 330 tf (3.2 MN) of thrust in the booster/sea-level configuration. As of August 2024, it had reached 280 tf. It weighs 1525 kg. Chamber pressure reached 350 bar.Another goal is to eliminate protective engine shrouds.Raptor 3 moves much of the plumbing and sensors into the housing wall. On 2 August 2024, Raptor 3 SN1 was revealed.Raptor 3 engines do not require a heat shield. Integral cooling and integral secondary flow circuits run through the walls of various sections of the engine. Many bolted joints in Raptor 2 have been eliminated/replaced by single parts. Servicing is more difficult because some parts lie beneath welded joints.
The scale is 1/15
It is divided so that it can be produced using a 3D printer. We recommend producing it using a Resin 3D Printer.
The most accurate and precise model
It is an accurate division
Perfect finish
The model is divided into 17 parts
Comes with assembly instructions
The set includes files: OBJ :STL : STEP: Assembly Instructions
Size: Y : Height Length : 195mm
Feel free to enjoy it for yourself, but please do not sell it.
Note :The file has the same resolution as the example For 3D printing, buyers should have basic knowledge and understanding of printer operations such as Resolution , Base type , Split cutting , Support , Modify.
SpaceX Raptor 3 engine 3D
Royalty Free License
SpaceX Raptor 3 engine 3D
Royalty Free License
3D Model formats
Format limitations
- OBJ (.obj, .mtl)101 MB
- Stereolithography (.stl)66.1 MB
- STEP (.stp)15 MB
- JPG (.jpg)825 KB
- PDF (.pdf)690 KB
3D Model details
- Publish date2024-10-17
- Model ID#5588860
- Ready for 3D Printing
