Where can i get the wheels?
Useto navigate. Pressescto quit

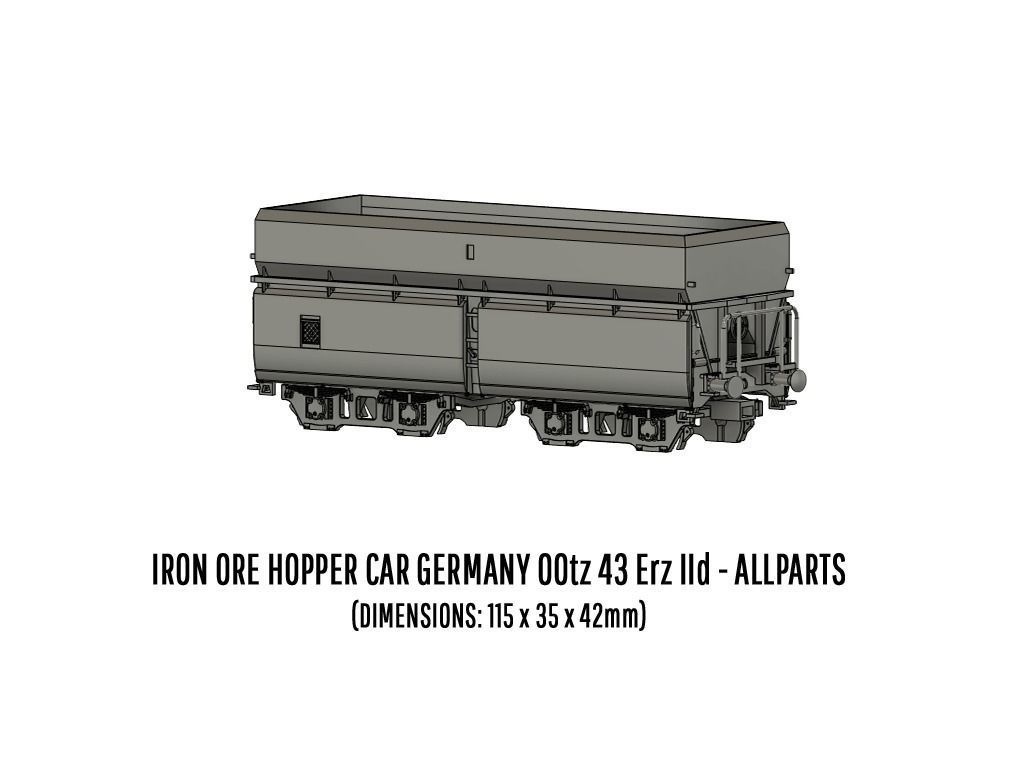

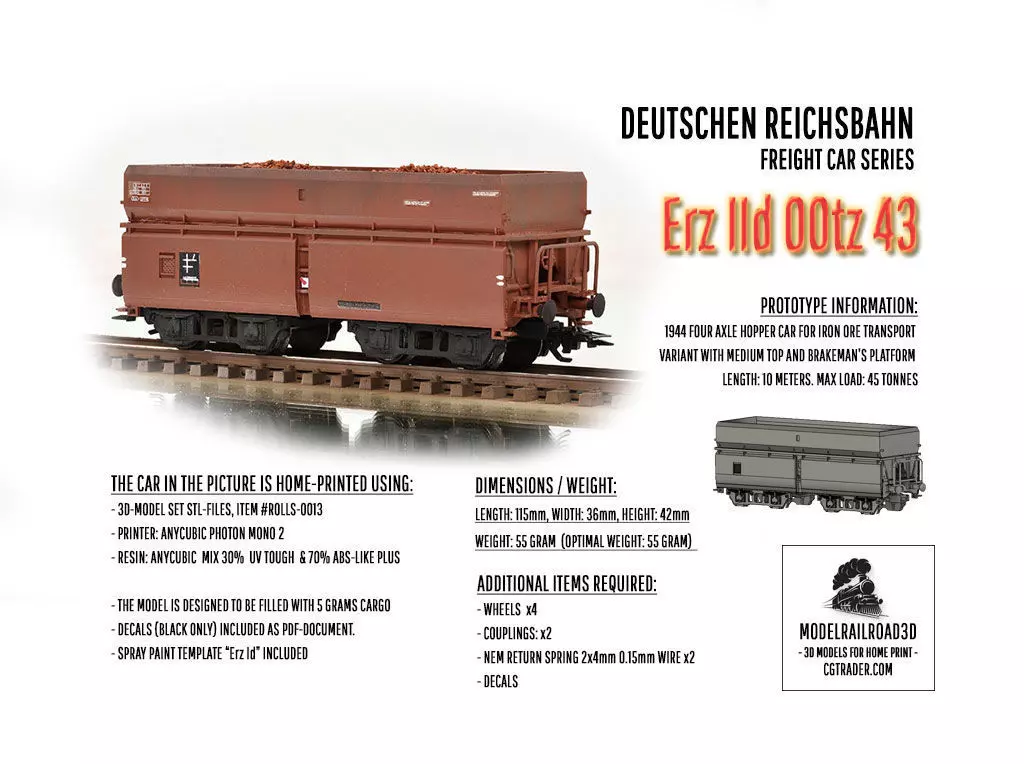

ROLLS-0013 German State Railways Hopper car Erz IId H0-scale 3D print model
Description

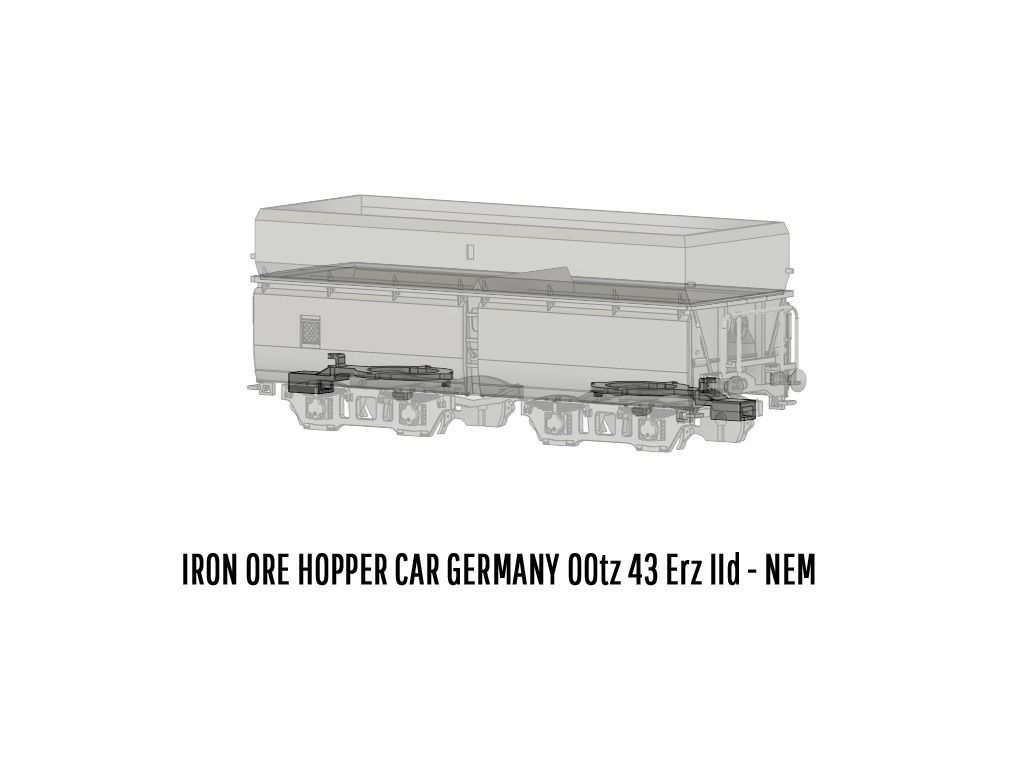

*** This 3D-model set requires minimum 3D-printer size: 115 x 70mm*** Includes a full set of STL-files to build a German state railroad 4-axles hopper car for iron ore transport type 00tz 43 Erz IId in H0-scale. State of model as per 1940s. Model runs well on both 2- and 3-rail systems. The car is equipped with standard sized NEM-pockets, which allows for any NEM-couplings of your choise. In addition you need: 4x wheel pairs (WHEEL DIAM: 10.3mm SHAFT LENGTH: 24.6mm) 2x NEM springs (size 2.0mm diam, 4.0mm length, 0.1 - 0.2mm wire diameter) 2x Couplings for NEM-pocket Ready-to-print super detailed items set for H0-scale Model Railroad. The Print files (STL-format) with correct supports are included and all neccesary preparations are made to simplify print. Simply download, un-zip, slice and print. Enjoy!
The models are developed and test printed to verify function, detail and printability. Testing has been performed on a range of consumer grade 4k, 6k and 8k resin 3D-printers.
We recommend 0.03mm layer thickness. The model has been testprinted successfully using the following resins for low warp, high strength and super detail:
- 30% Anycubic UV Tough + 70% Anycubic ABS-like resin plus gray
Use the following link for best price of your new Anycubic purchases: https://store.anycubic.com/?ref=zwjjfwob at the same time as you support the Modelrailroad3D design work.
IMPORTANT GENERAL NOTE TO AVIOD WARPING / SCEWING:
- WASHING: Wash all items clean from resin preferrably in a washing mashine 6-8 minutes (Anycubic Wash & Cure 2.0)
- POST CURING: Leave all items to dry after wash properly. Preferrably over-night / 24h. All sides, including inside surfaces, MUST be exposed to the UV-light. Recommended time: 4 minutes.
- Paint the details immidiatly after post-curing using a primer. We recommend TAMAIYA Surface Primer Fine Gray.
*The Editorial licence of course includes unlimited printing for your own Model Railroad. However, the 3D models provided in this set must NOT be used for commersial production or re-sale of the 3D-models.
modelrailroad3d
Hi!
Thank you for contacting us!
Wheels can be purchased both your local dealers, but also from Conrad, Amazon and Wish.
Make sure to get WHEEL DIAM: 10 to 10.3mm SHAFT LENGTH: 24.4 to 24.6mm.
We have used these wheels during model development and final testing:
Supplier: MJ Hobby, https://www.mjhobby.se
AC-wheel set: Item no. JE 9950010 (JECO item)
DC-wheel set: Item no. JE 700580 (Maerklin 700580) or Piko H0 56061
I hope this helps.
Best regards
Modelrailroad3D-team
R
rtna 2023-07-02 09:45:48 UTCrtna
Where can I get the white decals which are on the upper half of the car?
P
peetbr1 2023-08-17 04:41:38 UTCpeetbr1
https://www.modellbahndecals.de/Decals-Gueterwagen/sonstige-Gueterwagenanschriften/Nassschiebebilder--Schriftzug-Erz-IId-weiss--Artikel-Nummer--2870.html
T
torbu torbu
D
dasechtewiesel dasechtewiesel
A really great model, beautifully detailed with a guide mechanism and NEM slot. Not only are files for the individual components supplied, but also files ready for printing with a support structure.
You couldn't ask for more at this price.
My first, but definitely not my last purchase from "modelrailroad3d".
C
camira53 camira53
finaly printed the model , looks good i think its not exactly on scale .
But it looks great , and wil do on my railway .
W
wheely wheely
F
firemenfrank112 firemenfrank112
ROLLS-0013 German State Railways Hopper car Erz IId H0-scale
Editorial No Ai License
ROLLS-0013 German State Railways Hopper car Erz IId H0-scale
Editorial No Ai License
3D Model formats
Format limitations
- Other 1.25 KB
- PDF (.pdf)46.3 MB
- Stereolithography (.stl)46.3 MB
- PNG (.png)46.3 MB
3D Model details
- Publish date2023-06-01
- Model ID#4540793
- Ready for 3D Printing
