OO Gauge VGA Wagon 3D print model

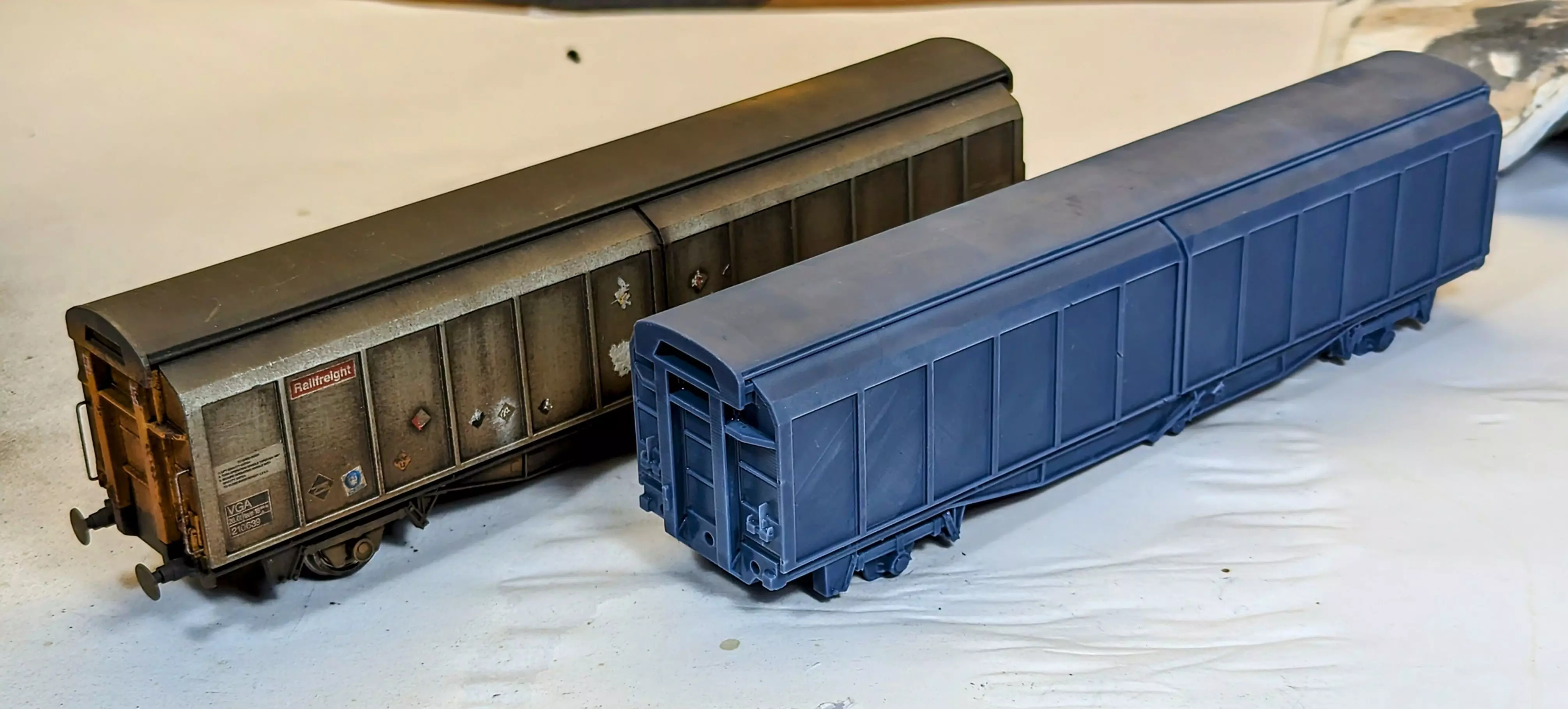

A OO gauge (1/76) VGA Wagon. Heavily based on the Bachmann RTR model but with a few tweaks and enhancements here and there.

These wagons have been around since the early 1980s and can still be seen around the network today. Often employed in MOD traffic.

It's not a perfect representation of the real wagon, but close enough for what I needed.

As printed, the model requires the following to complete:

• 4mm Plain Brass Bearings (x4)
• 12mm Disc Wheels (I generally use Dapol as they're cheap and cheerful!)
• Lanarkshire Models Wagon Buffers BP08 (x4)
• Lanarkshire Models Coupling Hooks CH07 or similar (x4)
• Hornby X9289 Couplings or similar NEM dovetails (x2)

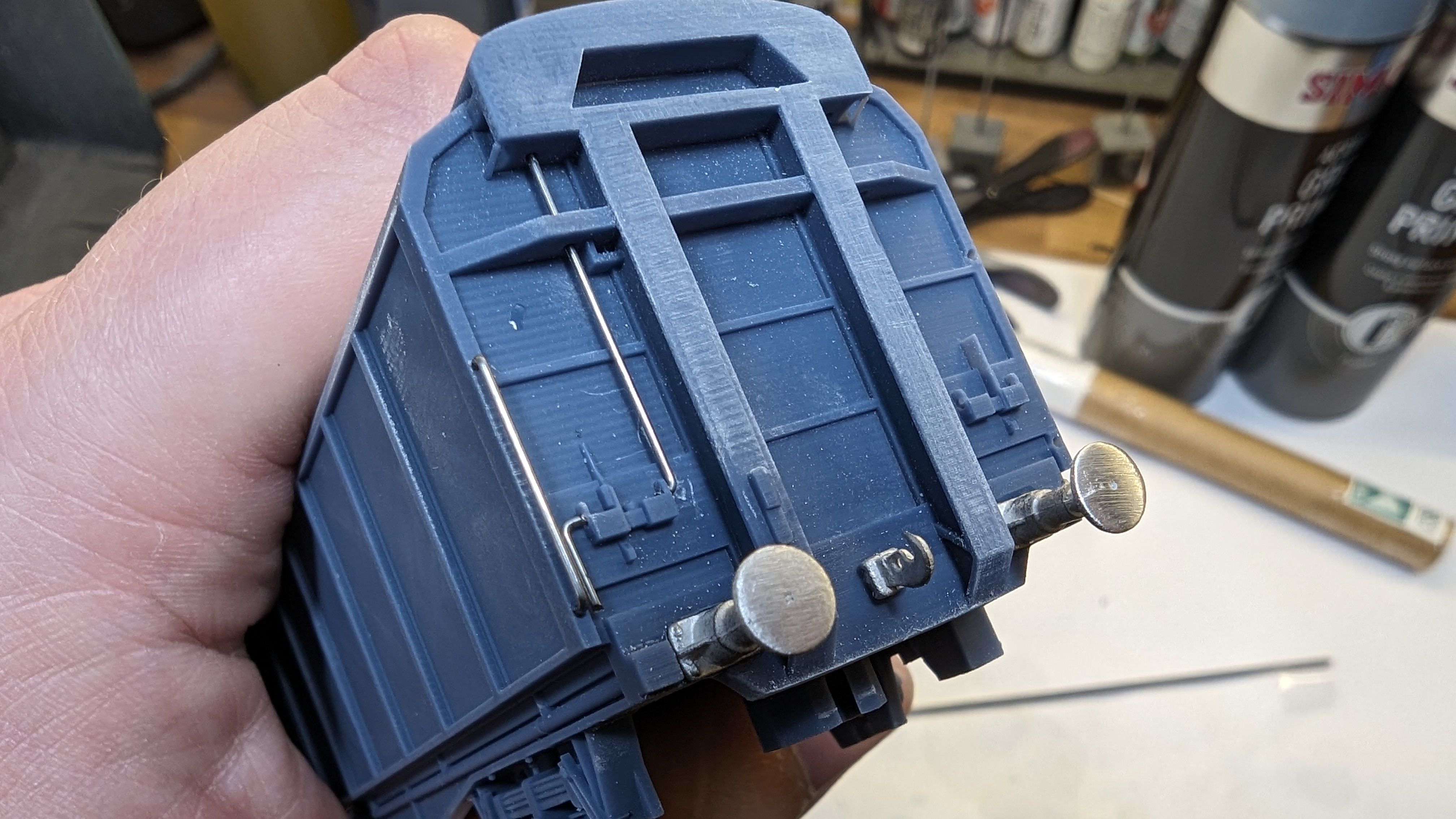

• 0.5mm piano wire for the door lock mechanism at each end.
• Optional Self-Adhesive Wheel Weights (space underneath to accomodate)
• Decals, paint etc to finish.

Please note, the model has fixed axles, unlike the pivoting ones on the Bachmann model so may struggle with very tight curves.

Includes a pre-supported version to fit on an Anycubic Photon M3

Length - 175.1mm Width - 36.81mm Height - 46.5mm

Printed in Siraya Tech Fast Navy Grey @ 0.05mm on Anycubic Photon M3
