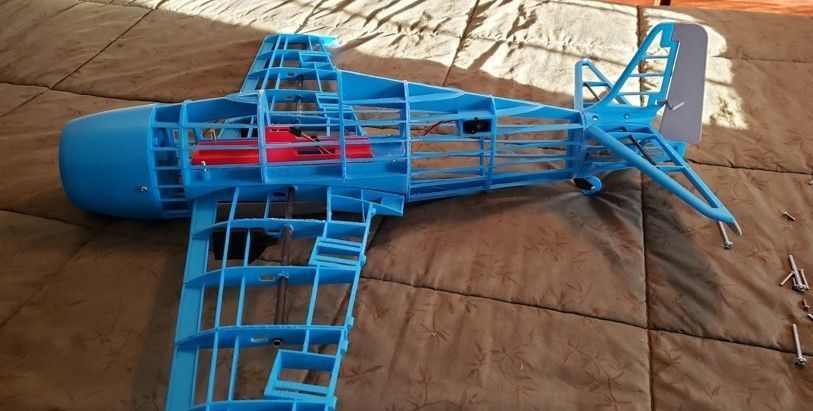

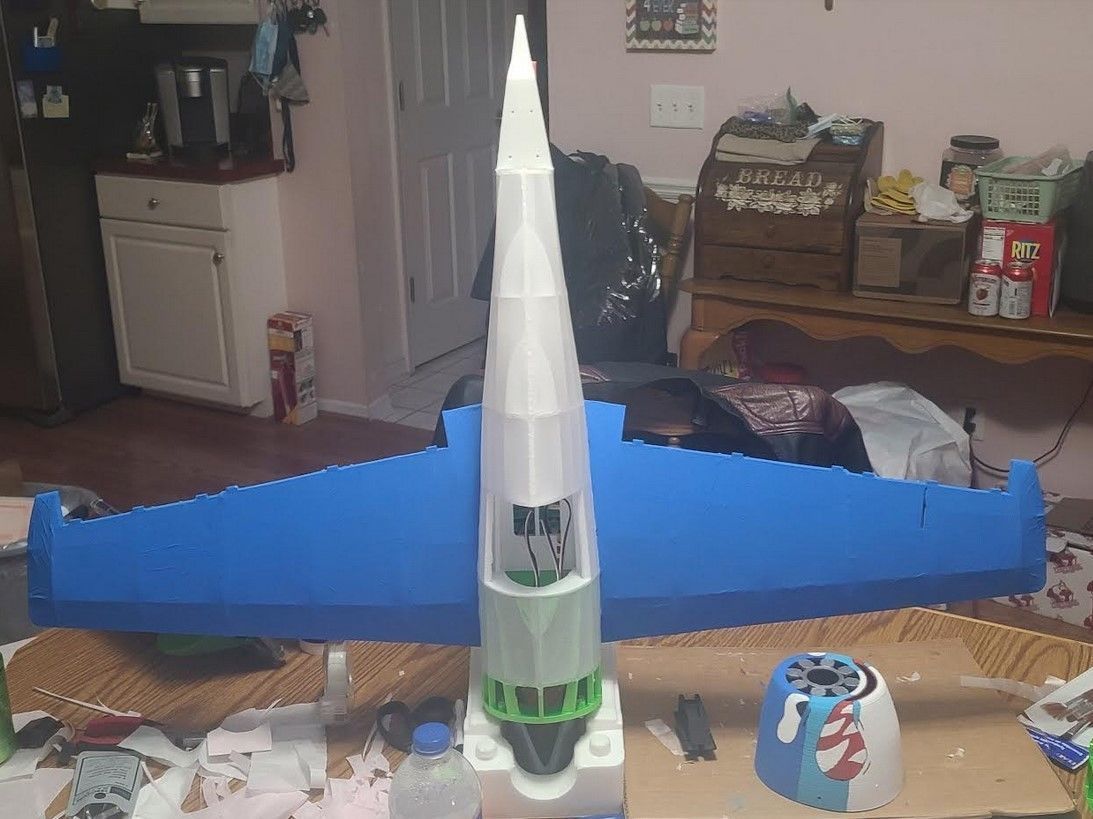

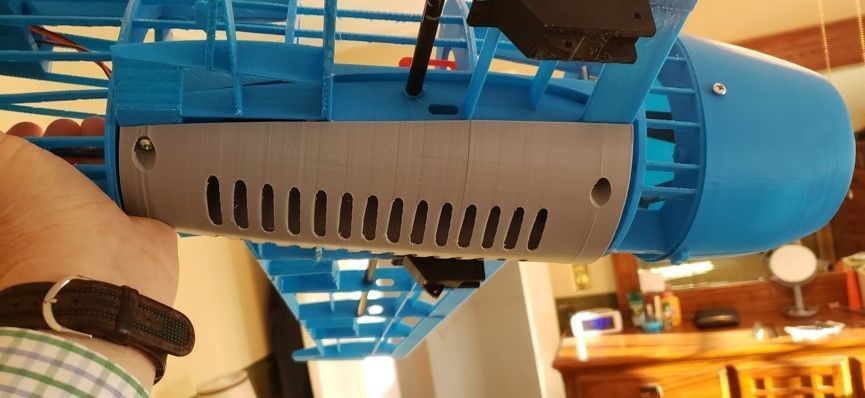

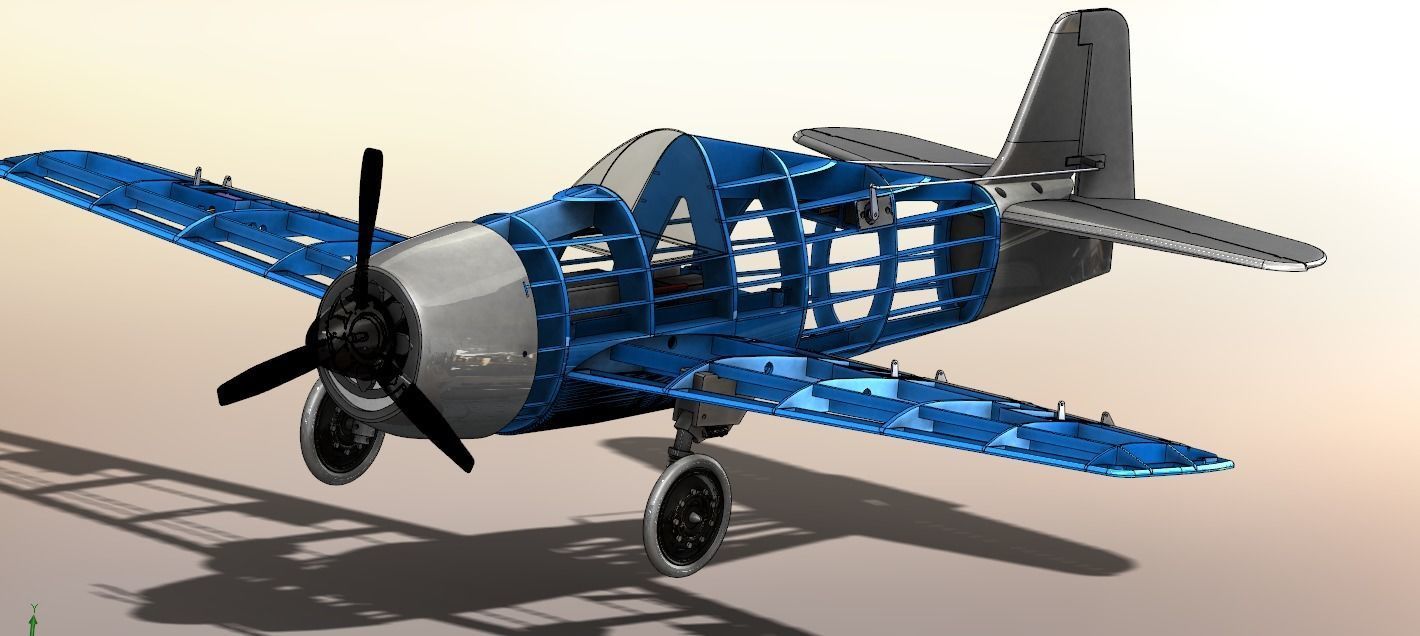

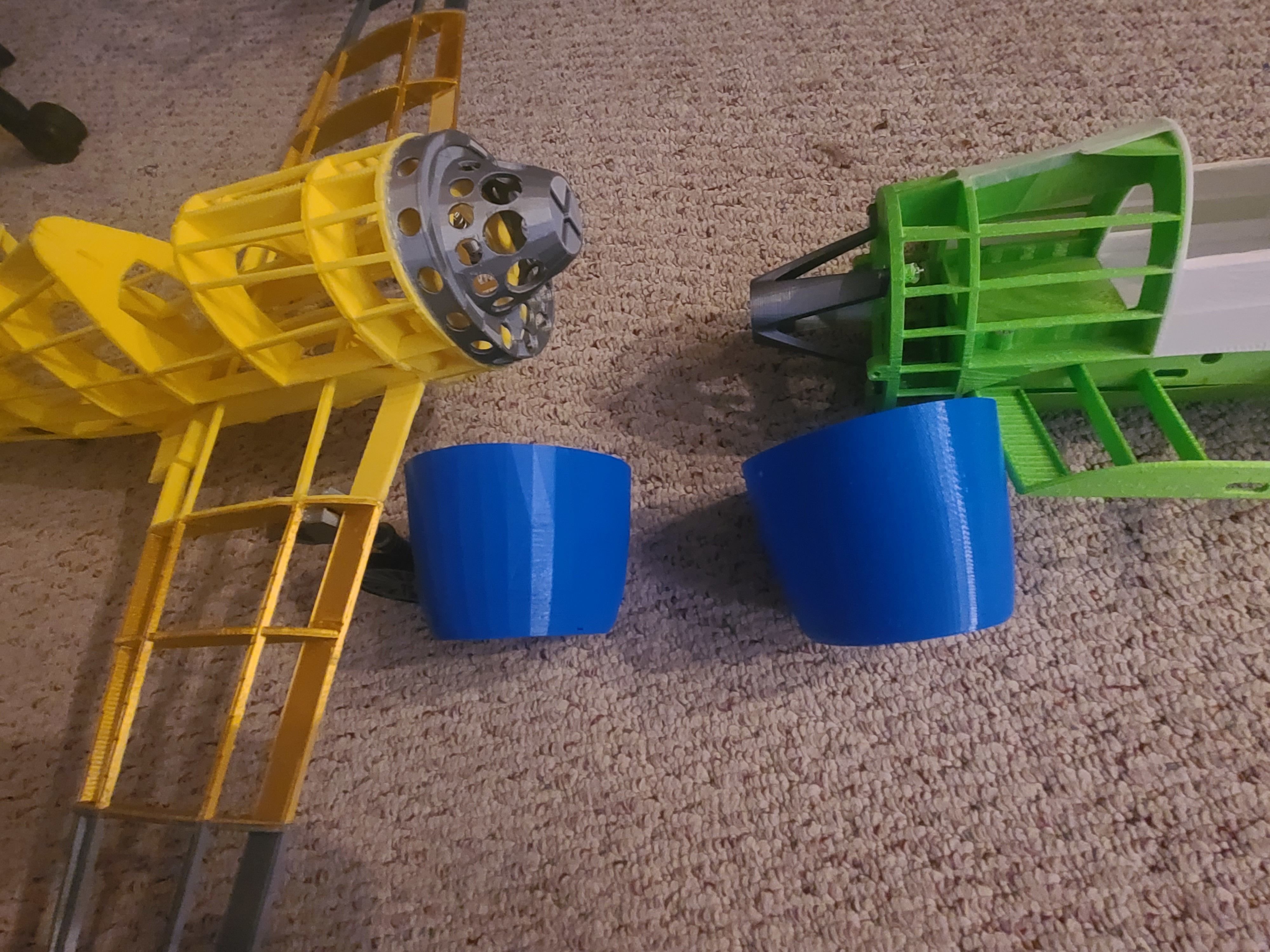

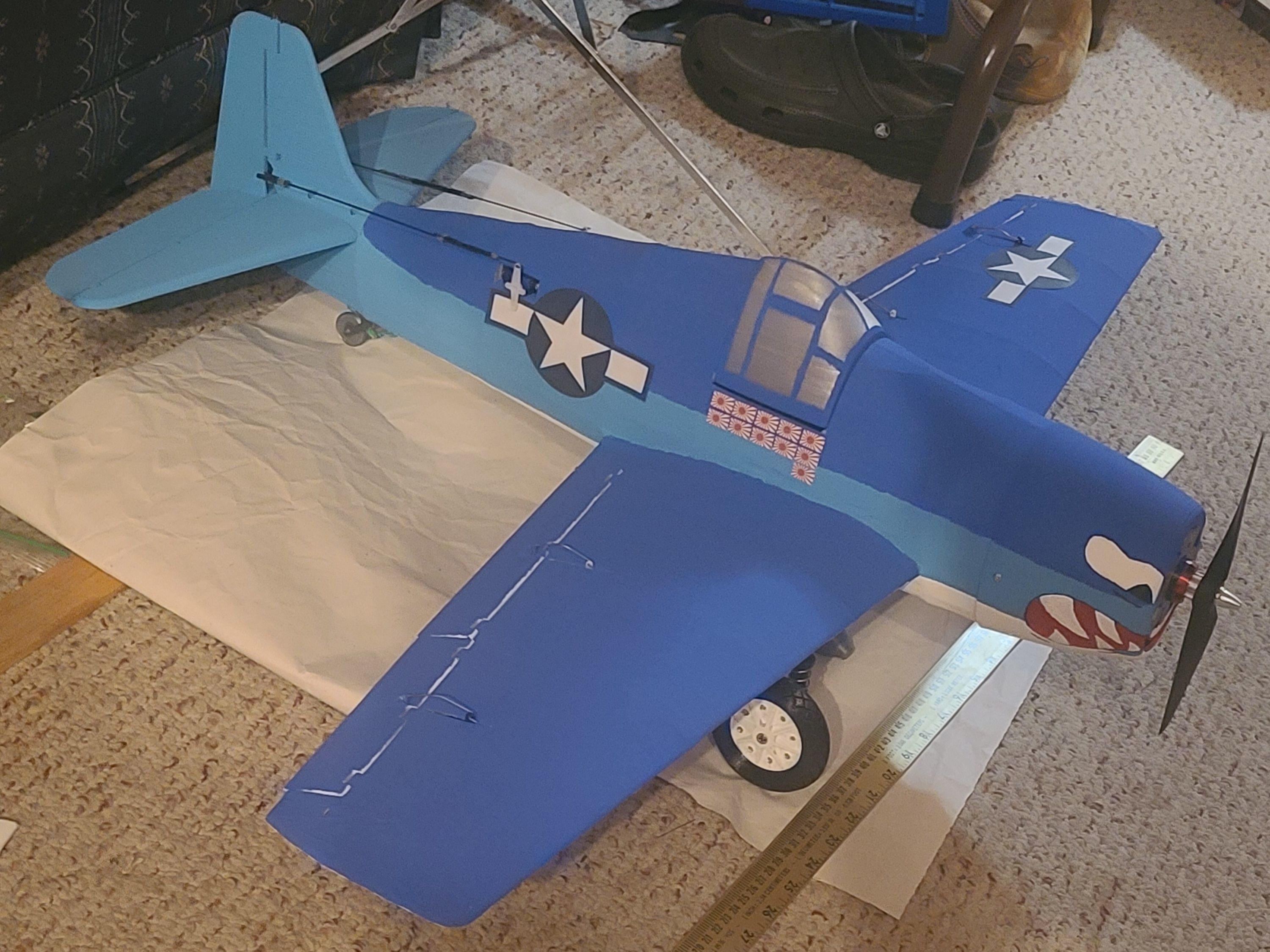

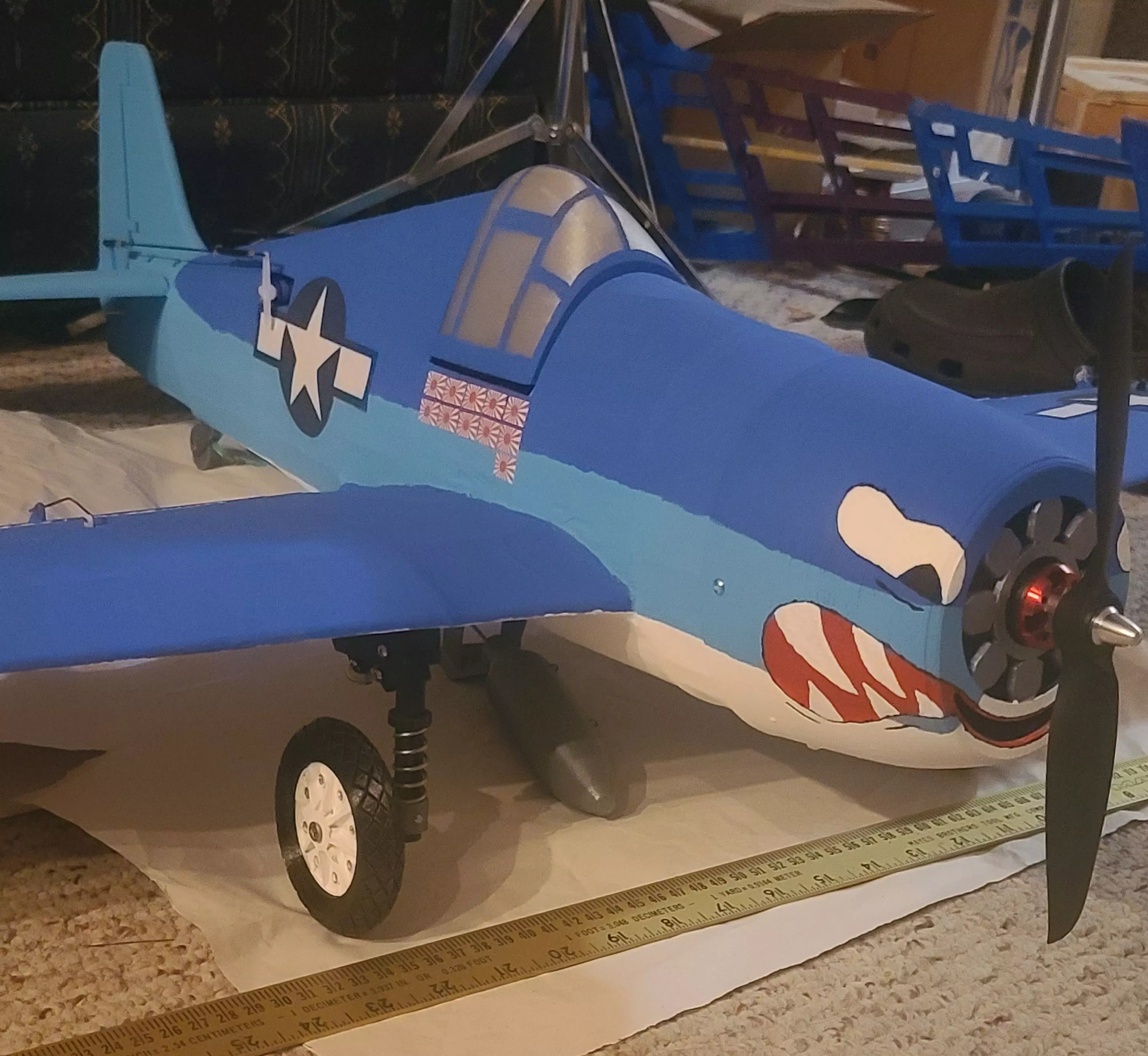

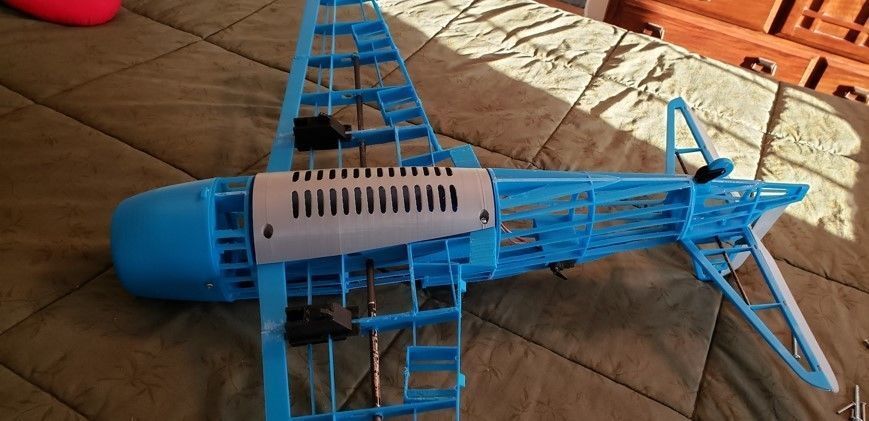

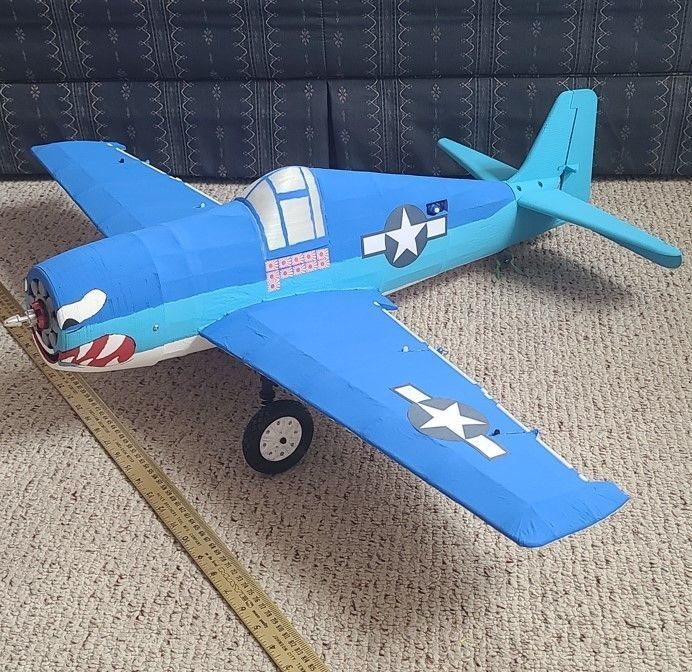

After much time working on this air frame, we are ready for the final release. Coming in under 700grams of plastic, This plane includes all the features one would need to make a solid RC airplane built in. Complete with printed on hinges, control horns, electronics cutouts for servos in the fuselage, battery platform and holder, motor mount, cooling system, serviceable wing servo boxes, with flaps and ailerons. This version is a complete remodel of the original V1 conversion and is intended to provide the easiest covering experience possible, but please note this model can not be scaled down. There are too many size dependent features to allow it.

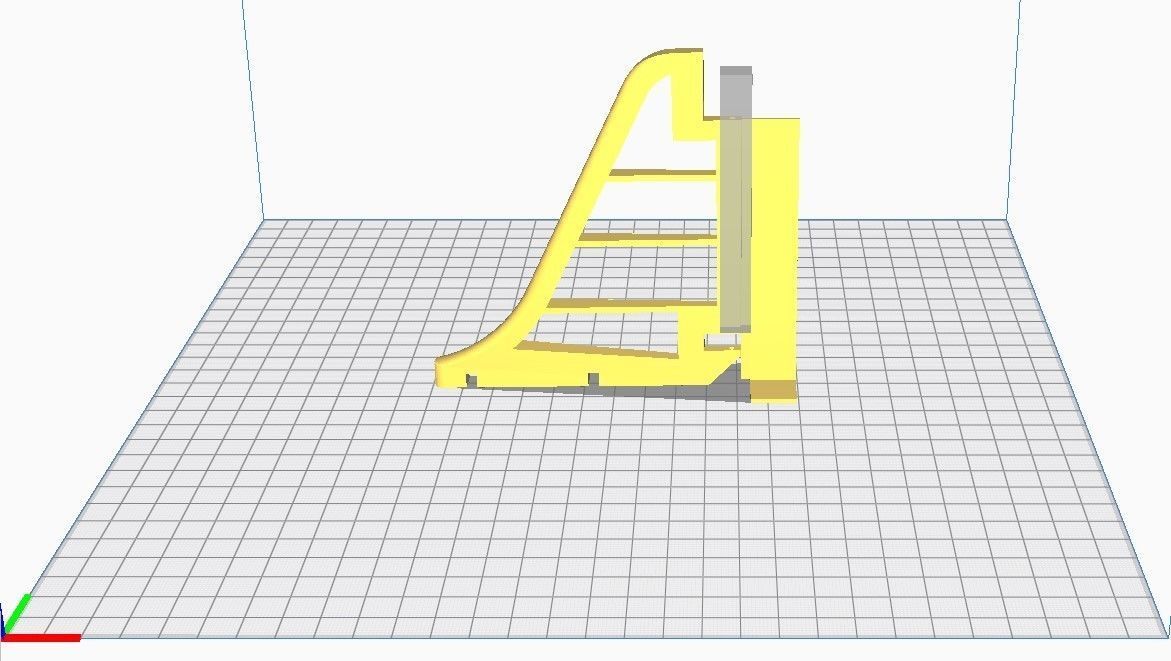

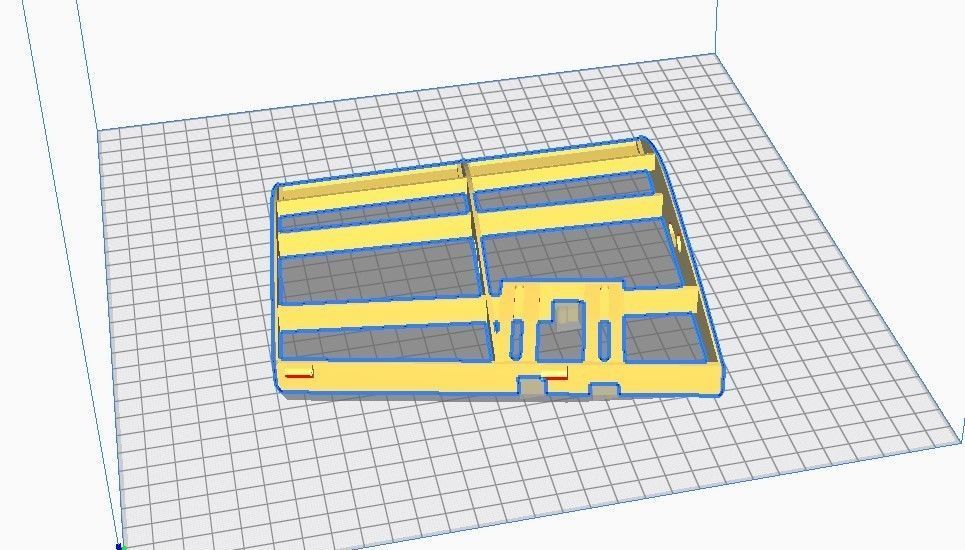

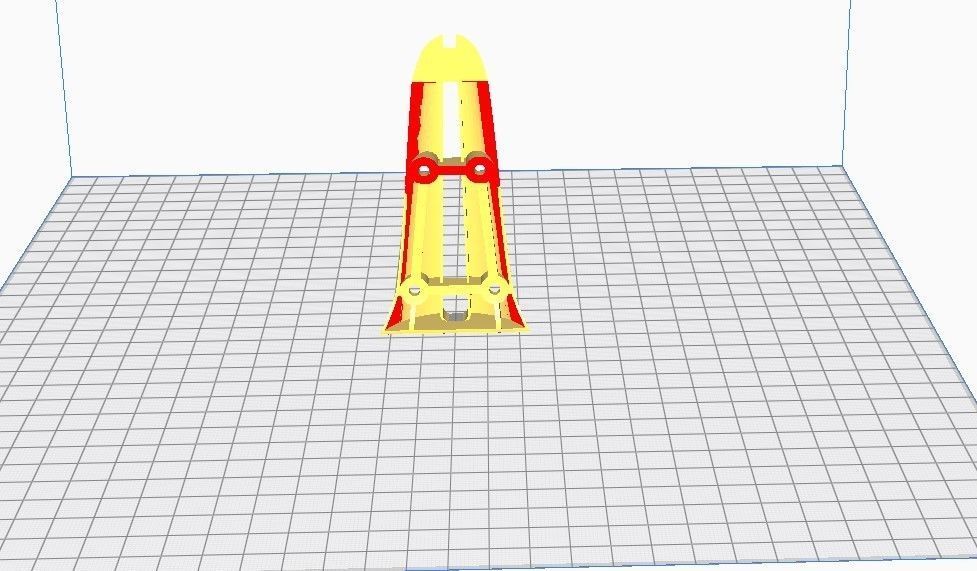

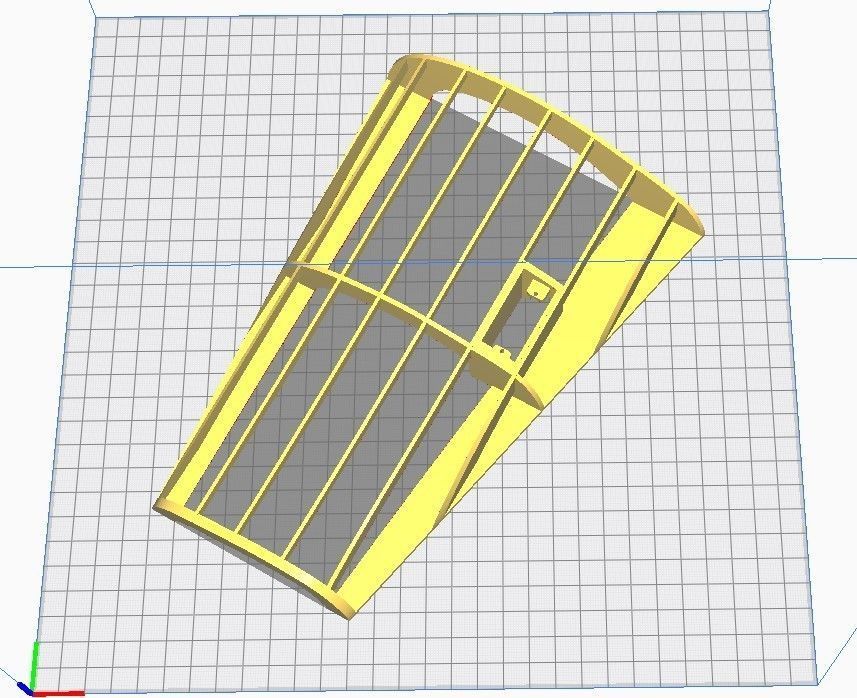

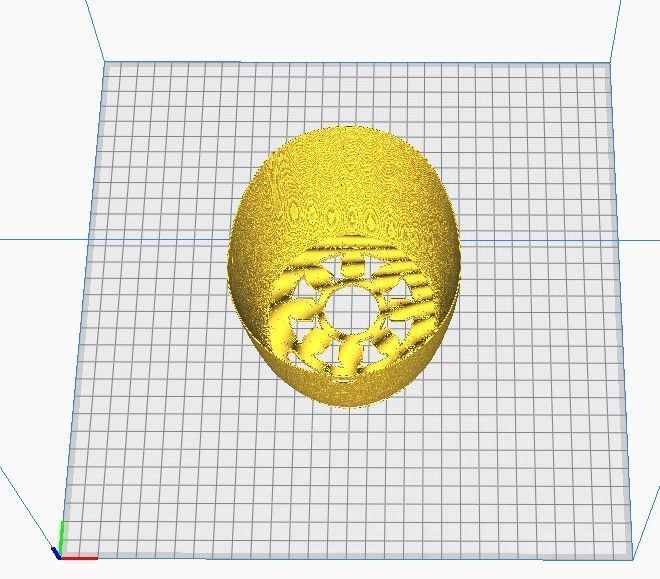

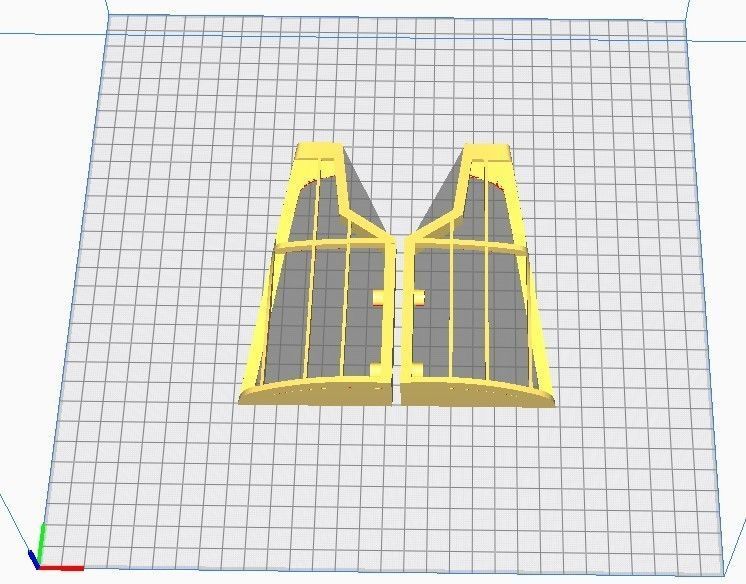

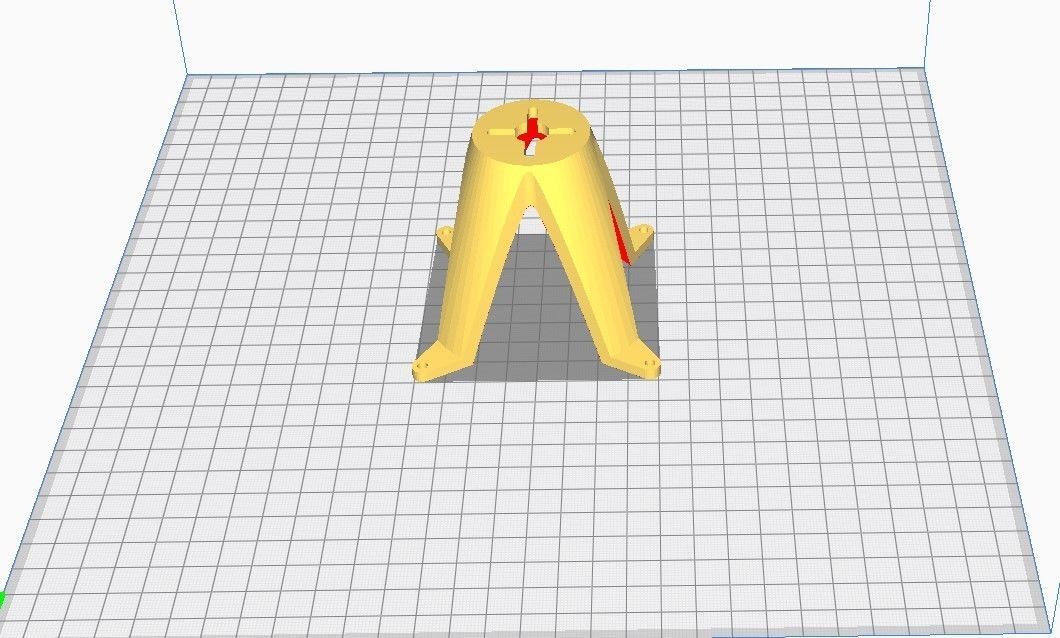

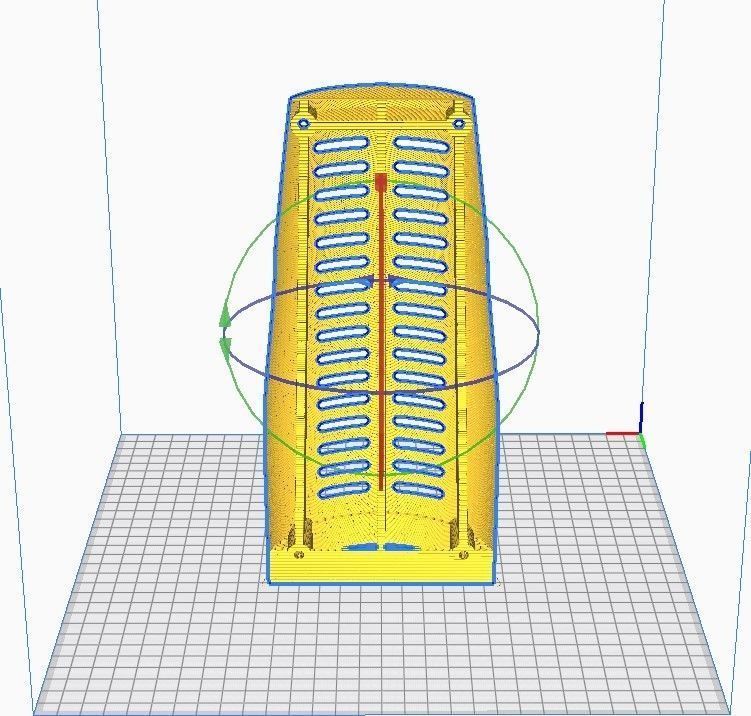

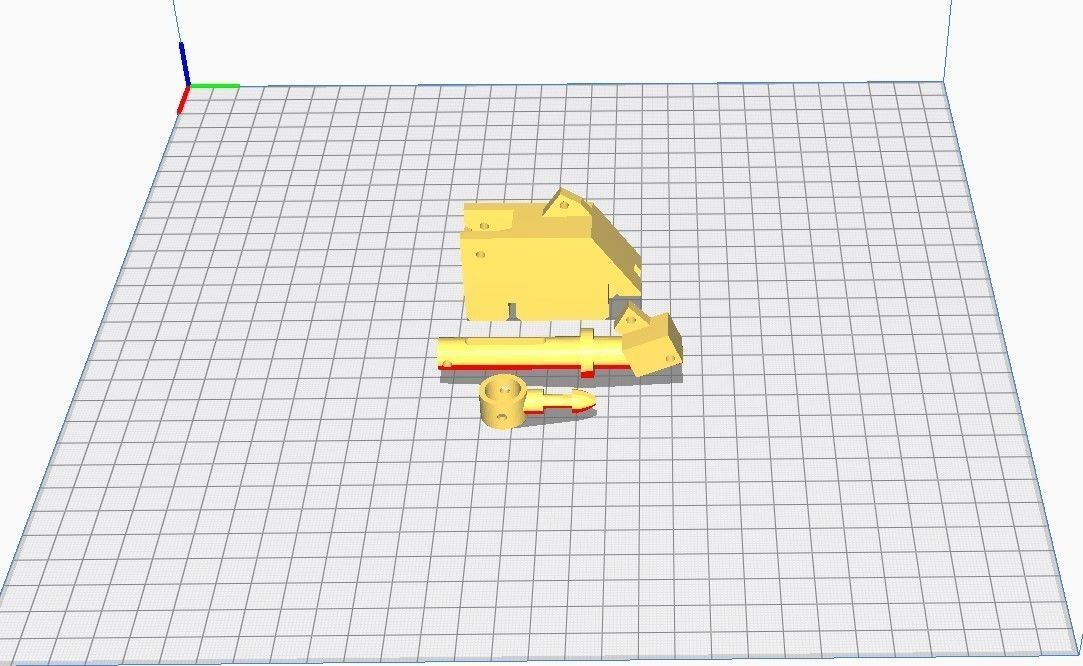

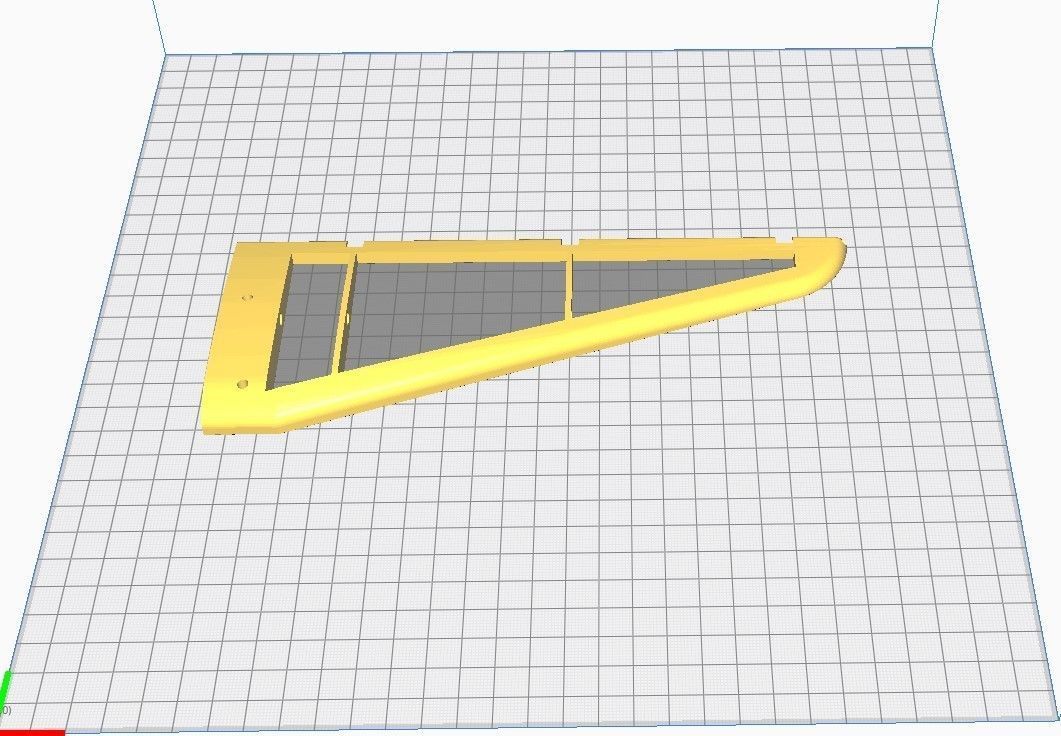

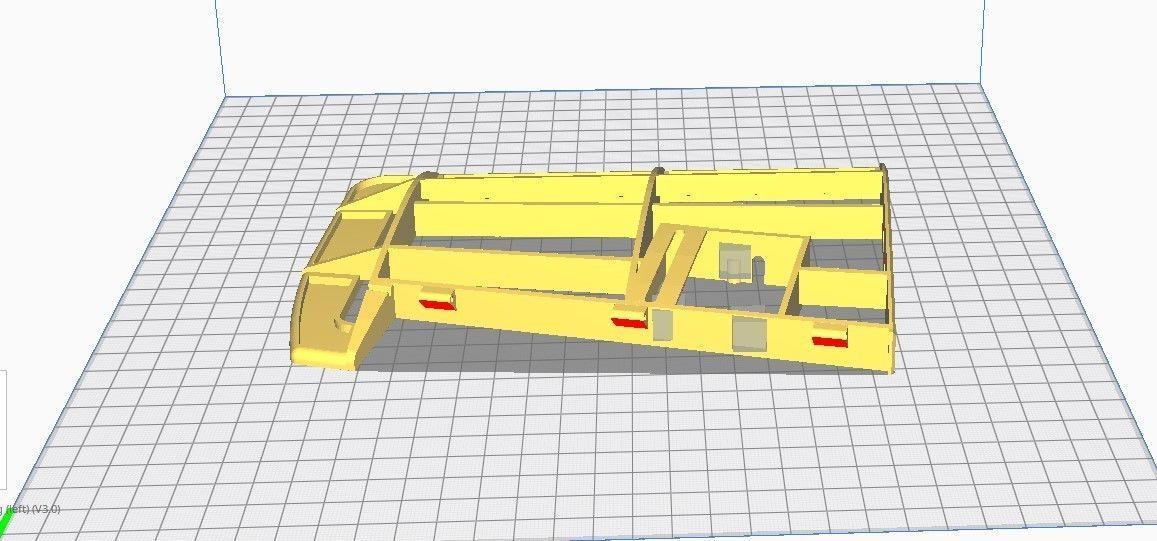

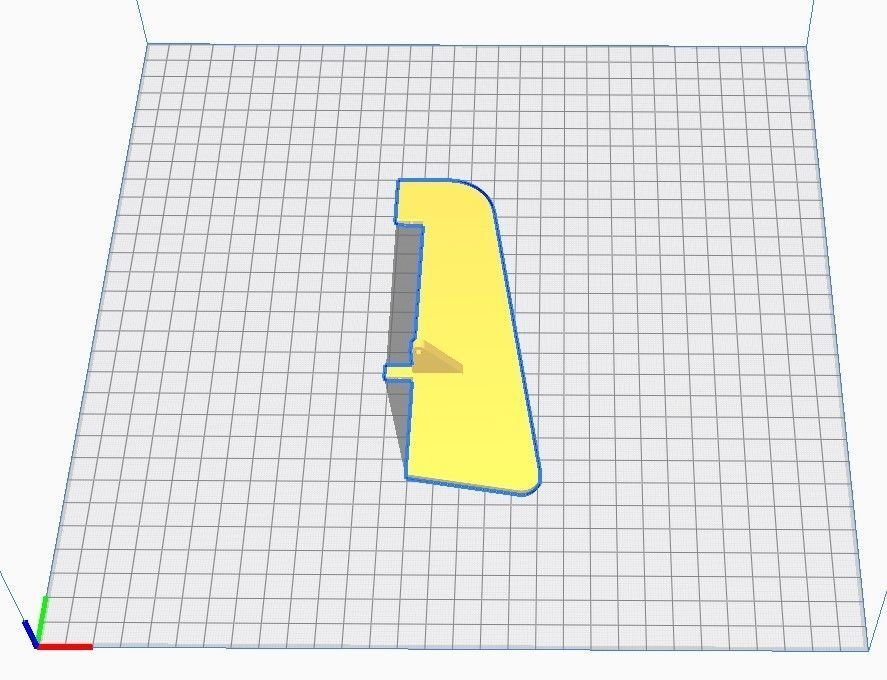

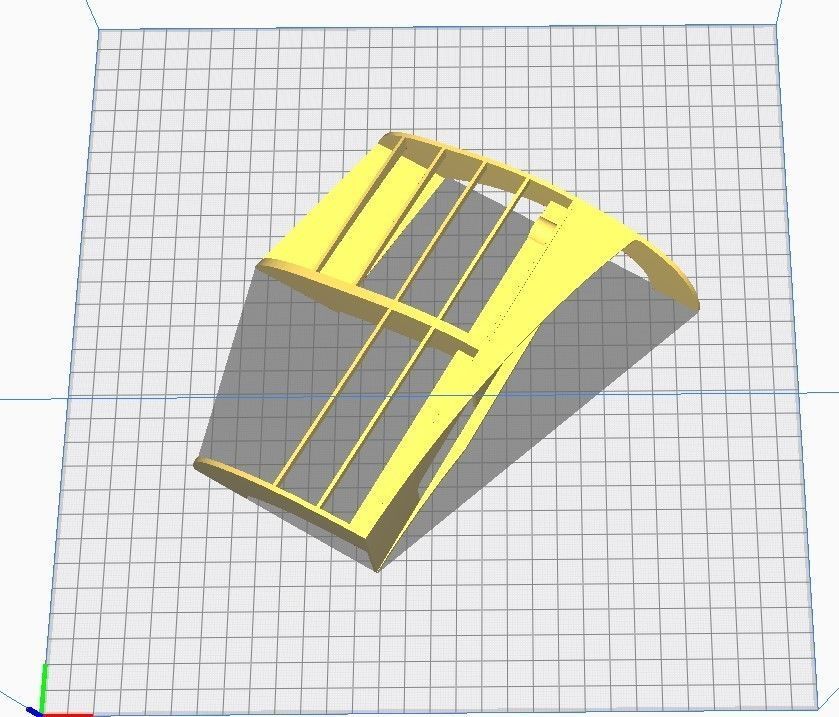

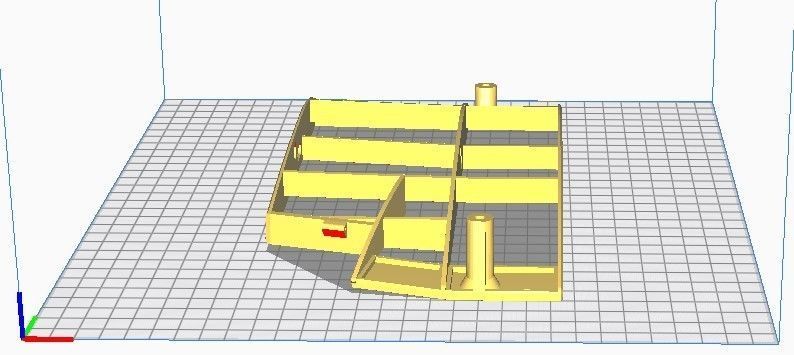

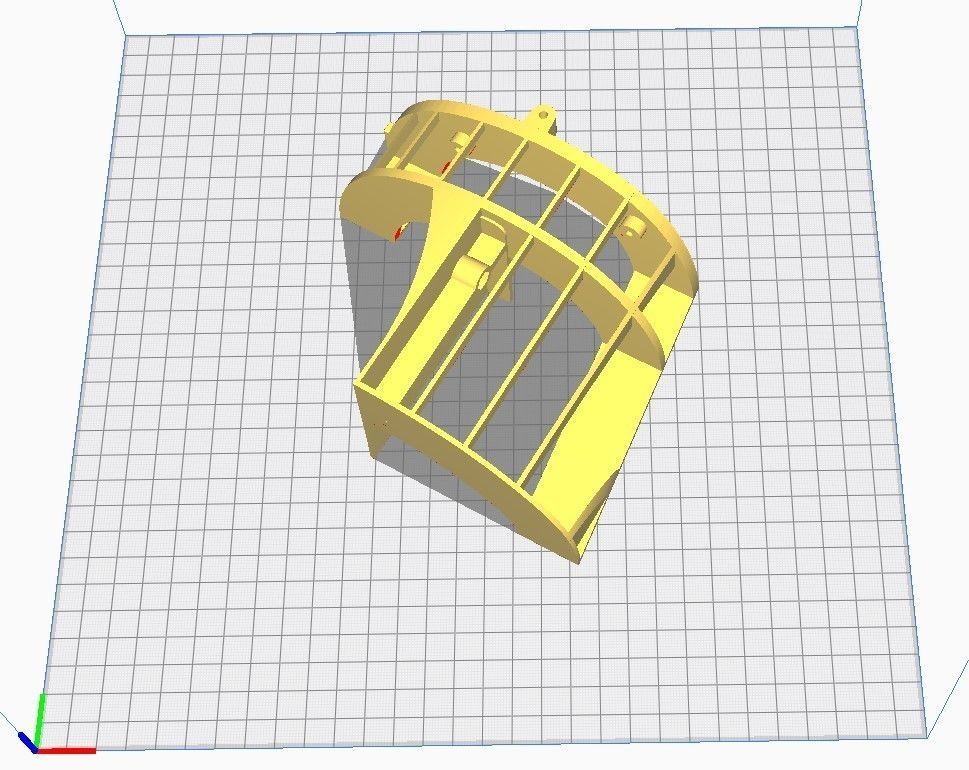

Print settings: There are various print settings used for the build, you will have to refer to the included instructions for the ideal print angles on the bed and the settings to accompany each piece.
Recommended equipment: 6x 9g servos, 1x 2212 920kv motor, 9452 3 blade prop, 2200mah 30c+ lipo battery with a 30-40 amp esc.
Hardware: 3mm screws, 4x #8 2inch screws with metal twist in inserts for the wing retainer, extension and compression springs are needed for the landing gear, we will post something to help you select these but it will ultimately come down to whatever is available to you and provides the ideal feel allowing the air craft to pop back up from a hard impact on its own power. 18ga Solid core wire is need for the wing hinges and rudder, the elevators can use a piece of filament as a hinge pin to save weight.

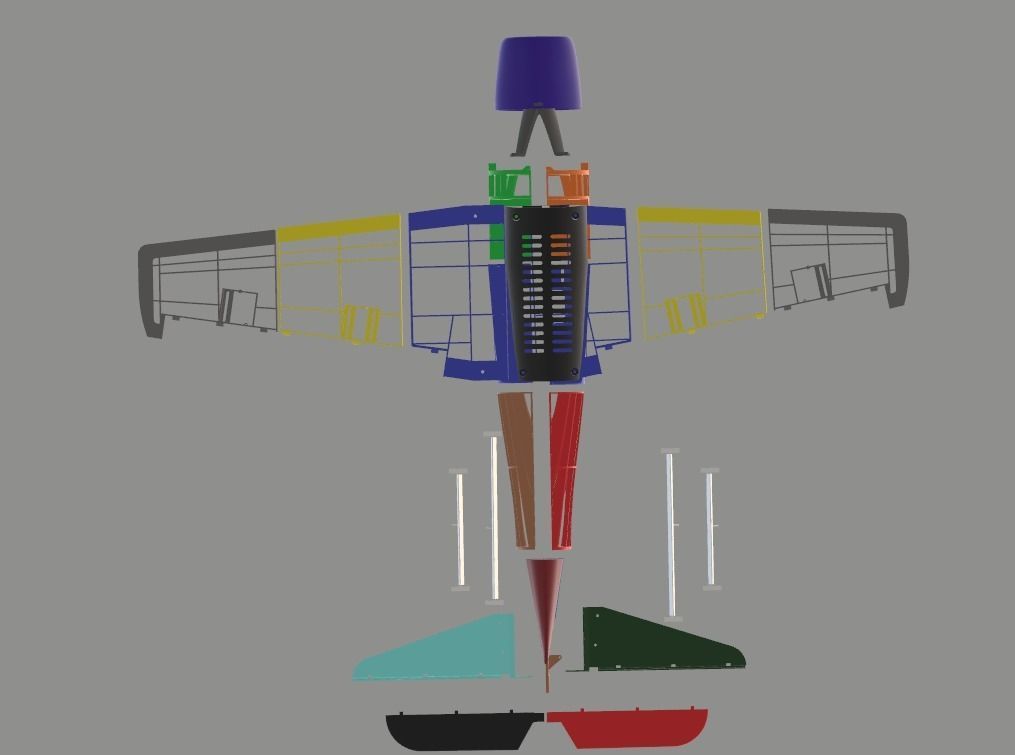

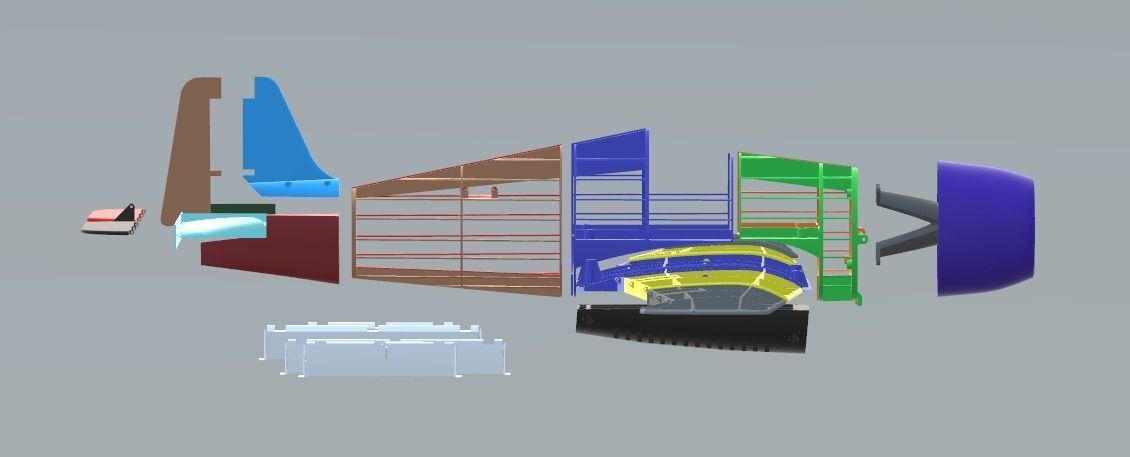

We will be uploading assembly exploded view videos to help with the construction in the near future, so if you need help with assembly, these will be available to you.
