Bobby Alloway for Hot Rod plus Tires 3D print model

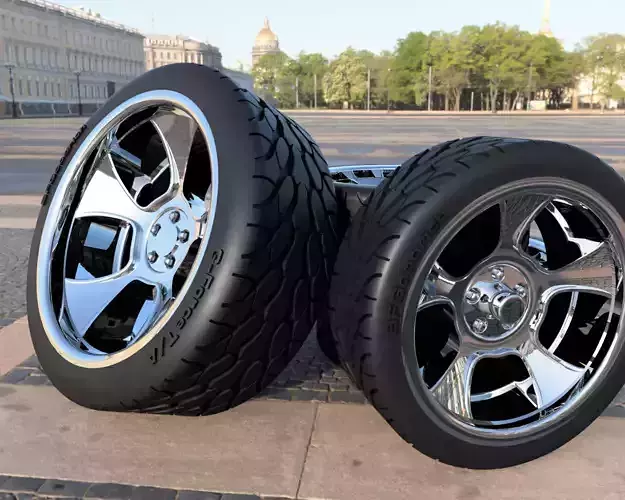

Set of the Bobby Alloway wheels model, together with the BFGoodrich G-Force T/A tire, in 1:24 scale.The modeling of the piece is proprietary, it is not a 3D model purchased on the internet, you will not find another like this. The object's detail quality is incredible and will make your miniature even more beautiful.The package contain two set of tires and wheels. This design was designed for hotrod-style models with not very large rims, but a big difference between the front and rear wheels. Just like the cars built by Bobby Alloway.The images in this listing are renderings of the 3D model, as well as images of the model itself in modeling software. They look great on old vehicles from the 20s, 30s, 40s and 50s, especially hot rods.

Measurements - 1/24 - FrontWheel diameter: 19.3 mmPin hole diameter (D): 2.00 mmPin diameter (C): 5.00 mmTotal diameter - Wheel and Tire (A): 23.9 mmWheel width: 8 mmTotal width (B): 8.1 mm

Measurements - 1/24 - RearWheel diameter: 22.6 mmPin hole diameter (D): 2.00 mmPin diameter (C): 5.00 mmTotal diameter - Wheel and Tire (A): 28.6 mmWheel width: 11.2 mmTotal width (B): 11.3 mm

For other scales you can use the scale table below:

1/64 - 37.5% (Not tested)1/32 - 75% (Not tested)1/25 - 96%1/24 - 100%1/18 - 133.3333%1/12 - 200%1/10 - 240%1/8 - 300%

3D printing settings

The tires are unidirectional, so remember to make an impression on one side, and rotate the other 180º.You can print with a layer height of 50μm, if you want a higher level, with 40μm you will have a better result. Layers smaller than this will make no difference.Other printing details depend on the resin you use and the printer, but do not require special care.
