Blueprint Engines 4cyl LSX engine with sequential gearbox 3D print model

Description

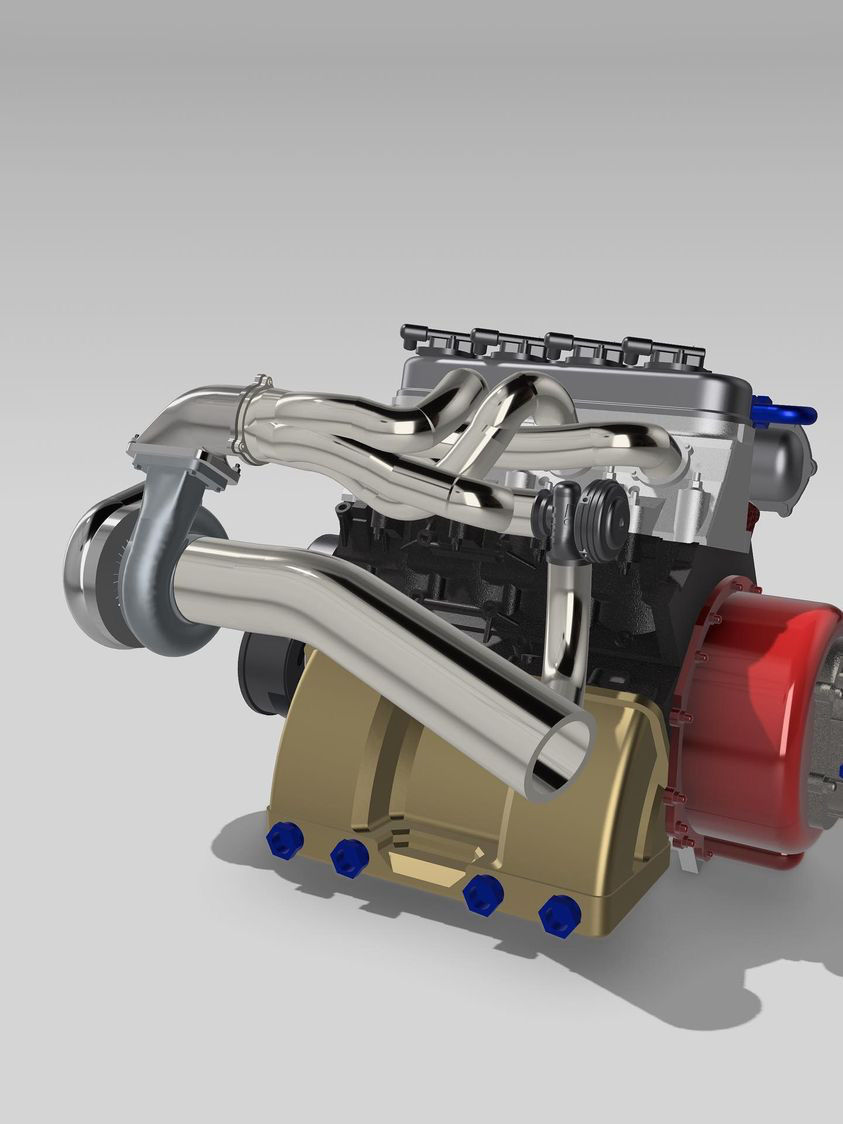

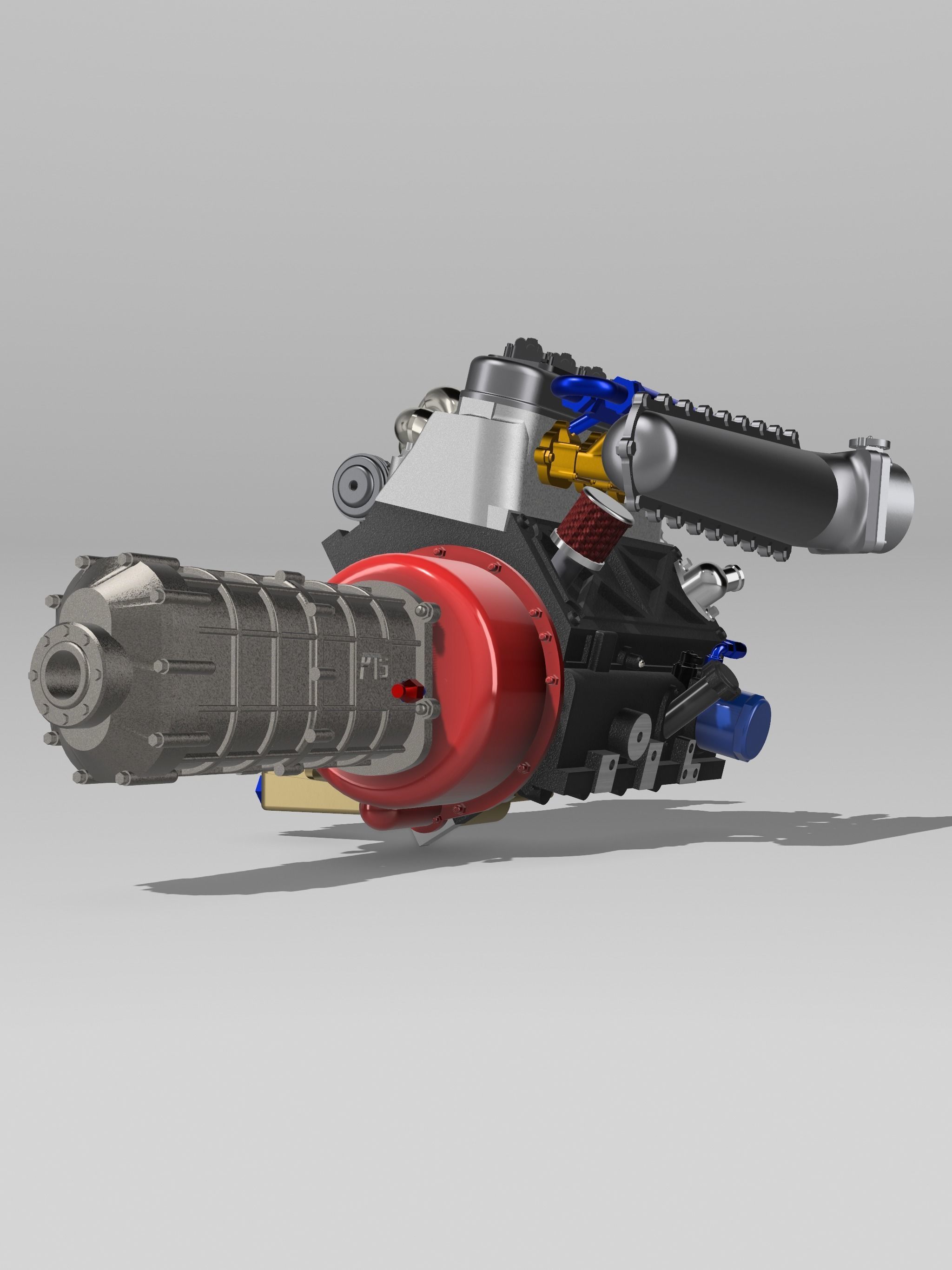

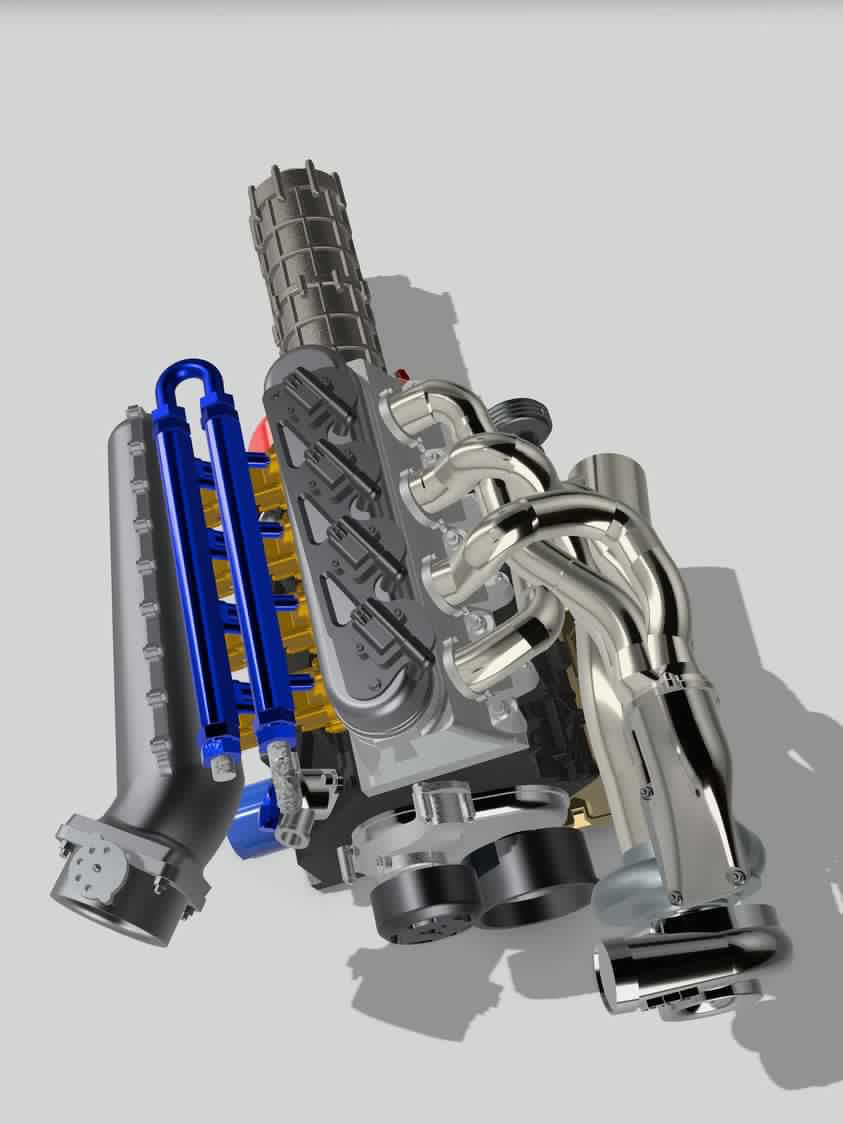

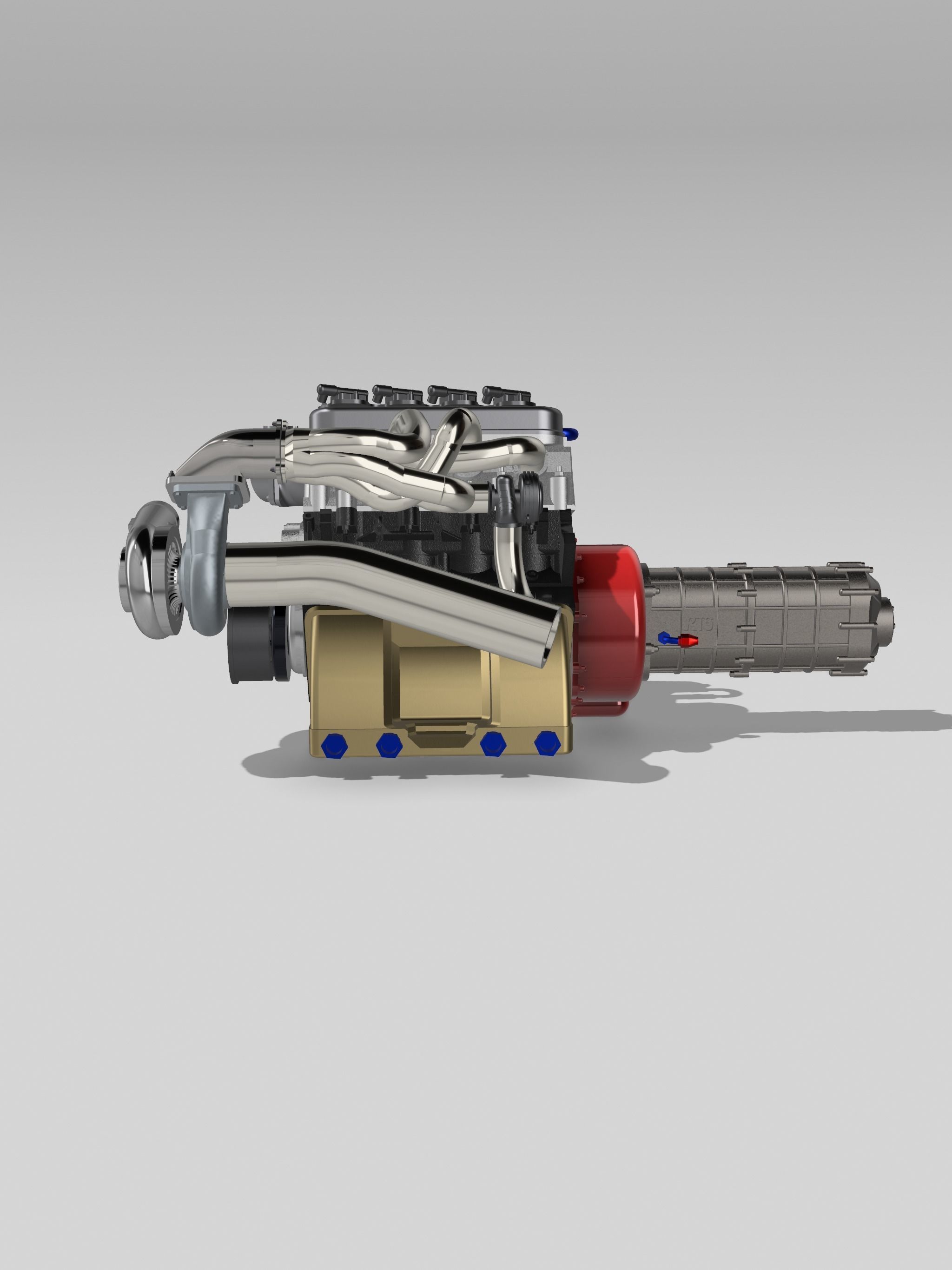

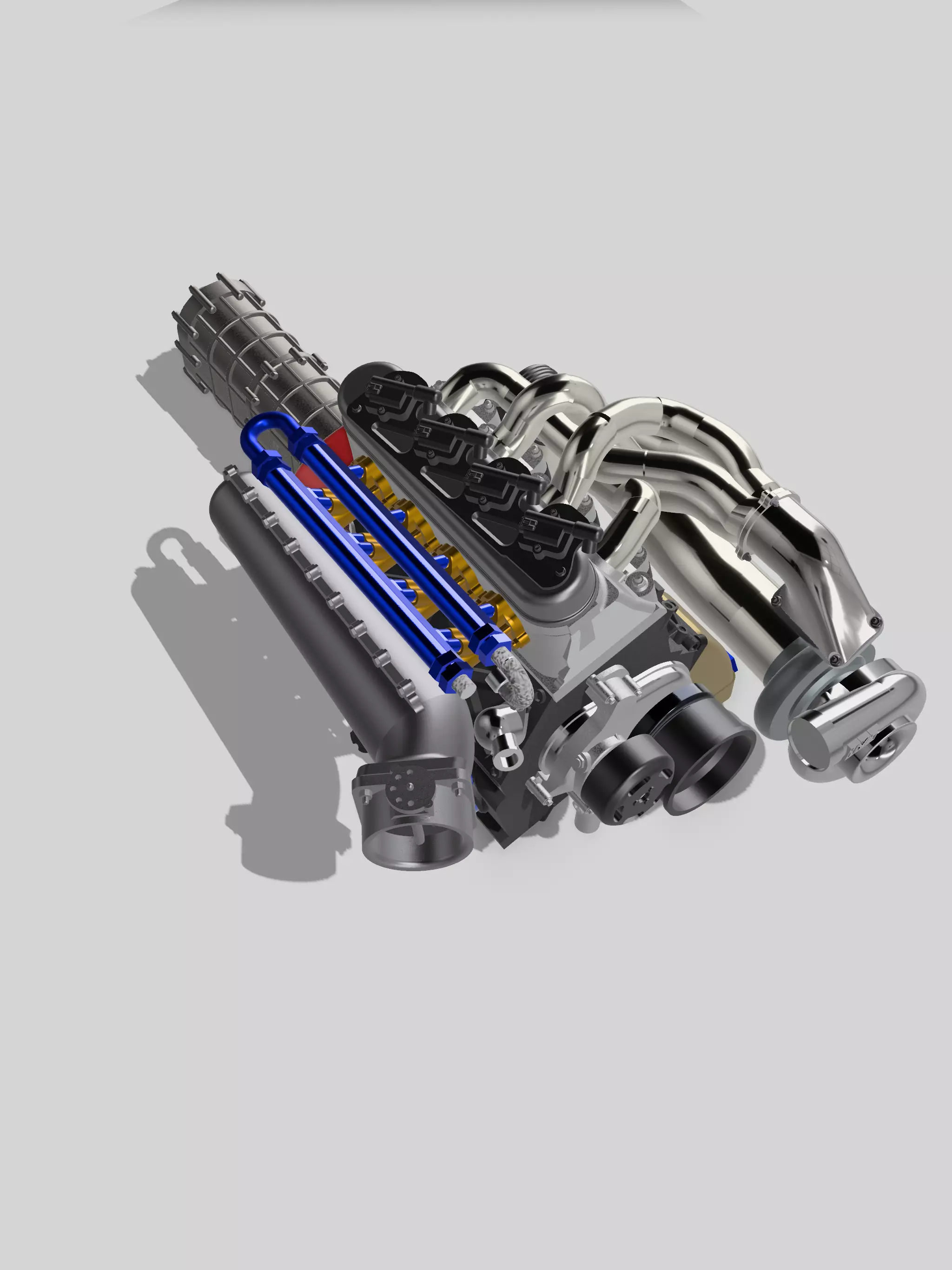

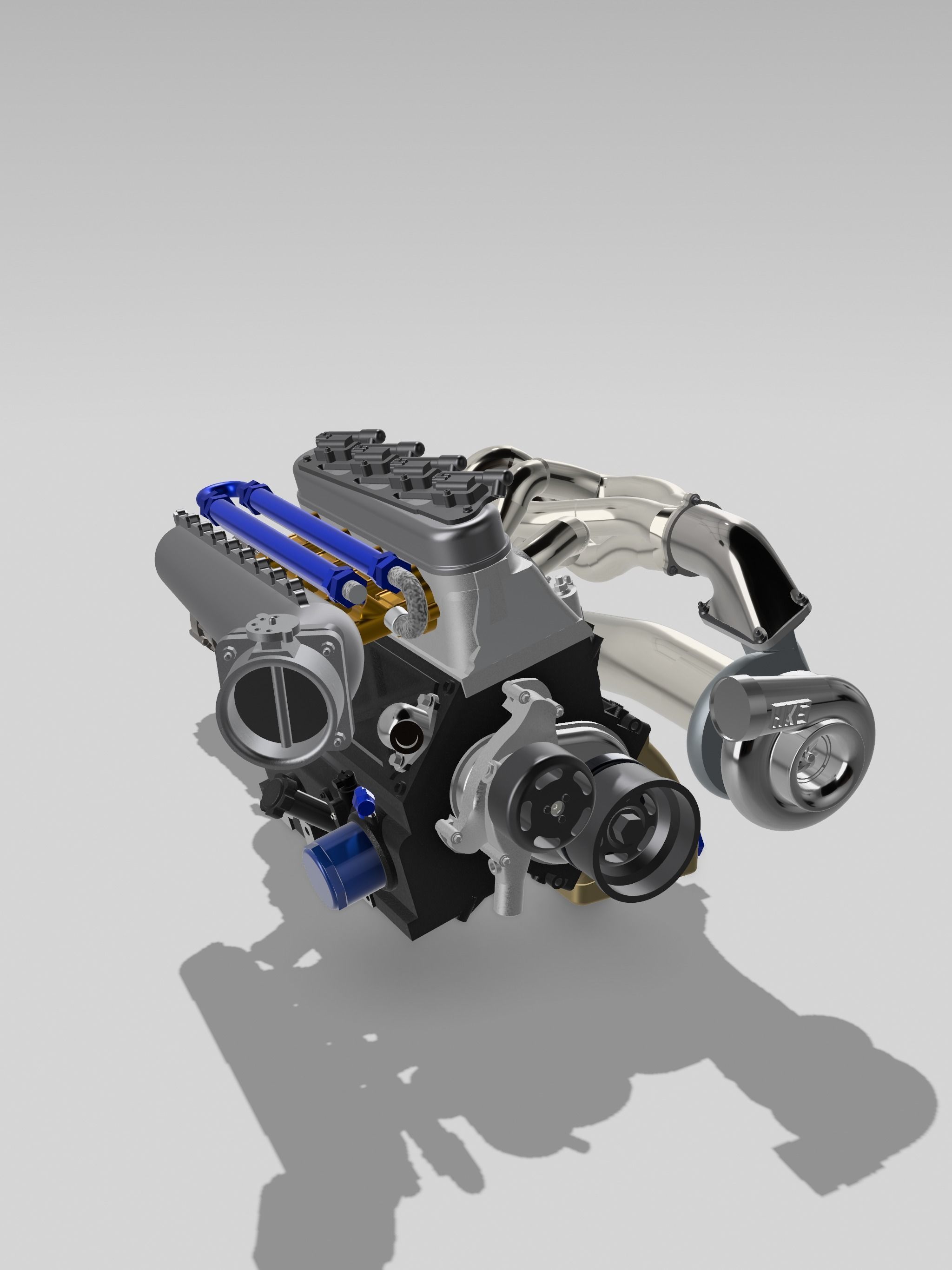

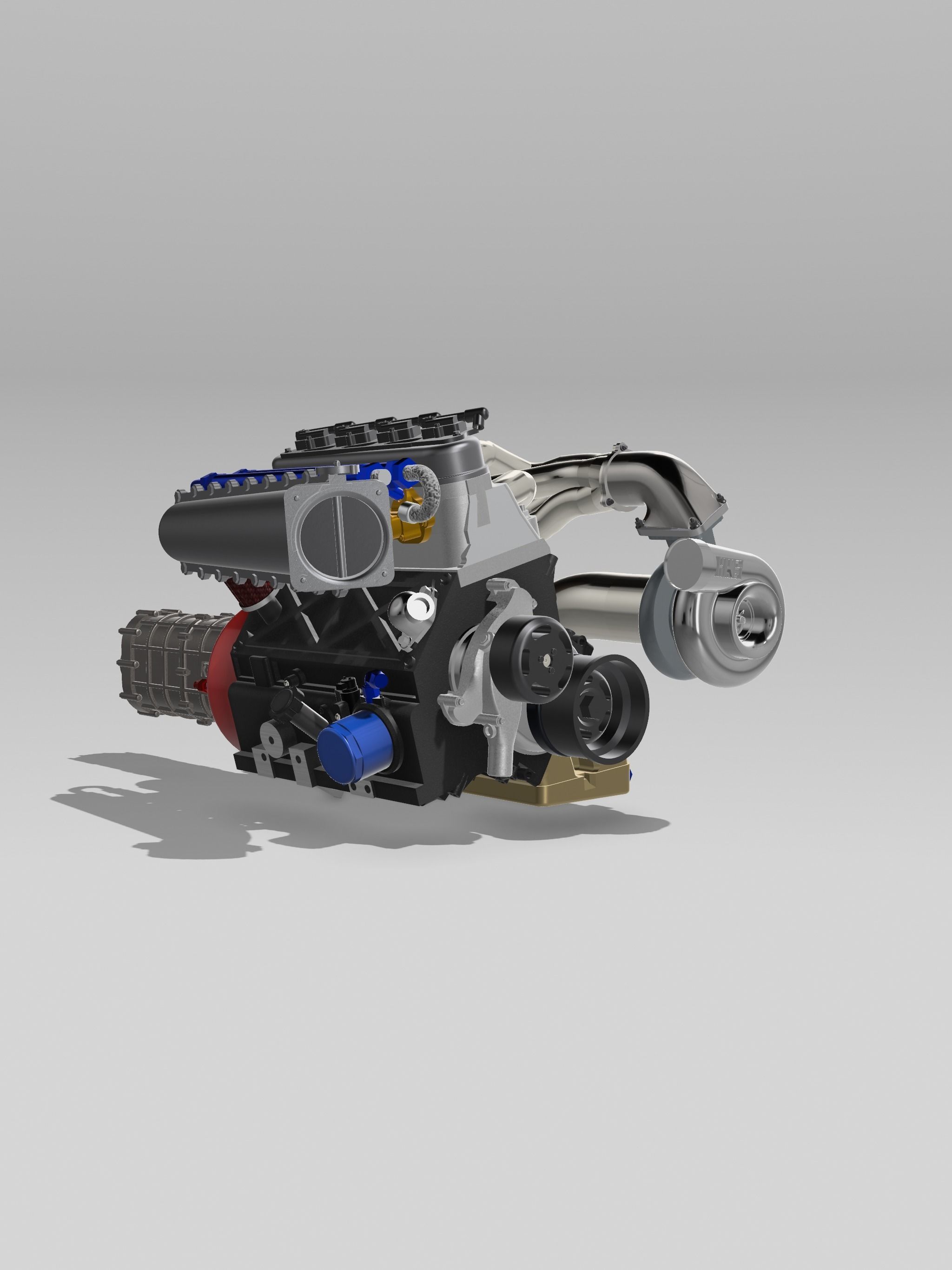

Designed from scratch is a 4 cylinder engine based on the LSX Block & Head, in a single turbo format, high in detail, ideal for scale modeling (currently in 1/24 and 1/25 scale).

Engine features

  • LSX block cantilevers with block offs and accessories
  • Single LSX head
  • Innovations West balancer

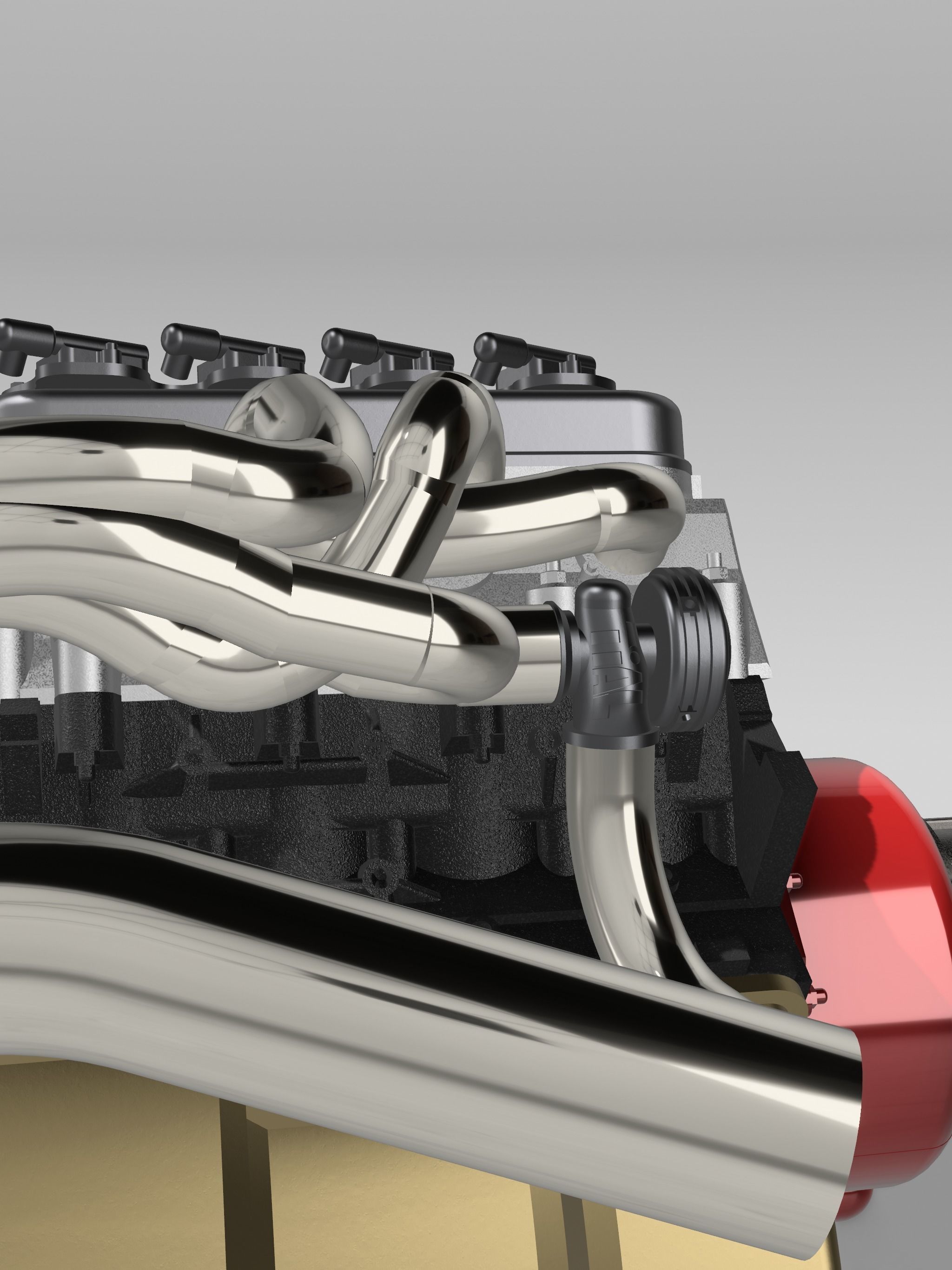

  • big 4-into-1 header
  • Ignition coils
  • Billet style sump
  • billet intake manifold
  • pulleys and water pump

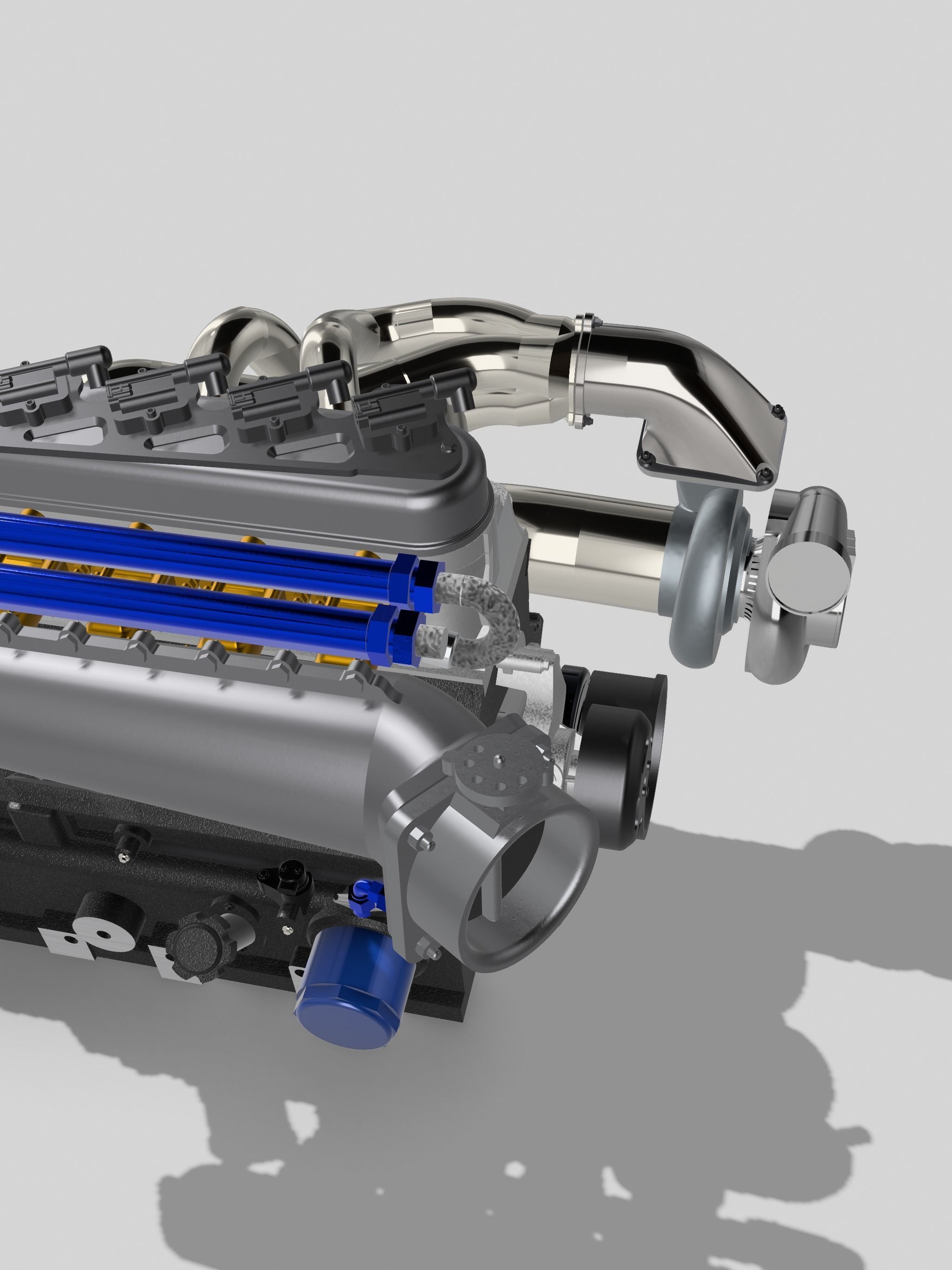

  • HKS style turbo
  • Tial BOV plumbed into turbo pipe
  • SFI bellhousing

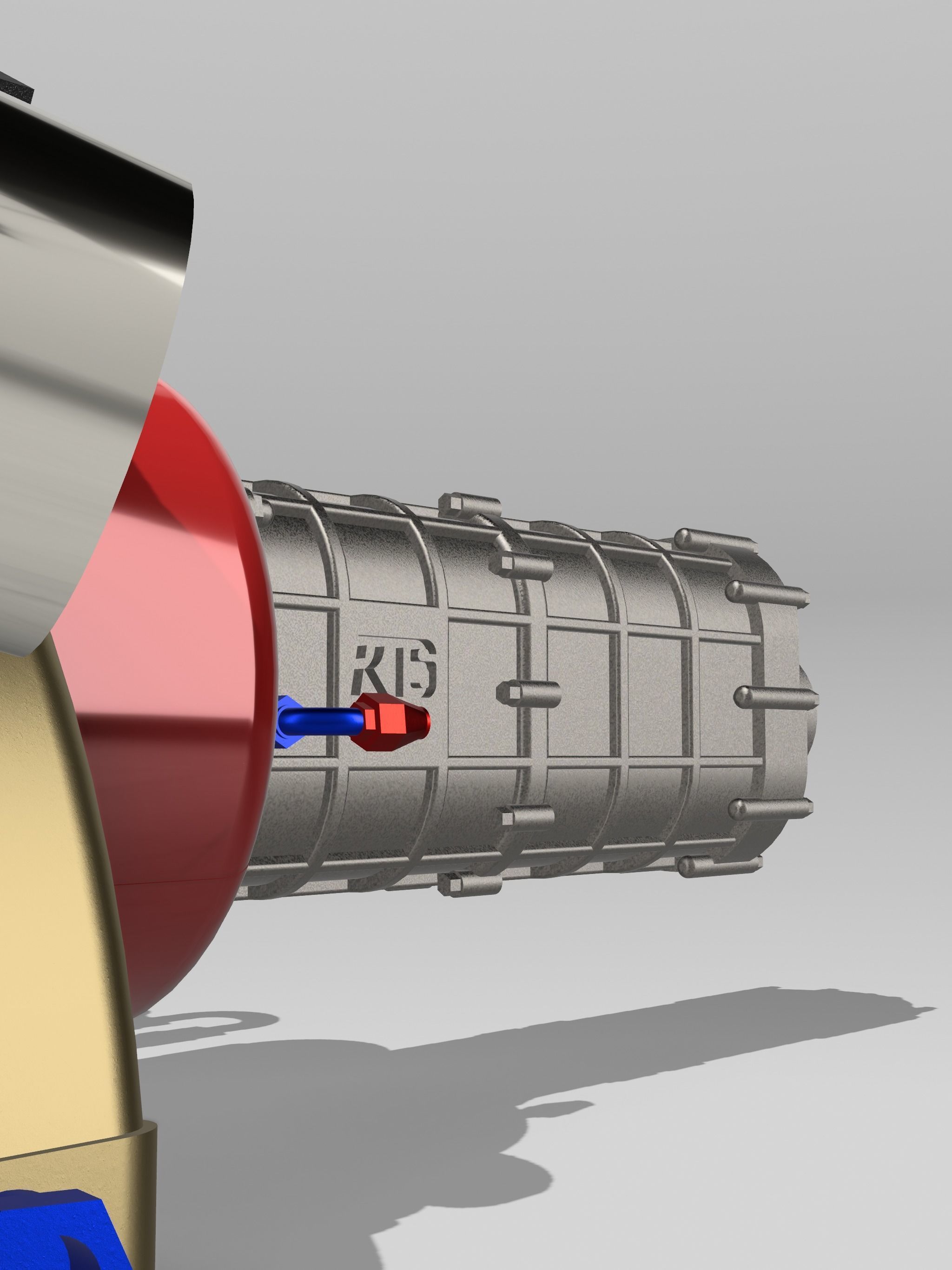

  • RTS sequential gearbox

Designed as a multi-piece for better detailing, details include holes for wires, hoses, and oil lines, and bolt/fastener details.

Be sure to tag @mattys_custom_scale on Instagram with your finished prints & projects!

Intended for personal use, not to be redistributed without consent
