Description

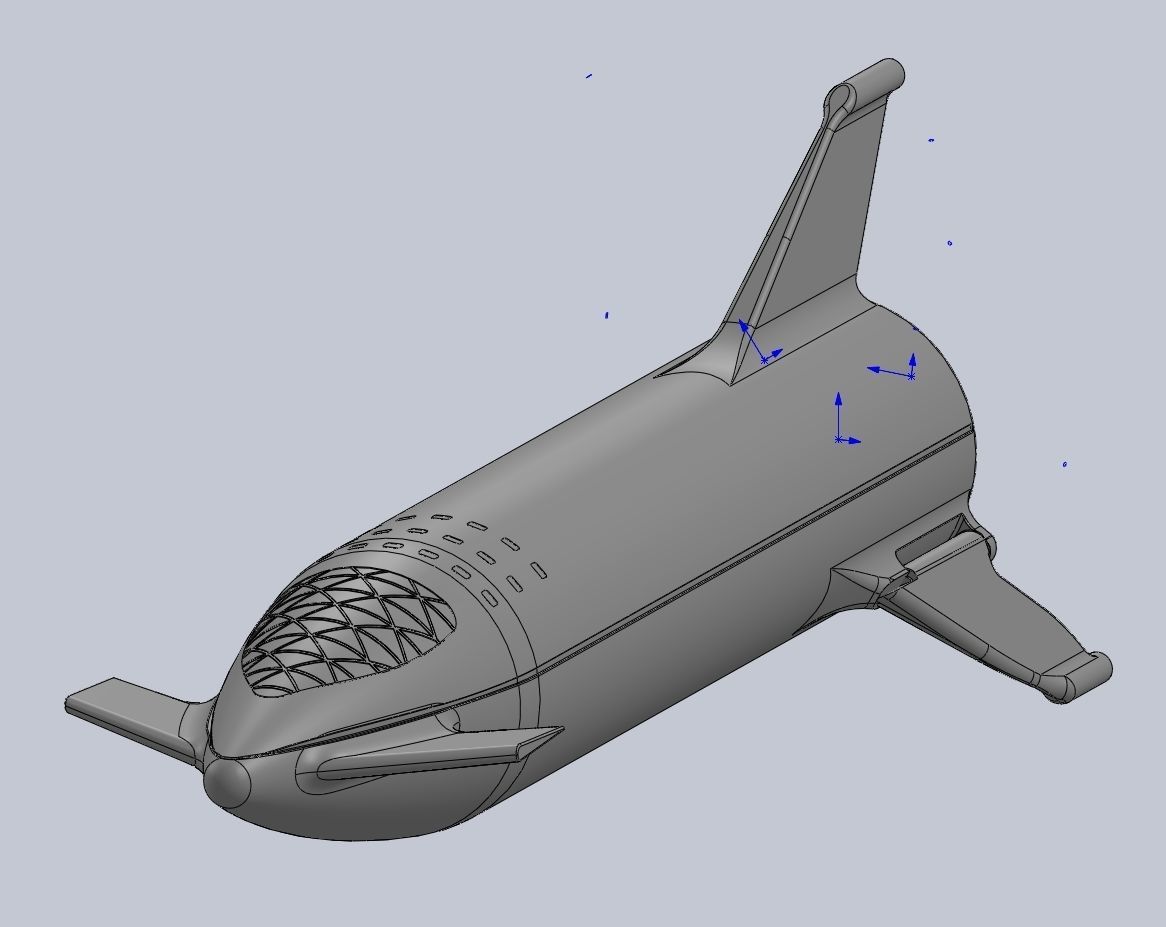

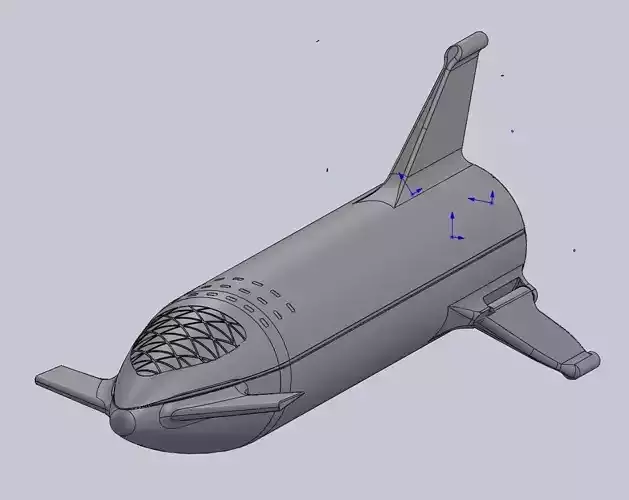

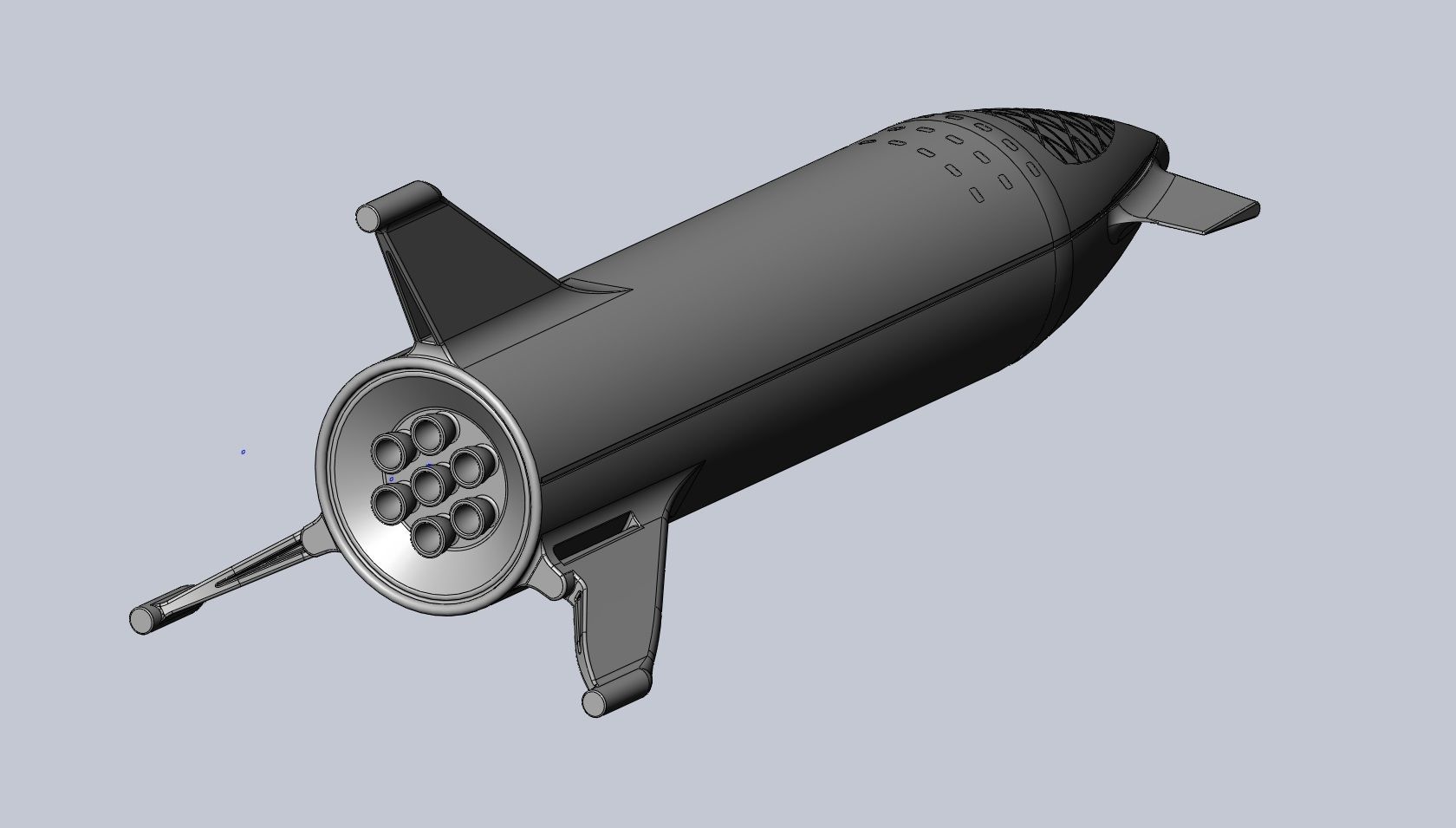

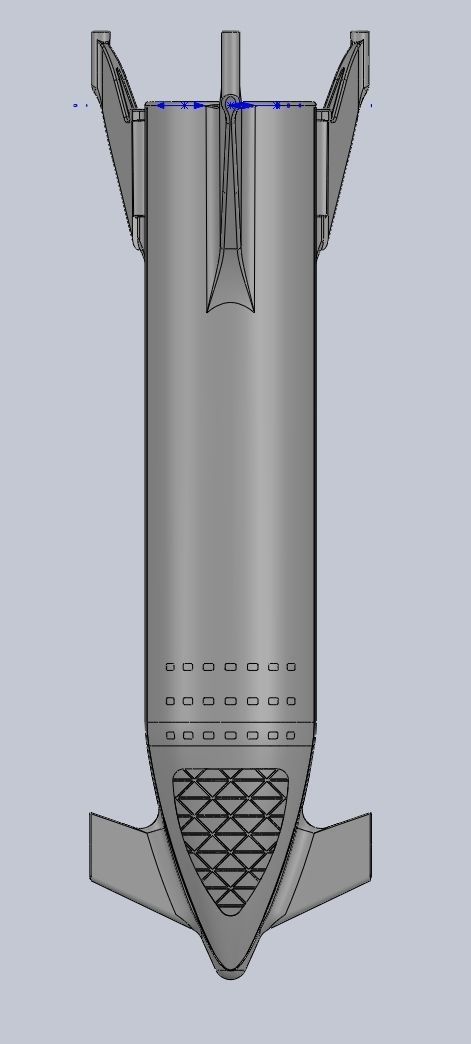

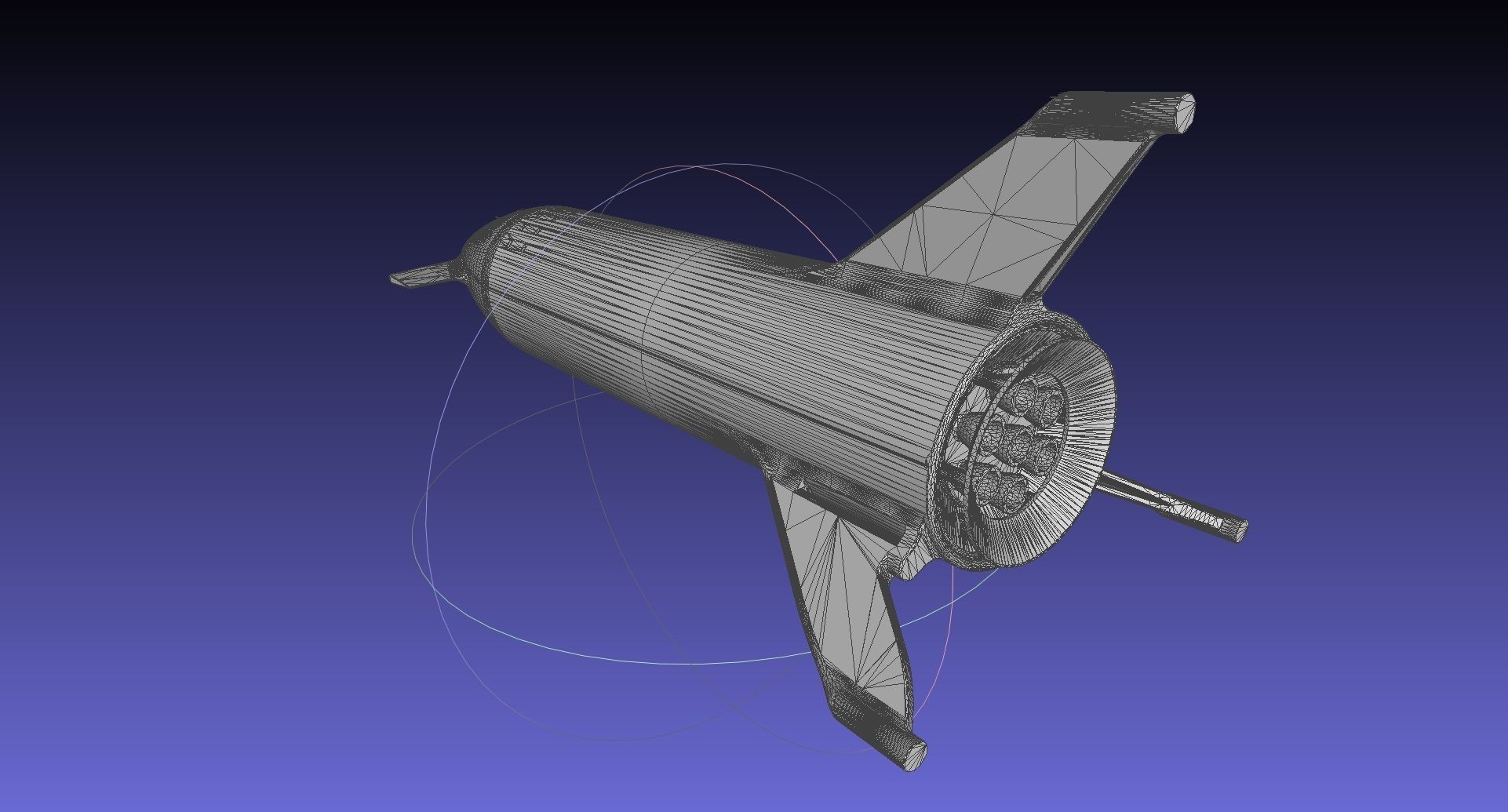

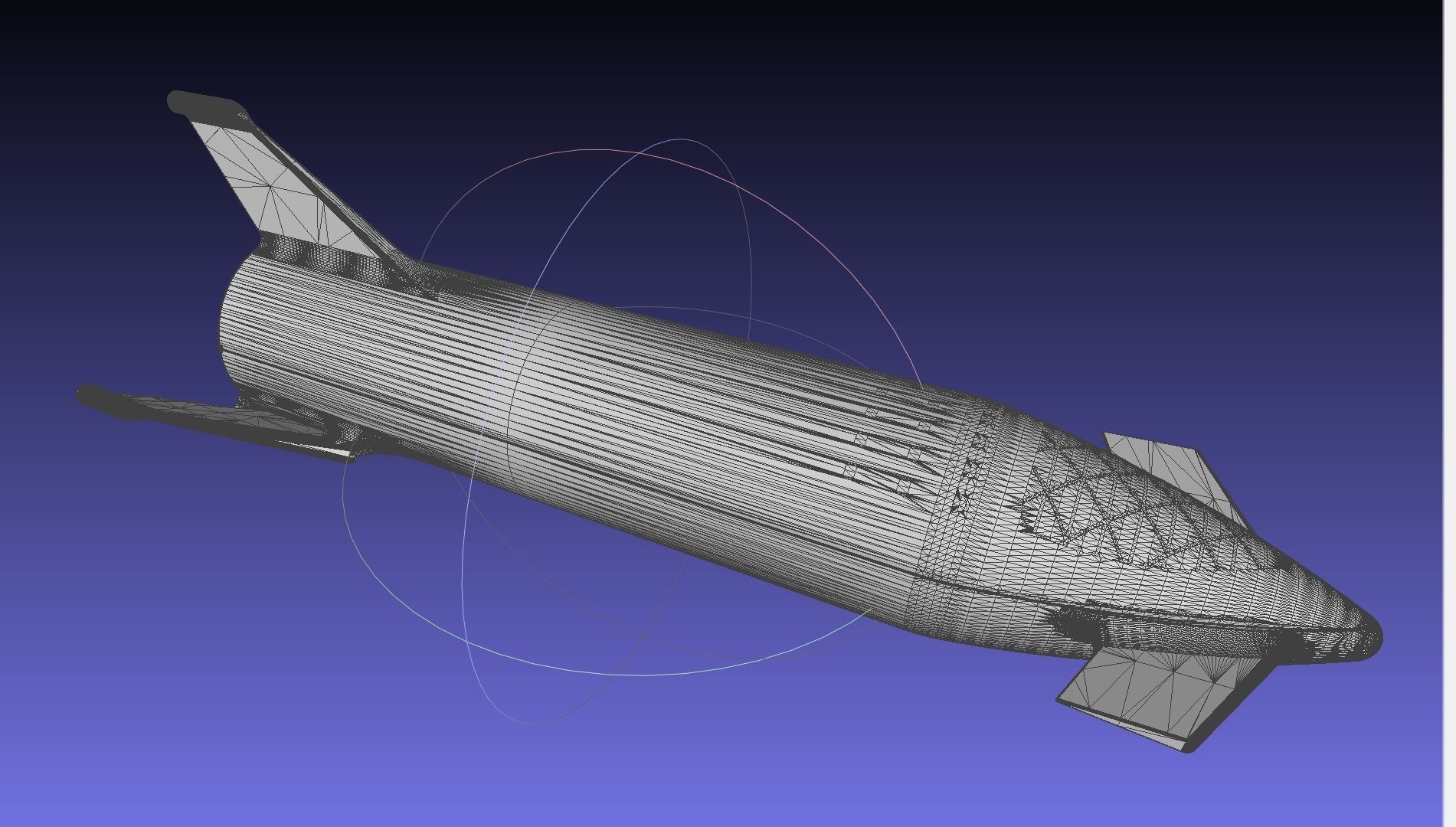

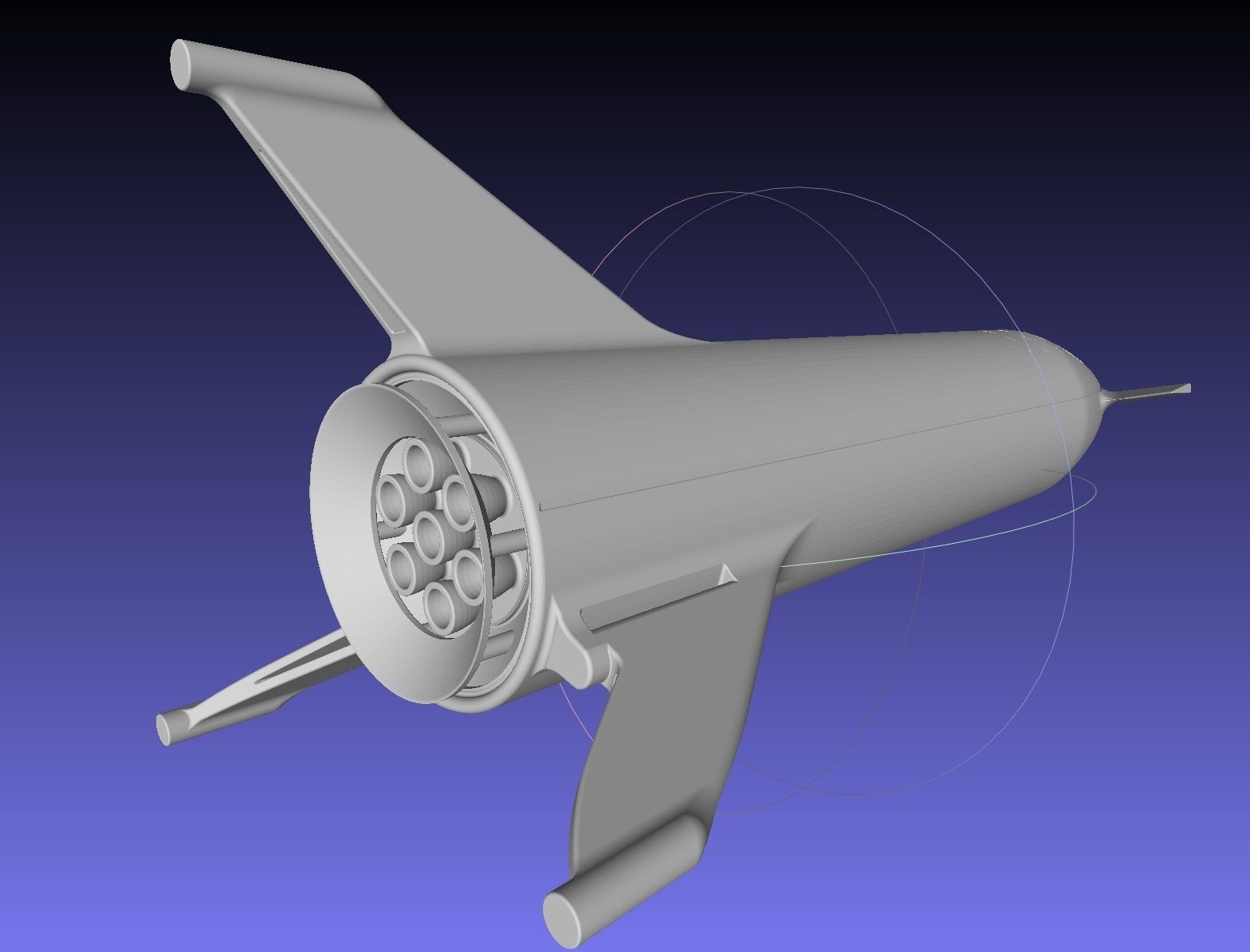

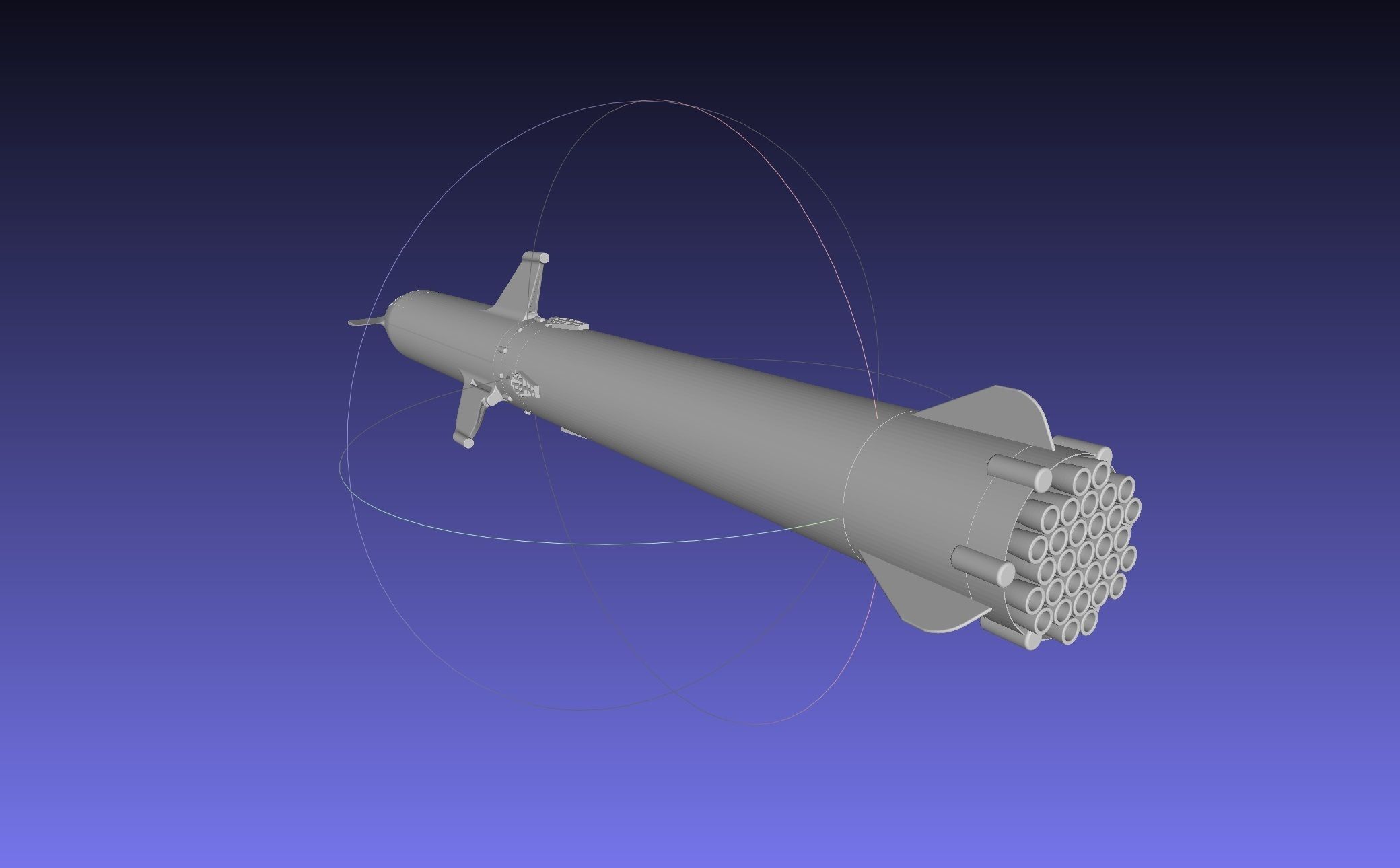

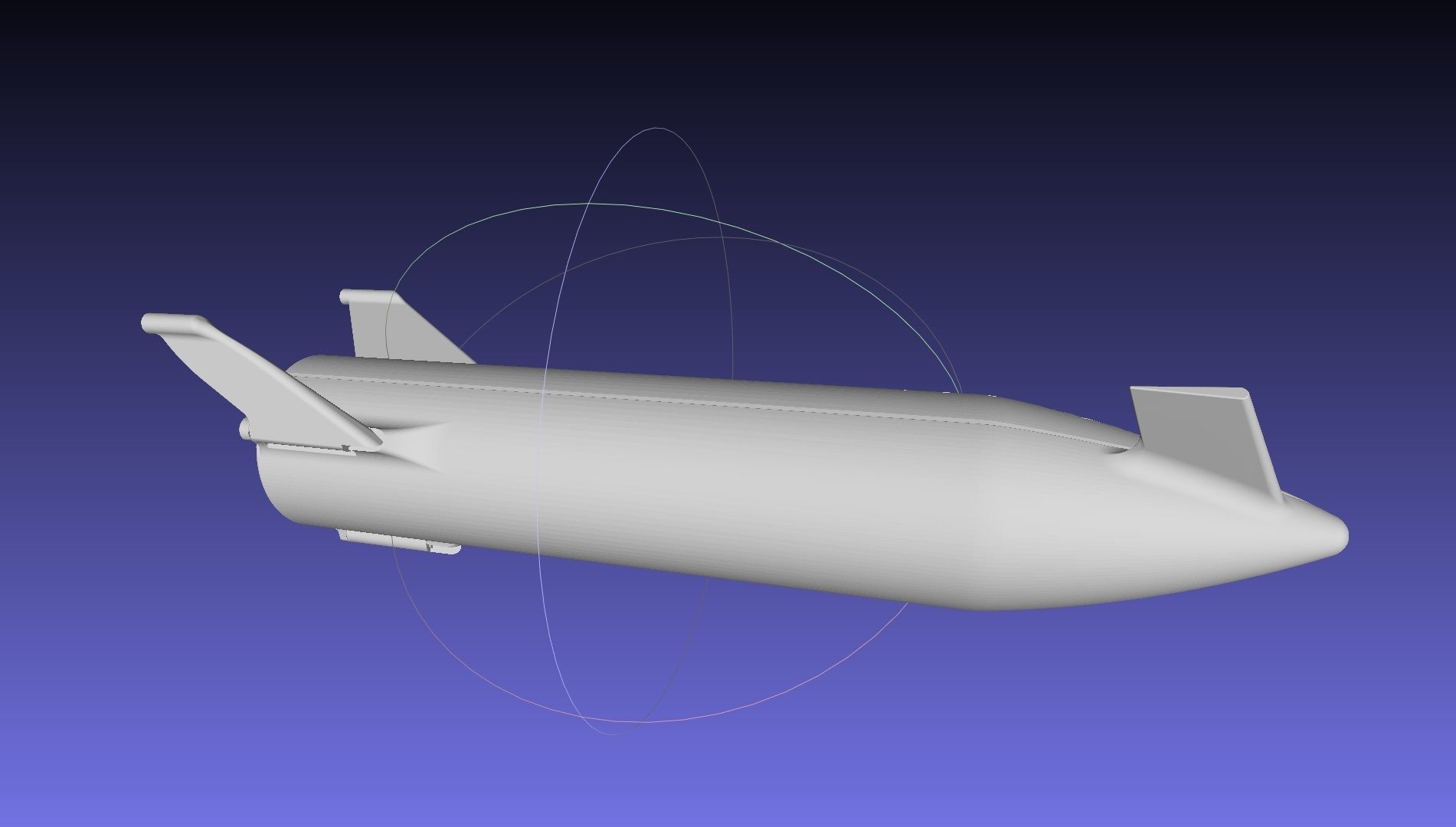

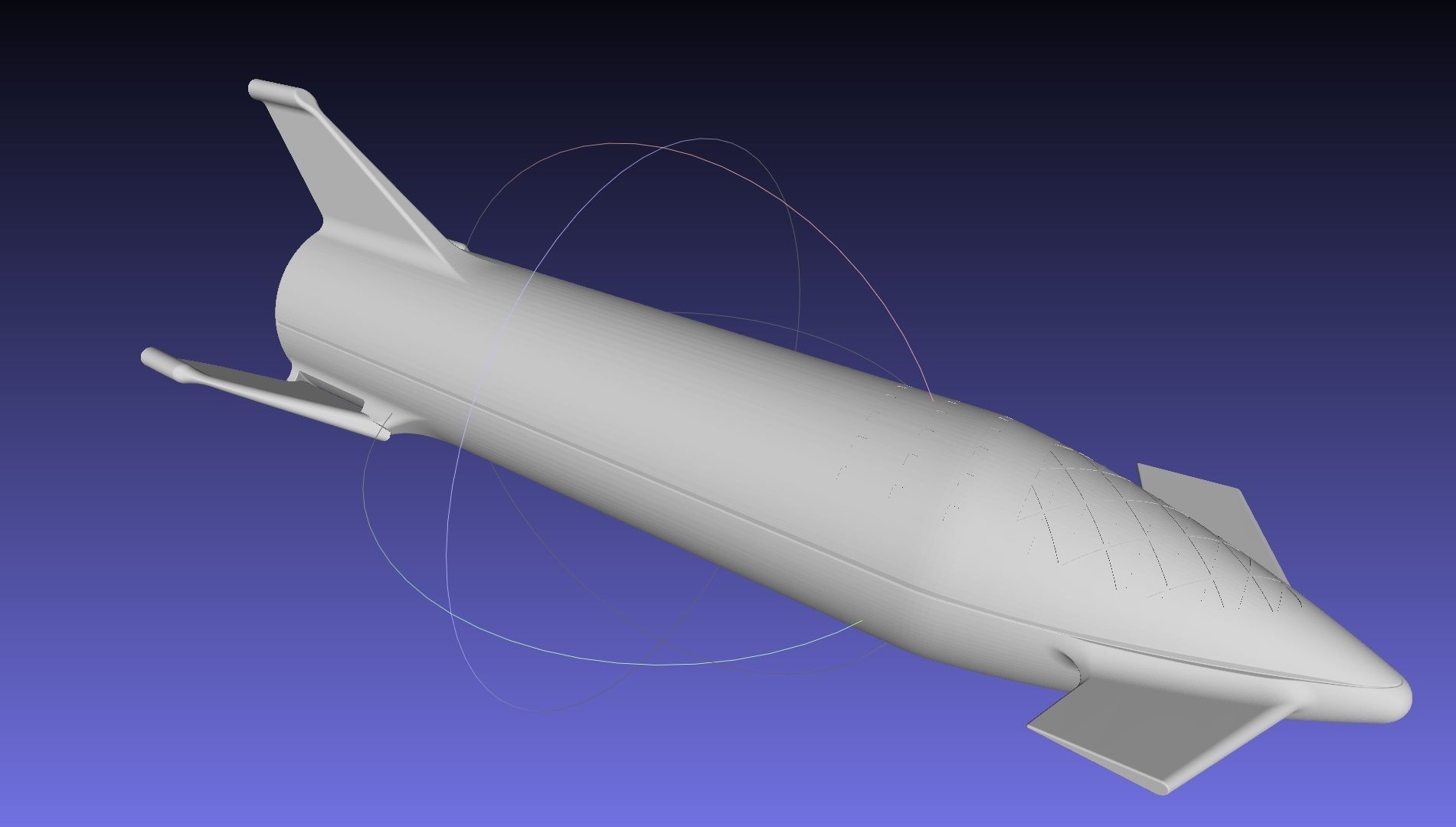

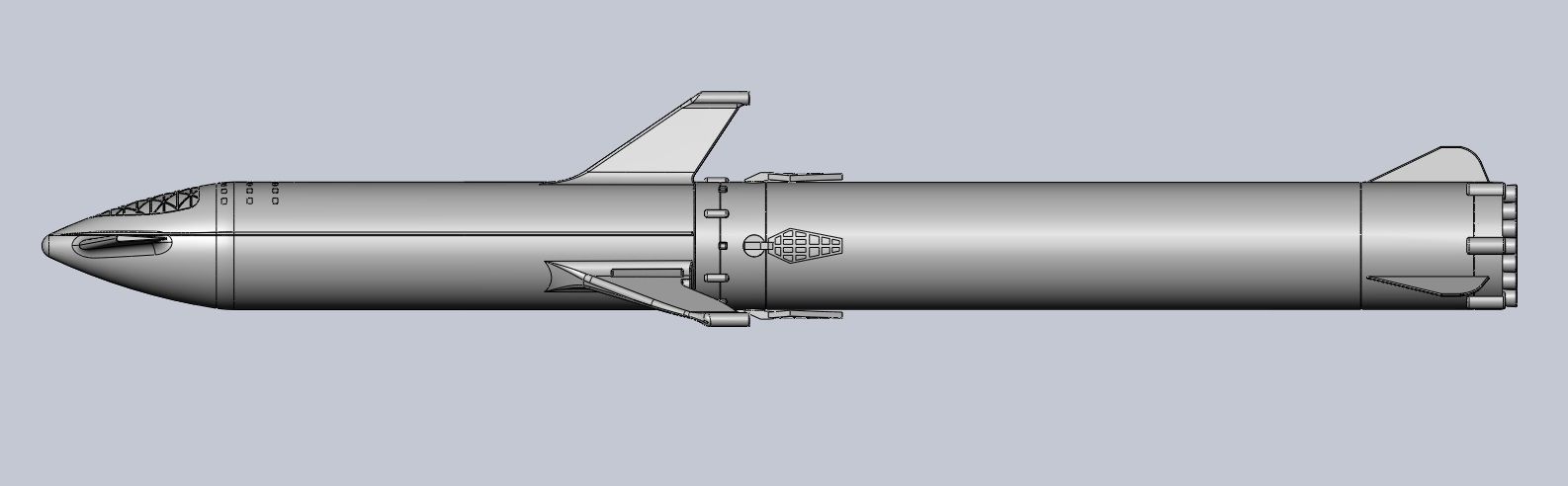

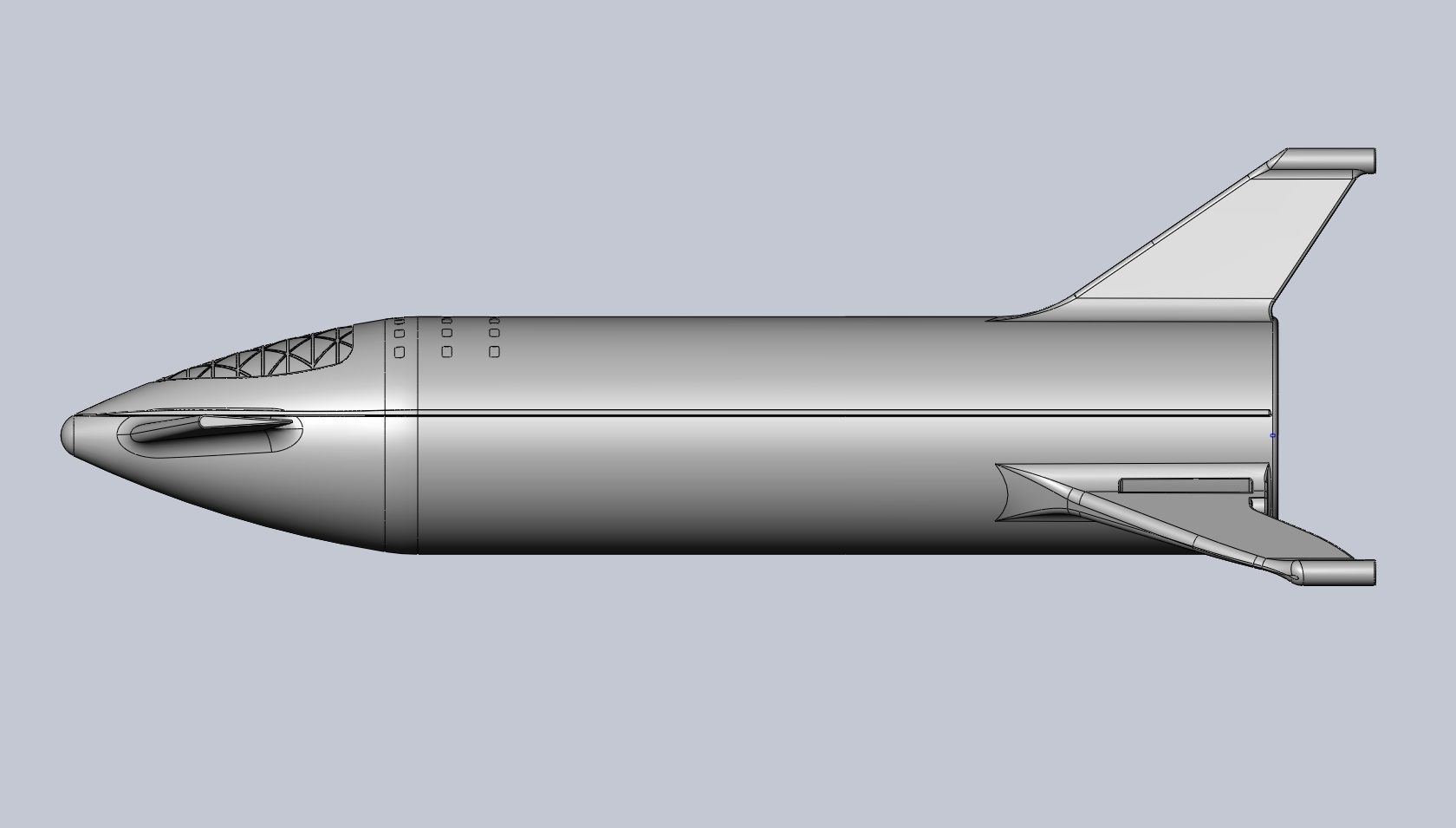

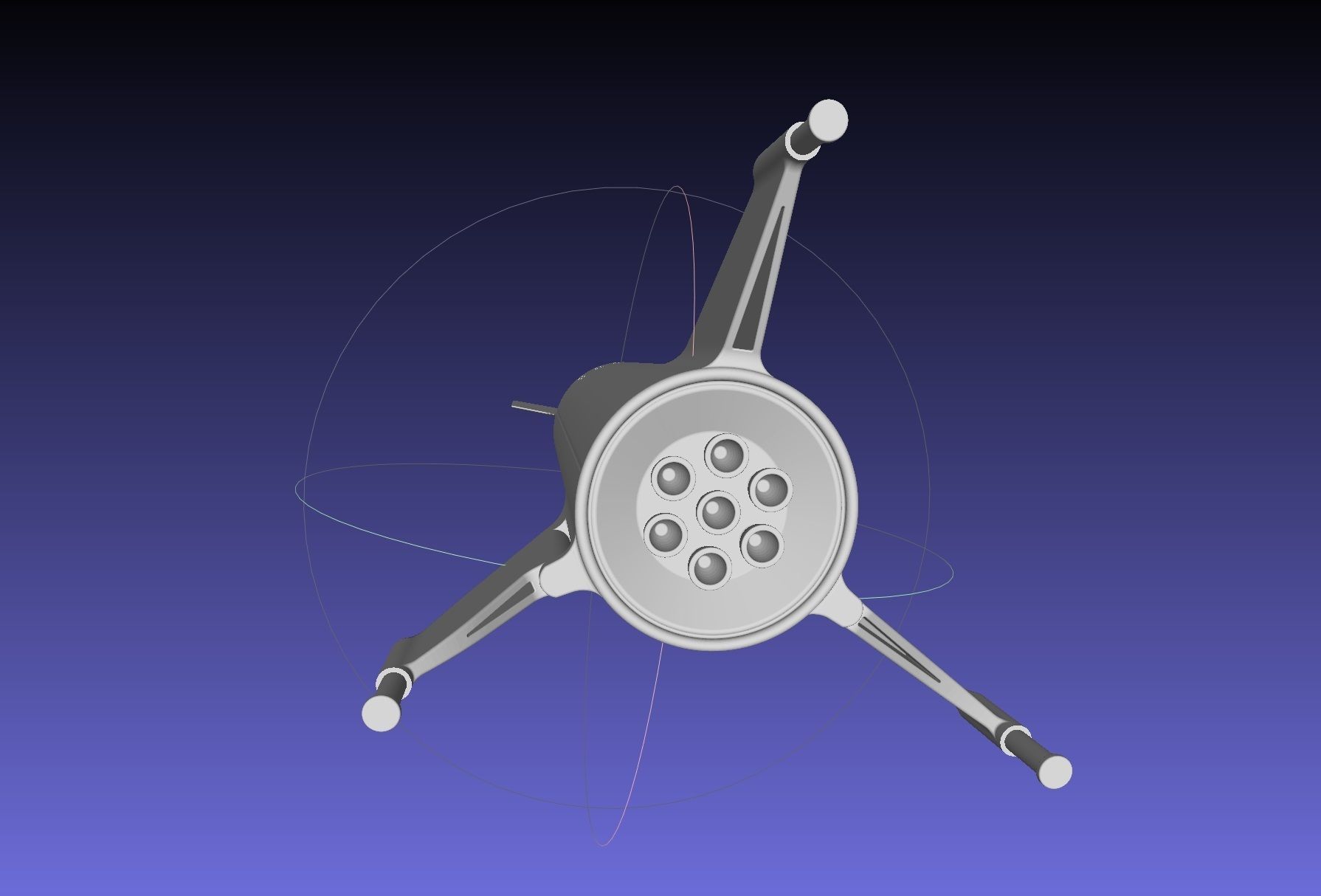

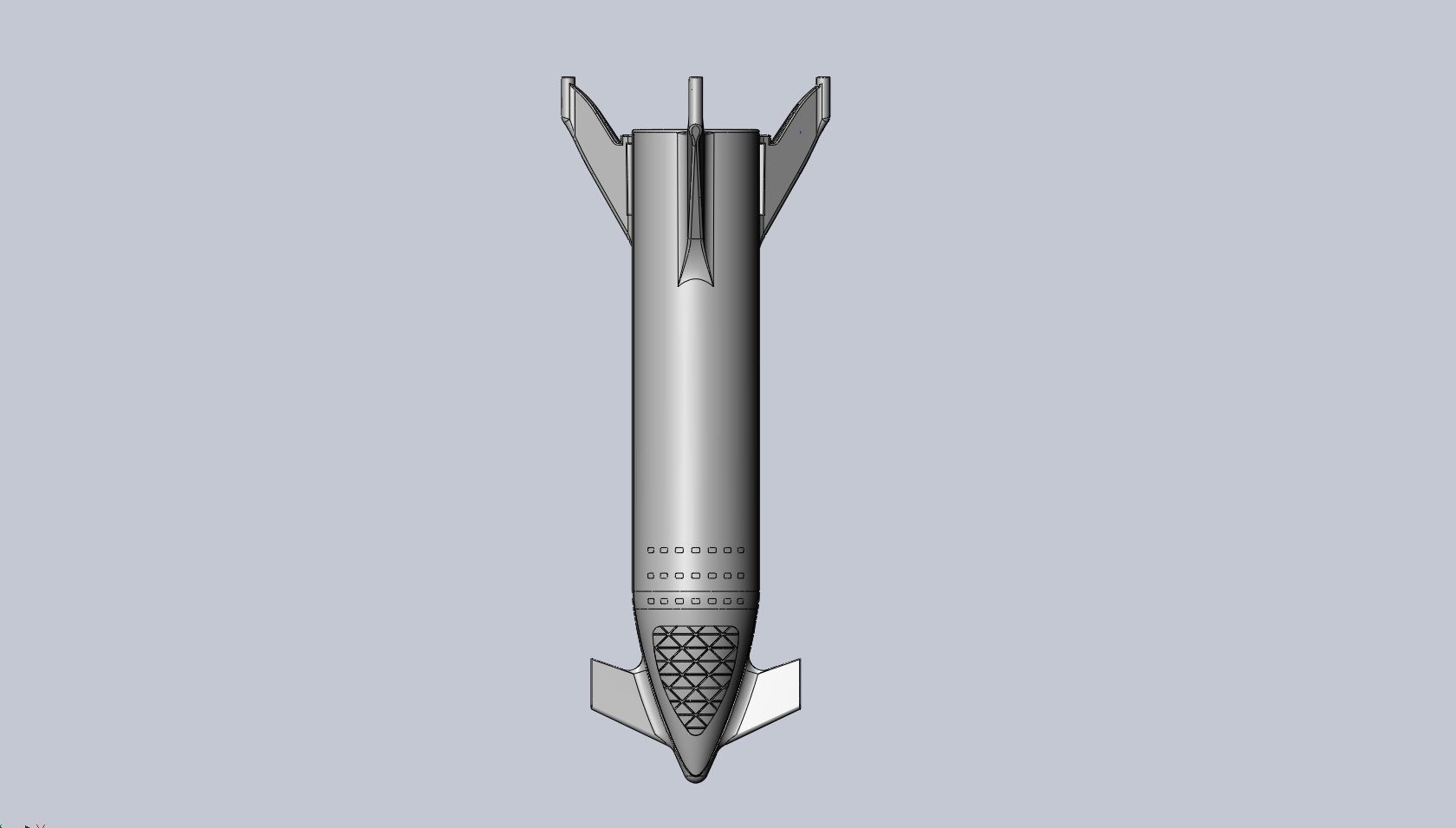

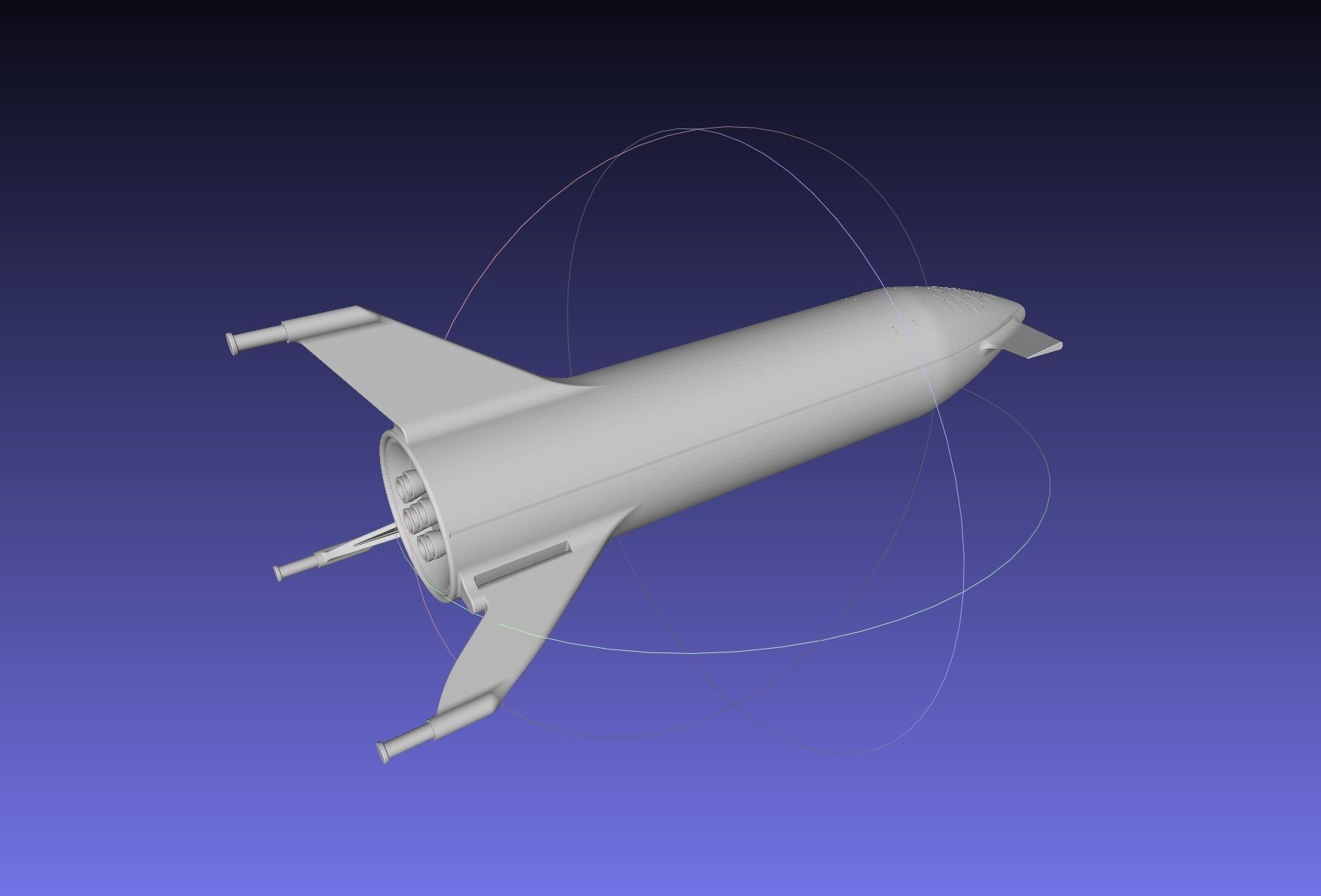

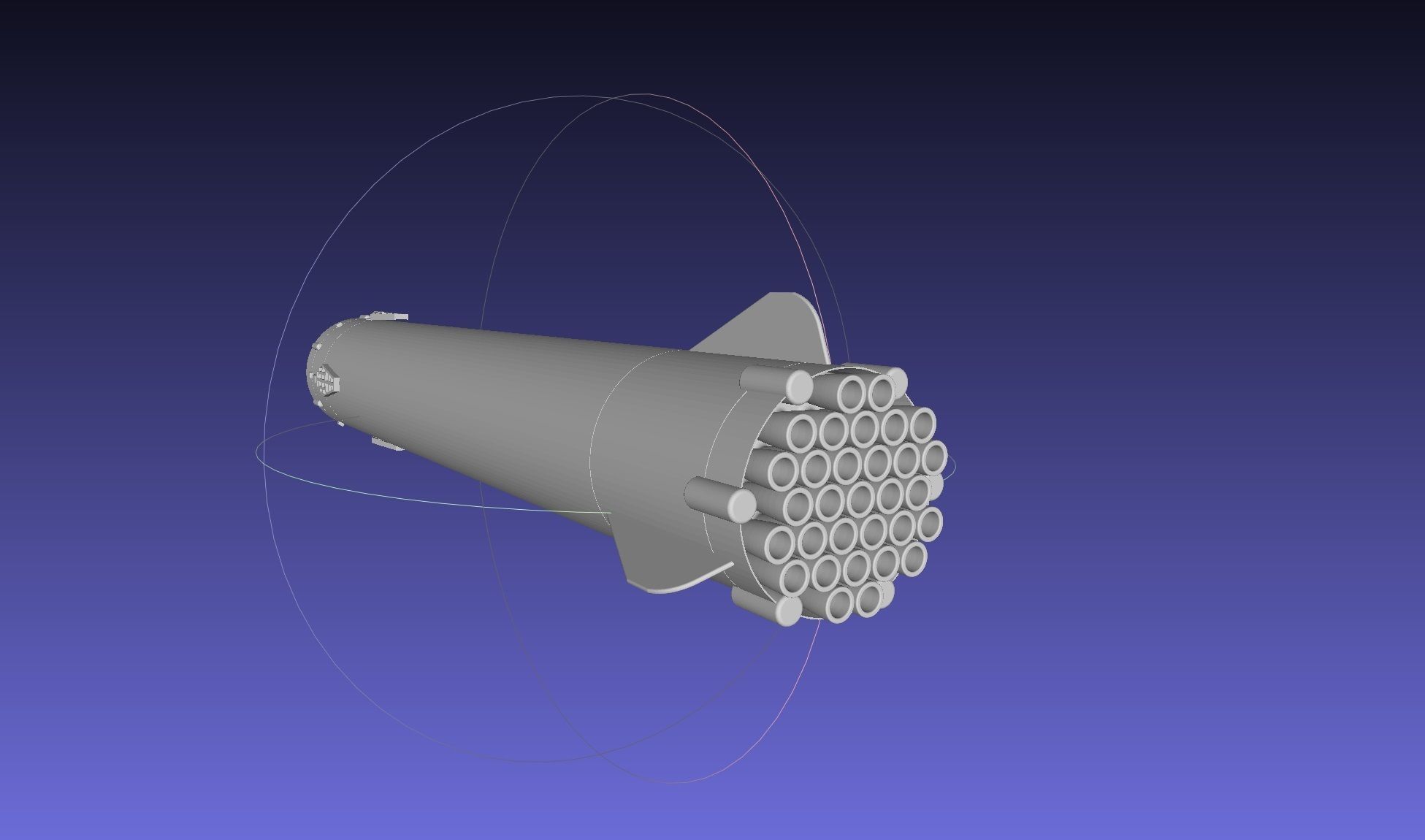

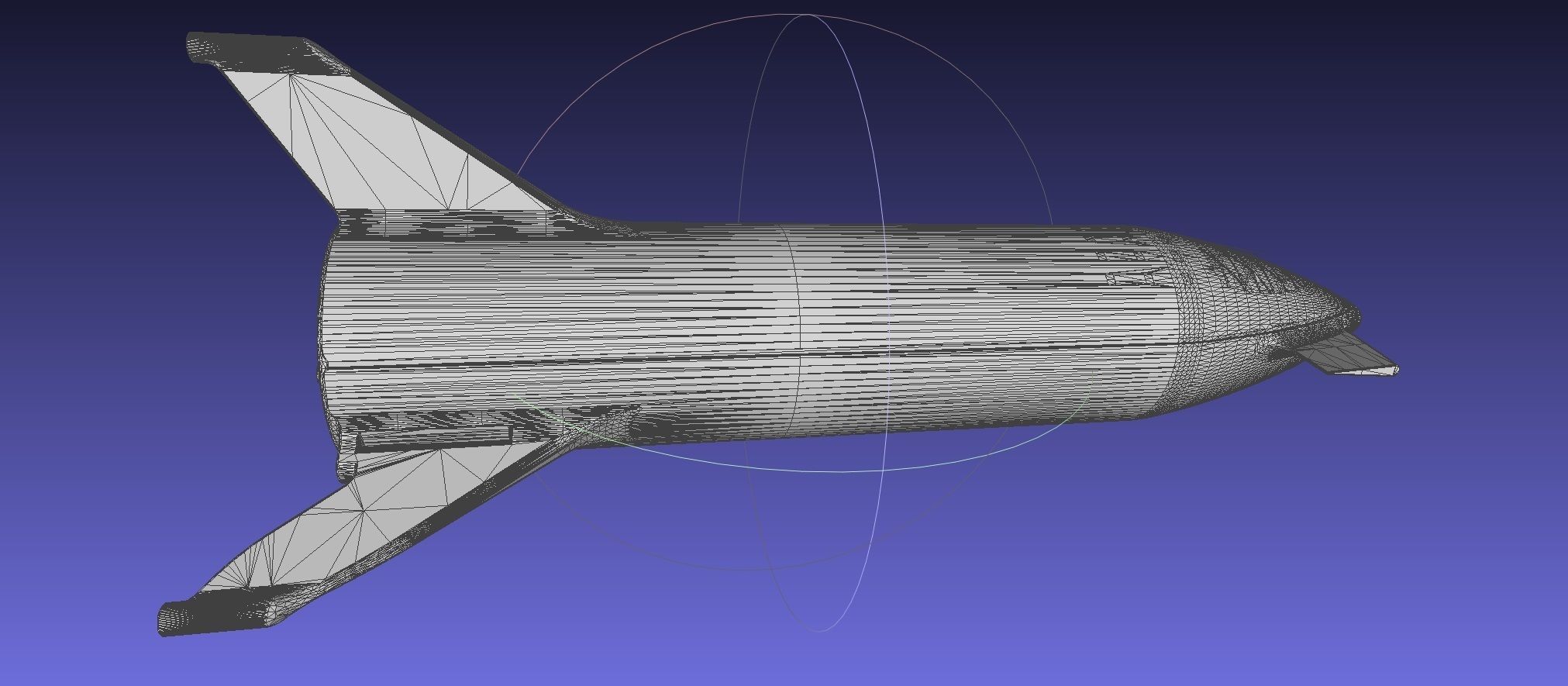

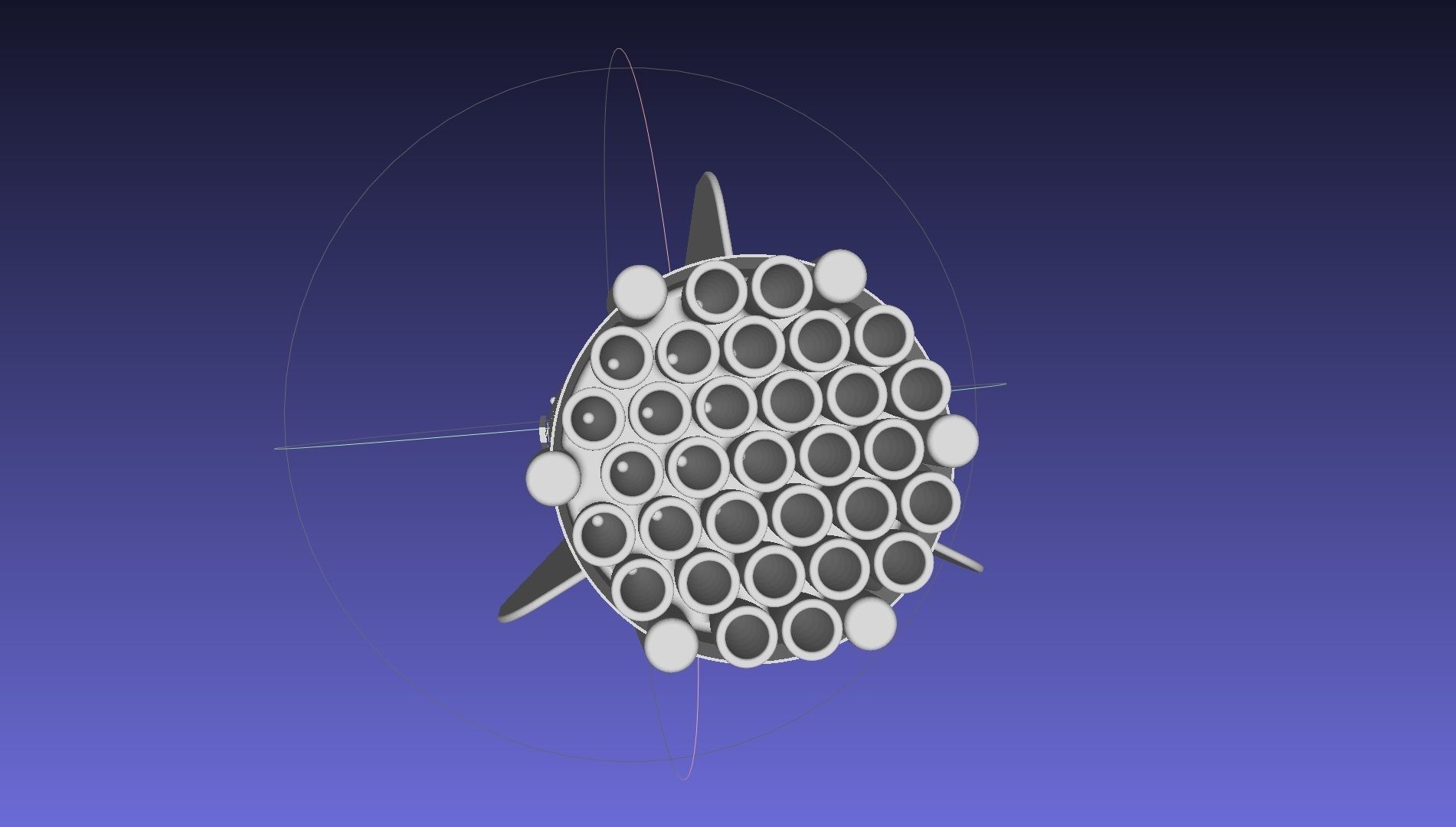

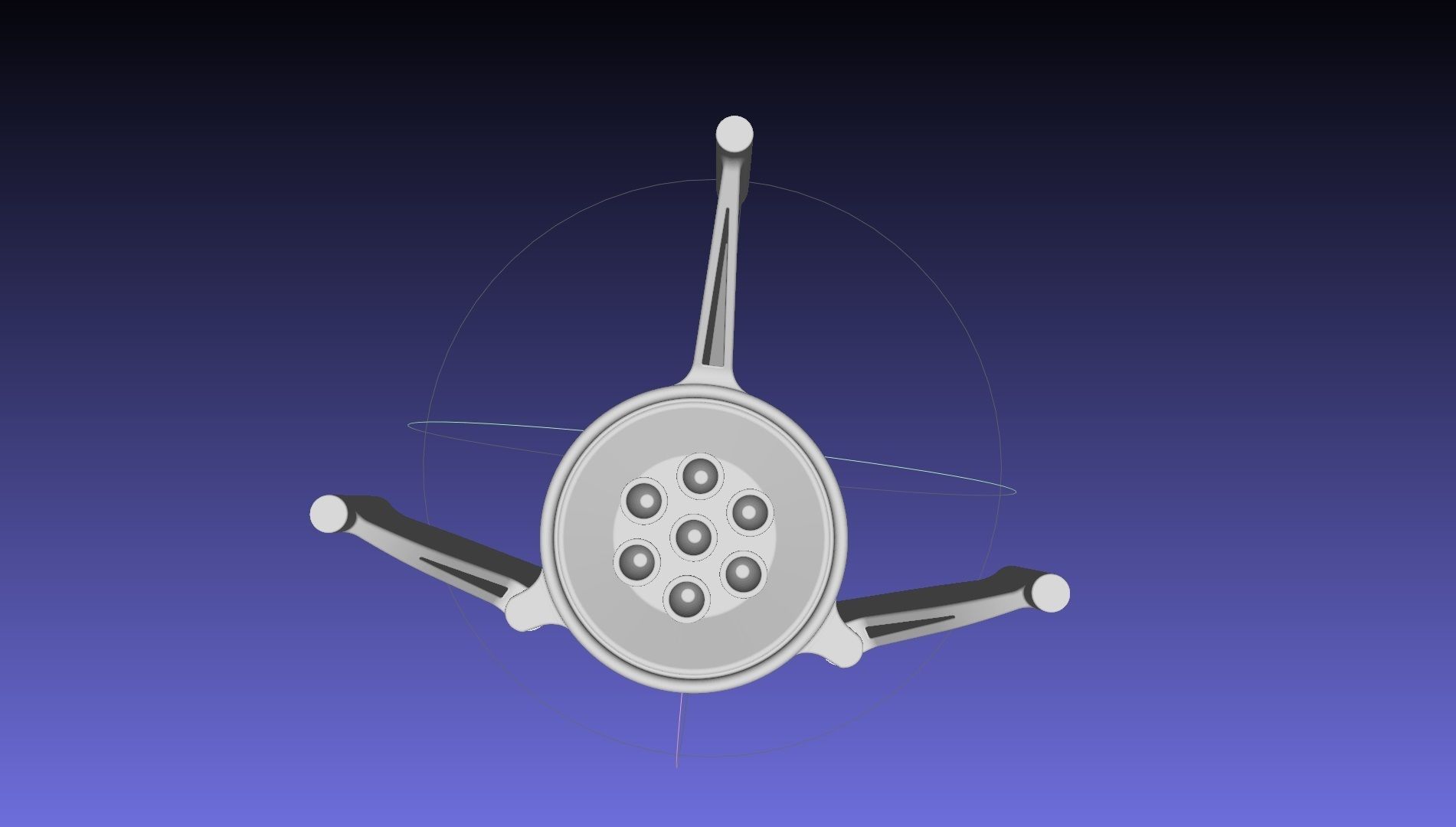

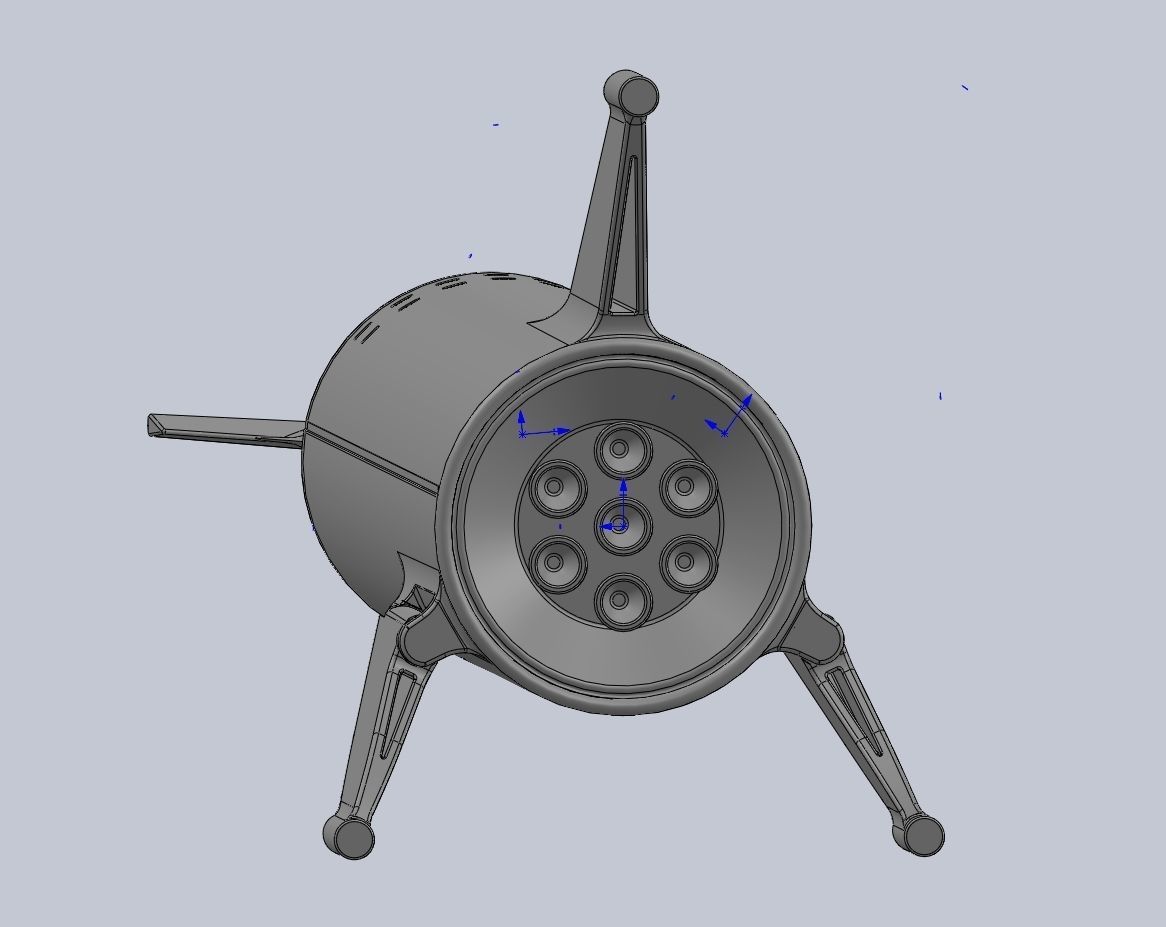

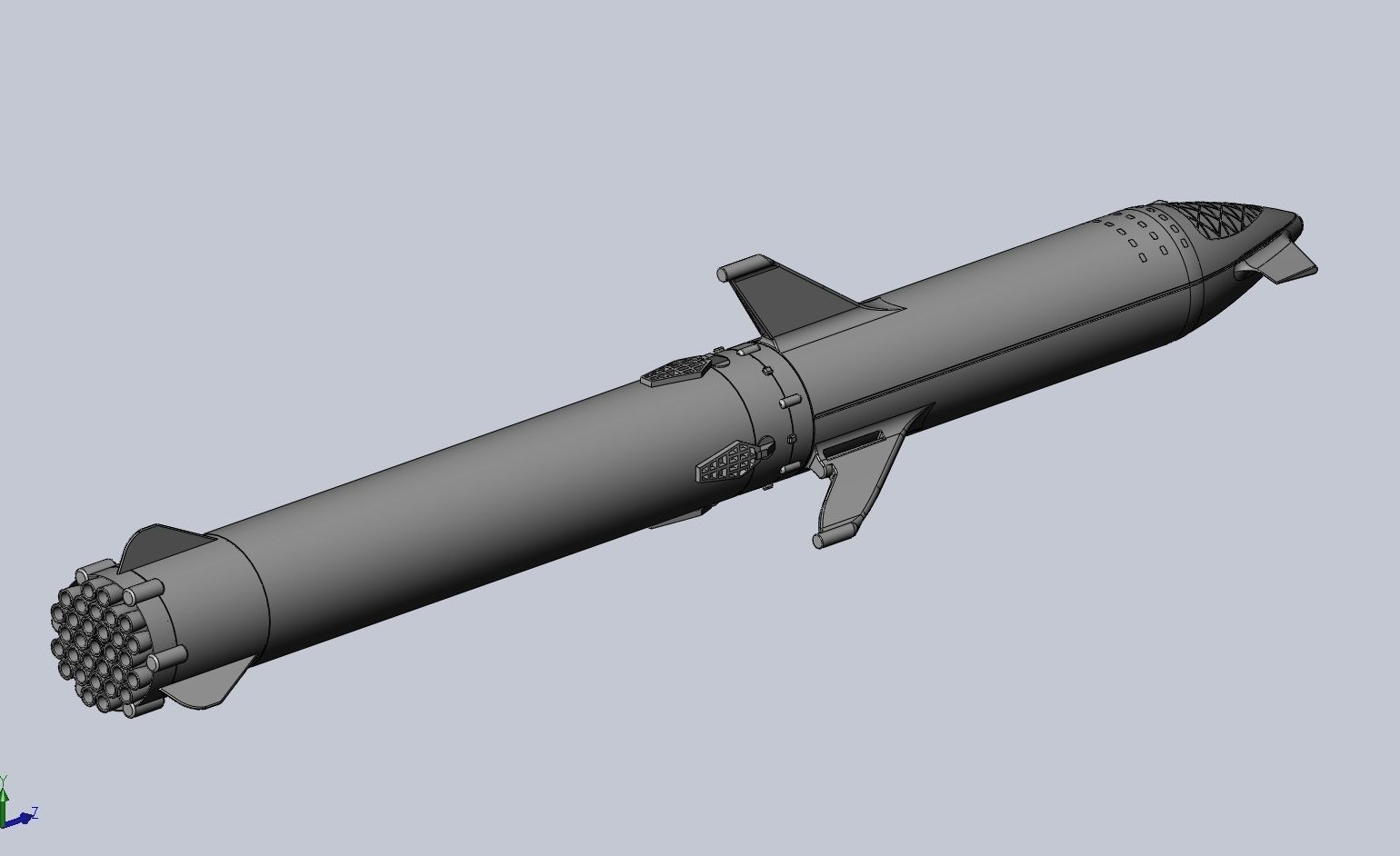

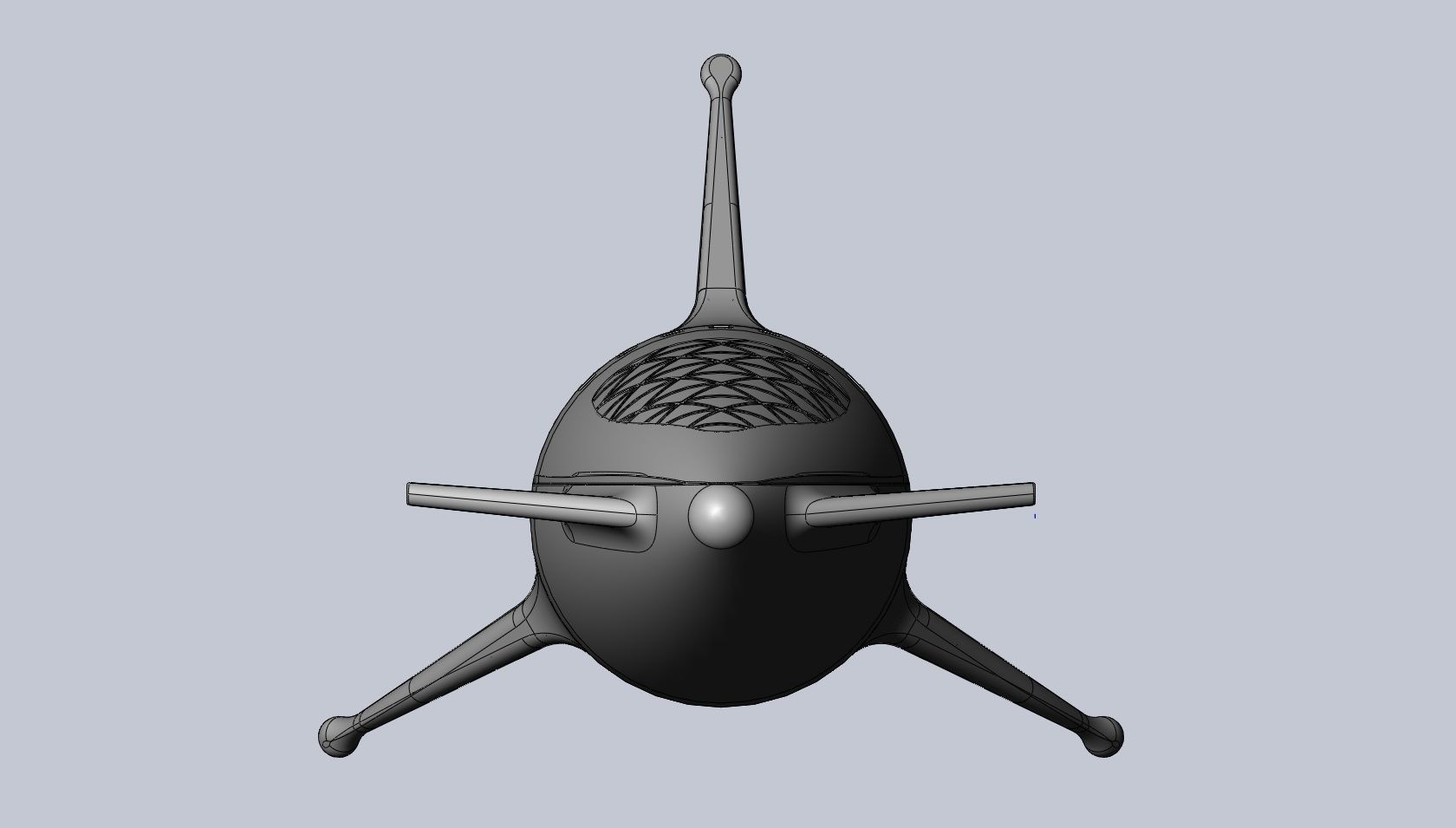

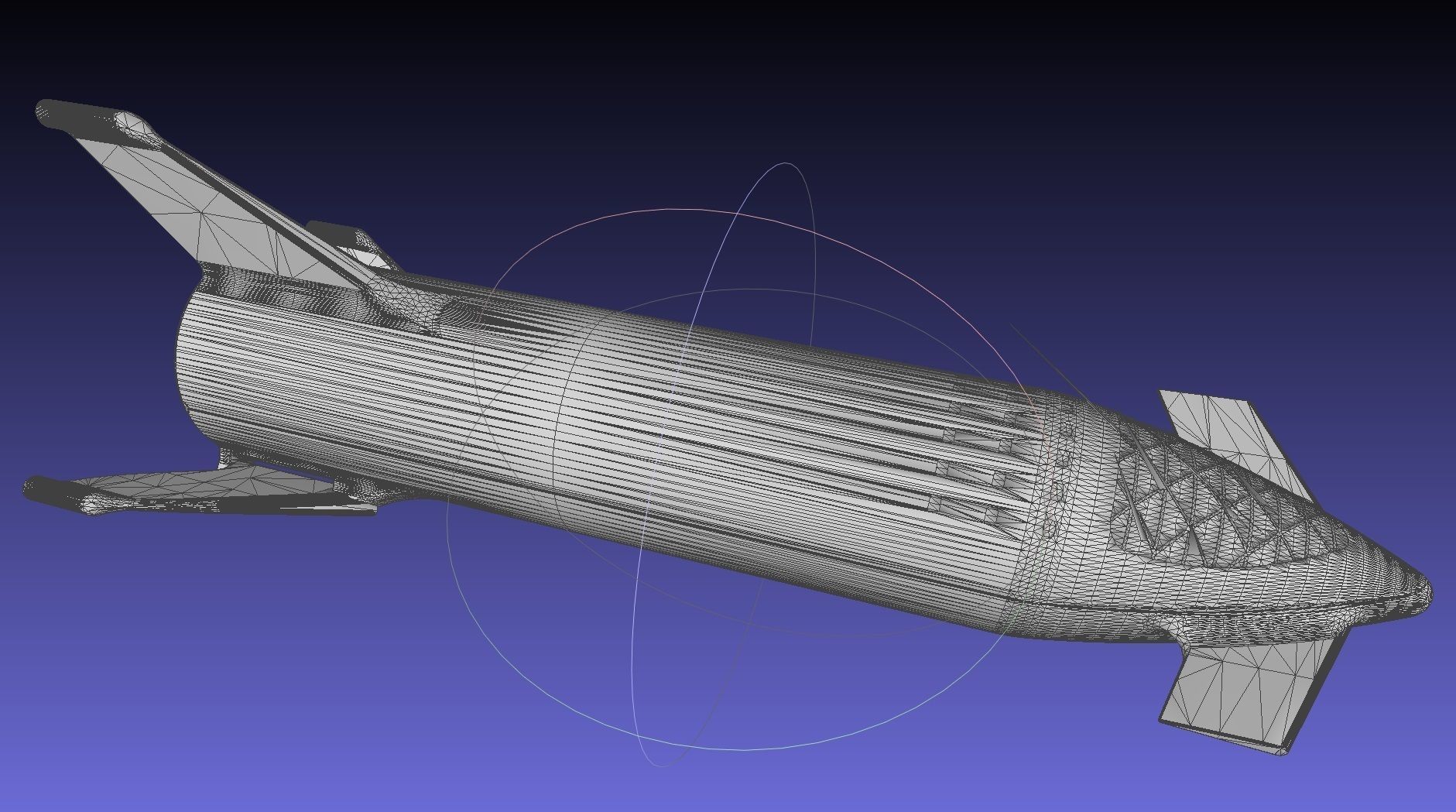

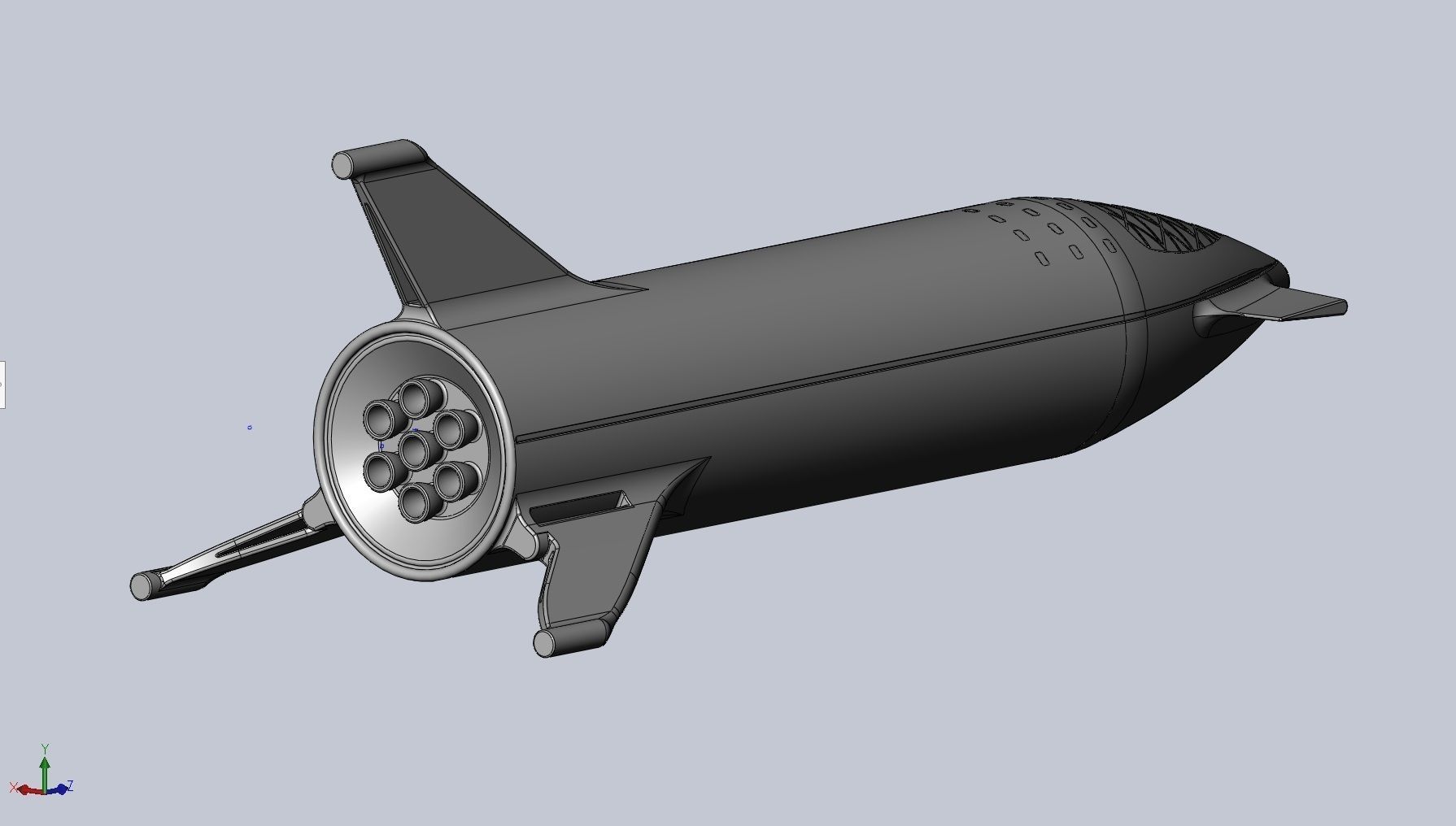

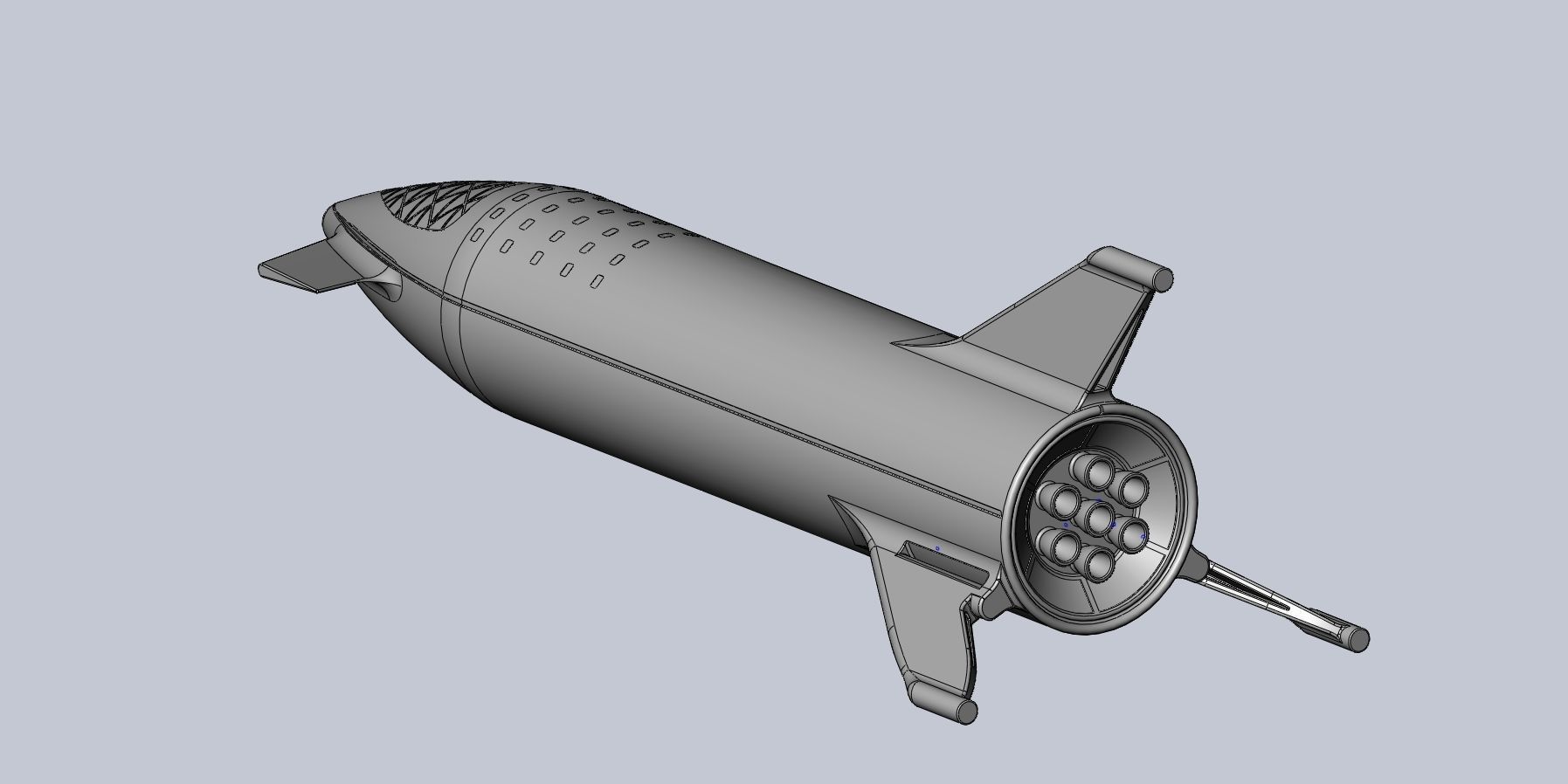

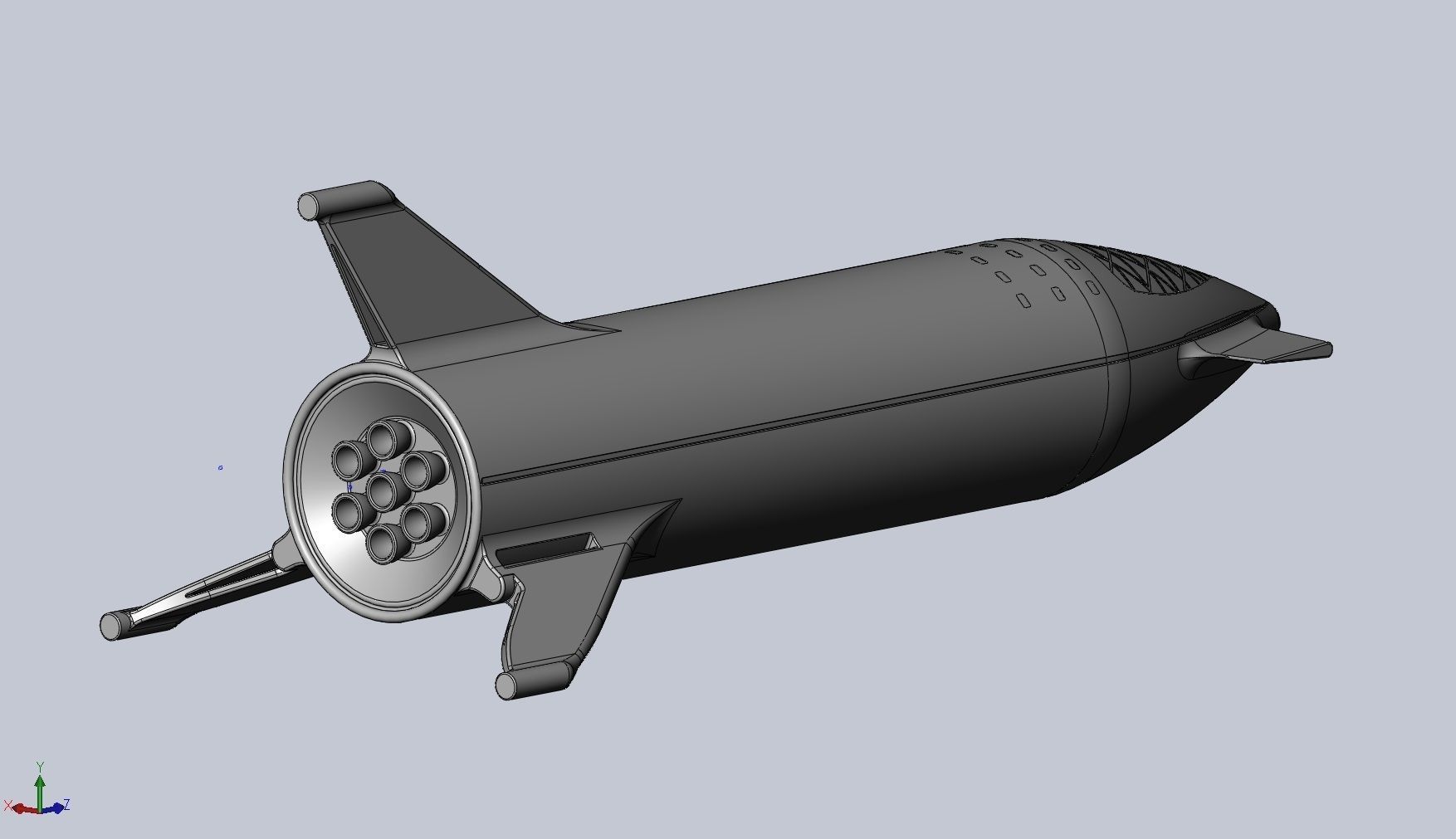

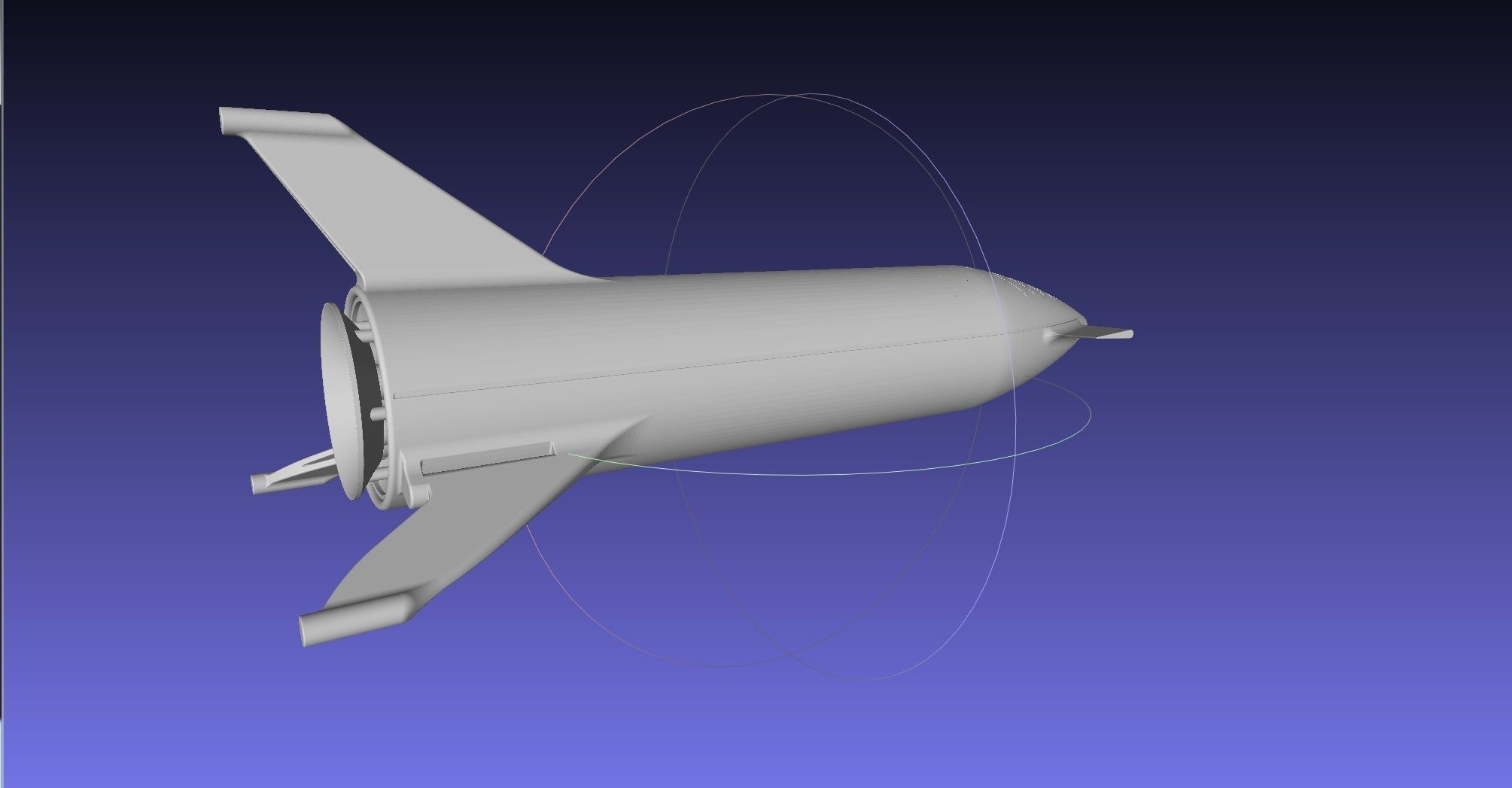

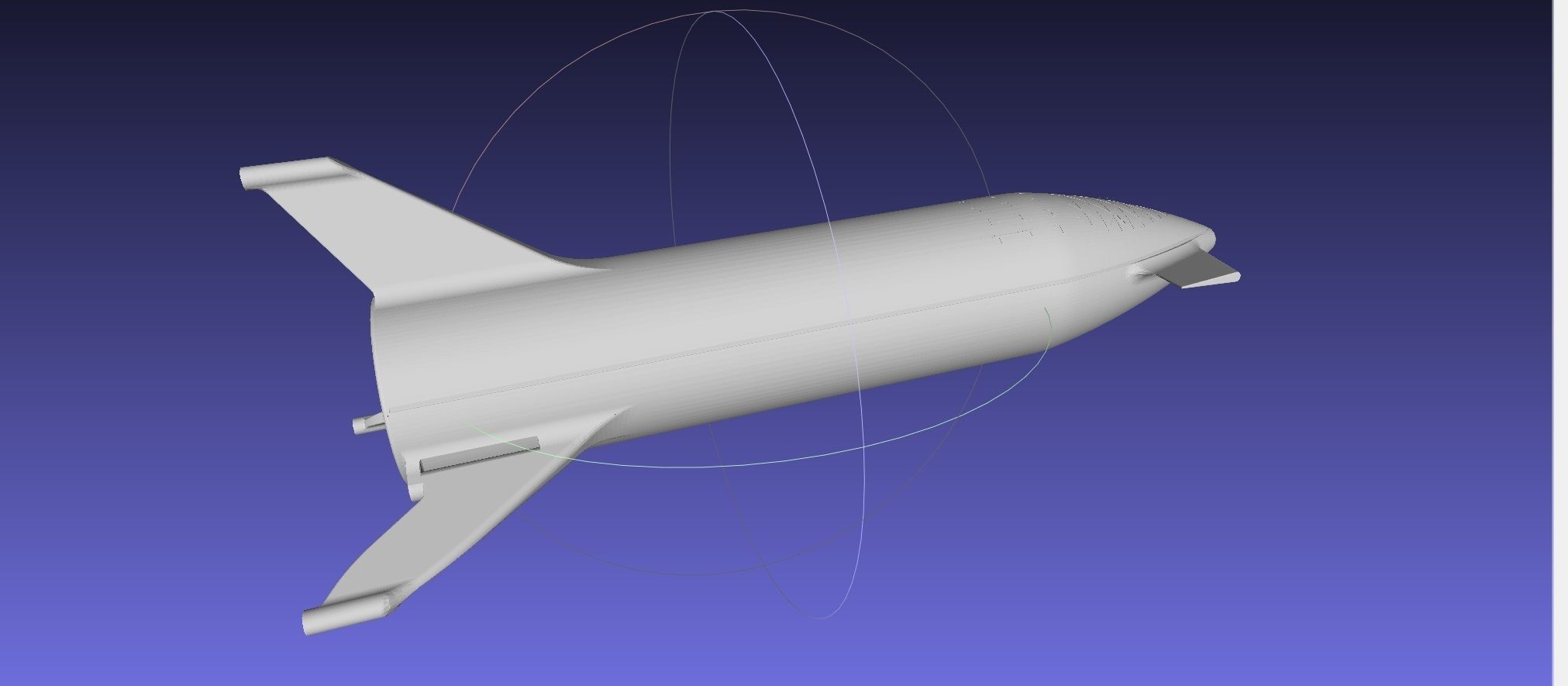

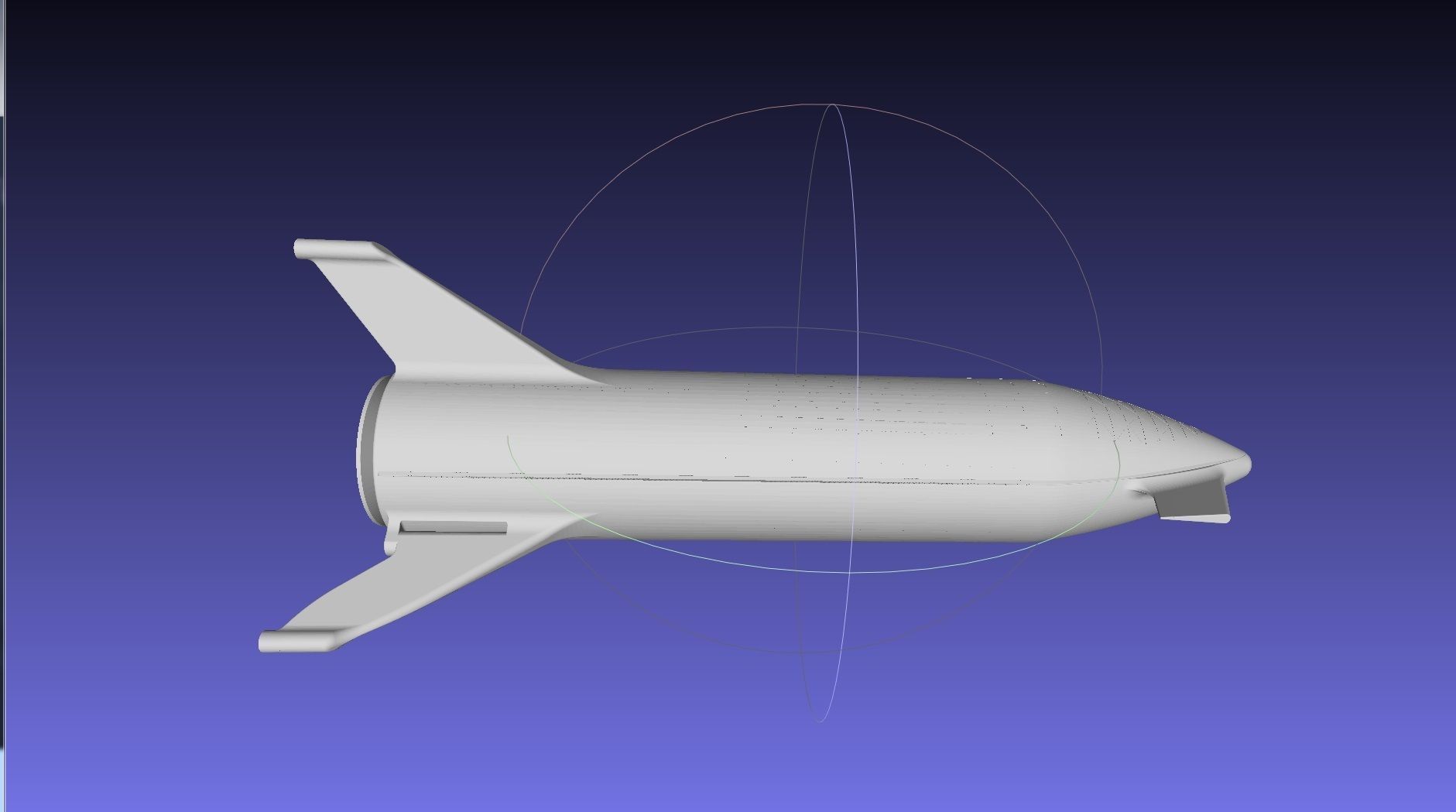

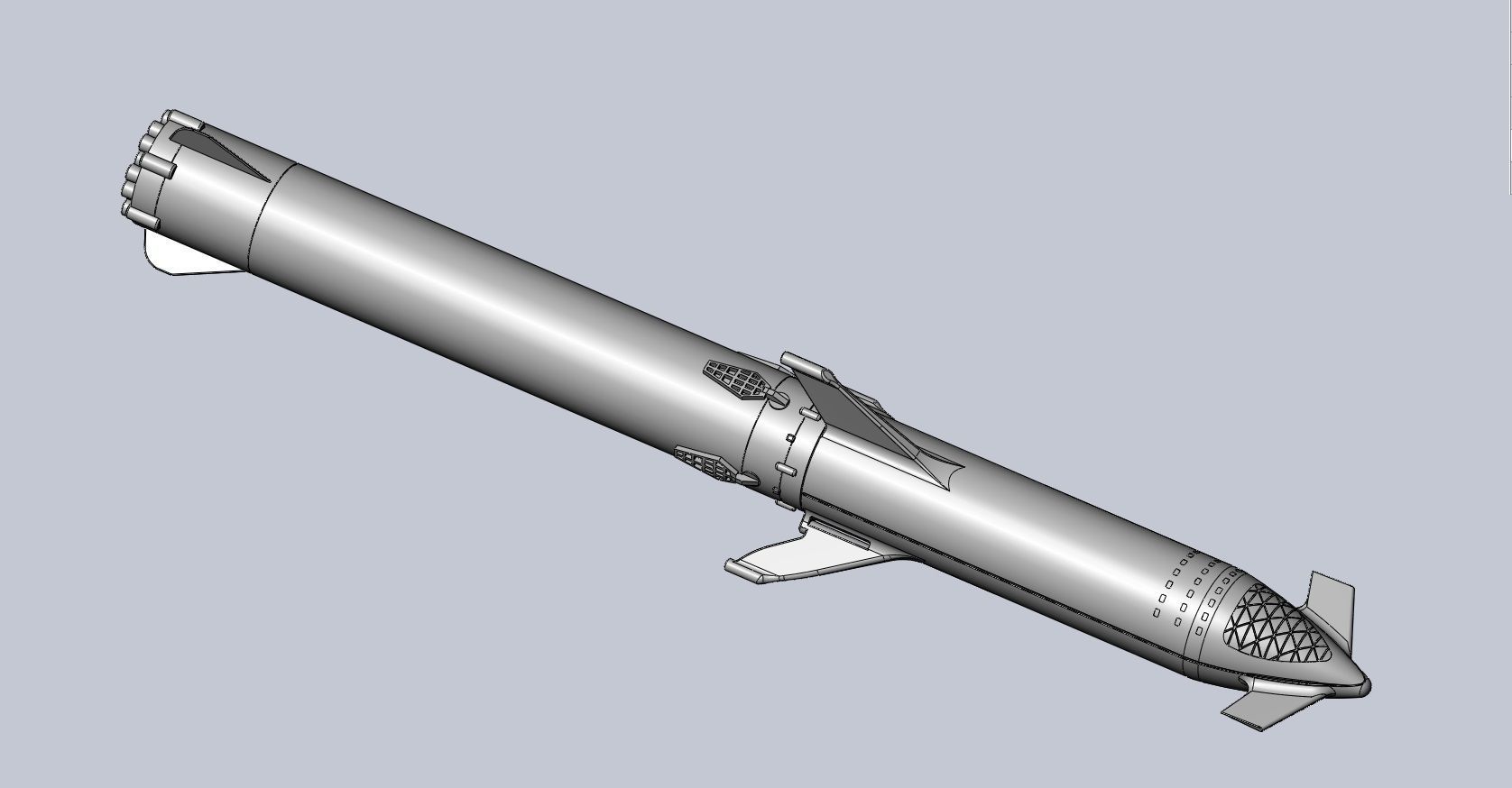

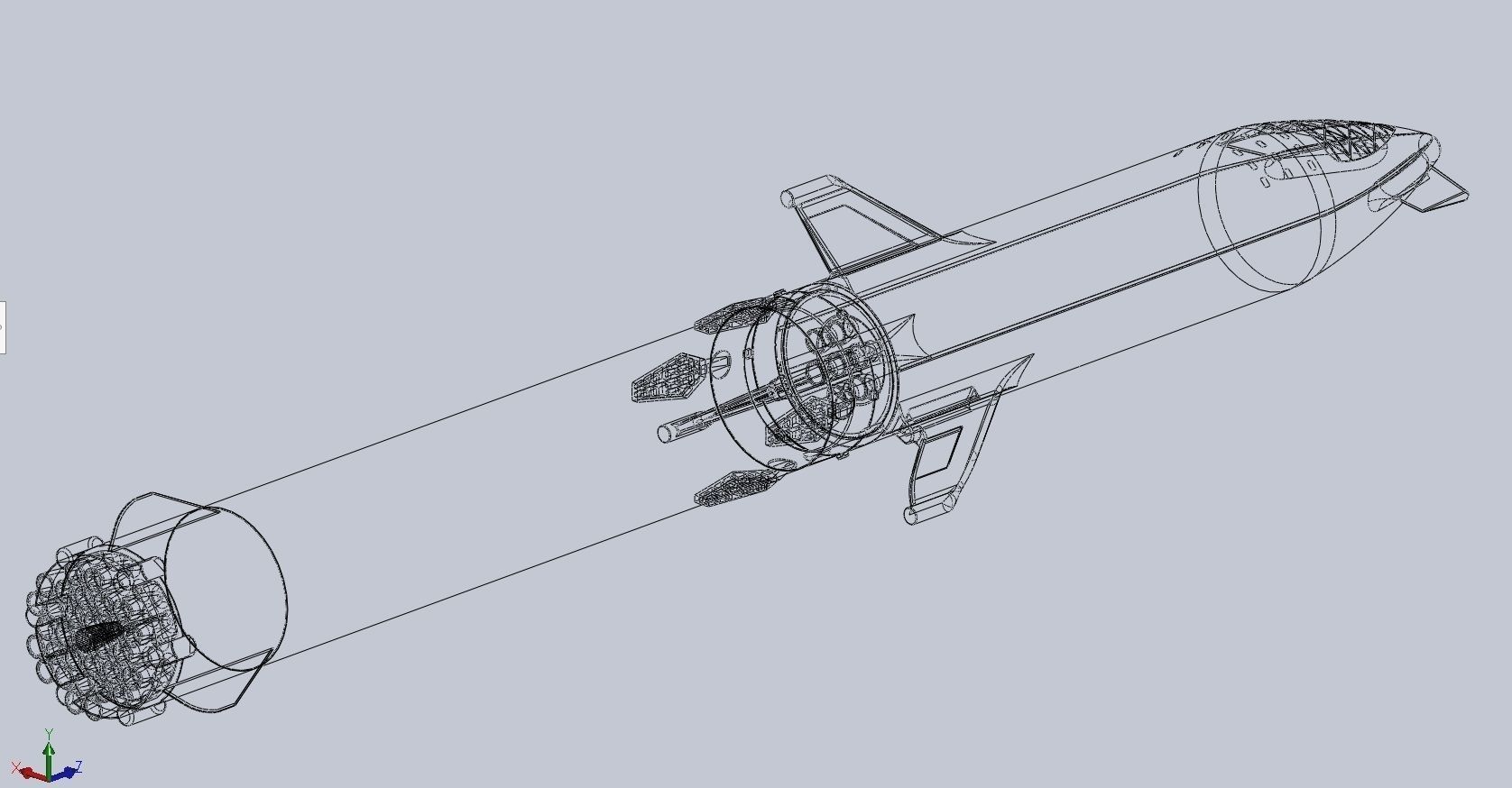

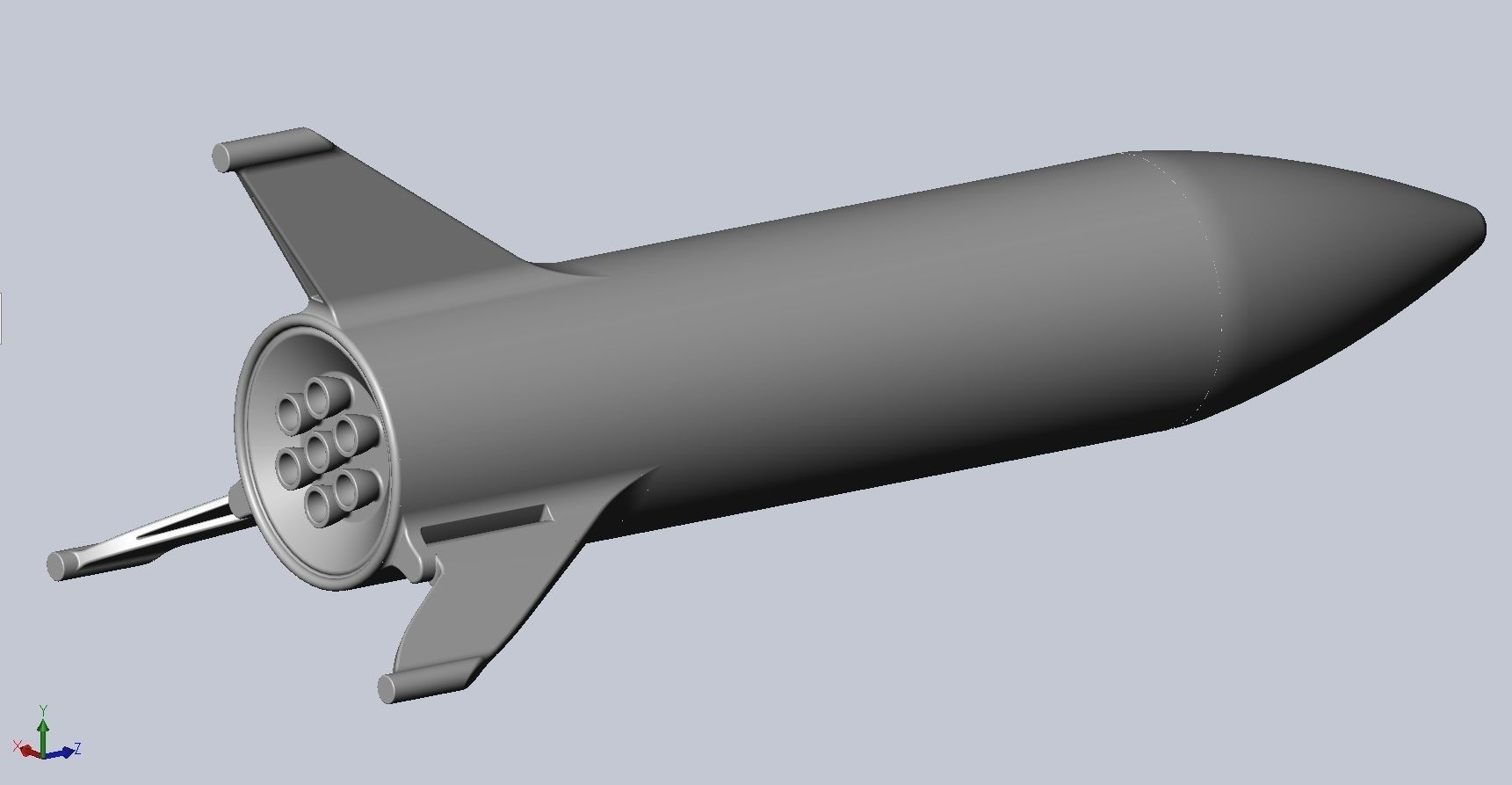

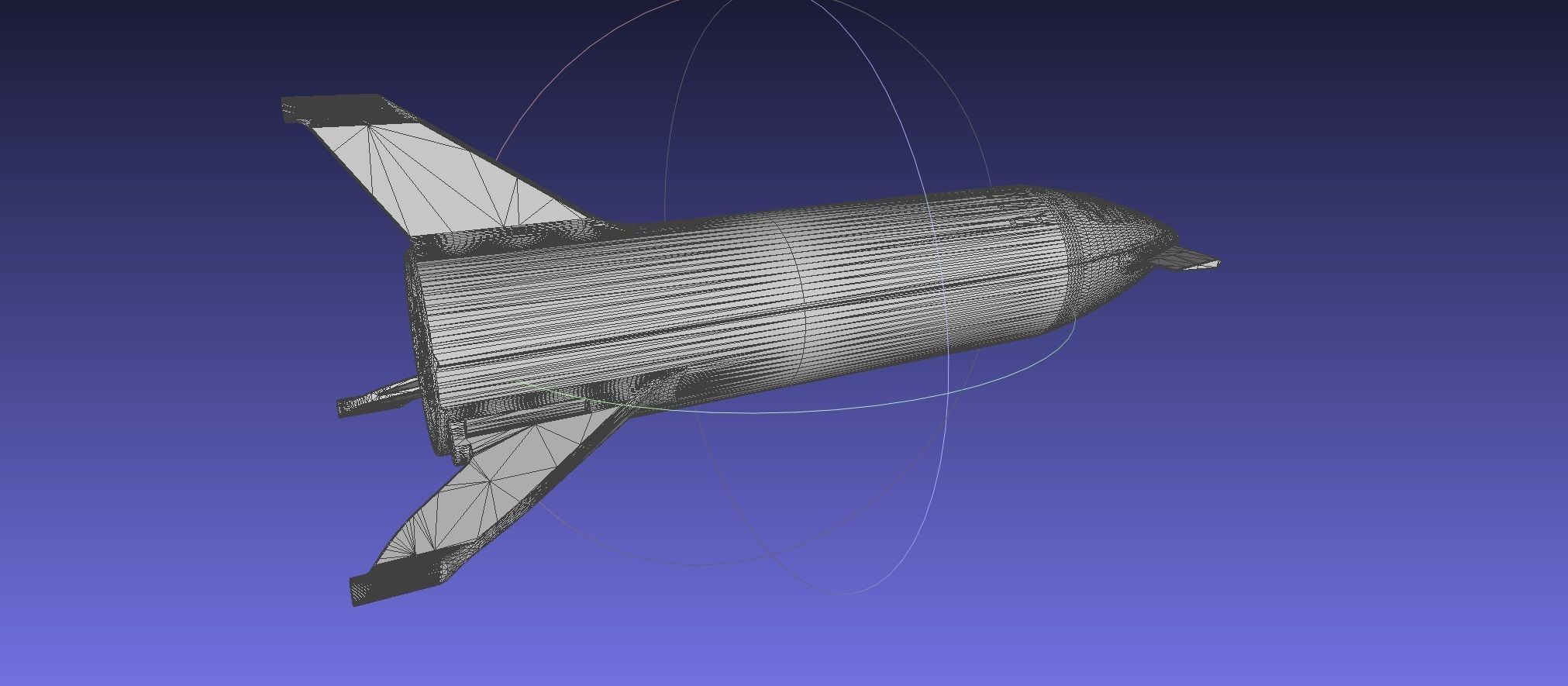

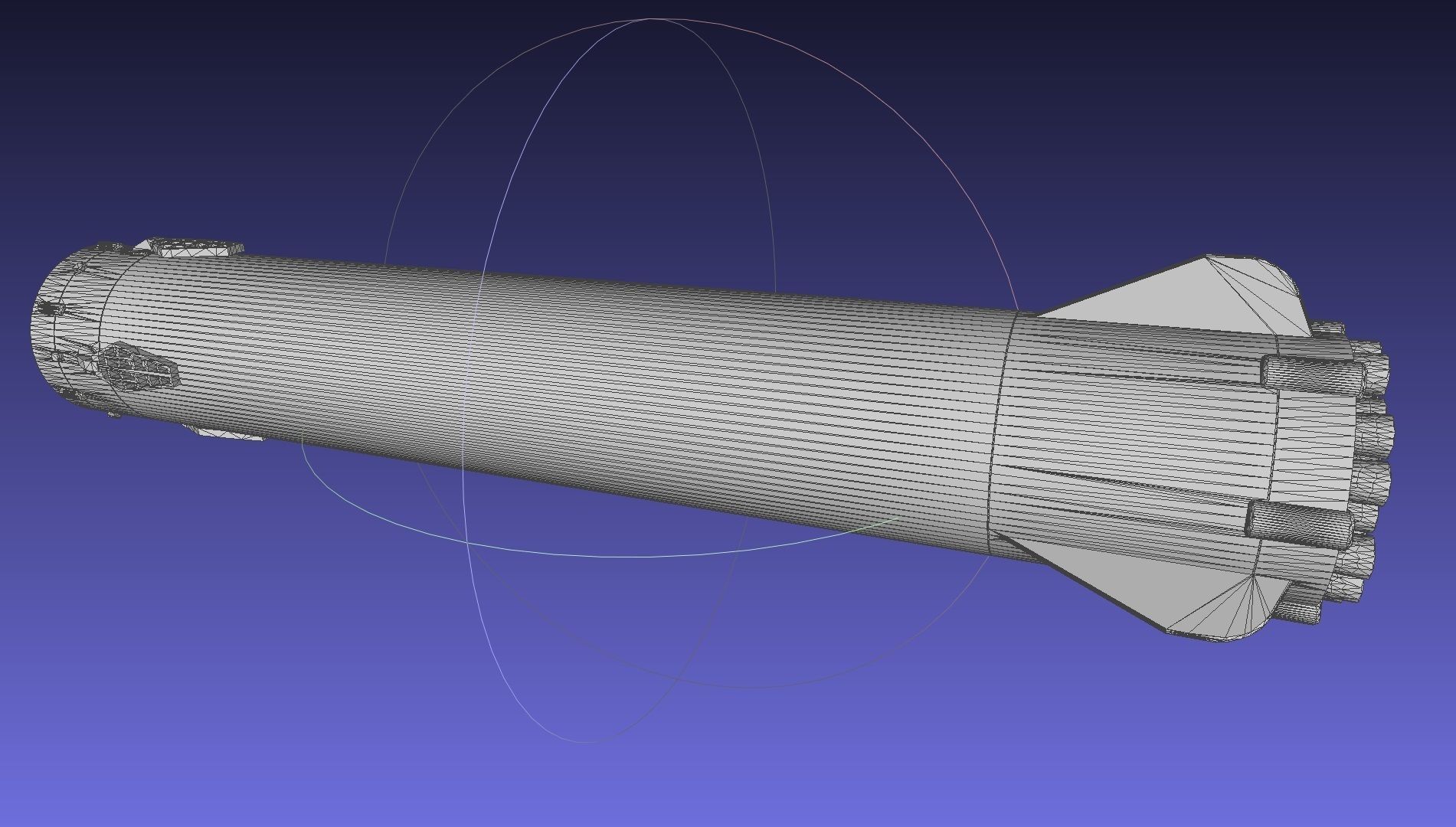

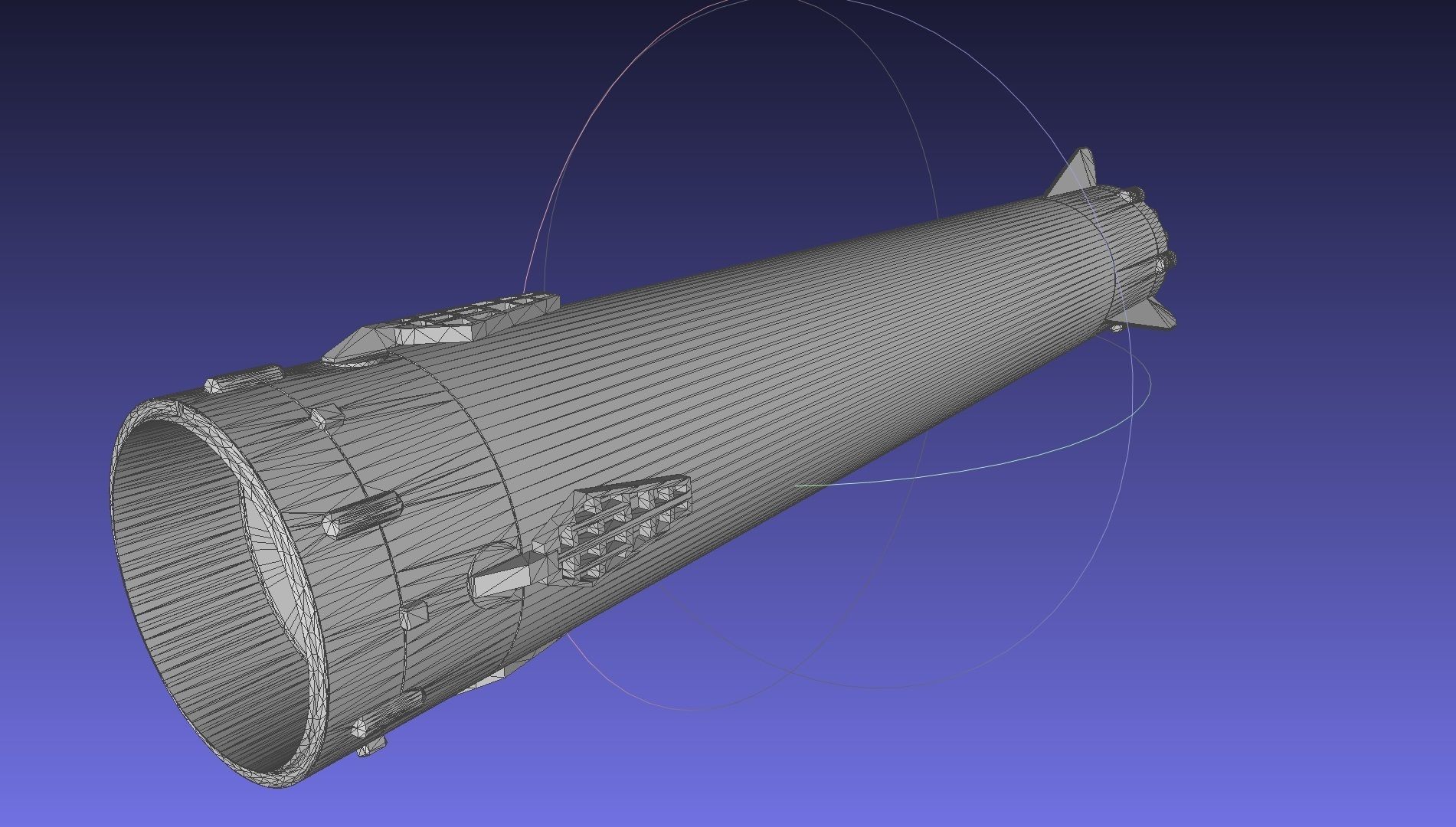

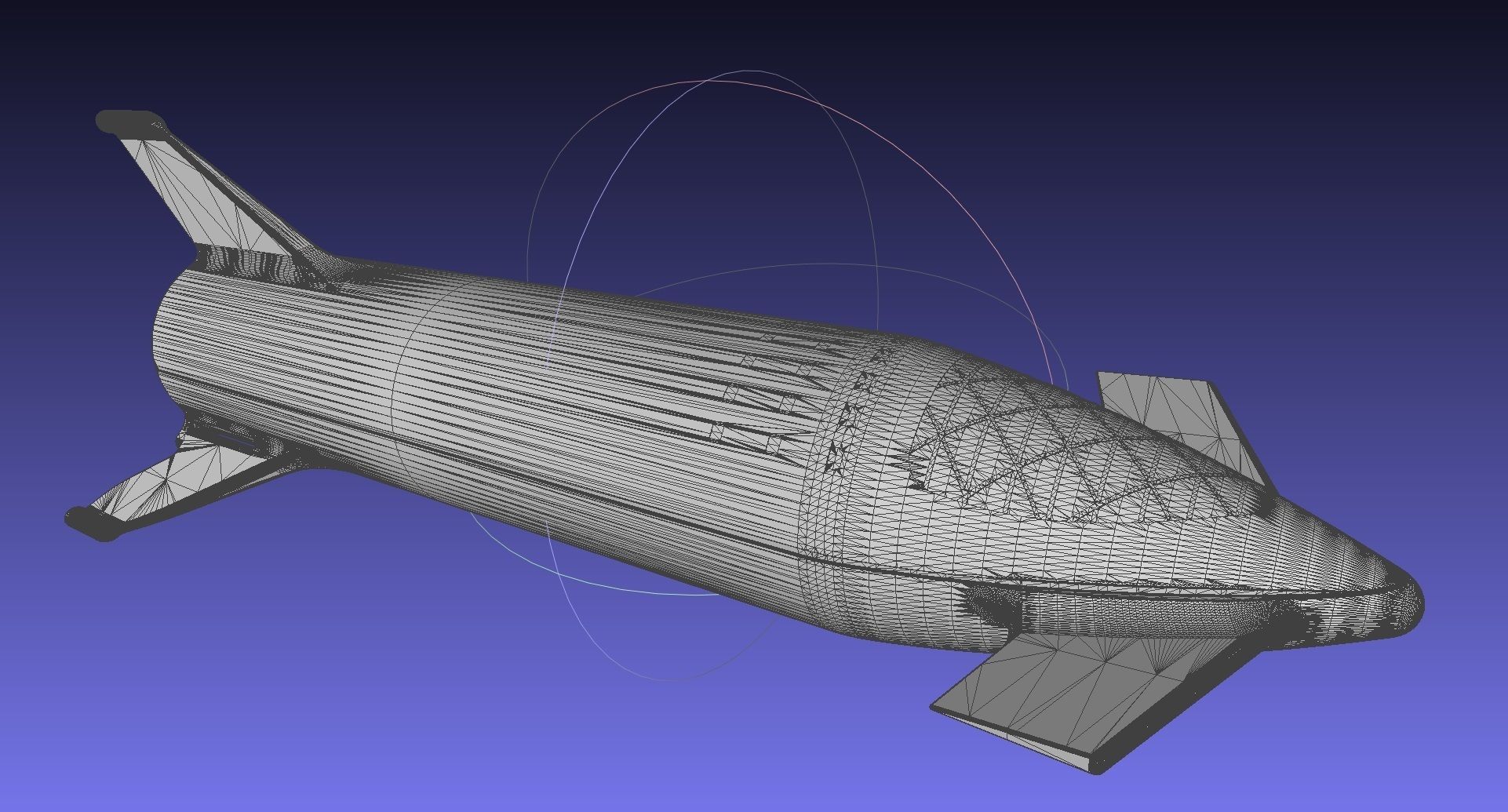

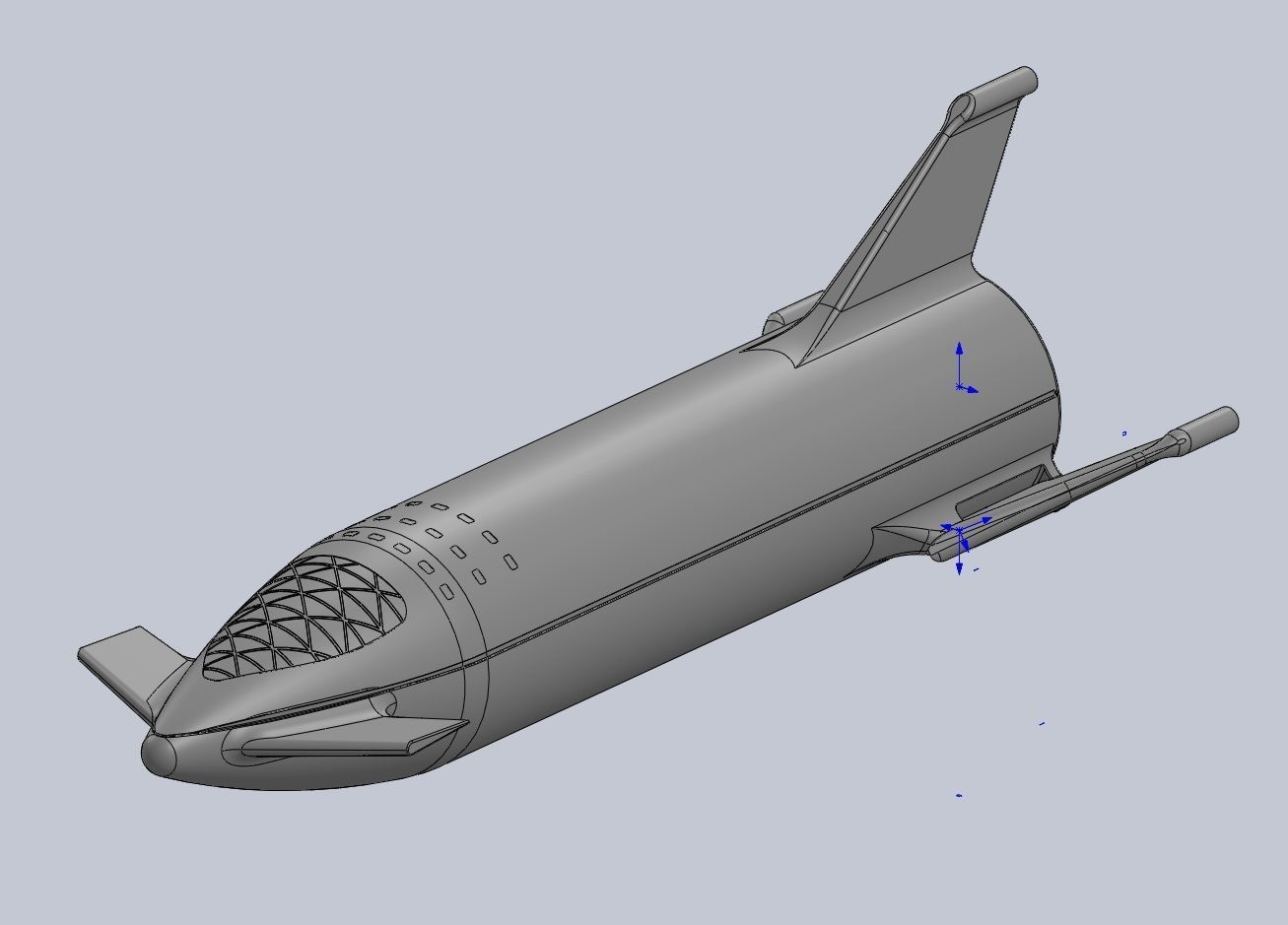

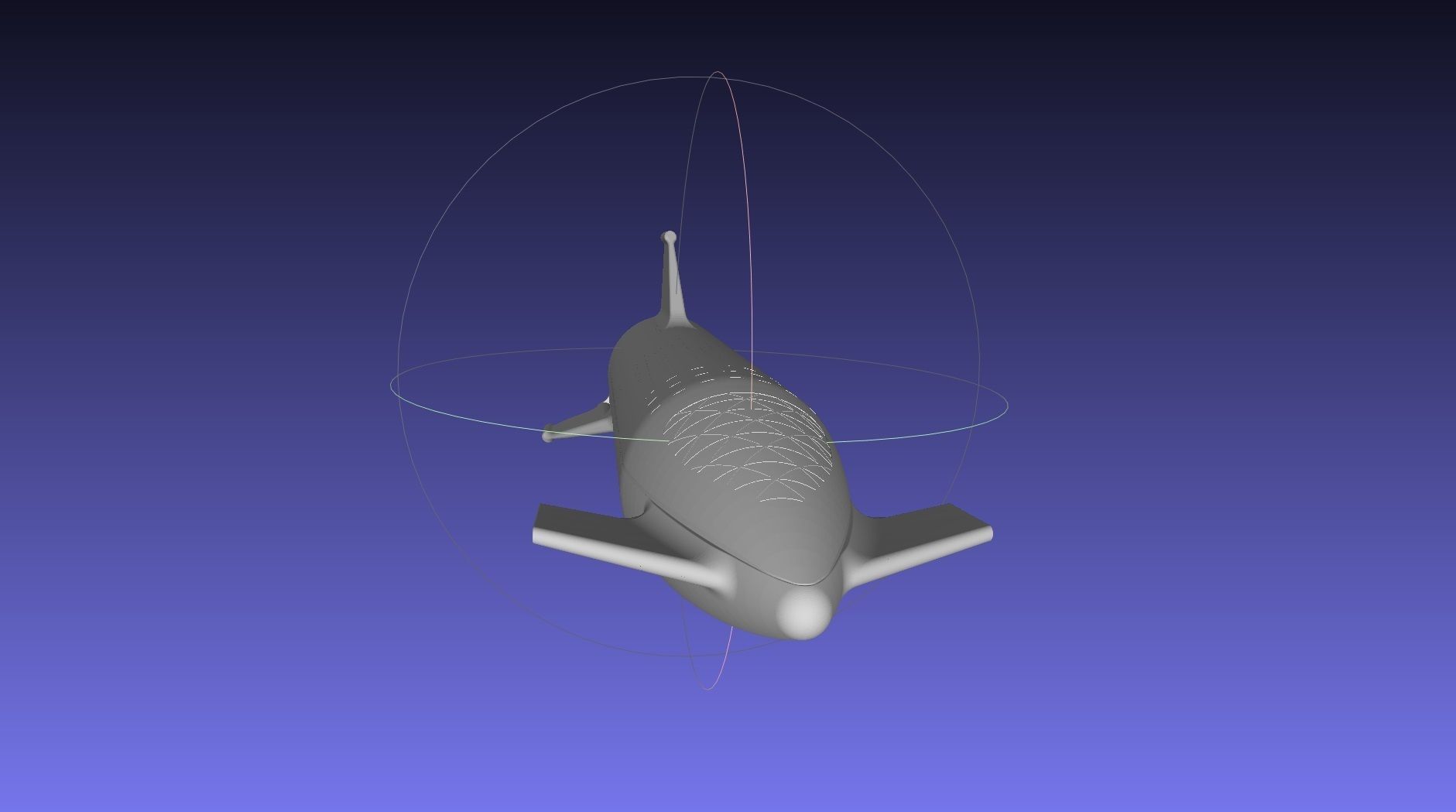

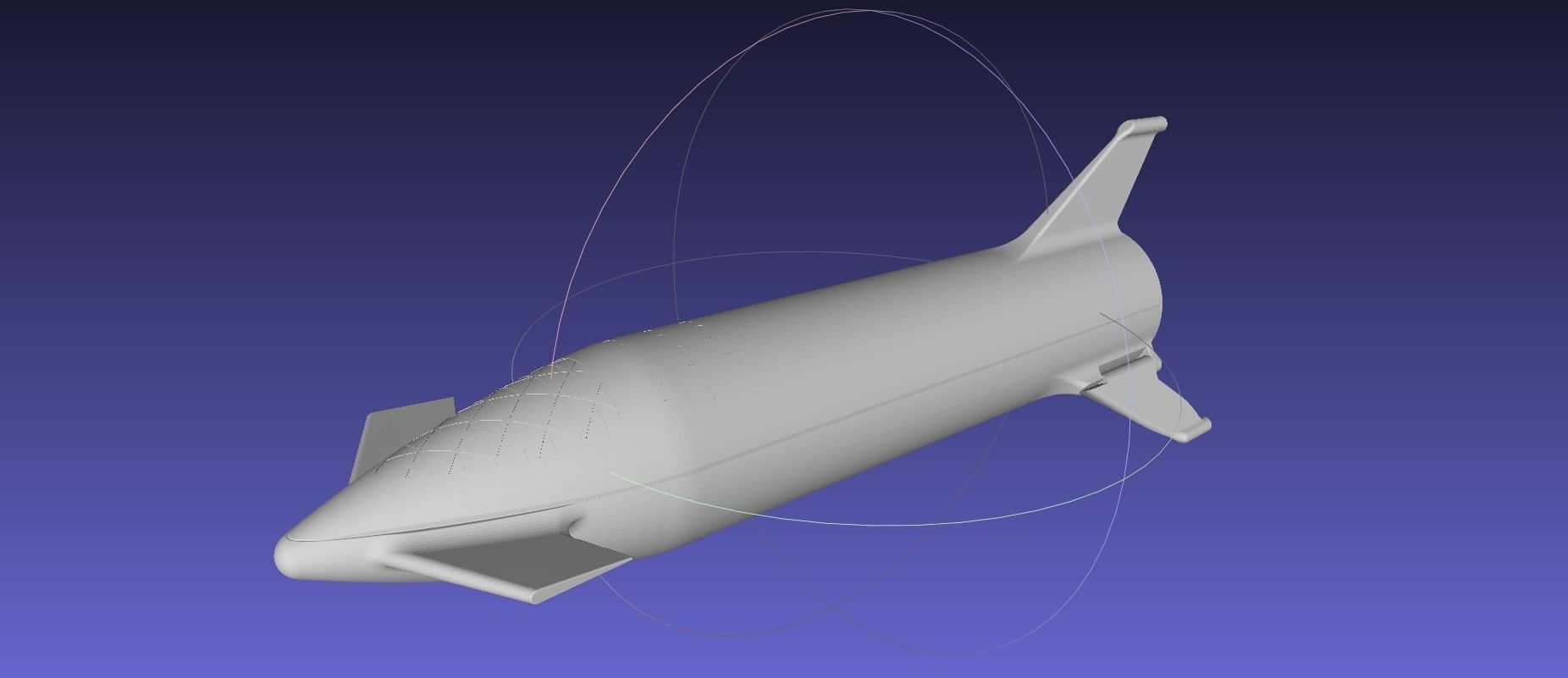

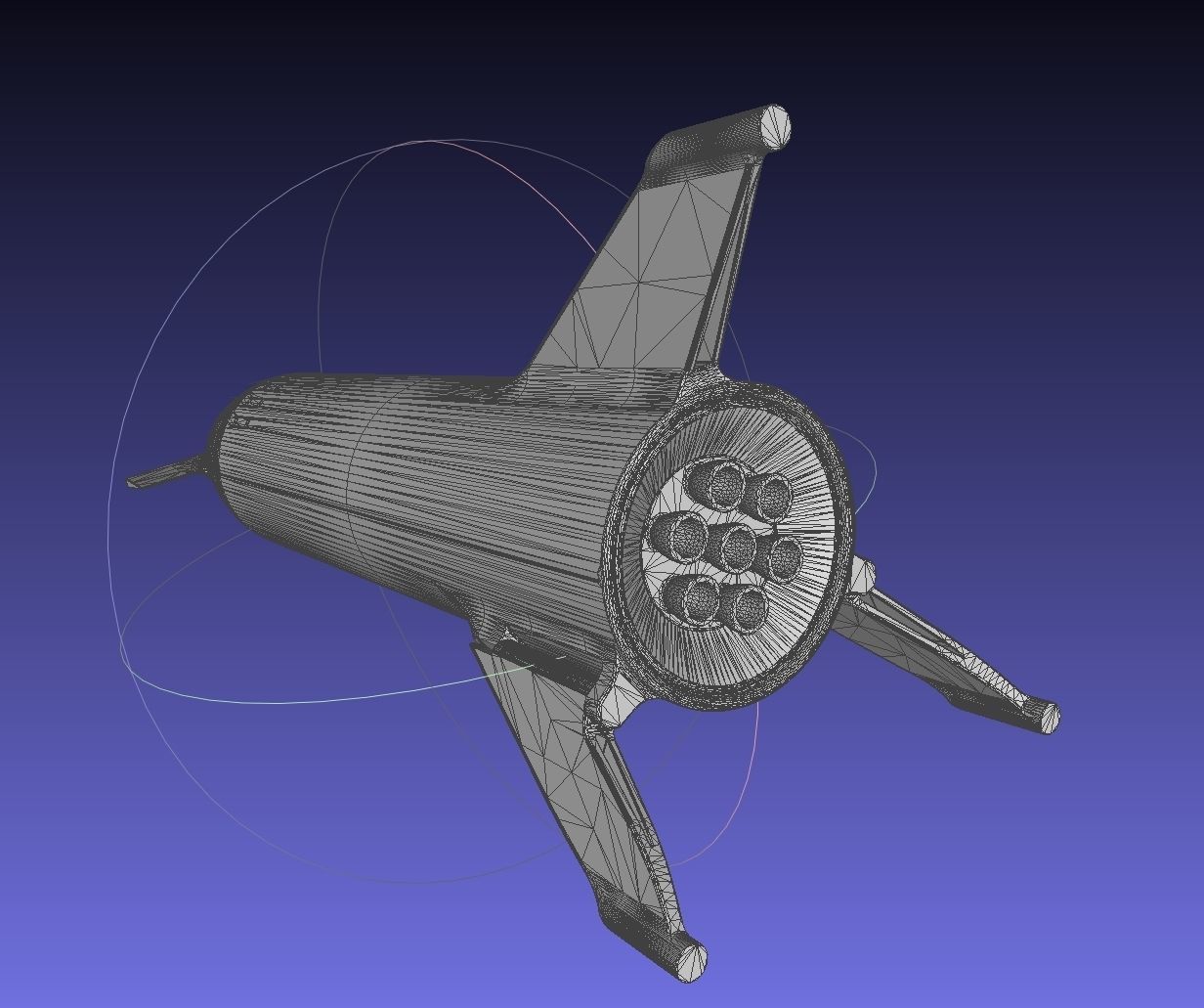

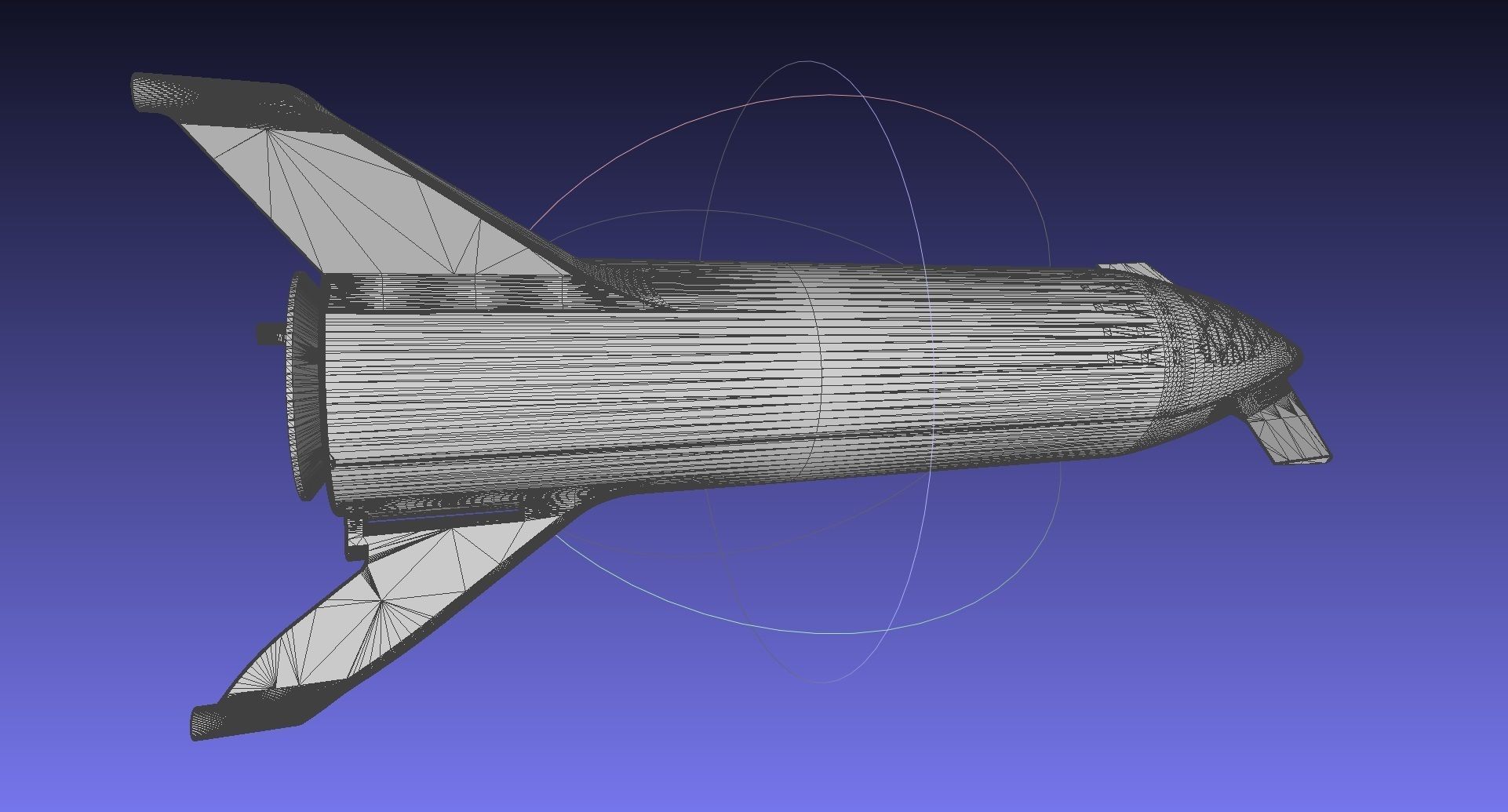

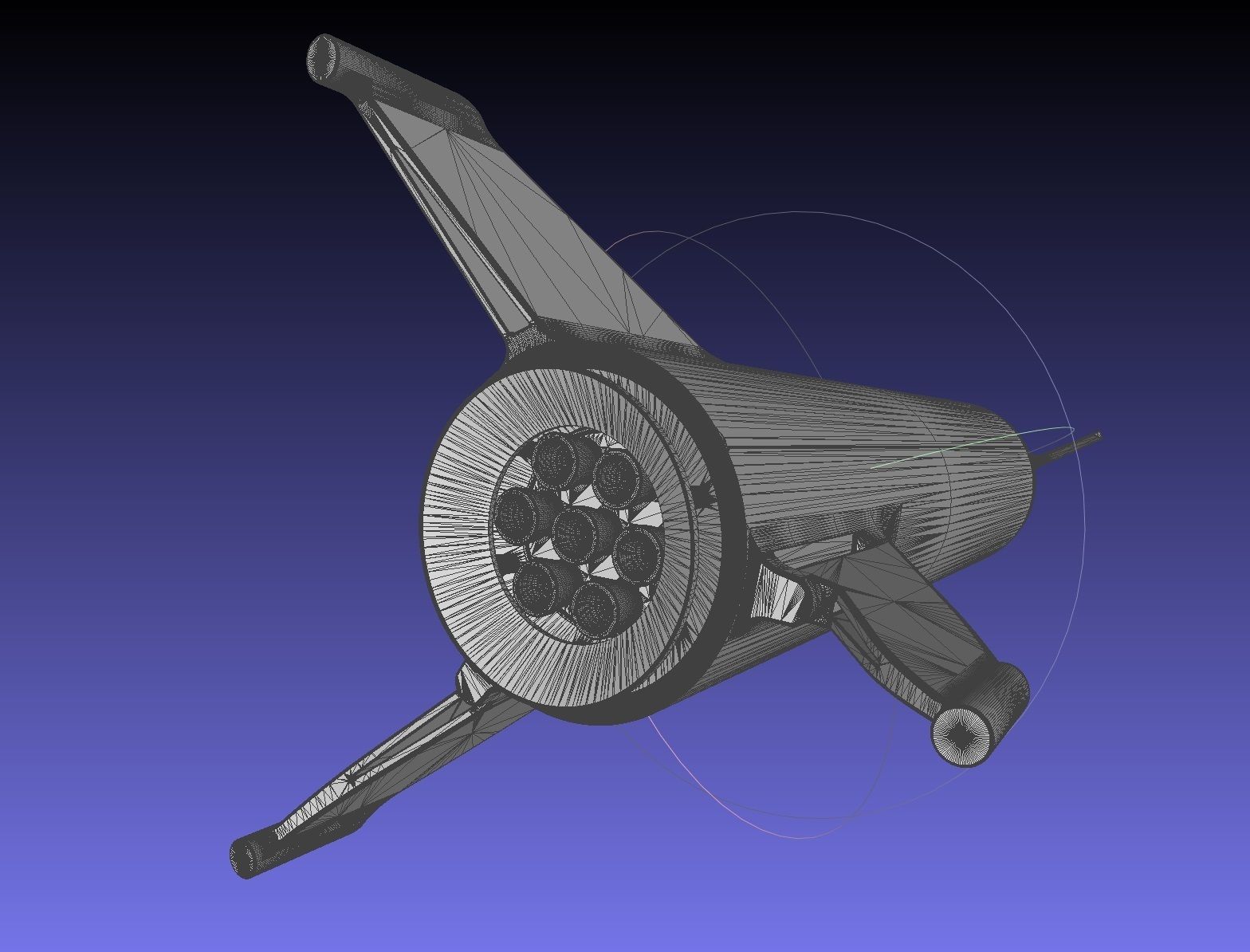

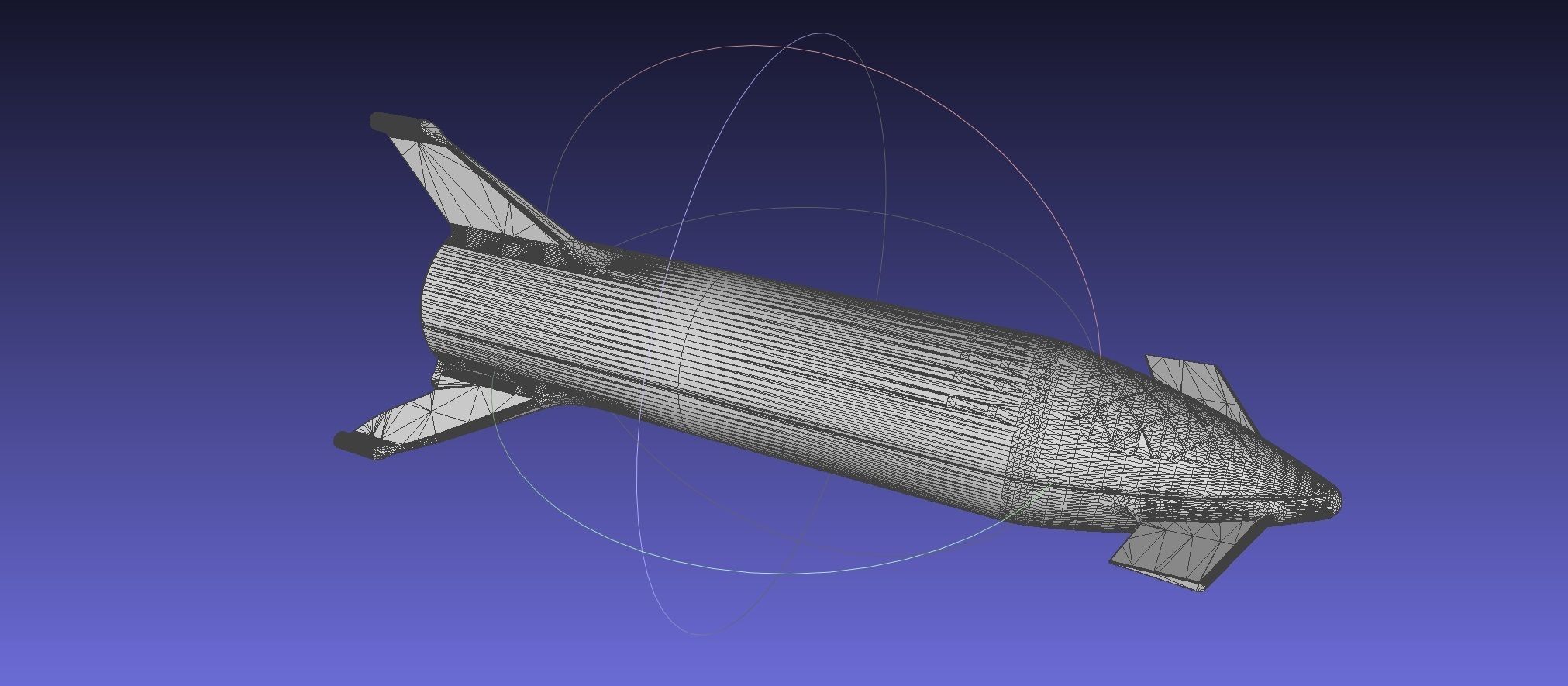

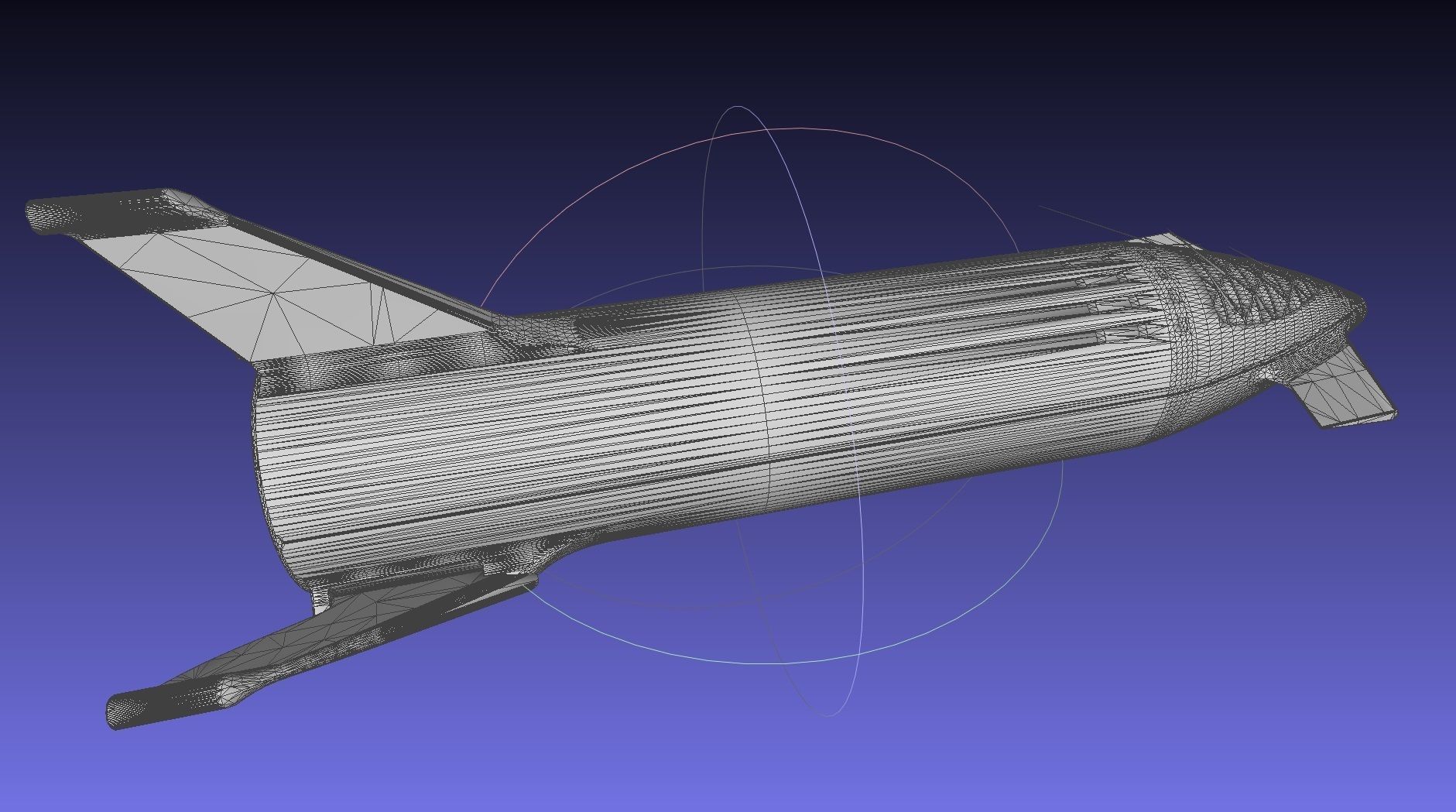

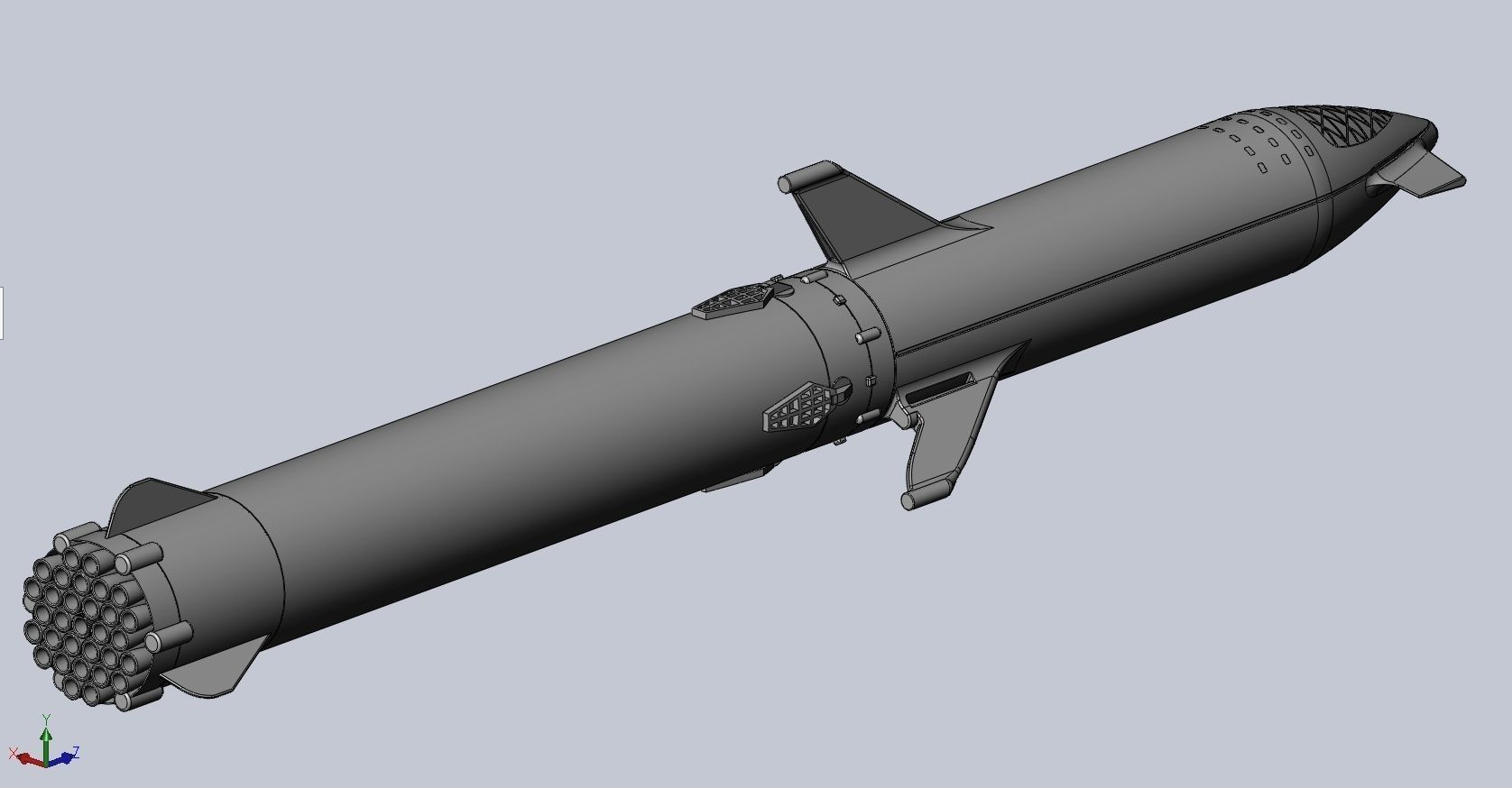

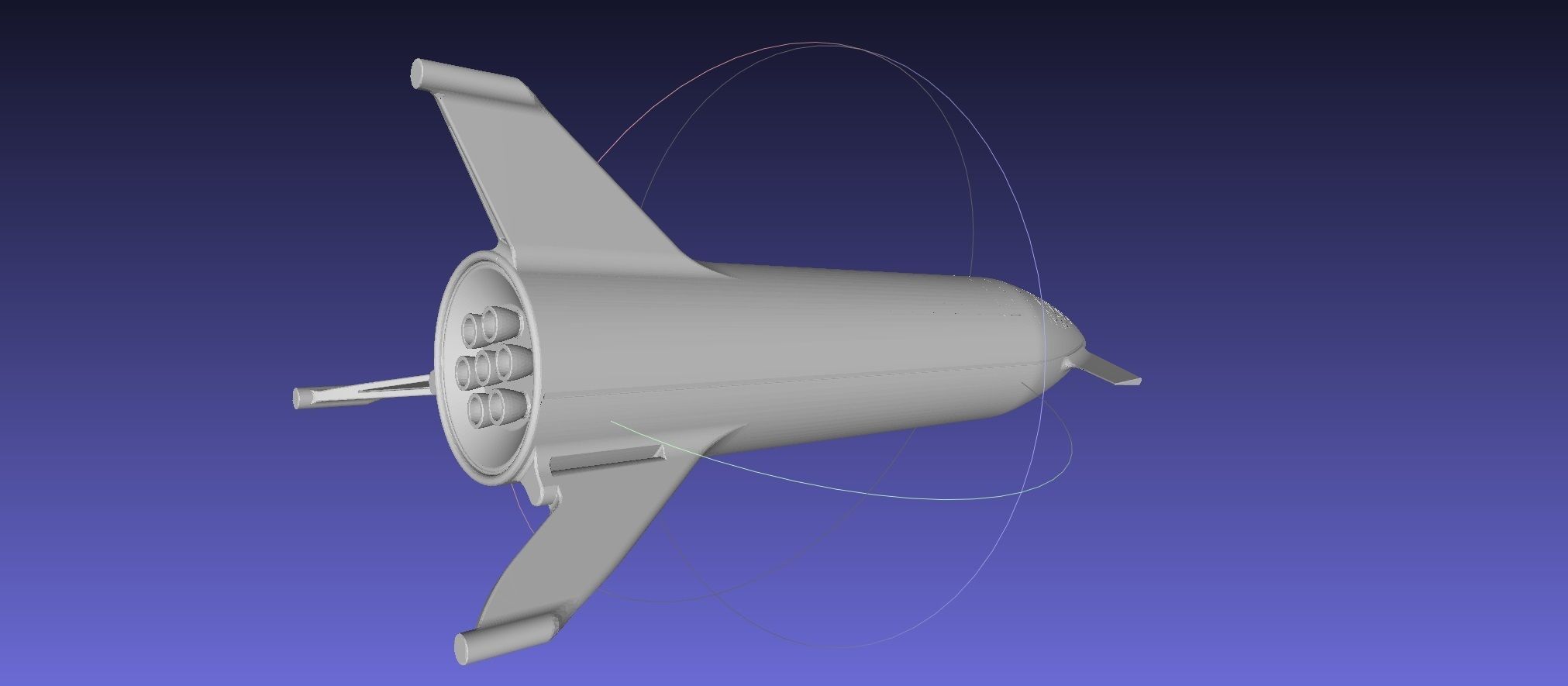

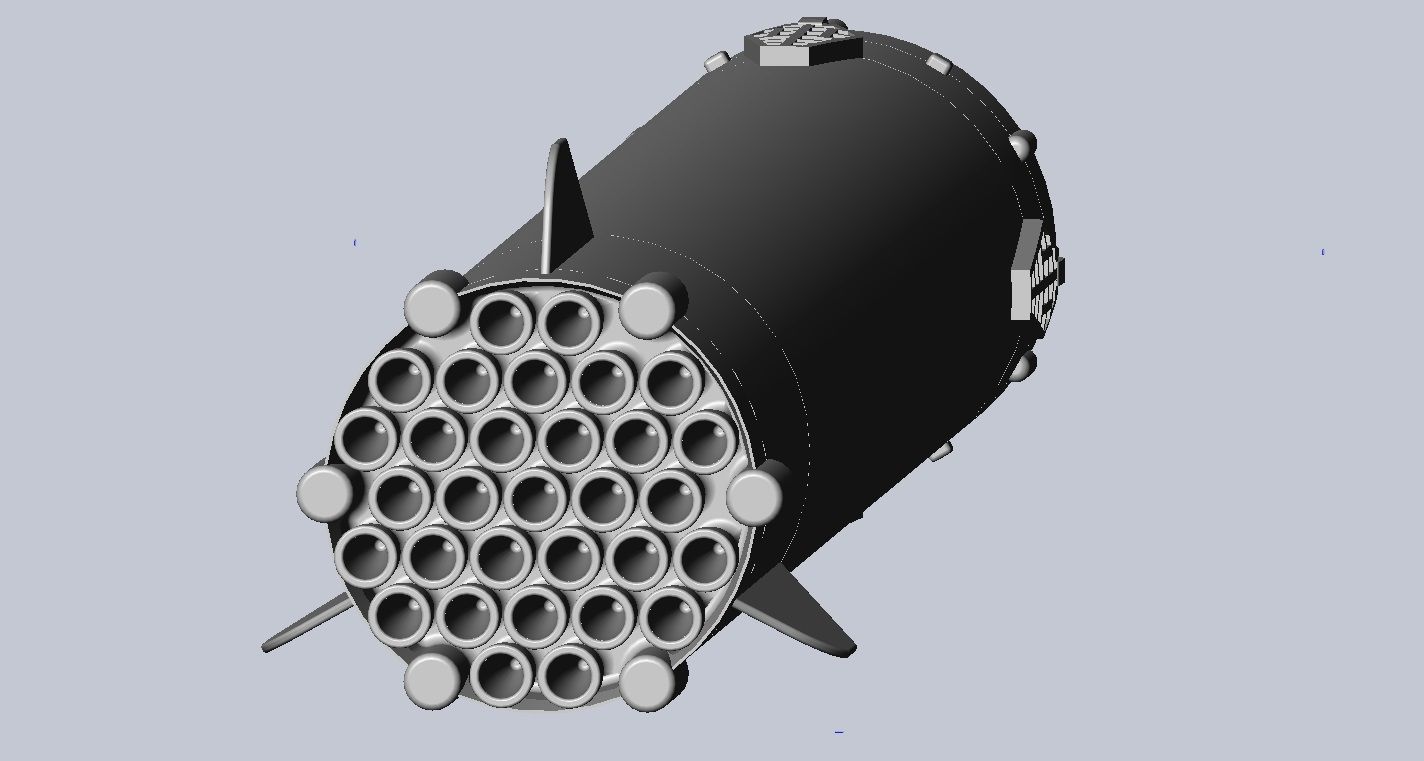

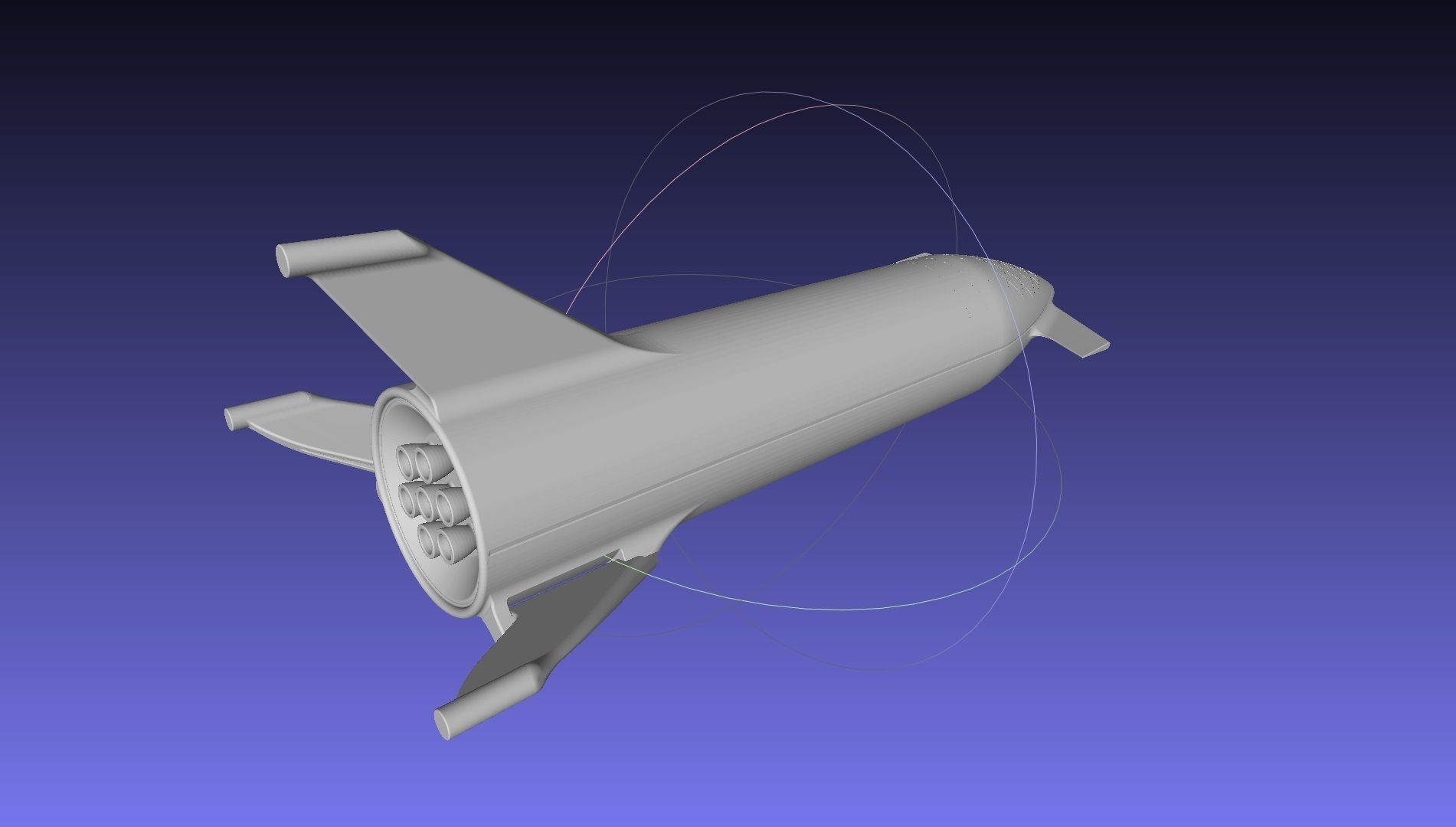

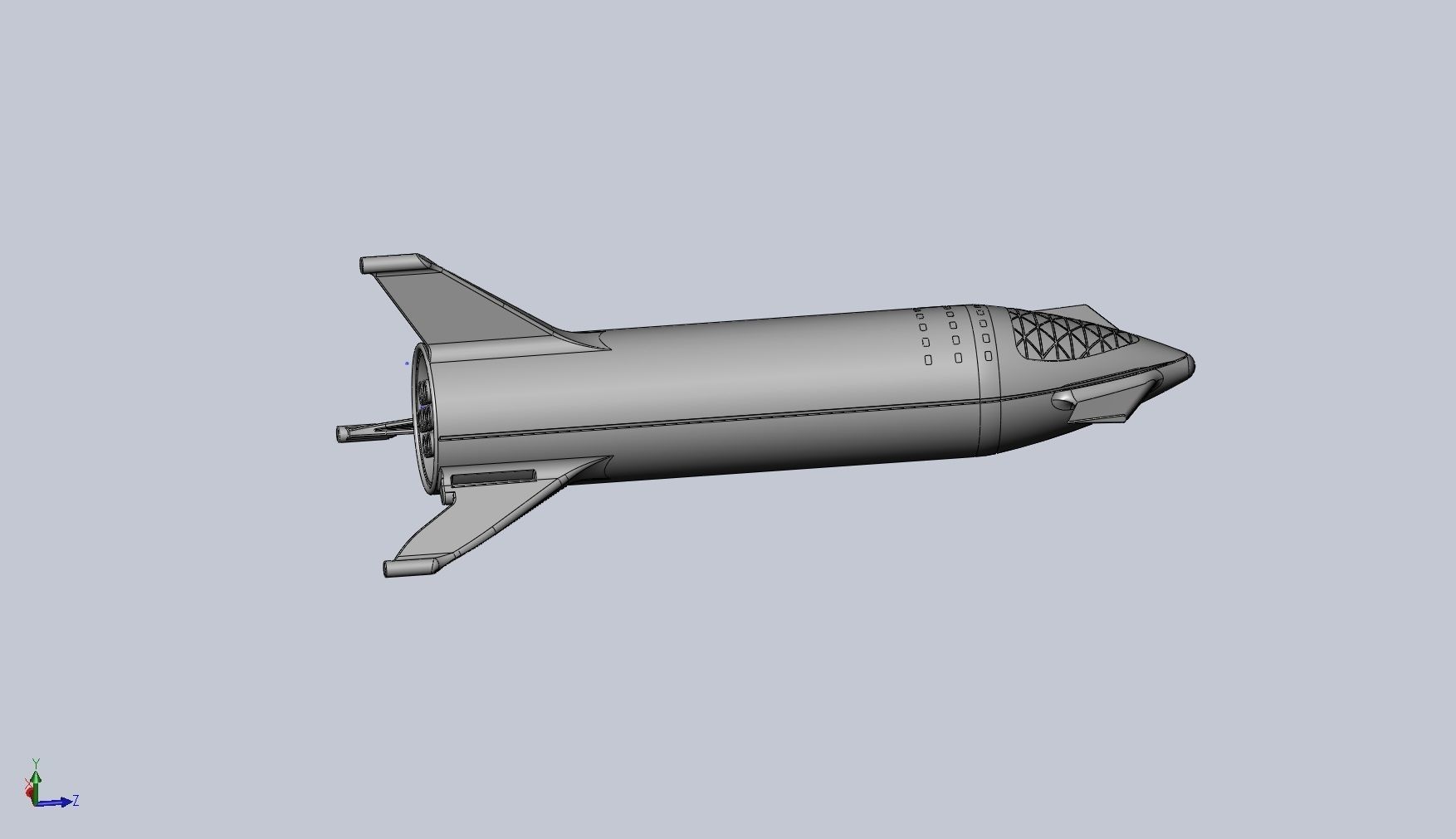

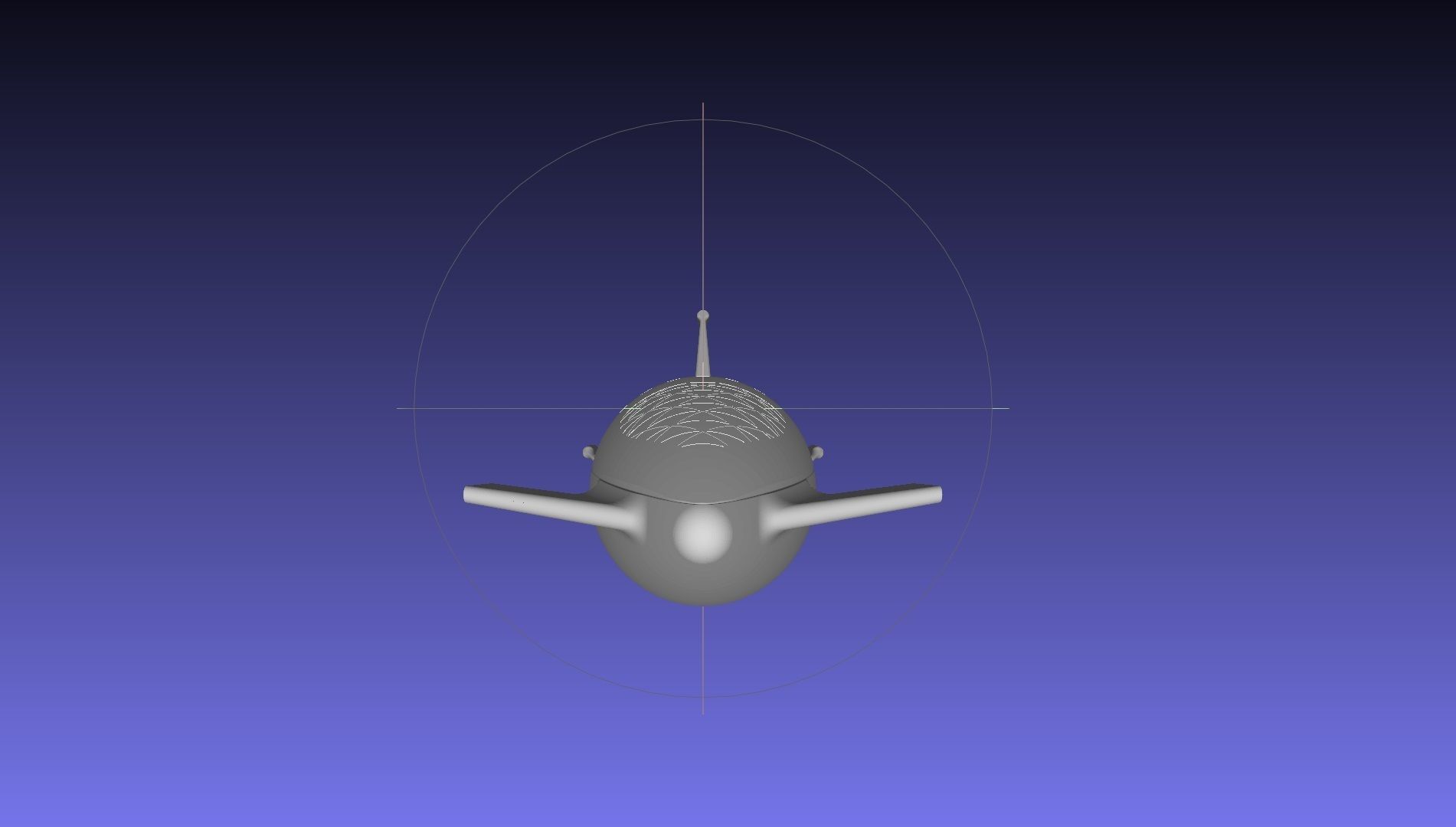

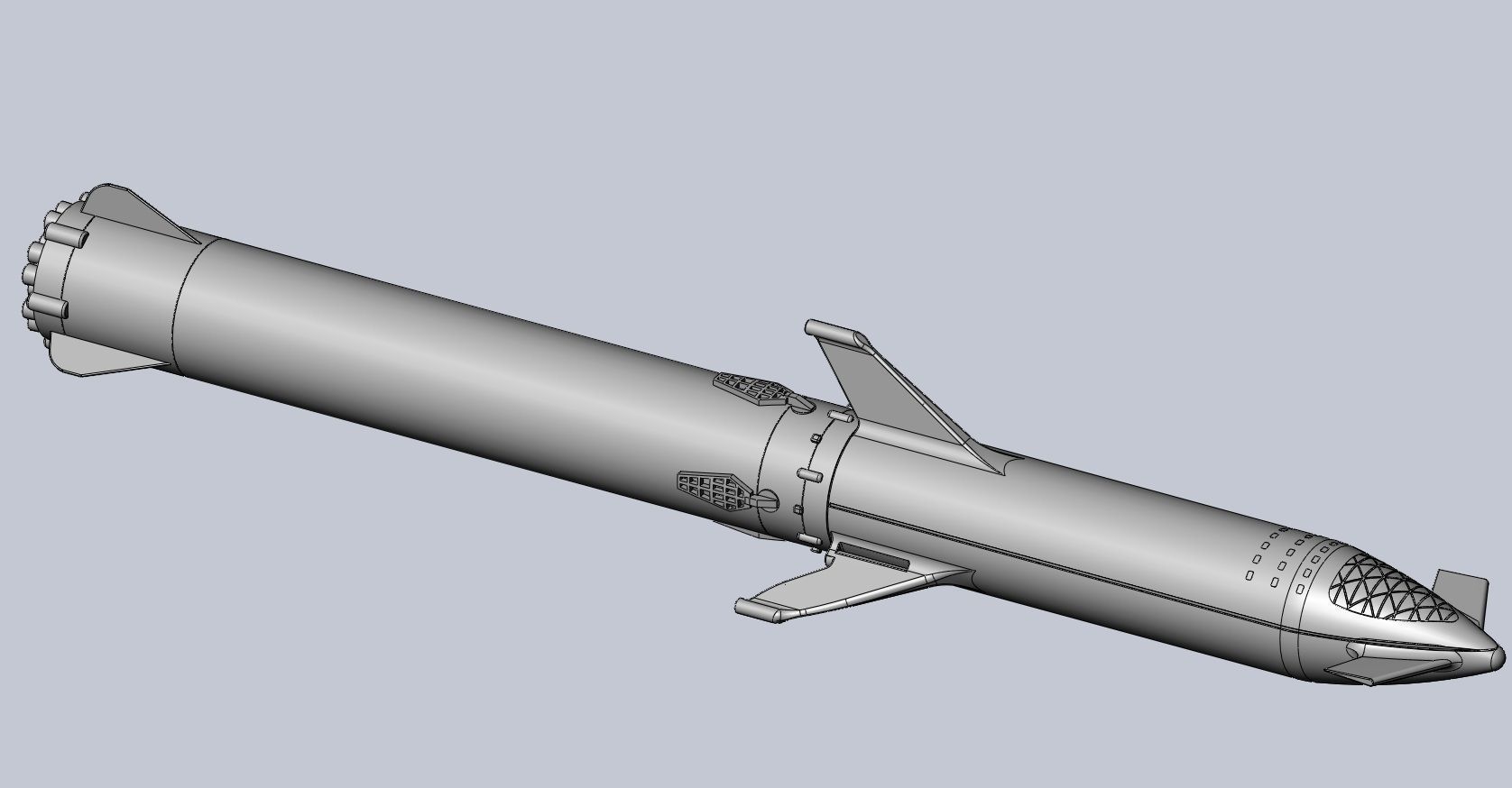

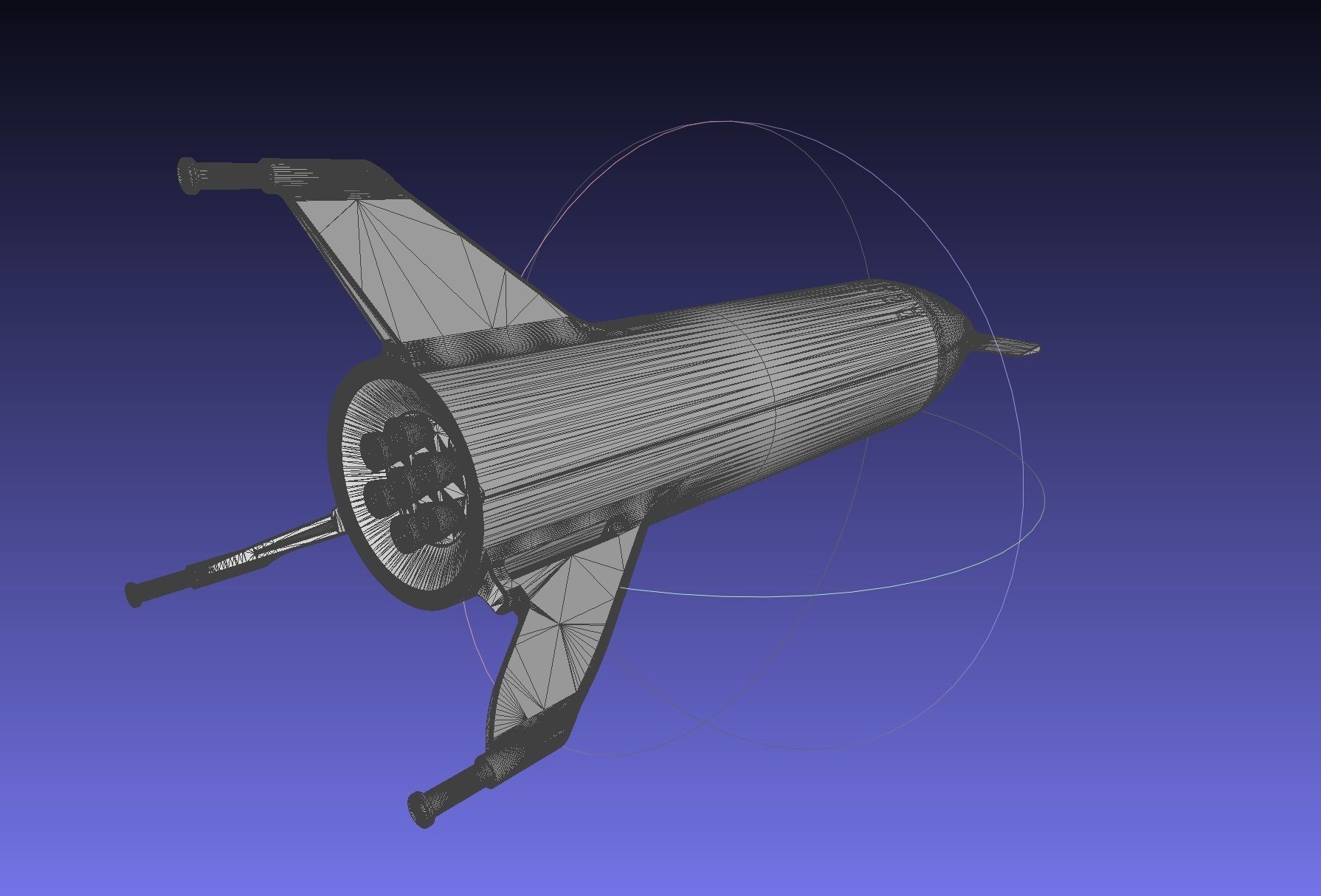

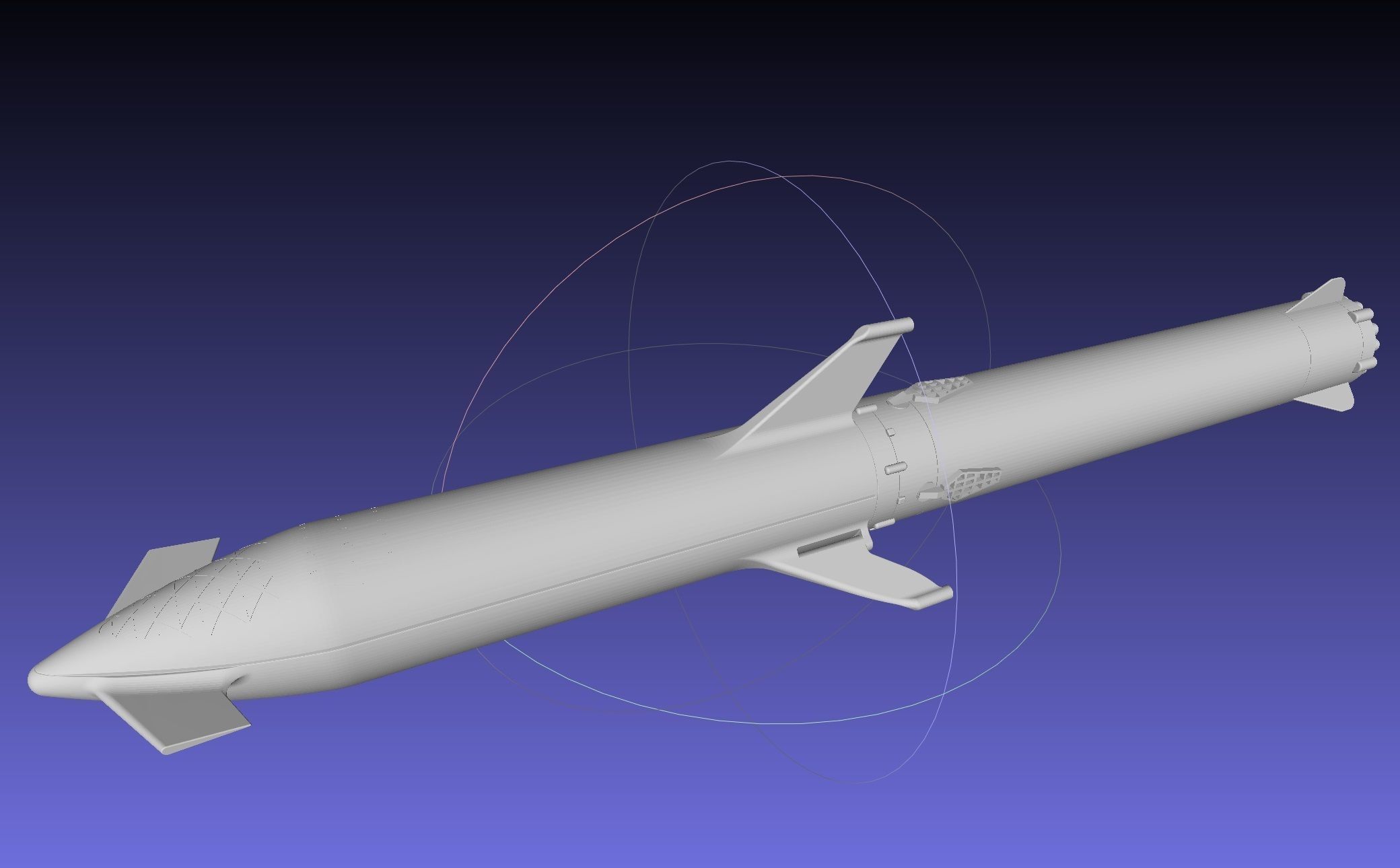

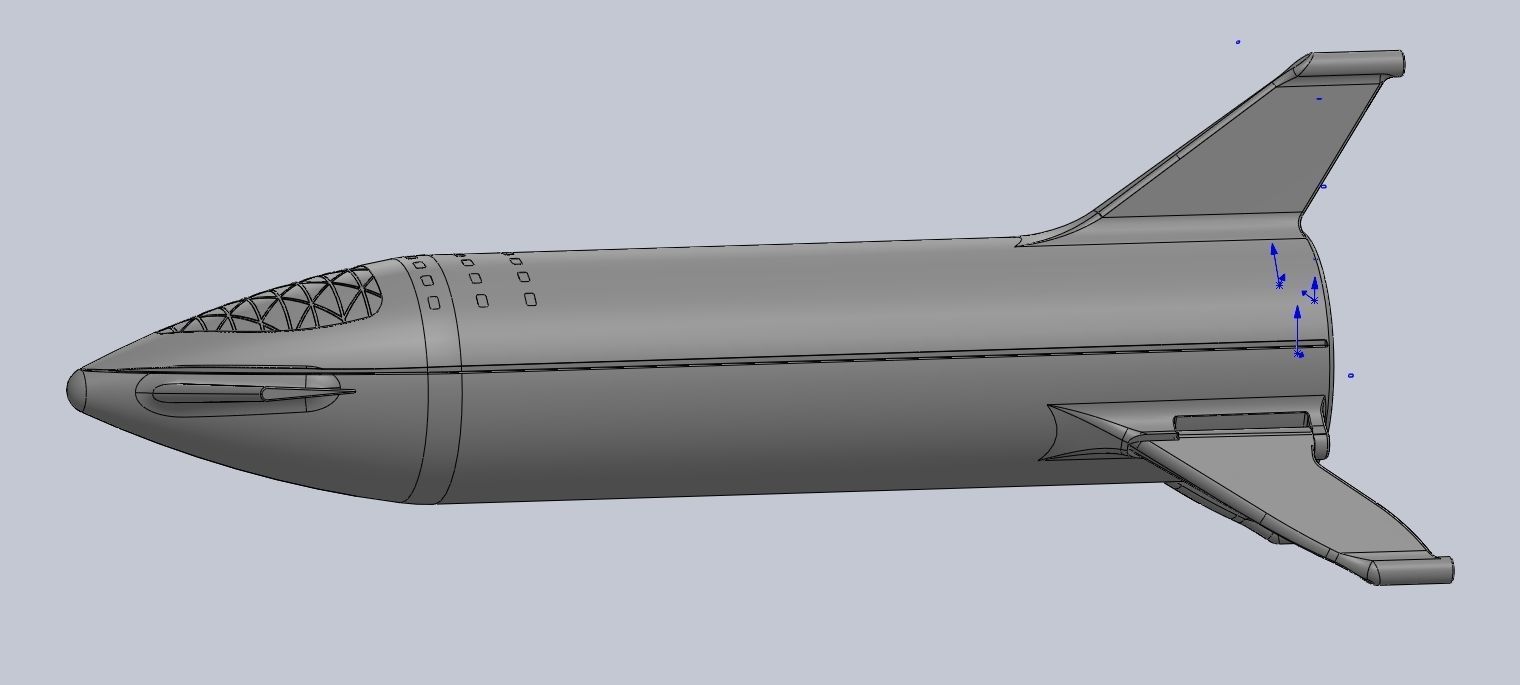

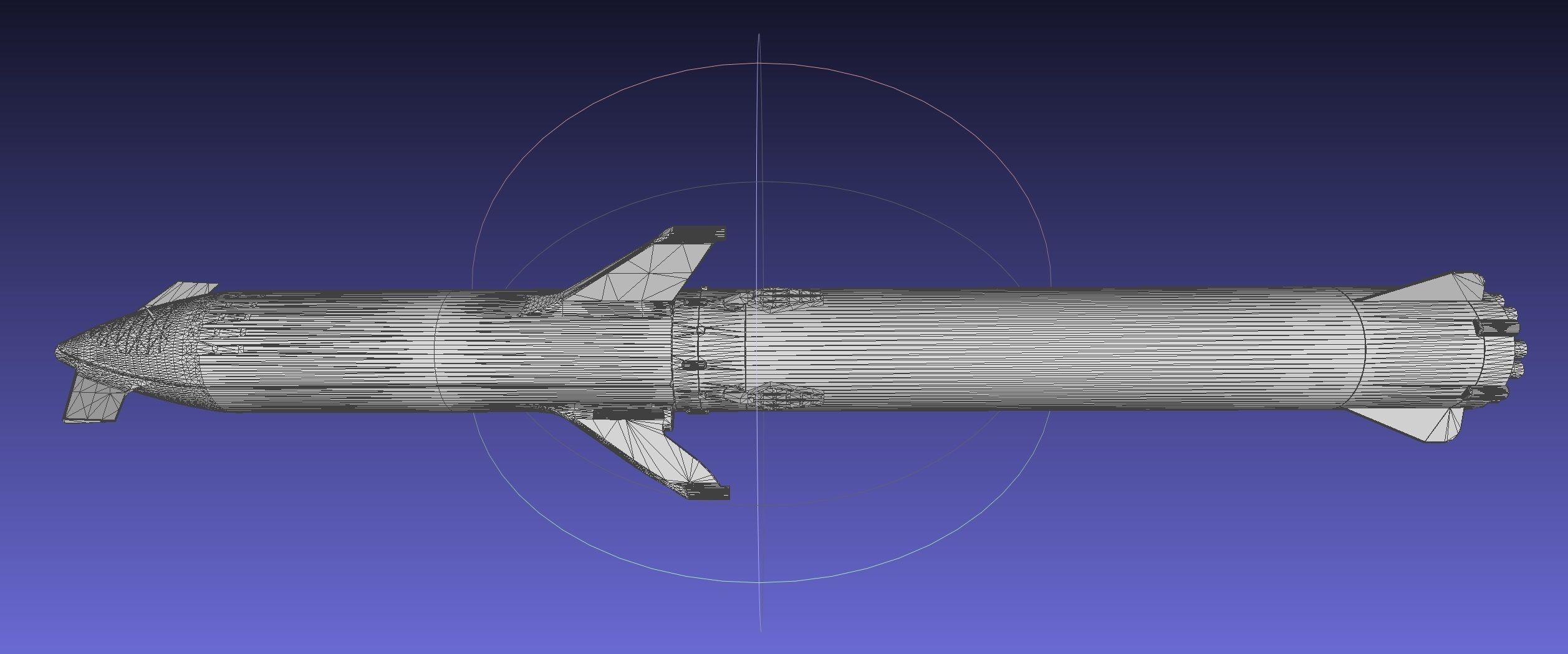

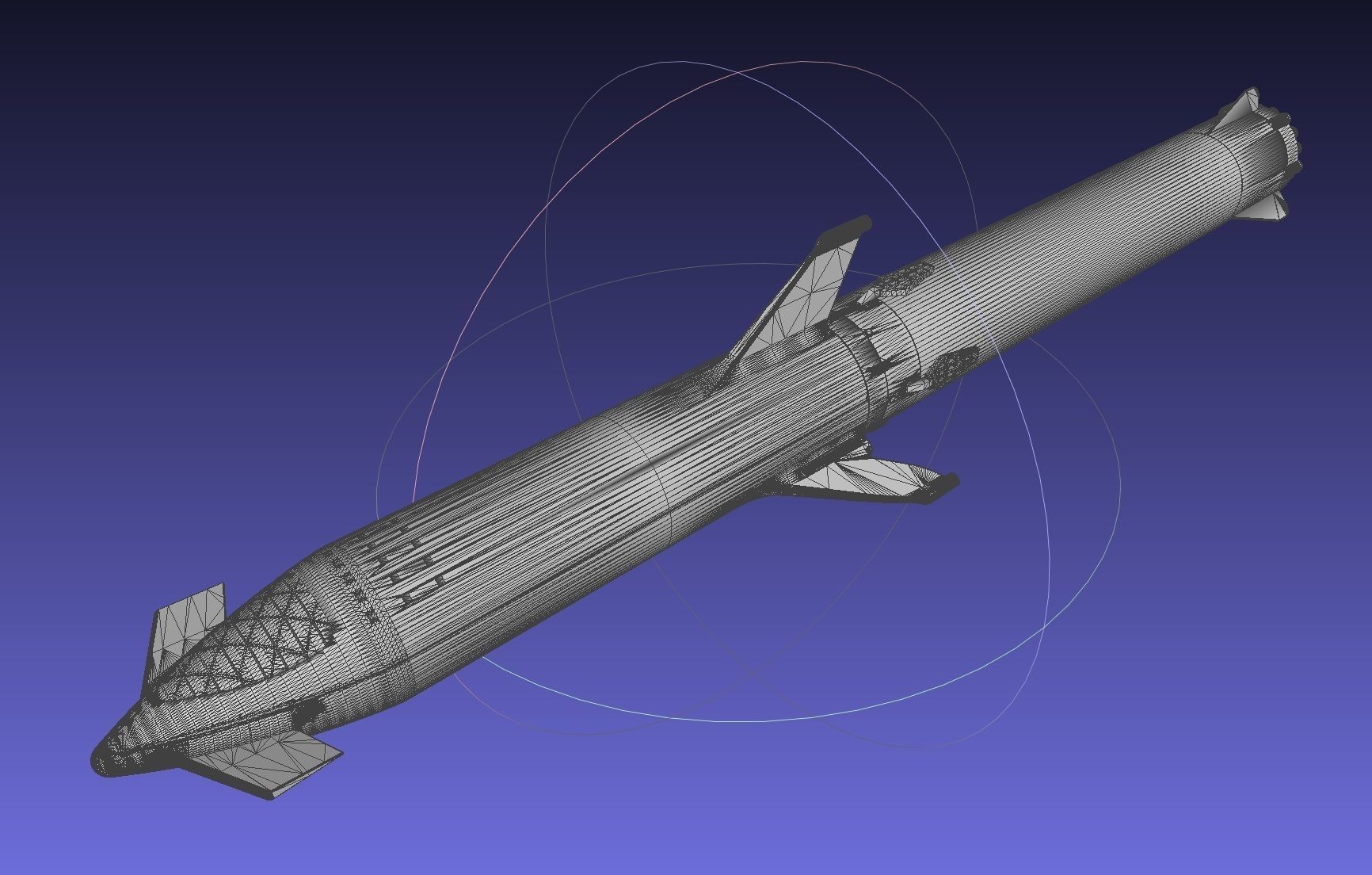

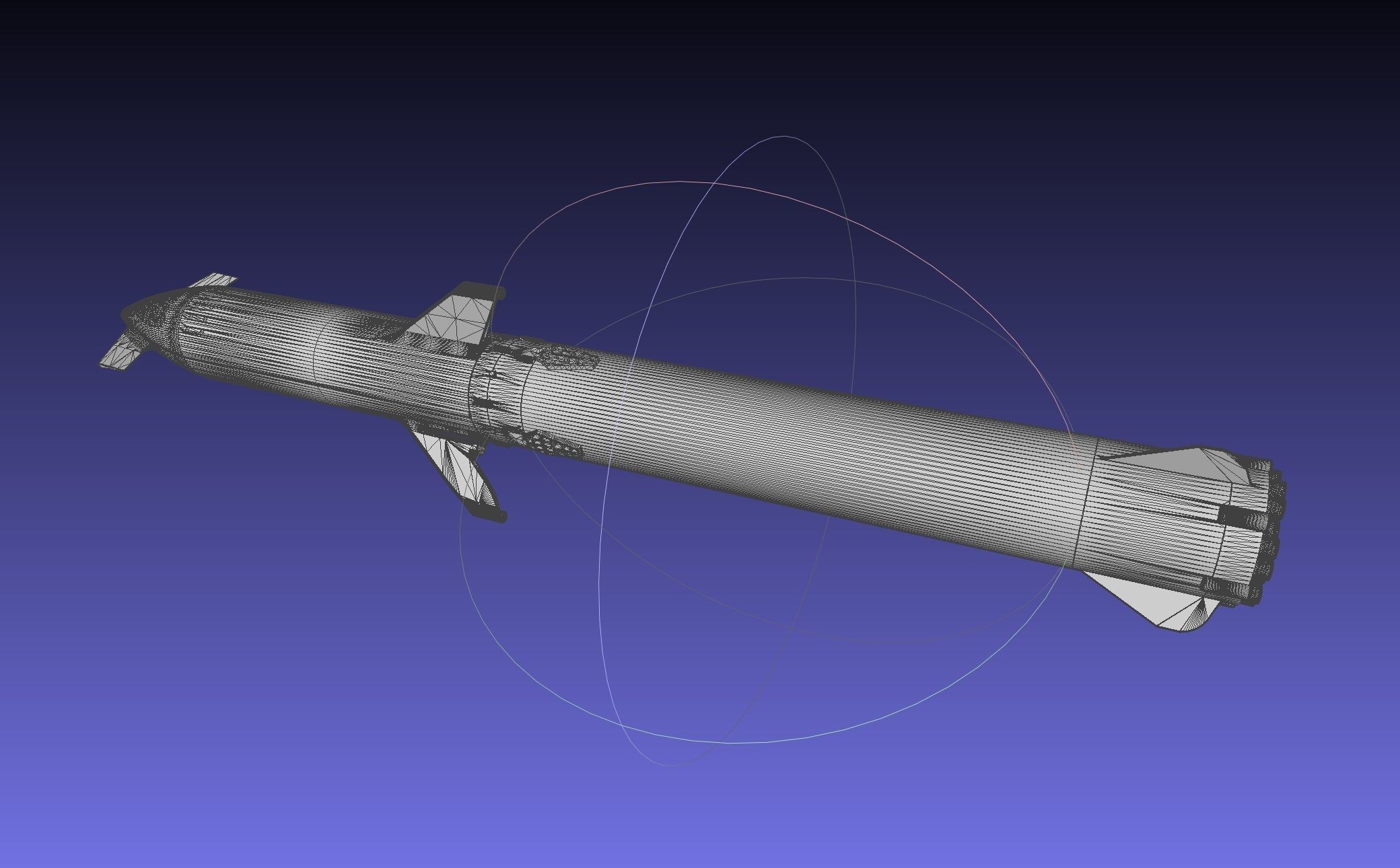

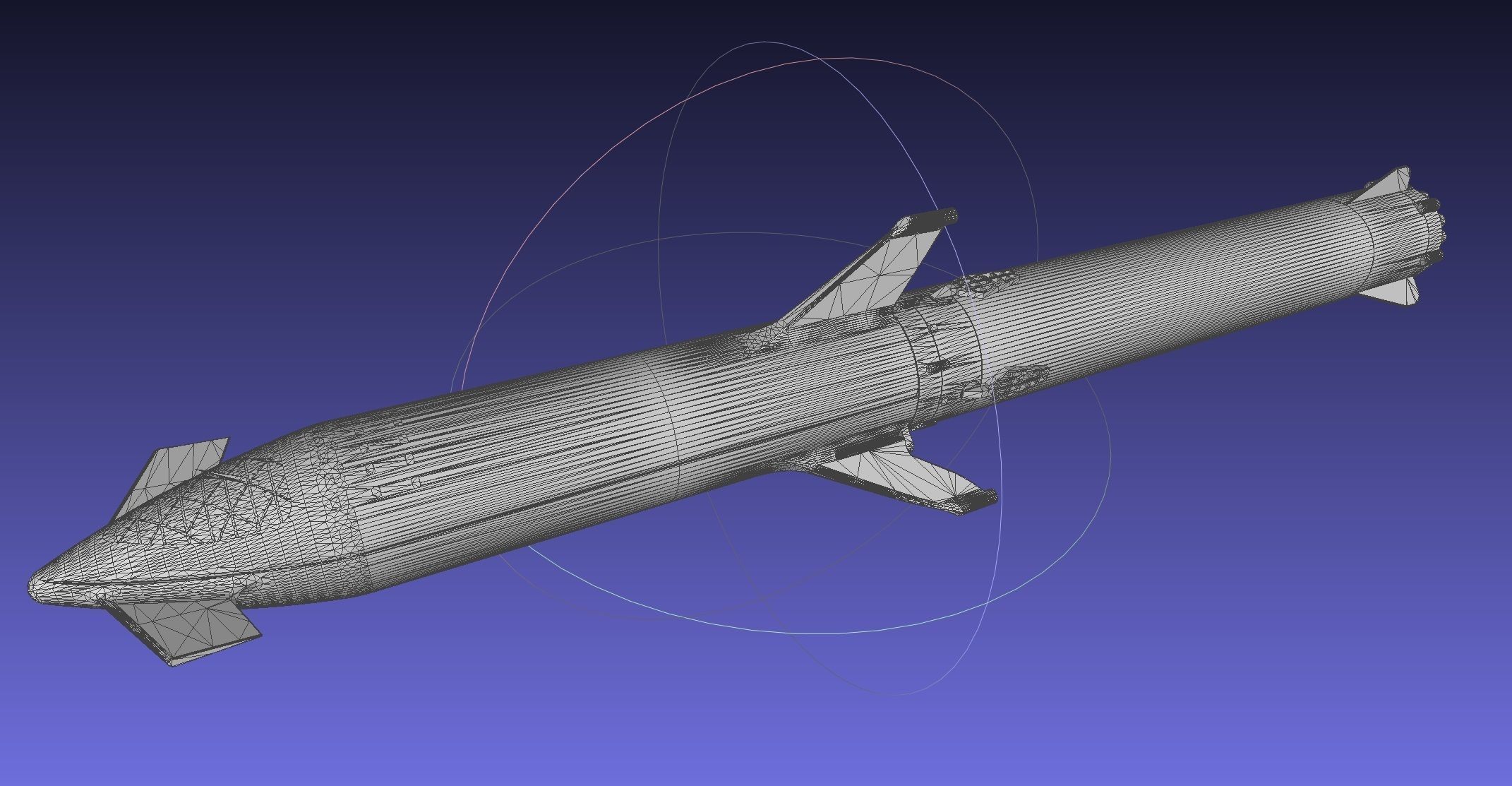

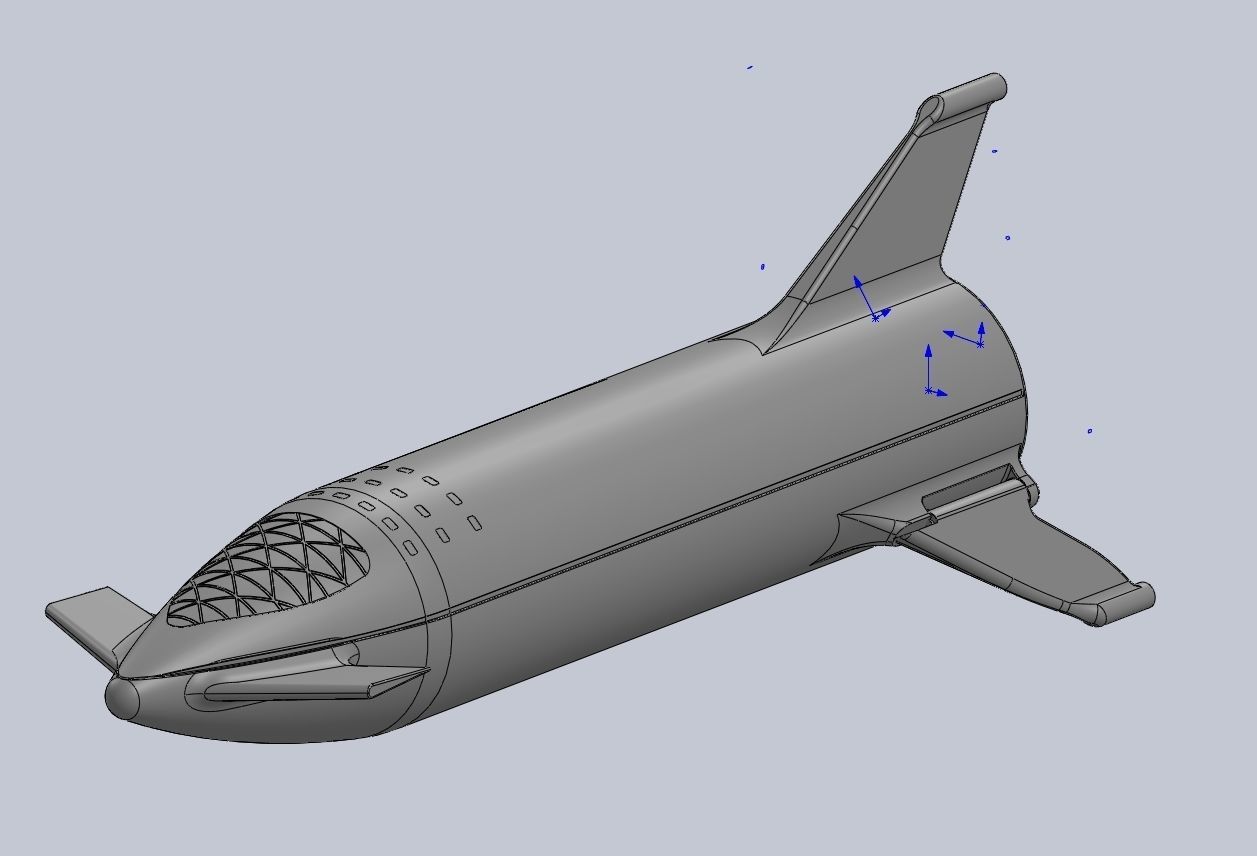

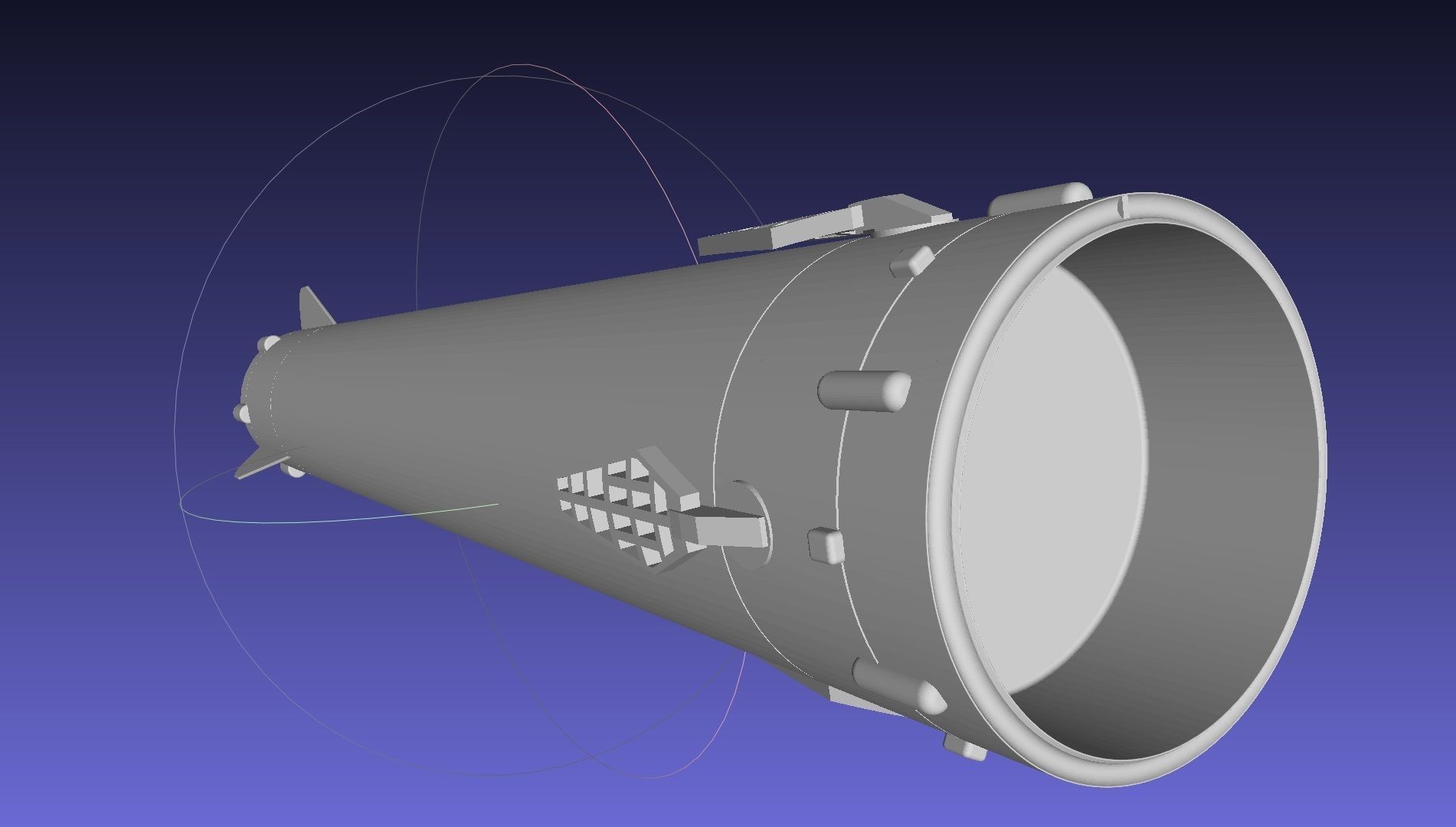

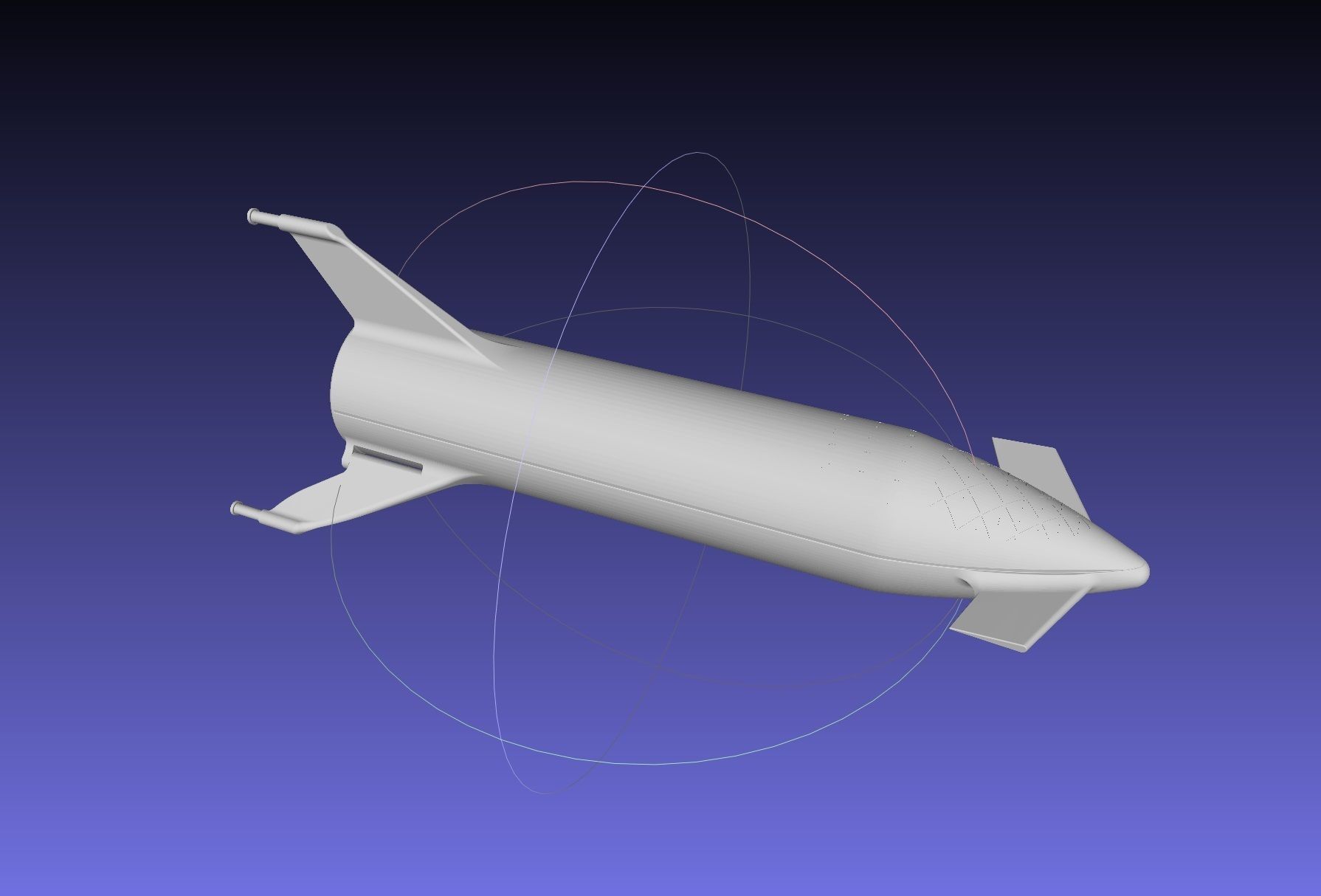

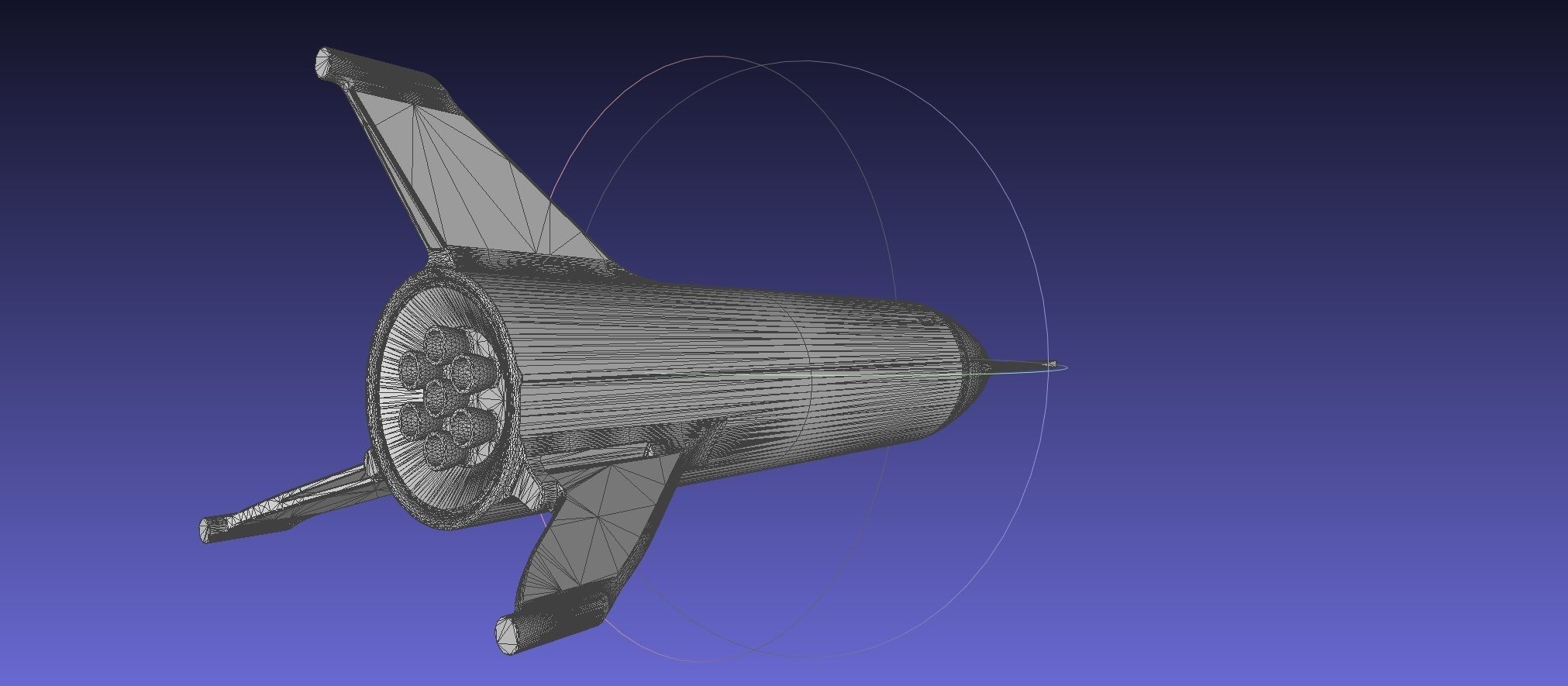

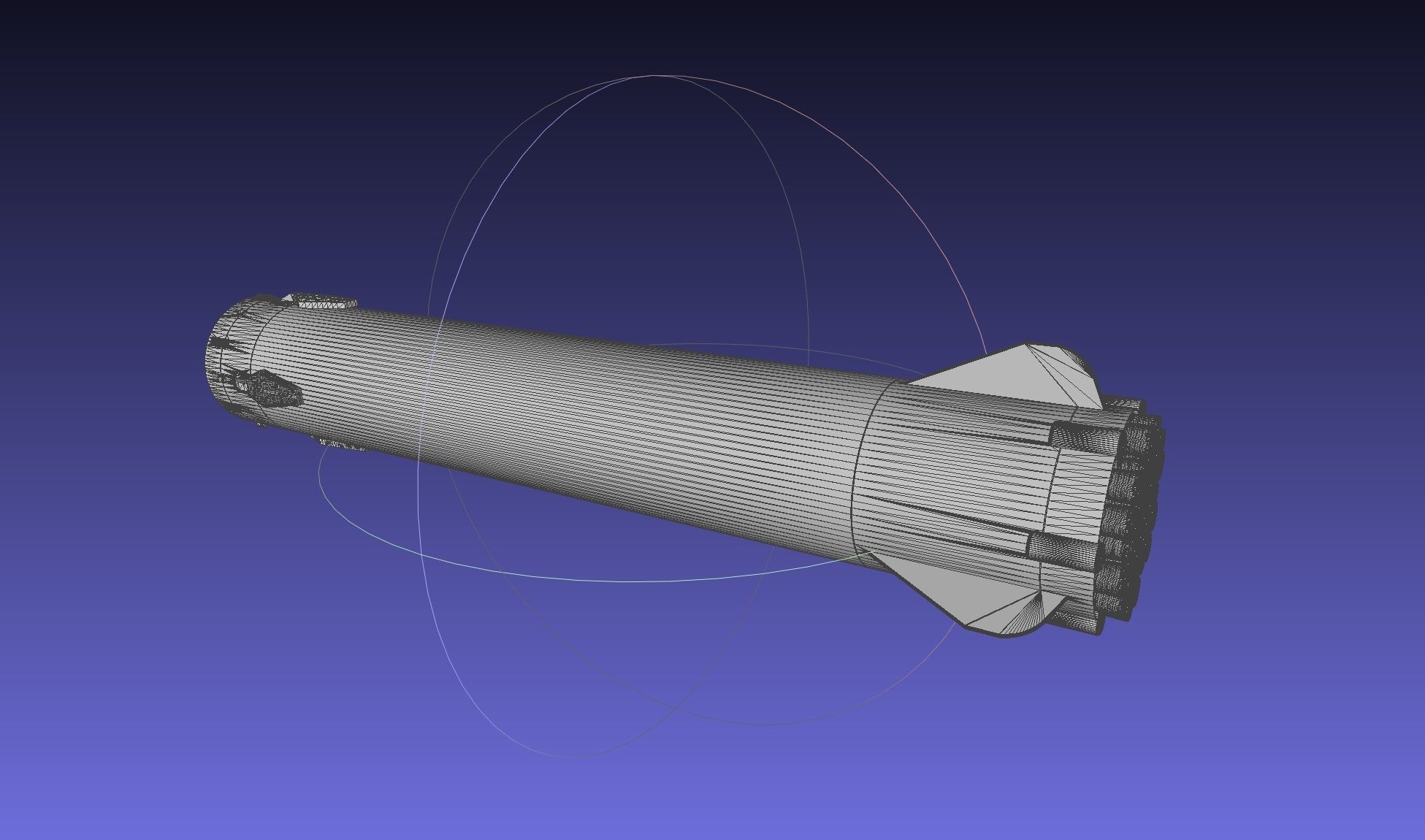

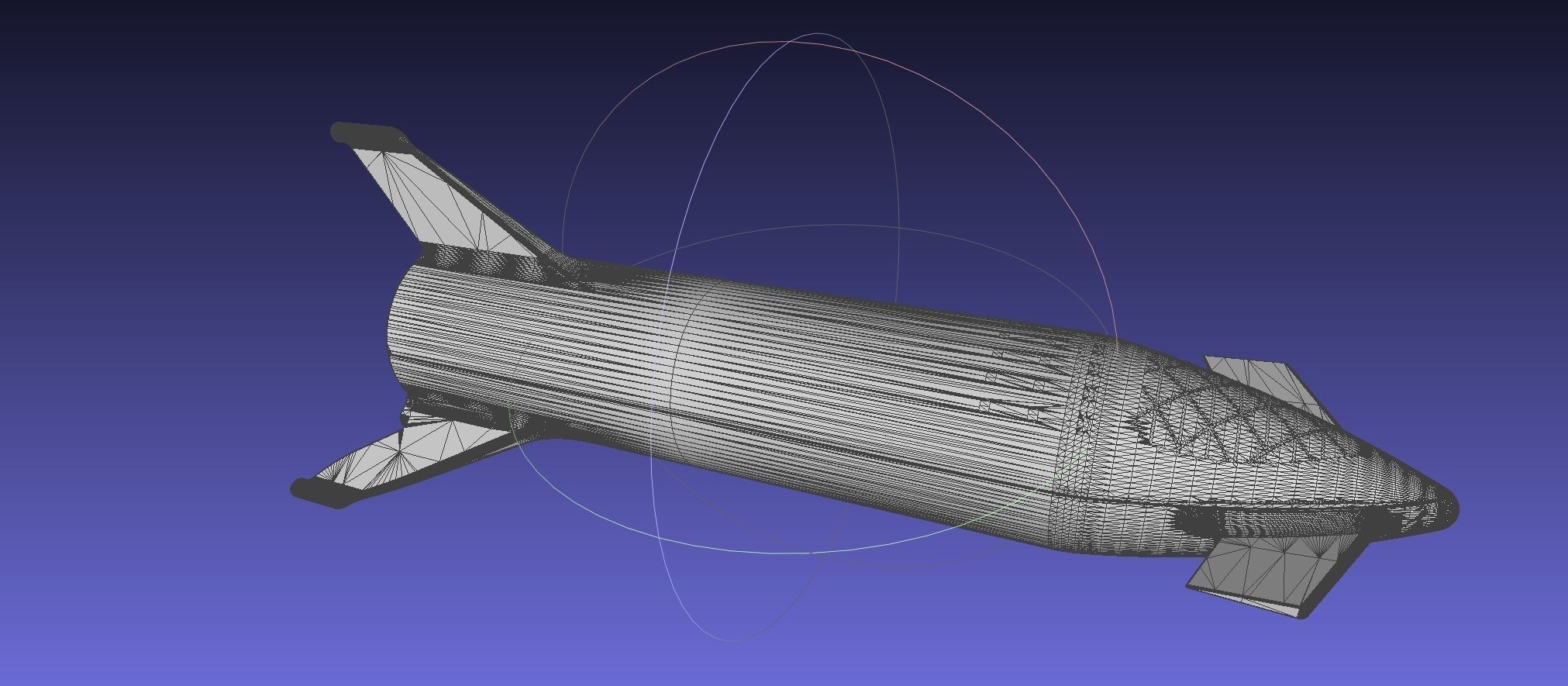

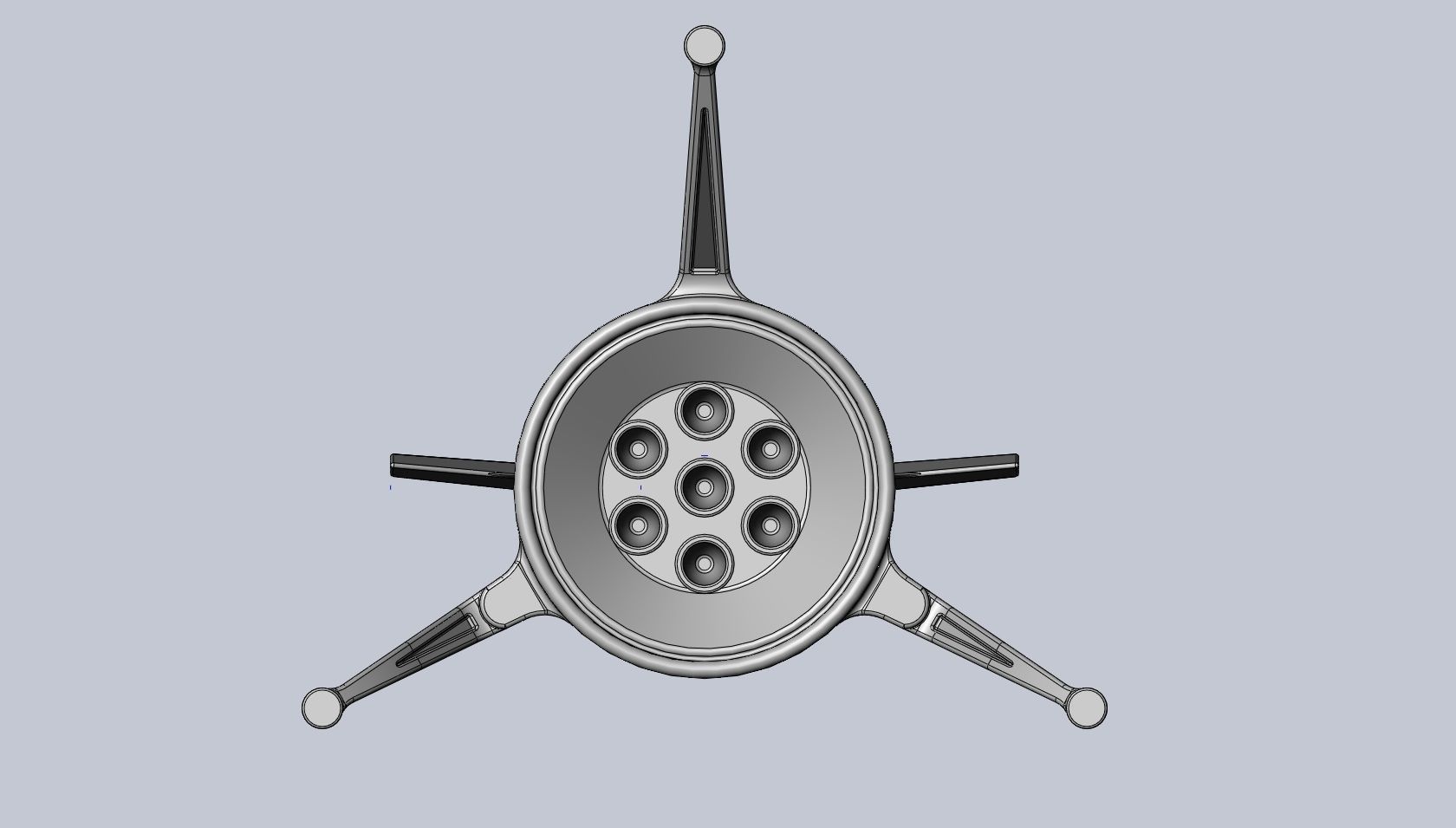

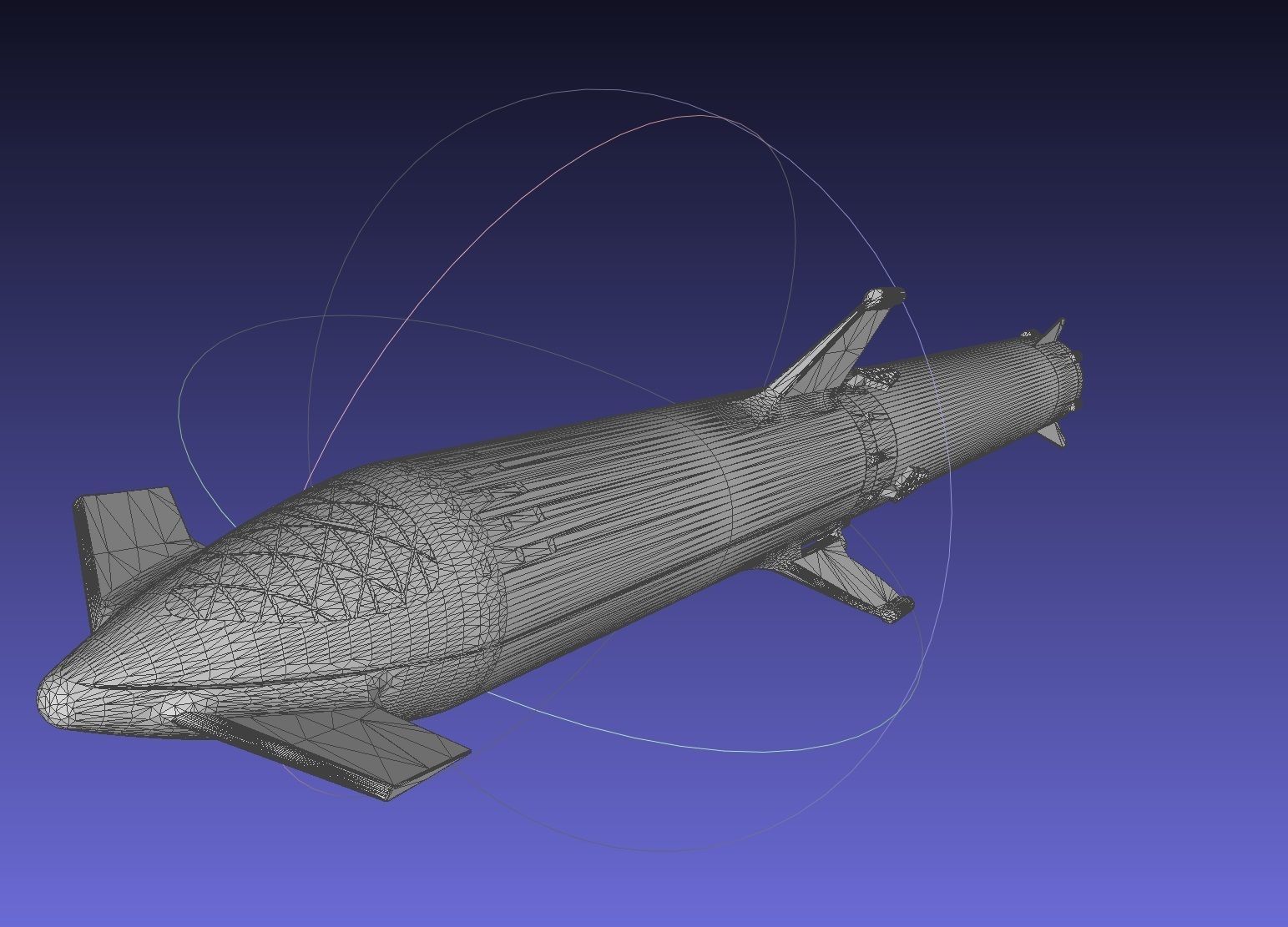

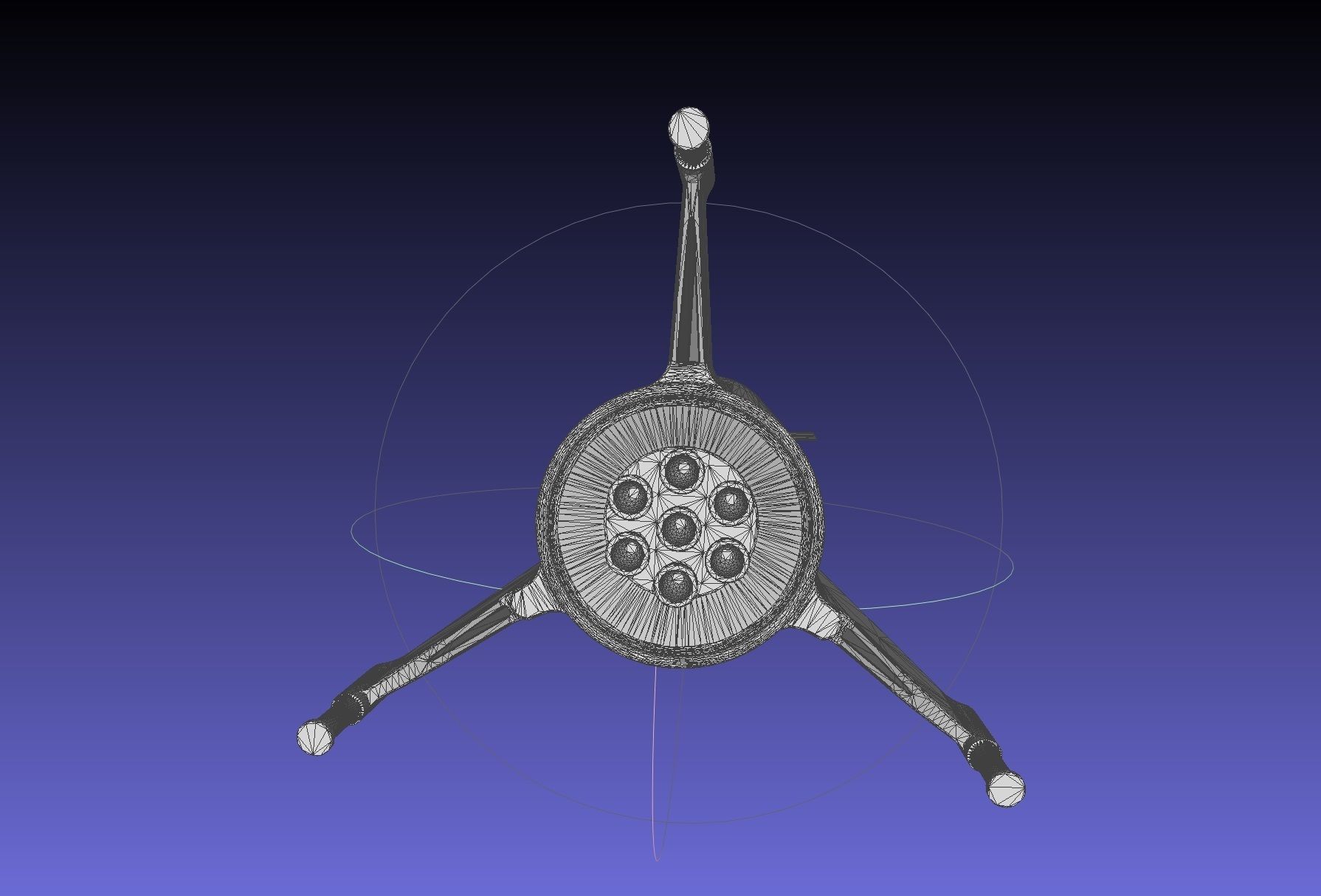

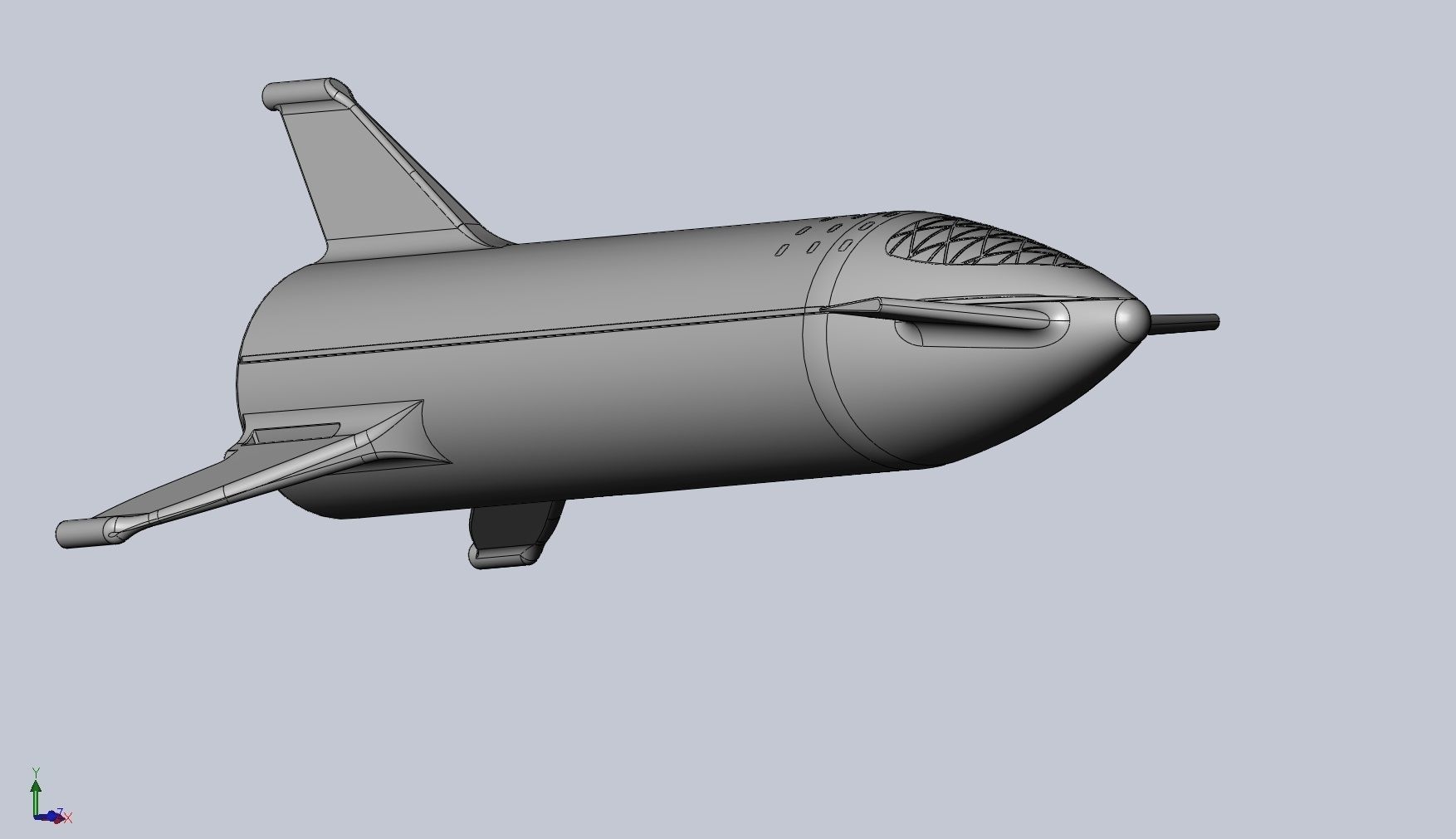

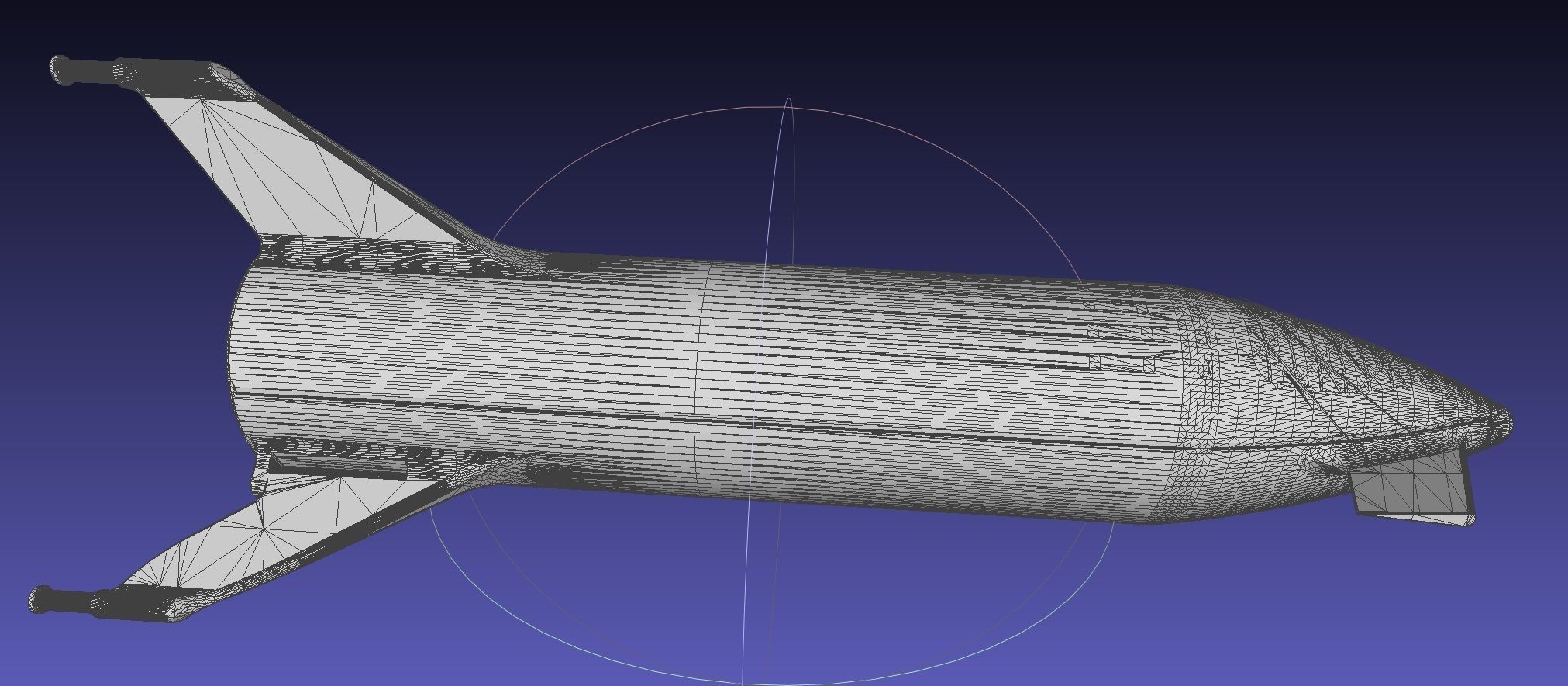

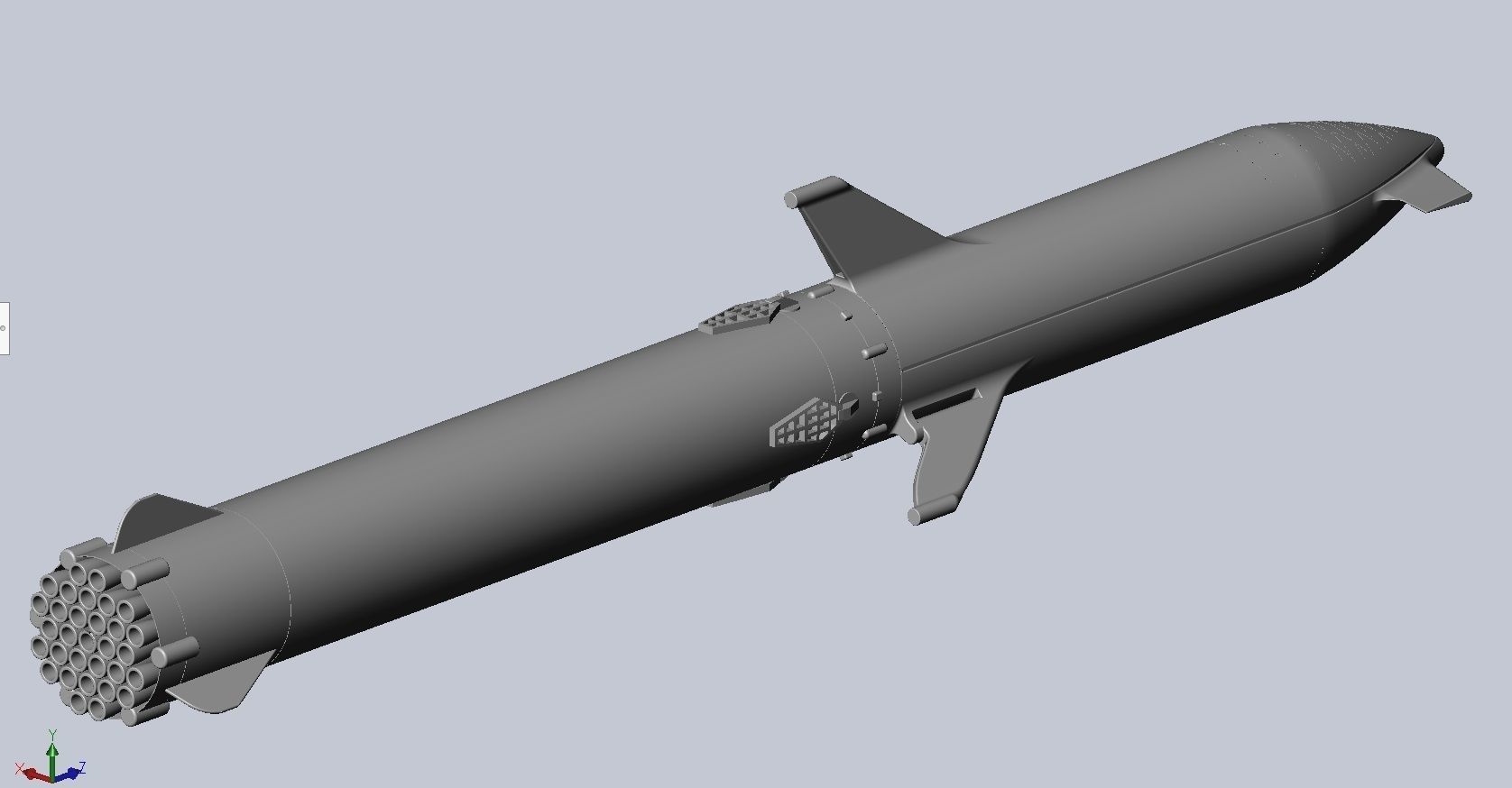

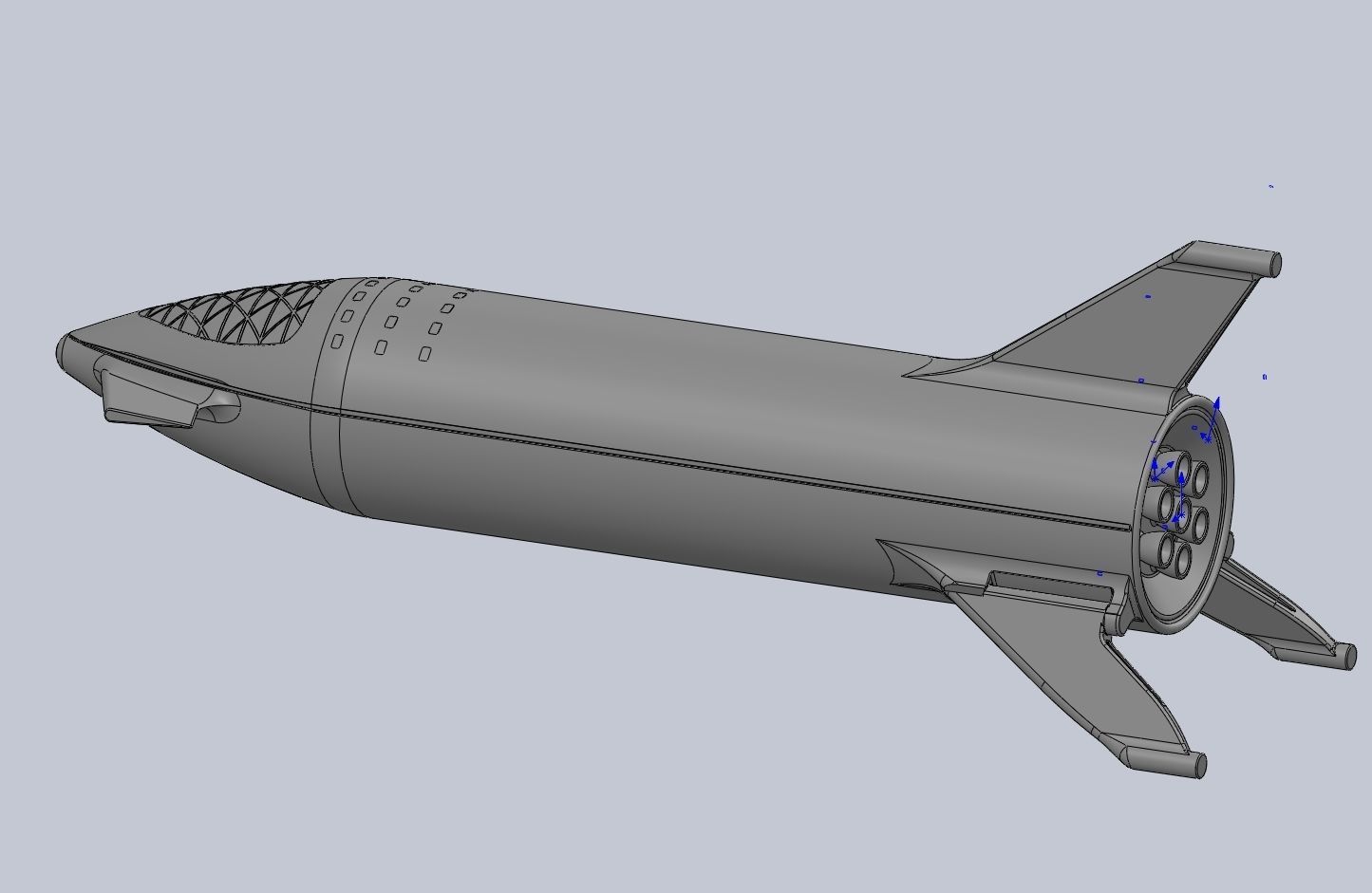

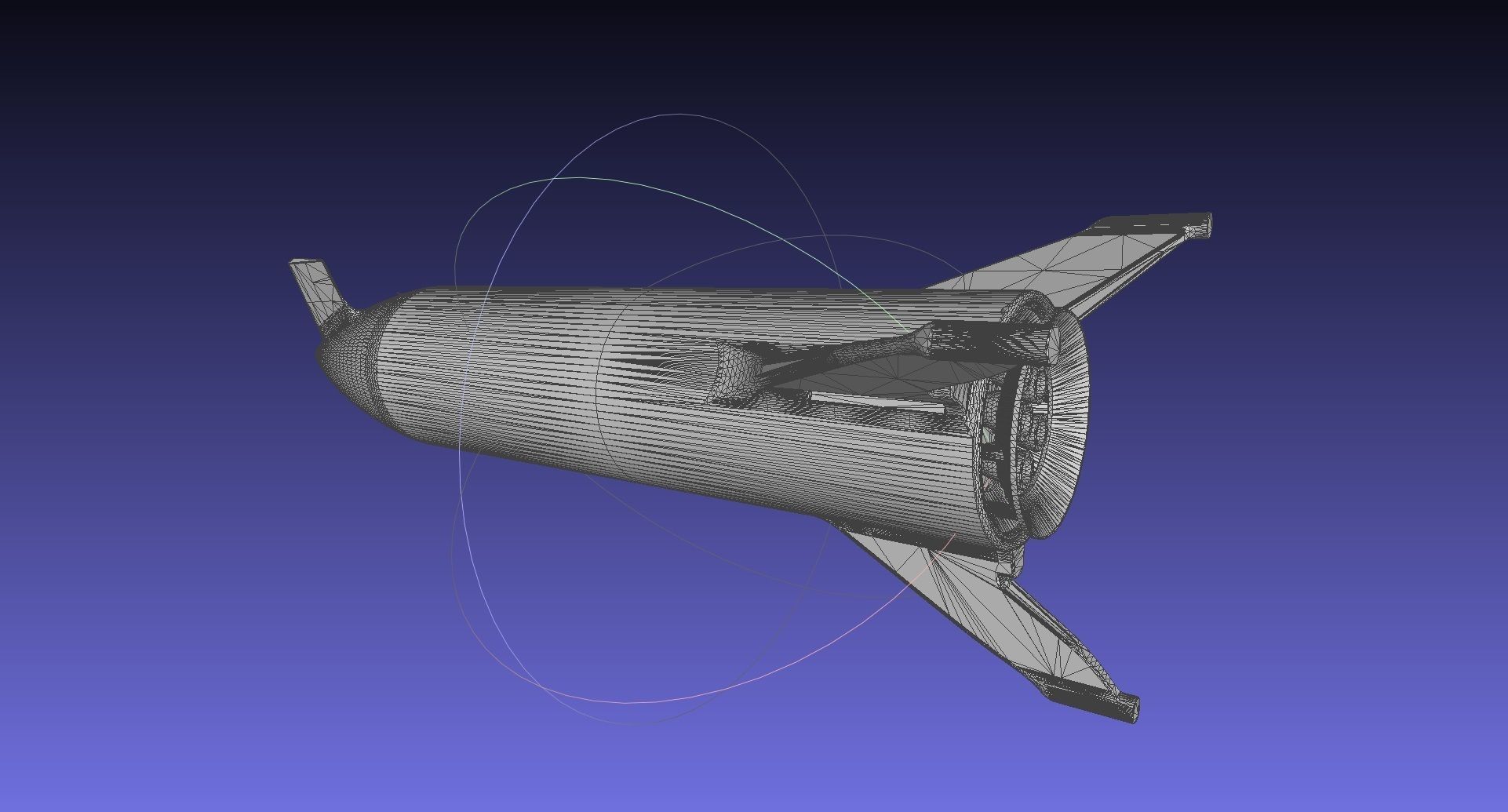

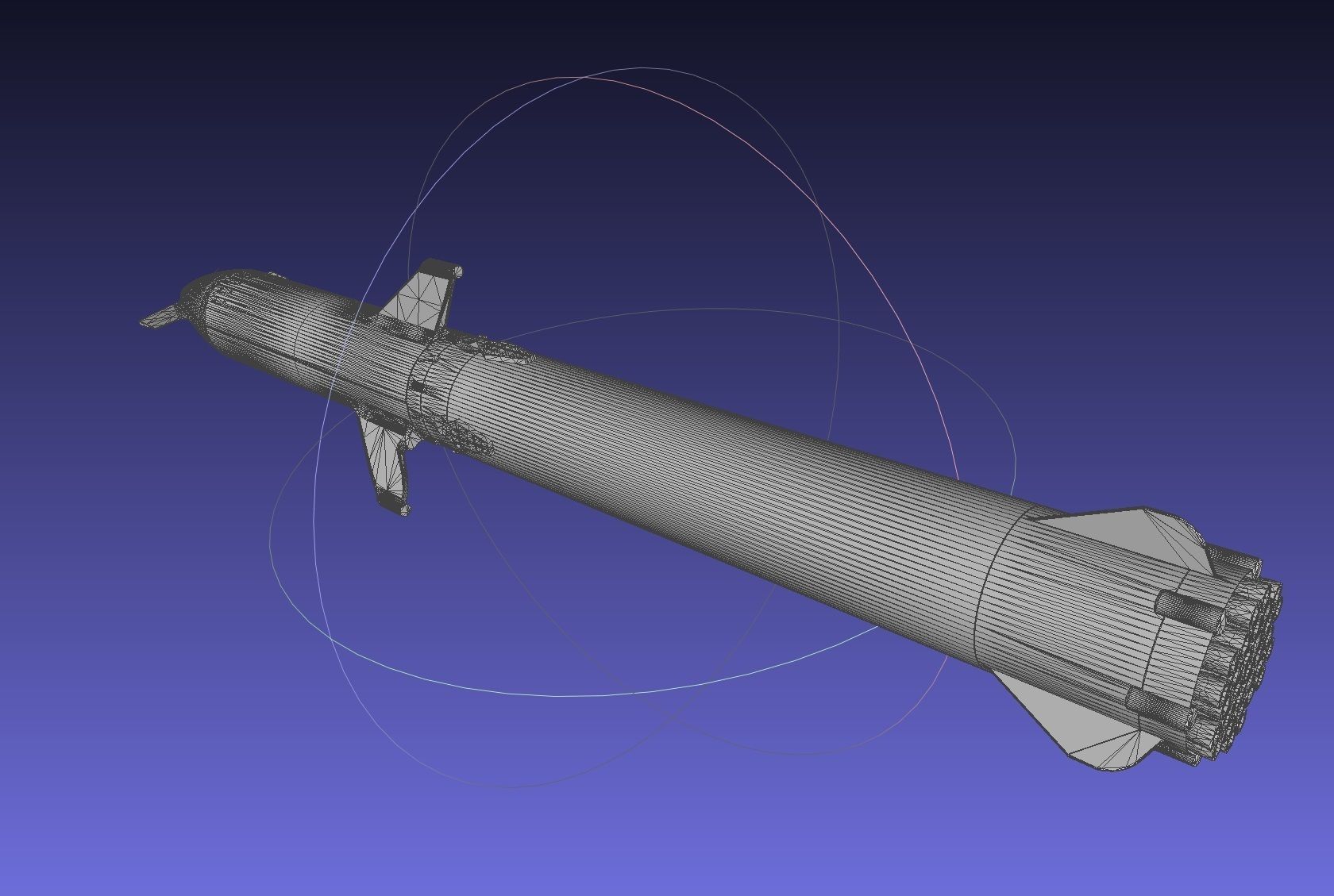

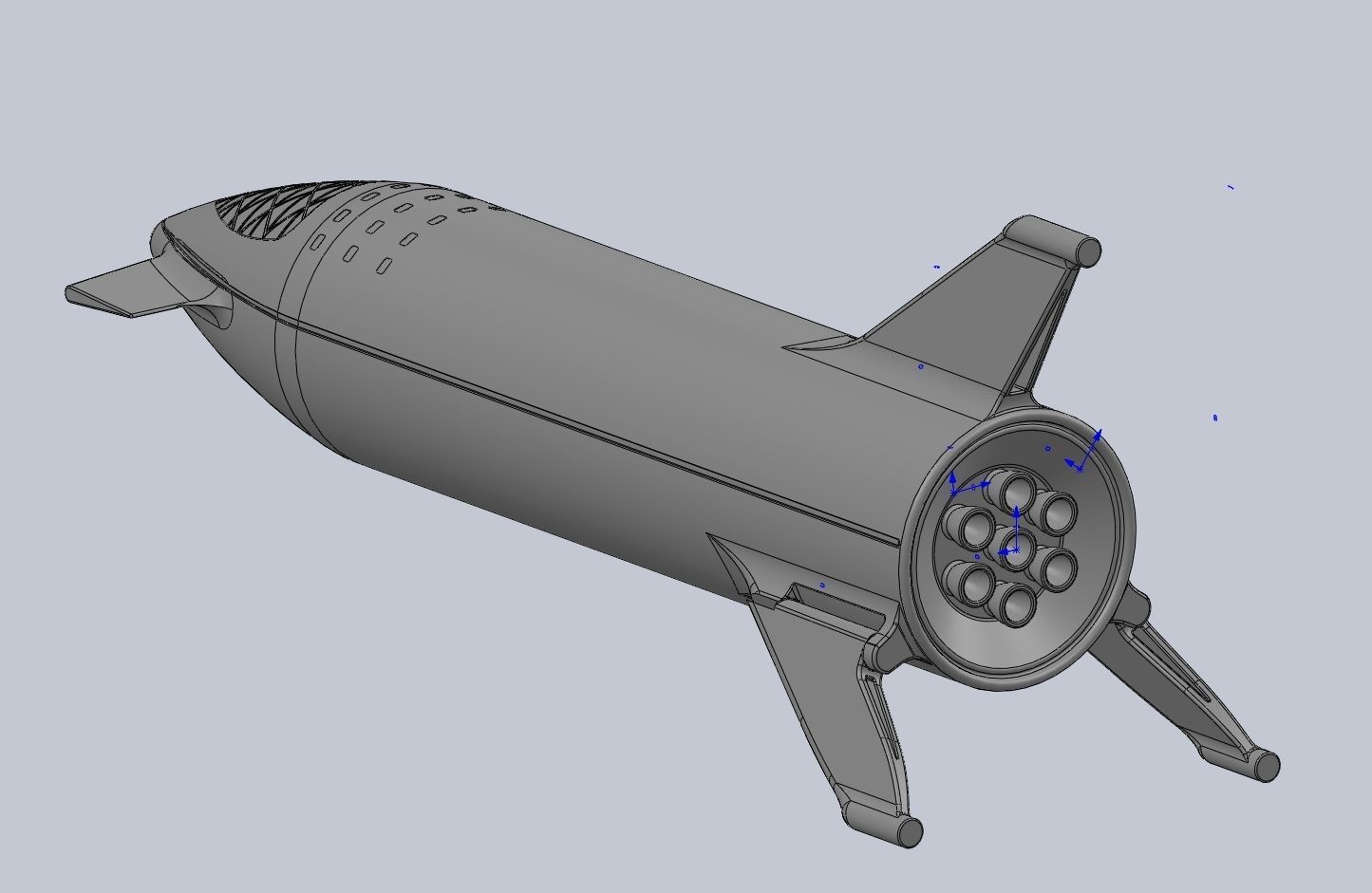

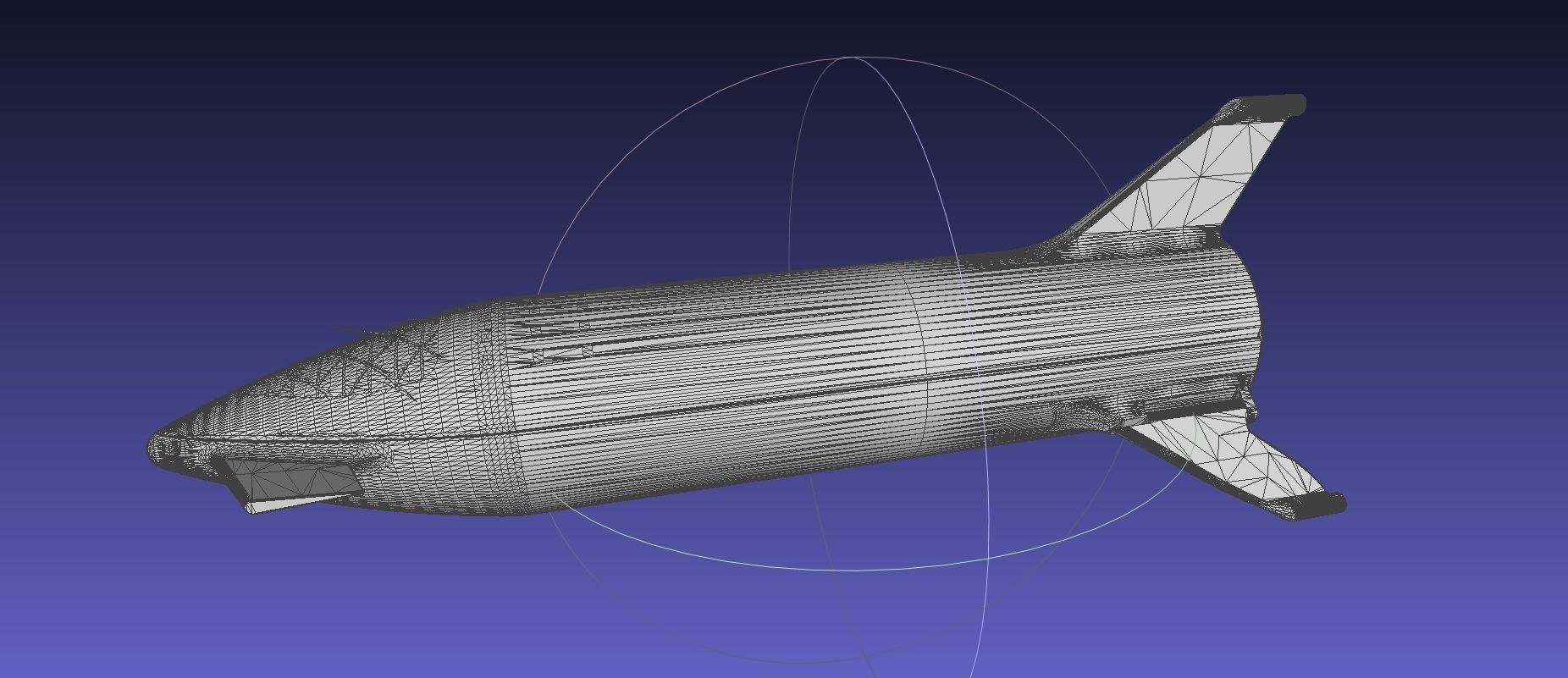

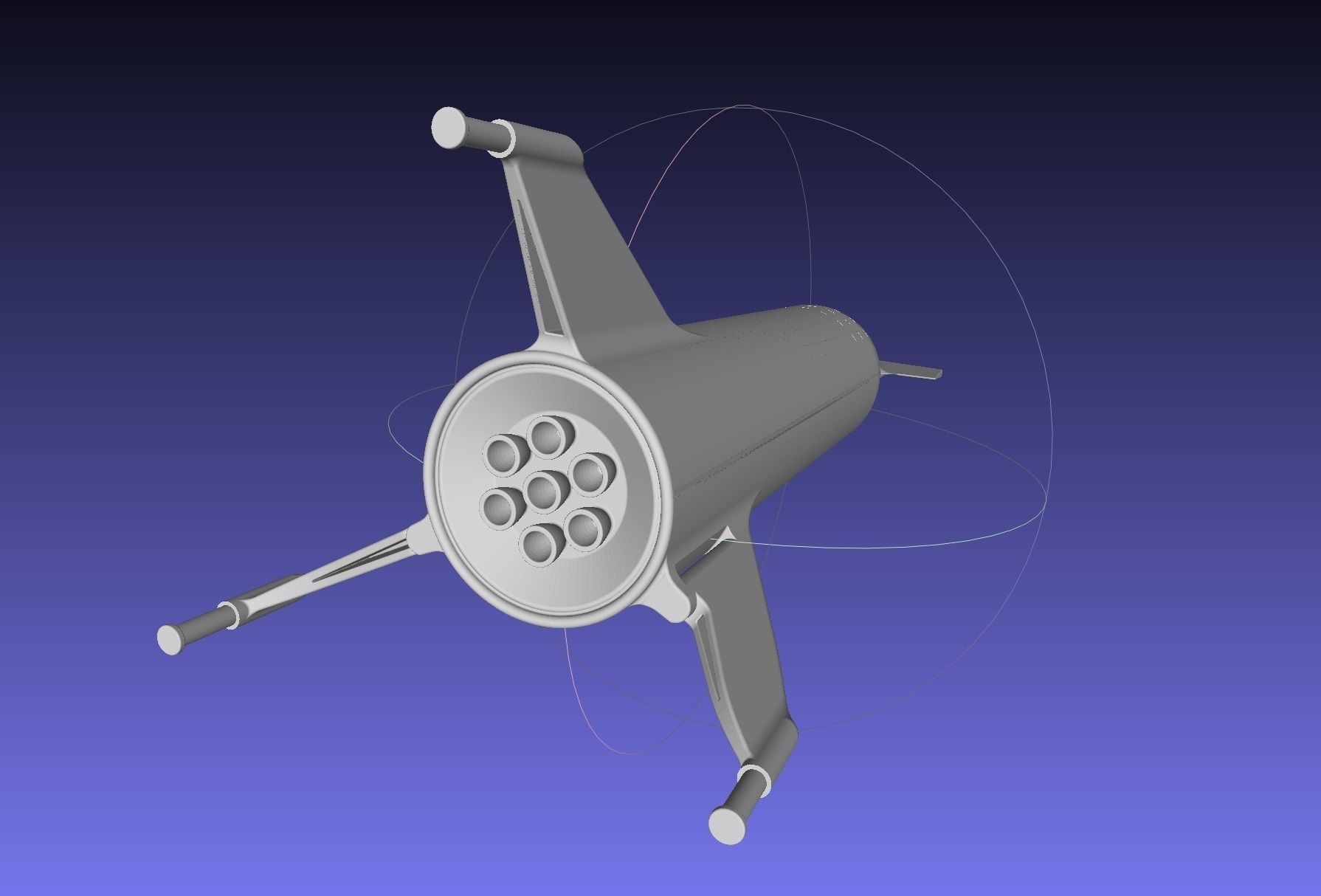

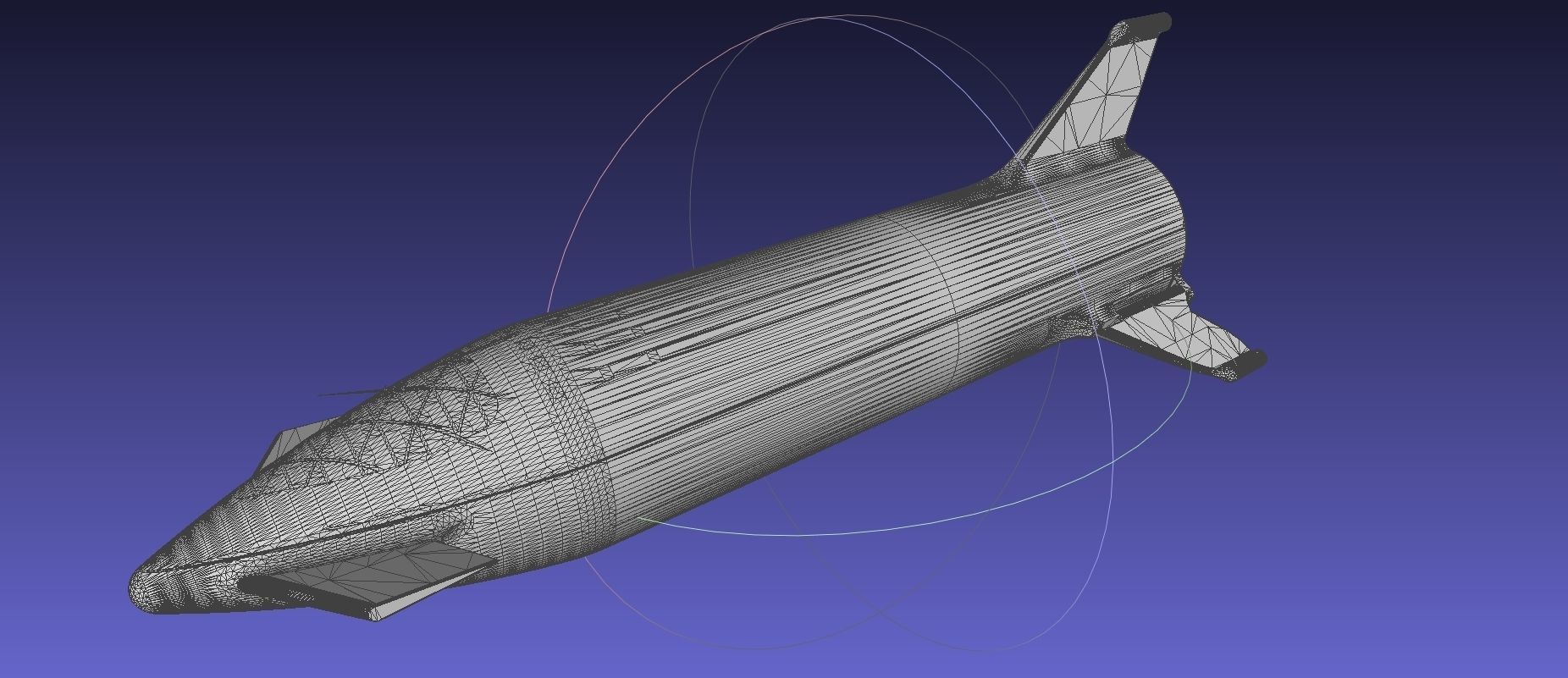

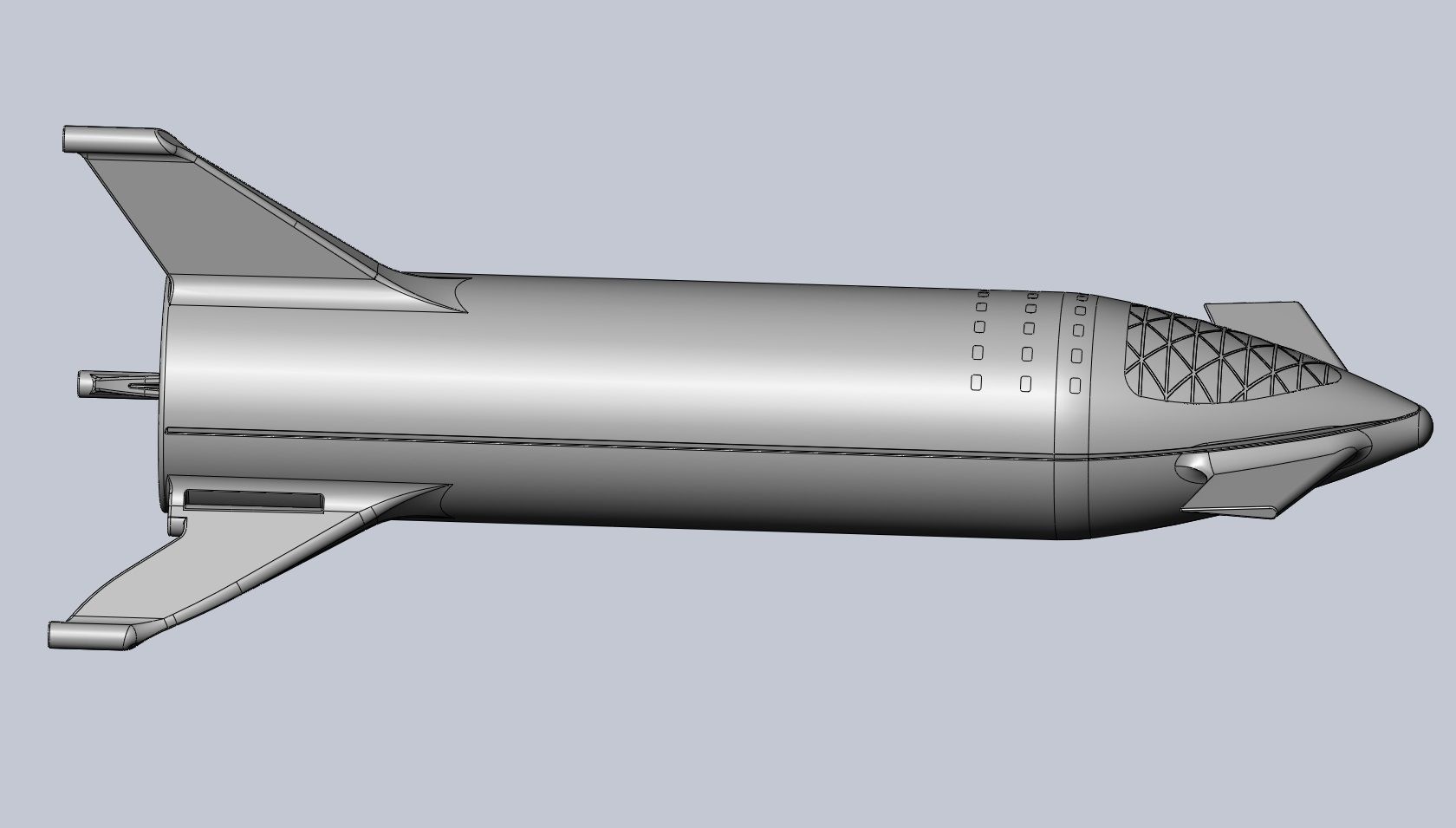

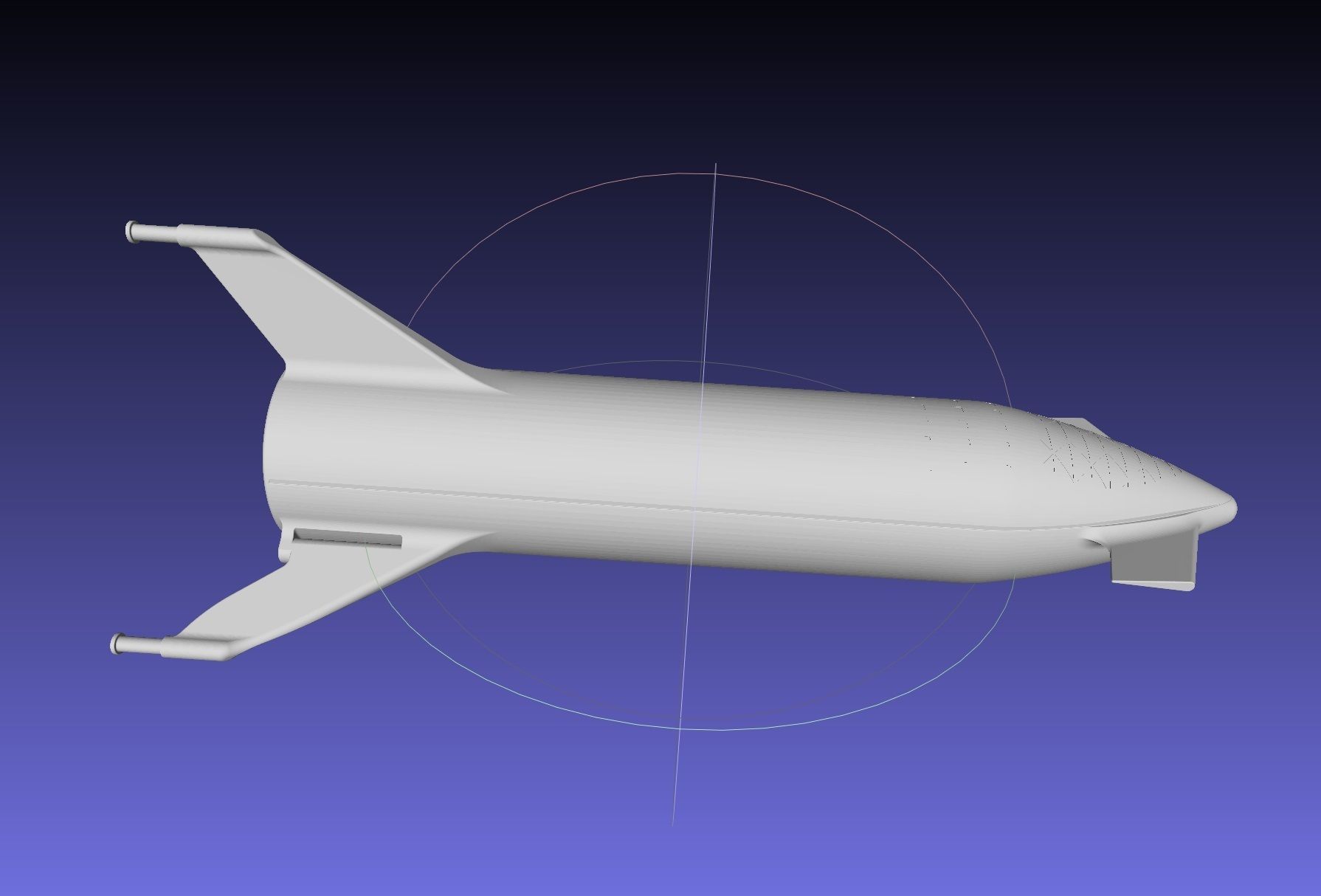

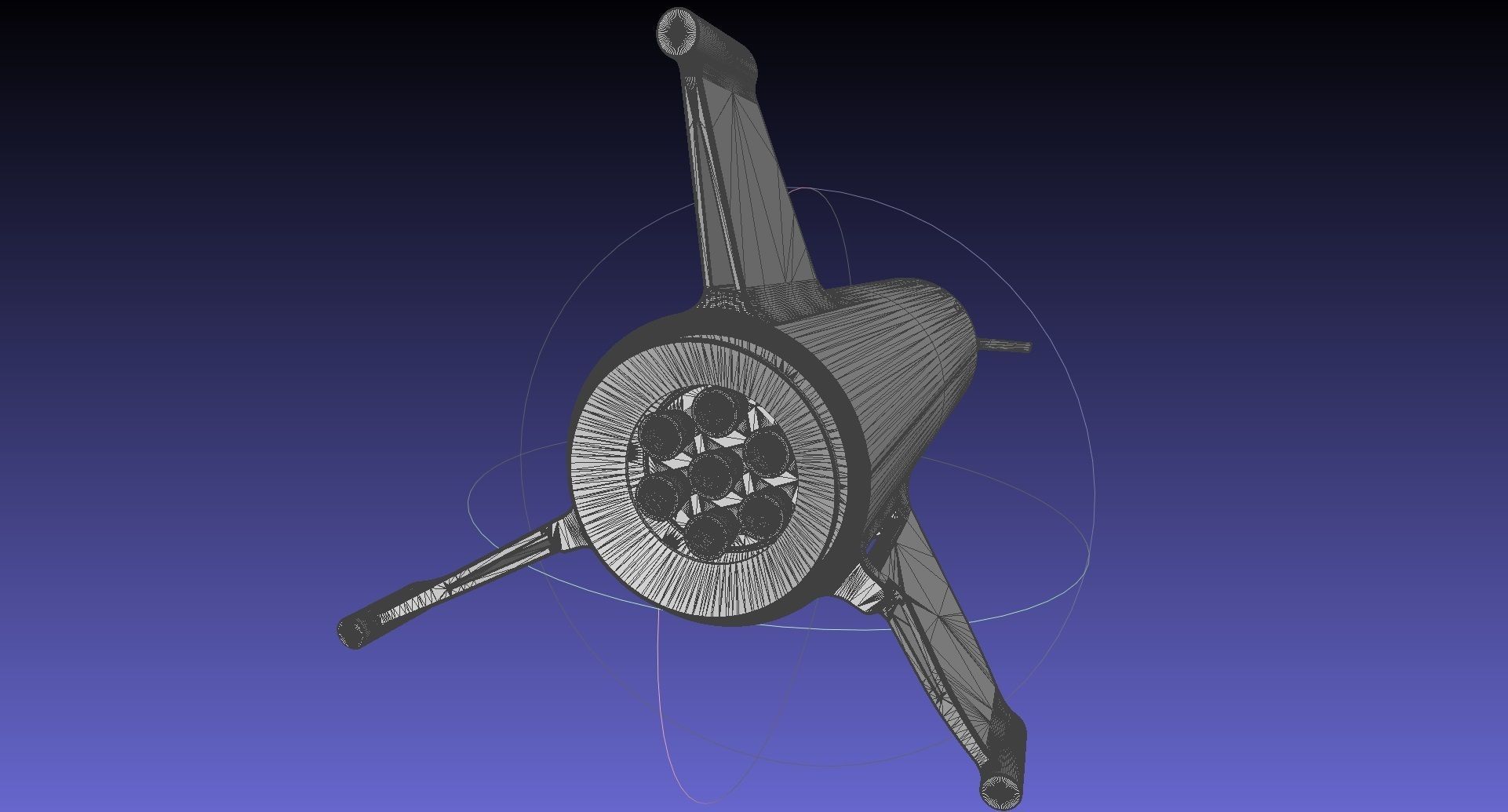

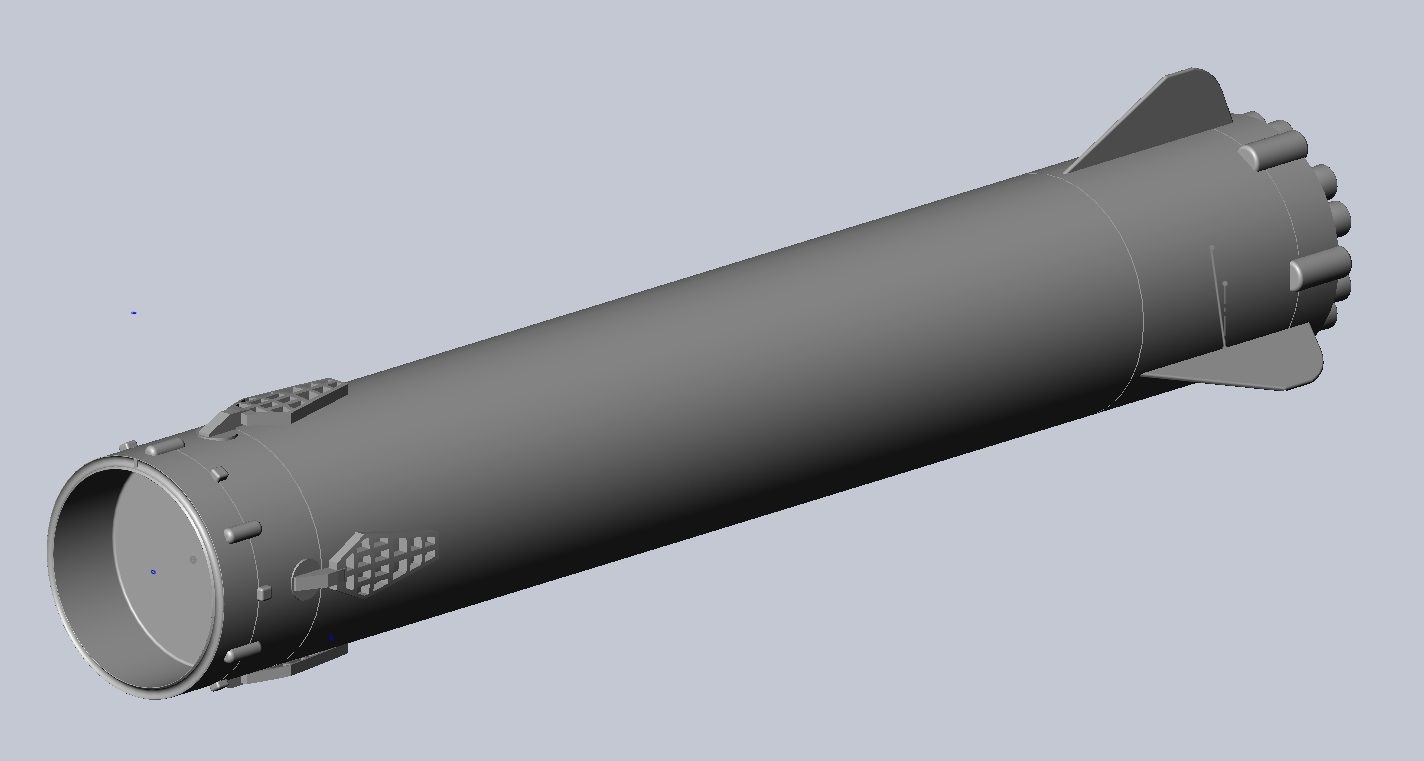

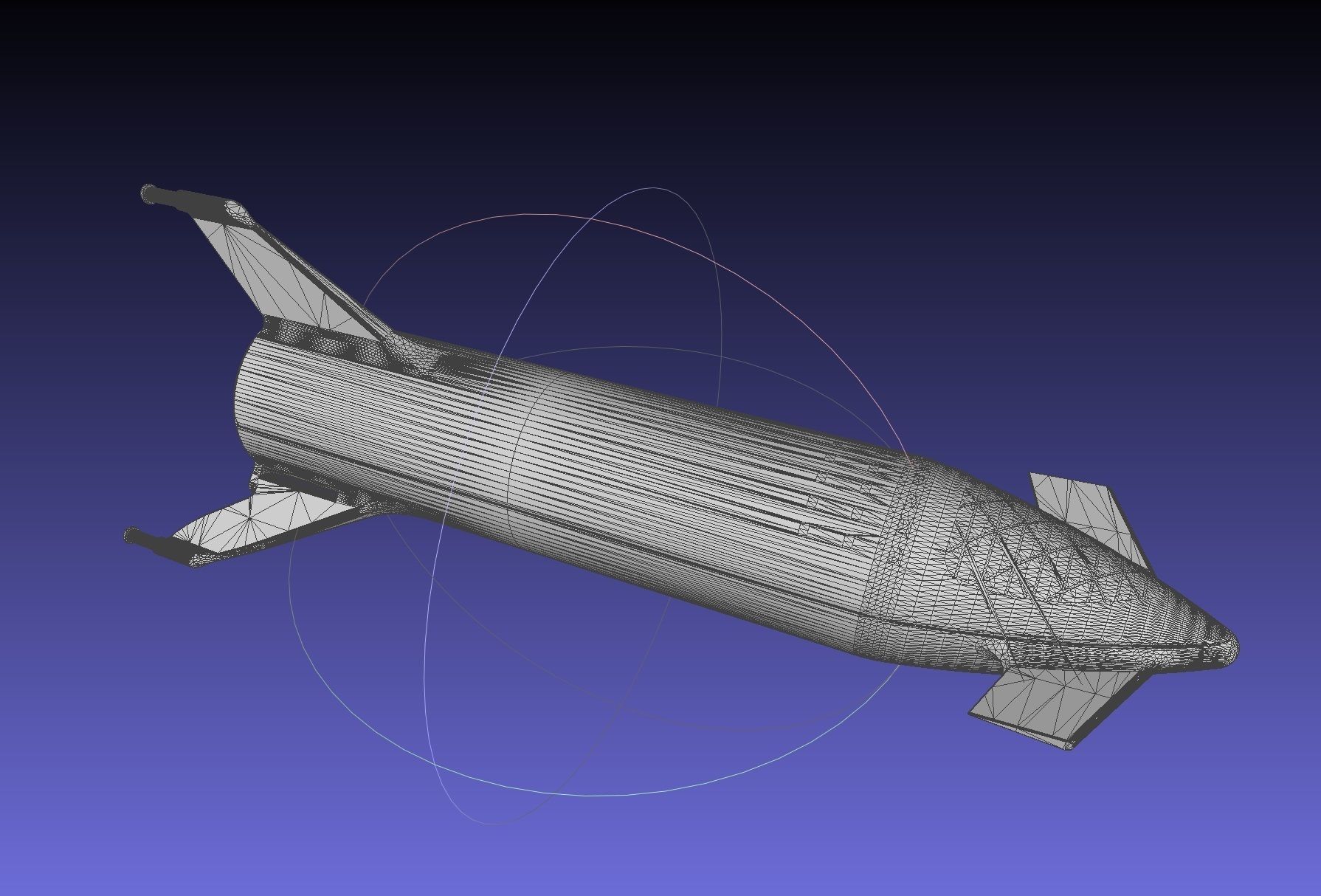

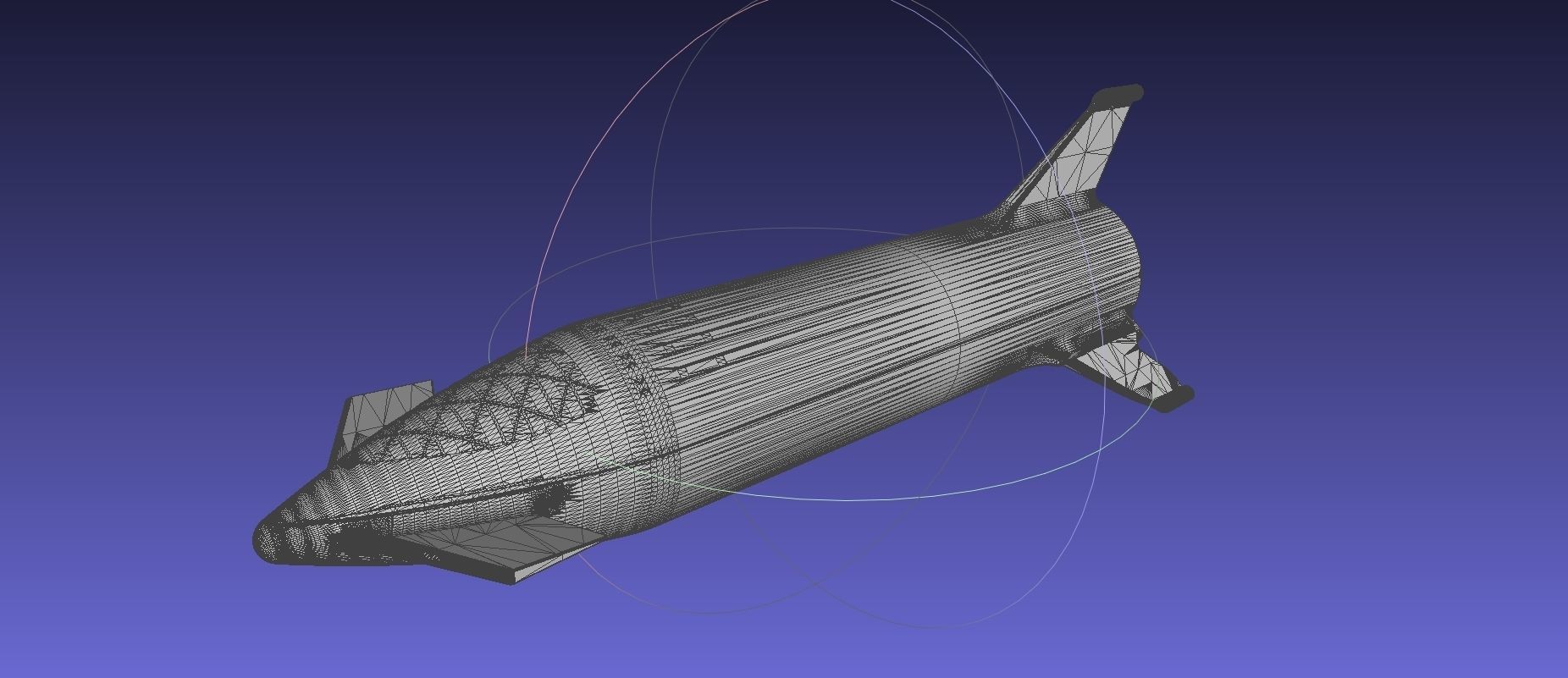

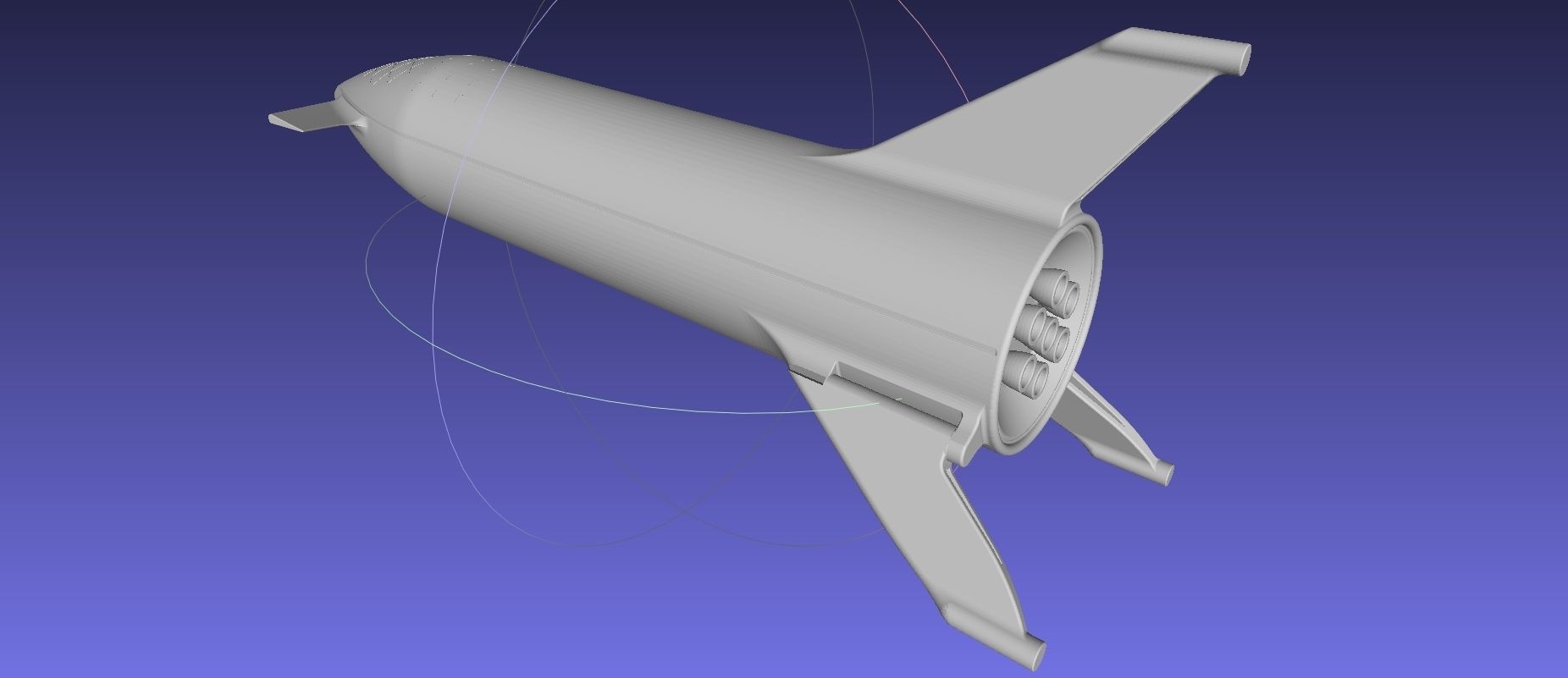

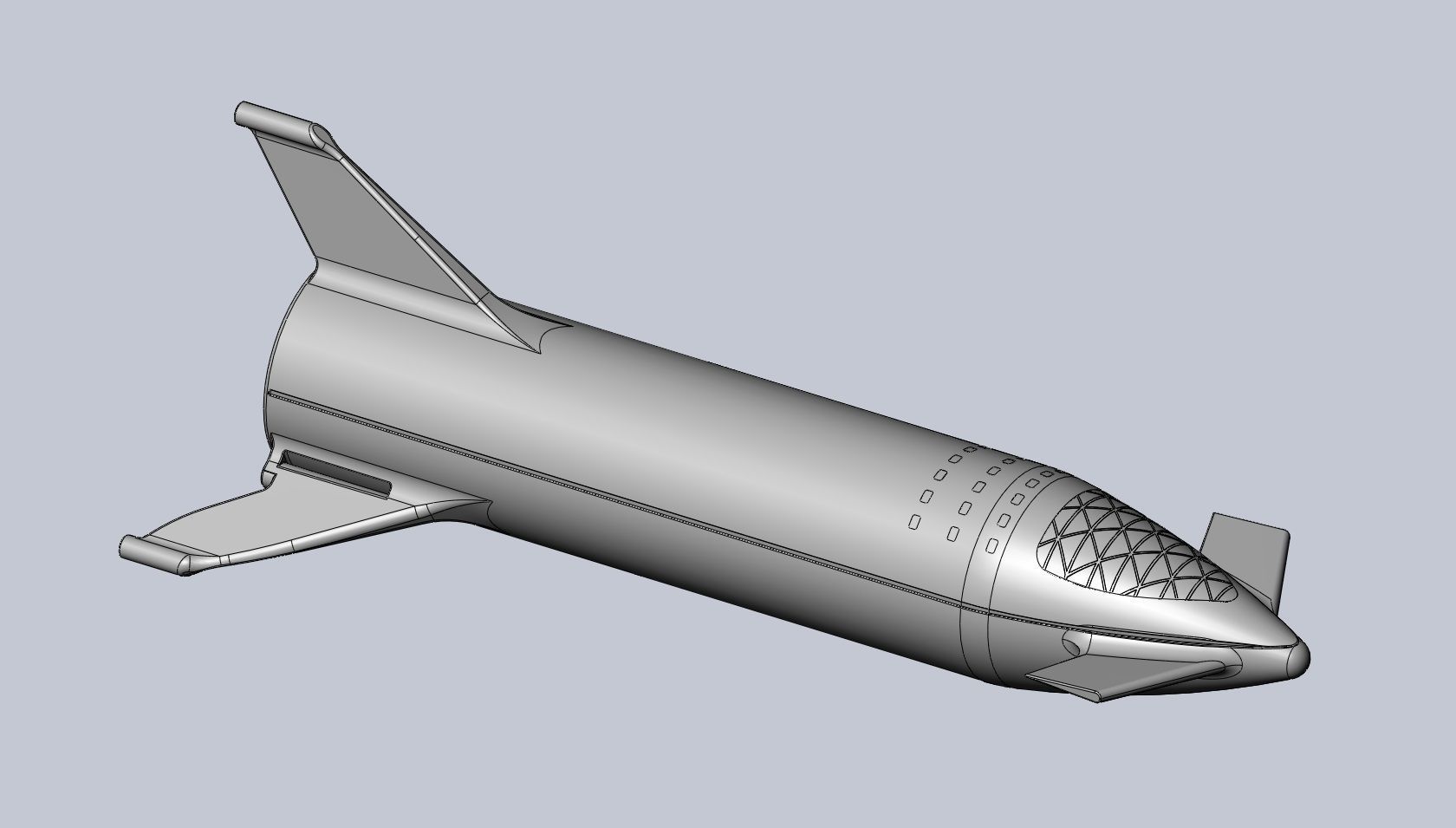

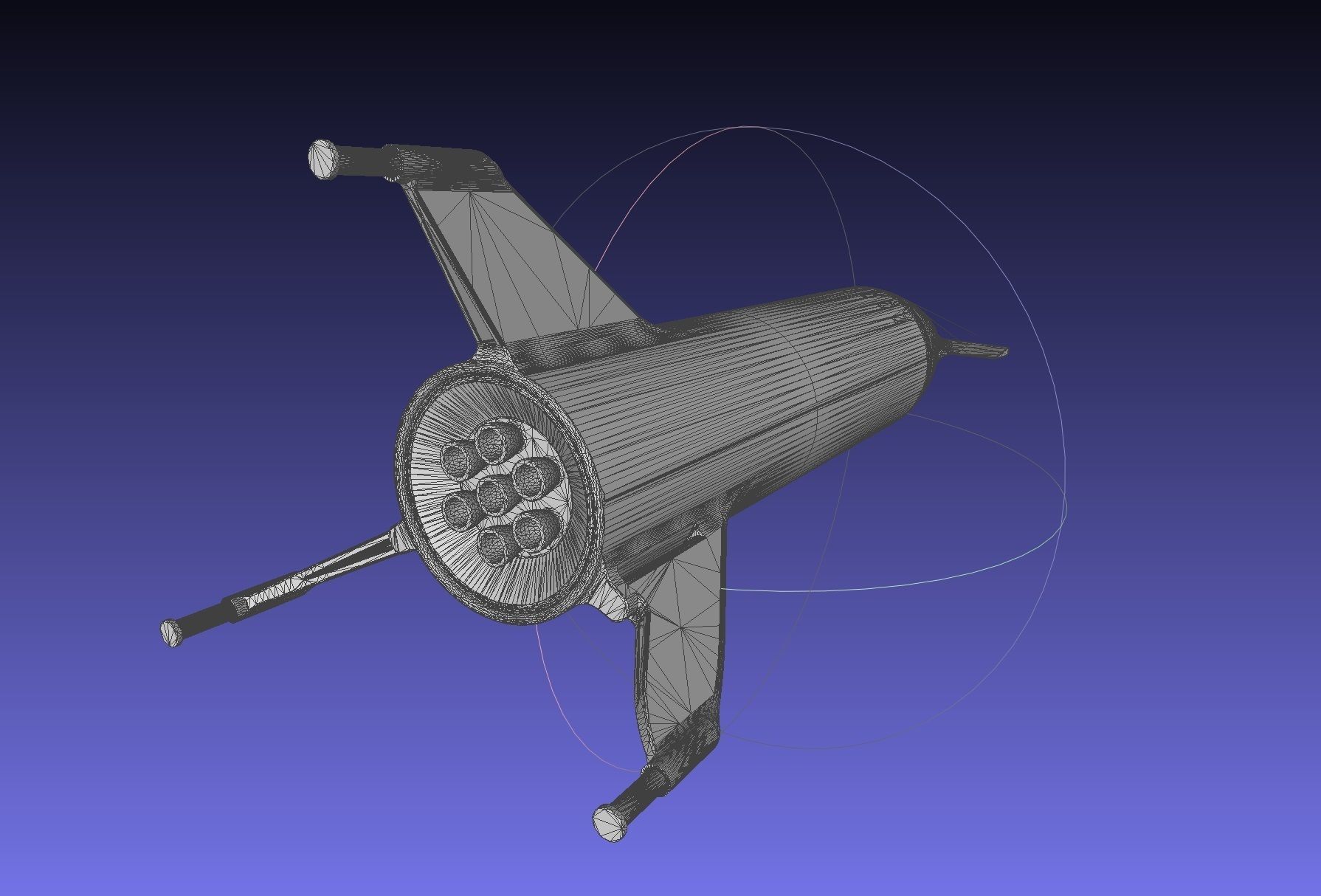

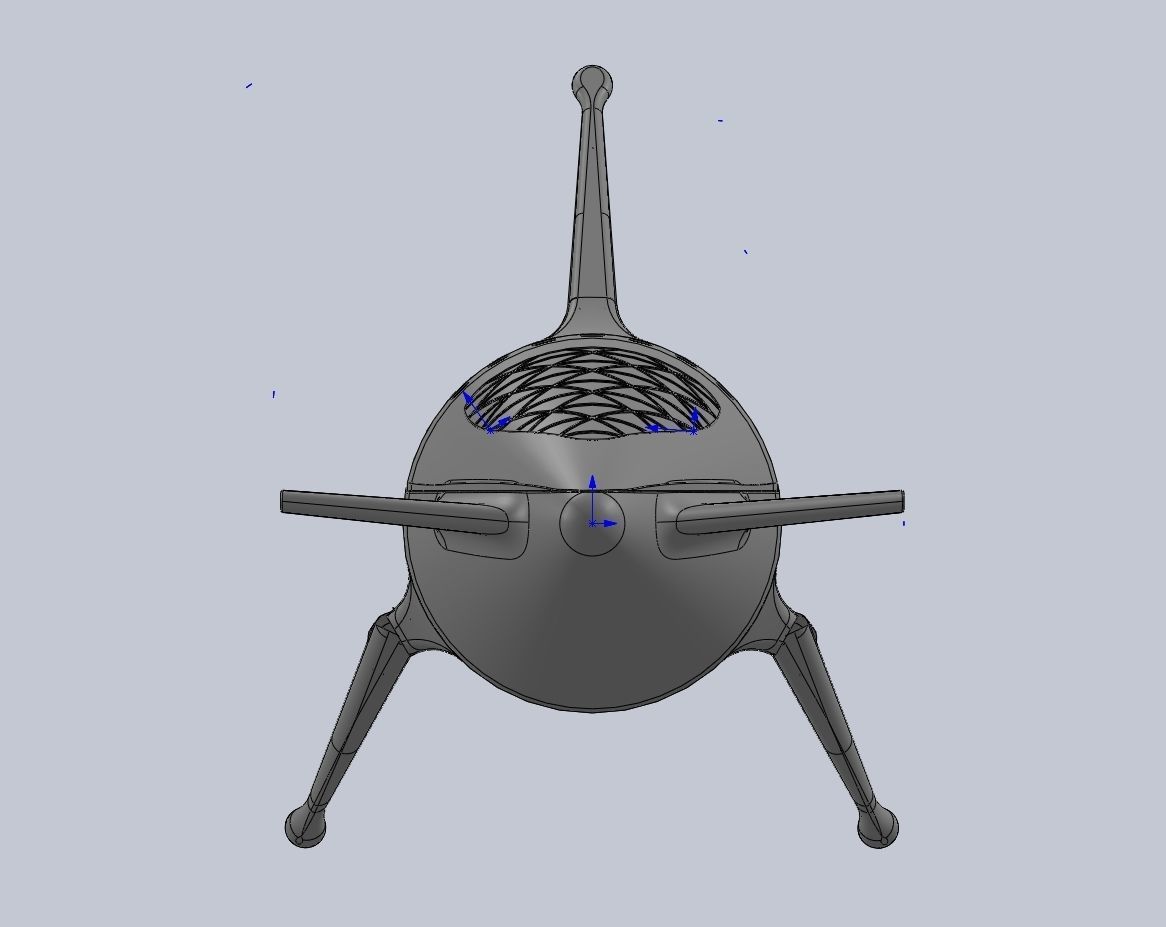

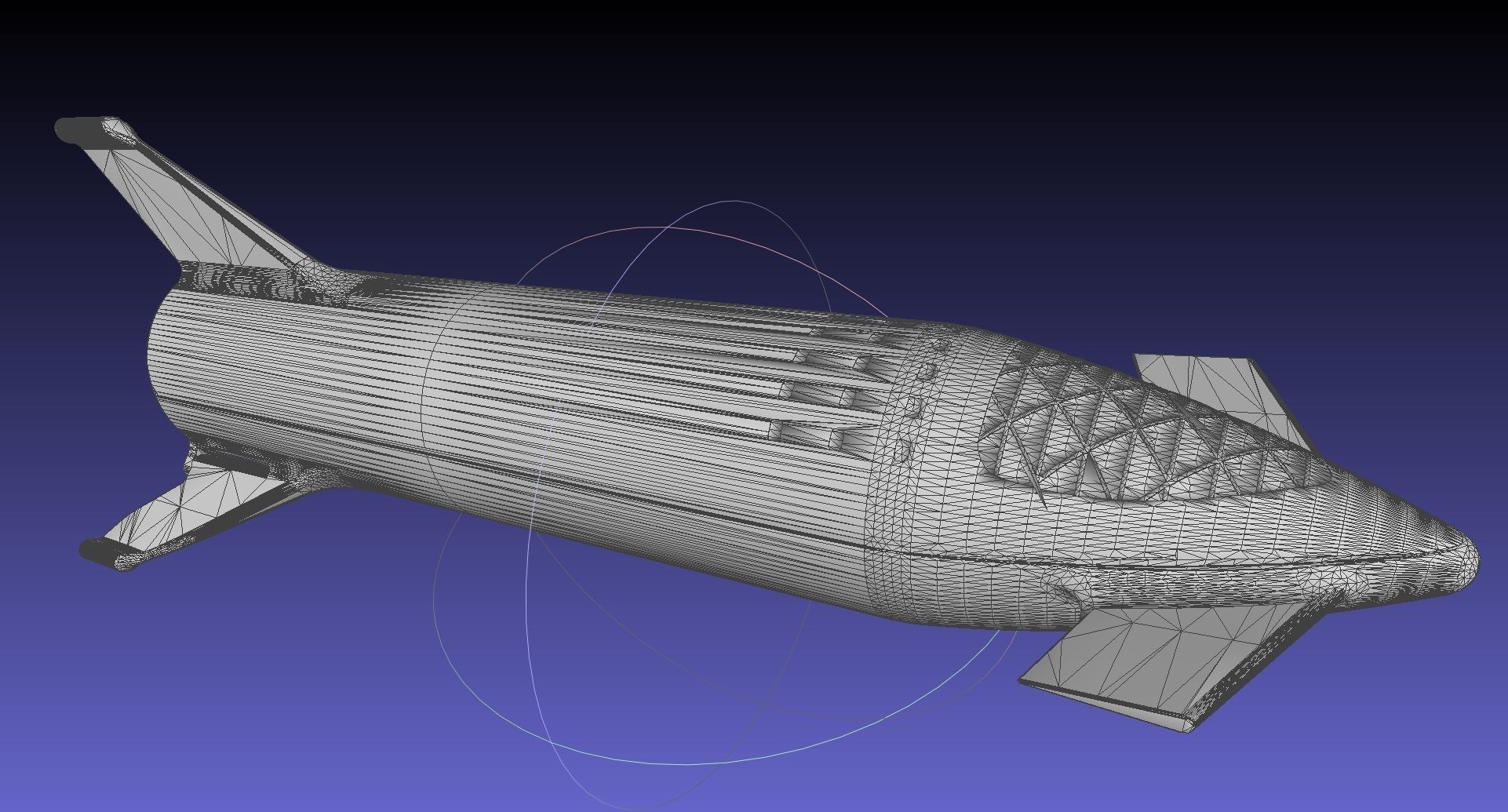

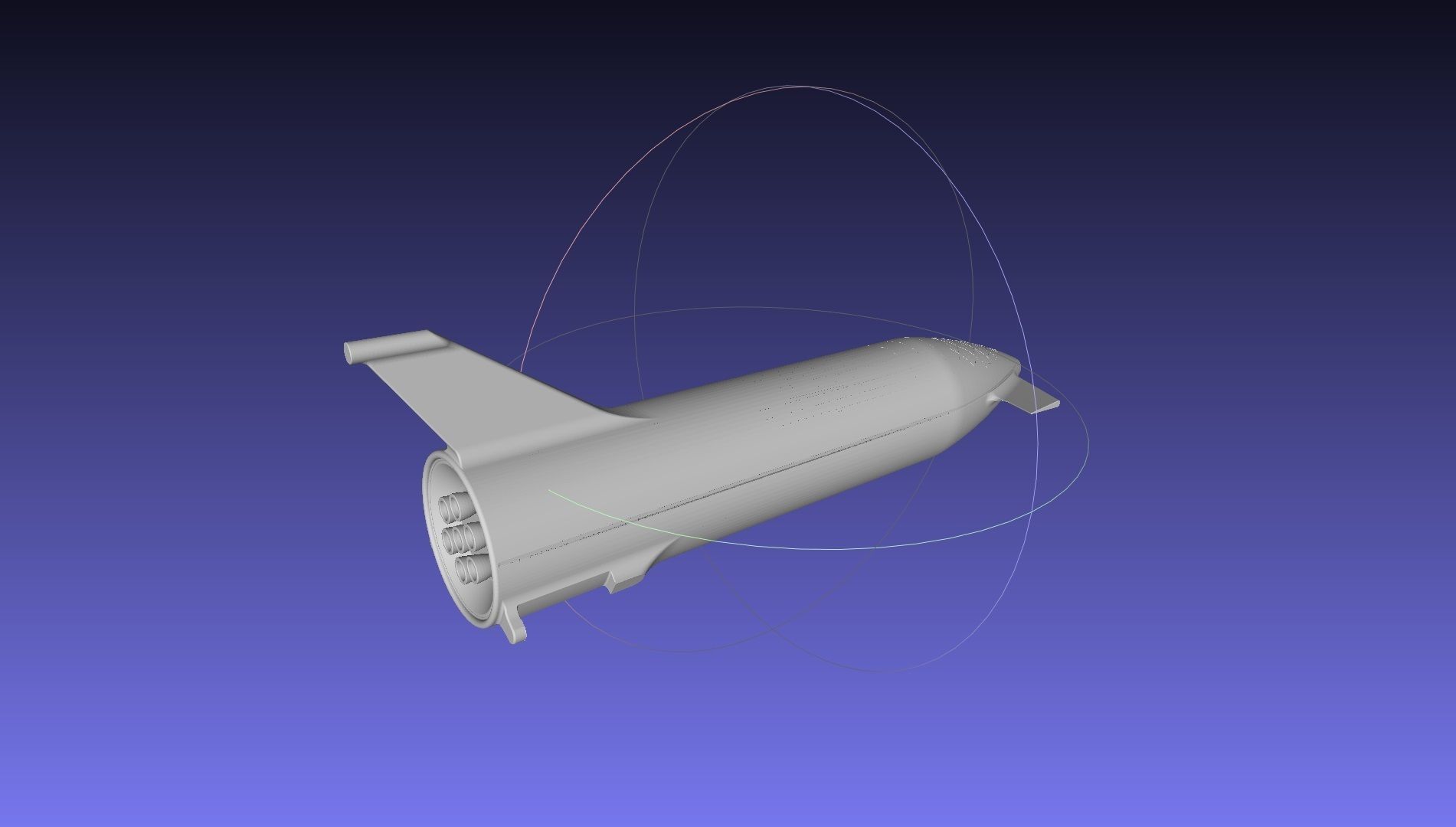

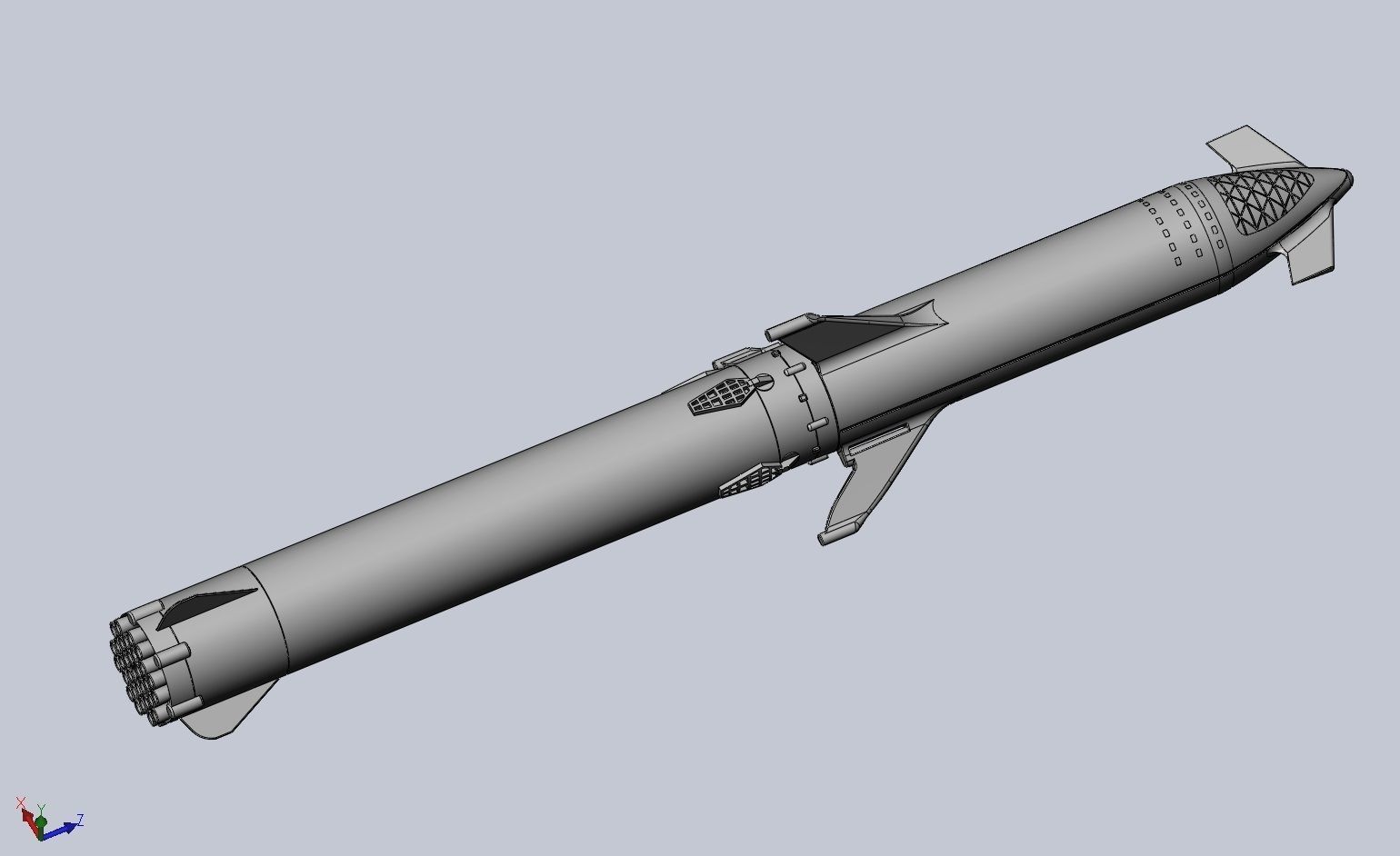

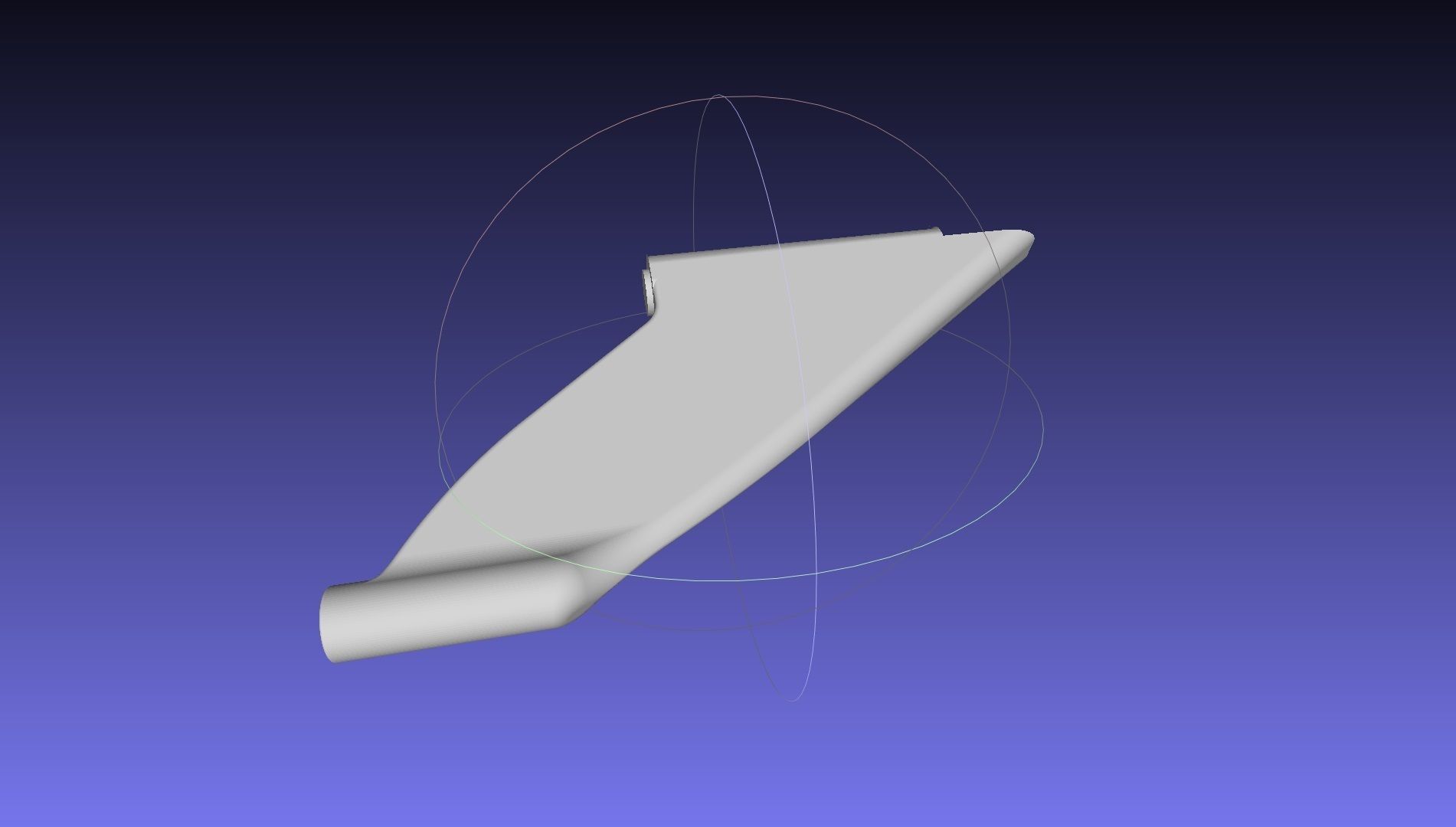

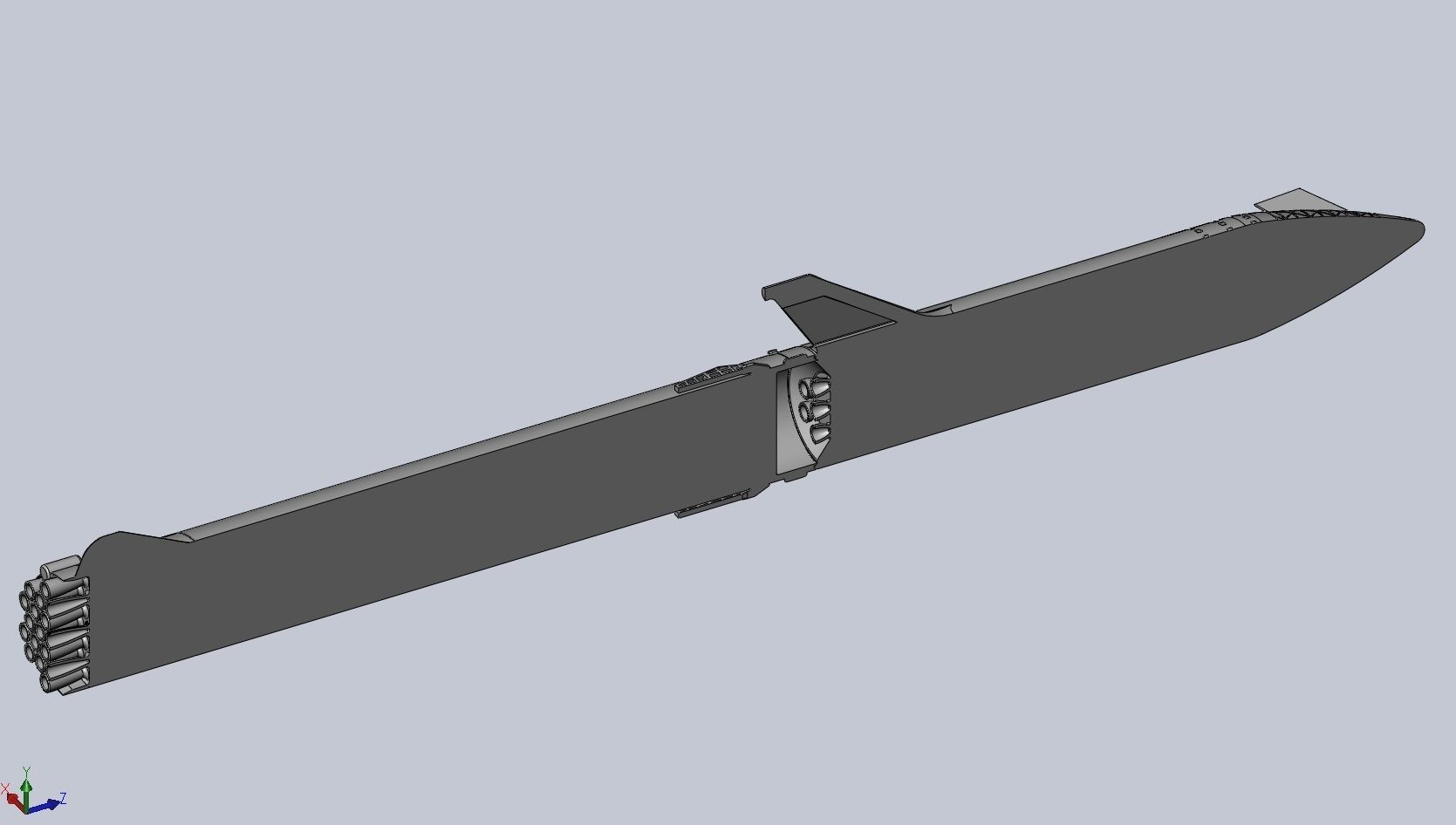

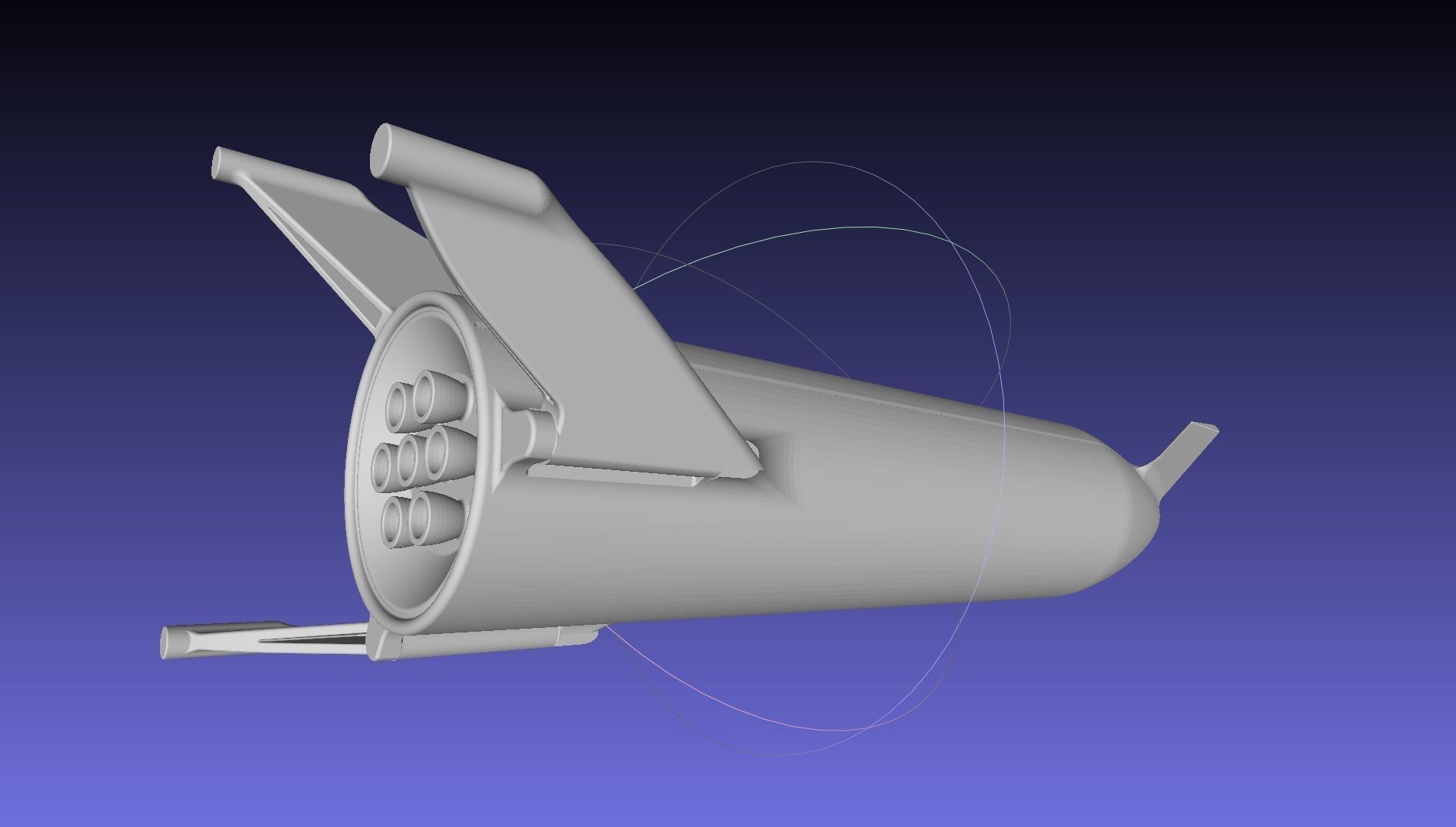

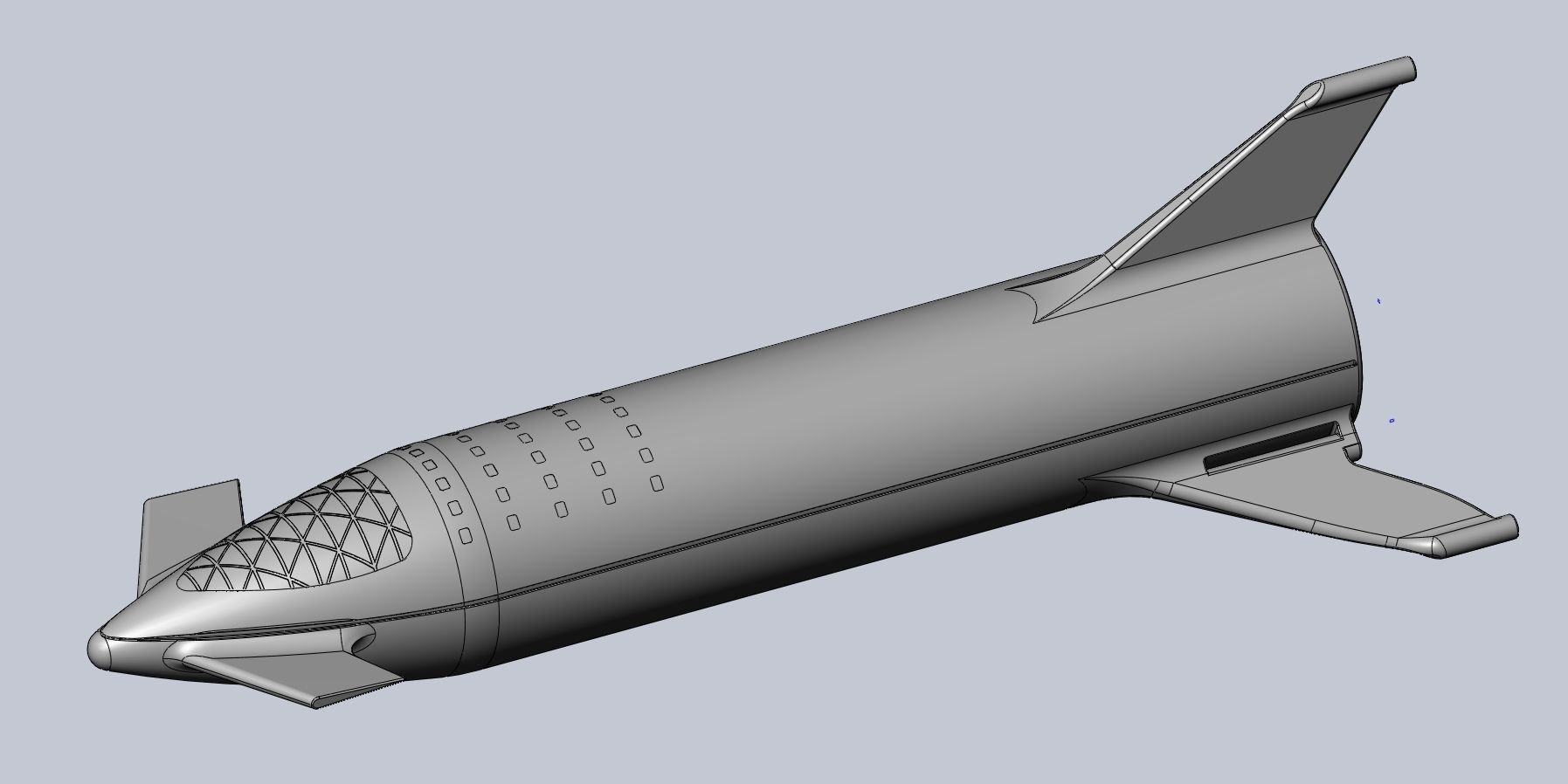

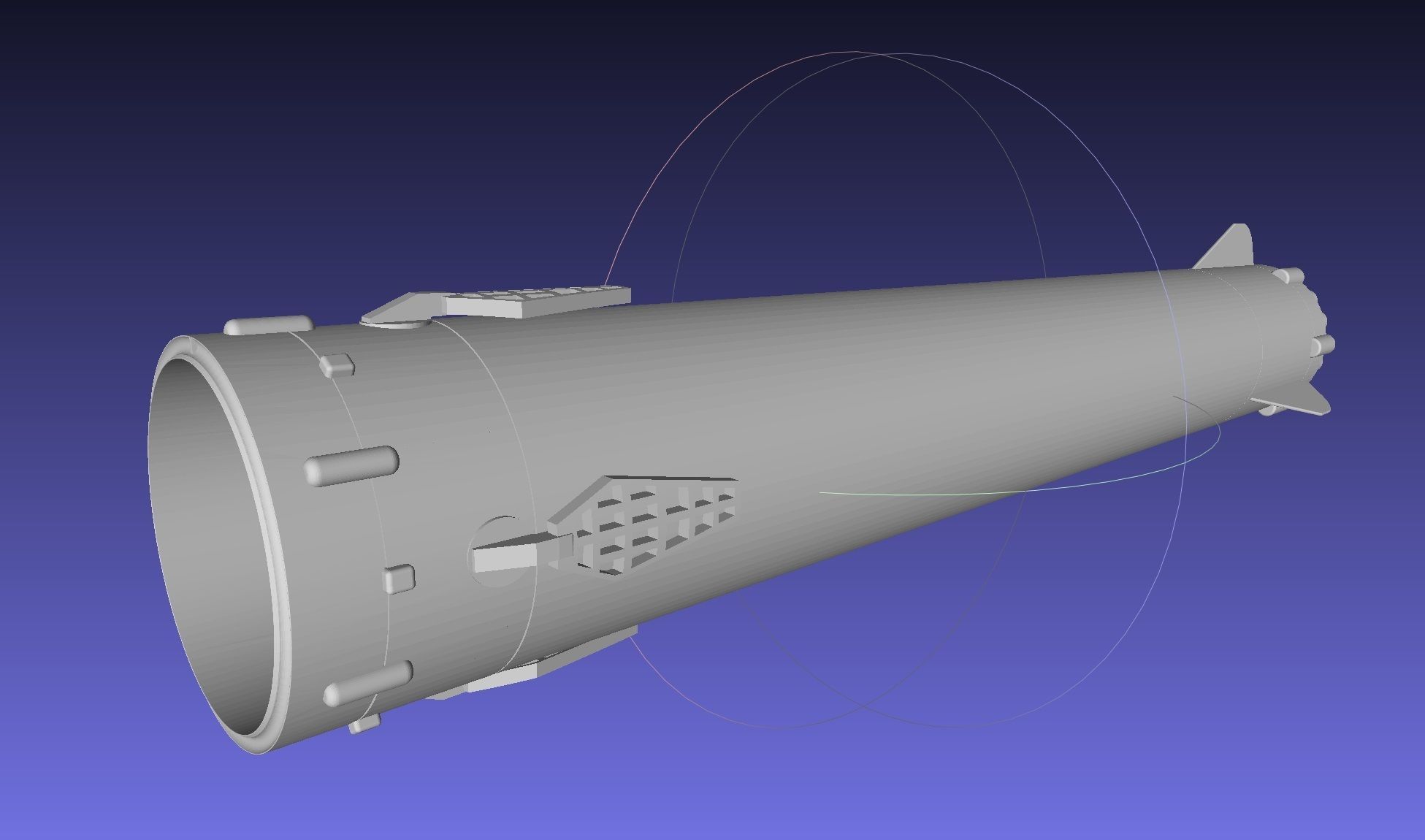

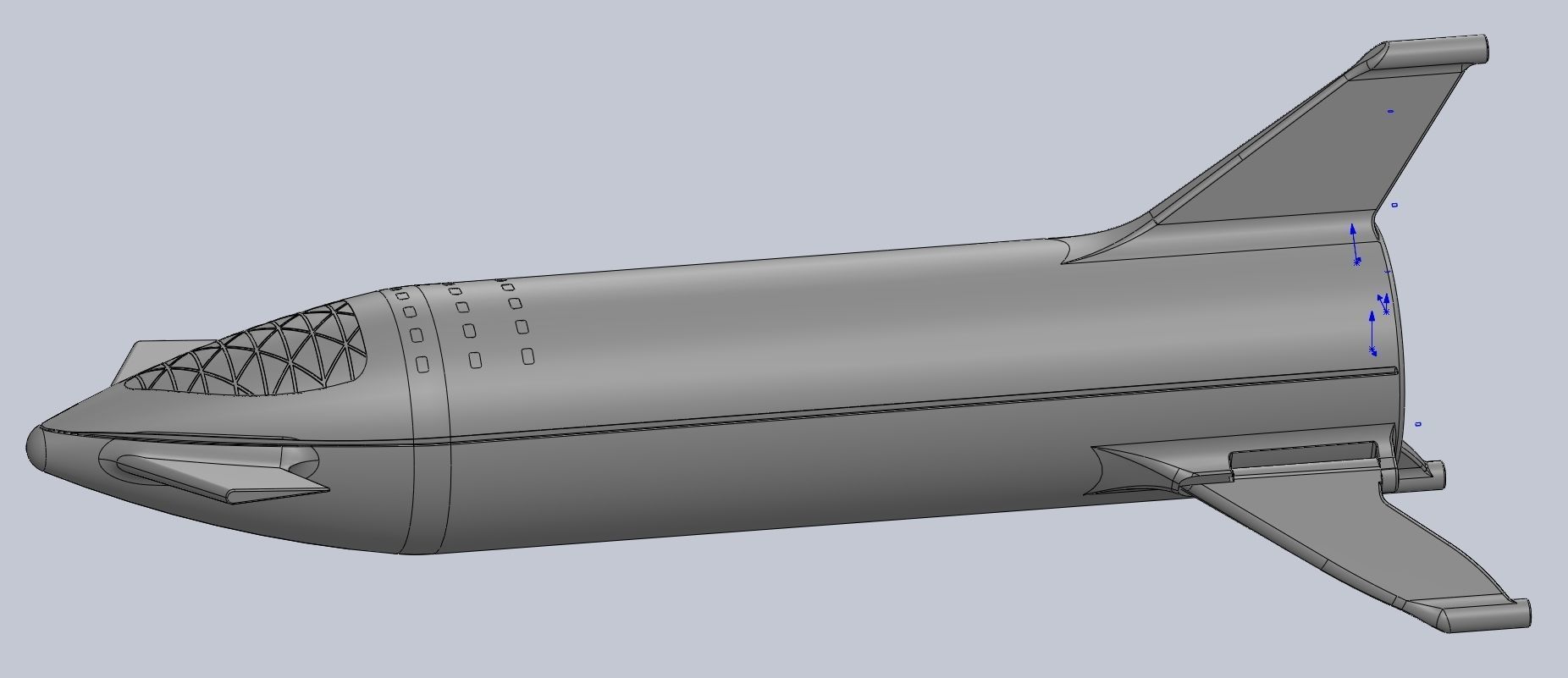

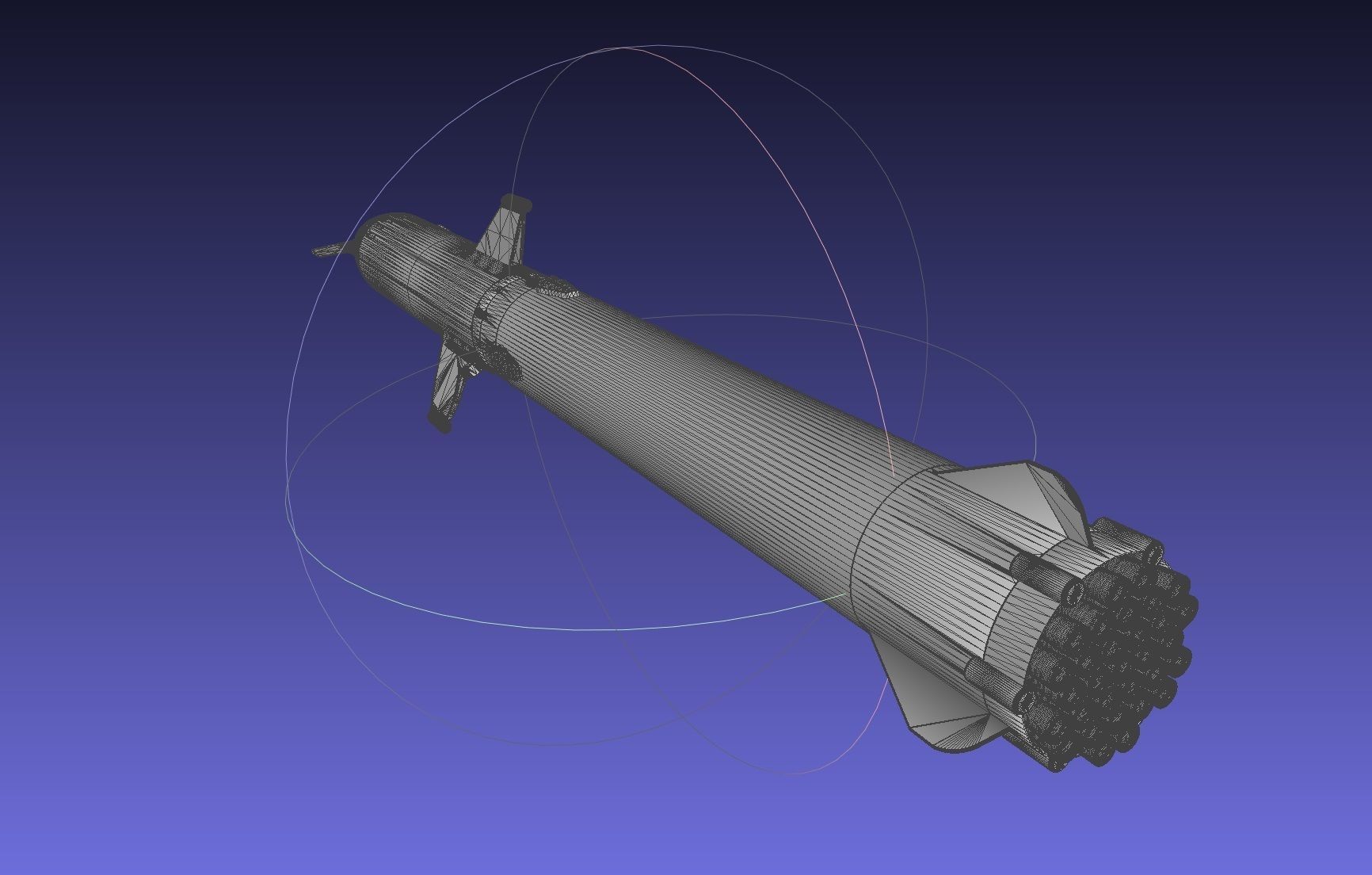

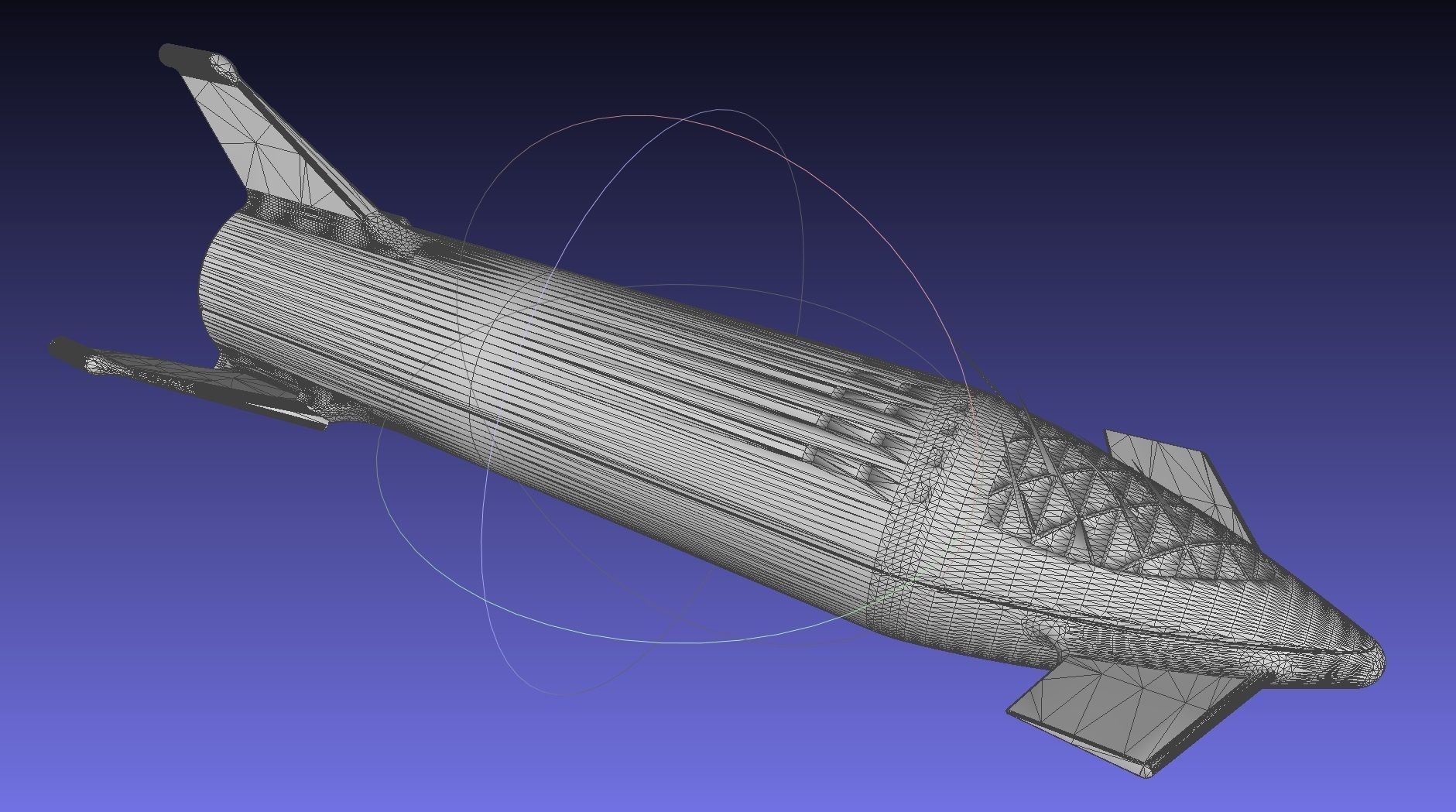

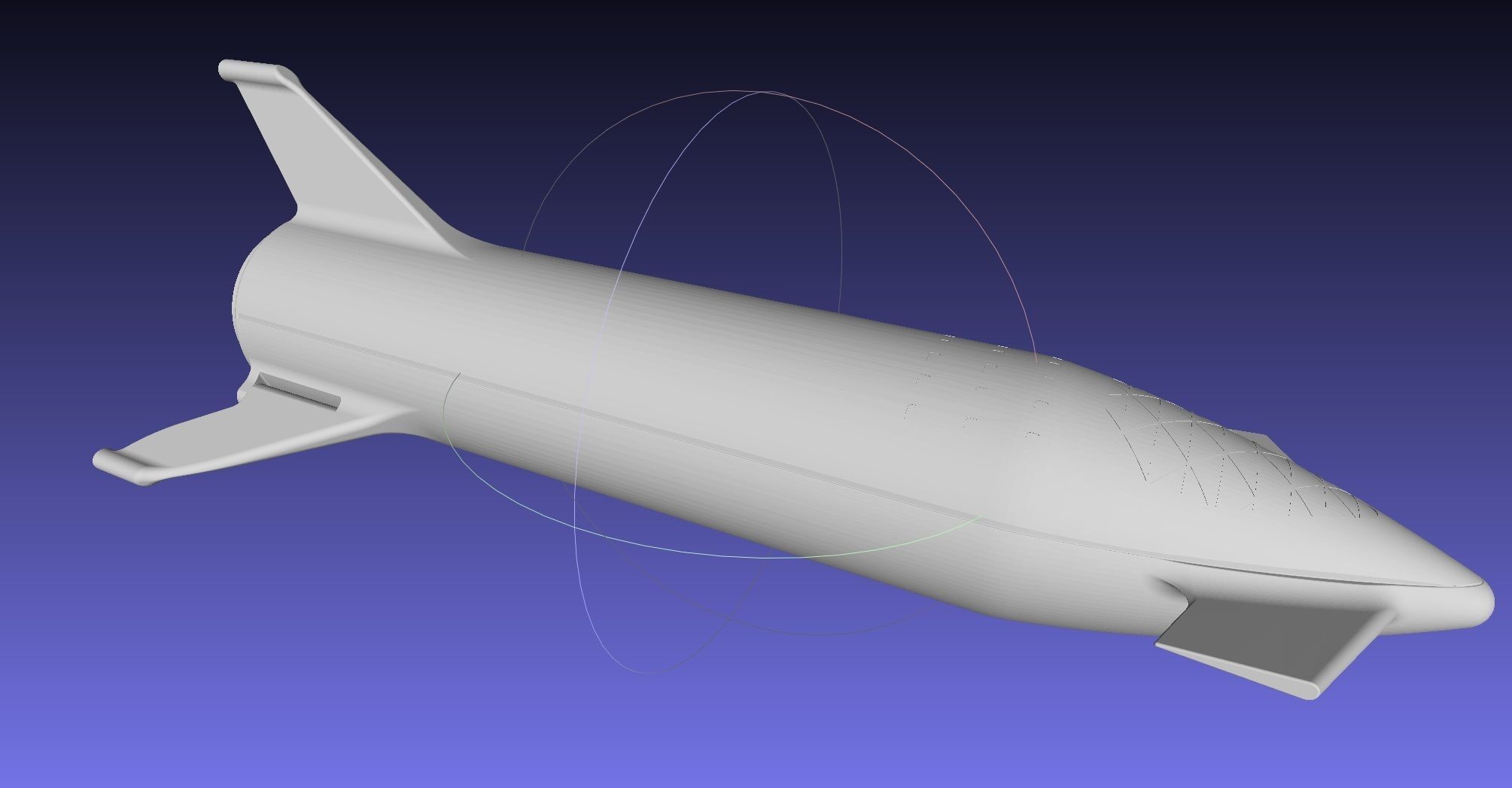

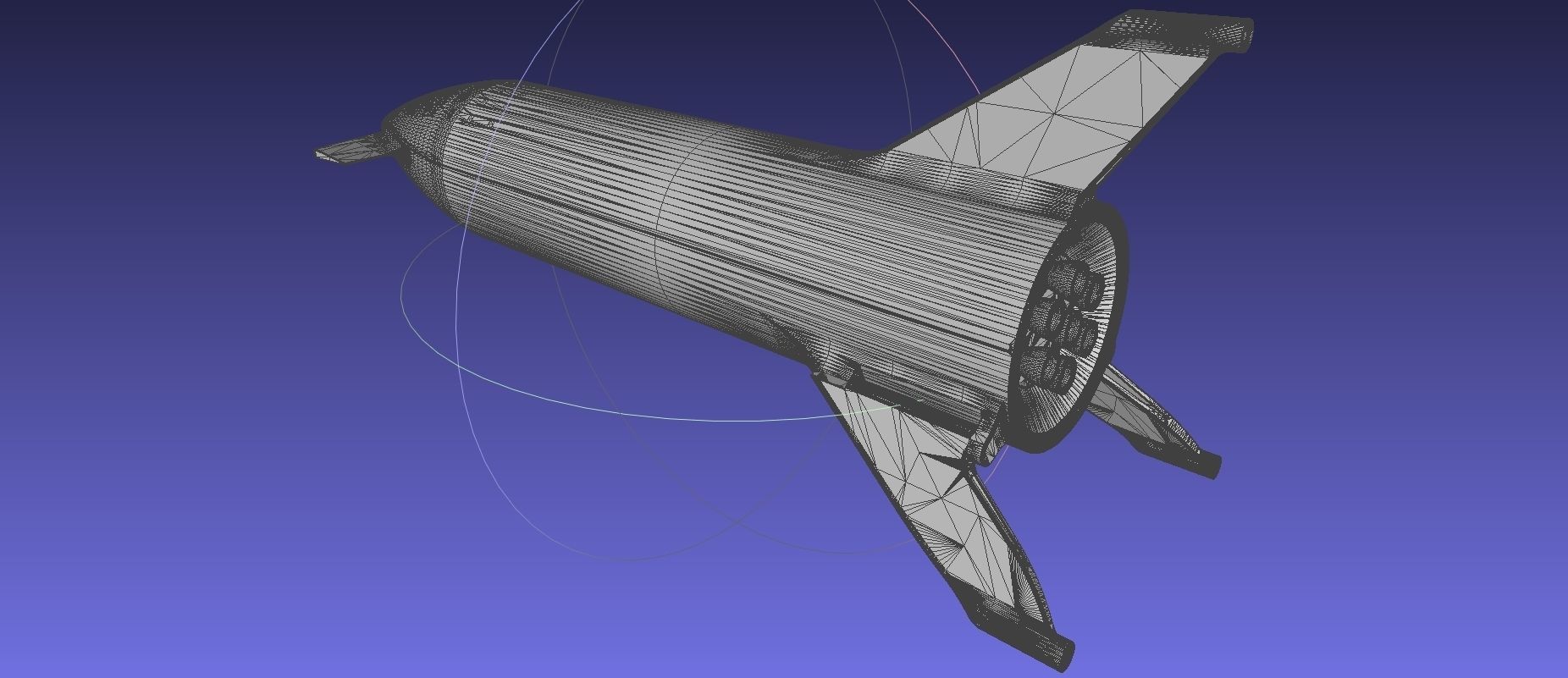

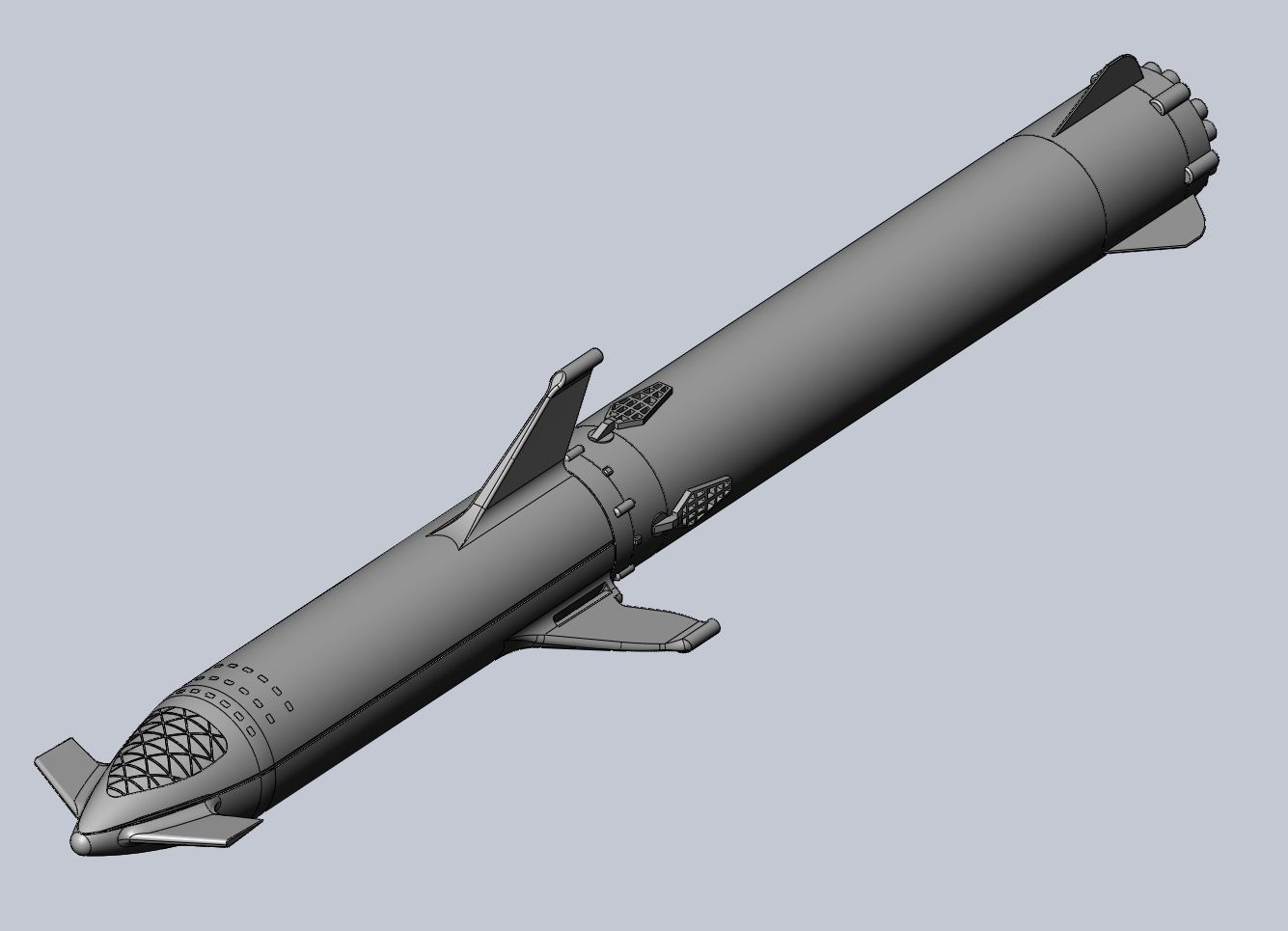

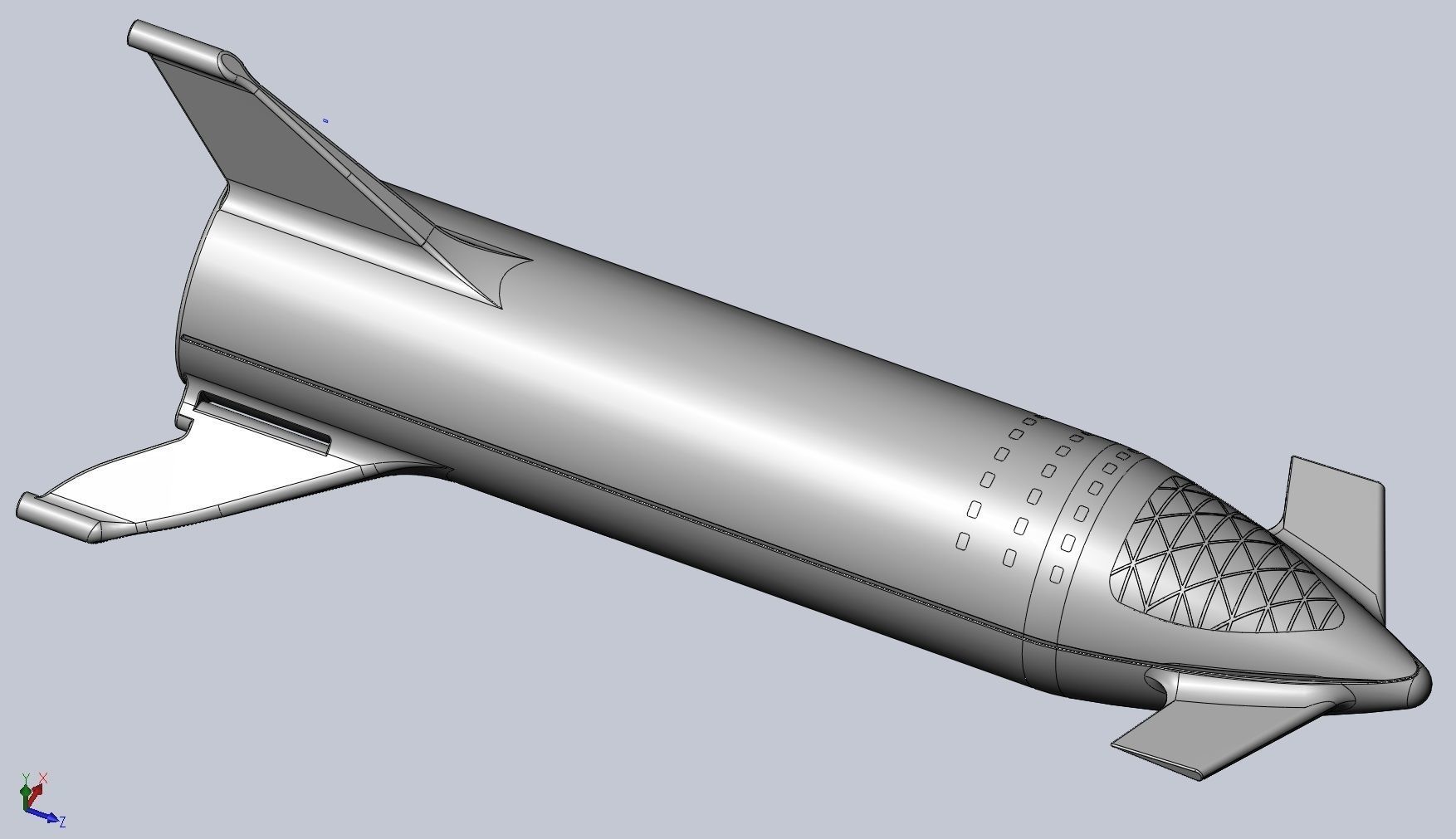

Additional files will be added as we learn more The BFR and BFS concept proposed by Space-X has gone through a few iterations so far and htis is the latest one from just today - or late 2018 if you read this someday in the future - I made a detailed approximation including a speculative booster based on what was released so far. The model is easily printable with all thin walls being thickened to be within common 3d-printer feature sizes and the fine details showing in a 1/100 or 1/150 scale model - it includes the measurements and shape of the ship as far as we know, all aerodynamic featrures, the rocket engine bells (31 on the booster, 7 on the ship), as well as lines for the heatshield edge, window outlines, booster gridfins, etc The download includes original SolidWorks models as well as various polygonal exports for versions of: The default configured ship sitting on the booster, the booster on it's own, the ship on it's own, as well as the ship with the variations of extended landing legs, upward tilted/swept wings as they seem to be on movable hinges, as well as an extended speculative engine bell extender - since the new concept only has sea level optimized raptor engines and a weirdly shaped backplate it is possible htat this is a bell extension that can be hydraulically extended when in vacuum to add to the engines nozzles and increase efficiency there has been some speculation on how useful the hinged wing design is structurally and in regards to reentry heating and mechanical hinges being exposed to this but further analysis / simulation of the model should bring some understanding into this

Item rating
0 0
Starship BFR 2018 - Space-X Mars Rocket Latest Version Model
$11.20

Editorial No Ai License
Starship BFR 2018 - Space-X Mars Rocket Latest Version Model
$11.20

Editorial No Ai License
Response 86% in 0.4h
3D Modeling
3D Print Modeling
Hire meView all Designers Models

3D Model formats

Format limitations
Native
  • SolidWorks (.sldprt, .sldasm, .slddrw) (12 files)35.1 MB
Exchange
  • OBJ (.obj, .mtl) (10 files)32.4 MB
  • Stereolithography (.stl) (21 files)336 MB
  • 3D Studio (.3ds) (8 files)4.76 MB
  • SolidWorks (.sldprt, .sldasm, .slddrw) (12 files)35.1 MB
  • Other 423 KB
  • 3D Manufacturing File (.3mf)334 KB
  • DXF (.dxf)4.29 MB

3D Model details

  • Publish date2018-09-17
  • Model ID#997154
  • Ready for 3D Printing
