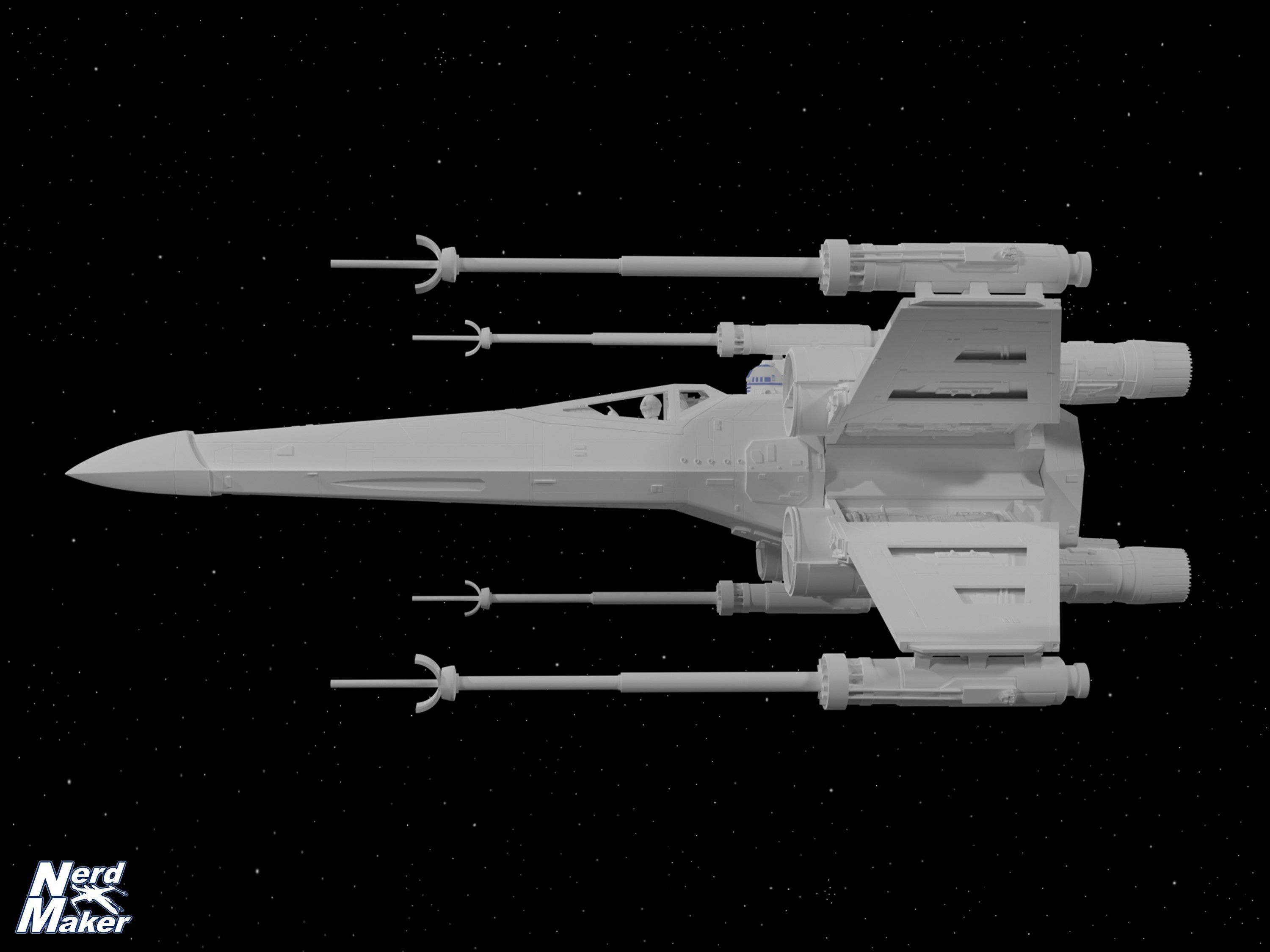

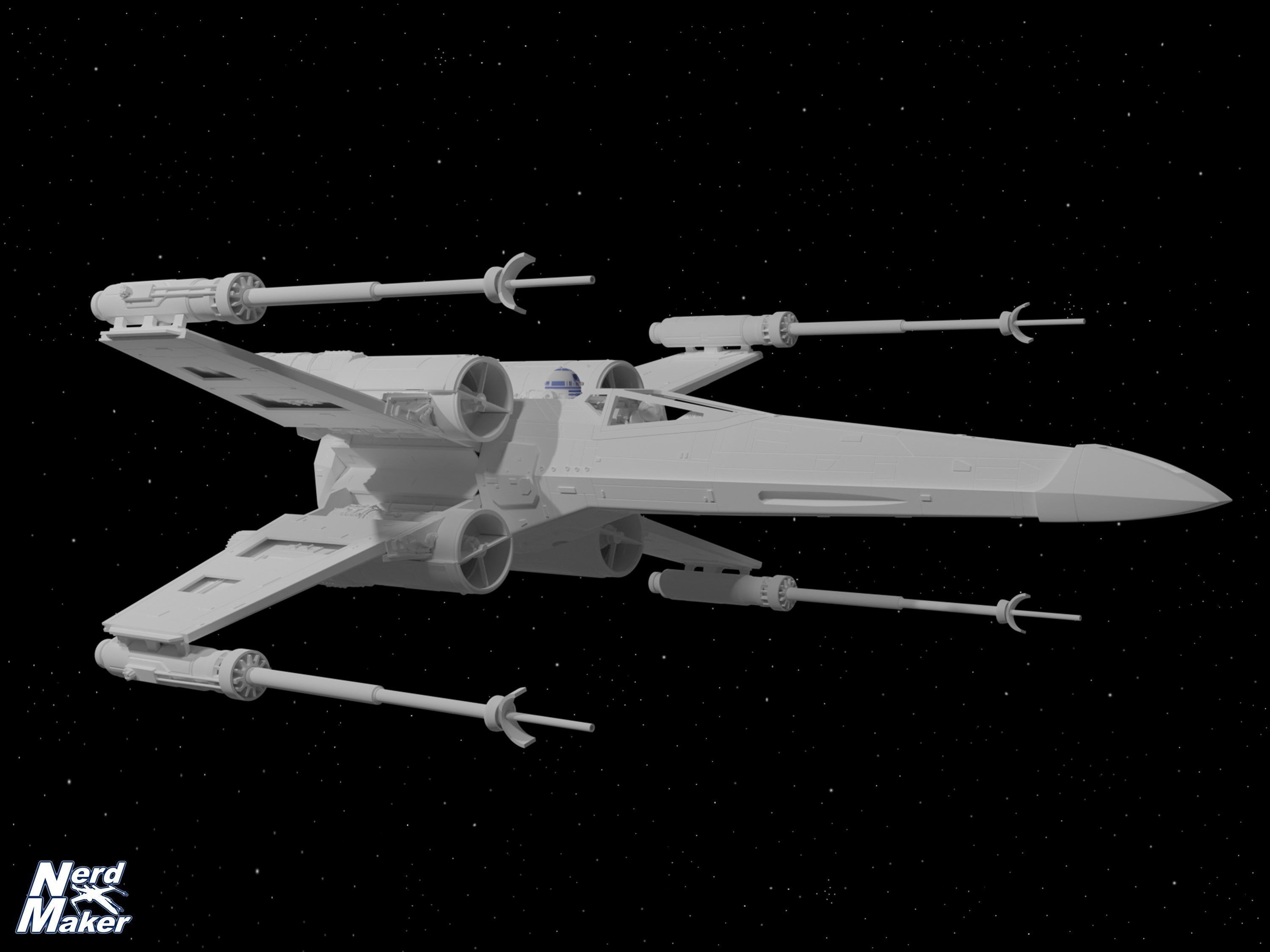

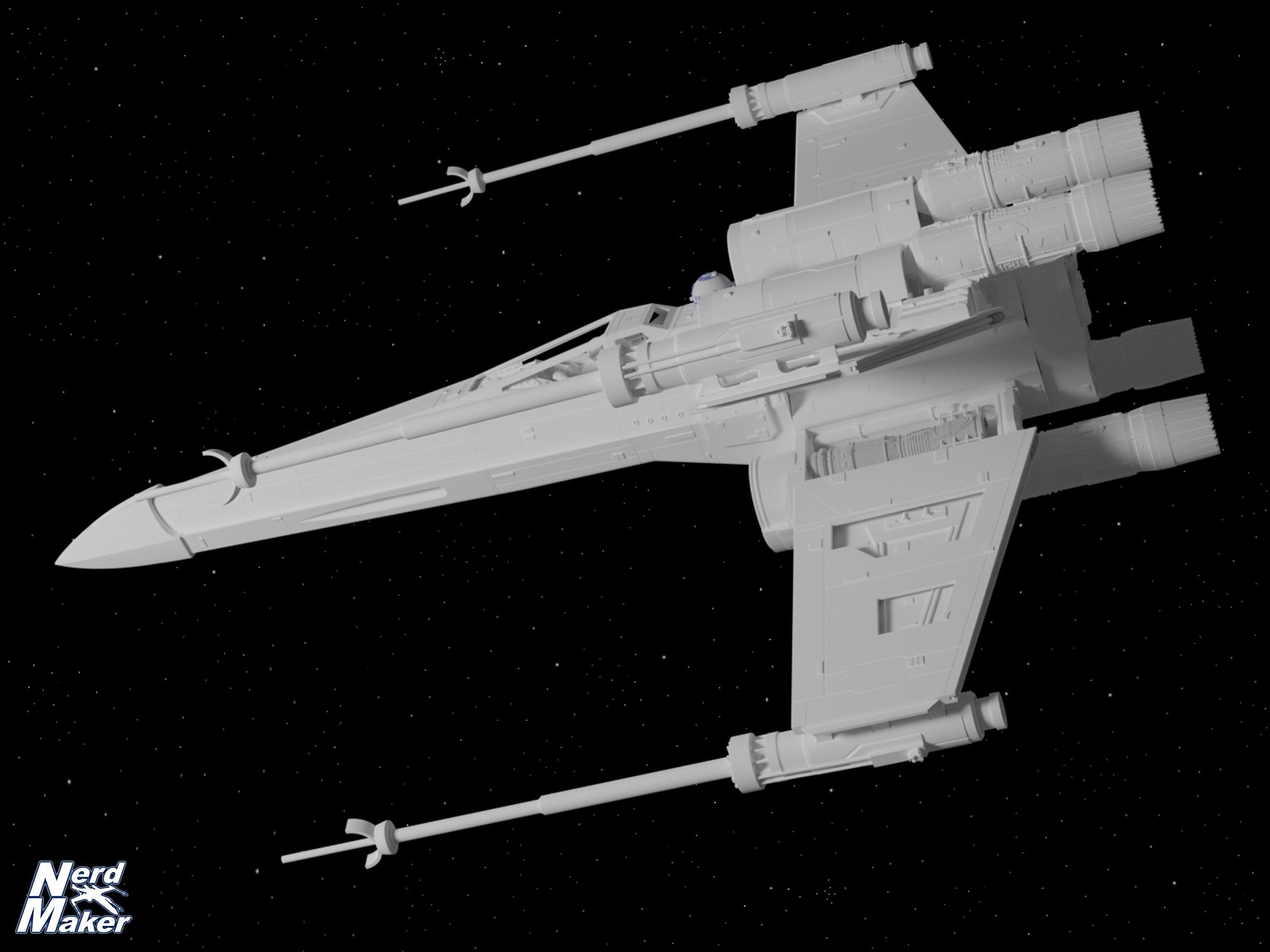

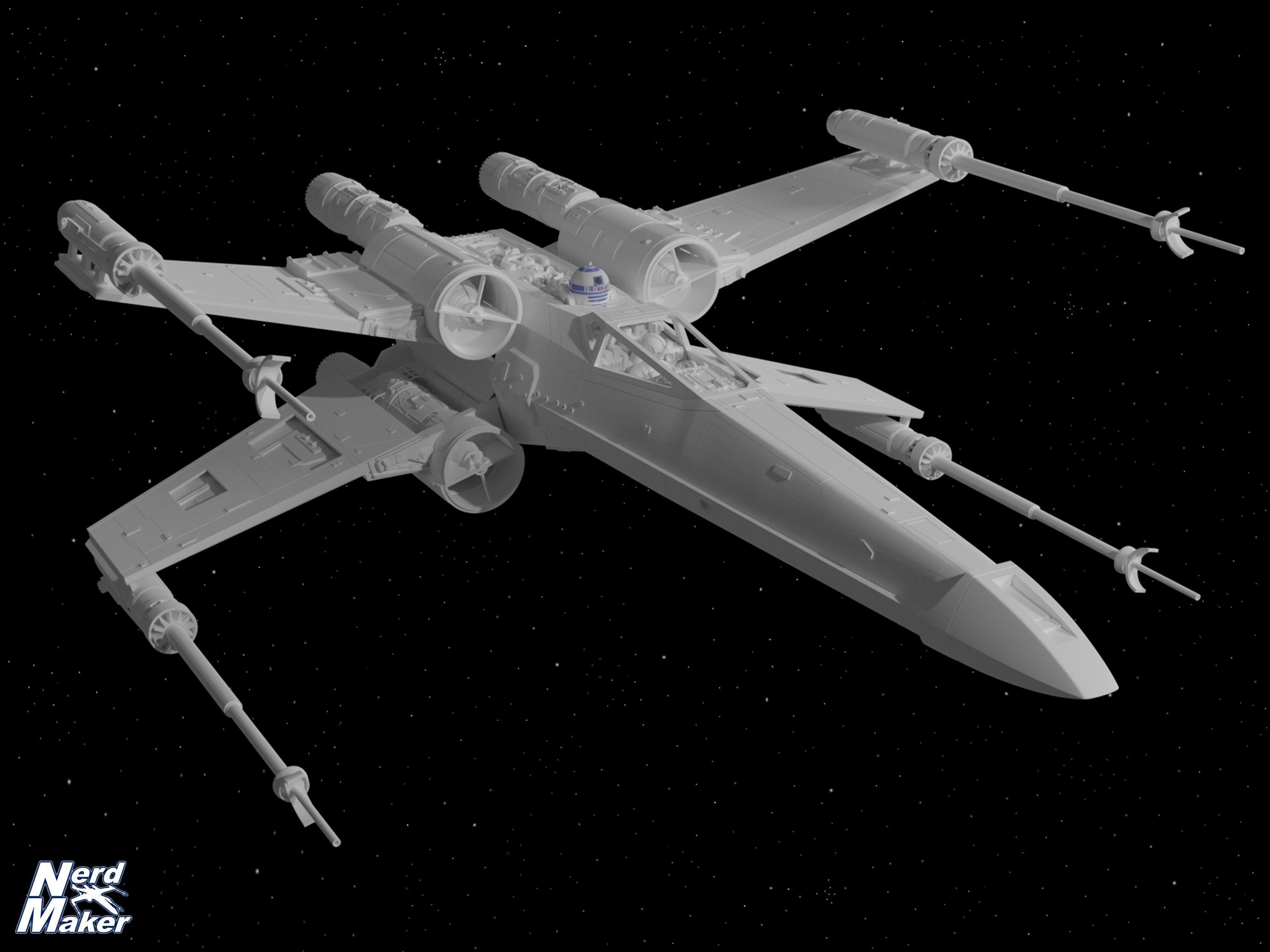

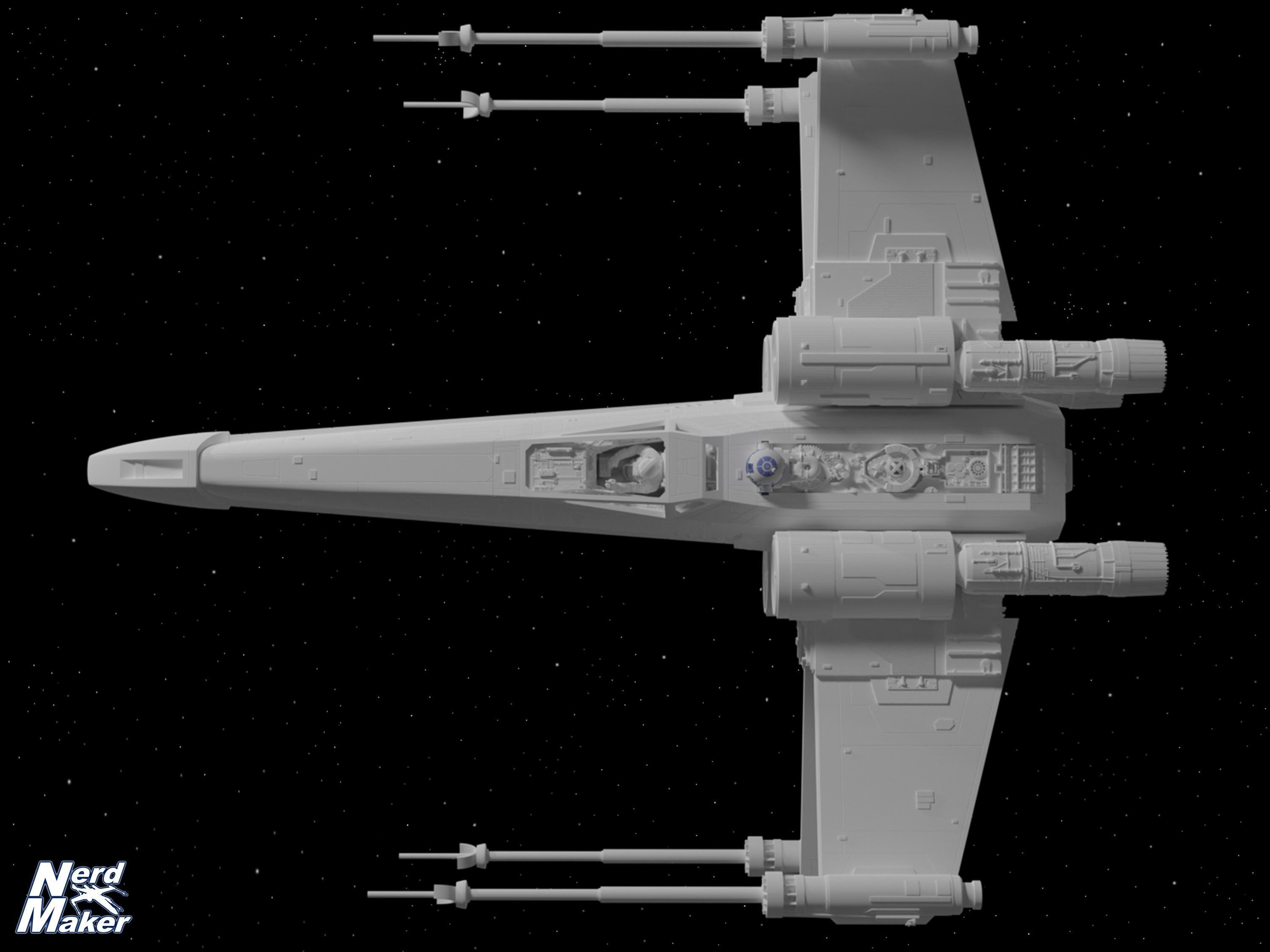

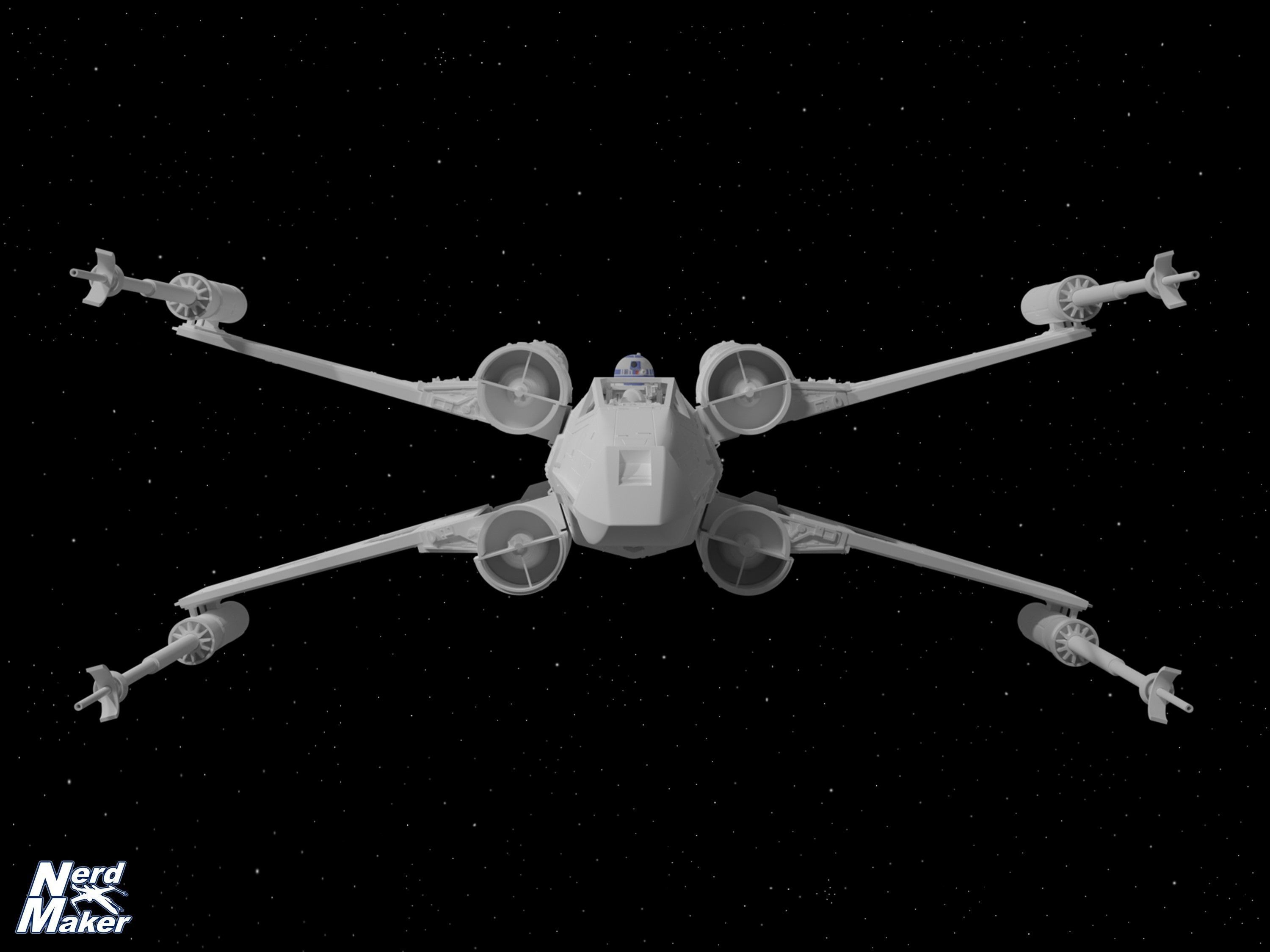

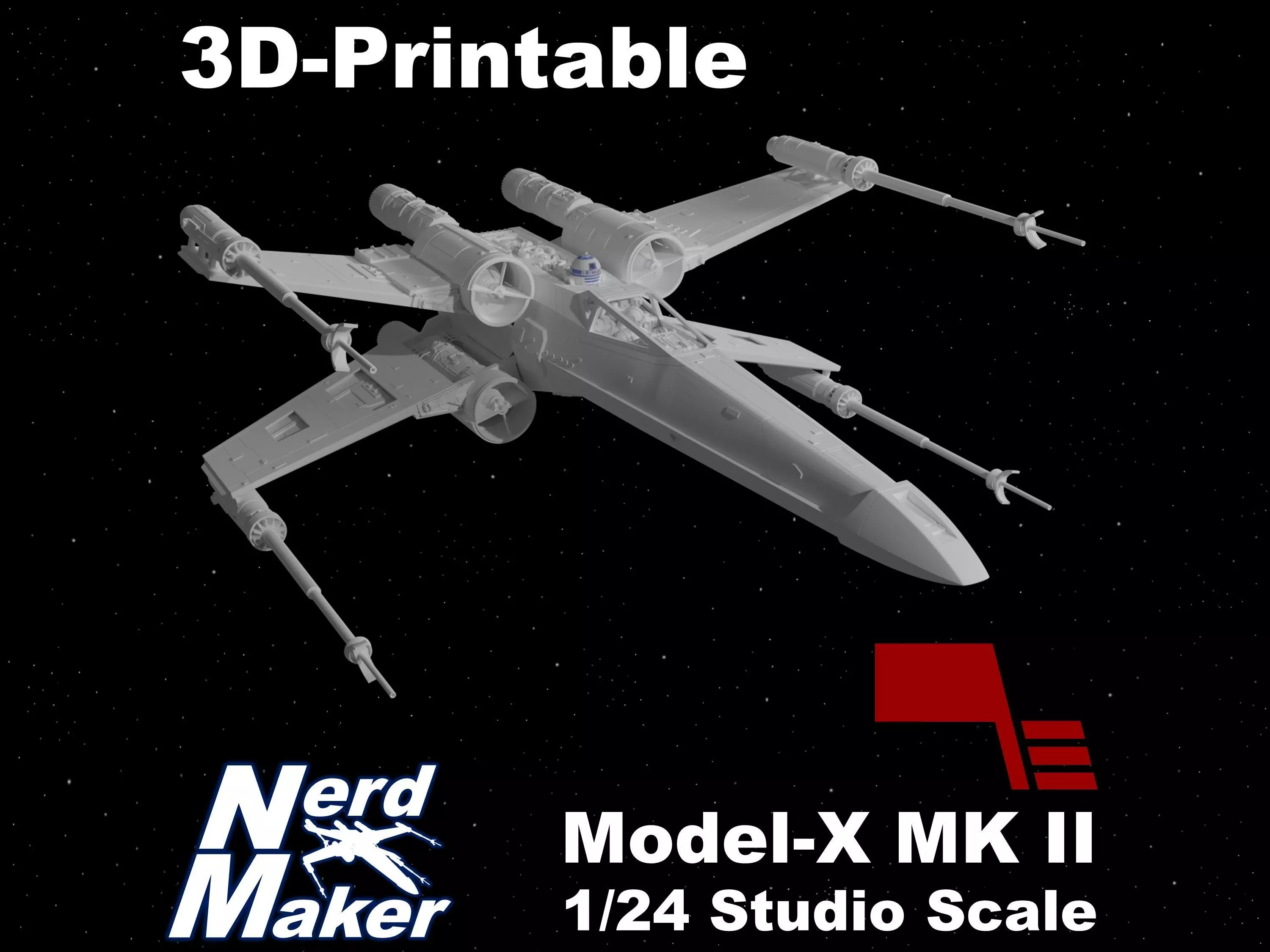

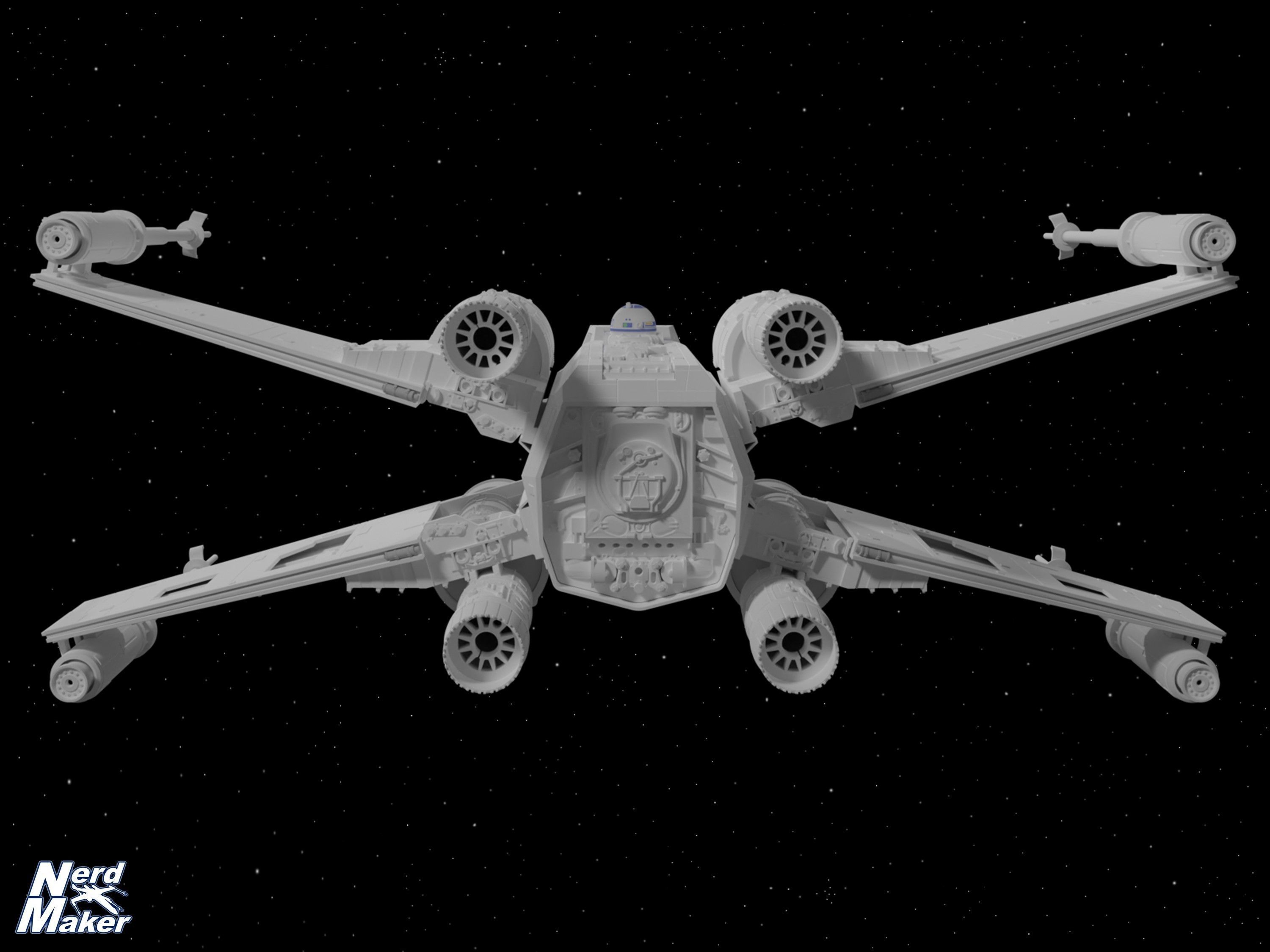

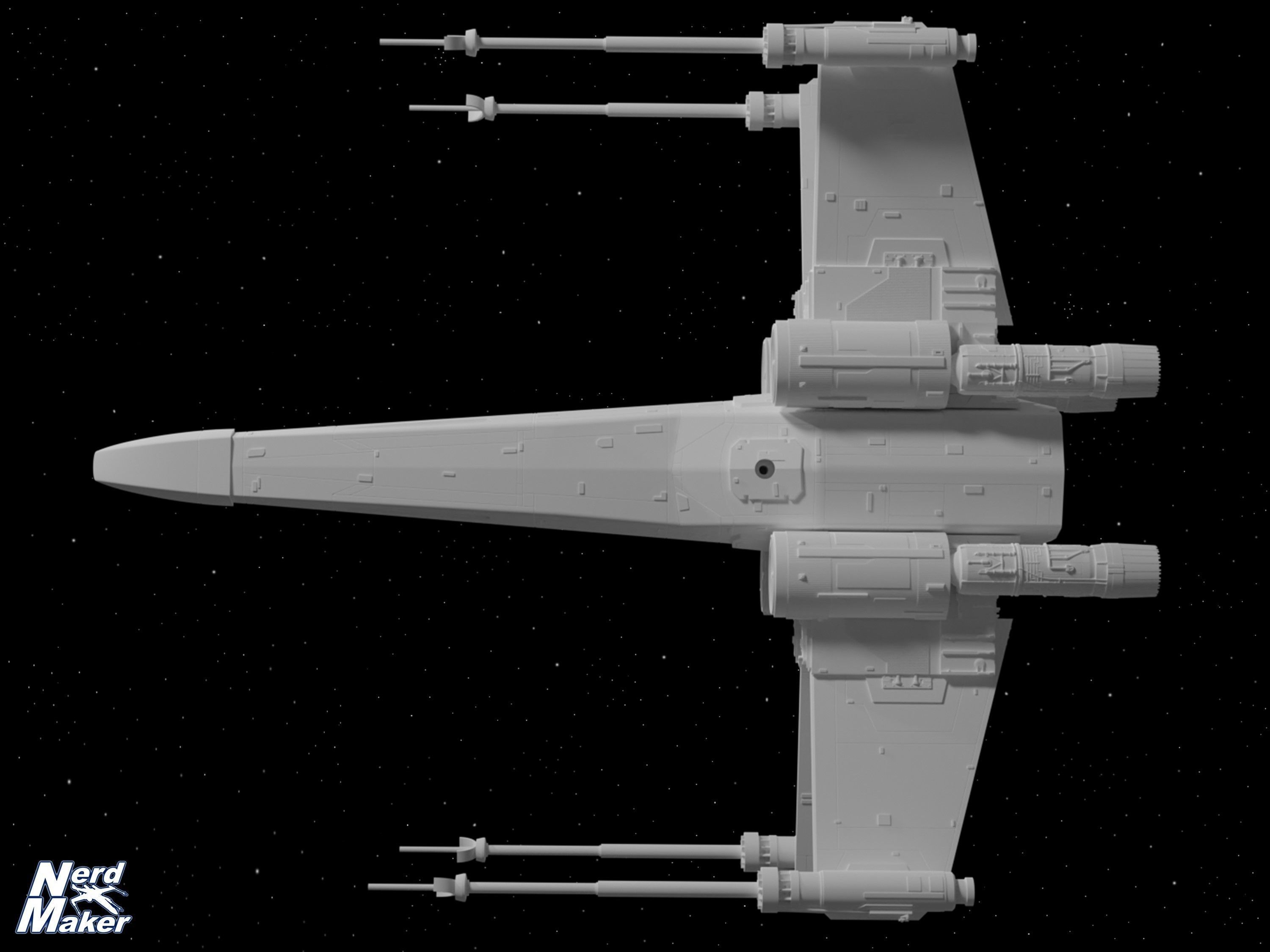

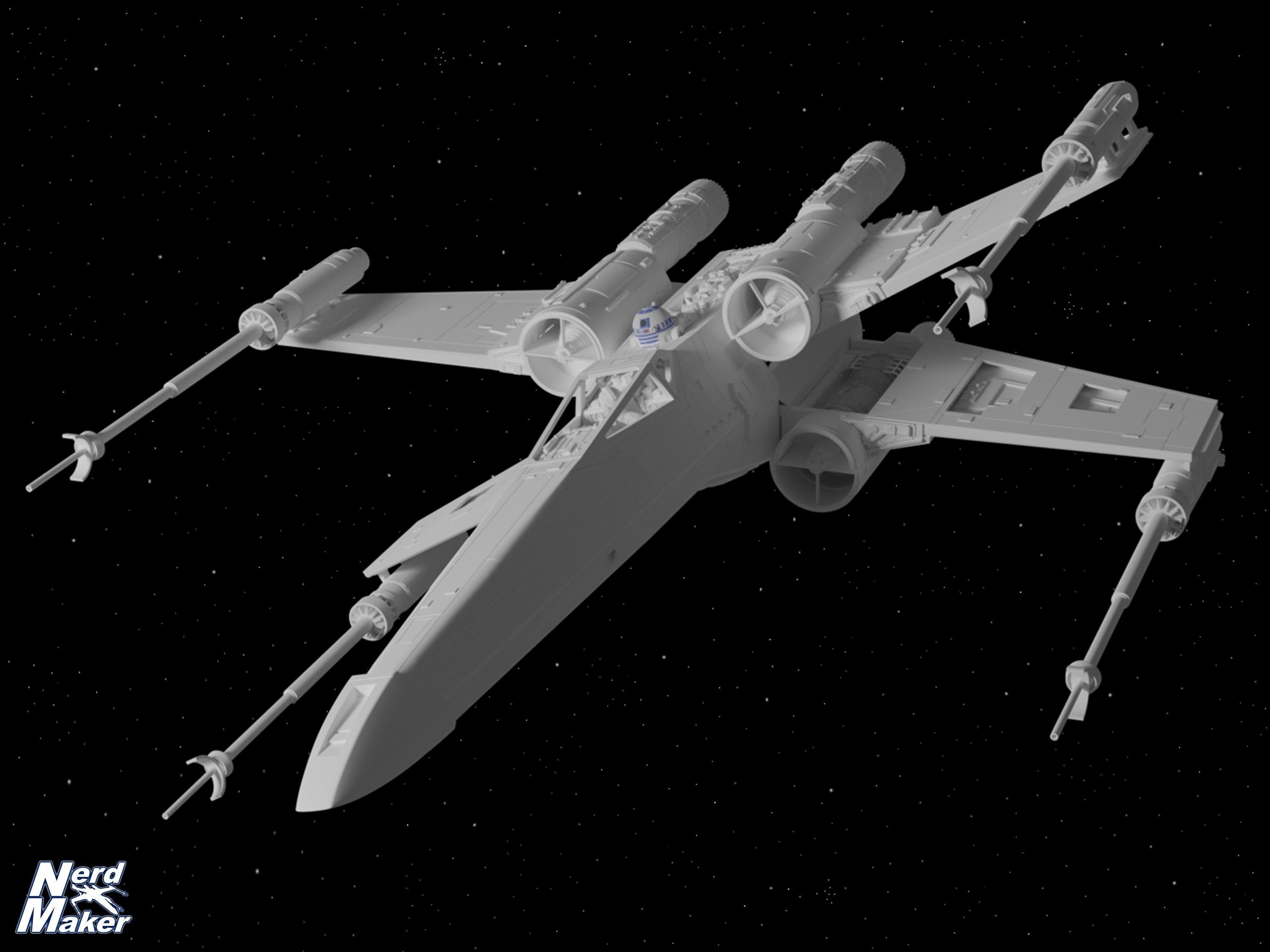

This is a 3D-Printable model kit of the Red 3 Hero X-Wing model in 1/24 studio scale.

Red 5 can be found here: https://www.cgtrader.com/3d-print-models/miniatures/sci-fi/model-x-mk-ii-1-24-studio-scale-red-5

Designed with meticulous attention to detail, the use of the latest technologies like photogrammetry and with the originally used kit parts in hand, every curve, every panel line and every detail has been faithfully recreated to be as accurate as possible to the Red 3 Hero model, that was used for filming in the first STAR WARS movie.

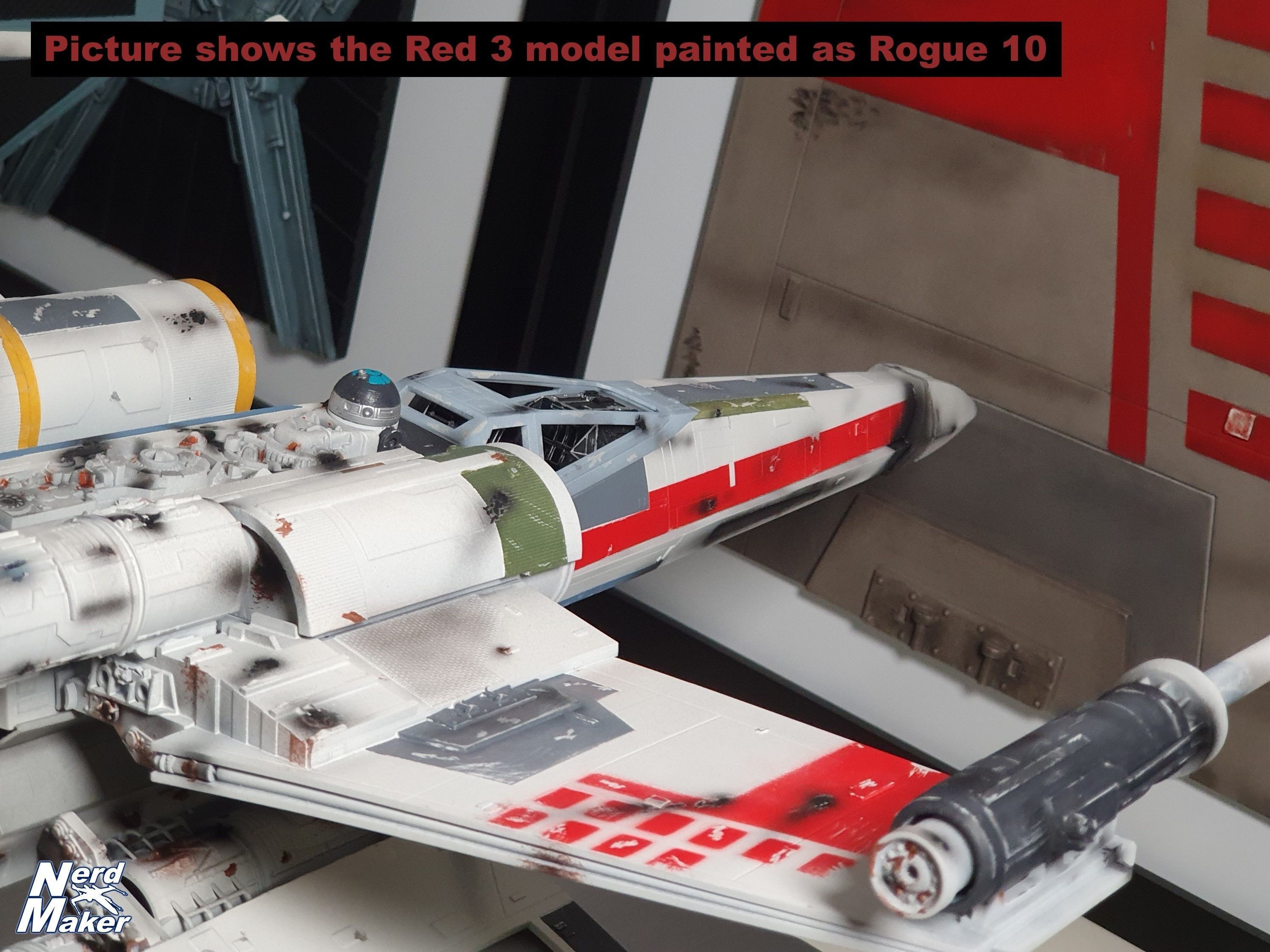

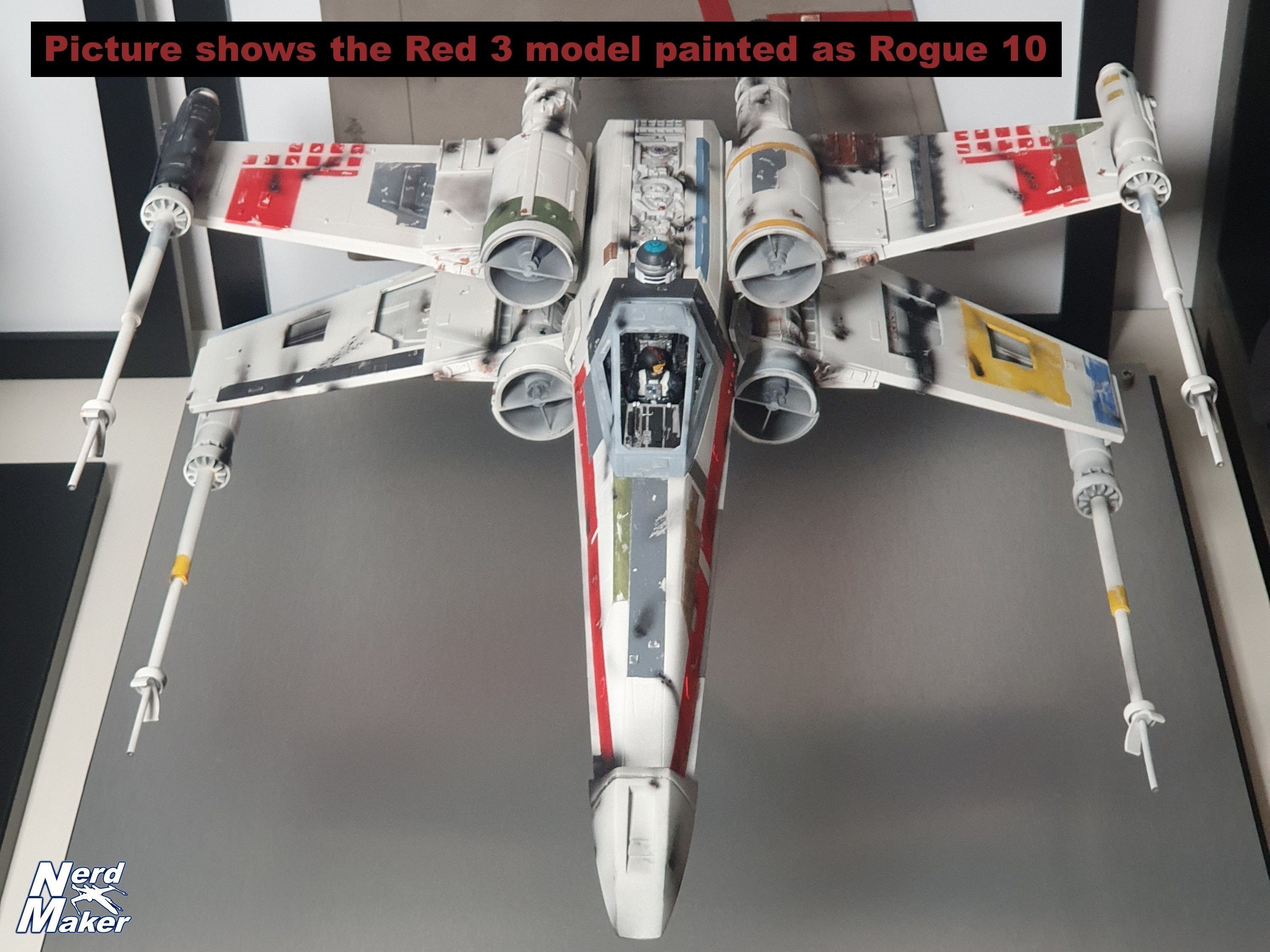

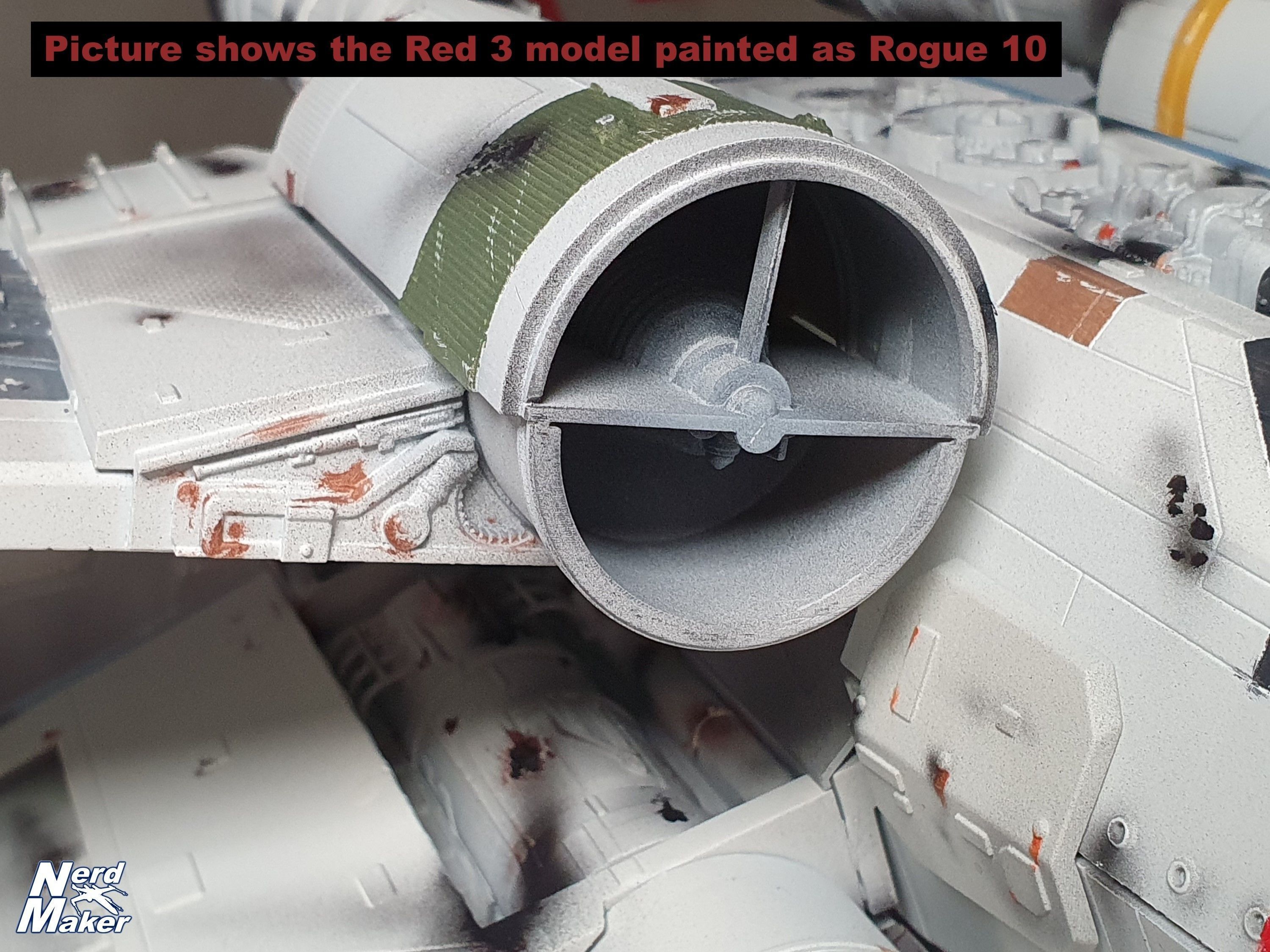

With this STL set you can build your own studio-model-accurate replica of Biggs Darklighters Red 3 X-Wing.But you can of course paint it in any desired color scheme and call sign you want. The included templets for the call sign markings will help you with that.

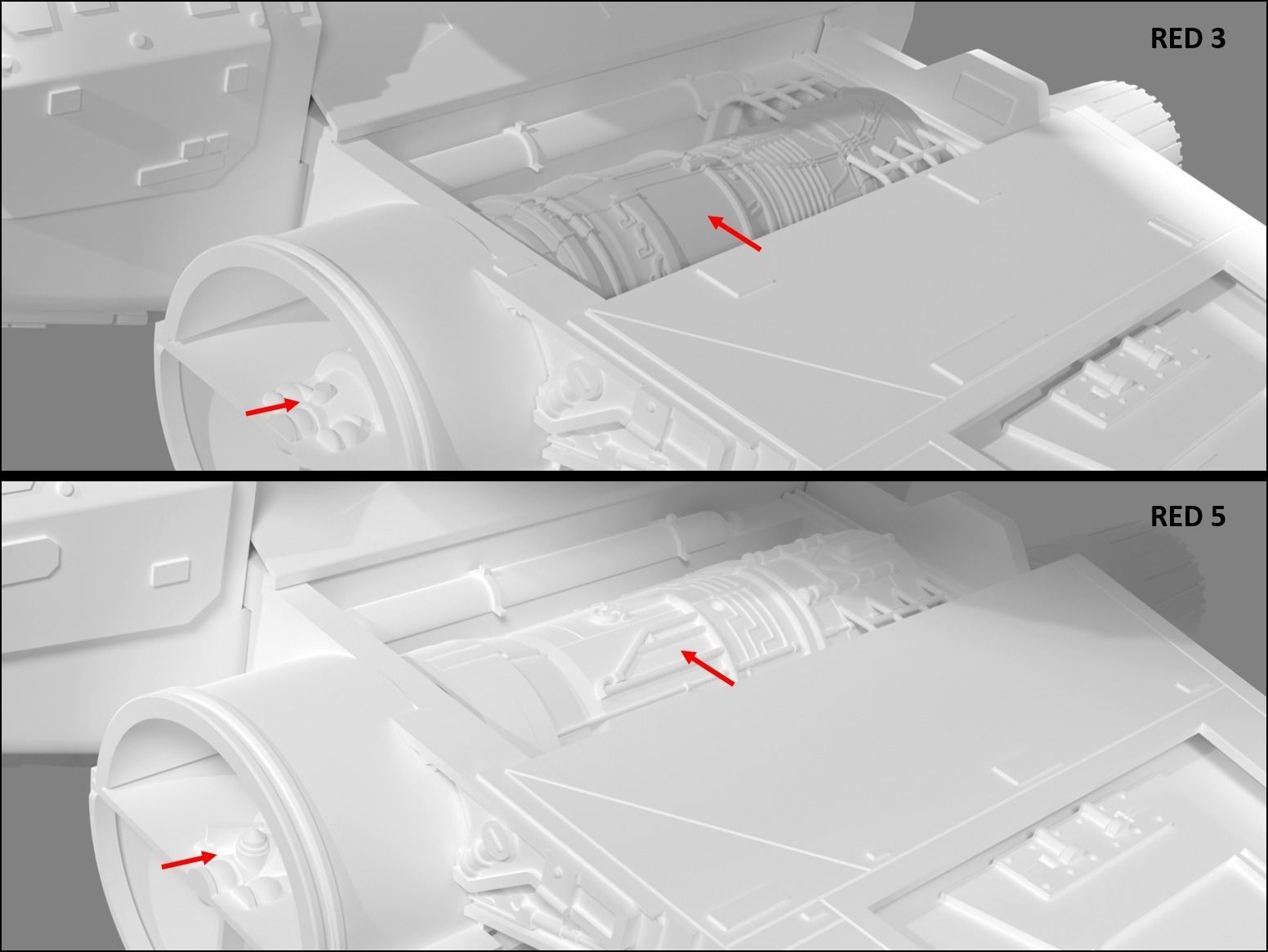

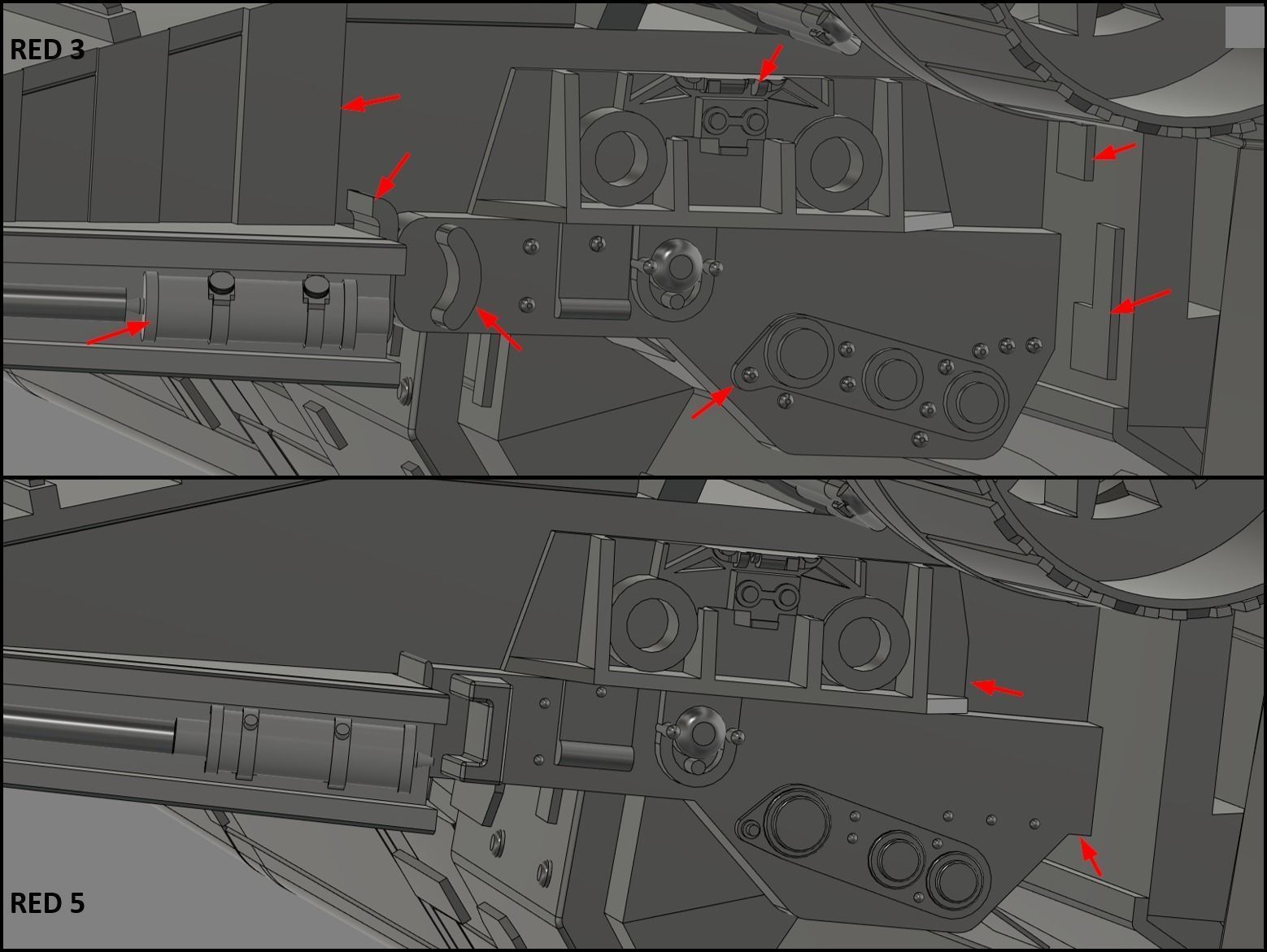

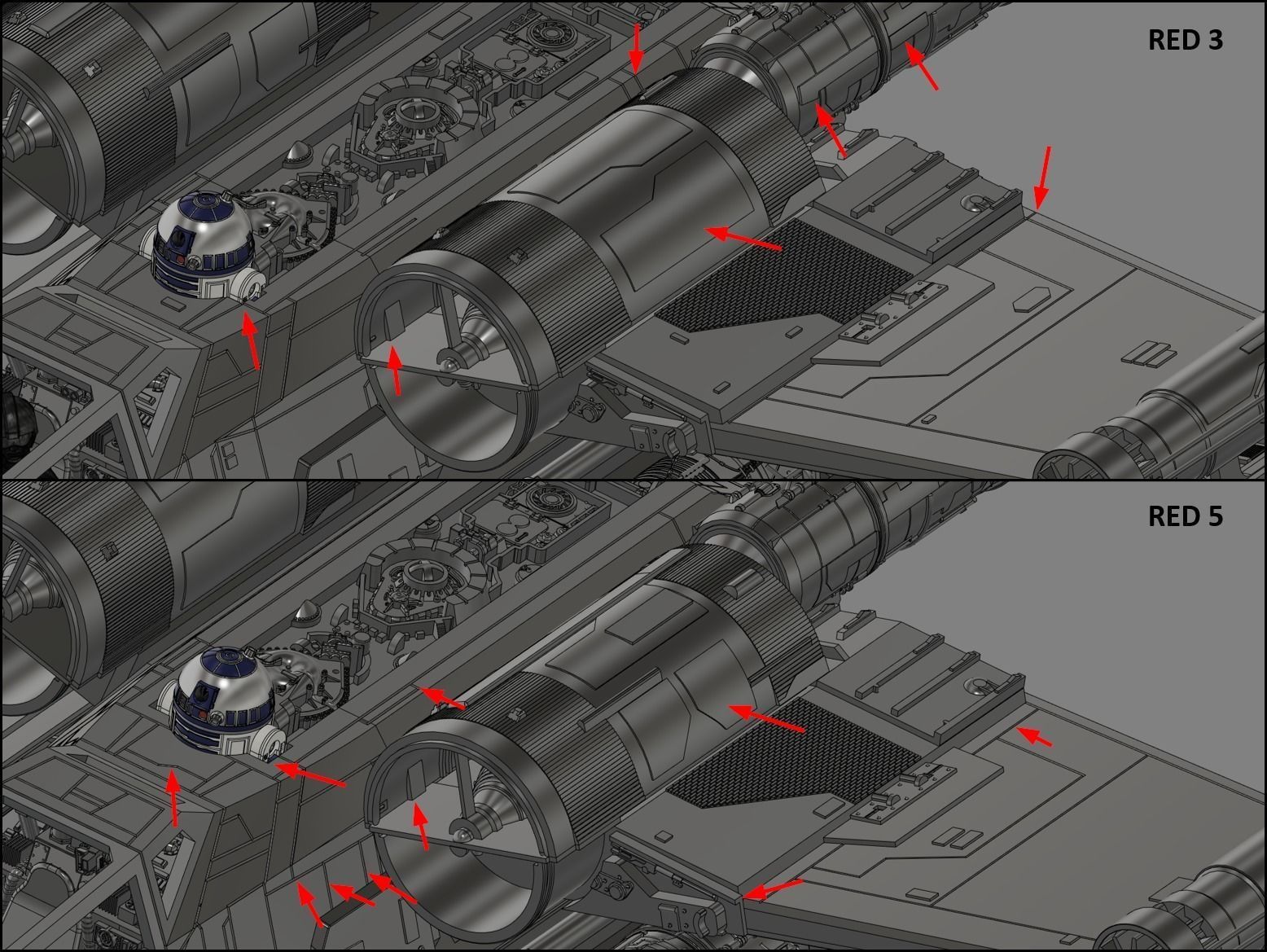

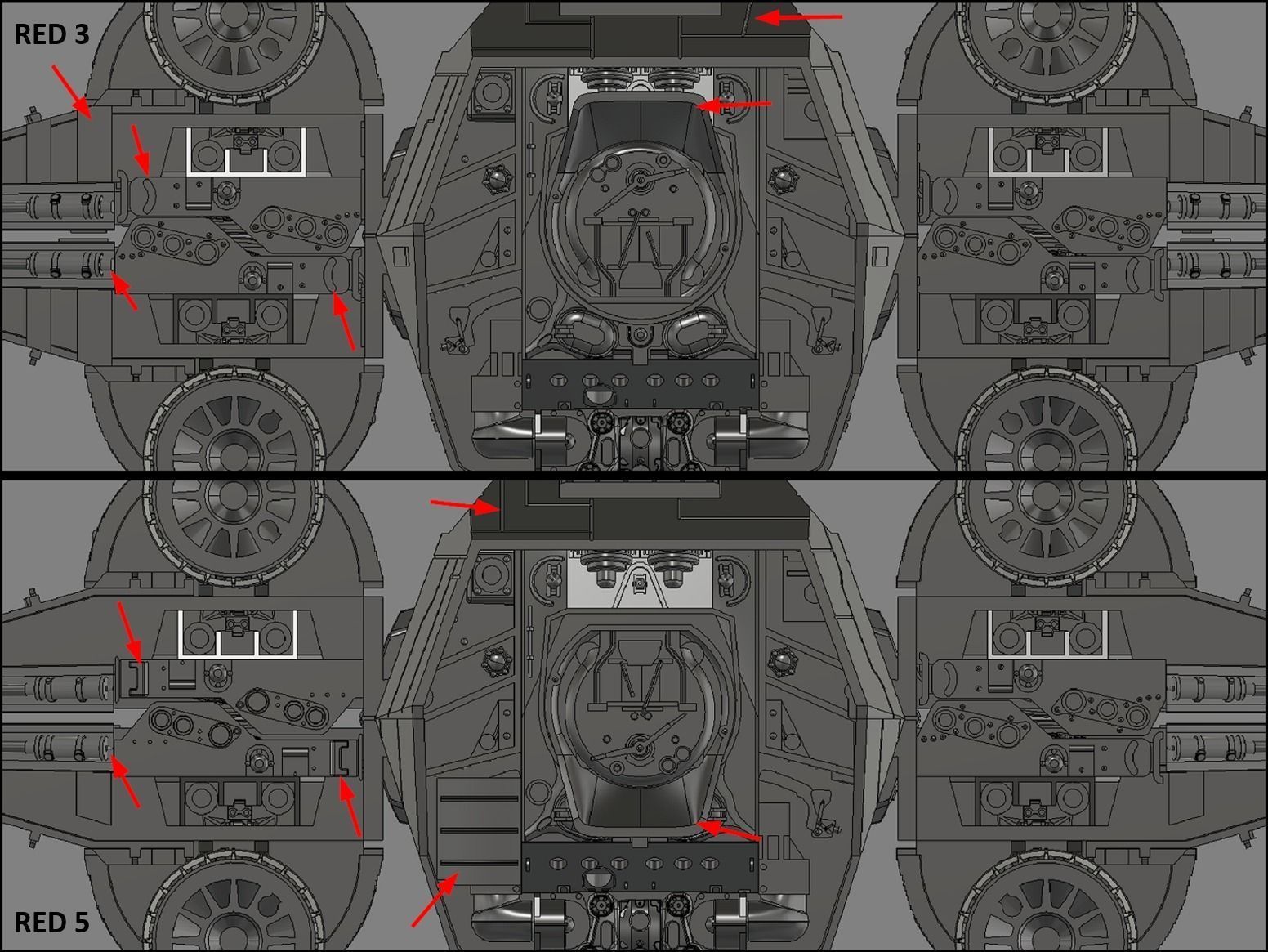

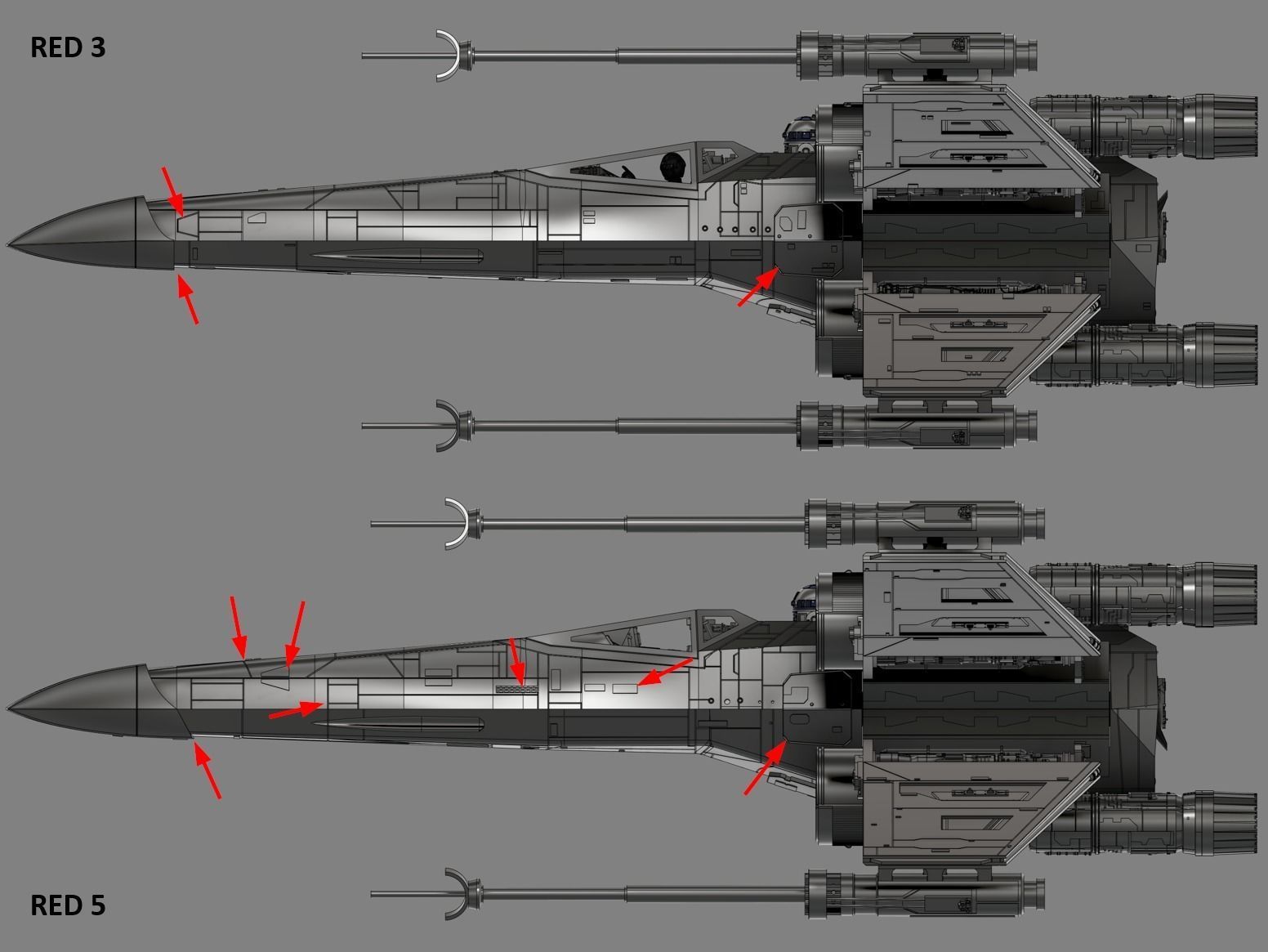

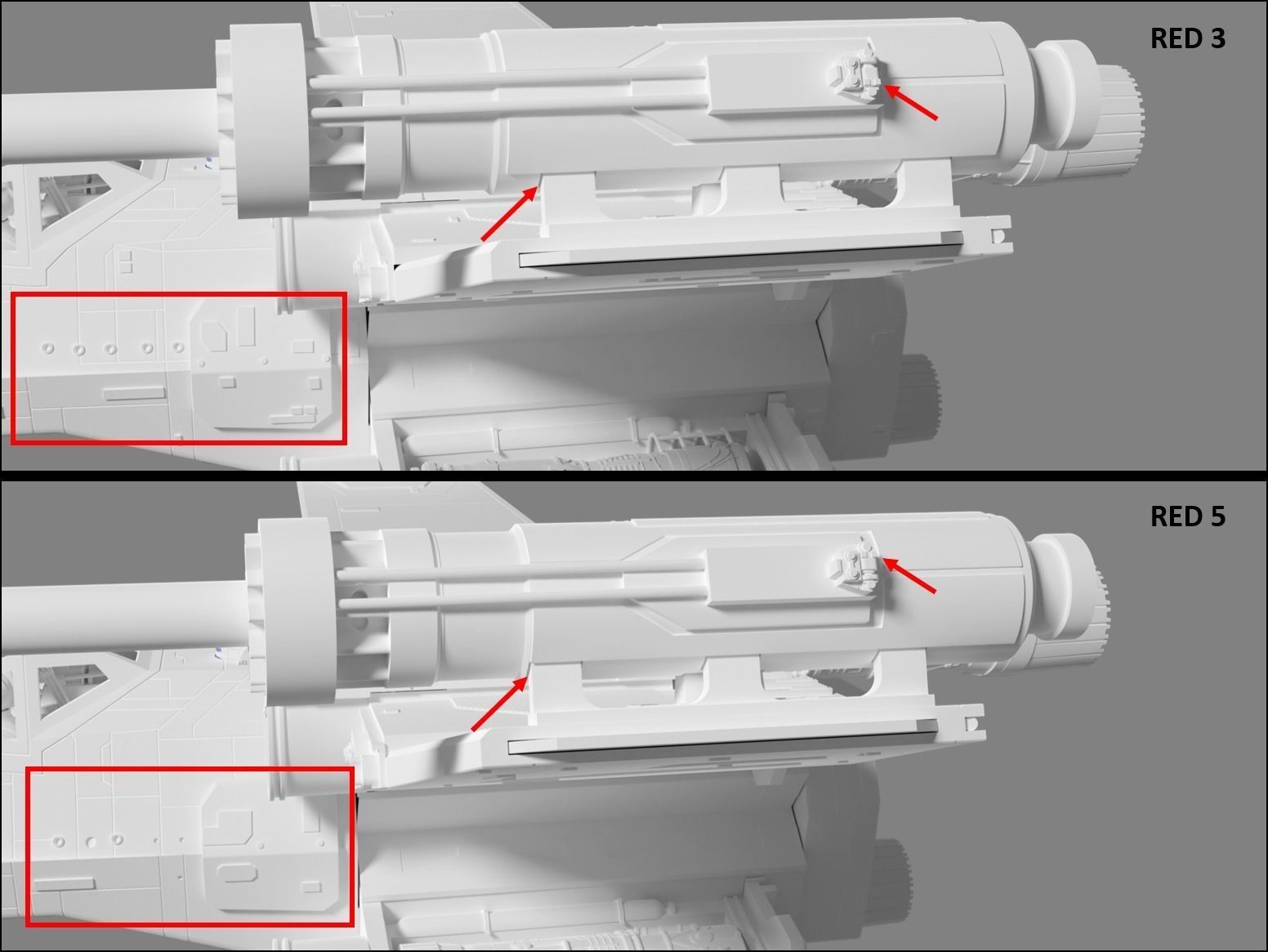

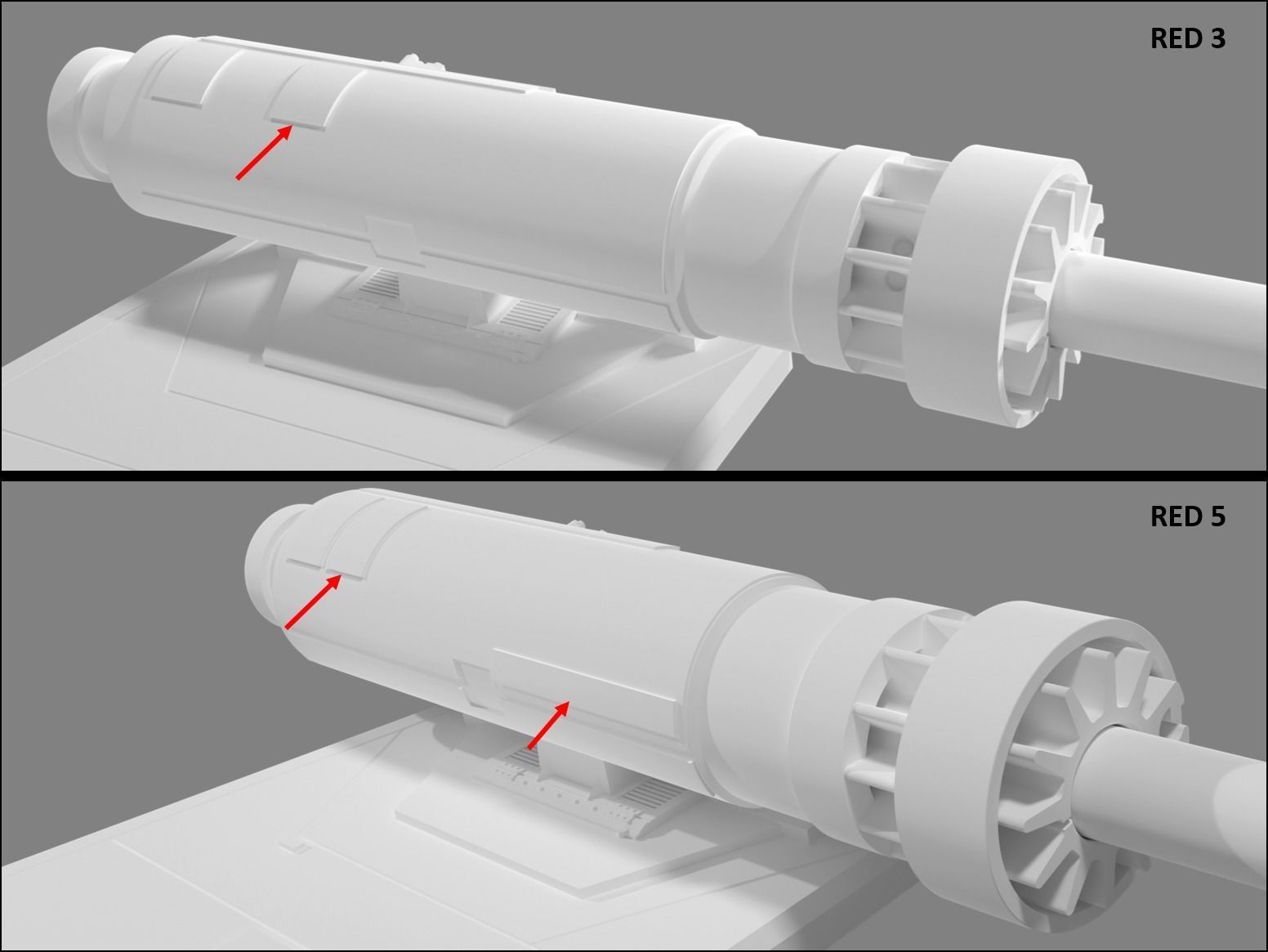

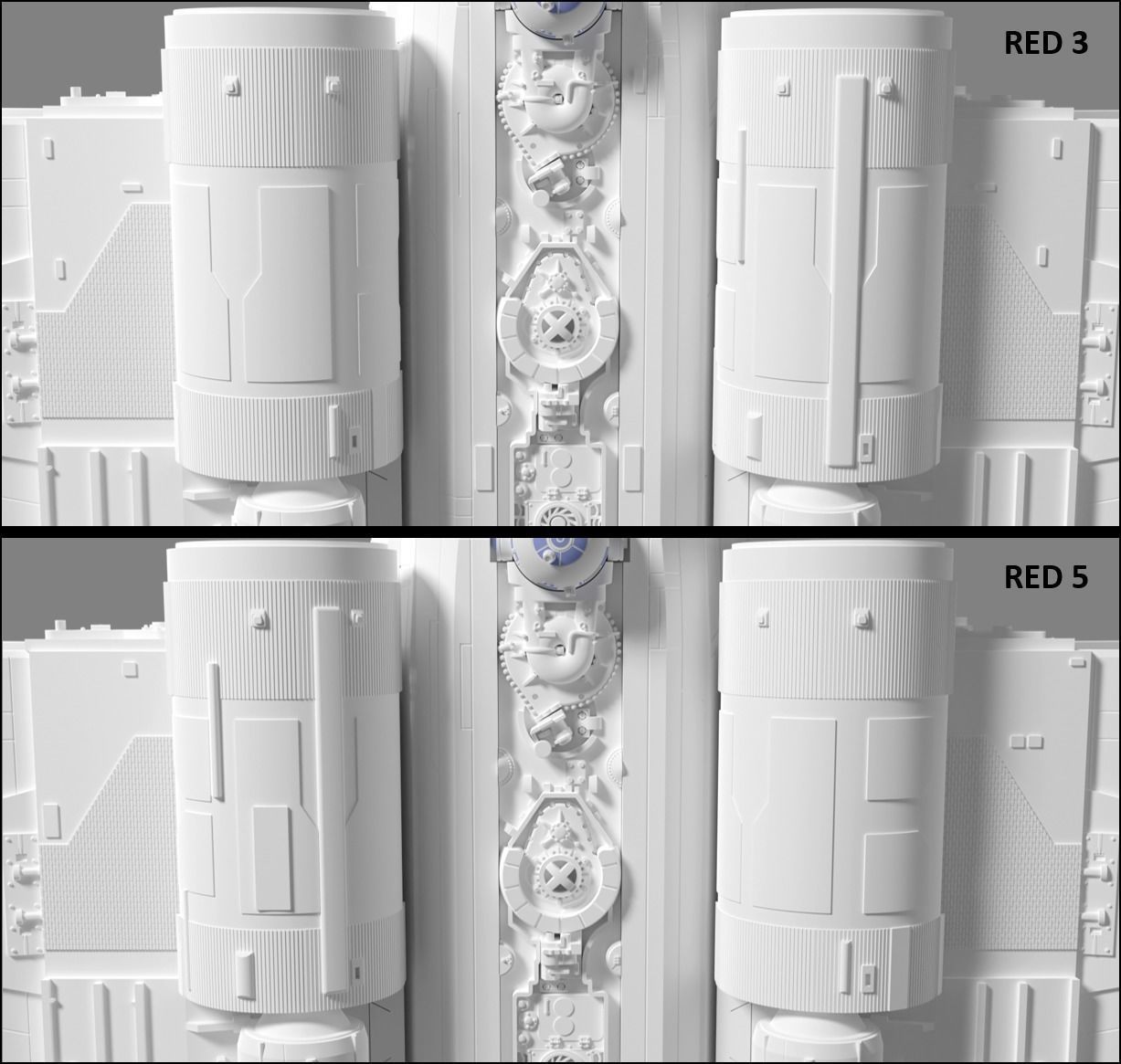

The last eight pictures show the main differences between Red 3 and Red 5.

May the force be with you!

Features

• 1/24 studio scale (studio scale = the size they used for the filming miniature)
• Articulated S-foils.

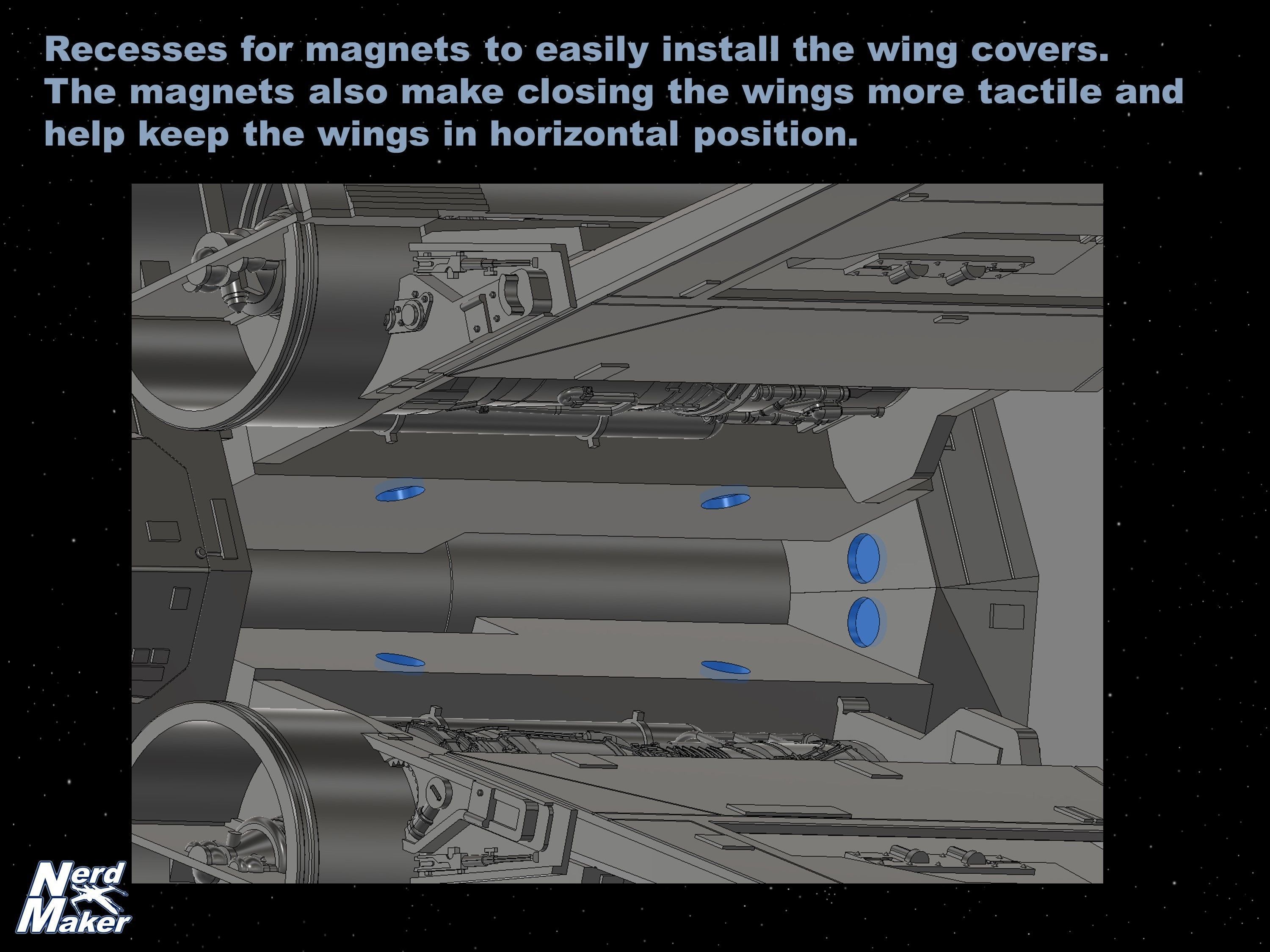

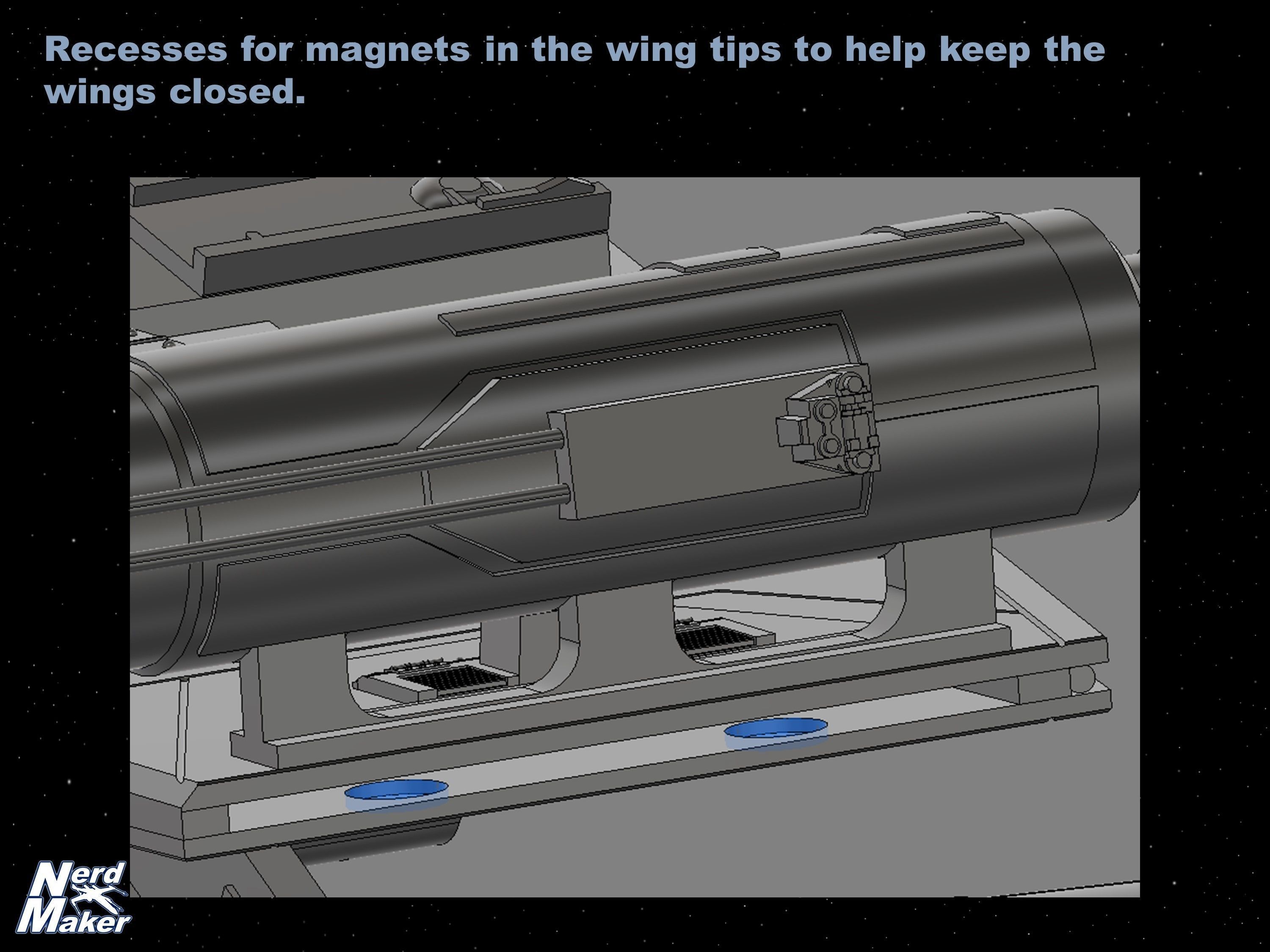

• Recesses for magnets in the wing mechanism to easily install the wing covers.The magnets also make closing the wings more tactile and help keep the wings in horizontal position. Recesses for magnets in the wing tips to help keep the wings closed.
• Articulated targeting computer.

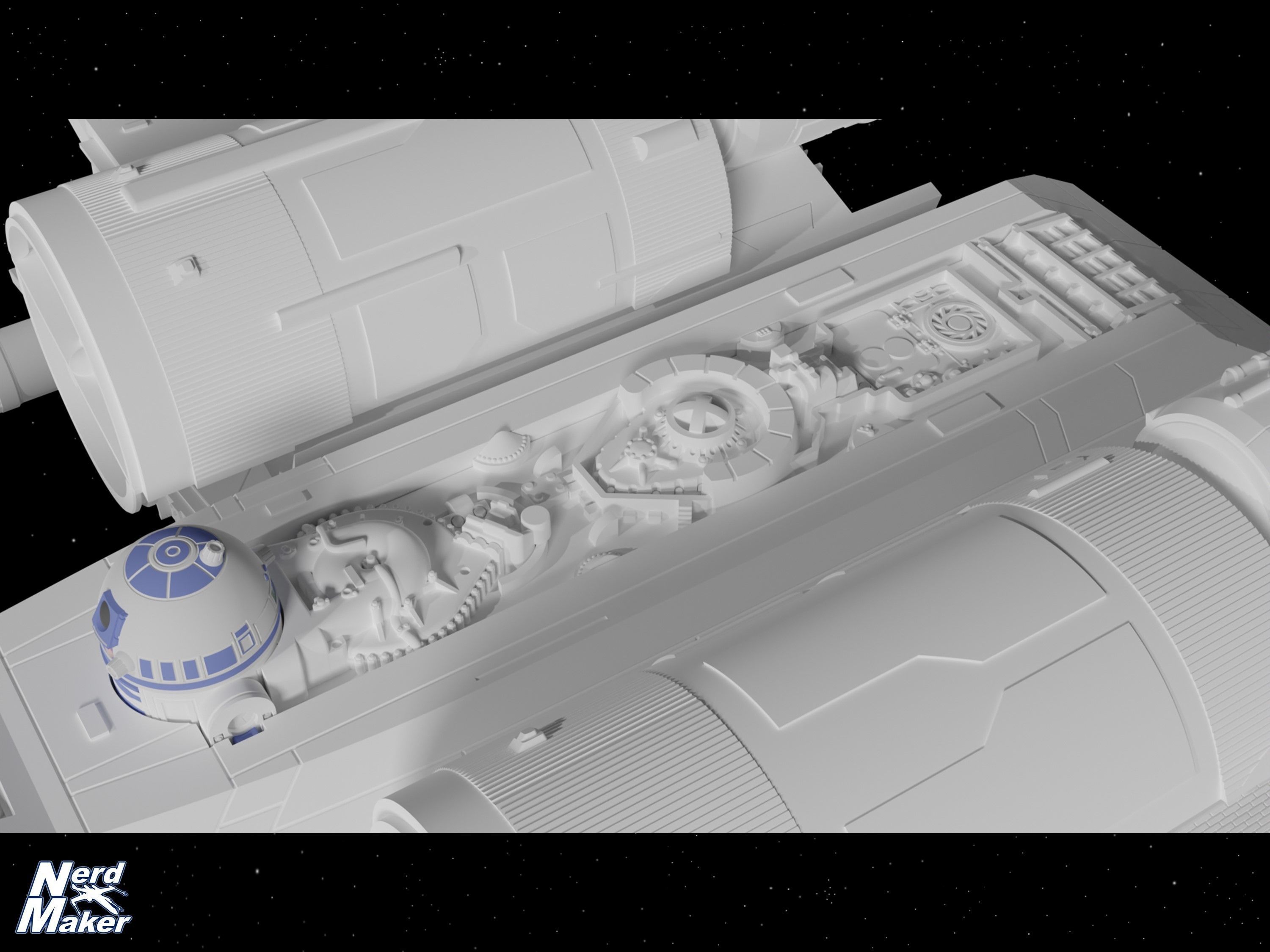

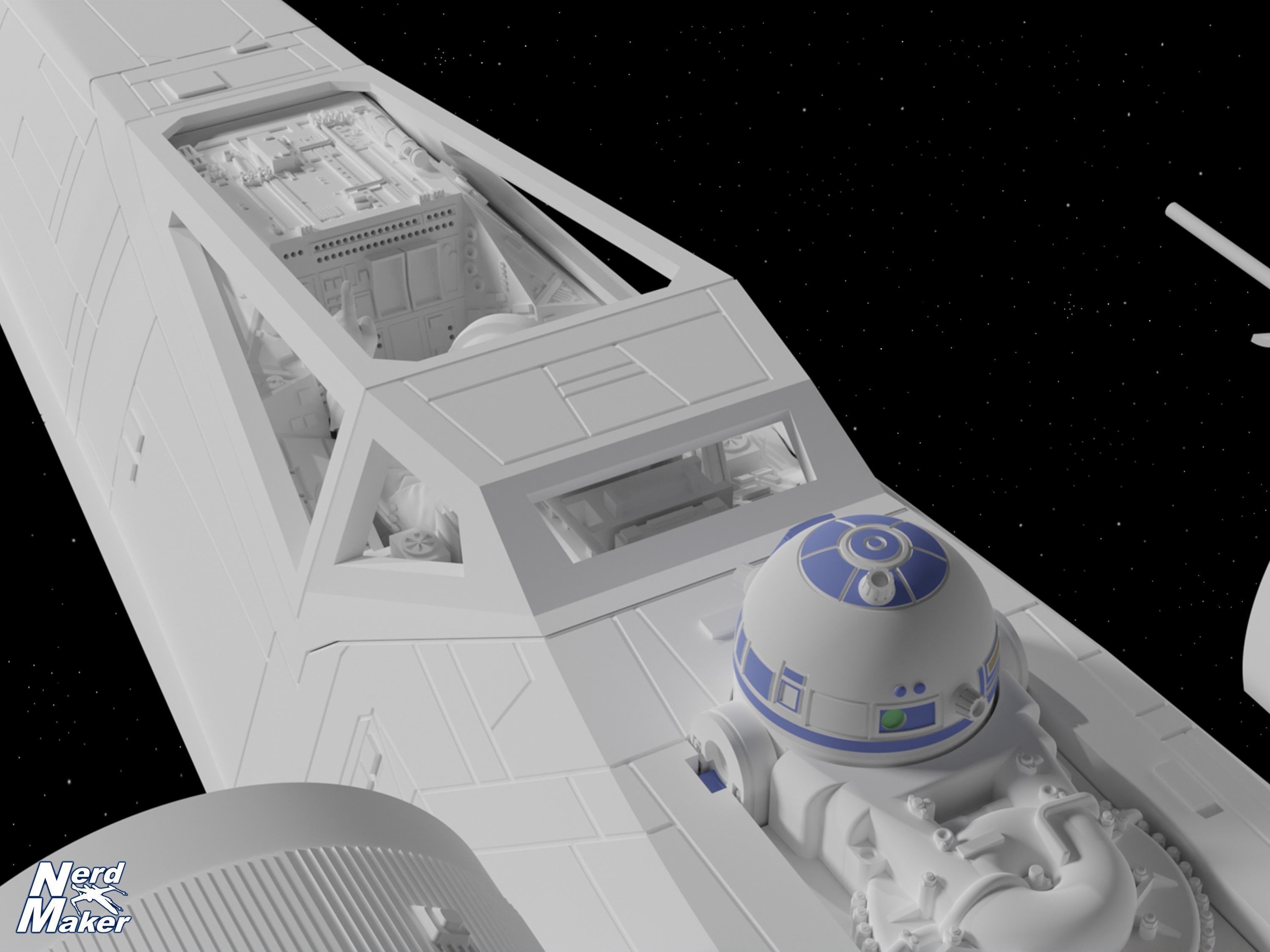

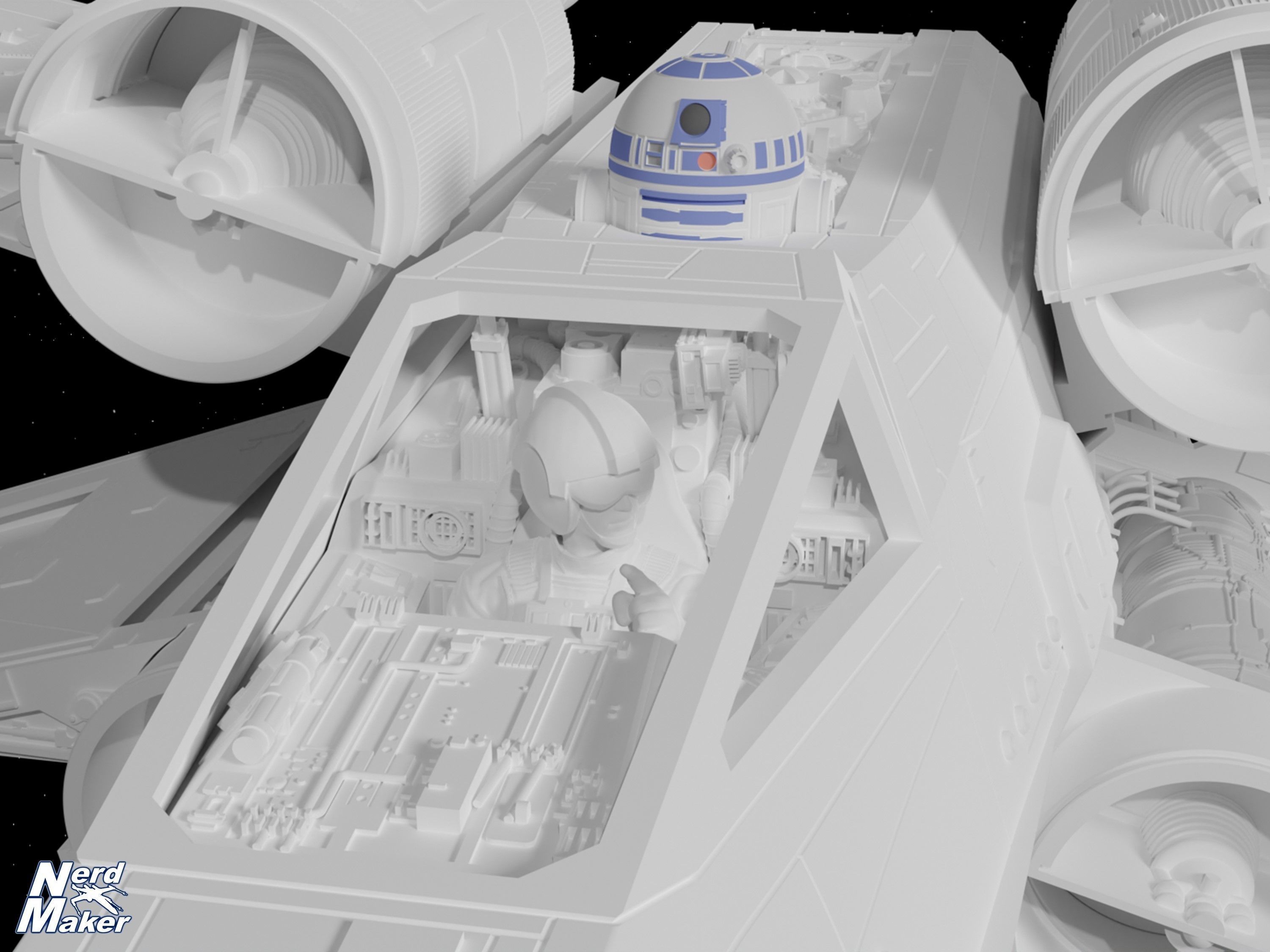

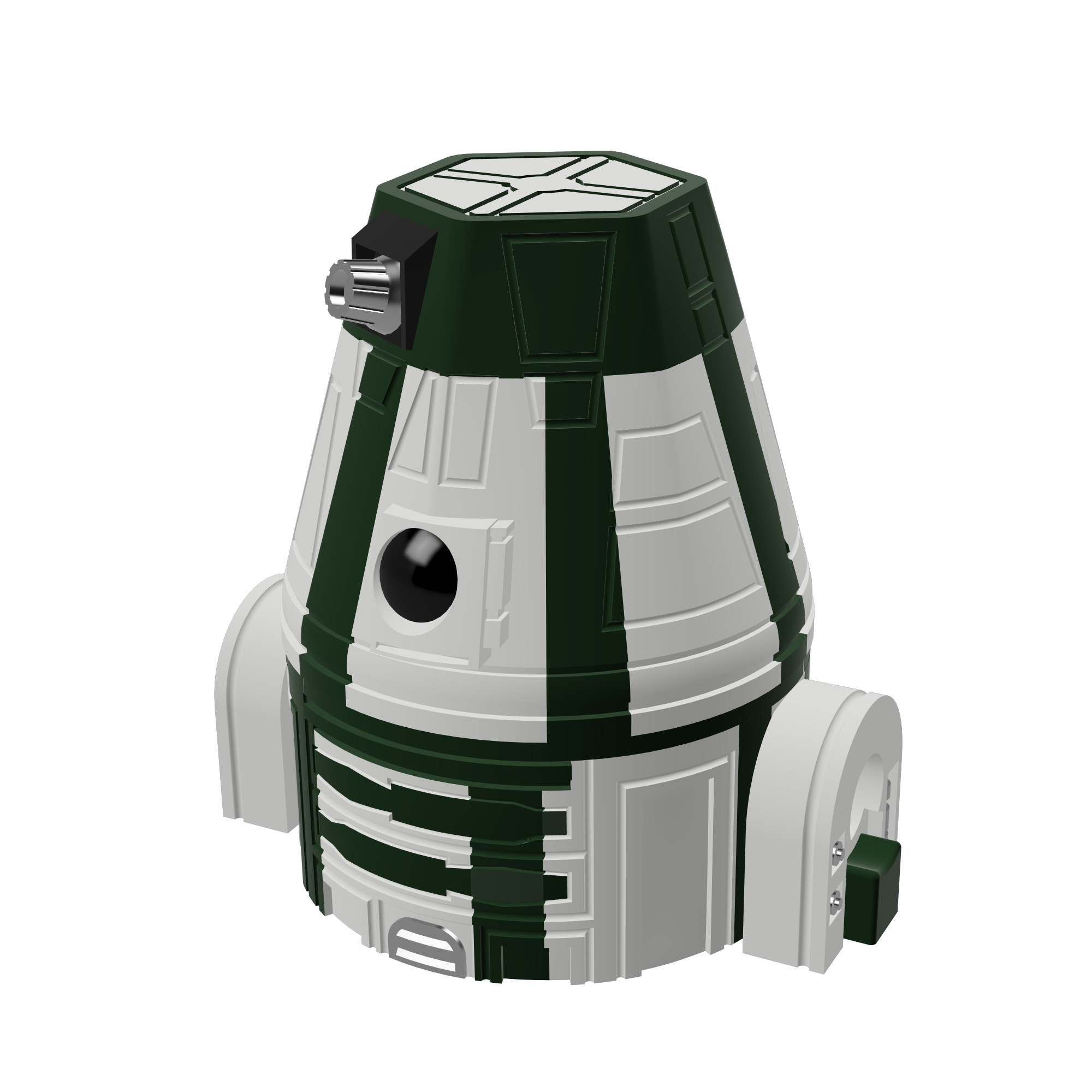

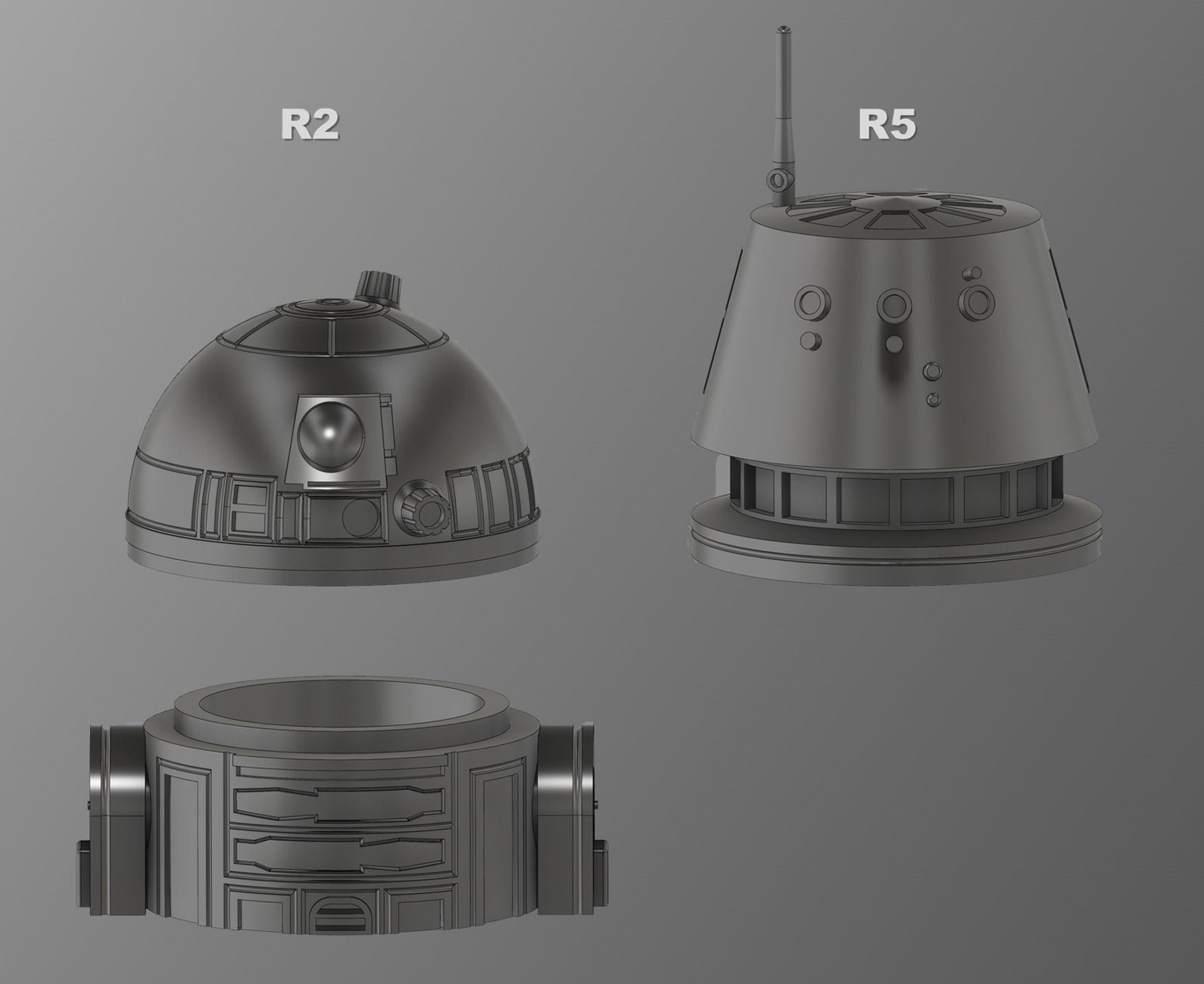

• Astromech droid with turnable head (R2, R4 and R5)

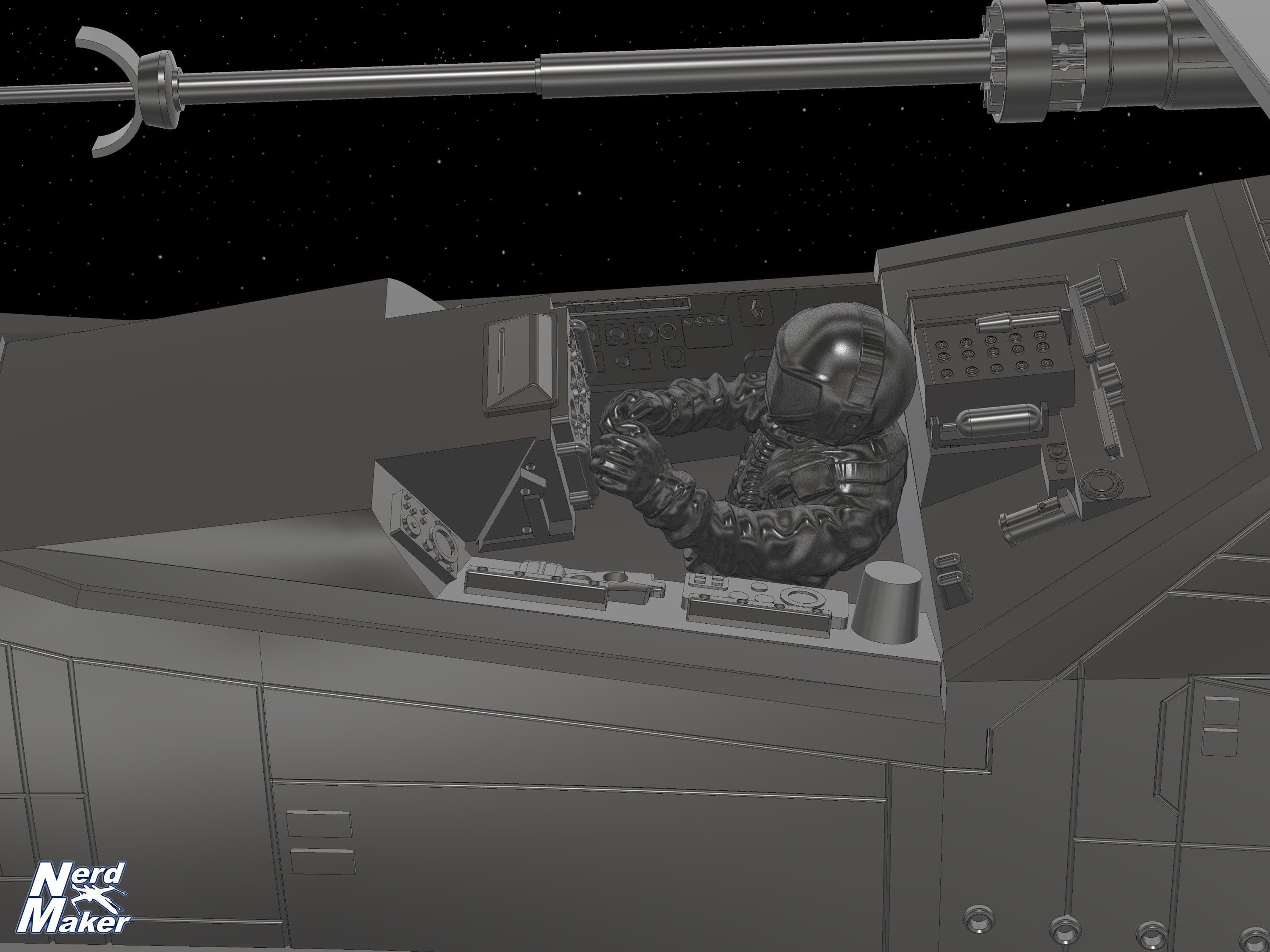

• 3 Pilots

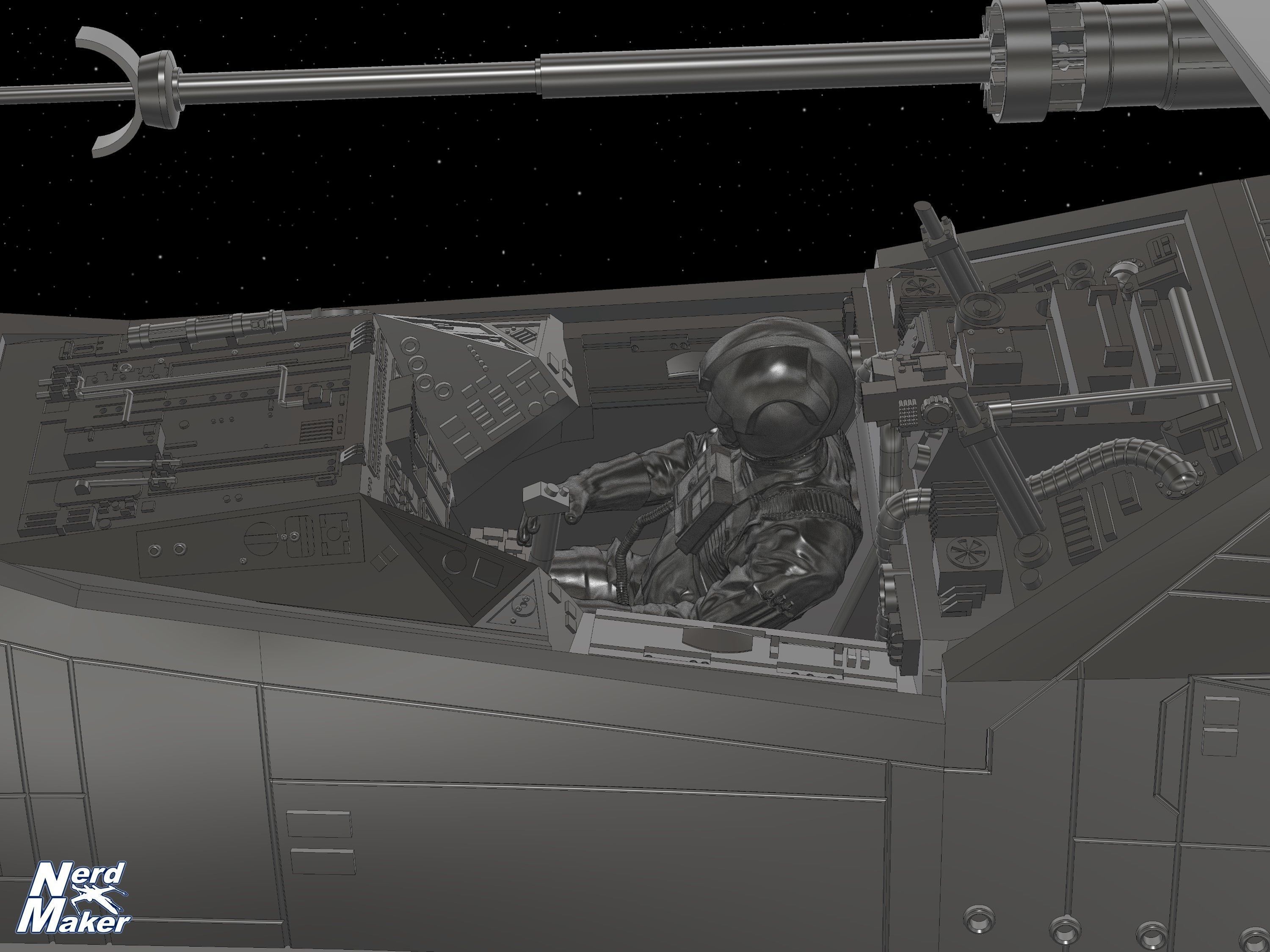

  • Live Action Pilot
  • Live Action Pilot with raised hand
  • ILM-Style Pilot

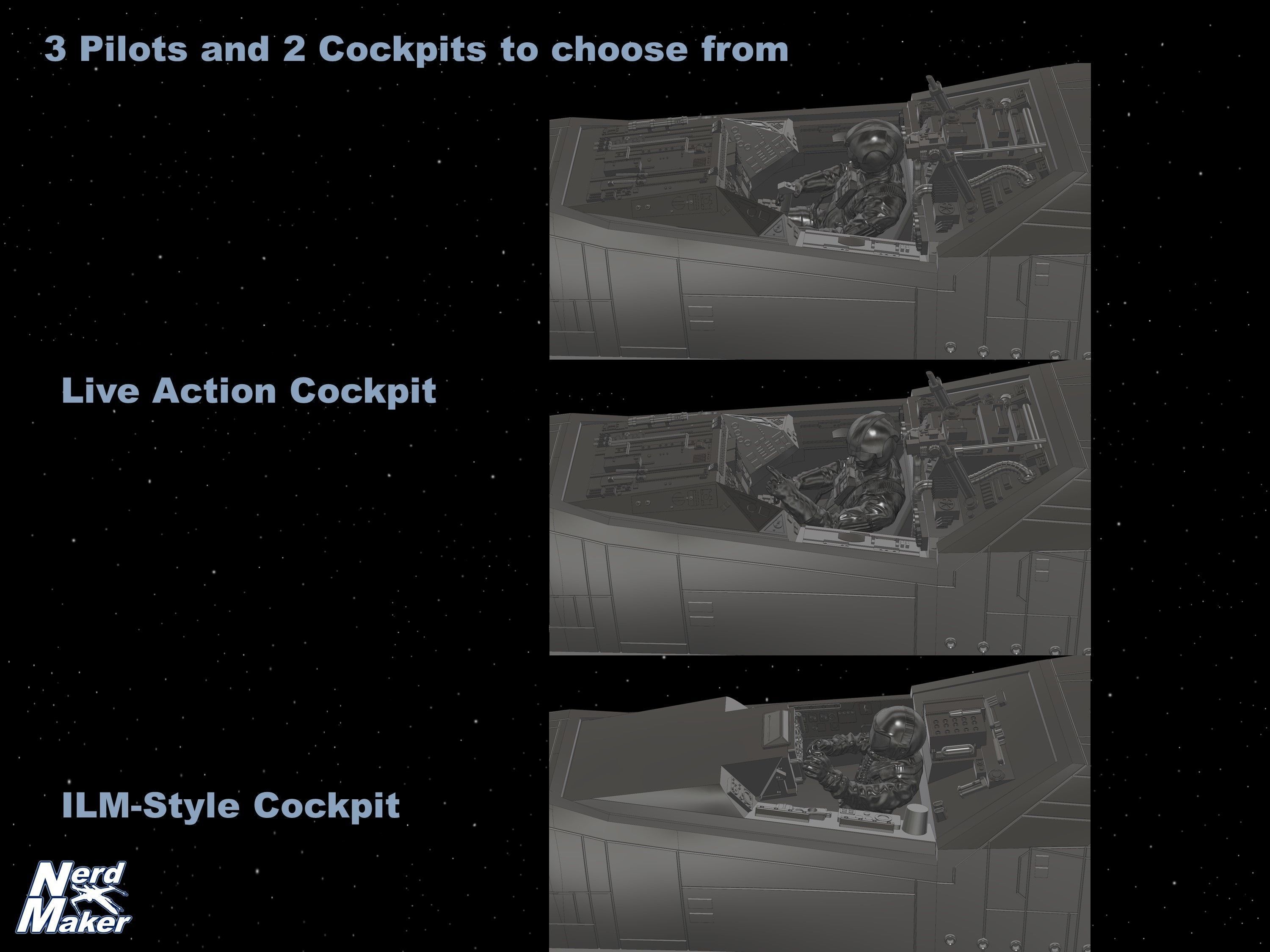

• 2 Cockpits

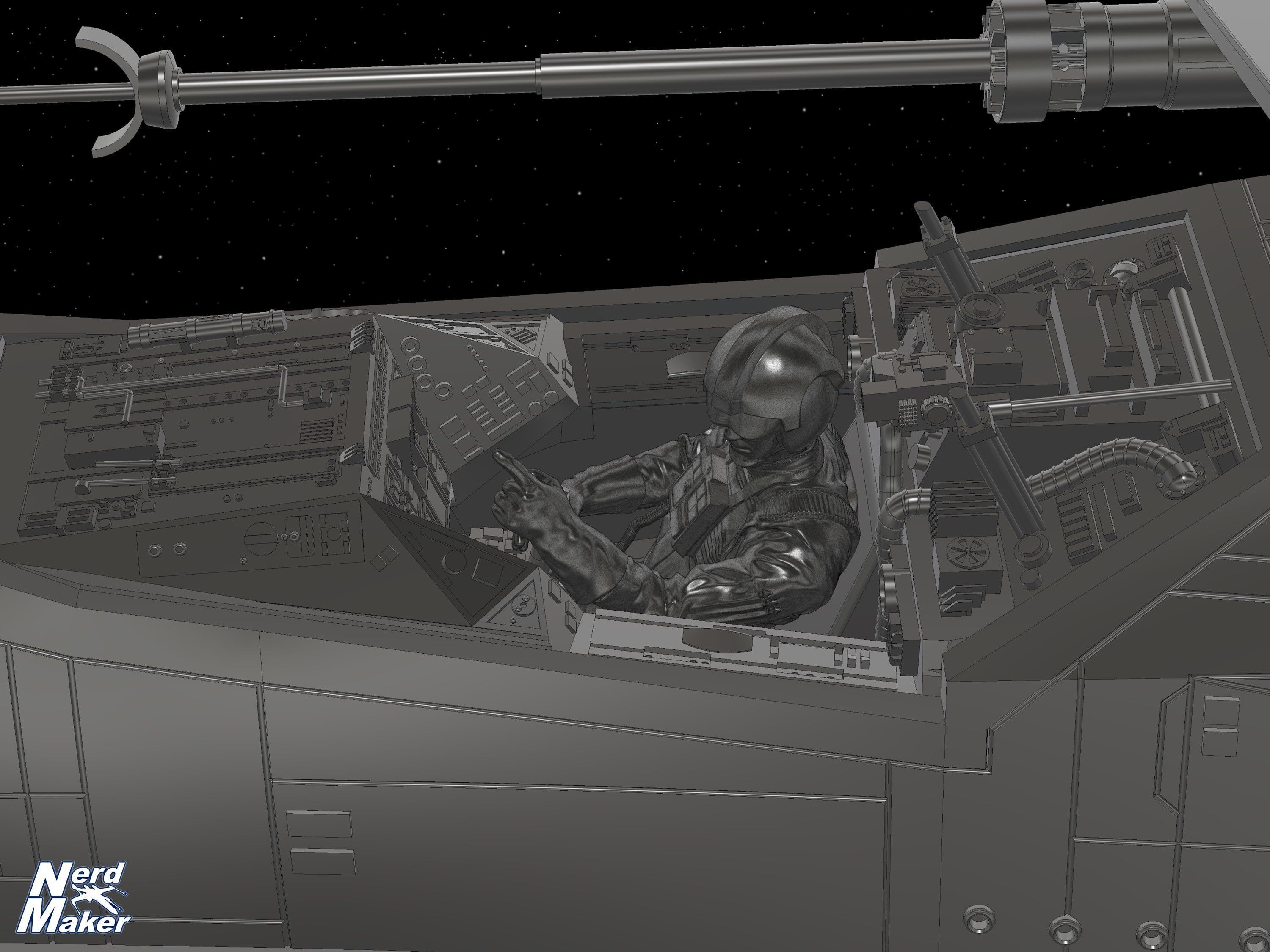

  • Live Action Cockpit
  • ILM-Style Cockpit
• The Live Action Cockpit has 0,6mm holes for fiber optics

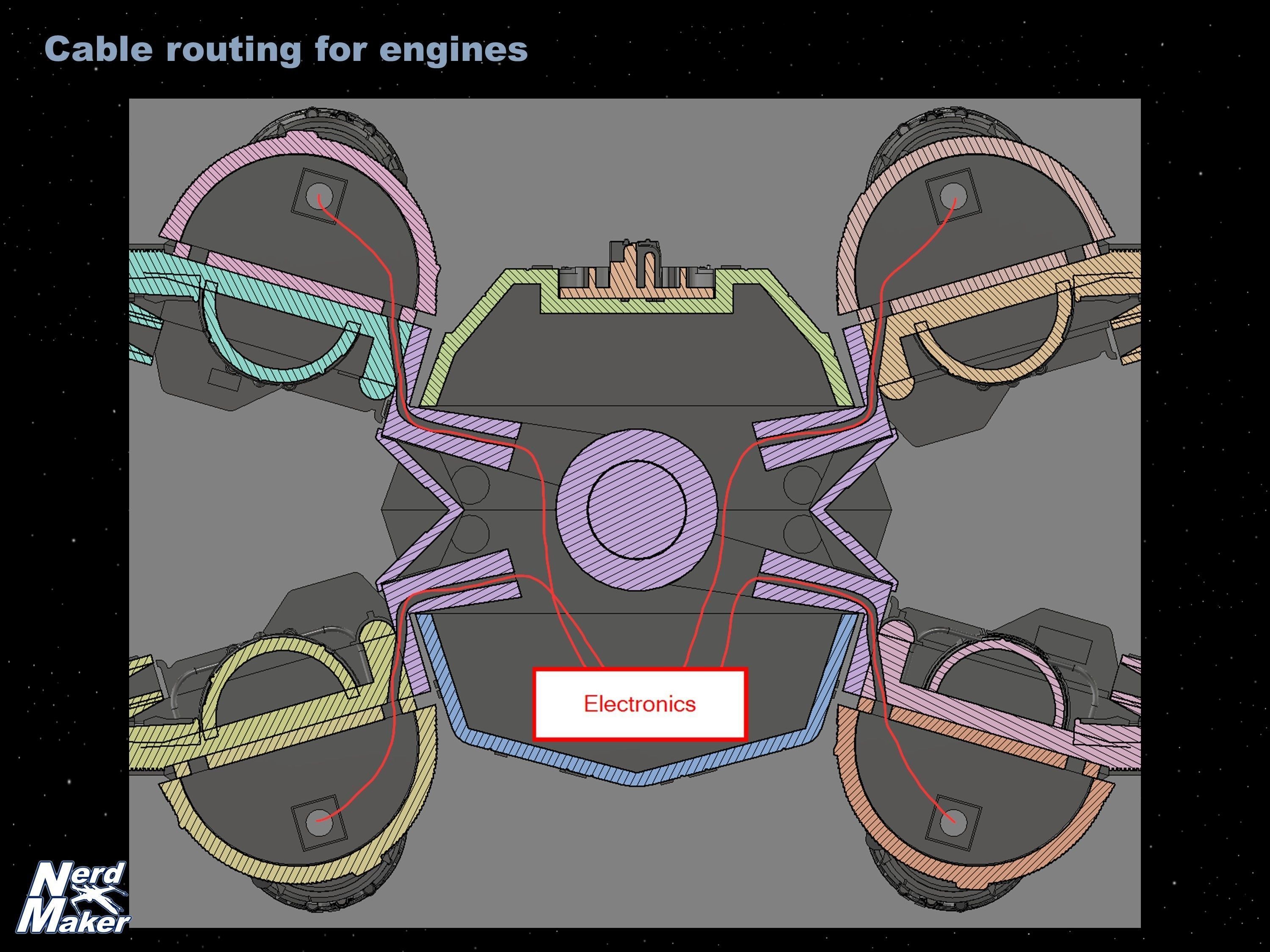

• Cable routing for engine lighting integrated in the wings
• The finished model can be mounted on a threaded stand

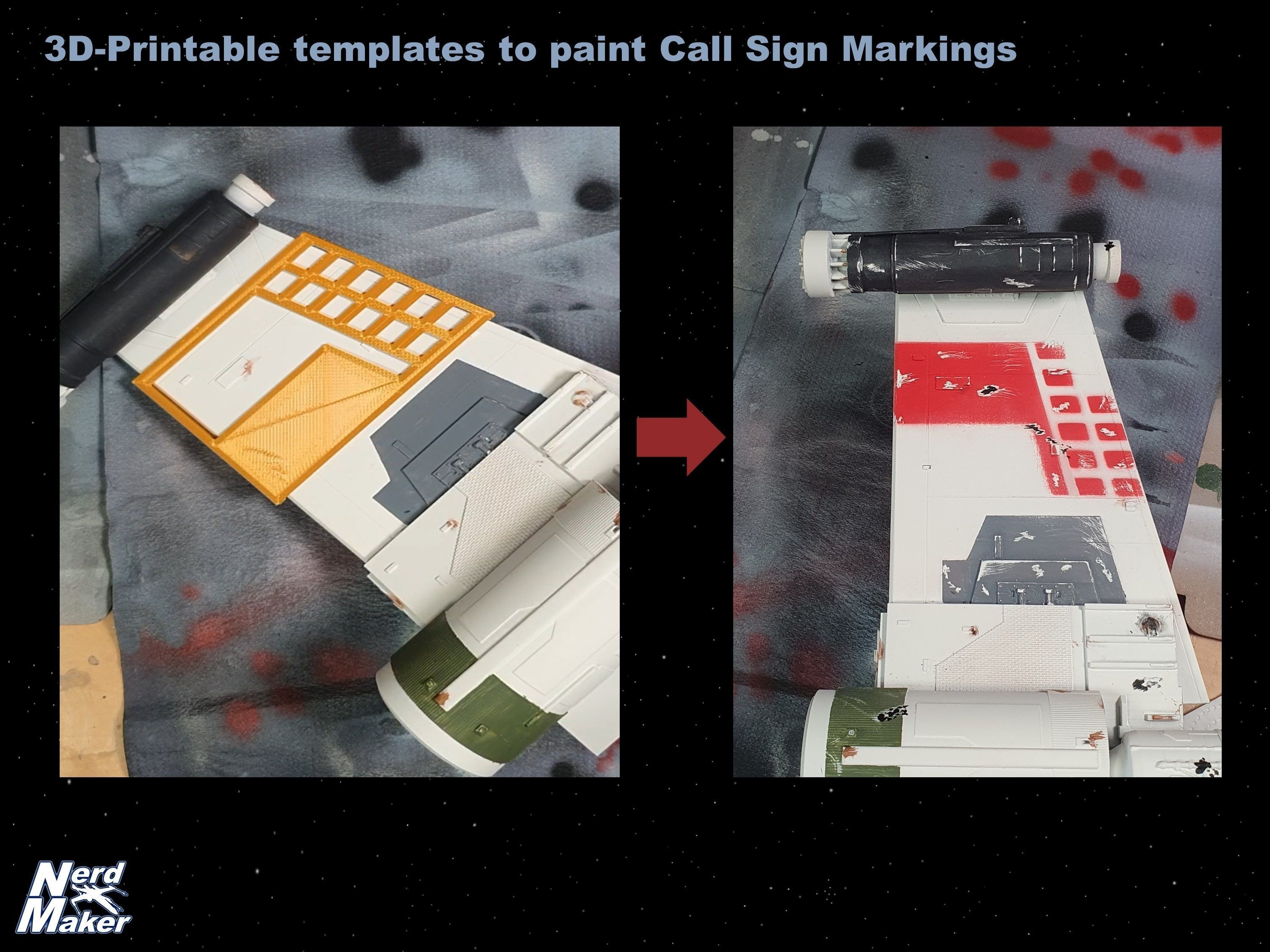

• 3D-Printable templates to paint Call Sign Markings (Red3 and generic 1-12) included
• Optional Parts for CNC to make out of metal

Data

• Length: 560 mm / 22 in
• Width: 460 mm / 18 in
• Hight (with S-foils locked in attack position): 190 mm / 7.5 in

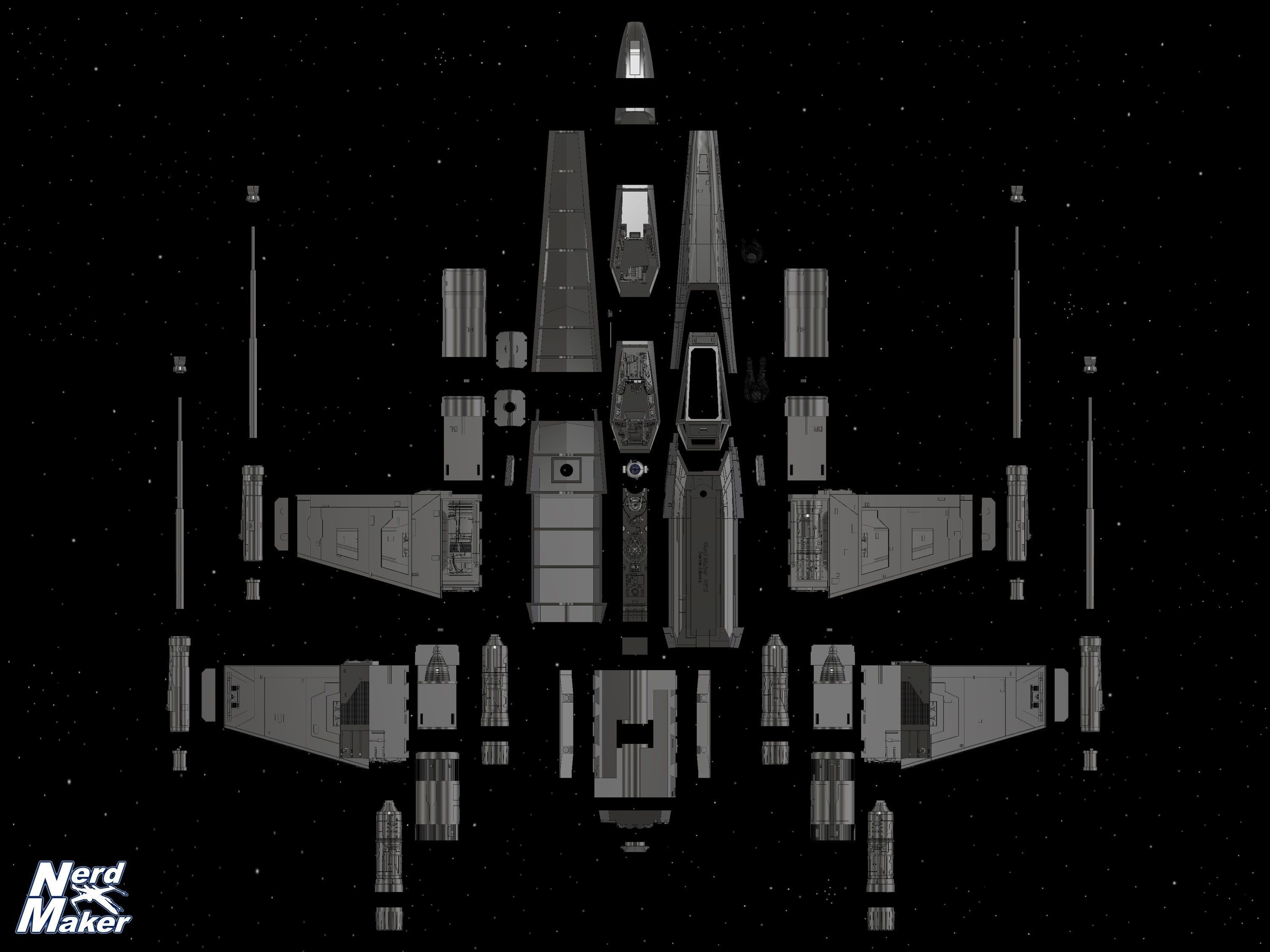

• 74 STL-files for 3D printing (+ some Alternative Parts)

Info

• You purchase digital STL-files for 3D printing!
• All files are developed for resin printing.
• All files are tested, successfully resin printed and assembled.
• Recommended printer build volume for the native scale: 192x120x250 mm (WxDxH)
• (Min. required printer build volume: 192 x 120 x 200 mm (WxDxH))

Print the wings and the fuselage with engineering resin (or similar that has little to no flex) to prevent any sagging. Don’t use an ABS-like resin.Cure the wings and the fuselage very thoroughly immediately after printing for at least 20-30 minutes (washed of course).

• A Commercial License, to sell 3D-Prints of my Models, is available on Patreon > NerdMaker
