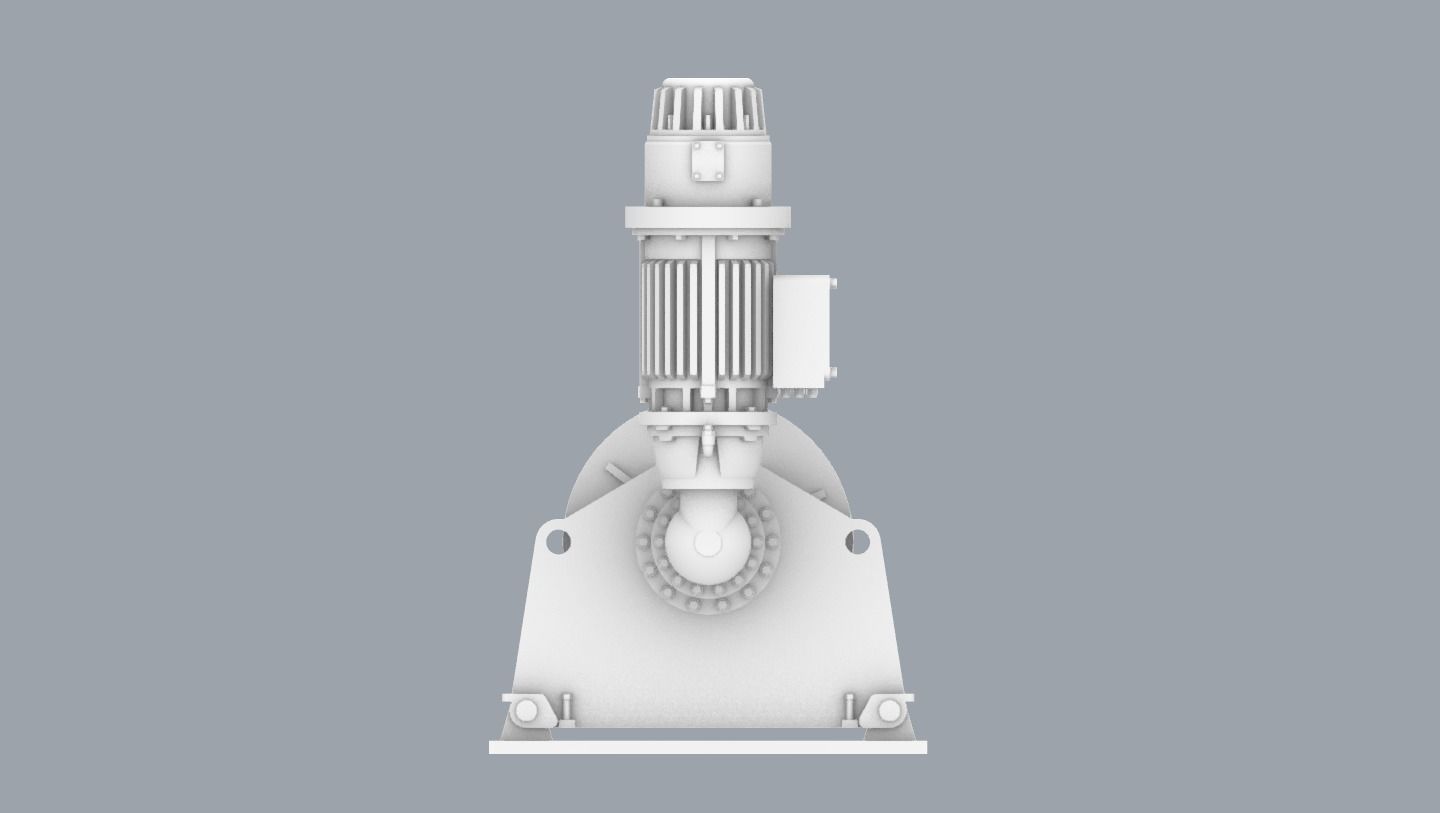

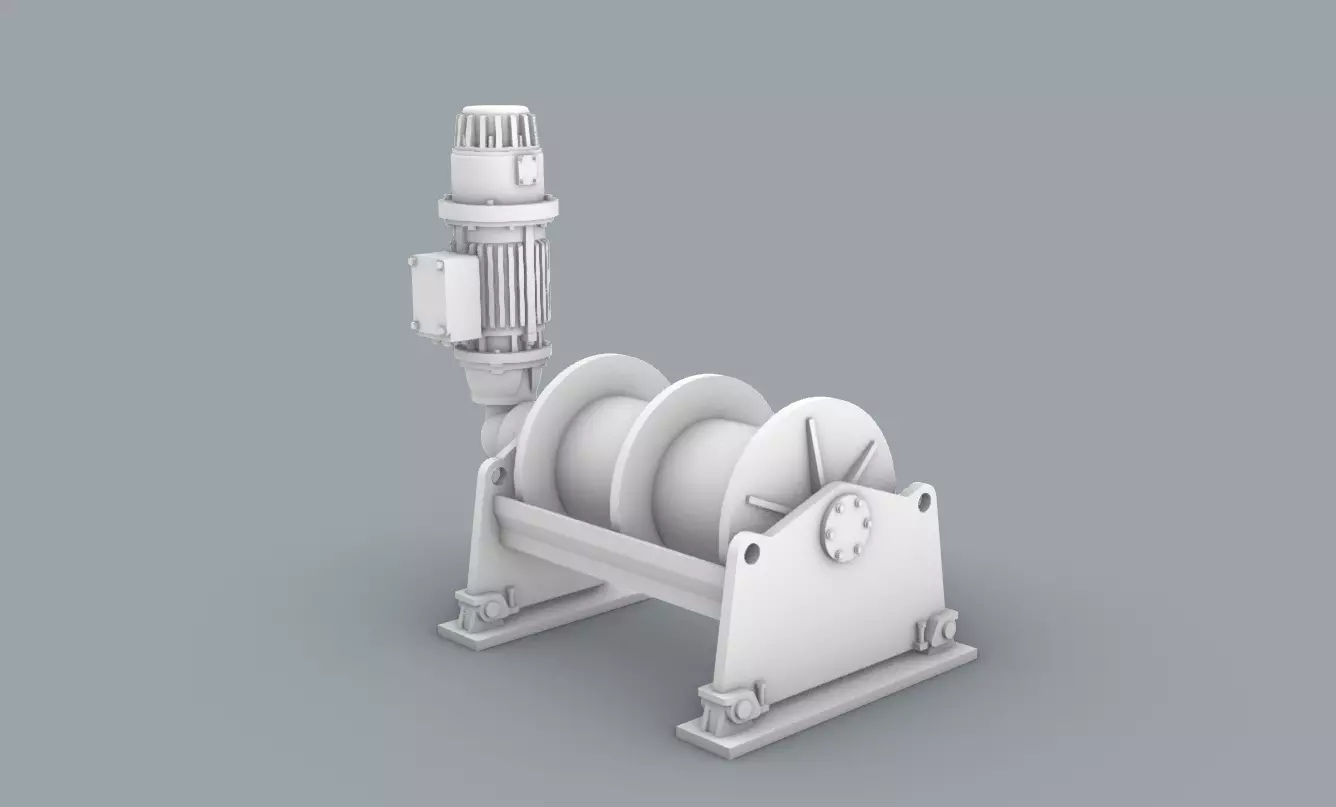

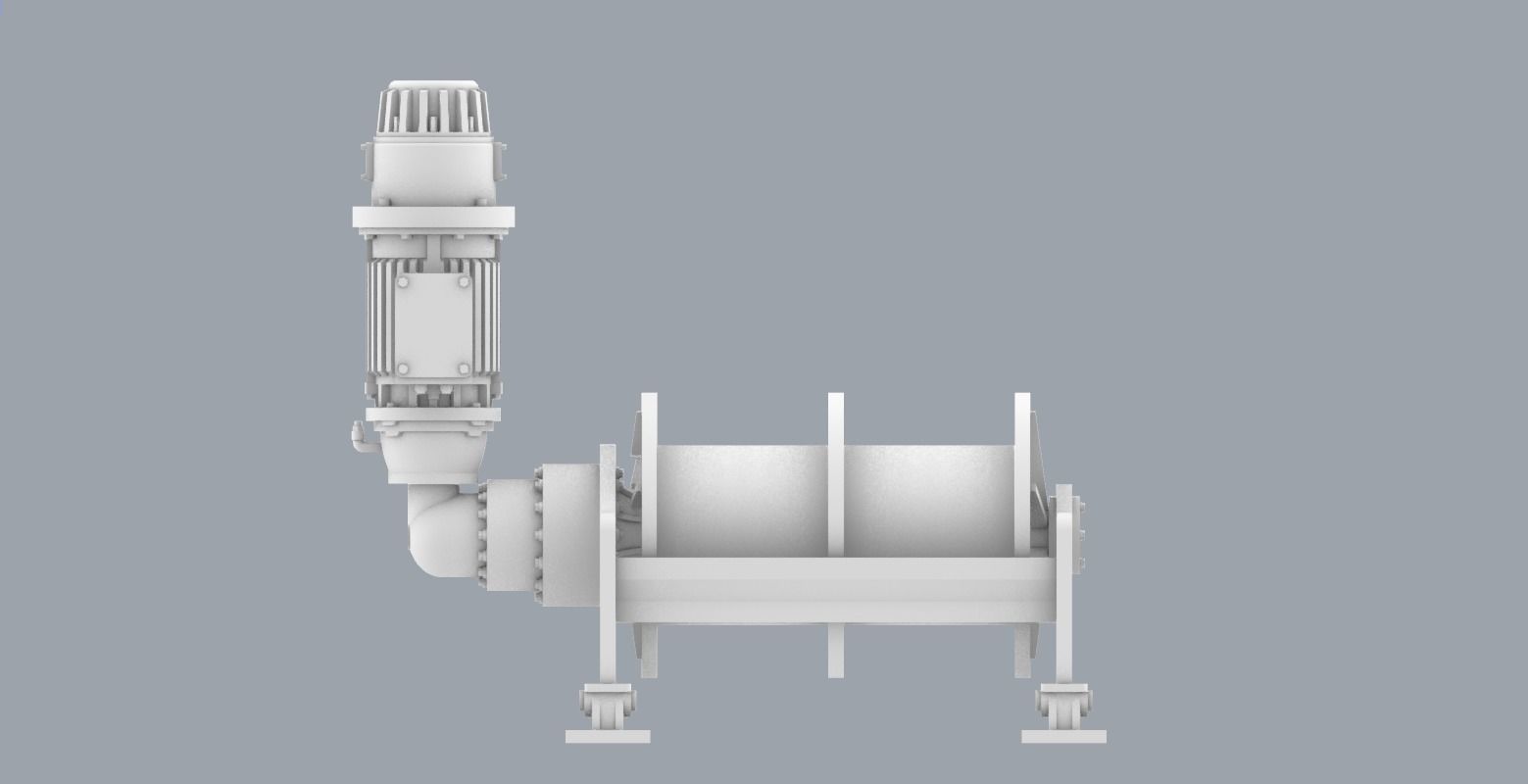

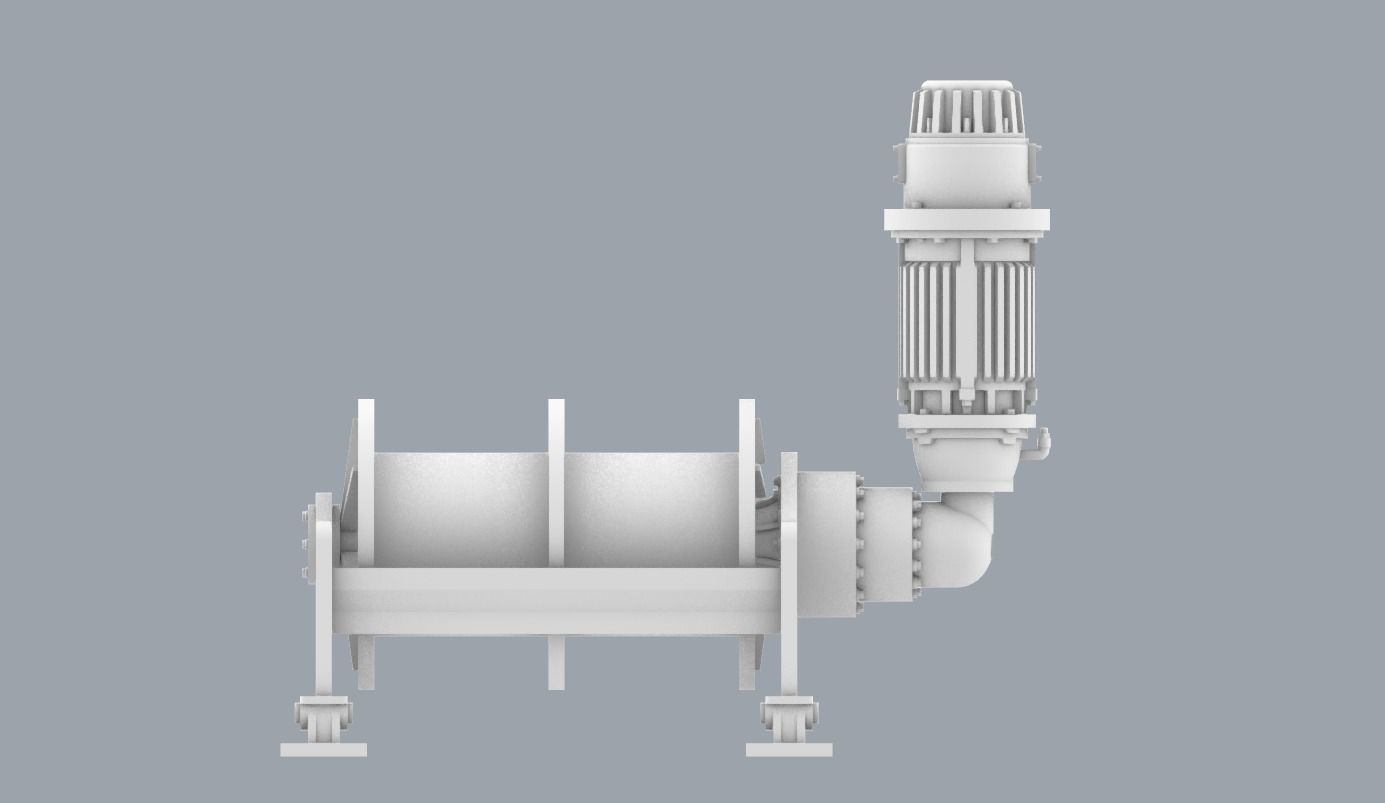

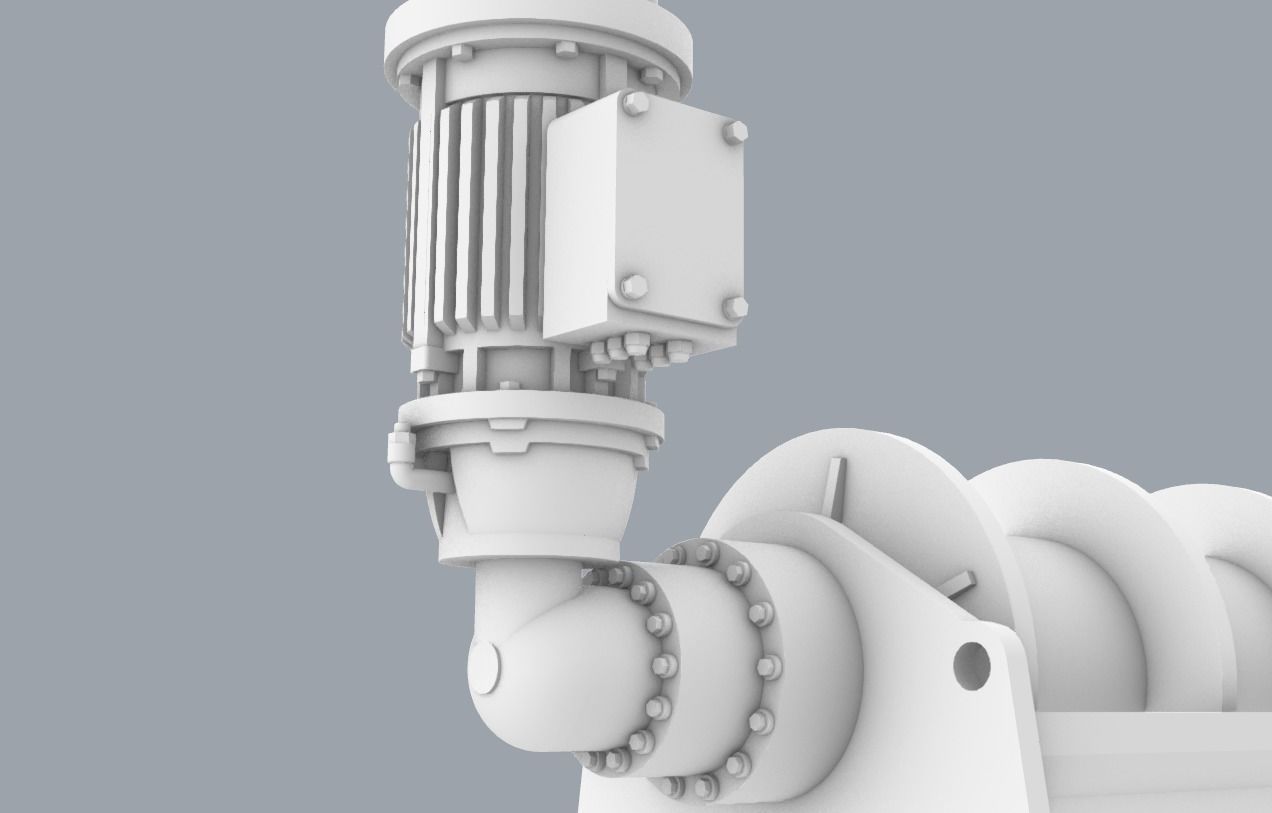

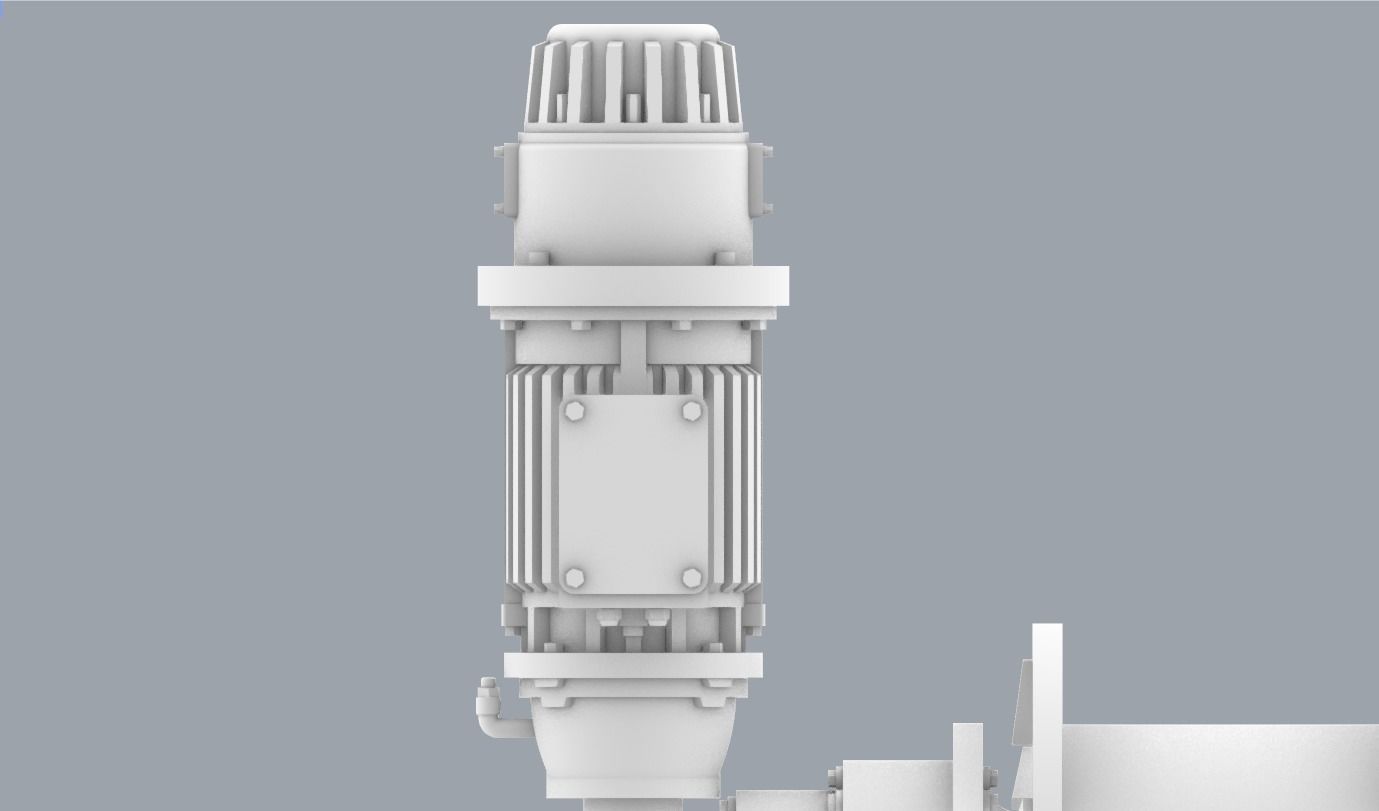

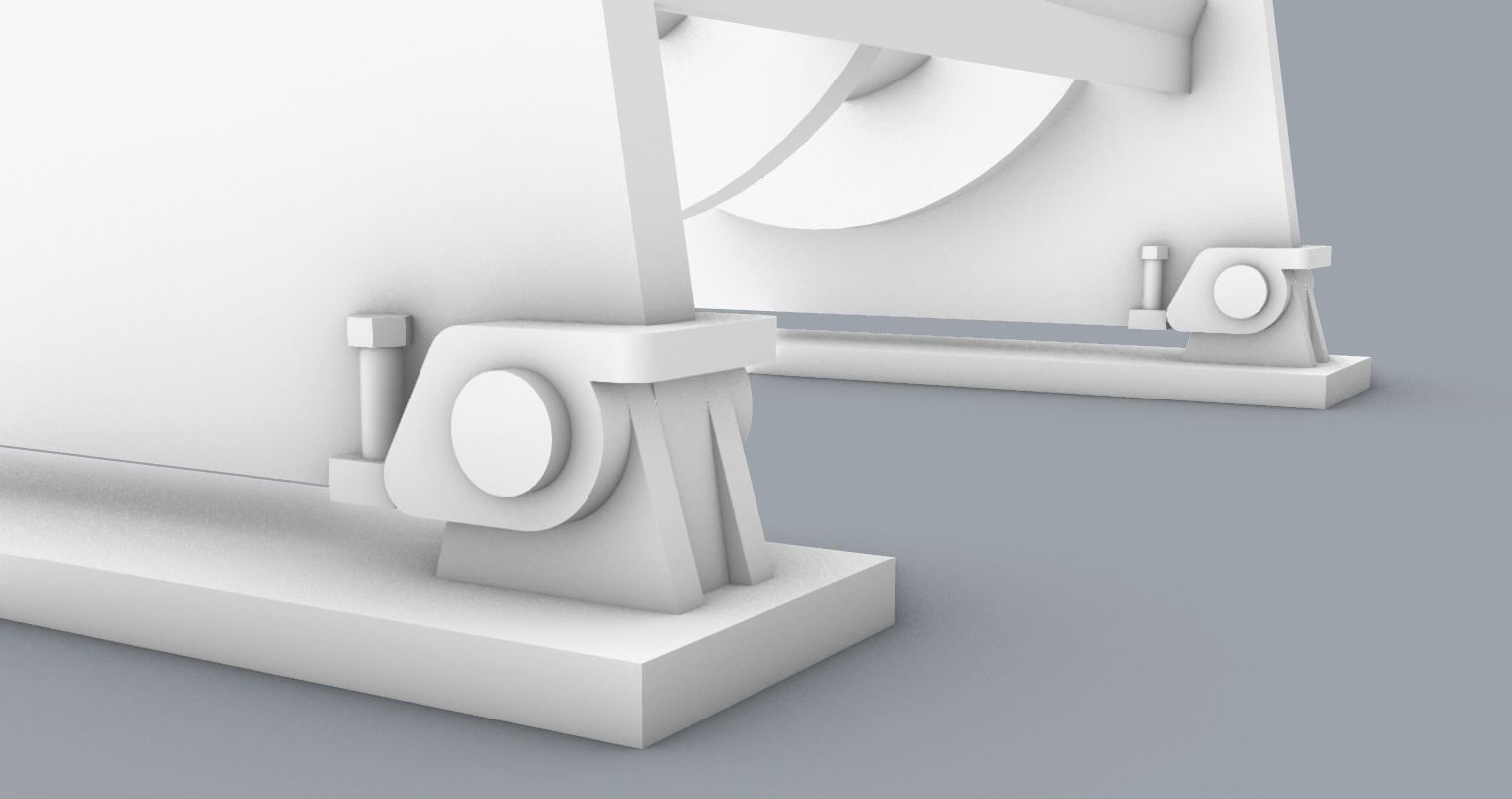

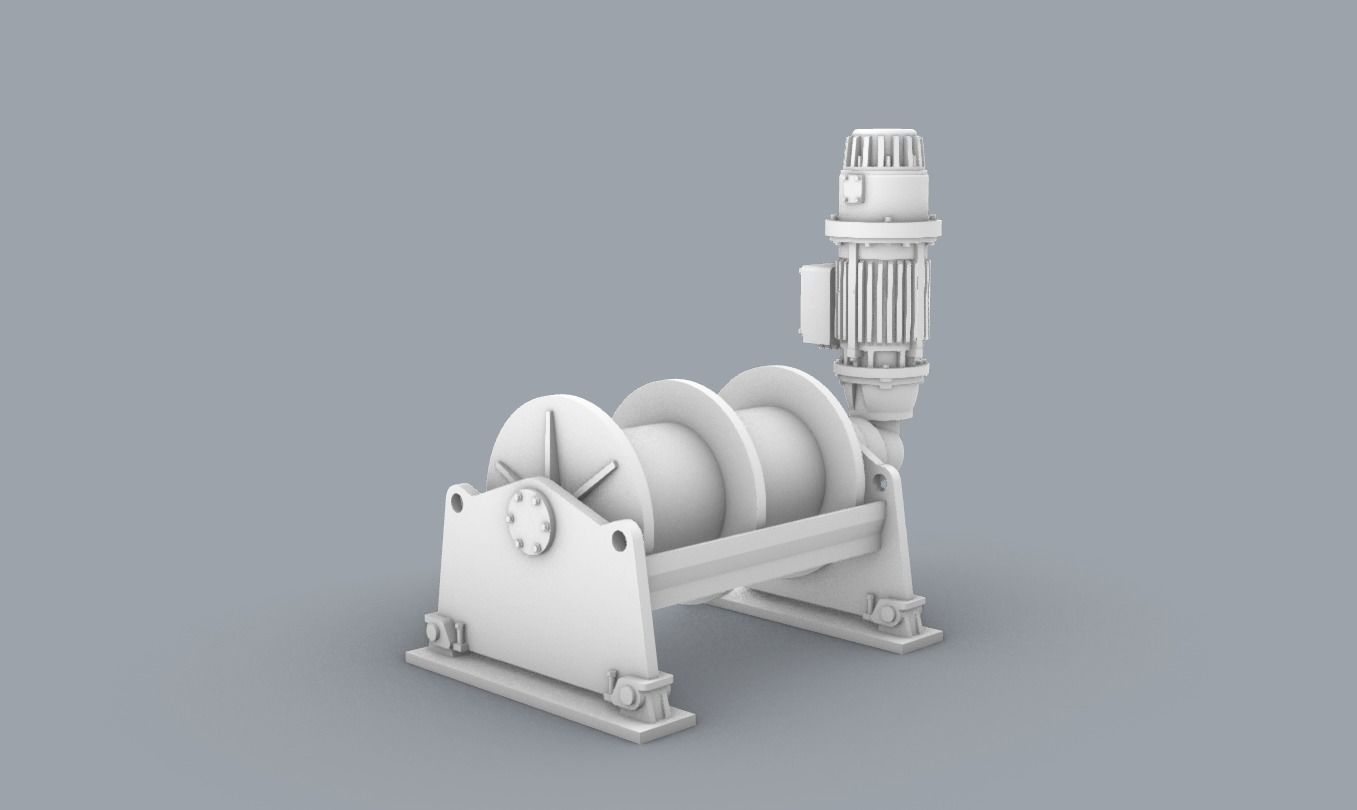

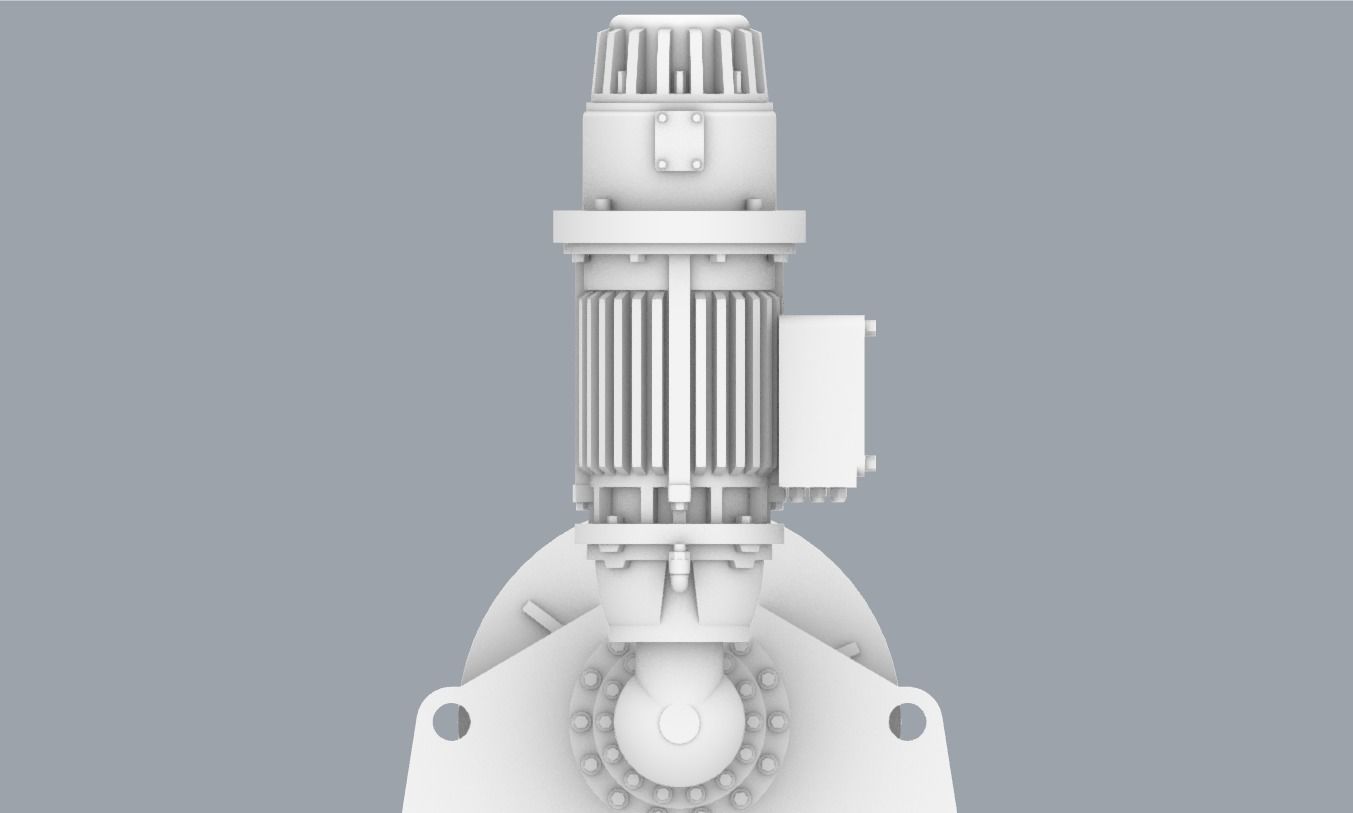

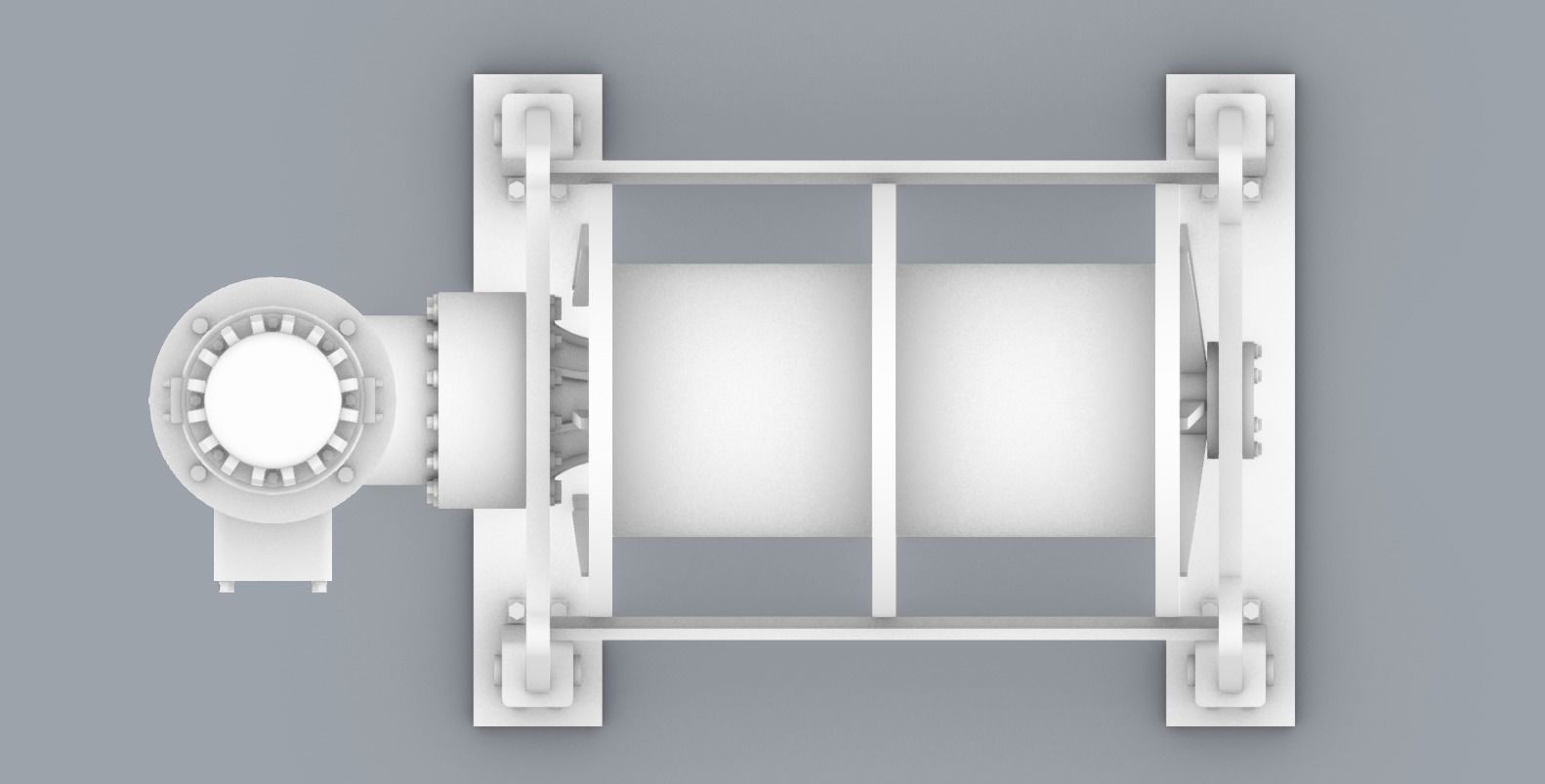

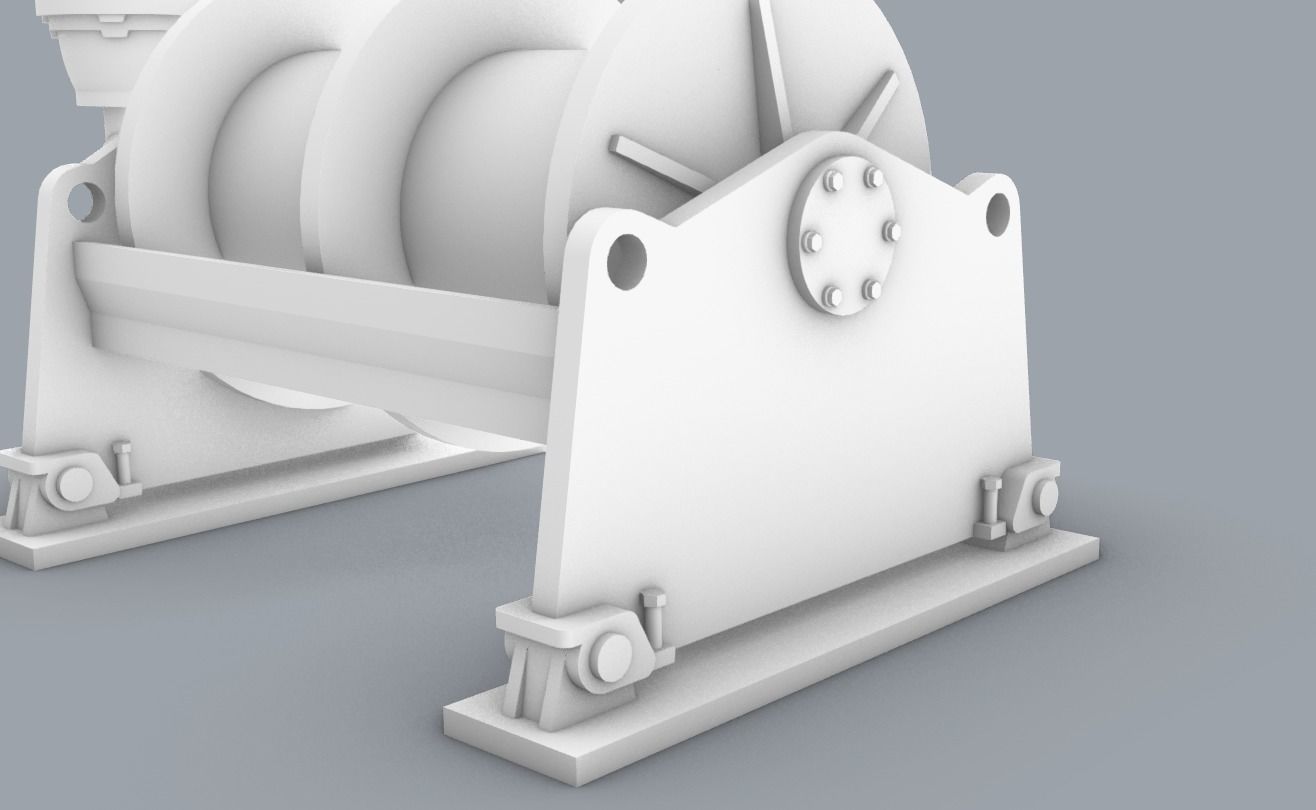

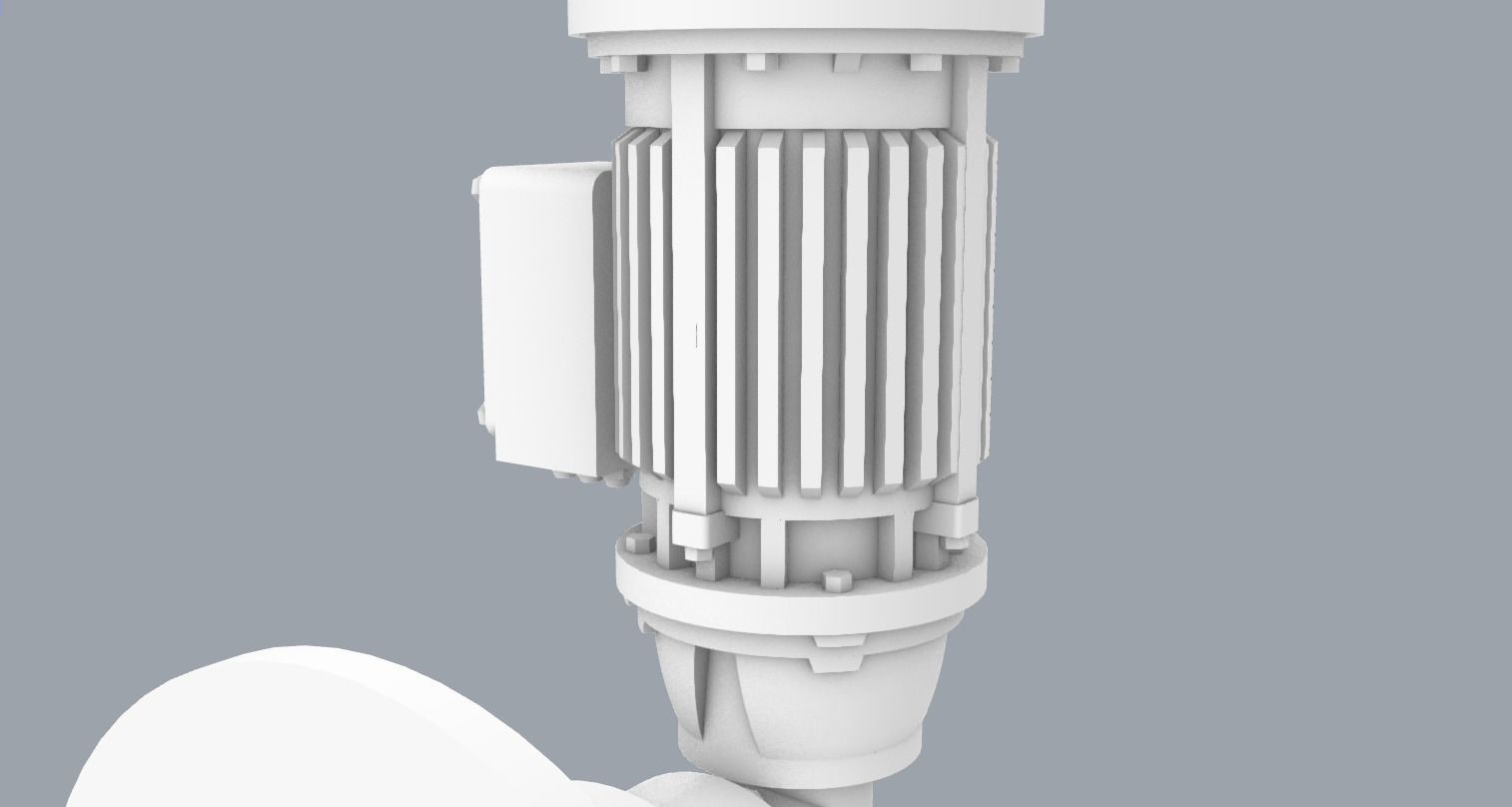

PM Hydraulic Drive Winch 3D print model

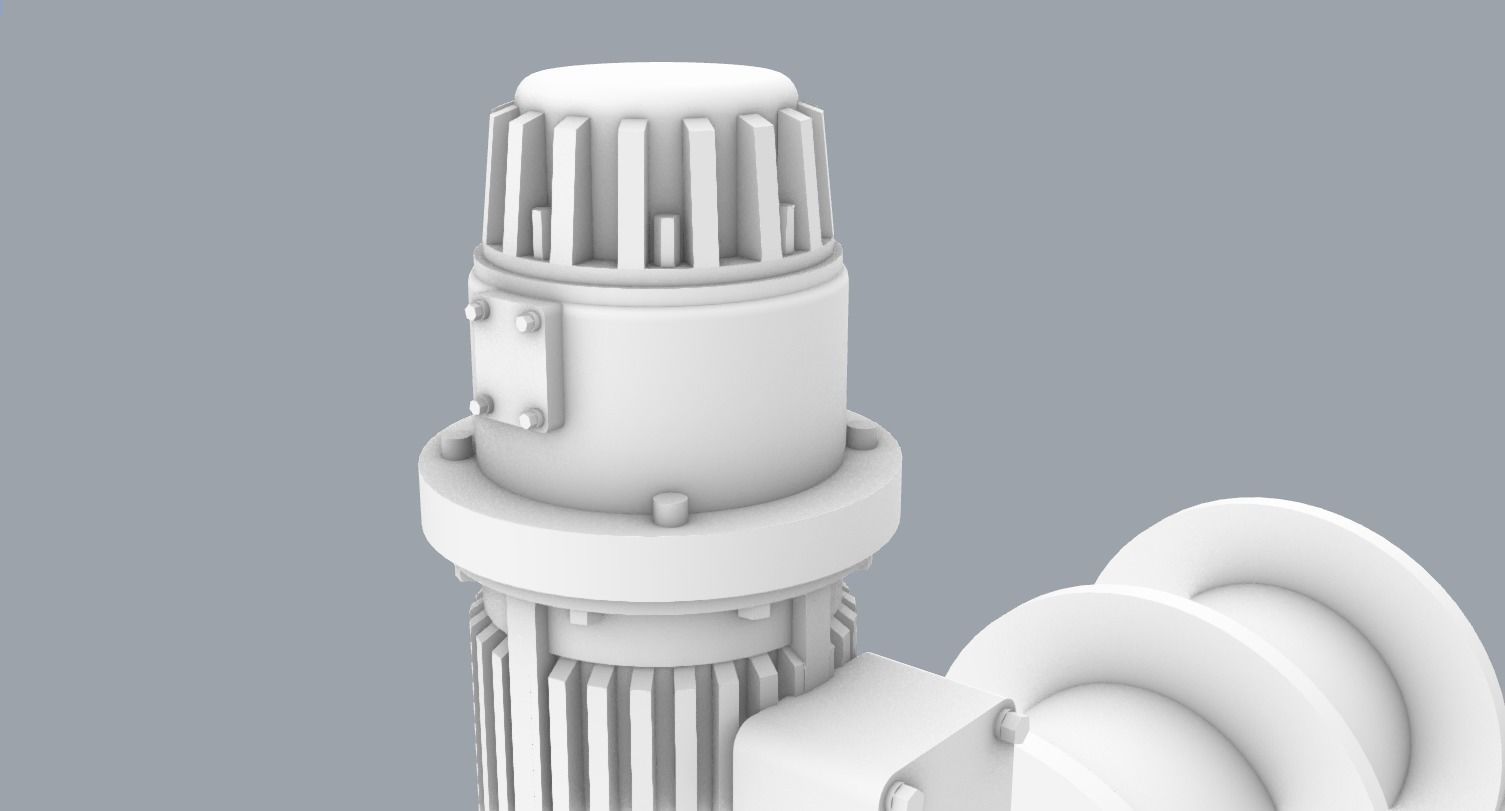

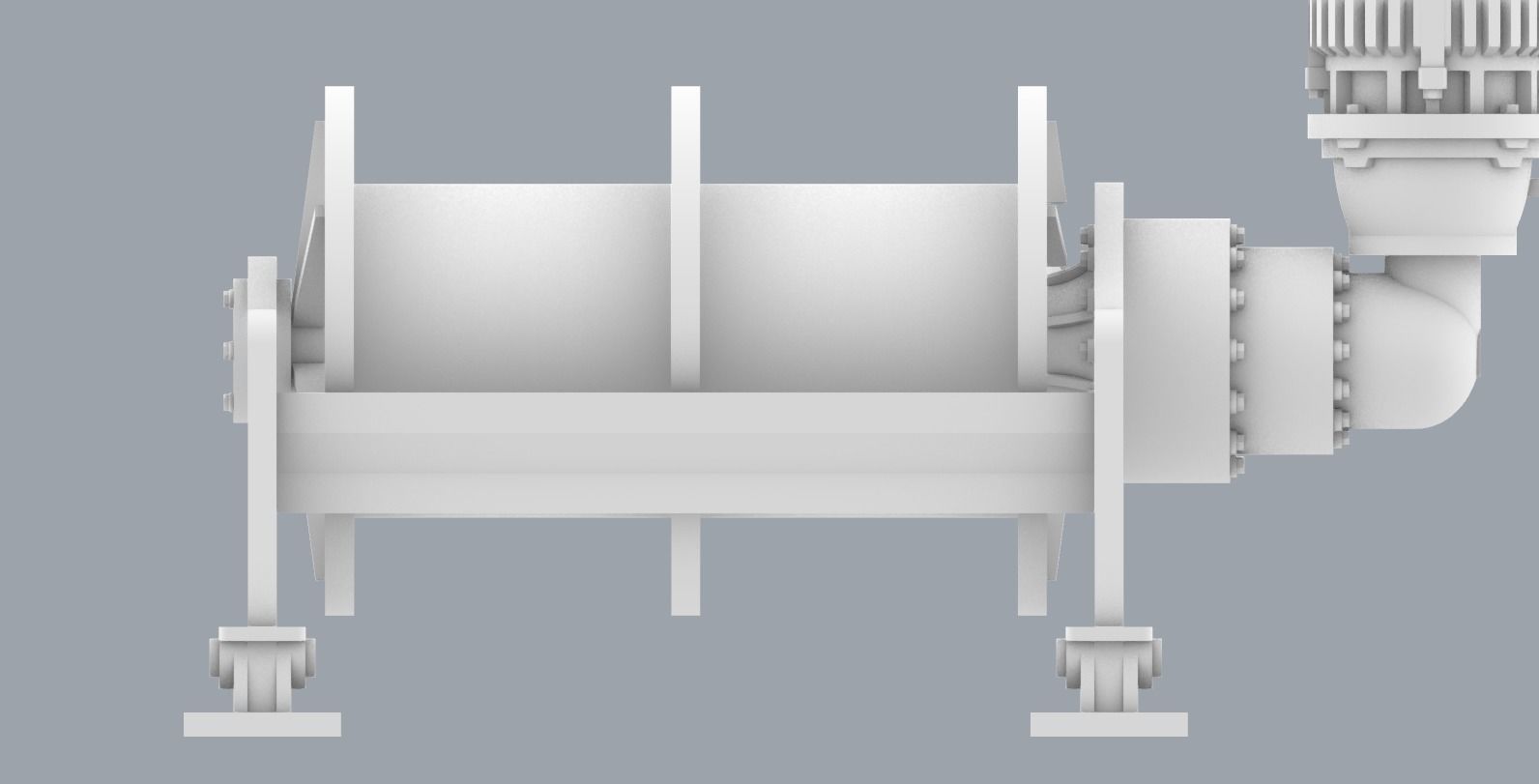

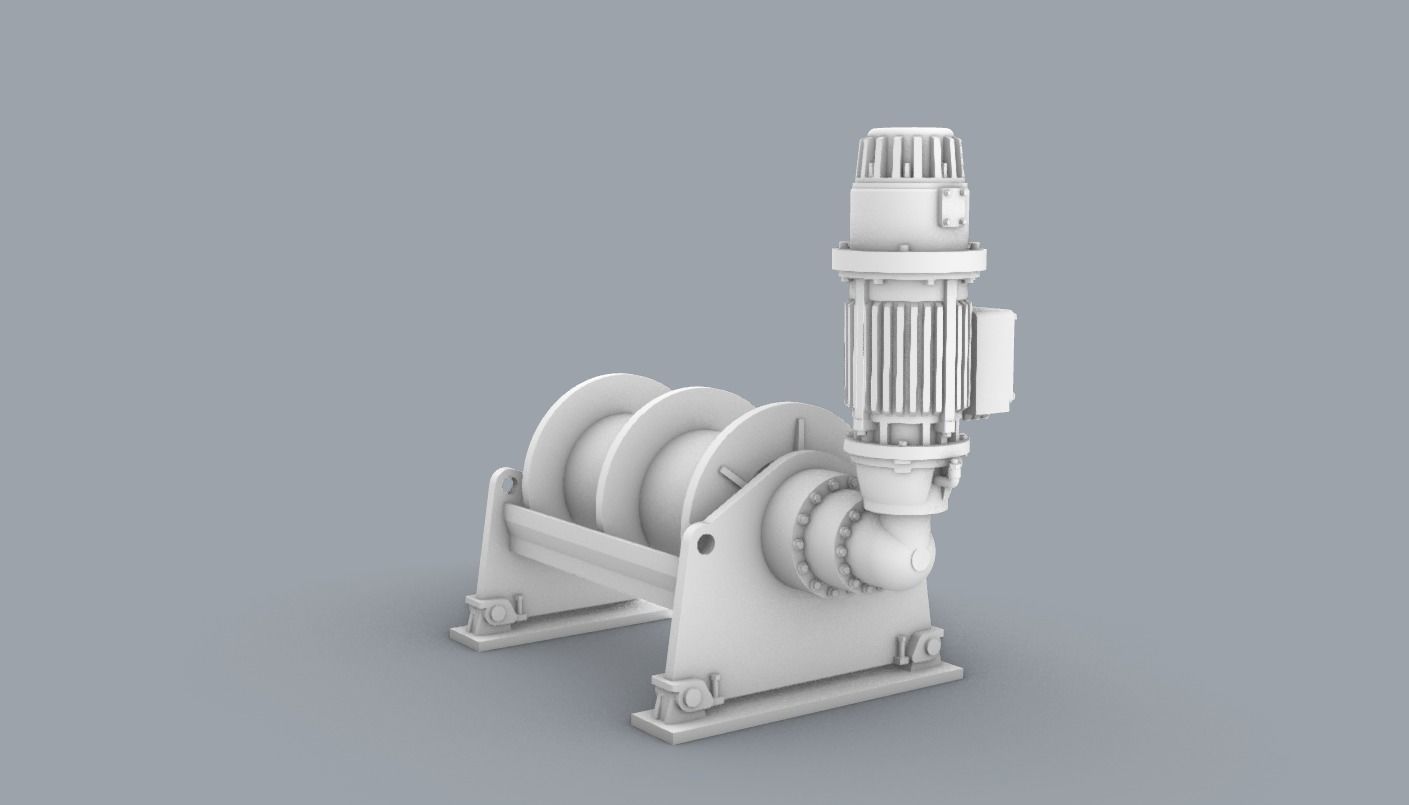

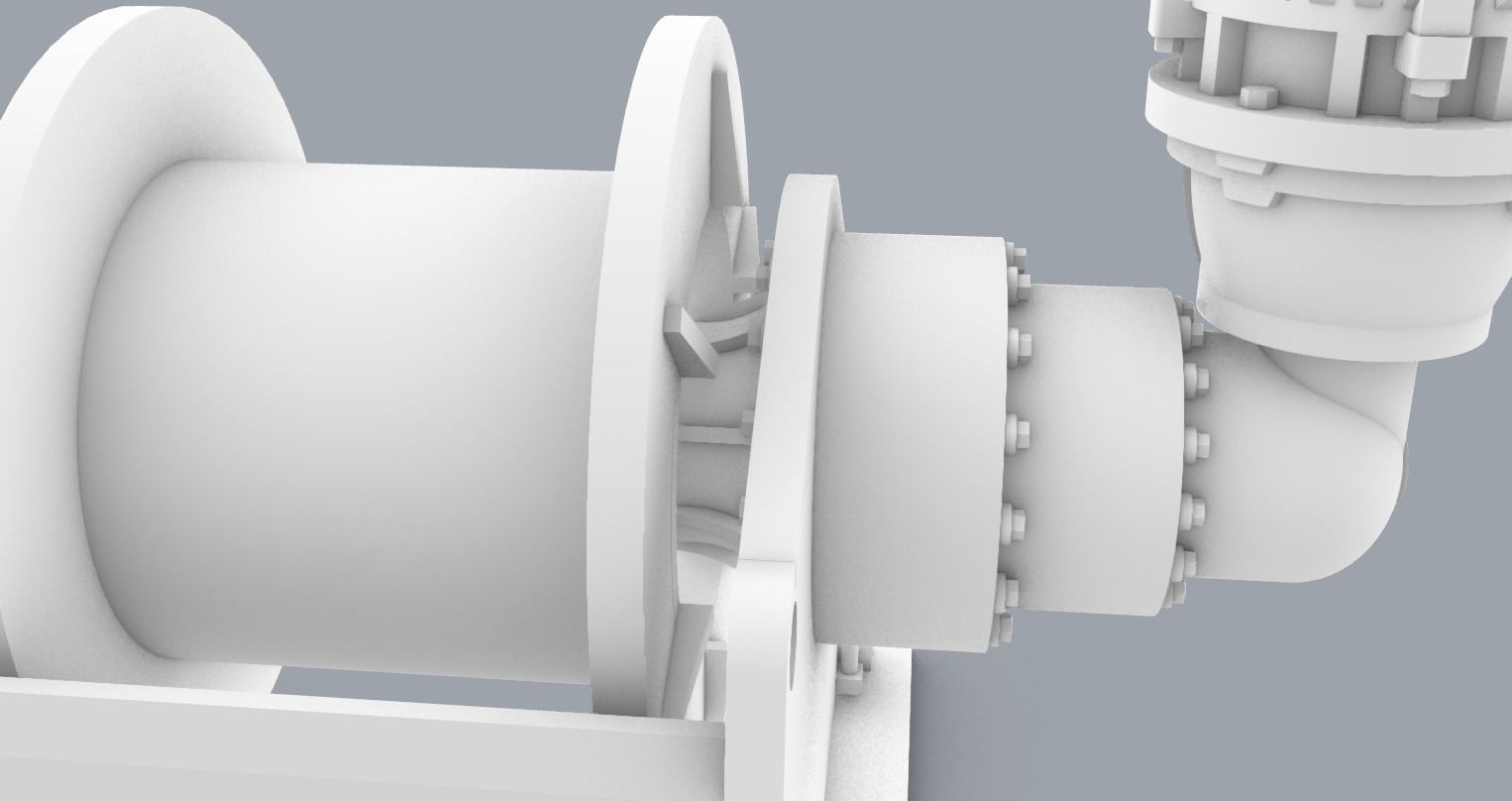

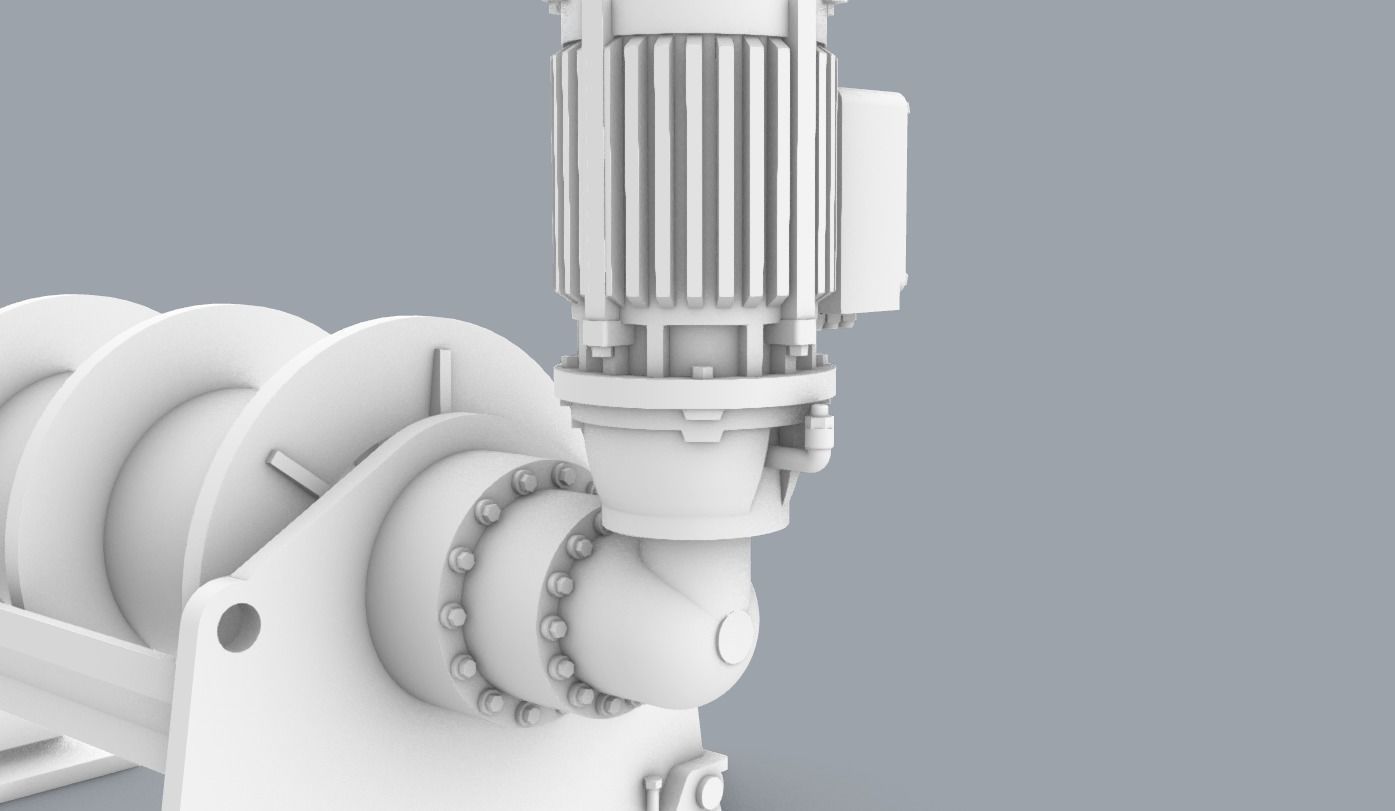

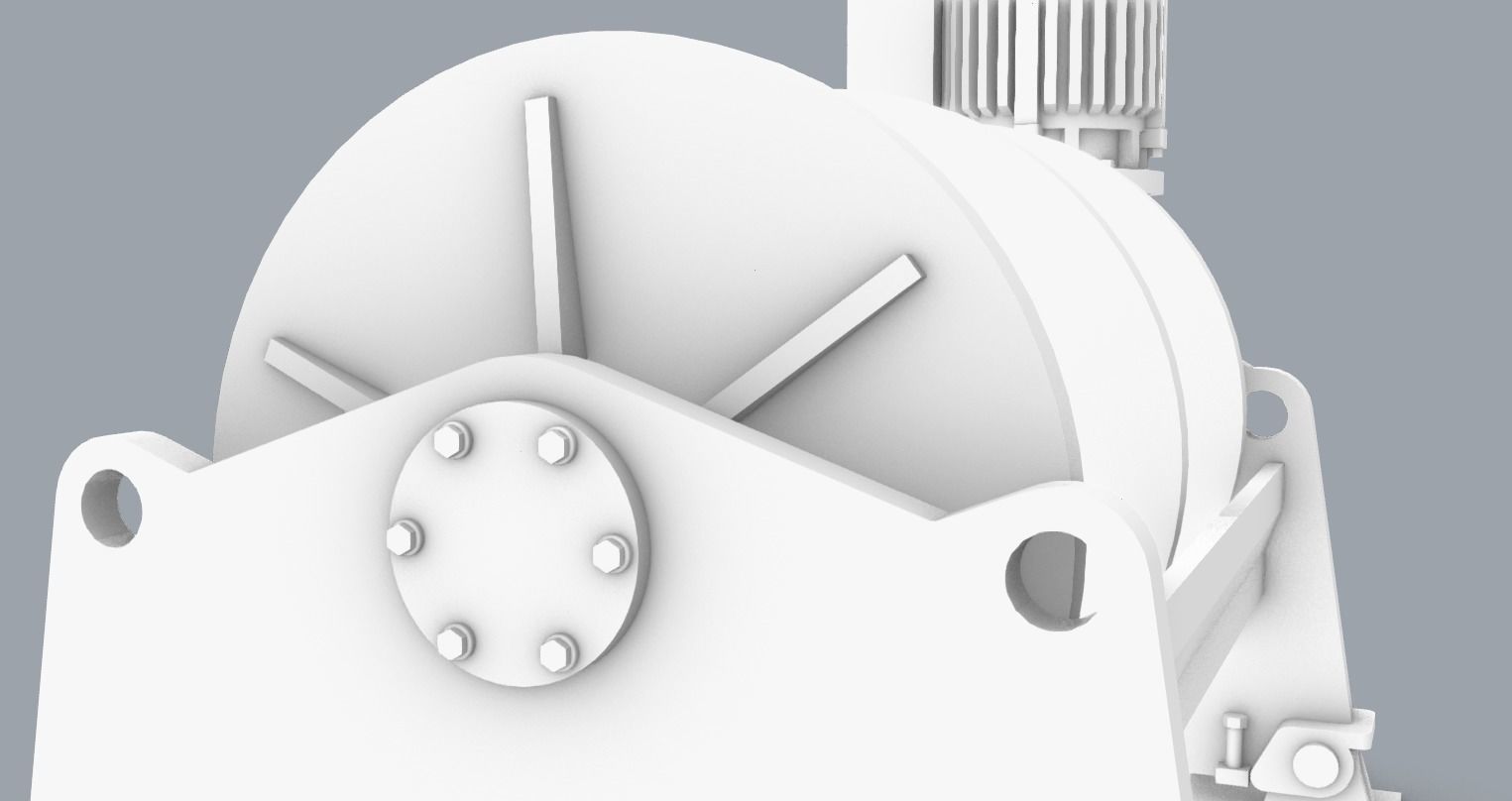

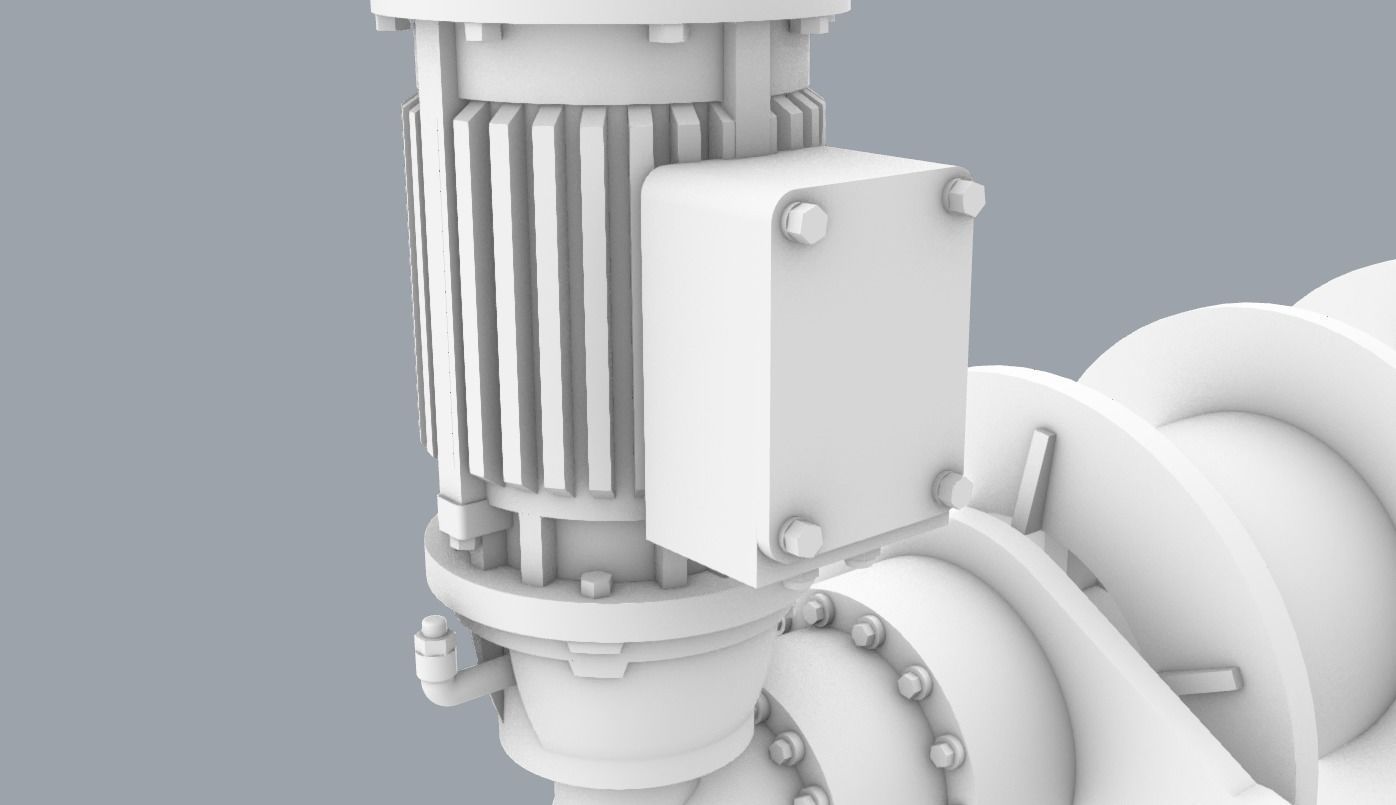

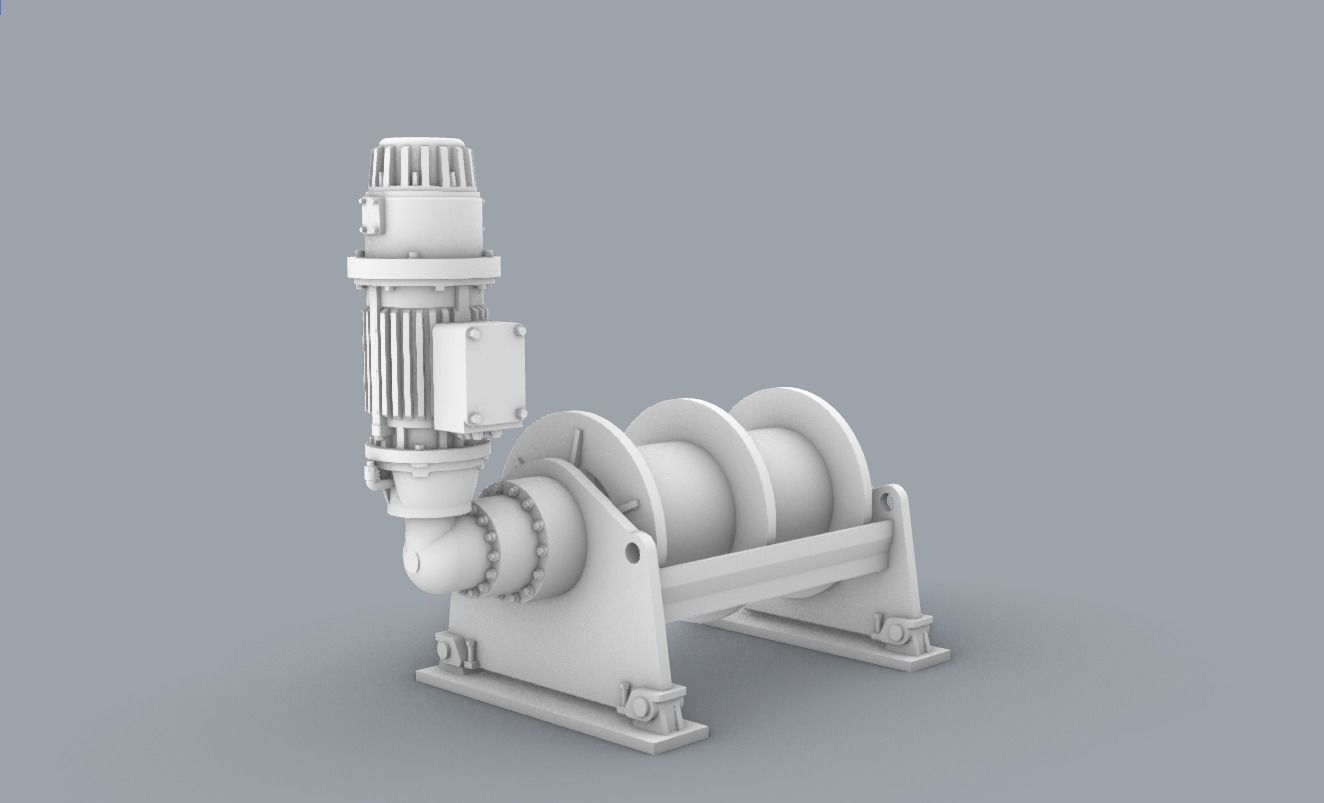

3D Model of Hydraulic Winch, made for 3D Model of Car Carrier.

Model is ready to be used in 3D Printing, Design, CNC..

Notes:

All models are preprinted in order to get highest quality possible.

Model is simplified for printing.

Dimensions

Length: 29.12mm

Width: 16.57mm

Height: 25.56mm

Includes OBJ and STL file.

http://hovla.net

About

A hydraulic winch is powered by a hydraulic system. This means that hydraulic winches use fluid power to work which utilizes hydraulic systems and a motor pump between the generator set and the winch. Hydraulic winches were built to withstand big jobs and were designed with plenty of power to handle all heavy-duty jobs.A standard hydraulic winch uses fluid, typically oil, to perform properly. It utilizes fluid power using a hydraulic system and a motor pump between the generator and the machine. The power steering pump creates a pressure that transmits the power through the pressure inside the oil. Sometimes, a motor is not enough to perform a heavy job, so you can complete the winch with a gearbox. Gearboxes connect the winch and the cables that carry the load. Usually, a winch’s motor does not have any speed options. Because you cannot change the speed, the gearbox allows you to use custom speeds for your job.A basic hydraulic winch comes with a low or high-speed motor. They have a closed multi-disc brake, a support shaft, a drum, and a planetary gearbox. There is also a clutch, which is an optional part. The drum usually holds the brake and the planetary gearbox. The motor has a large starting torque and is extremely efficient. Depending on the job you can connect to different distributors. You can also incorporate valves into the oil distributor if needed.
