Light Duty Square Truss 006

Light Duty Square Truss 006 3D print model

Description

Model Info;

  • Modeled in 3ds Max 2012
  • Modular
  • All Geometry Named Appropriately
  • 9 Modular Pieces.
  • Modeled in Real World ScaleOverall Width :  8 5/8(220mm) Outer Diameter Tubing :  1 1/3 (35mm)Diagonal Bracing :  1/3(8.30mm)Wall Thickness : 0.04 (1mm)-Drawings are error free for manufacturing and visualization.-Ideal for 3d printers.-File may be reduced in proportion

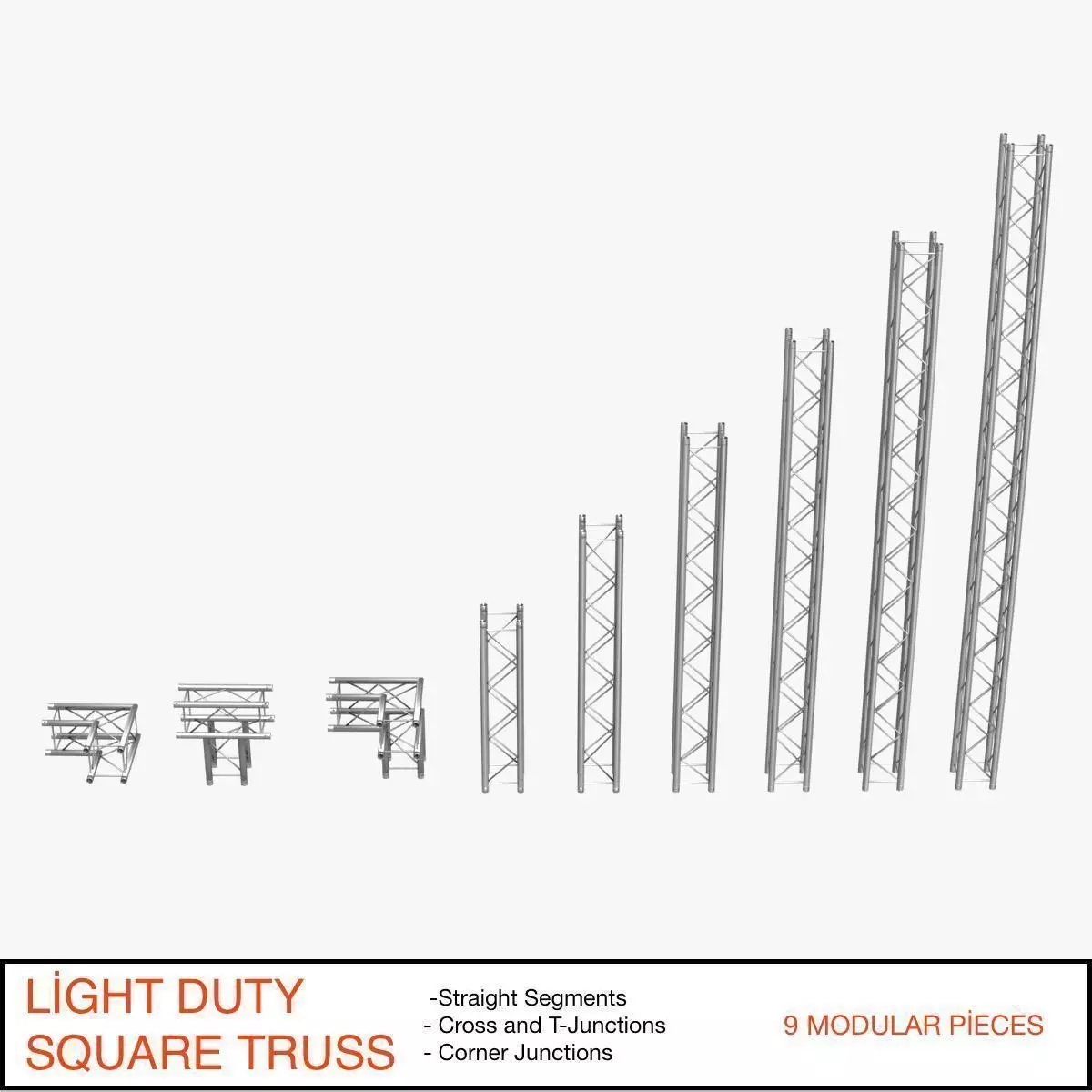

Light Duty Square Truss: 9 object

  • Straight Segments
  • Cross and T-Junctions
  • Corner Junctions*********************************Specifications;
  • Plugins Used: V-Ray
  • Geometry: Polygonal
  • Polygons: 205728
  • Vertices: 102816

File Formats Available;MAX, 3DS, OBJ, FBX, DAE, DXF, C4D, STL

This a Collection of CollectionsOther collection ID's are;

Square TrussesSquare Truss Standard: 24 objectsMini Square Truss: 7 objectsLight Duty Square Truss: 9 objectsBig Square Truss: 10 objects

Triangular Trusses Triangular Truss Standard: 41 objectsMini Triangular Truss: 14 objects

Beam Truss Standard: 24 objects

For questions and requests, please send us mail.Our other models, click the user name to see the full gallery.

Usage License:You may NOT sell or give away any files found in this zip package without express permission.

Enjoy.

Item rating
0 0
Light Duty Square Truss 006
$22.42

Royalty Free License
Light Duty Square Truss 006
$22.42

Royalty Free License
Response 40% in 48.0h
3D Modeling
3D Print Modeling
Lighting
Rendering

3D Model formats

Format limitations
  • Stereolithography (.stl) (11 files)29.4 MB
  • Other 6.04 MB

3D Model details

  • Ready for 3D Printing
  • Publish date2017-02-20
  • Model ID#695691
