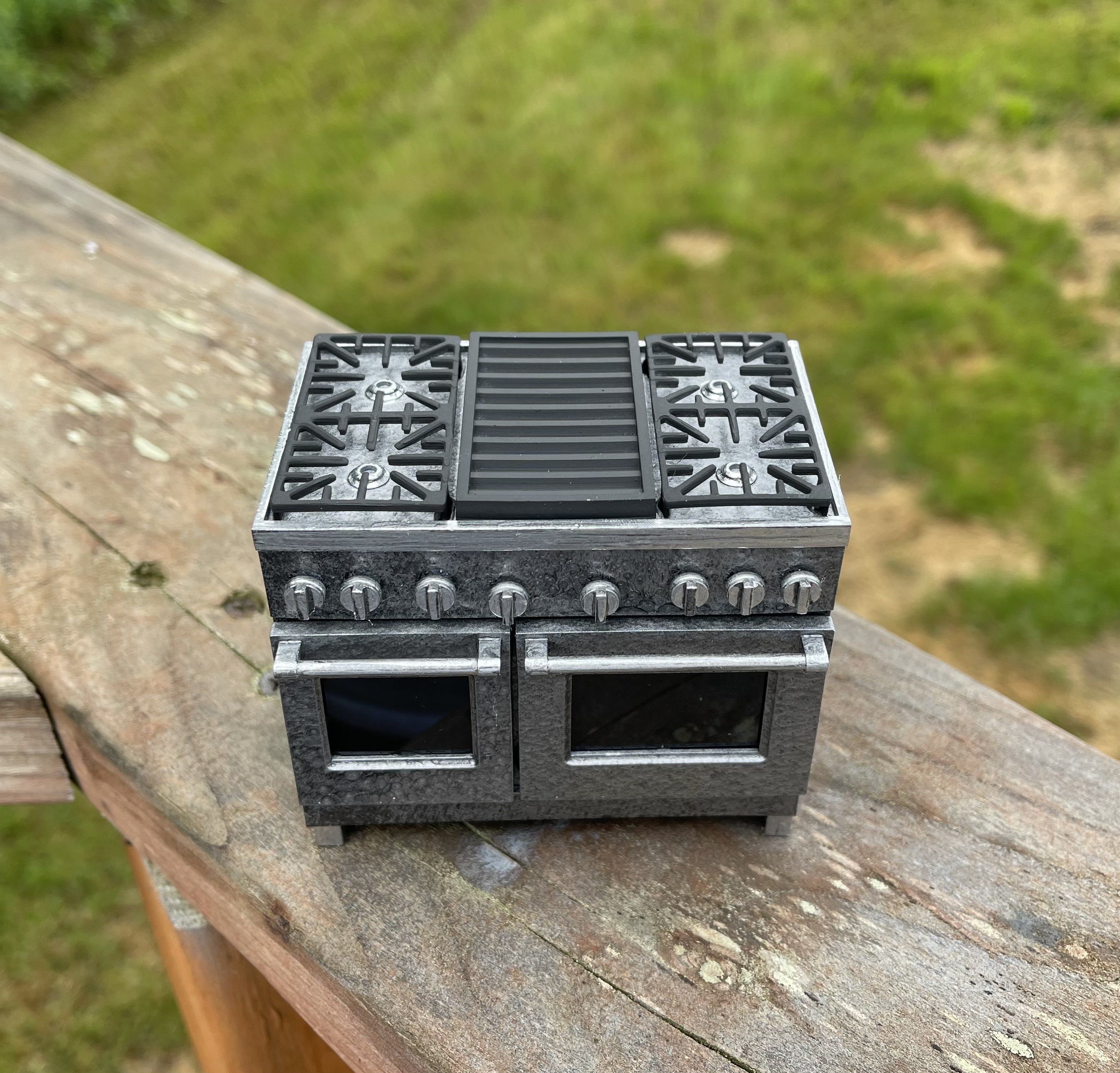

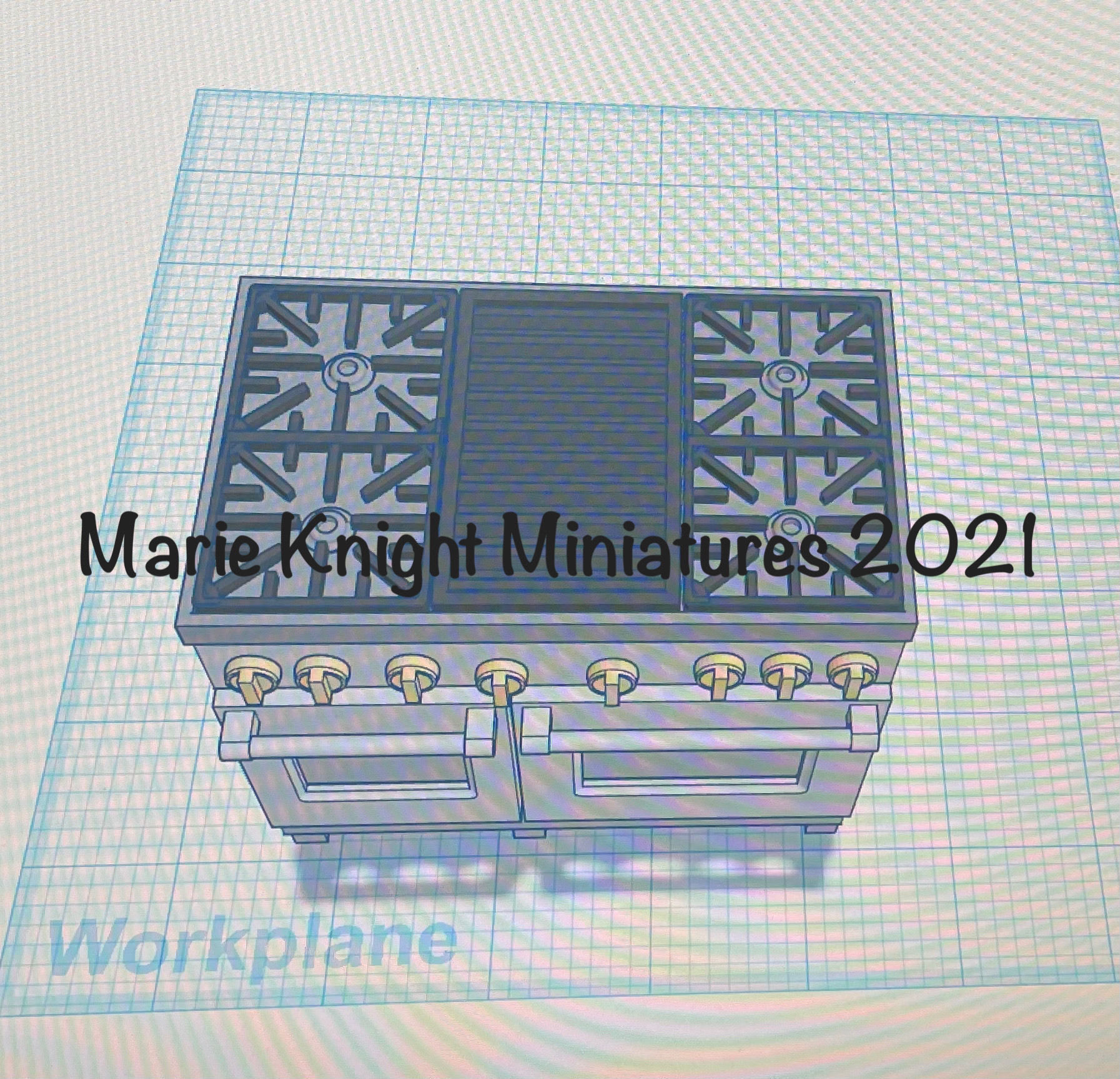

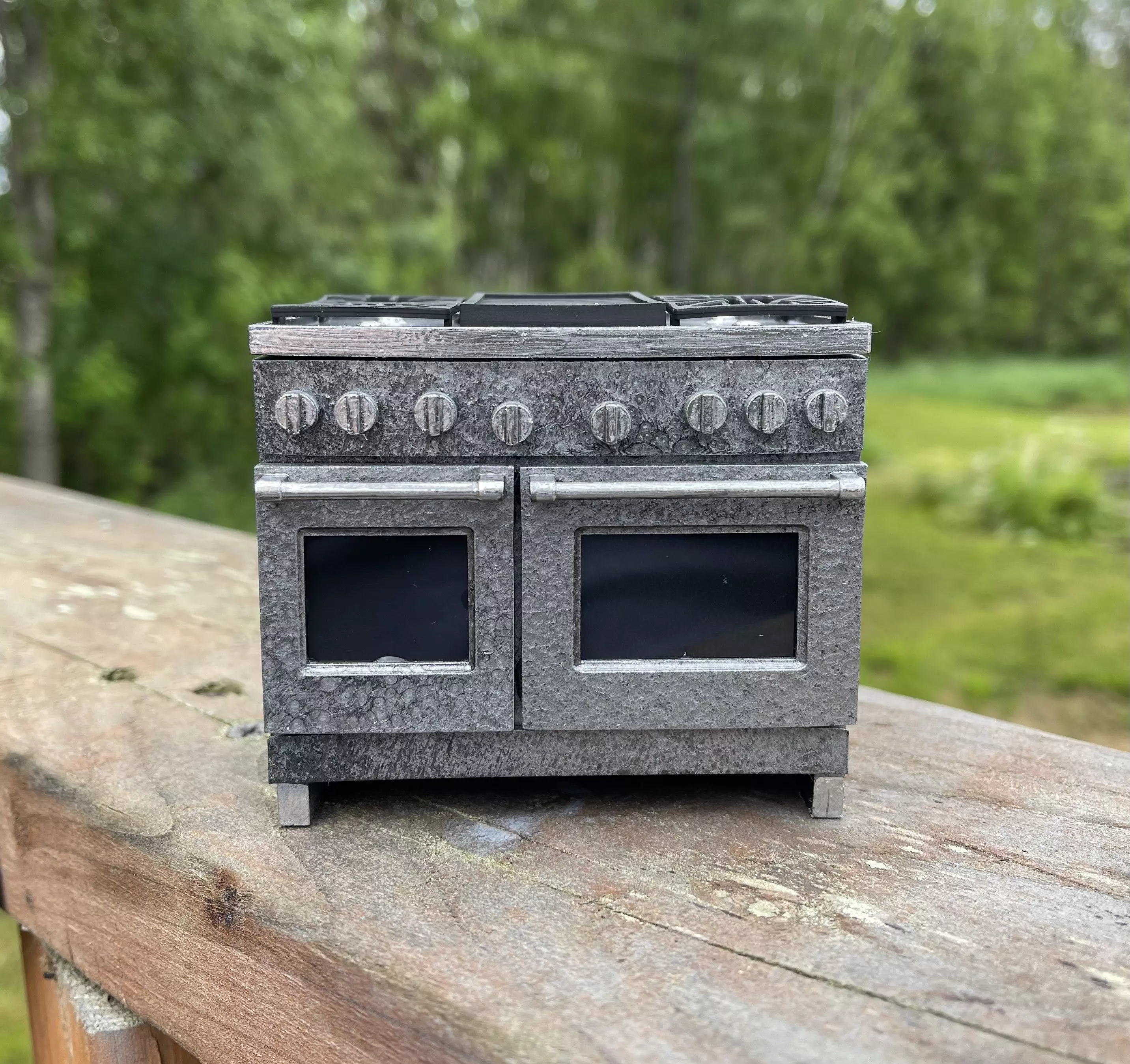

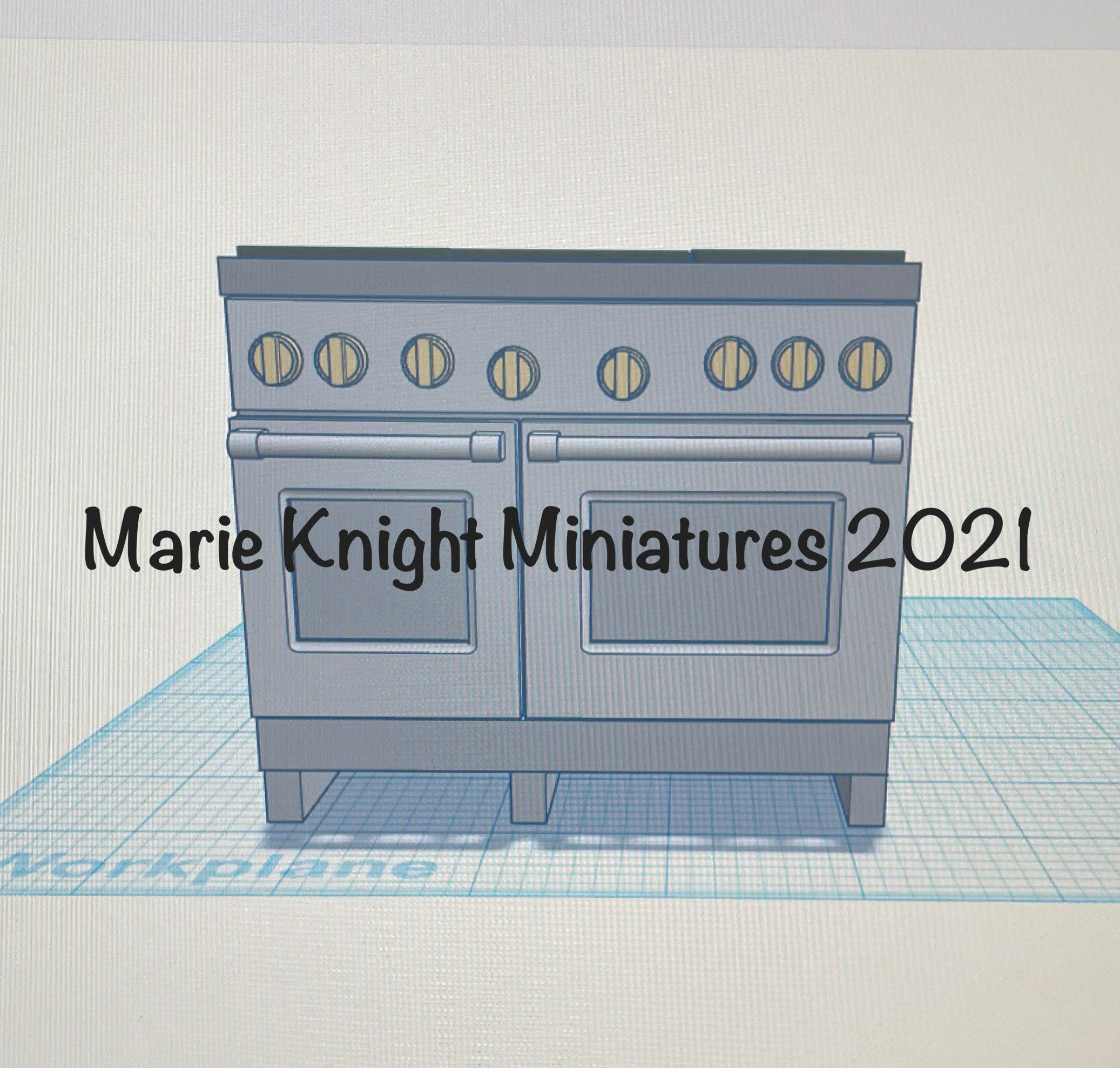

This download includes six files to print and assemble a 12th scale Wolf range 3.5 inches wide. Parts include the range box, legs, lower front panel, range top, burner covers, and doors. Doors to NOT open.

For best results, please follow the following steps for certain parts:

1. Range box should be printed at a 45 degree angle with a LOT of heavy supports. Holes were incorporated into design for those that prefer to print flat on build plate, but results will not be guaranteed if done in this manner.
2. Print burner covers upside down and flat on build plate. To remove from build plate without breaking fragile burner spokes, use a single-edged razor blade and gently slip under covers until they slip off build plate.
3. For clear dark glass door inserts, use thin clear plastic cut to size of recess on back side of doors. Paint one side of plastic pieces evenly with a black spray paint and let dry before gluing to backside of doors.

This model was successfully printed using an Elegoo Mars uv photocuring resin printer. Results of any prints of this model done with a filament printer will NOT be guaranteed.

All downloaded files are for PERSONAL USE ONLY! Unauthorized distribution or resale of this model in electronic or printed form is strictly prohibited. By purchasing this model, you agree to these terms.
