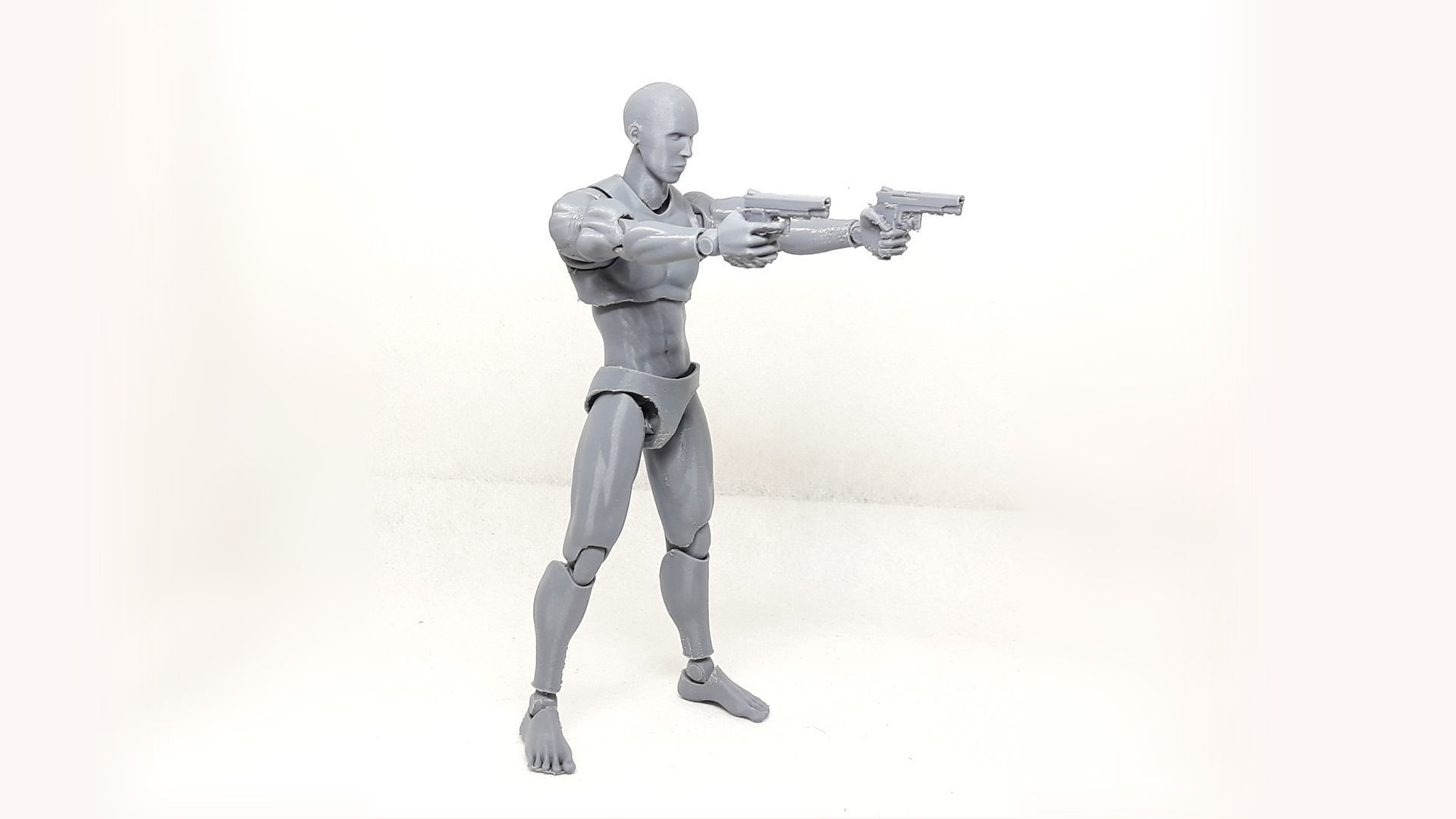

  • Mr figure V02 the 3D printed action figure 3D print model_4
  • Mr figure V02 the 3D printed action figure 3D print model_5
  • Mr figure V02 the 3D printed action figure 3D print model_6

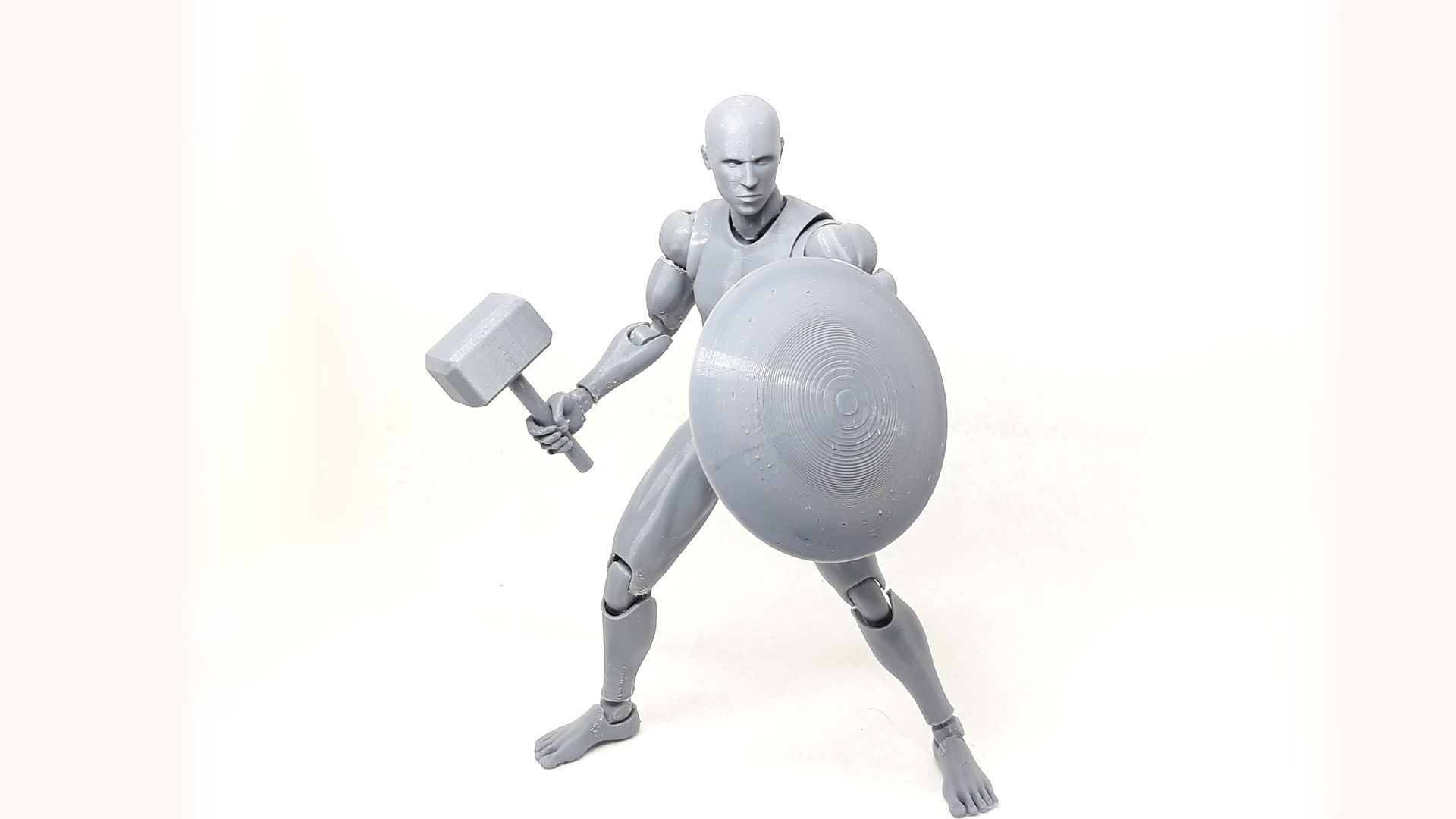

  • Mr figure V02 the 3D printed action figure 3D print model_7

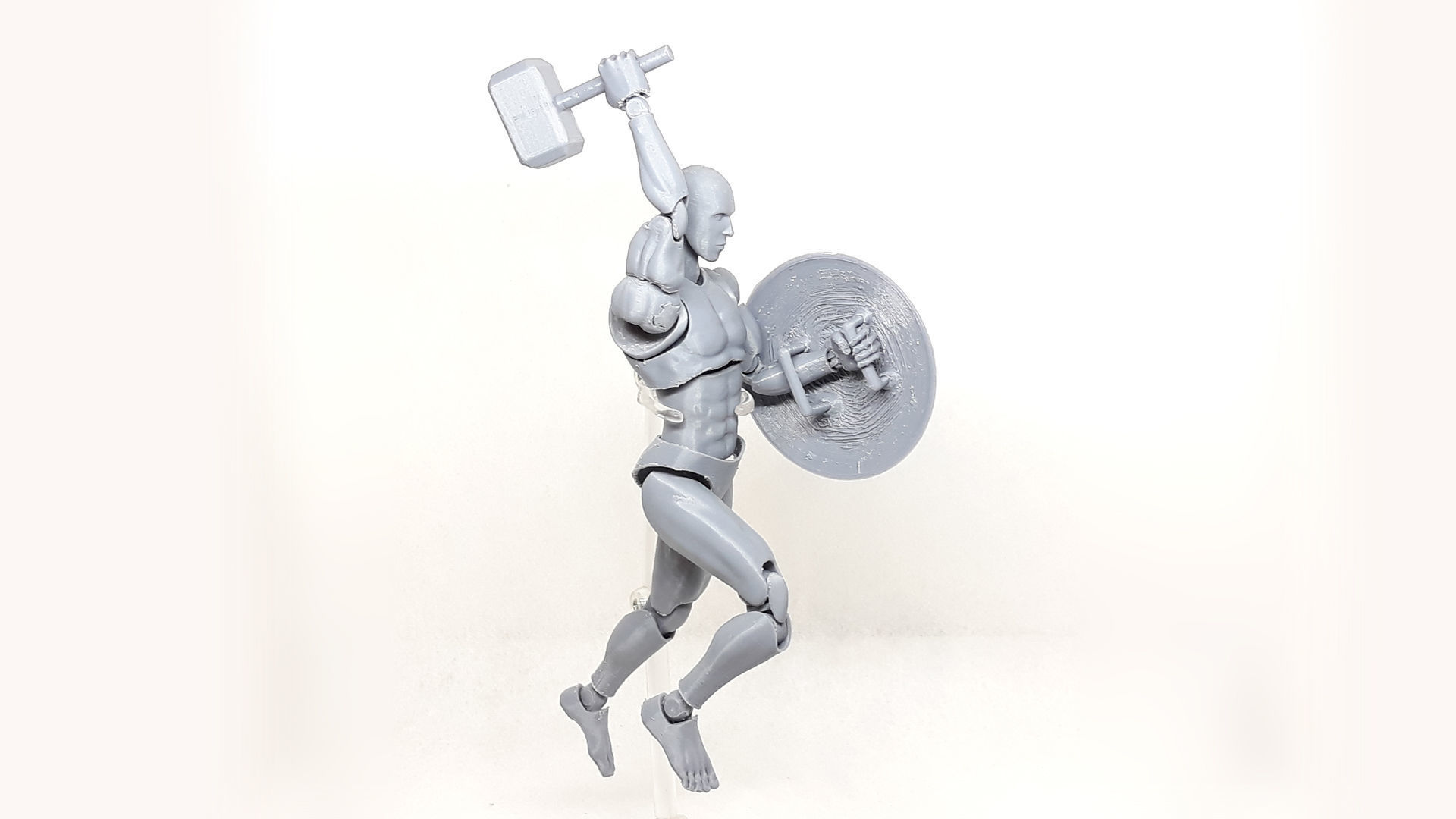

  • Mr figure V02 the 3D printed action figure 3D print model_8
  • Mr figure V02 the 3D printed action figure 3D print model_9
  • Mr figure V02 the 3D printed action figure 3D print model_10
  • Mr figure V02 the 3D printed action figure 3D print model_11
  • Mr figure V02 the 3D printed action figure 3D print model_12

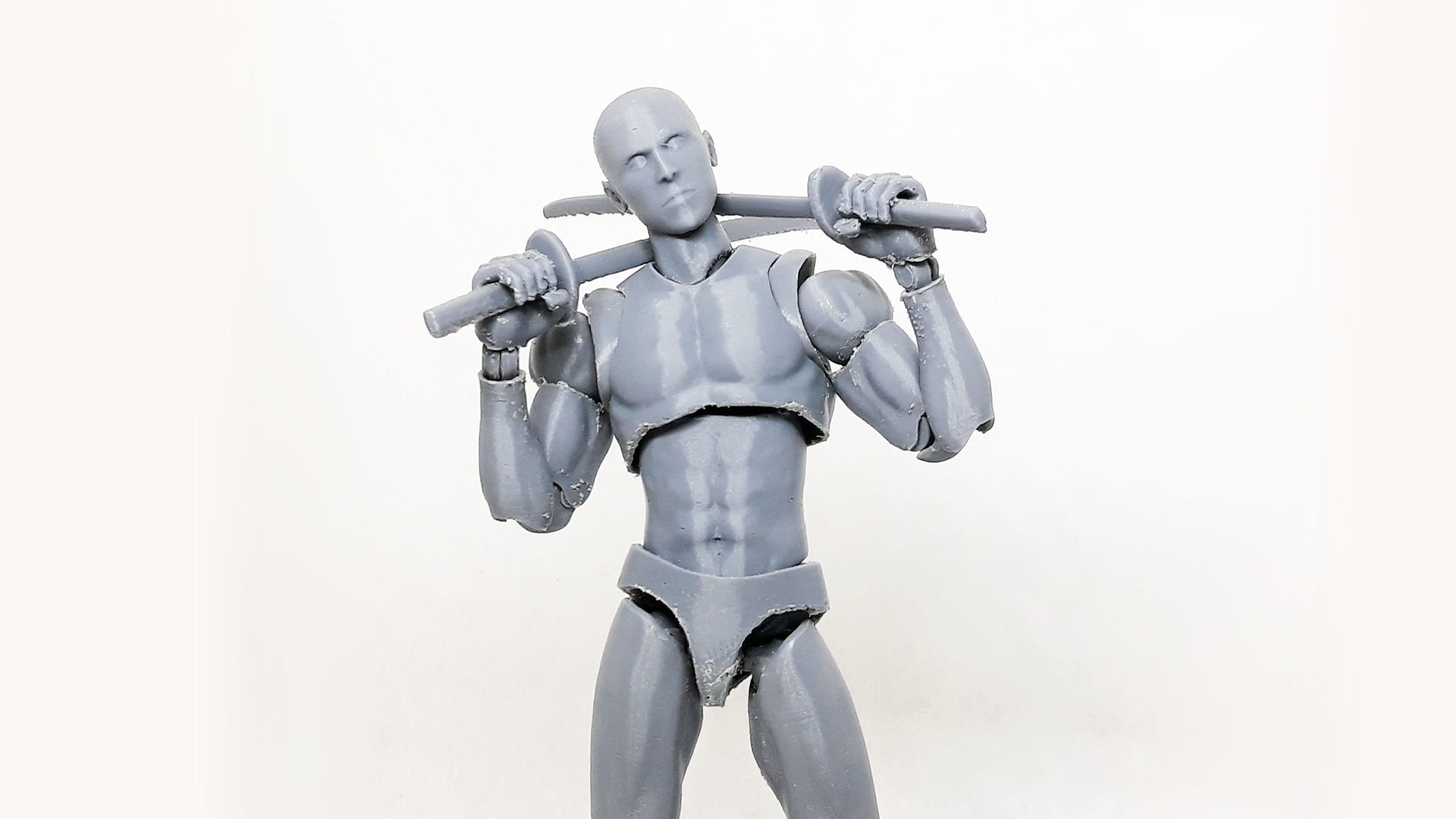

  • Mr figure V02 the 3D printed action figure 3D print model_13

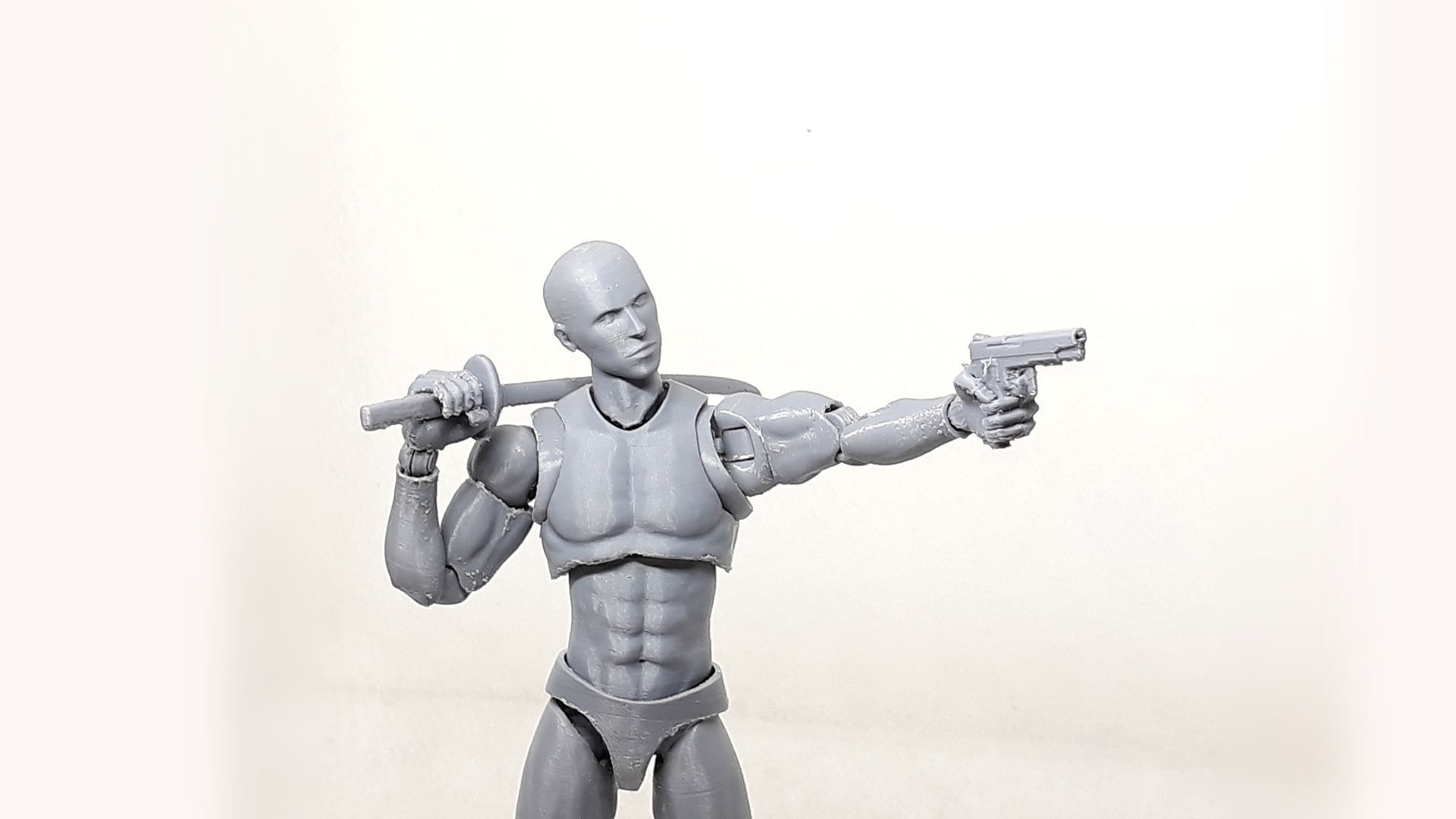

  • Mr figure V02 the 3D printed action figure 3D print model_14

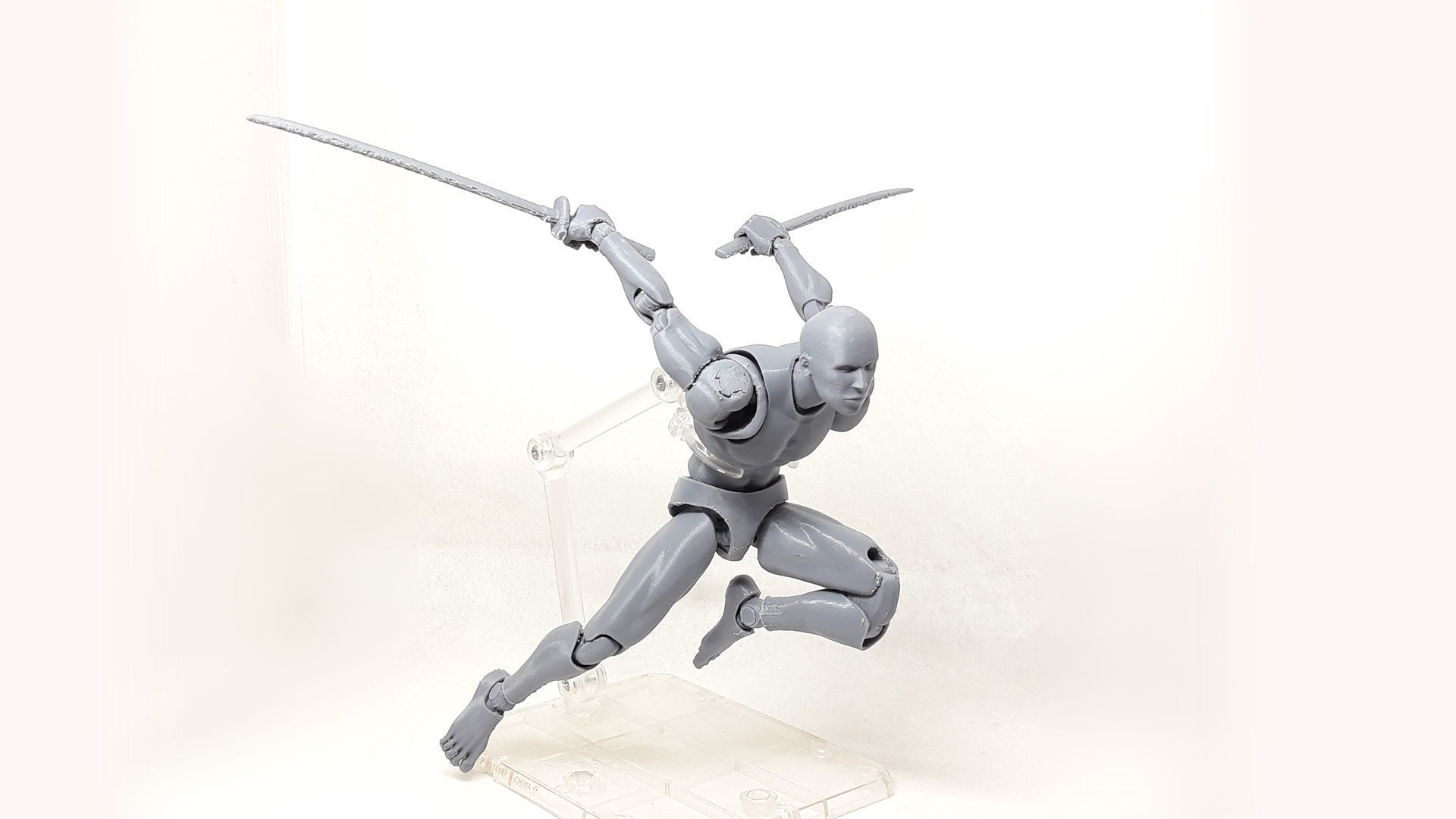

  • Mr figure V02 the 3D printed action figure 3D print model_15

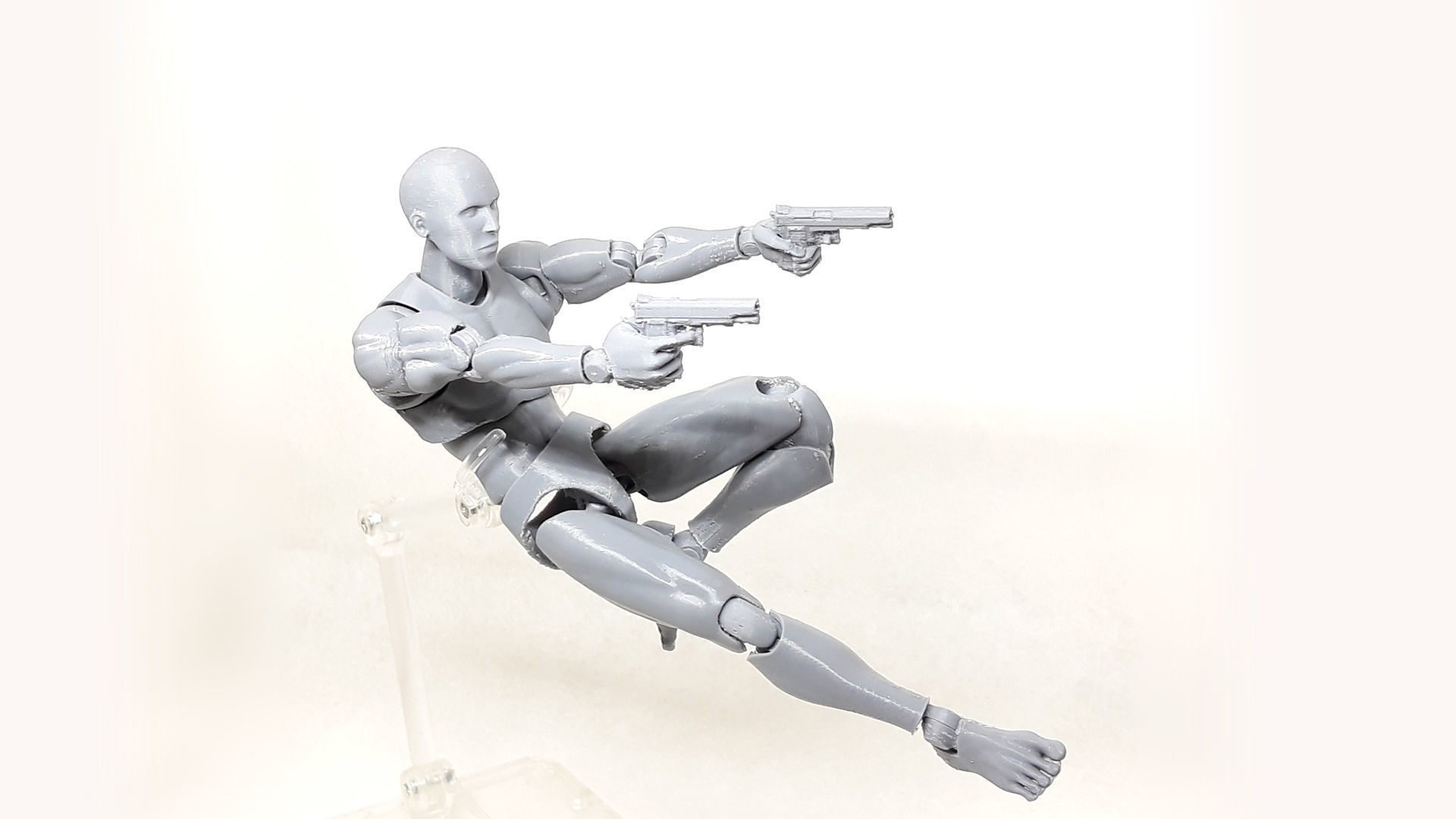

  • Mr figure V02 the 3D printed action figure 3D print model_16
  • Mr figure V02 the 3D printed action figure 3D print model_17

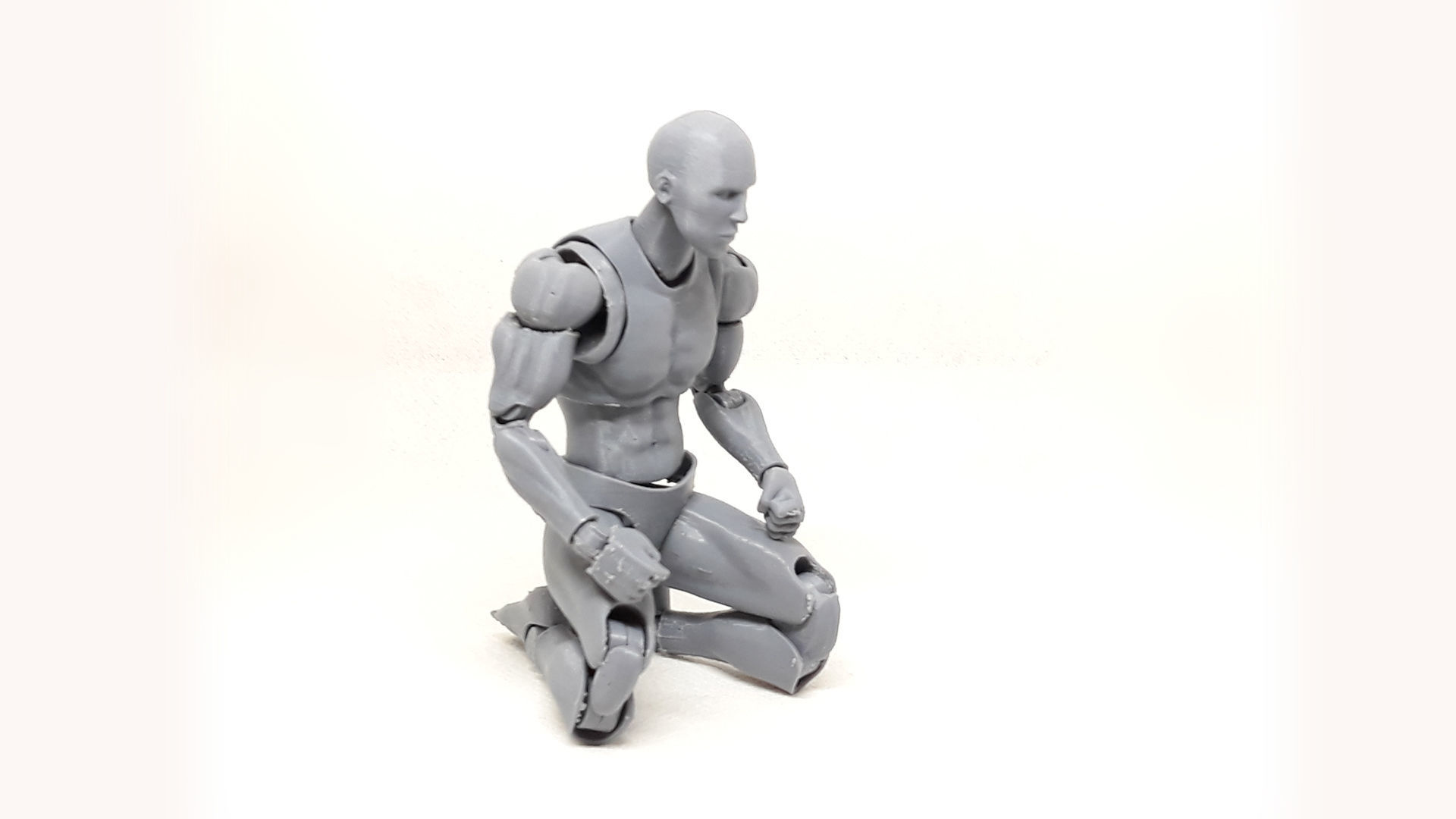

  • Mr figure V02 the 3D printed action figure 3D print model_18

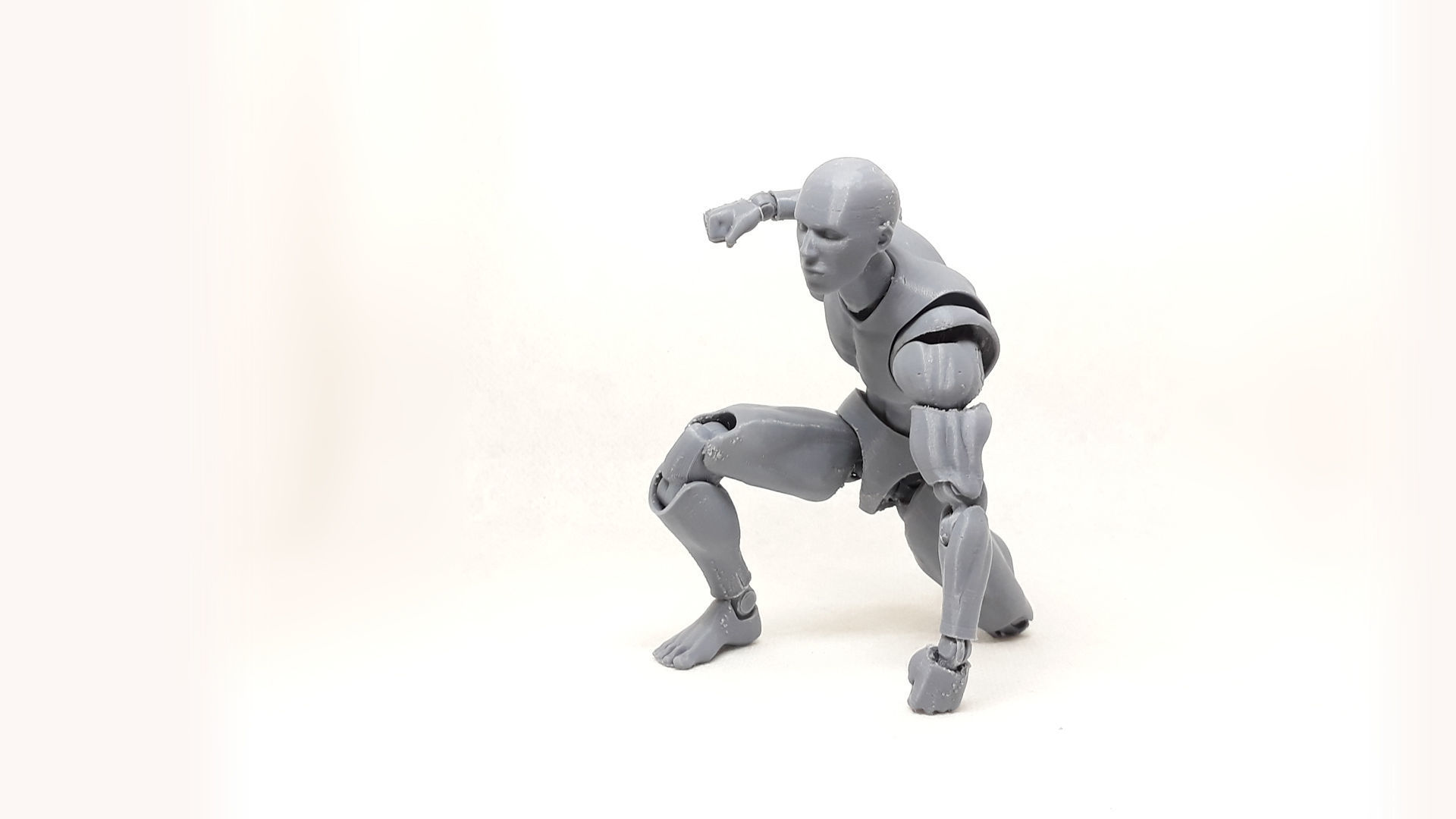

  • Mr figure V02 the 3D printed action figure 3D print model_19
1 / 20
Useto navigate. Pressescto quit

Mr figure V02 the 3D printed action figure 3D print model

Description
  • A 3D printed articulated action figure model for drawing
  • Because of the difference in accuracy between 3d printers if the parts don't fit you can drill it or you can cut small parts of the plastic until it fit.
  • assembling the 3D printed parts:
  • https://www.youtube.com/watch?v=H-qm-ExiUj0&feature=youtu.be
  • this model was printed by Ender 3 pro FDM printer with Esun PLA+ Filament so im not sure if it can be printed by resin printer.
  • this model is not recommended for completed beginners in 3d printing because it need some experience in 3d printing to be made.

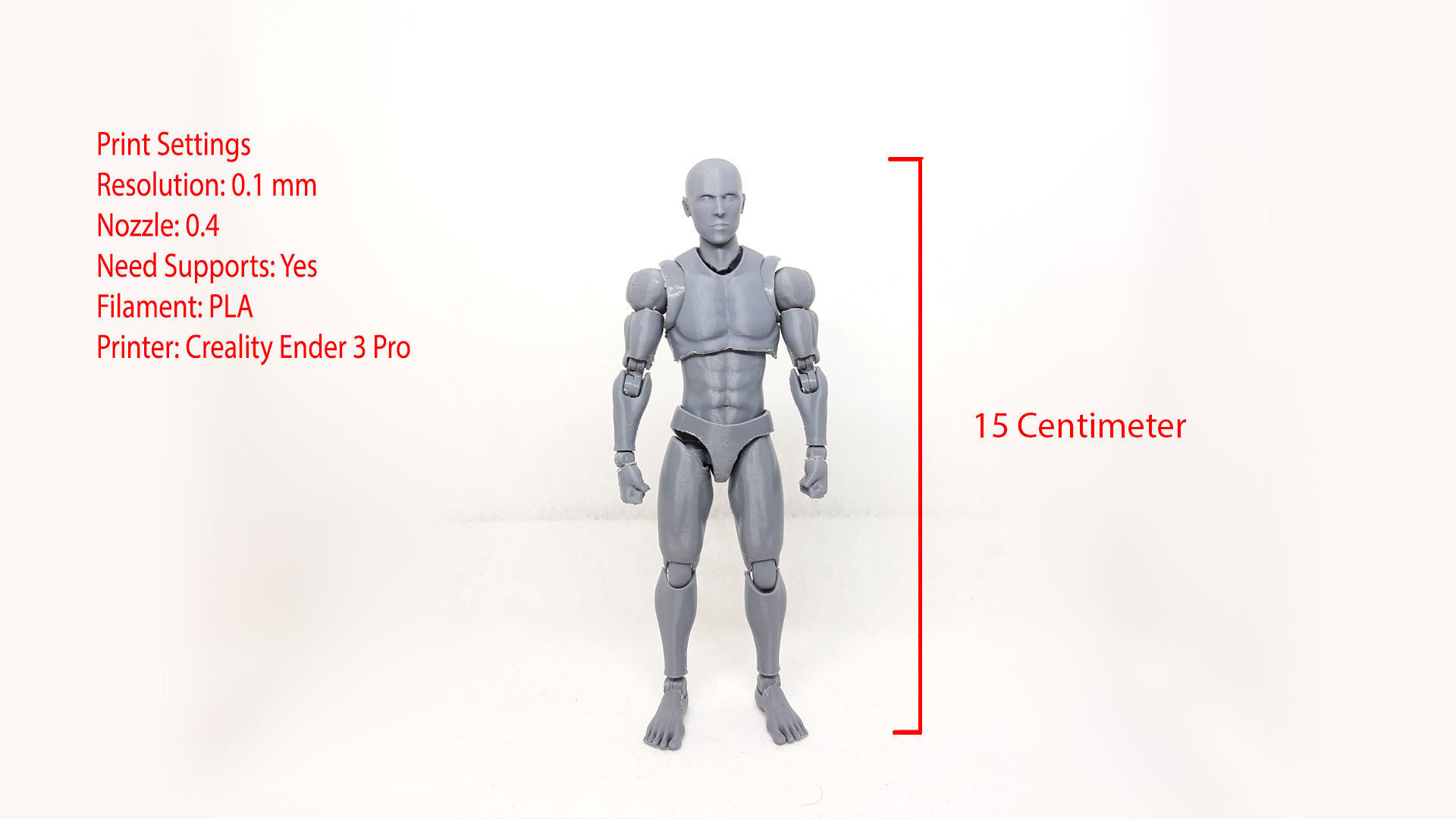

- 3D printing settings
  • Resolution: 0.1 mm
  • Nozzle: 0.4
  • Need Supports: Yes
  • Filament: PLA
  • Infill: 40%
  • initial layer height: 0.2
  • top/ bottom line width: 0.3
- brim line width : 0.4
  • shell
  • wall thickness: 1.2
  • prin speed: 42
- build plate adhesion type : brim
  • Need Supports: Yes
  • Filament: PLA
  • Printing time: 32 hours
  • Infill: 40%
Write comment
C
colby-giang
colby-giang 2022-07-17 06:42:28 UTC
I'm having a problem with cura where it wont print some of the layers for the wrist joints for some reason. Do you have a solution or maybe your gcode for the wrists that work? I'm printing on an ender 5 pro.
C
cheekychappy
cheekychappy 2021-09-22 08:23:09 UTC
Would it scale to 10cm okay? Maybe with a bit of sanding on the joints?
A
adel85
adel85 2021-09-23 15:12:59 UTC
Unfortunately no, if you make it smaller some of the parts will be too small to be printed
Item rating
7 0
A
ap0356530
ap0356530 2021-09-27 06:04:13 UTC
Recommended
I love the concept but I'm having a really tuff time with the knees and elbows
stlcustomcollections
stlcustomcollections
stlcustomcollections 2021-05-28 17:04:43 UTC
Recommended
The model is fine, although the scale it comes in is very small, but it is solved by rescaling it and if you want this model to work, you should use a flexible plate, if you use a normal plate, the joins or their inserts will break
