perrydoxxx 2021-09-28 21:53:00 UTCperrydoxxx
would this still work with a resin type printer?
Useto navigate. Pressescto quit
Lady Figure the 3D printed female action figure 3D print model
Description

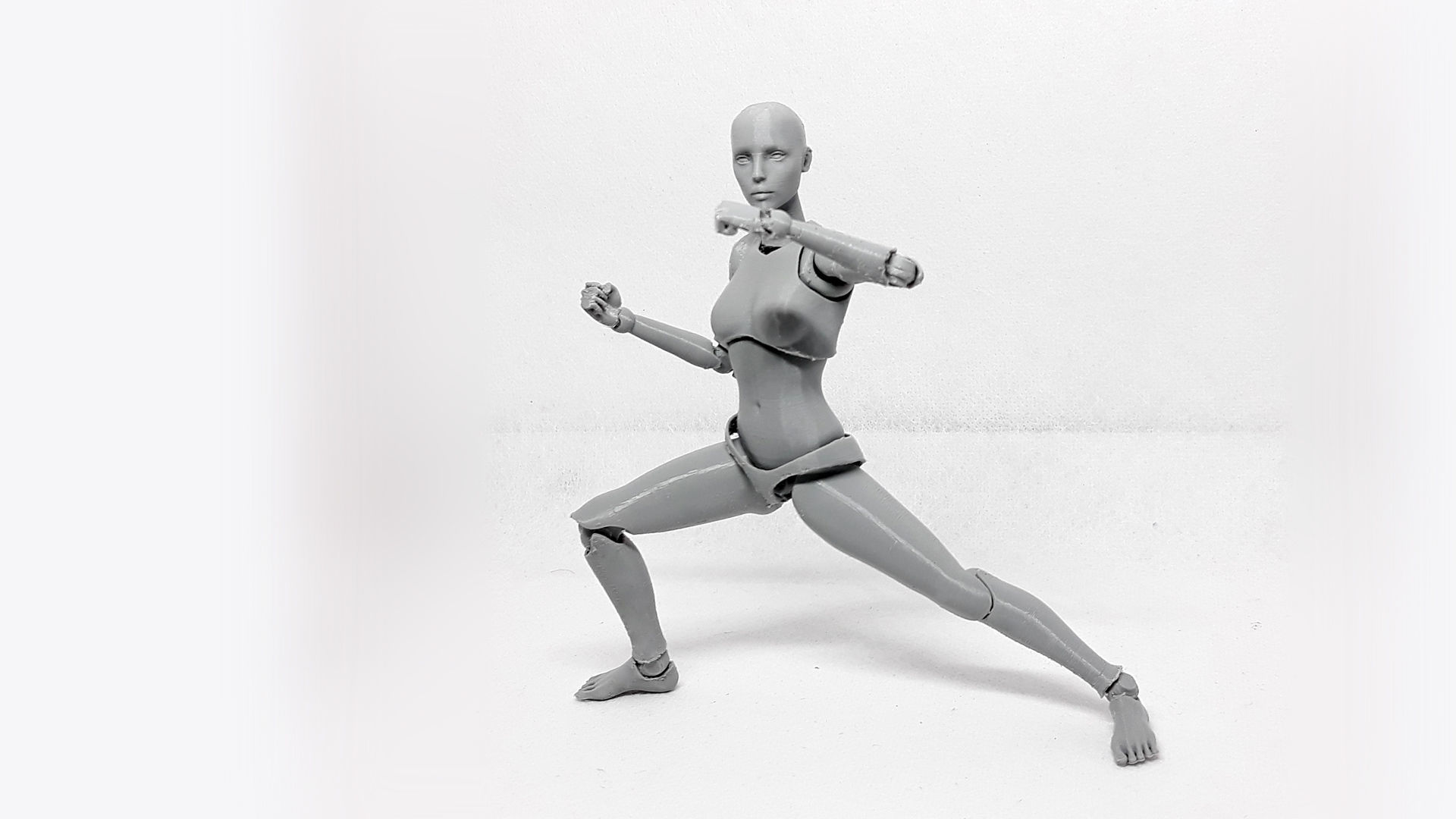

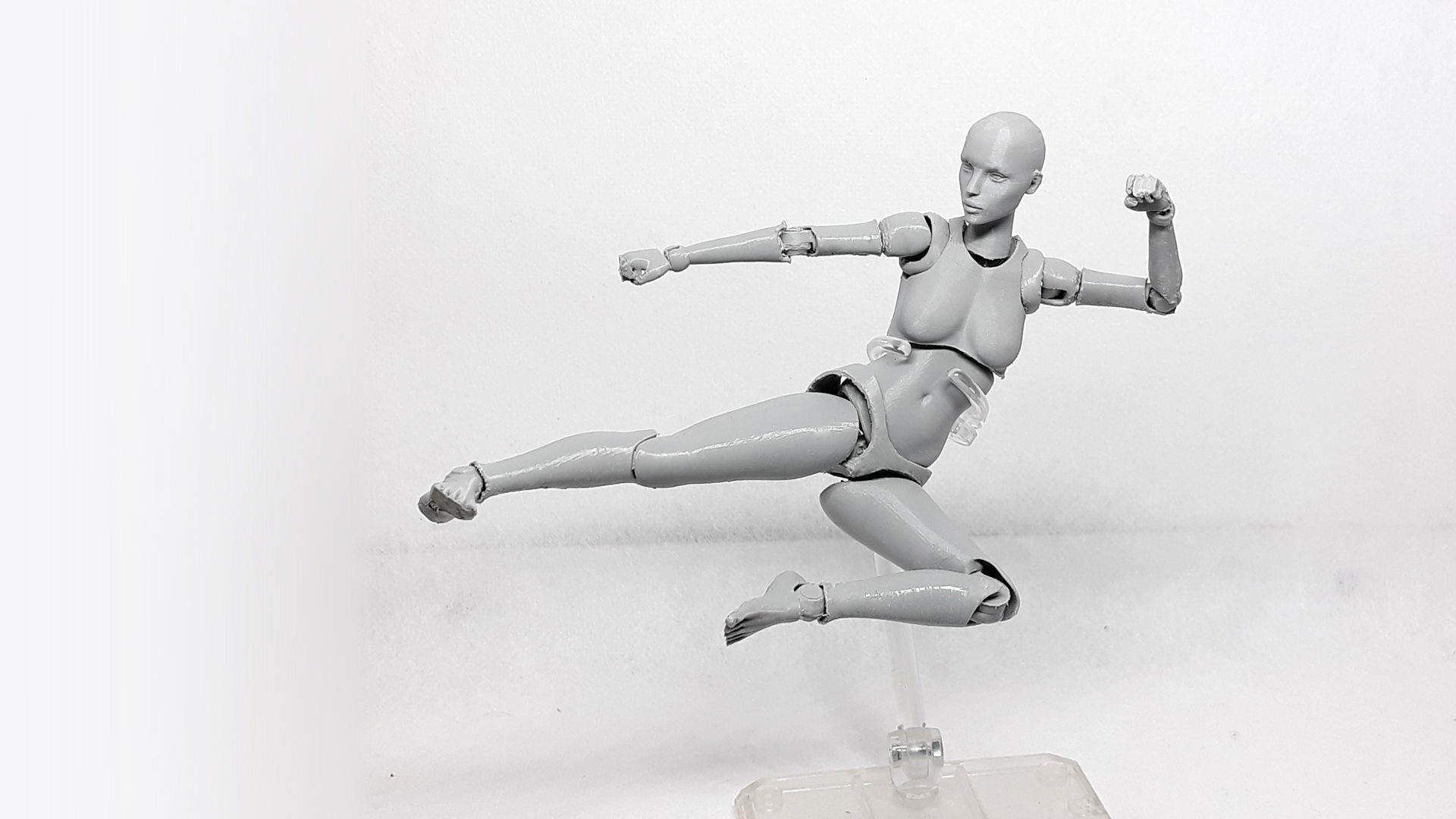

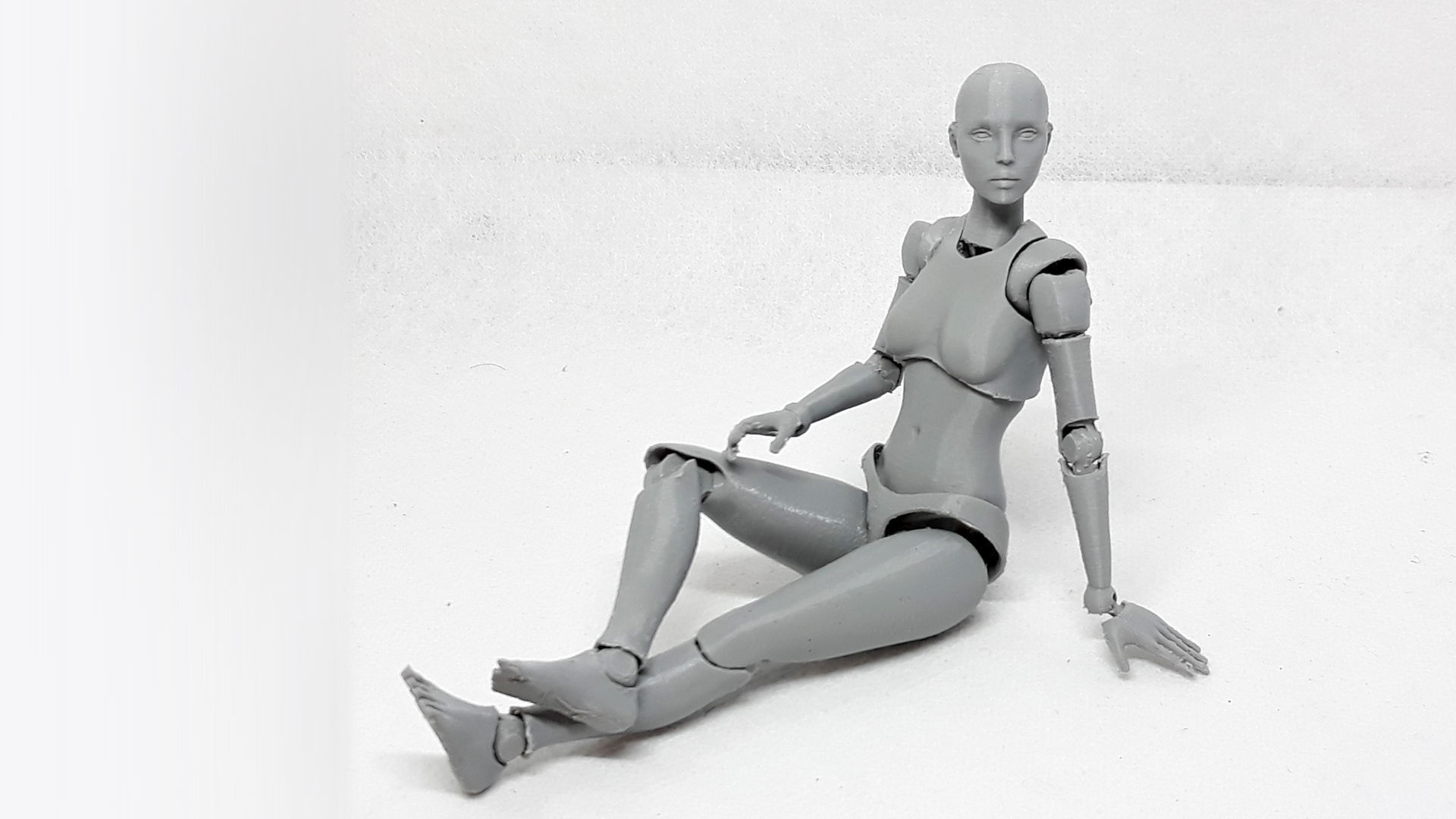

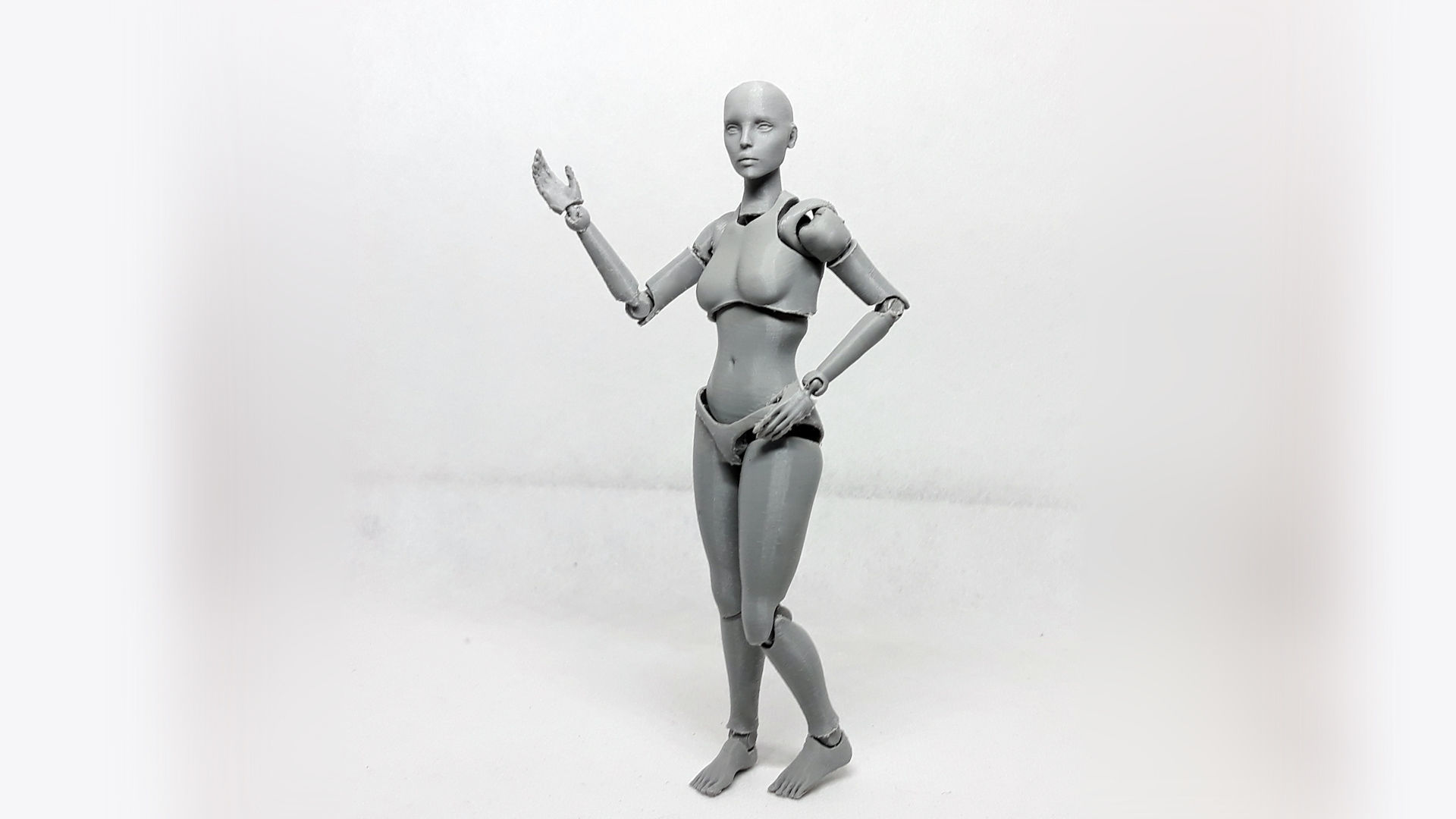

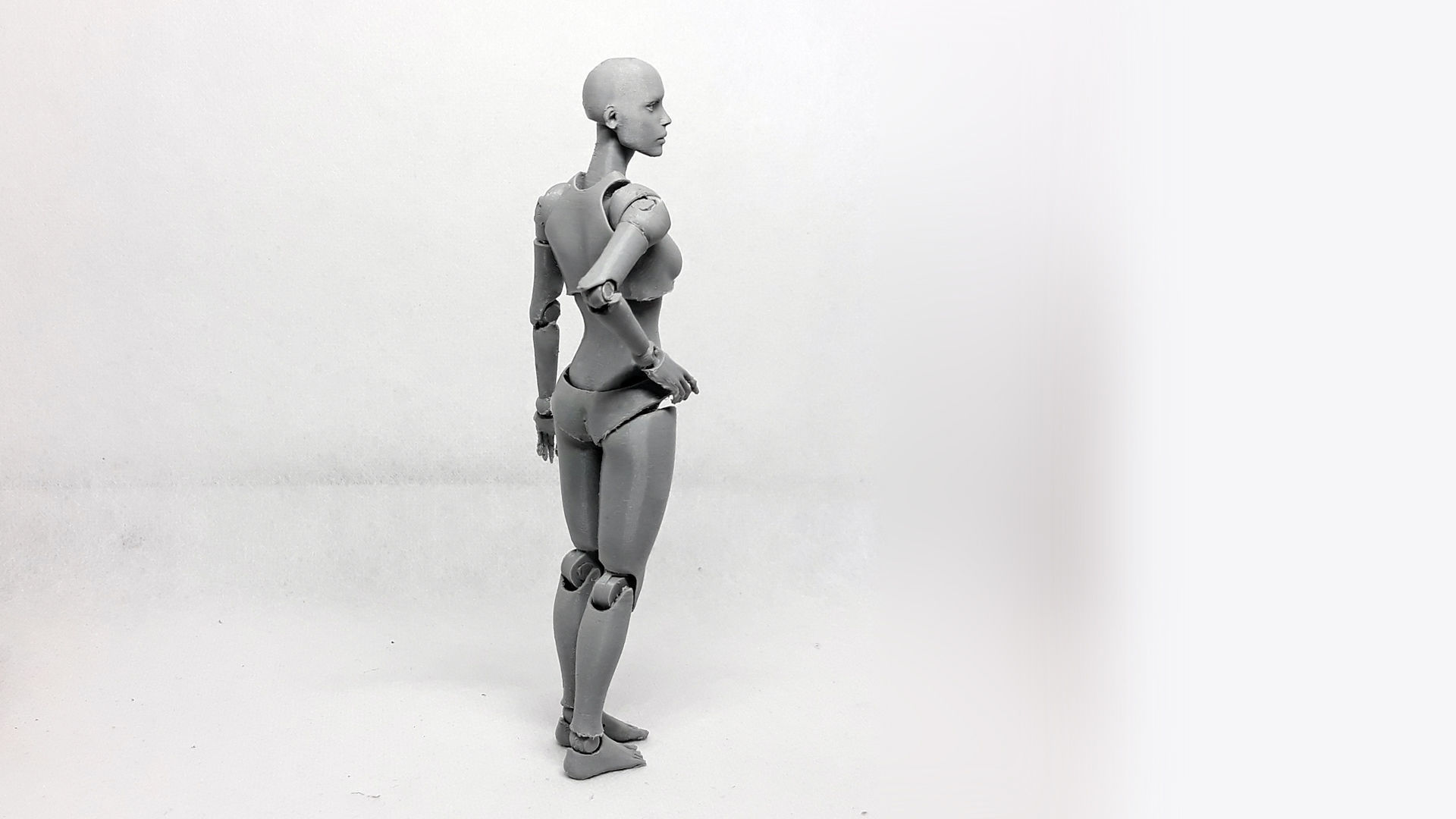

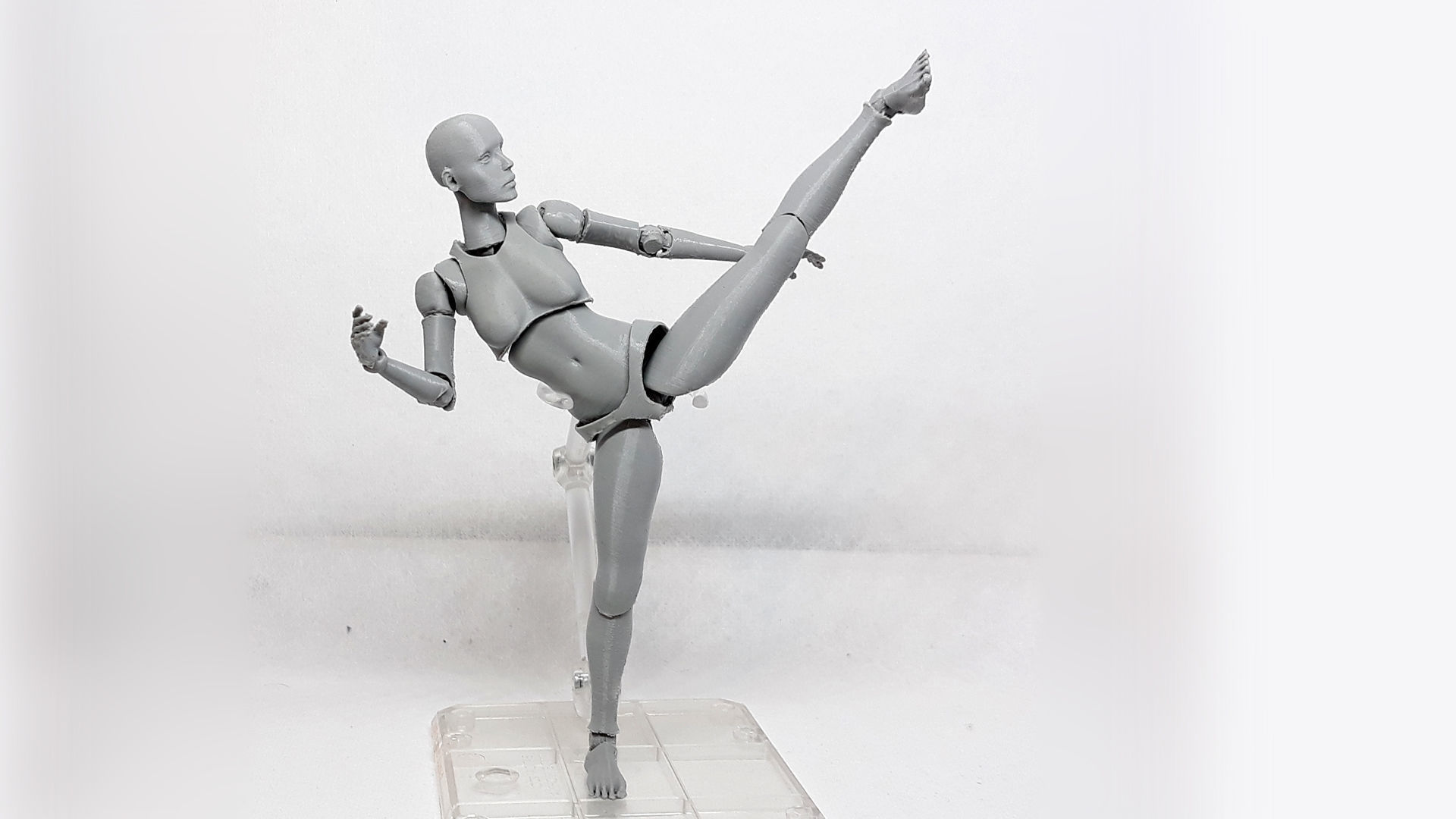

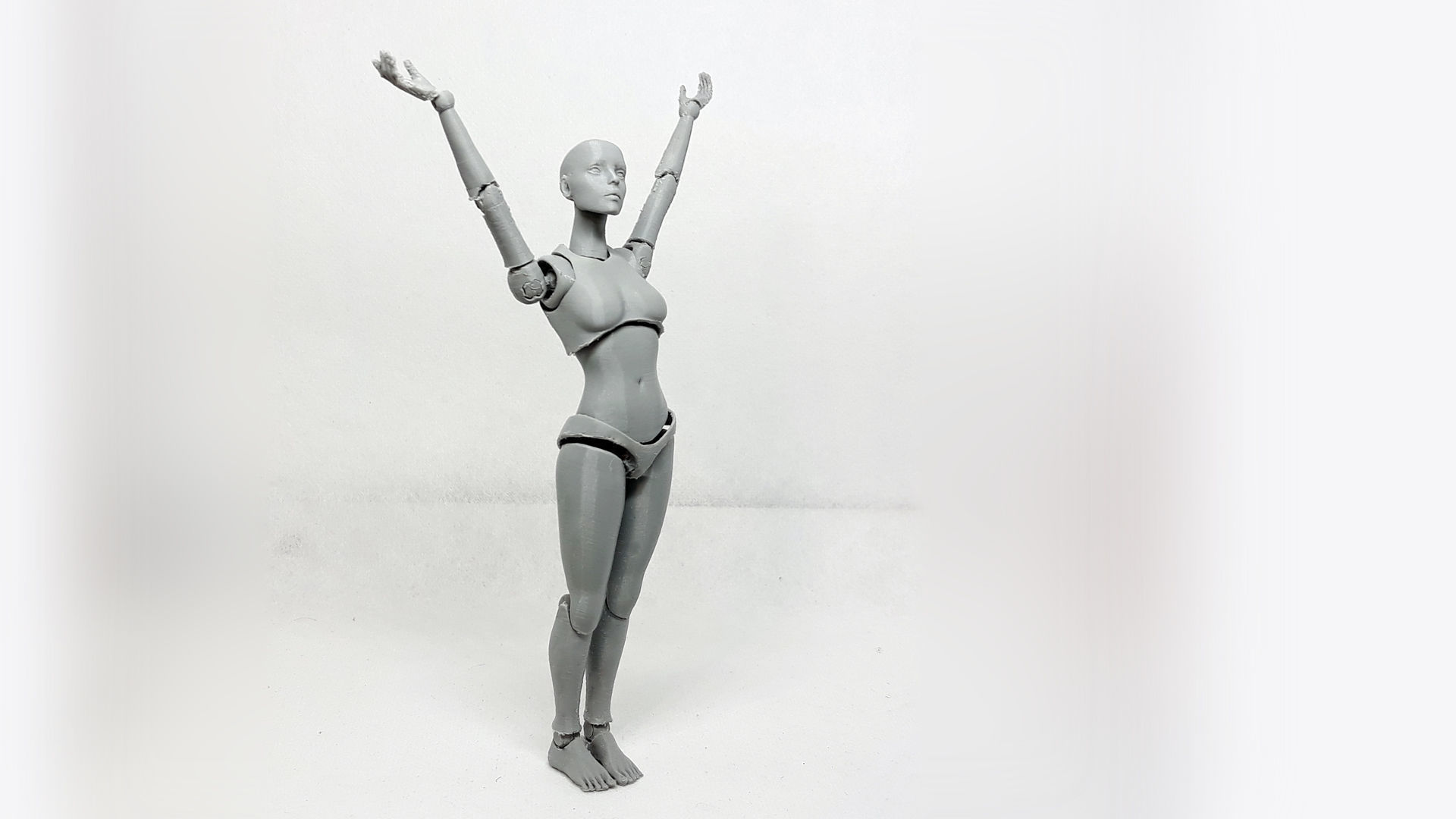

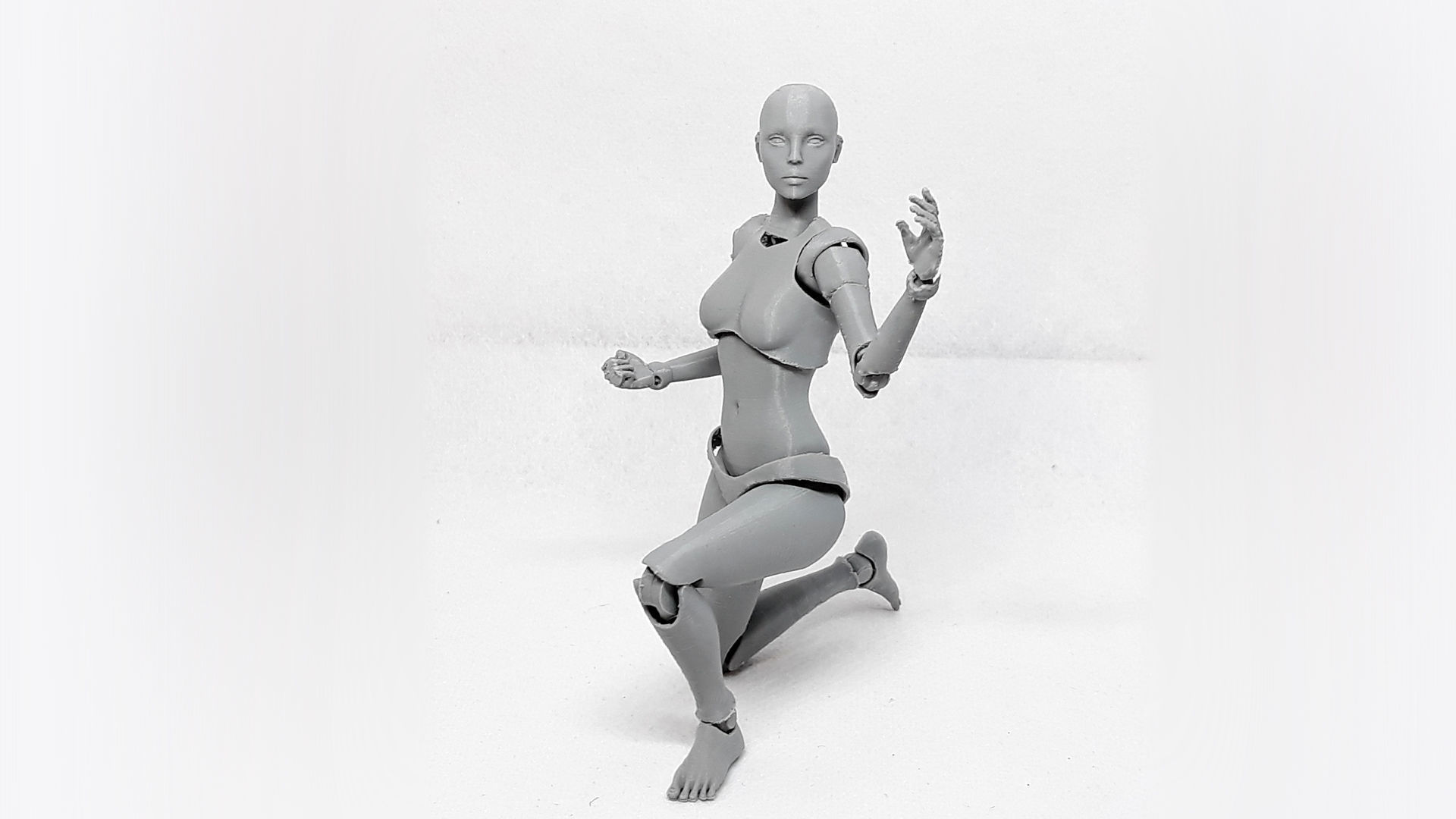

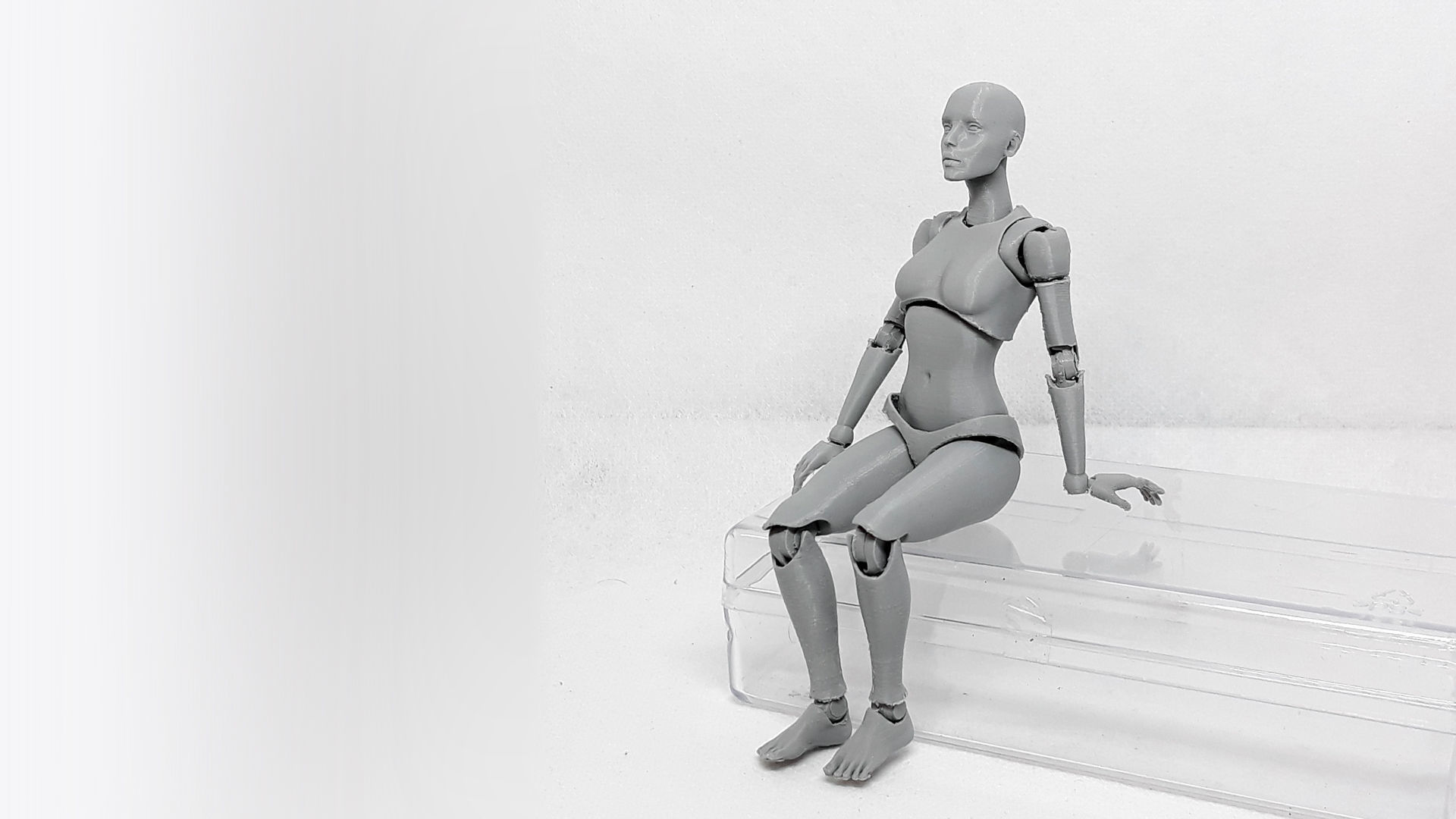

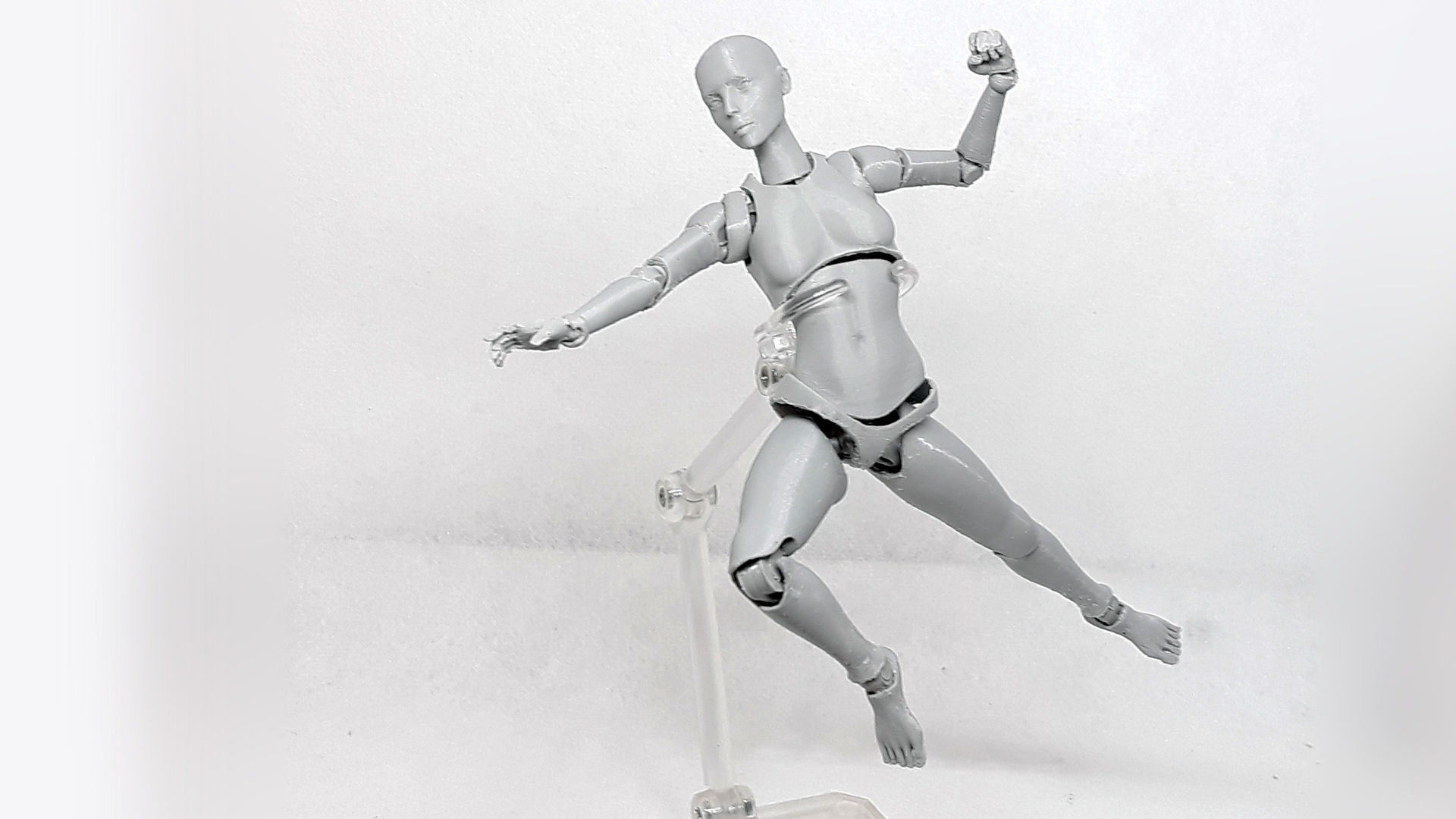

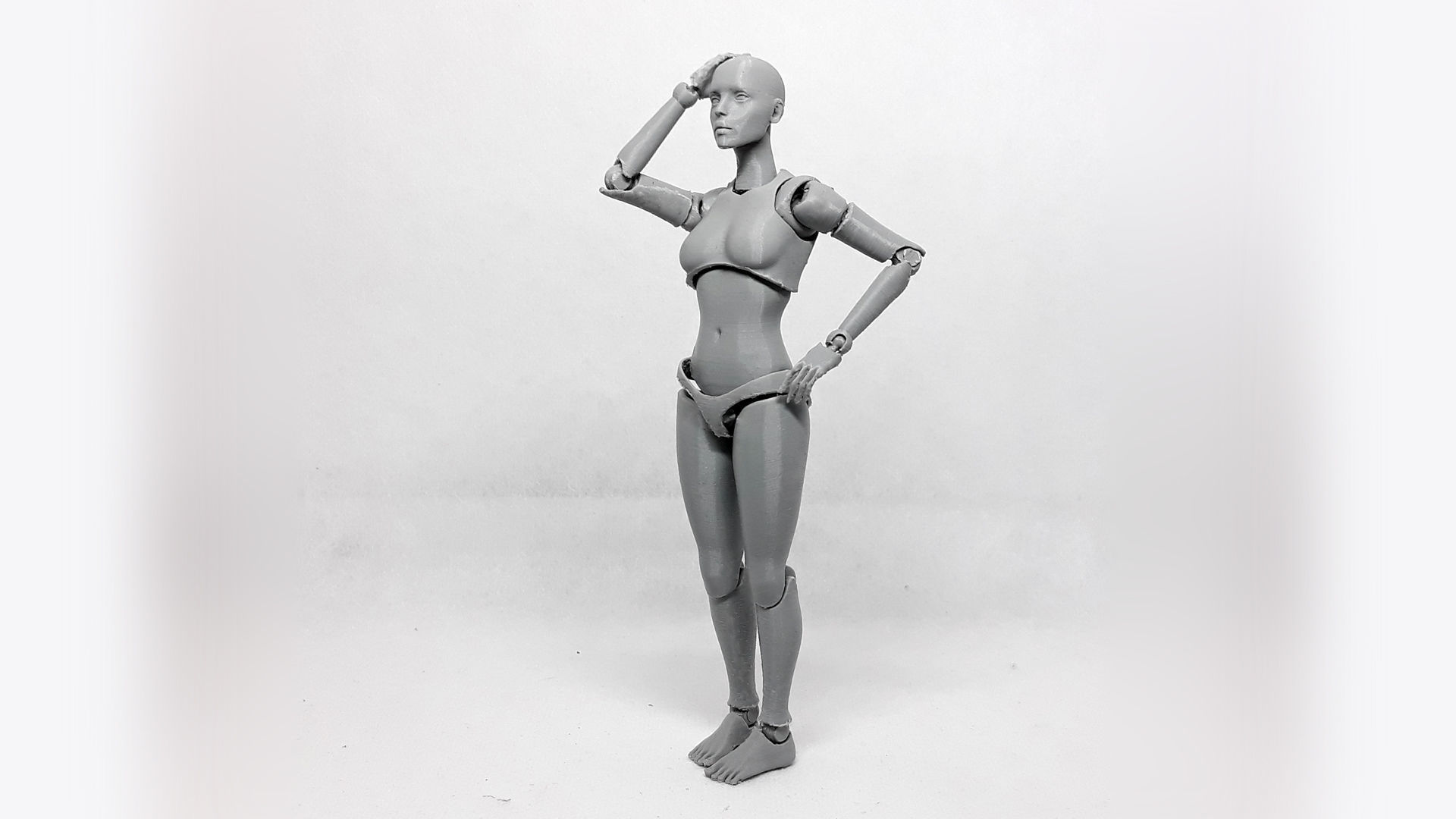

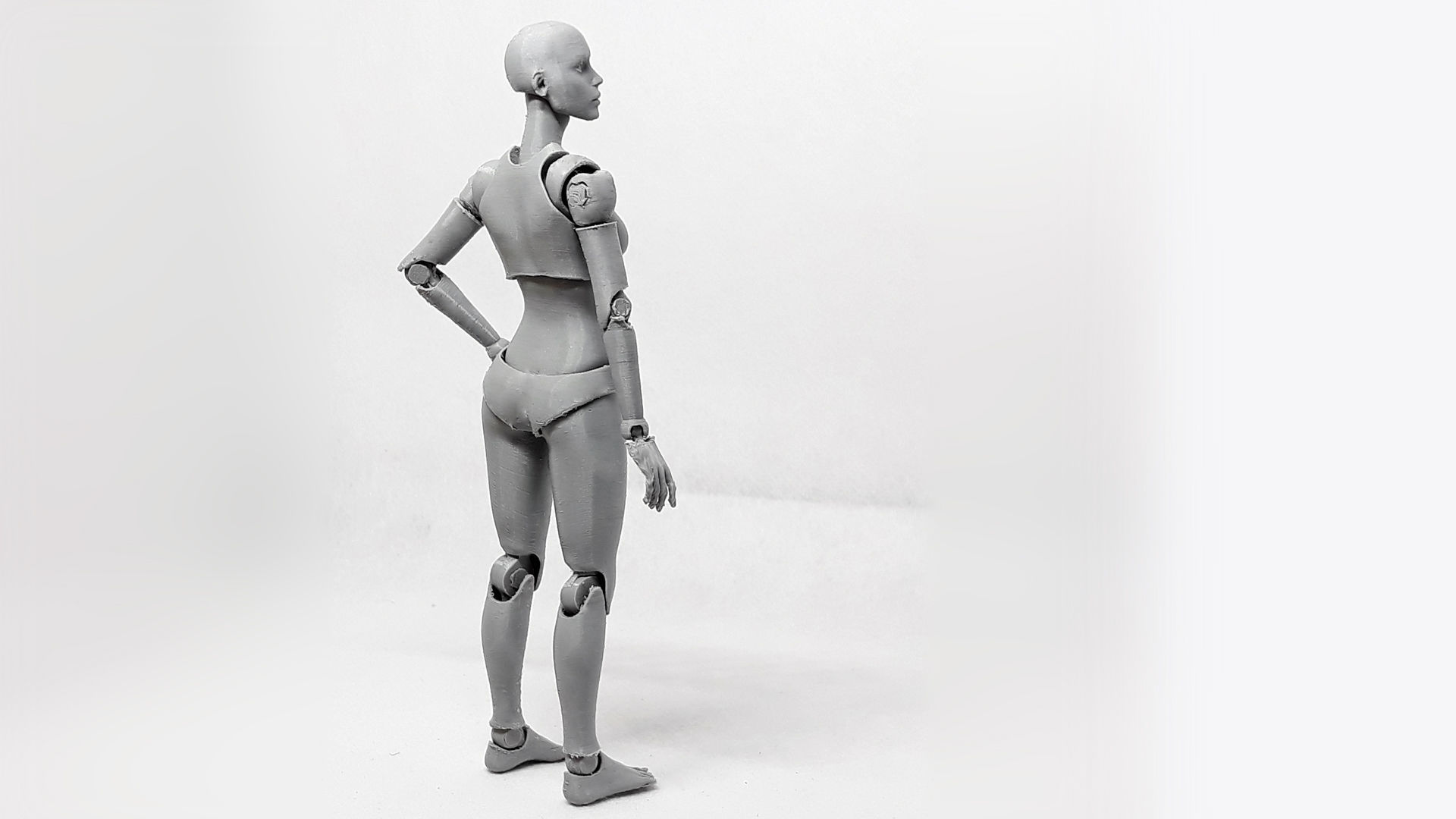

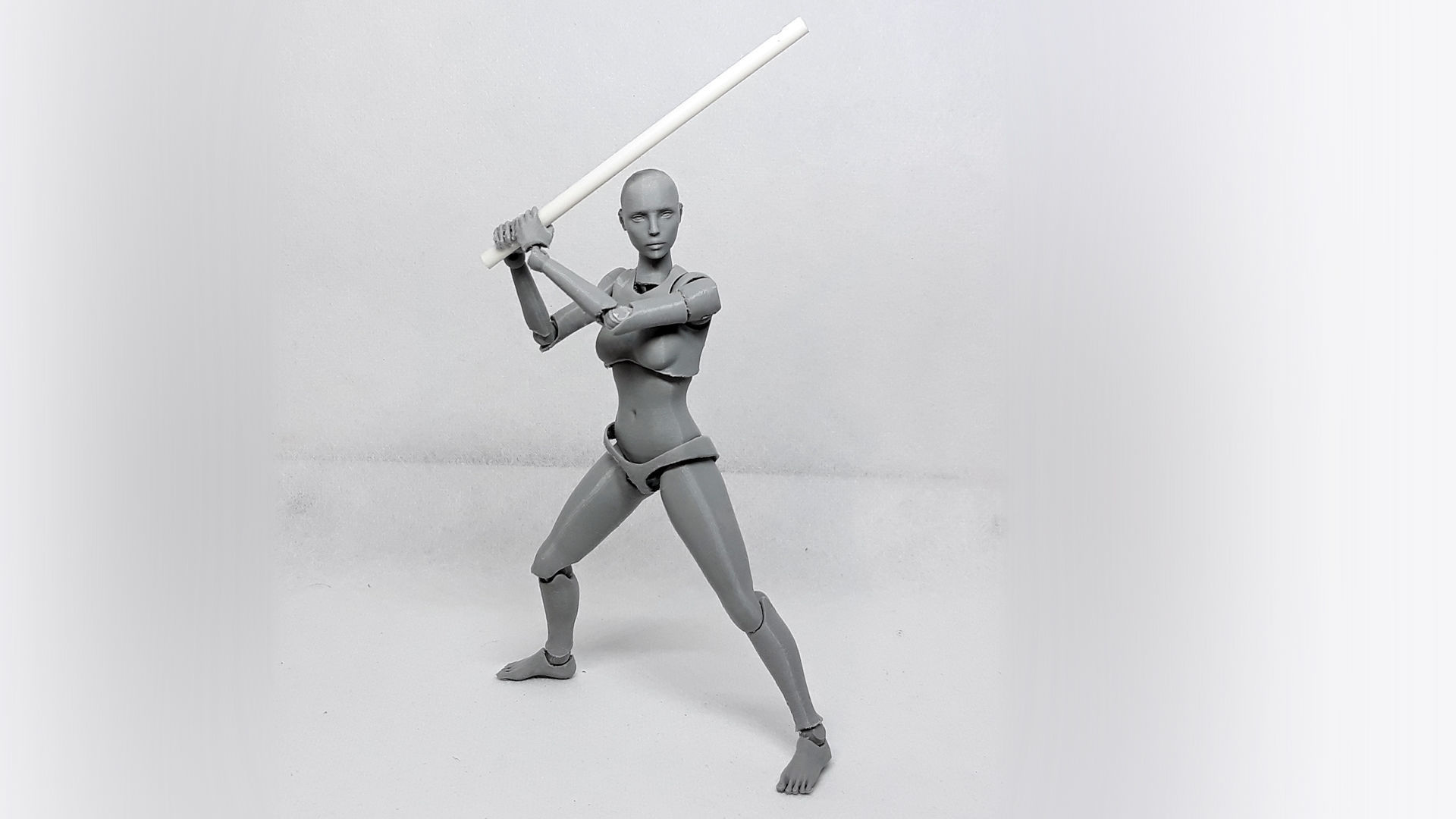

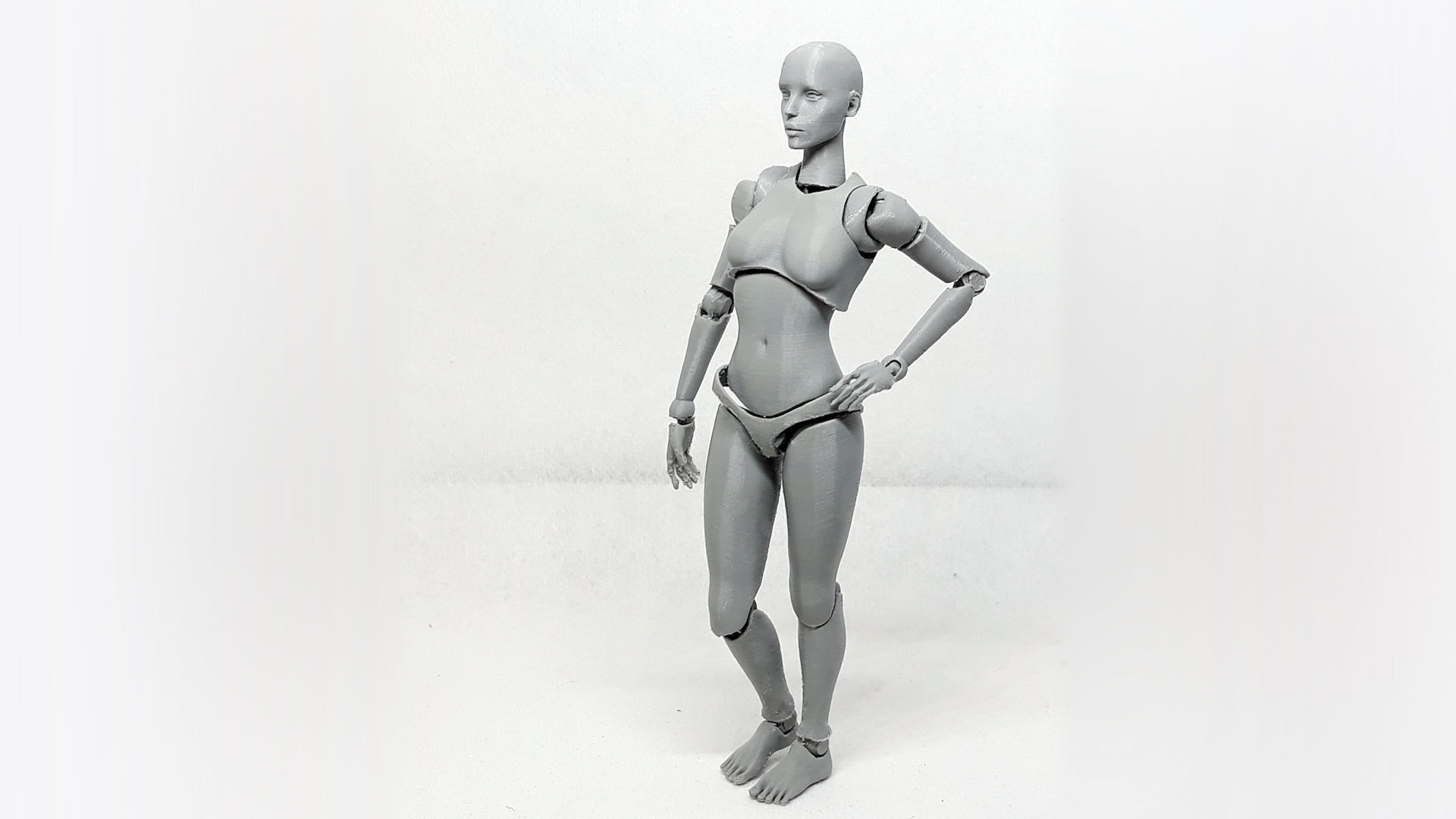

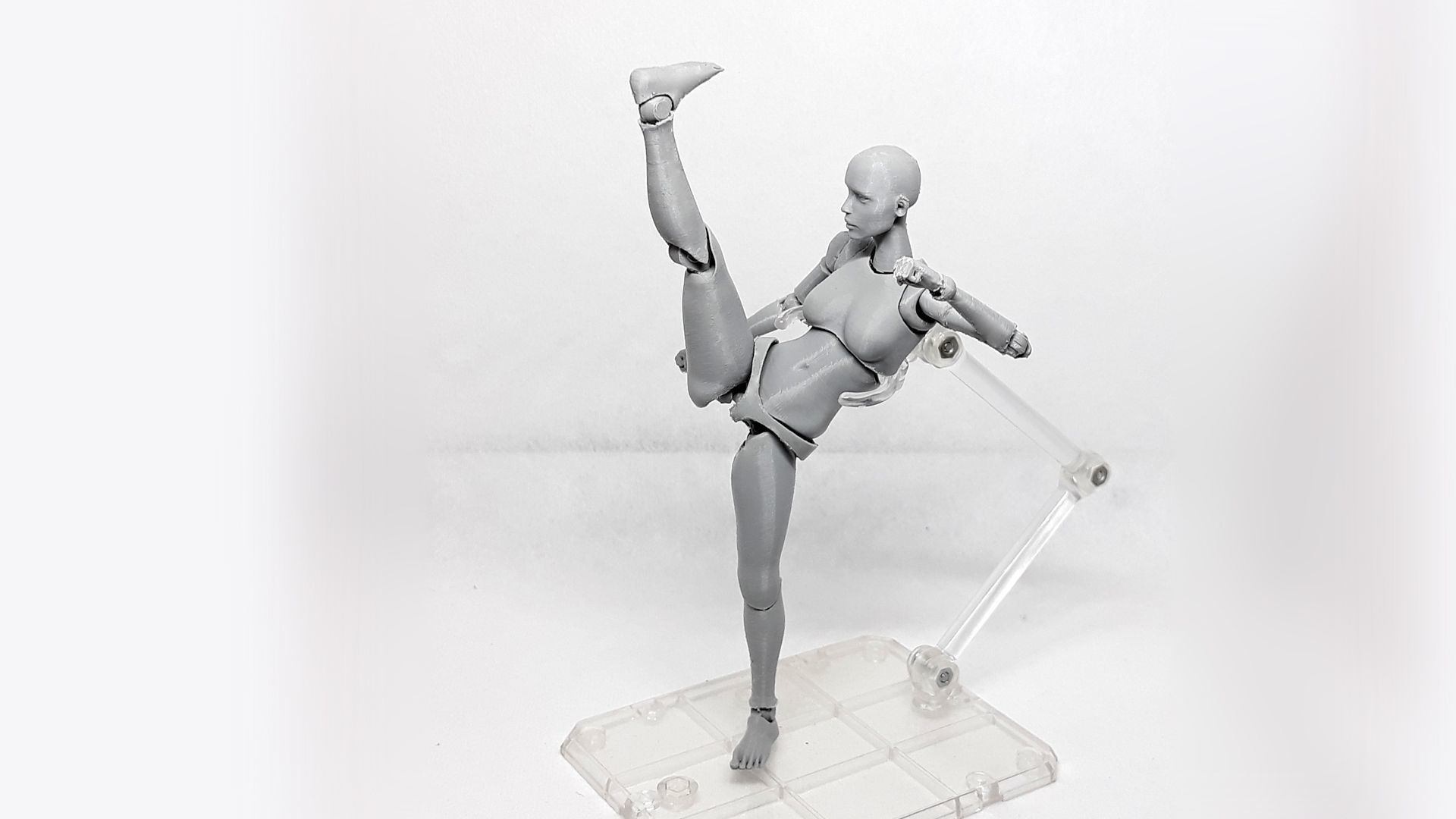

- A 3D printed 1/12 articulated action figure model for drawing
- Because of the difference in accuracy between 3d printers if the parts don't fit you can drill it or you can cut small parts of the plastic until it fit.
- assembling the 3D printed parts:
https://www.youtube.com/watch?v=H-qm-ExiUj0&feature=youtu.be
this model was printed by Ender 3 pro FDM printer with Esun PLA+ Filament so im not sure if it can be printed by resin printer.
this model is not recommended for completed beginners in 3d printing because it need some experience in 3d printing to be made.
3D printing settings:

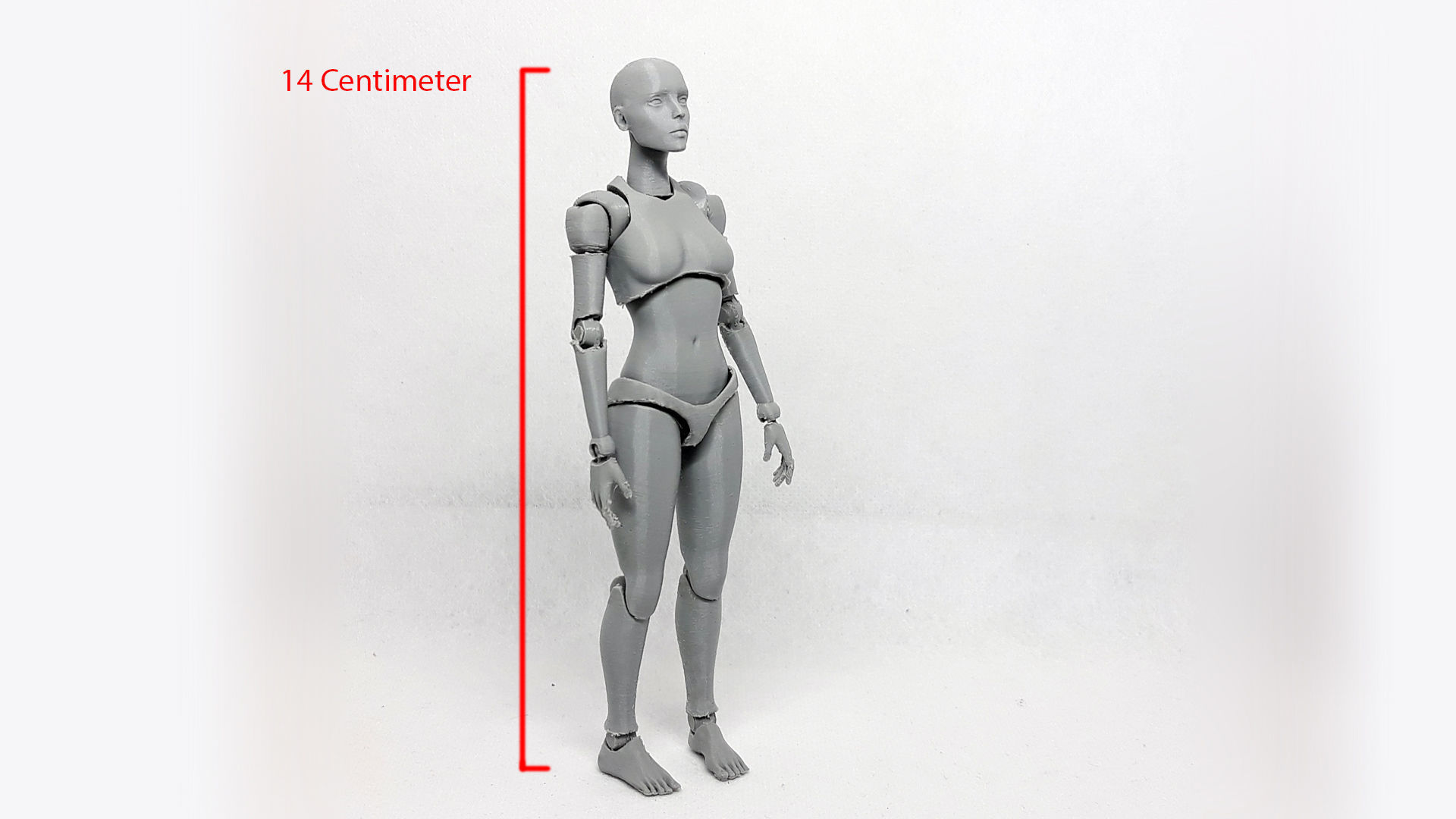

Object size: 15 X 4.5 Centimeter
Resolution: 0.1 mm
Nozzle: 0.4
Need Supports: Yes
Filament: PLA
Infill: 40%
initial layer height: 0.2
top/ bottom line width: 0.3
- shell
- wall thickness: 1.2
- prin speed: 42
- build plate adhesion type : brim
A
adel85 2021-09-29 11:20:33 UTCadel85
i'm not sure because i don't know anything about resin printing i only have an FDM printer
L
lorydawn lorydawn
I was able to get it to print with a resin printer. I used ABS like resin. I did have to do several prints to get all the parts, since they are so small I did loose a few in the resin ans sometimes the ball came out distorted but not every time so I was able to get the parts after a few tries. The parts were strong enough, yet a bit slippery so the joints slip out fairly easily, would be fine for careful posing but would not hold up to children playing with it.
abbadon32
Straight as an arrow, fast as lightning, reliable as a Swiss watch. Bravo!
