Pull down mechanism 001 3D print model

Description

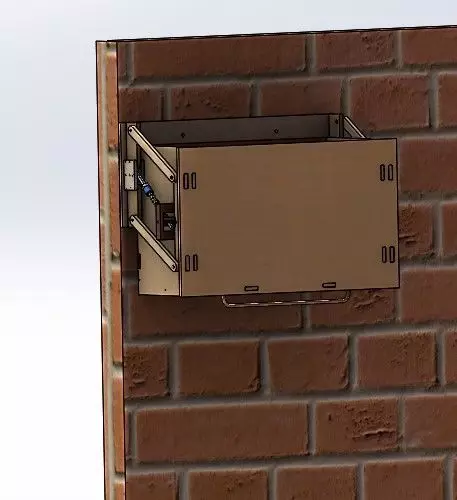

A pull-down mechanism. The distance of run is appr. 240mm. Most parts can be made from wood. What you need to get by yourself are some metal parts: E rings or circlips, bolts, nut(M3,M5),compression spring(inner diameter 10.5~11mm,wire diameter 1.5~2.5mm),some rubber material,glue, wood screws.This mechanism can be fixed on wall. DXF,STL, STEP, bill of material(BOM) and 2D drawing plan are included.Ignore the OBJ and FBX format files, they cannot be used, and they are just used to meet cgtrader's requirement.

Write comment
Item rating
0 0
Pull down mechanism 001
$3.90

Royalty Free License
Pull down mechanism 001
$3.90

Royalty Free License
Mmonk3947
monk3947
(13 reviews)
Response 100% in 3.1h
3D Modeling
3D Print Modeling
Low-poly Modeling
3D Scanning

3D Model formats

Format limitations
  • Stereolithography (.stl) (19 files)161 MB
  • Autodesk FBX (.fbx)57.3 KB
  • OBJ (.obj, .mtl)57.3 KB
  • DXF (.dxf) (9 files)230 KB
  • PDF (.pdf) (22 files)3.65 MB

3D Model details

  • Ready for 3D Printing
  • Publish date2021-07-20
  • Model ID#3163369
