Slide-In Lithophane Lamp Base 3D print model

After being unable to find the product I had in mind online, I decided to build my own personalizable lamp!

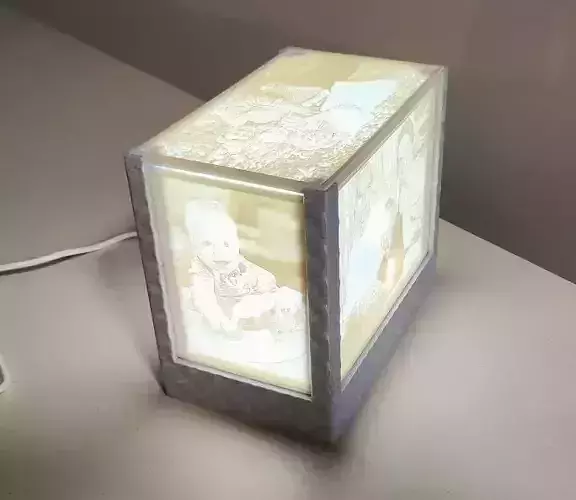

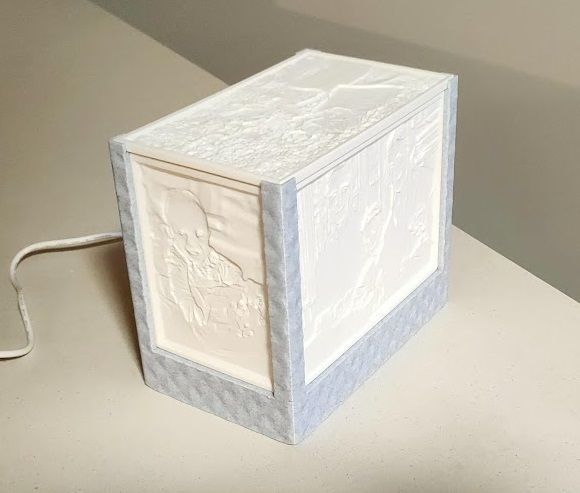

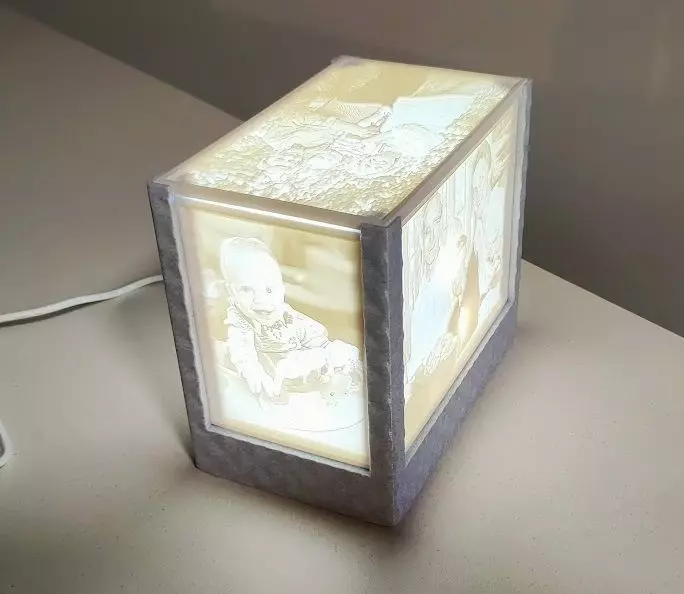

I present you a base for a lithophane lamp that uses 5 different images of your choosing.

This model will be updated many times in the future, newer versions and variations will always be available on this page

Main features:

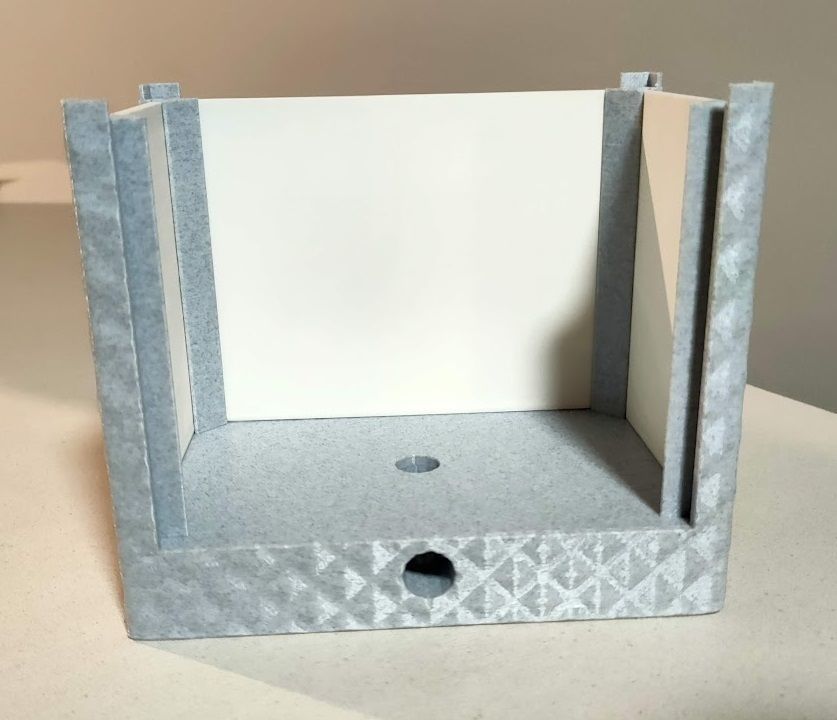

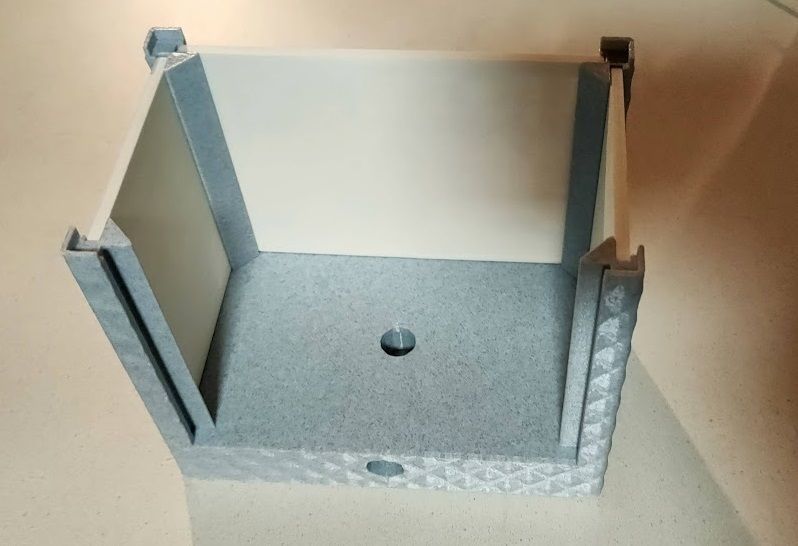

• Pre-made hole to install your lighting

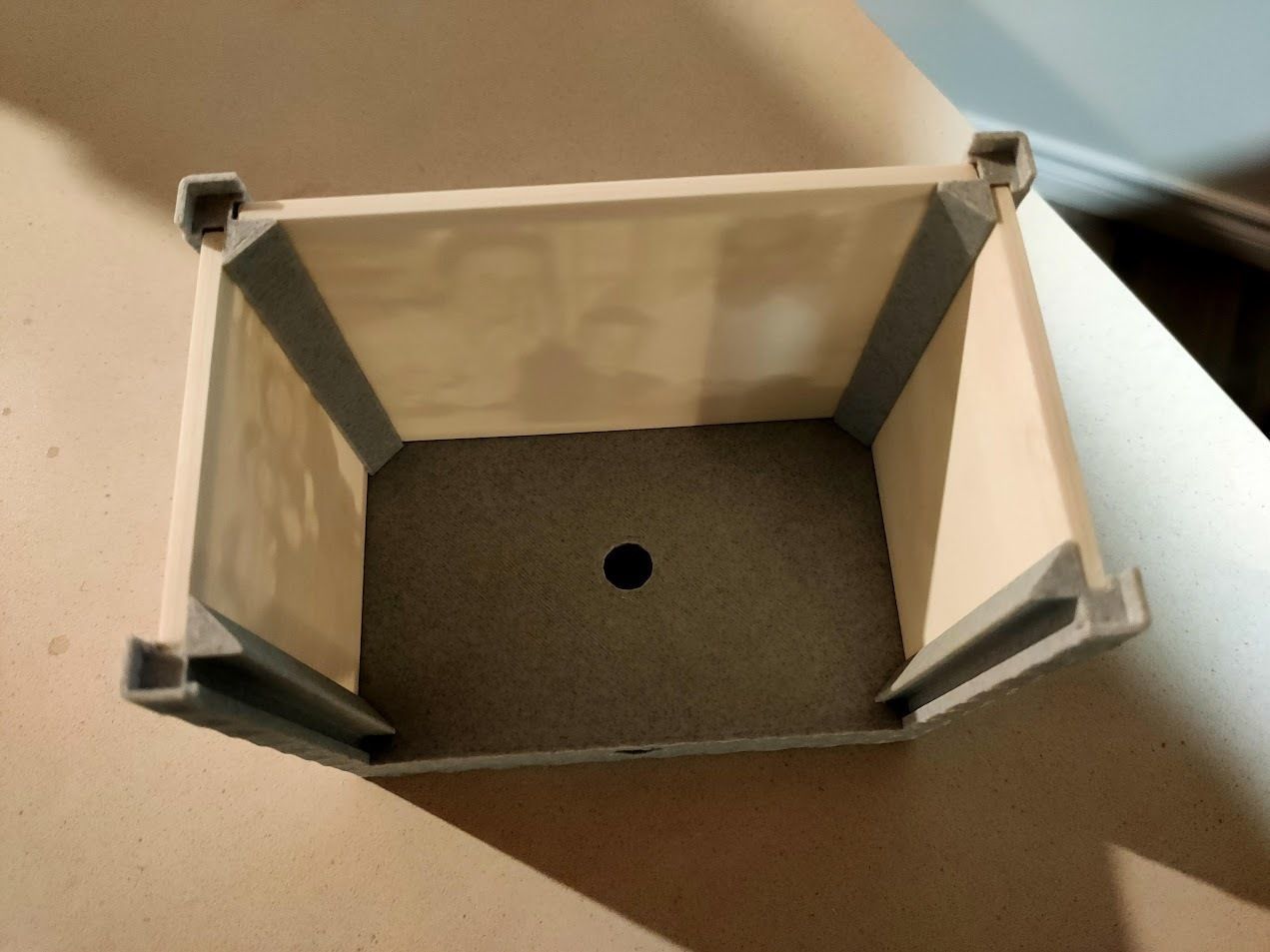

• Slide your lithophanes into the lamp (4 sides + 1 top)
• Change your pictures as needed

Let me know your questions and requests in the comment section, I will be happy to get back to you and consider your input for future versions!

Printing instructions:

The model is built with precise measurements, meaning that imperfections on the frame of your lithophanes (uneven layers, elephant foot, etc.) might have to be slightly sanded to slide in with ease.

I would recommend scaling the X and Y axis of the model to around 100.5% in your slicer to add a small amount of tolerance.

Print with at least 3 layers of walls to strenghten the vertical supports.

The current version of the model accomodates:

• 2 x Landscape oriented prints of 100 x 133 mm
• 2 x Portrait oritented prints of 75 x 100 mm
• 1 x Top image of 146 x 88 mm

Your frame needs to have a thickness of 4mm to fit in

Prepare your lithophanes with your favorite tool, mine is https://itslitho.com/
