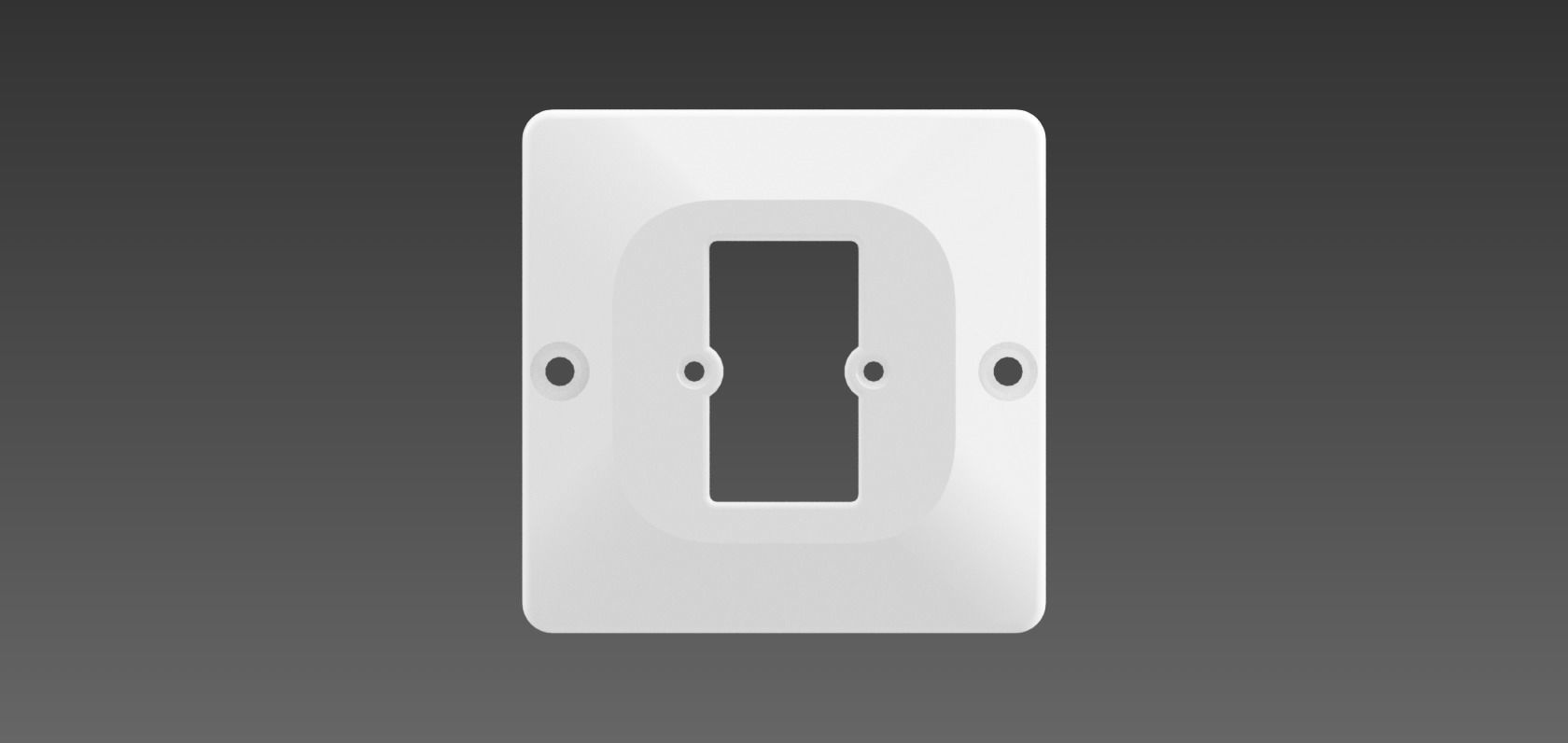

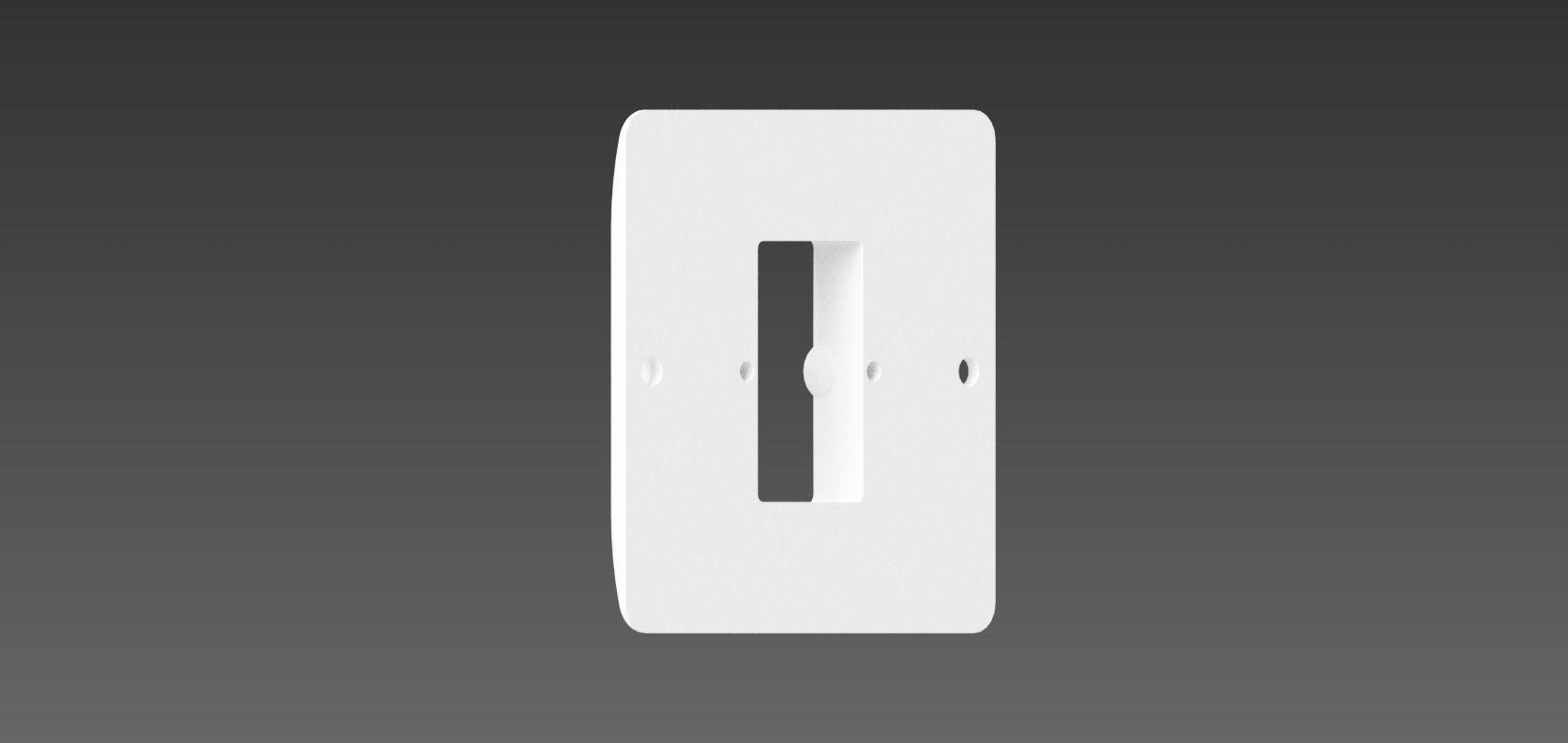

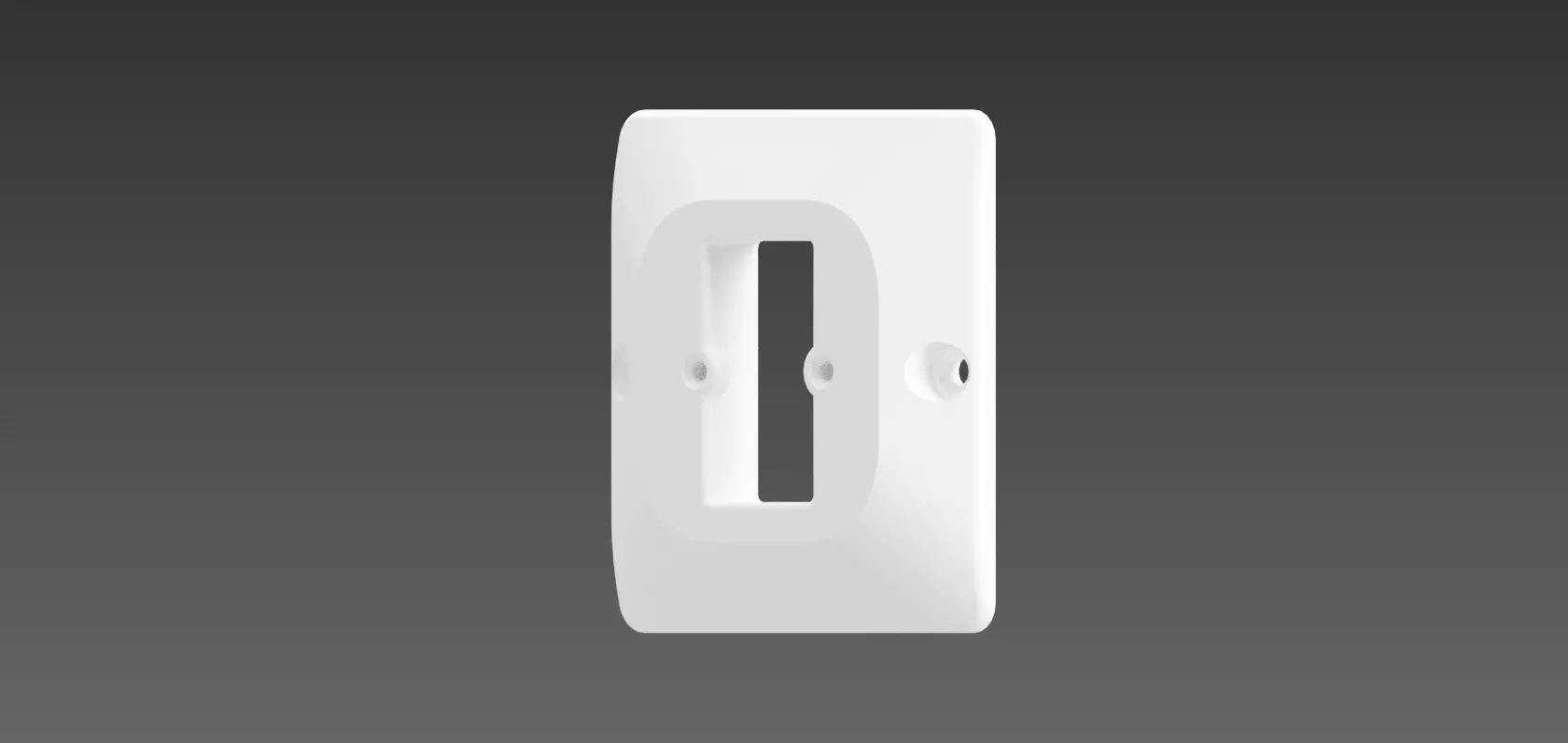

Ikea Tradfri Dimmer Adapter for Single UK Light Switch 3D print model

Use this adapter to mount your Ikea Tradfri Dimmer directly to an existing light switch plate. It's easy to install and gives easy access to the switch should you need it for any reason. Simply remove the existing screws from your light switch and screw the adapter on over the top. This looks best when used with flat switch plates but will function just fine with curved ones.

Hardware Required:

• 2 x M3x8mm countersunk screws

• May require longer M3.5 electrical screws depending on what is currently in your existing switch plate

Print Setting Suggestions:

• Supports - No
• Infil - 20%
• Layer Height - 0.12 (it has been tested up to 0.28 however you start to lose the definition of the curved face)

Dimensions:

• Overall - 70x70x10mm
• Distance between hole centers - 60mm
• Switch rocker gap - 20x30x10mm

Instructions:

1. Screw the dimmer's magnetic mount plate to the adapter using M3x8mm screws.
2. Remove the screws from the existing light switch.
3. Insert the screws into the adapter then back into the light switch.
4. Tighten with care as over tightening could damage the adaper.

This product will not work with dimmer or multi-switch plates.
